Samsung HW-E350 User manual

Crystal Surround Air Track
(Active Speaker System)
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
HW-E350

2
features

HDMI transmits digital video and audio signals simultaneously, and provides a clearer picture.
The unit is also equipped with the ARC function which lets you listen to sound from your TV via an HDMI cable
through the Crystal Surround Air Track. This function is only available if you connect the unit to an ARC compliant TV.

The 3D sound feature adds depth and spaciousness to your listening experience.

You can select from 7 different sound modes - MUSIC, NEWS, DRAMA, CINEMA, SPORTS, GAME, and OFF
(Original Sound) - depending on the type of content you want to enjoy.

The supplied remote control can be used to control the TV connected to this unit. (Works only for Samsung TVs)
The remote control has a TV hotkey that enables you to perform various operations with the simple press of a button.

This unit features an Active Speaker System that provides high sound quality in a single slim unit.
This unit does not require any satellite loudspeakers or speaker cabling, which are normally associated with
conventional surround sound systems.


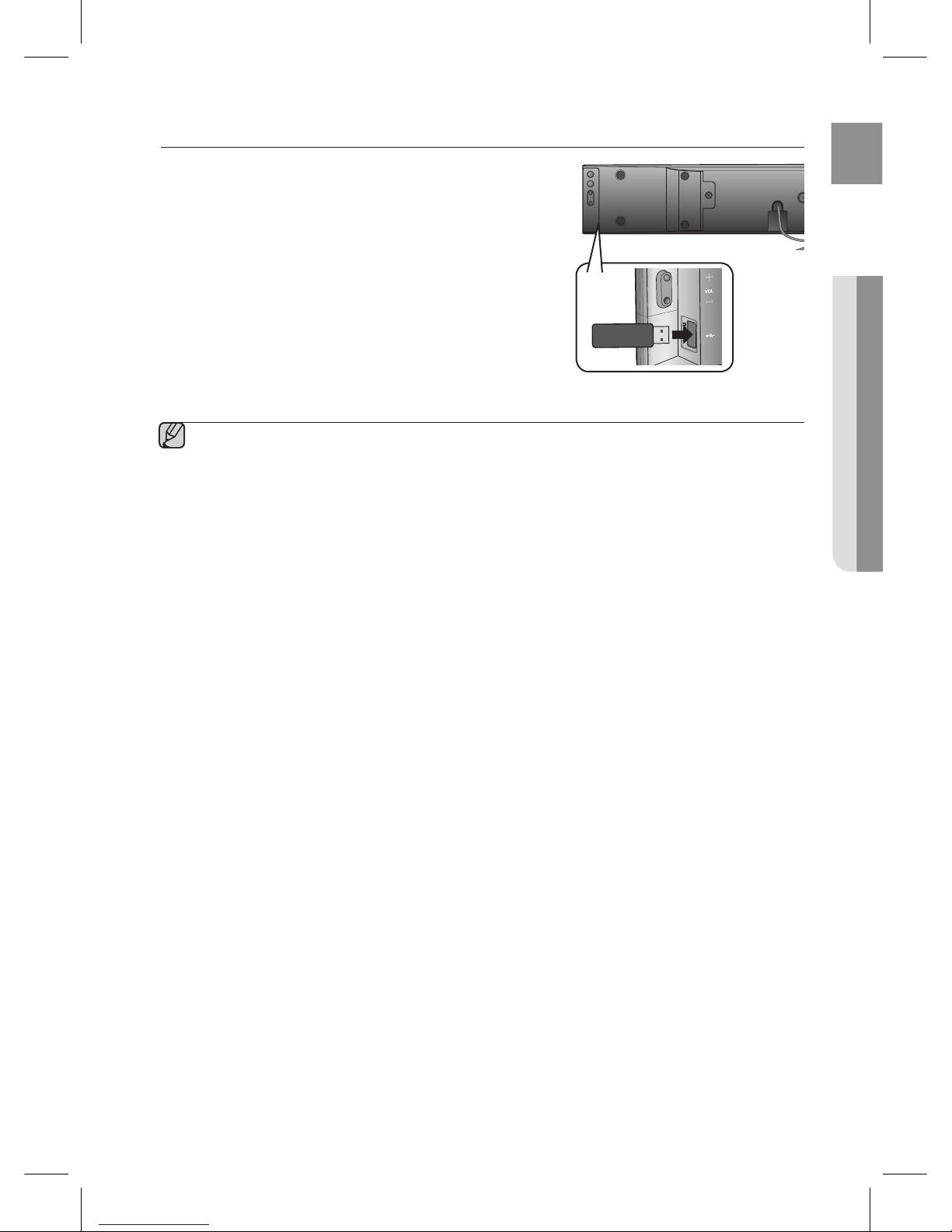

You can connect and play music les from external USB storage devices such as MP3 players,
USB ash memory, etc. using the Air Track's USB HOST function.

2.0 Channel
Dolby and the double-d symbol are registered trademarks of dolby laboratories.
2.0 Channel
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents
issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a
trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
- To send inquiries and requests regarding open sources, contact Samsung via Email ([e-mail]).
This product uses some software programs which are distributed under the Independent JPEG Group. •

3
EnG
safety information

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION


This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions
accompanying the product.
 : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
 : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
•
This apparatus shall always be connected to a AC outlet with a protective grounding connection.
•
To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains
plug shall be readily operable.

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the
apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power
plug must be easily and readily accessible at all times.


The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated
on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of
the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power
point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not
connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord.
Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times.

The wires in the mains lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:–
The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK.
The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

 

4


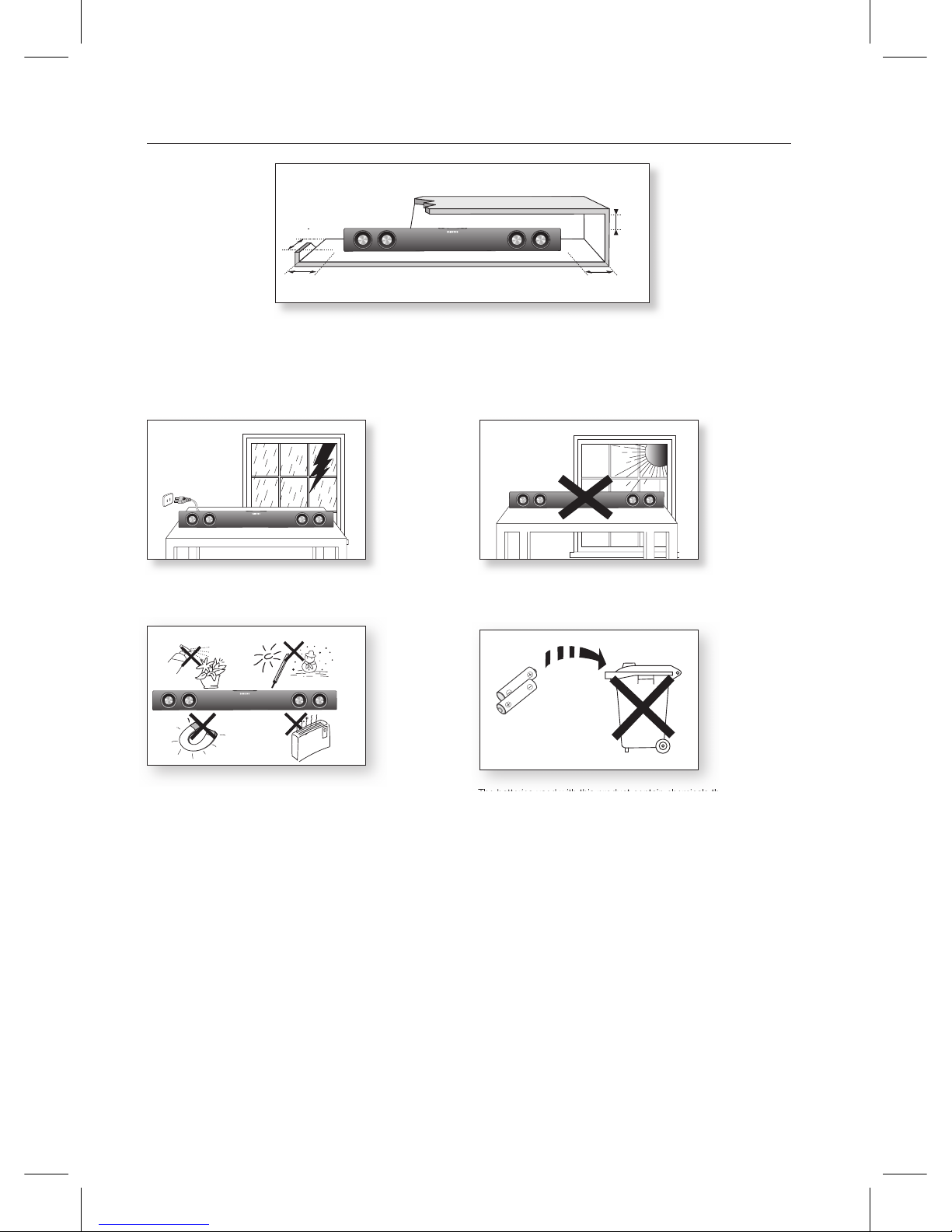

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the
back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10
cm). Make sure the ventilation slots are not covered. Do not place the
unit on amplifiers or other equipment which may become hot. This
unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to
leave it unused for a long period of time.
During thunderstorms, disconnect the AC plug from the
wall outlet. Voltage peaks due to lightning could damage the unit.
Protect the
product from moisture (i.e. vases) , and excess heat
(e.g.fireplace) or equipment creating strong magnetic or electric fields
Disconnect the power cable from the AC supply if the unit malfunctions.
Your
product is not intended for industrial use. Use of this product is for
personal use only.
Condensation may occur if your product has been stored in cold tem-
peratures. If transporting the
unit during the winter, wait approxi mately 2
hours until the unit has reached room temperature before using.
Do not expose the unit to direct sunlight or other heat sources.
This could lead to overheating and malfunction of the unit.
The batteries used with this product contain chemicals that are harmful to
the environment.
Do not dispose of batteries in the general household trash.
The batteries used with this product contain chemicals that are harmful to
Phones
3.9 inch 3.9 inch
2.7 inch
3.9 inch

 


5
EnG
contents

2
2 Features
2 License

3
3 Safetywarnings
4 Precautions

6
6 Beforereadingtheuser’smanual
6 What’sincluded

7
7 Front/RearPanel

9
9 Touroftheremotecontrol

10
10 Installingthewallmount
11 InstallingtoroidalferriteHDMIIN/OUT
11 Installingferritecoretoaudiocable
12 ConnectingtheCrystalSurroundAirTrack

20
20 Troubleshooting

21
21 Specications

14
14 Basicfunctions
15 Advancedfunctions
19 Softwareupgrade

6


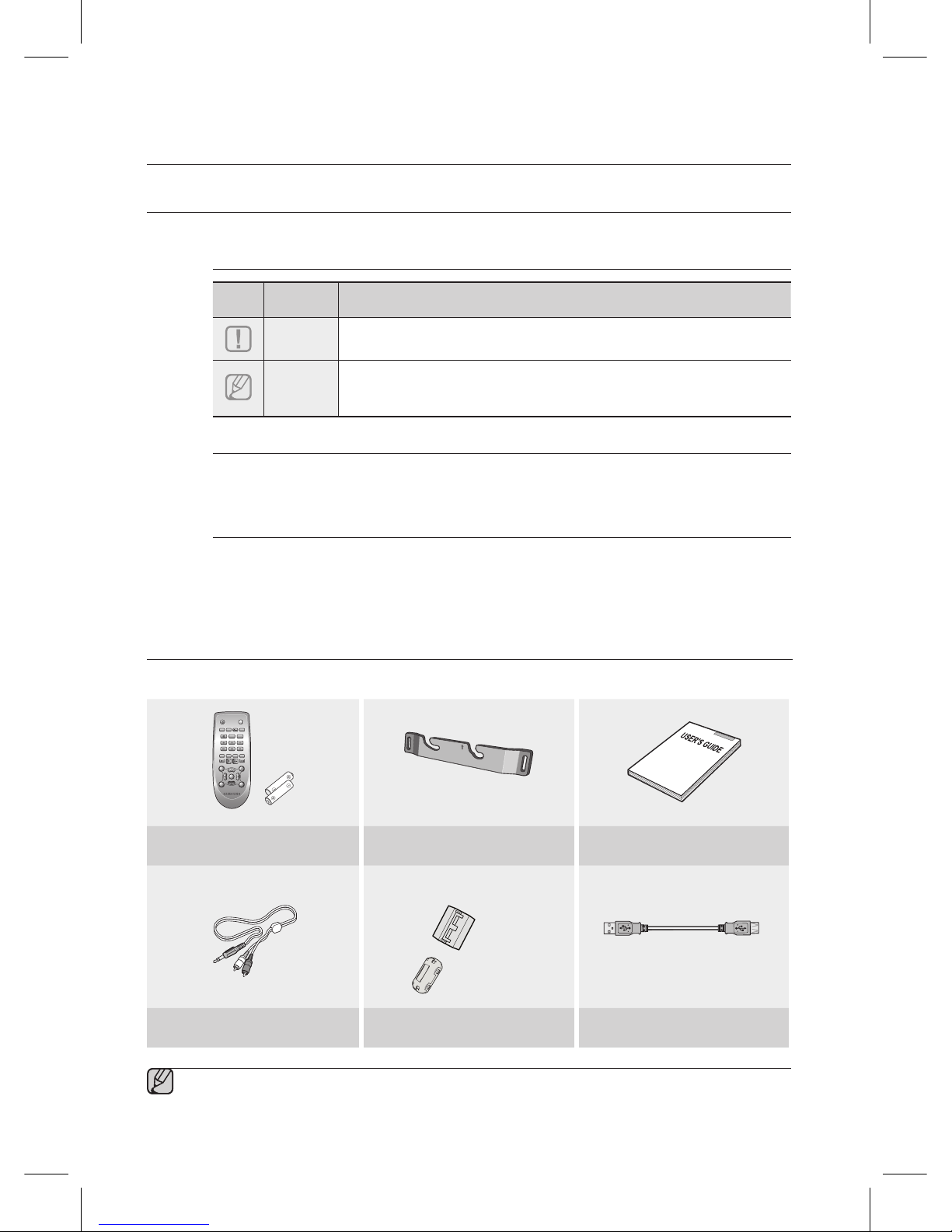

Note the following terms before reading the user manual.

  

Indicates a situation where a function does not operate or settings may be
canceled.

Indicates tips or instructions on the page that help each function operate.

Be sure to be familiar with the Safety Instructions before using this product. (See page 3)
If a problem occurs, check Troubleshooting. (See page 20)

©2012 Samsung Electronics Co.,Ltd.
All rights reserved; no part or whole of this user’s manual may be reproduced or copied without the prior
written permission of Samsung Electronics Co.,Ltd.
1)
2)
getting started
The appearance of the accessories may differ slightly from the illustrations above.
Use the dedicated USB cable to connect external USB devices to the unit.
▪
▪

Check for the supplied accessories shown below.
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SATMUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
  
(For HDMI cable 1EA)
(Large)
(Small)
(For Audio cable 1EA)
  

7
EnG

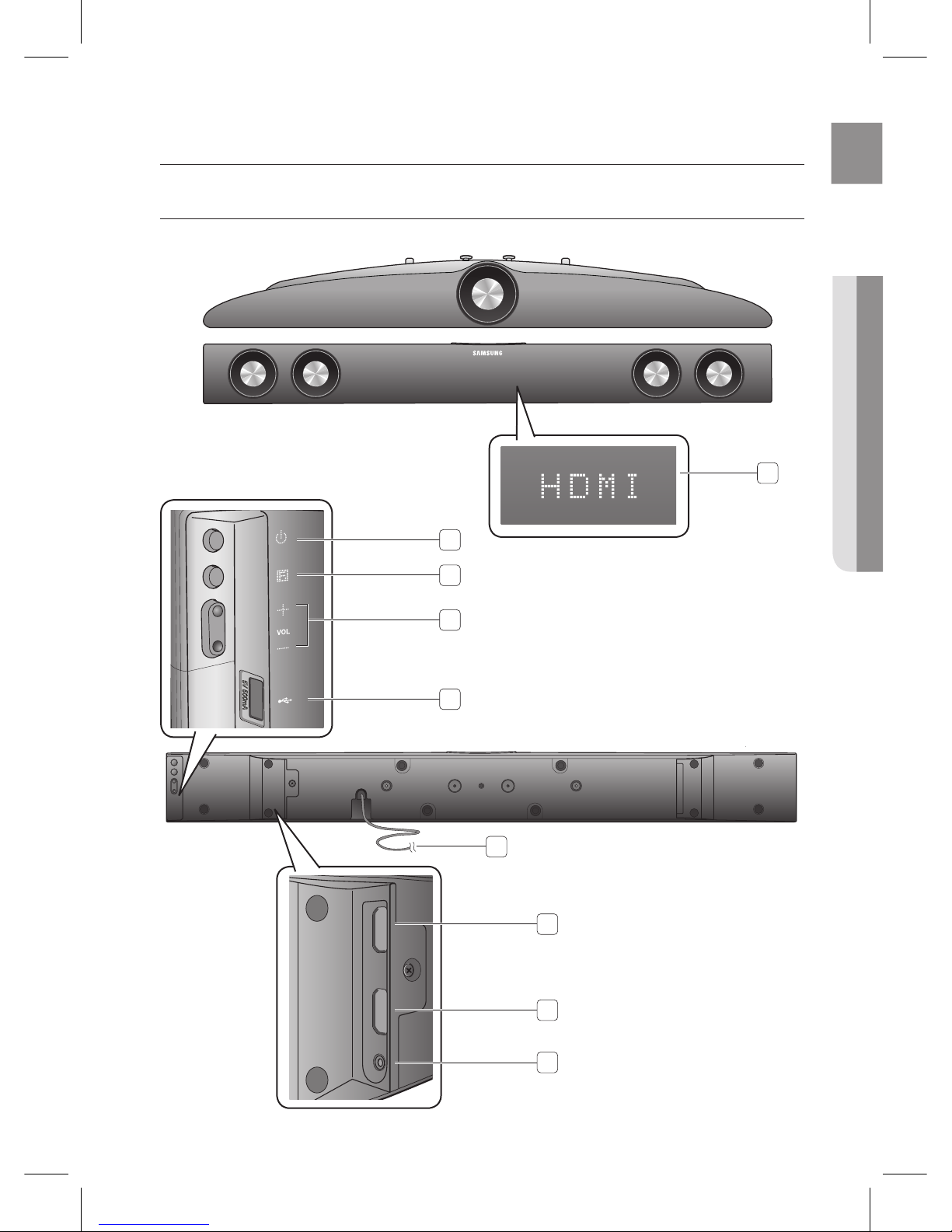

●DEscription
descriptions

5V 500mA
HDMI OUT AUX IN
HDMI IN
1
2
3
4
5
7
8
9
6

8
 Displays the current mode.
 Turns the Crystal Surround Air Track on and off.

 Selects the AUX, HDMI, USB, ARC input.
 Controls the volume level.
 Connect here and play les from external USB storage devices
such as MP3 players.
6


Plug the power supply cable into the AC wall outlet.
7

Outputs digital video and audio signals simultaneously using an
HDMI cable.
8

Receives digital video and audio signals simultaneously using an
HDMI cable.
9 Connect to the Analog output of an external device.
When you turn on the power of this unit, there will be a 4 to 5 second delay before it
produces sound.
▪

9
EnG
●rEmotE control
remote control

SAT stands for Surround Air Track, which is a Samsung’s proprietary name.
The remote control can operate TVs made by SAMSUNG only.
Depending on the TV you are using, you may not be able to operate your TV with this remote control. If you can't,
operate the TV using the TV's remote control.
▪
▪
▪

1. Lift the cover at the back of
the remote control upward as
shown.
2. Install two AAA size batteries.
Make sure to match the “+” and “–” ends
of the batteries with the diagram inside the
compartment.
3. Replace the cover.
Assuming typical TV usage,
the batteries last for about
one year.

You can use the remote control up to 23 feet (7 meters) in a straight line from the unit. You can also operate the
remote at a horizontal angle of up to 30° from the remote control sensor.
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART 3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE

Turns the Crystal Surround Air
Track on and off.

Mutes the sound from the unit.
Press again to restore the sound
to the previous volume level.

Turns your Samsung TV on and off.

Selects the Sound Effect:
(MUSIC, NEWS, DRAMA,
CINEMA, SPORTS, GAME, OFF
(Original Sound))

Play, pause or stop playing a
Music file, or search for the
Music file next or back.

Select Repeat File, All, Random.

Press to select a connected SAT
source. (SAT:Surround Air Track)

Anynet+ is a function that enables you
to control other Samsung Devices with
your Samsung TV's remote control.

Adjusts the Subwoofer level.
Used to help sync video to audio
when connected to a digital TV.

You can use this function to enjoy
Dolby Digital sound when
watching movies at low volume at
night (Standard, MAX, MIN).
You can control the brightness of
the Display.

Switches between the available
TV channels.
Adjusts the TV volume level.

This button allows you to choose to
listen to audio from the Air track or
your TV. (This function supports the
via an HDMI cable.)

Adjusts the volume level of the unit.

Press to select a connected TV's
video source.

Mutes the sound from the TV.
Press again to restore the sound
to the previous volume level.

Exits TV (functions same as the
EXIT button of the TV remote
control)

Regulates and stabilizes the
volume level against a drastic
volume change.
This feature adds depth and
spaciousness to the sound.

Display current TV status.

Moves to the previous TV channel

10


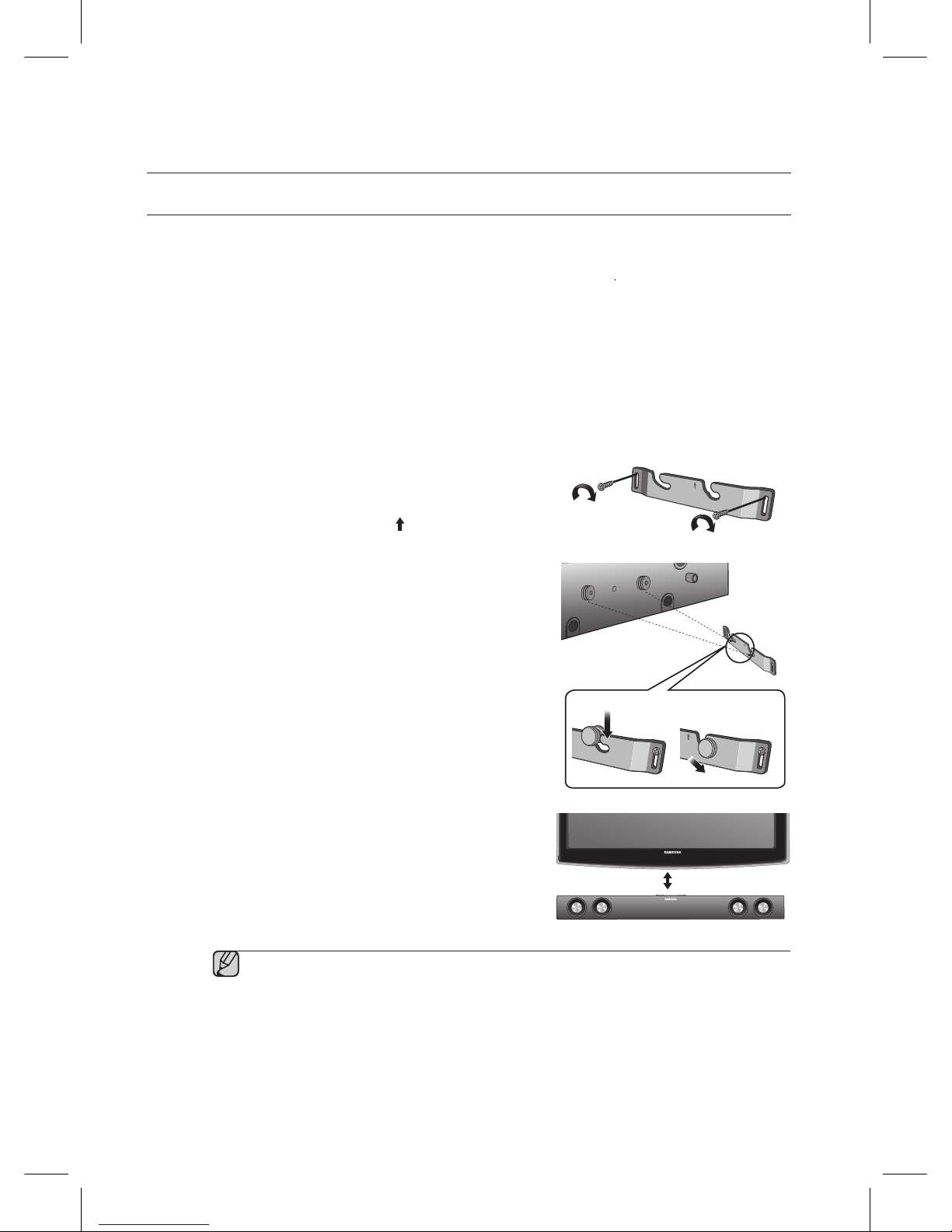

You can use the wall mount bracket to mount this unit on a wall.
Do not hang onto the installed unit and avoid any impact to the unit.
Secure the unit  rmly to the wall so that it does not fall off. If the unit falls off, it may cause
an injury or damage to the product.
When the unit is installed on a wall, please make sure that children do not pull any of the
connecting cables, as it may cause it to fall.
For the optimal performance of a wall mount installation, keep the speaker system at least
2 inches (5 cm) away from the TV.
▪
▪
▪
▪
 Fit the unit into the corresponding slots of the wall mount
bracket. For secure installation, make sure the mounting
studs slide  rmly down into the bottom of the slots.
 Place the wall mount bracket on a wall surface
and then
secure it with two screws (not supplied).
If you are hanging the unit below a TV, be
sure to install the
wall mount bracket so that the arrow ( ) is placed in the
center of the TV.
Also make sure the unit is at least two inches (5 cm)
below the TV.
 The installation is complete.
connections

Install on a vertical wall only.
For the installation, avoid a location with high temperature or humidity, or wall that cannot sustain the
weight of the set.
Check the strength of the wall. If the strength of the wall is insuf cient for the product installation, make
sure to reinforce the wall before the installation.
Check the material of the wall. If the wall is made of plaster board, marble, or iron board, purchase and
use the appropriate  xing screws or mollys.
Connect cables from the unit to external devices before you install it on the wall.
Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.
•
•
•
•
•
•
1 2
2 inches (5 cm) or more

11
EnG ●connEctions

Wind both HDMI IN/OUT cables together, make one
turn around the core.
(Start winding at 5-10cm away from the plugs)
Close the lock back.
Lift up to release the lock and open the core.

Place the audio cable on the opened core.
Close the lock back.
Lift up to release the lock and open the core.

12

HDMI is a standard digital interface for connecting to such devices as a TV, projector, DVD player, Blu-ray
player, set top box and more.
HDMI removes any loss of signal from analog conversion, enabling you to enjoy video and audio sound quality
as it was originally created in the digital source.

Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT
jack on your digital devices.


Connect an HDMI cable from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV.
HDMI is an interface that enables the digital transmission of video and audio data with just
a single connector.

The ARC function allows digital audio to output via the HDMI OUT (ARC) port.
It can be enabled only when the Air Track is connected to a TV that supports the ARC function.
Anynet+ must be turned on.
This function is not available if the HDMI cable does not support CEC.
•
▪
•
•
▪
HDMI OUT AUX IN
HDMI IN
OPTICAL
OUT
HDMI IN
HDMI OUT
(ARC)




13
EnG ●connEctions

This section explains ways (analog) of connecting the unit to a TV.
This unit is equipped with one audio analog jack for connecting a TV.

Connect AUX IN on the main unit to the AUDIO OUT of the TV or Source Device.
Be sure to match connector colors.
Do not connect the power cord of this product or your TV to the wall outlet until all
connections between components are complete.
Before moving or installing this product, be sure to turn off the power and disconnect the
power cord.
If you select 'AUX' without connecting the Audio Cable, the set is turned off automatically
after 20 minutes.
▪
▪
▪
HDMI OUT AUX IN
HDMI IN
AUX IN
AUDIO
OUT
L
R
Red
White


14
functions

POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE

.  Press the ( ) button in the right corner of the front panel.
or,
Press on the remote control to turn on the power.
.
 Press the ( ) button in the right corner of the front panel.
or,
Press  on the remote control again to turn off the power.

Press the  button in the right corner of the front panel.
or,
Press on the remote control to increase or decrease the
volume level.
The numeric value of the volume level appears in the front panel display.
The volume level increases or decreases when you press VOLUME +/–.
If you want to enjoy the sound only from the Crystal Surround Air Track,
you must turn off the TV's speakers in the Audio Setup menu of your
TV. Refer to the owner's manual supplied with your TV.
•
▪
▪
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE

15
EnG ●functions


You can select either AUX, HDMI, USB input or ARC input.
Press an appropriate button on the remote control to select a desired mode,
or press to select one from: AUX, HDMI, USB or ARC mode.
 
 AUX

HDMI
 USB

ARC
The unit turns off automatically in the following situations:
Aux Mode:
If no cable is inserted in the jack for 20 minutes.
USB Mode: If the “NO USB” or “Stop” state lasts for 20 minutes.


. Connect the USB device to the USB port on the side of the unit.
.  Press the ( ) button on the front panel of the home cinema system
repeatedly until  appears.
Each time the button is pressed, the selection changes as follows :
AUX
➡ HDMI ➡ USB ➡ ARC
.
appears on the display screen and then disappears.
The Crystal Surround Air Track connection is complete.
It automatically turns off (Auto Power Off) if no USB device has been
connected for more than 20 minutes.

Compatibility: USB storage
If the le name of a folder on a USB device exceeds 10 characters, it
is not displayed on the VFD.
This product may not be compatible with certain types of USB
storage media.
The le systems FAT16 and FAT32 are supported.
The NTFS le system is not supported.
Connect a USB device directly to the USB port of the product.
Otherwise, you may encounter a USB compatibility problem.
Do not connect multiple storage devices to the product via a multi-
card reader. It may not operate properly.
Digital camera PTP protocols are not supported.
Do not remove the USB device while it is being read.
DRM-protected music les (MP3, WMA) from a commercial web site
will not be played.
External HDDs are not supported.
Compatibility list
 
  MP3 WMA
  .MP3 .WMA

80~320 kbps 56~128 kbps

- V8

- -

44.1KHz 44.1KHz
•
•
•
•
•
•
•
•
-
•
•
•
•
•
•
•
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE

16


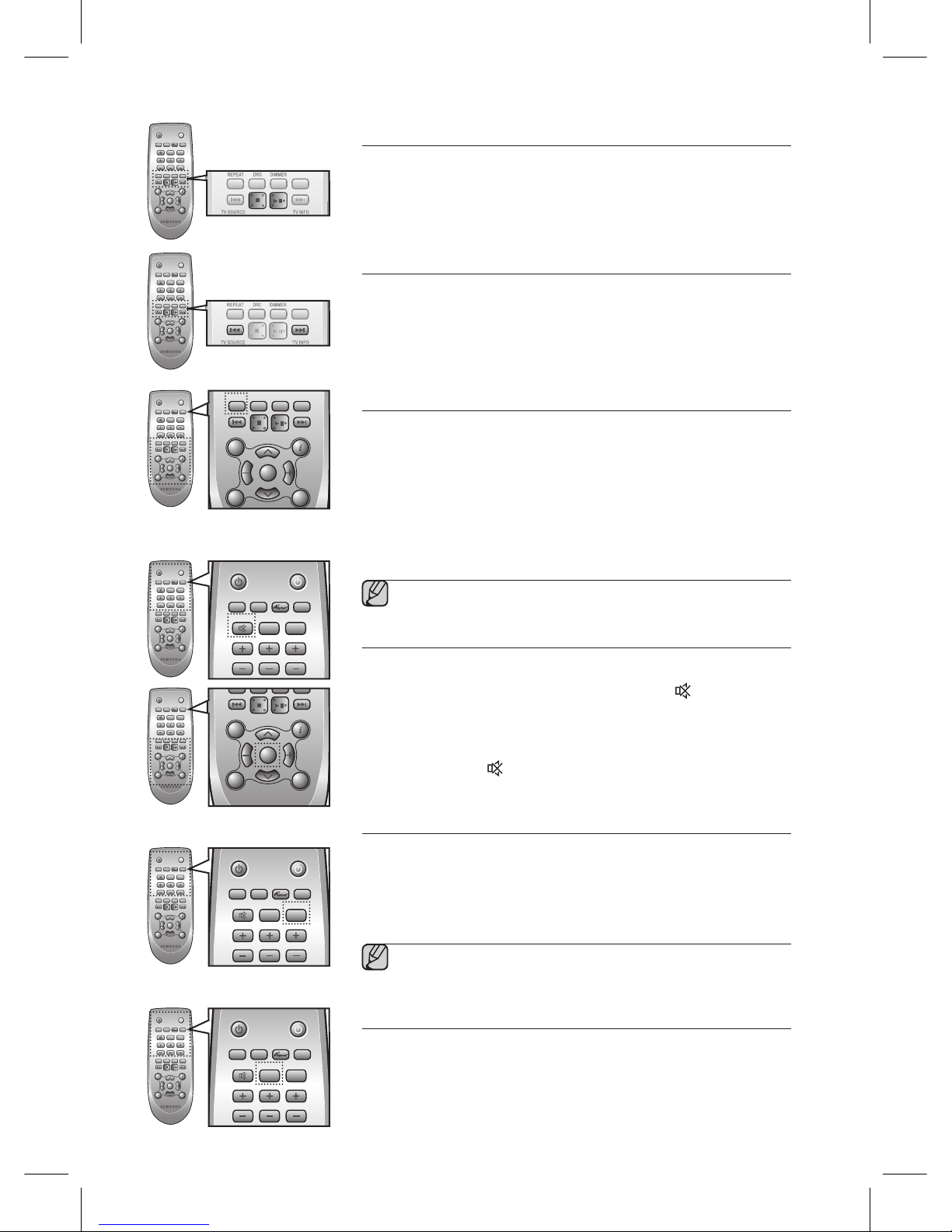

During playback, press the + #,@ button.
Press the + # button again to stop playing the le temporarily.
Press the + # button to play the selected le.
To stop playback, press the Stop (
@ ) button during playback.

During playback, press the [,] button.
When there is more than one le and you press the ] button, the next le
is selected.
When there is more than one le and you press the [ button, the
previous le is selected.

Repeat playback allows you to repeatedly play a le, repeat all, randomly play
les, or turn Repeat off.
Press the  button.
 : Repeat playing a track
:Repeat playing all tracks
:Plays tracks in random order. (A track that has
already been played may be played again.)
:Cancels Repeat Playback.
You can set the REPEAT function during the playback of music from a USB drive.

This is useful when answering a doorbell or telephone call.
.
To mute sound of this unit, press the ( ) button of the
remote control.
.
To mute the TV, press the  button of the remote control.
.
 Press ( ) on the remote control again (or press
 +/–) to restore the sound.

The 3D Sound feature adds depth and spaciousness to the sound.
Press  on the remote control.
Each time the button is pressed, the selection changes as follows :
3D SOUND LOW ➡ 3D SOUND HIGH ➡ 3D SOUND OFF
When you turn on the 3D Depth Sound, the Sound Effect will
automatically change to OFF.

This will regulate and stabilize the volume level against a drastic volume
change caused by a channel change or scene transition.
Press on the remote control.
Each time the button is pressed, the selection changes as follows :
SMART VOLUME ON ➡ SMART VOLUME OFF
•
•
•
•




▪
•
▪
•
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02434A
SATMUTE SMART
VOLUME S/W LEVEL AUDIO SYNC
SAT
SOURCE SOUND SPEAKER
DIMMER
TV INFOTV SOURCE
TV VOL TV VOL
TV CH
TV CH
TV PRE-CH TV EXIT
DRCREPEAT
3D SOUND
VOLUME
EFFECT
TV
MUTE
T
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02434A
SATMUTE SMART
VOLUME S/W LEVEL AUDIO SYNC
SAT
SOURCE SOUND SPEAKER
DIMMER
TV INFOTV SOURCE
TV VOL TV VOL
TV CH
TV CH
TV PRE-CH TV EXIT
DRCREPEAT
3D SOUND
VOLUME
EFFECT
TV
MUTE
T
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE

17
EnG ●functions


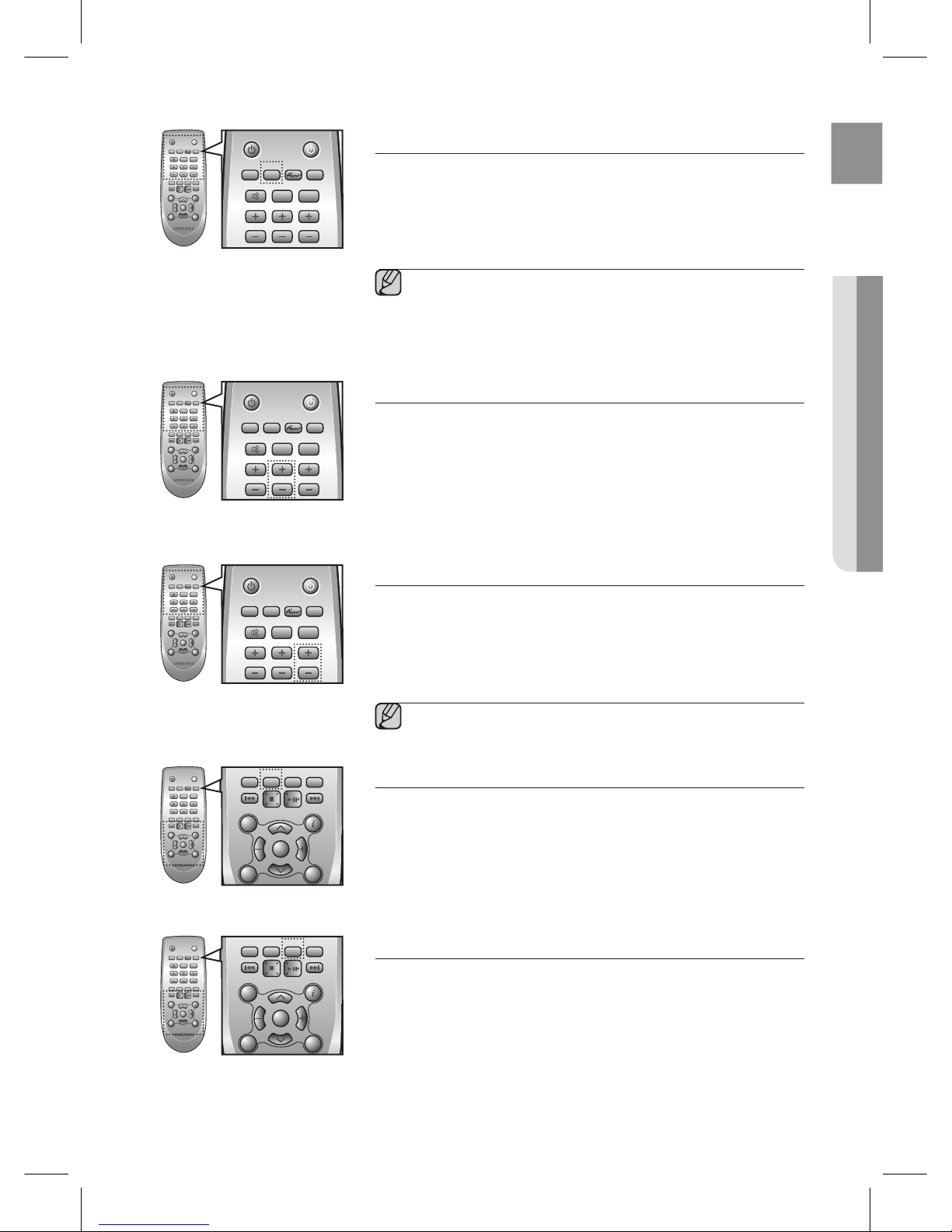

You can select from 7 different sound modes - MUSIC, NEWS, DRAMA,
CINEMA, SPORTS, GAME, and OFF (Original Sound) - depending on the
type of sources you want to enjoy.
Press  on the remote control.
Select  mode if you want to enjoy the original sound.
We recommend that you select a Sound Effect based on the
source material and your personal taste.
When you choose the Sound Effect (except OFF), the 3D Depth
Sound will automatically be turned OFF.

You can control the base volume with the S/W Level button on the Remote
control.
.
Press the  button on the Remote control.
.  appears on the Display.
.  Press  or button on the  key if you want to increase or
decrease the subwoofer volume. You can set it from SW -6 to SW +6.

Video may look slower than the audio if Air Track is connected to a digital TV.
If this occurs, adjust the audio delay time to match the video.
Press . button on the remote control.
You can use + , - button to set the audio delay time between 0 ms and
300 ms.
In the USB mode, the Audio Sync function may not work.

This feature balances the range between the loudest and quietest sounds.
You can use this function to enjoy Dolby Digital sound when watching movies
at low volume at night.
Press on the remote control of this unit.
Each time the button is pressed, the selection changes as follows :
DRC MIN ➡ DRC STANDARD ➡ DRC MAX

This feature control the brightness of the Display.
Press  on the remote control of this unit.
Each time the button is pressed, the selection changes as follows :
DIMMER ON ➡ DIMMER OFF
•
▪
▪
•
▪
•
•
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE

18


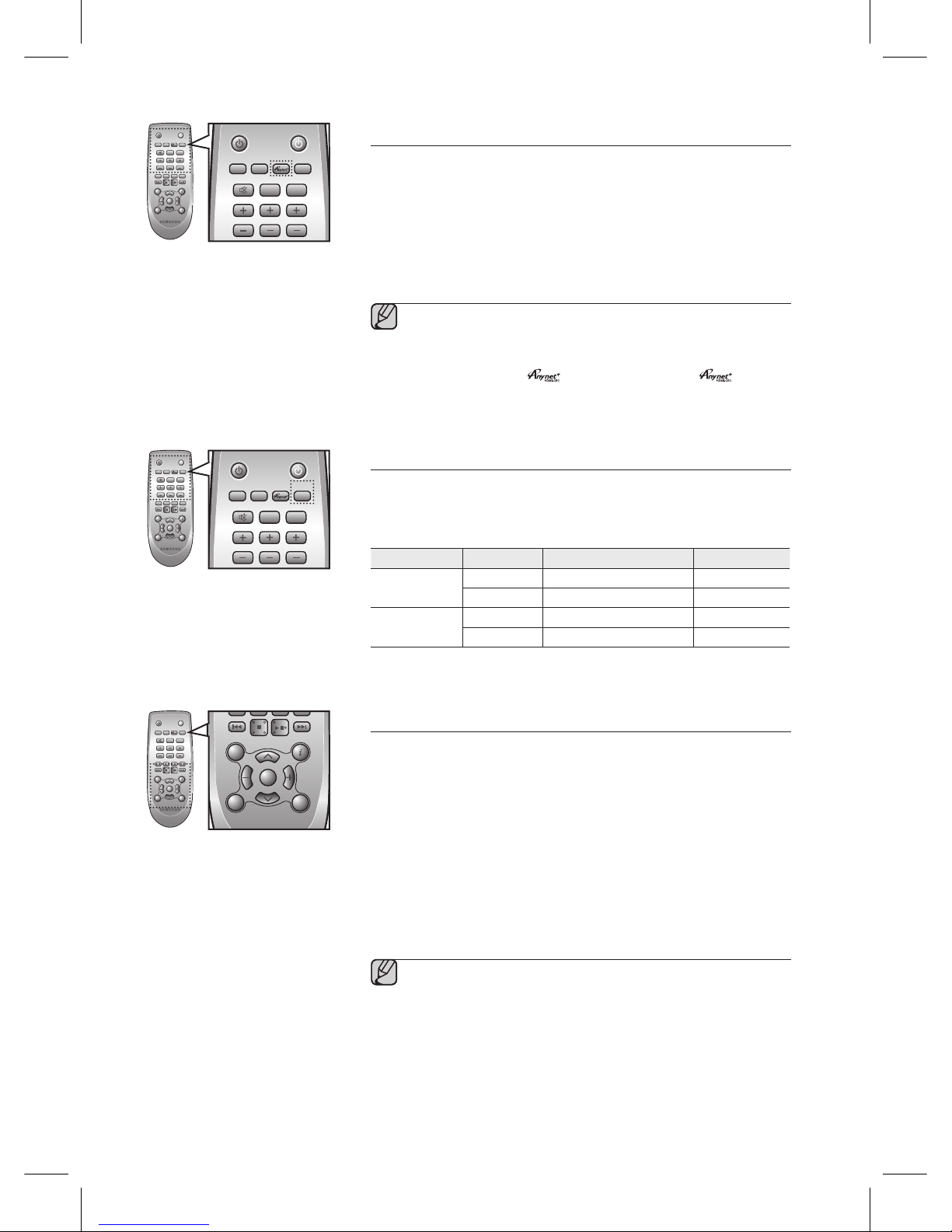

Anynet+ is a function that enables you to control other Samsung Devices
with your Samsung TV's remote control.
The Anynet+ function turns on and off each time you press.
.
Connect the product to a Samsung TV with the HDMI cable.
(See page 12)
. Set the Anynet+ function on your TV to ON.
(See the TV instruction manual for more information.)
Depending on your TV, certain HDMI output resolutions may
not work.
Please refer to the user’s manual of your TV.
Please check the
logo (If your TV has an logo,
then it supports Anynet+ function.)

This button enables you to select between listening to audio from your
TV or audio from the Air Track when connected via HDMI.
Press on the remote control of this unit.
   
  TV SPEAKER TV SPK

  
AVR SPEAKER HDMI
  TV SPEAKER S MUTE

  
AVR SPEAKER TV ARC

.  Press  on the remote control of this unit.
.
 Press on the remote control to display the TV channel
information.
.  Press  on the remote control to select the TV channel.
.
 Press on the remote control to increase or decrease the volume
level.
.
Use button to move to the previous TV channel in TV
mode.
.
To exit the TV menu, use the  button. (Functions same as the
EXIT button of the TV remote control)
The remote control can operate TVs made by SAMSUNG only.
▪
▪
▪
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIOSYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE
POWER TV POWER
AH59-02433A
TV INFO
TV CH
TV CH
SAT
SOURCE SOUND SPEAKER
EFFECT
SAT MUTE SMART
3D SOUND
VOLUME
VOLUME S/W LEVEL AUDIO SYNC
DIMMERDRCREPEAT
TV SOURCE
TV VOL TV VOL
TV PRE-CH TV EXIT
TV
MUTE

19
EnG ●functions
Insert a USB drive containing the rmware upgrade into the USB port on the back of the main unit.
Please be careful to not disconnect the power or remove the USB drive while upgrades are being
applied. The main unit will turn off automatically after completing the rmware upgrade.
When software is upgraded, settings you have made will return to their default (factory) settings. We
recommend you write down your settings so that you can easily reset them after the upgrade.
If the rnware fails to upgrade, we recommend formatting the USB data in FAT16 and trying again.
For upgrading purposes, do not format the USB drive in NTFS format because it is not a supported
le system.
Depending on the manufacturer, the USB may not be supported.
▪
▪
▪
▪
▪

Samsung may offer upgrades for the Crystal Surround Air Track's
system rmware in the future.
If an upgrade is offered, you can upgrade the rmware by
connecting a USB drive with the rmware upgrade stored on it to
the USB port on your Air Track.
Note that if there are multiple upgrade les, you must load them
onto the USB drive singly and use them to upgrade the rmware
one at a time.
Please visit Samsung.com or contact the Samsung call center to
receive more information about downloading upgrades les.
5V 500mA

20
Before requesting service, please check the following.
  
 • Is the power cord plugged
into the outlet?
• Connect the power plug to
the outlet.


• Is there static electricity in
the air?
• Disconnect the power plug
and connect it again.
 • Is the unit properly
connected to your TV?
• Is the Mute function on?
• Is the volume set to
minimum?
• Connect it correctly.
• Press the Mute button to
cancel the function.
• Adjust the volume.


• Is the TV connected
properly?
• Connect it correctly.


• Are the batteries drained?
• Is the distance between
remote control and main
unit too far?
• Replace with new batteries.
• Operate at a close distance.


• Are the left/right audio
output cables from the TV
connected properly?
• Check the left/right channel
and connect it/them
correctly.
troubleshooting
