Samsung WF7350N6 User manual

Washing Machine
user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/global/register
WF7704N6(W/V/S/C/R)
WF7702N6(W/V/S/C/R)
WF7700N6(W/V/S/C/R)
WF7700N6(W/V/S/C/R)1
WF7708N6(W/V/S/C/R)
WF7708N6(W/V/S/C/R)1
WF7604N6(W/V/S/C/R)
WF7602N6(W/V/S/C/R)
WF7600N6(W/V/S/C/R)
WF7608N6(W/V/S/C/R)
WF7522N6(W/V/S/C/R)
WF7520N6(W/V/S/C/R)
WF7528N6(W/V/S/C/R)
WF7452N6(W/V/S/C/R)
WF7450N6(W/V/S/C/R)
WF7458N6(W/V/S/C/R)
WF7350N6(W/V/S/C/R)
WF7358N6(W/V/S/C/R)
WF7700N6W-02375E-04_EN.indd 1 2009-2-20 15:27:33

2_ Features
features
• Ceramic Heater for Durability & Energy Saving
Our truly innovative Ceramic Heater is twice as durable as regular heaters. That saves you
money on repairs. Plus, it eliminates the scale of hard water and save energy.
• Child Lock
The Child Lock function keeps curious little hands out of the washer. This safety feature
ensures, that children do not toy with the operation of the washer. It also alerts you when it is
activated.
• Handwash for wool
Clothes susceptible to damage, such as those made of linen or silk, can be washed just as if
they were being washed by hand.
• Delay Start
This function enables uses to delay the washing machine’s starting time for up to 24 hours.
• Heavy Soil
This Program is for stained of heavily soiled cottons, bed linen, table linen,underwear, towels,
shirts, jeans, etc
• My Favourite selection button
You can program your wash cycle to best suit your needs. The memory function allows you
to select rinse cycles, water temperatures, and spin cycles for each and every load. You can
save your preferences, retrieve them another time…press and go! It’s tailor-made washing
only by Samsung!
WF7700N6W-02375E-04_EN.indd 2 2009-2-20 15:27:33

Safety information _3
safety information
Throughout this manual, you’ll see Warning and Caution notes.
These warnings, cautions, and the important safety instructions that follow do
not cover all possible conditions and situations that may occur.
It’s your resposibility to use common sense, caution, and care when installing,
maintaining, and operation your washer. Samsung is not liable for damages
resulting from improper use.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
What the icons and signs in this user manual means:
WARNING
Hazards or unsafe practices that may result in severe personal injury or
death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or
property damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when
using your washer, follow these basic safety precautions:
BEFORE USING THE APPLIANCE
The appliance is designed for home use only.
Make sure that water and electrical connections are made by qualified technicians,
observing the manufacturer’s instructions (see “Installing the Washing Machine”) and local
safety regulations.
All packaging and shipping bolts must be removed before the appliance is used. Serious
damage may occur if they are not removed. See “Removing the shipping bolts”.
Before washing clothes for the first time, you must run a complete cycle without clothes.
See “Washing for the first time”.
If this appliance is supplied from a cord extension set or electrical portable outlet device, the
cord extension set or electrical portable outlet device must be positioned so that it is not
subject to splashing or ingress of moisture.
CAUTION
WF7700N6W-02375E-04_EN.indd 3 2009-2-20 15:27:33

4_ Safety information
SAFETY INSTRUCTIONS
Before cleaning or carrying out maintenance, unplug the appliance from the electrical outlet
or set the dial to Off.
Make sure that the pockets of all clothing to be washed are empty.
Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
Always unplug the appliance and turn off the water after use.
Before you open the door of the appliance, check that the water has drained. Do not open
the door if you can still see water.
Pets and small children may climb into the appliance. Check the appliance before each use.
The glass door becomes very hot during the washing cycle. Keep children away from the
appliance while it is in use.
Do not attempt to repair the appliance yourself. Repairs made by inexperienced or
unqualified persons may cause injury and/or make more serious repairs to the appliance
necessary.
If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its
service agent or a similar qualified person in order to avoid a hazard.
This appliance should only be serviced by an authorized service center, and only genuine
spare parts should be used.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
This appliance has to be connected to the plug endurable to proper power consumption.
This appliance has to be positioned so that the plug is accessible after installation.
Do not use processed water containing oil, cream or lotion, which is usually found in skin-
care shops or massage clinics.
• Otherwise this will cause the packing to be deformed, which causes a malfunction or
water leak.
Packing materials can be dangerous to children; keep all packing material (plastic bags,
polystyrene, etc.) well out of the reach of children.
A stainless washing tube does not usually rust. However if some metal such as a hair pin is
left in the tube for an extended time, the tube could rust.
• Do not leave water or bleach containing chlorine in the tube for an extended period of
time.
• Do not regularly use or leave water containing iron in the tube for an extended period of
time.
• If rust starts appearing on the surface of the tube, apply a cleansing agent (neutral) to
the surface and use a sponge or soft cloth to clean it. (Under no circumstances use a
metal brush)
For washing machines with ventilation openings in the base, that a carpet must not
obstruct the openings.
Use the new hose-sets and old hose-sets should not be reused.
safety information
WARNING
WF7700N6W-02375E-04_EN.indd 4 2009-2-20 15:27:34

Contents _5
contents
INSTALLING THE WASHING
MACHINE
6
6 Unpacking the Washing Machine
6 Overview of the washing machine
7 Selecting a location
7 Adjusting the leveling feet
7 Removing the shipping bolts
8 Connecting the water supply hose (Option)
9 Connecting the water supply hose
9 Positioning the drain hose
9 Environment
WASHING A LOAD OF LAUNDRY
10
10 Overview of the control panel
12 Washing for the first time
13 Putting detergent in the washing machine
13 Washing clothes using Fuzzy Logic
14 Washing clothes manually
14 Using delay start
15 Washing tips and hints
MAINTAINING THE WASHING
MACHINE
16
16 Draining the washing machine in an
emergency
16 Repairing a frozen washing machine
16 Cleaning the exterior
17 Cleaning the detergent drawer and recess
17 Cleaning the debris filter
18 Cleaning the water hose mesh filter
TROUBLESHOOTING
19
19 Problems and solutions
19 Understanding error messages
PROGRAMME CHART
20
20 Programme chart
APPENDIX
21
21 Fabric care chart
21 Electrical warnings
21 Protecting the environment
22 Declaration of conformity
22 Specification
WF7700N6W-02375E-04_EN.indd 5 2009-2-20 15:27:34

6_ Installing the washing machine
installing the washing machine
UNPACKING THE WASHING MACHINE
Unpack your washing machine and inspect it for shipping damage. Also make sure that you have received
all of the items shown below. If the washing machine was damaged during shipping or you do not have all
of the items, contact your Samsung dealer immediately.
OVERVIEW OF THE WASHING MACHINE
Wrench Cold water
supply hose
Hose guide Bolt hole covers
Worktop
Drain Hose
Plug
Debris filter
Control panel
Detergent drawer
Emergency drain tube
Door
Base cover
Adjustable feet
Filter Cover
WF7700N6W-02375E-04_EN.indd 6 2009-2-20 15:27:35

Installing the washing machine _7
SELECTING A LOCATION
Before you install the washing machine, select a location with the following characteristics:
• A hard, level surface (if the surface is uneven, see “Adjusting the leveling feet,” below)
• Away from direct sunlight.
• Adequate ventilation
• Room temperature that will not fall below 0 ˚C
• Away from sources of heat such as coal or gas
Make sure that the washing machine does not stand on its power cord.
Ventilation openings must not be obstructed by carpeting when the washing machine is installed
on a carpeted floor.
ADJUSTING THE LEVELING FEET
If the floor is uneven, adjust the feet (do not insert pieces of wood or any other objects under the
feet):
1. Loosen the leg bolt by turning it with your hand
until it is at the desired height.
2. Tighten the locking nut by turning it with the
supplied wrench.
• Place the washer on a sturdy, flat surface.
If the washer is placed on an uneven or weak
surface, noise or vibration occurs. (Only a 1
degrees angle is allowed.)
REMOVING THE SHIPPING BOLTS
Before installing the washing machine, you must remove the five
shipping bolts from the back of the unit.
1. Loosen all the bolts with the supplied wrench.
2. Hold the bolt with the spanner and pull it through the wide section
of the hole. Repeat for each bolt.
3. Fill the holes with the supplied plastic covers.
4. Store the shipping bolts away safely in case you have to move the washing machine in the
future.
Packaging materials can be dangerous to children; keep all packaging material (plastic
bags, polystyrene, etc.) well out of the reach of children.
01 Installing the washing machine





   


















WARNING
WF7700N6W-02375E-04_EN.indd 7 2009-2-20 15:27:37

8_ Installing the washing machine
CONNECTING THE WATER SUPPLY HOSE (OPTION)
1. Remove the adaptor from the water supply hose.
2. First, using a ‘+’ type screw driver, loosen the four screws on
the adaptor. Next, take the adaptor and turn part(b) following
the arrow until there is a 5mm gap.
3. Connect adaptor to the water tap by tightening the screws
firmly.
Then, turn part (b) following the arrow and put(a) and (b)
together.
4. Connect the water supply hose to the adaptor. Pull down
part (c) of the water supply hose.
When you release part (c) the hose automatically connects
to the adaptor making a ‘click’ sound.
5. Connect the other end of the water supply hose to the
inlet water valve at the top of the washer. Screw the hose
clockwise all the way in.
• If the water tap has a screw type faucet, connect the water
supply hose to the tap as shown.
After completing connection, if water leaks from the hose, then repeat the same steps. Use
the most conventional type of faucet for water supply. In case the faucet is square or too
big, remove the spacing ring before inserting the faucet into the adaptor.
installing the washing machine
a
b
c
WF7700N6W-02375E-04_EN.indd 8 2009-2-20 15:27:38

Installing the washing machine _9

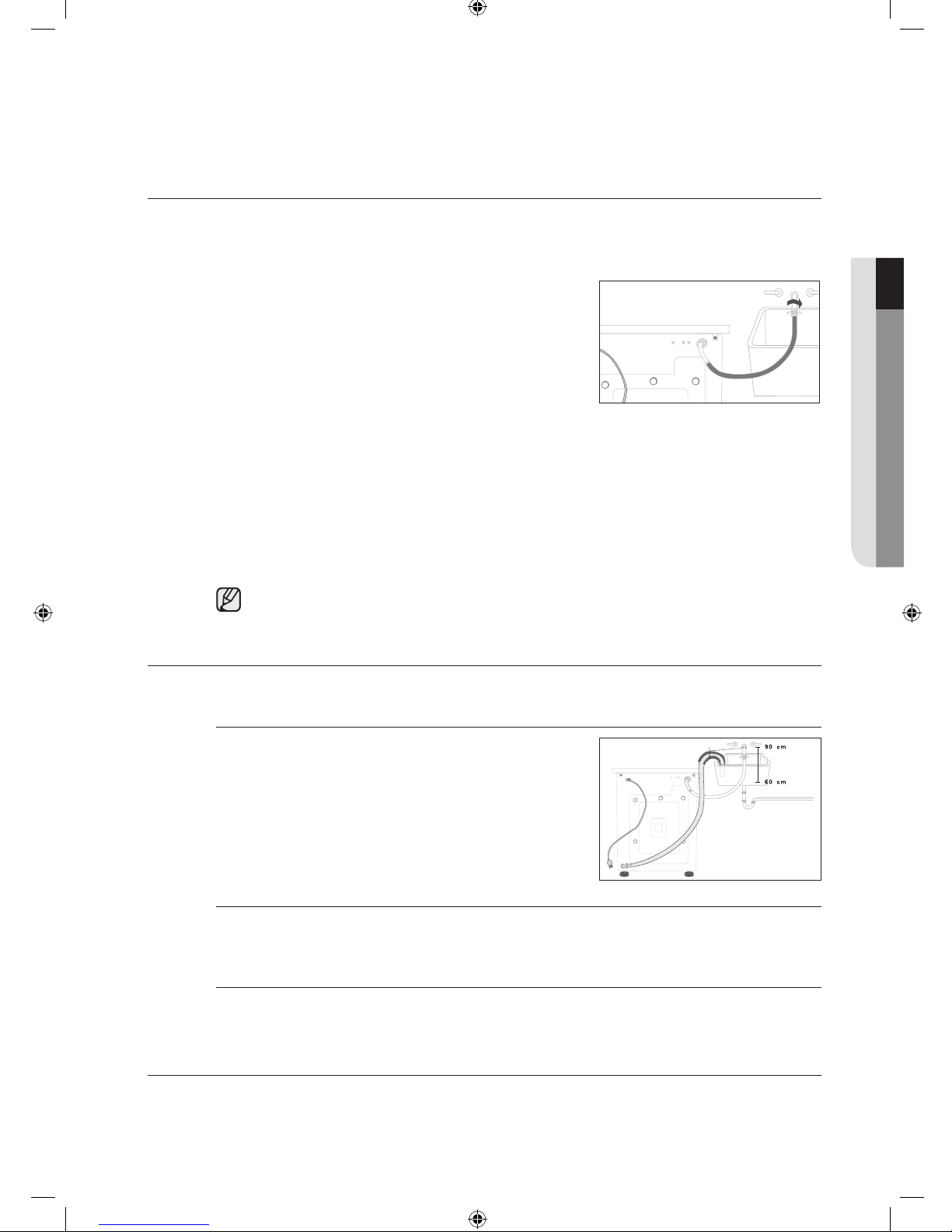

CONNECTING THE WATER SUPPLY HOSE
The water supply hose must be connected to the washing machine at one end and to the water faucet at
the other. Do not stretch the water supply hose. If the hose is too short and you do not wish to move the
water faucet, replace the hose with a longer, high pressure hose.
To connect the water supply hose:
1. Take the L-shaped arm fitting for the cold water supply
hose and connect to the cold water supply intake on the
back of the machine. Tighten by hand.
2. Connect the other end of the cold water supply hose to your sink’s cold water faucet and
tighten it by hand. If necessary, you can reposition the water supply hose at the washing
machine end by loosening the fitting, rotating the hose, and retightening the fitting.
Option:
1. Take the red L-shaped arm fitting for the hot water supply hose and connect to the red
hot water supply intake on the back of the machine. Tighten by hand.
2. Connect the other end of the hot water supply hose to your sink’s hot water faucet and
tighten it by hand.
3. Use a Y-piece if you only want to use cold water.
The appliance is to be connected to the water mains using new hose-sets and that old
hose-sets should not be used.
POSITIONING THE DRAIN HOSE
The end of the drain hose may be positioned in three ways:
Over the edge of a sink
The drain hose must be placed at a height of between 60
and 90 cm. To keep the drain hose spout bent, use the
supplied plastic hose guide. Secure the guide to the wall
with a hook or to the faucet with a piece of string to prevent
the drain hose from moving.
ln a sink drain pipe branch
The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60
cm above the ground.
ln a drain pipe
Samsung recommends that you use a 65 cm high vertical pipe; it must be no shorter than 60
cm and no longer than 90 cm.
ENVIRONMENT
Please dispose of the packaging materials for this product in an “environmentally friendly” manner.
For further detail, please contact your local area authority.
01 Installing the washing machine
WF7700N6W-02375E-04_EN.indd 9 2009-2-20 15:27:39

10_ Installing the washing machine
washing a load of laundry
OVERVIEW OF THE CONTROL PANEL
This is a general manual. The INLAY system may be different from that of the product you
purchased. For (
A
), see item 5 below to select the right specifications that match your product.
Digital graphic
display
Displays the remaining wash cycle time, all of washing information and error
messages.
Wash selection
button
Press the button to select wash. Wash is available only with Baby Cotton,
Heavy Soil, Mixed Load, Water Saving, Cotton, Coloureds, Synthetics,
Delicates.
Temperature
selection button
Press the button repeatedly to cycle through the available water temperature
options (cold water( ), 30 ˚C, 40 ˚C , 60 ˚C and 95 ˚C).
Rinse selection
button
Press the rinse button to add rinse cycles. Maximum number of rinse cycles is five.
Spin selection
button
Press the button repeatedly to cycle through the available spin speed options.
WF7704N6/WF7604N6 Rinse hold, , 400, 800, 1200, 1400 rpm
WF7702N6/WF7602N6/WF7522N6/
WF7452N6 Rinse hold, , 400, 800, 1000, 1200 rpm
WF7700N6/WF7600N6/WF7520N6/
WF7450N6/WF7350N6 Rinse hold, , 400, 600, 800, 1000 rpm
WF7708N6/WF7608N6/WF7528N6/
WF7458N6/WF7358N6 Rinse hold, , 400, 600, 800, 800+ rpm
No spin - The laundry remains wet without spinning after final Rinse .
Rinse Hold - The laundry remains soaking in the final rinse water. Before the laundry
can be unloaded, either “Drain” or the “Spin” program must be run.
Delay Start
selection button
Press the button repeatedly to cycle through the available delayed start options
(from 3 hour to 24 hours in one hour increments).
Displayed hours means the time of finished washing-cycle.
My Favourite
selection button
My Favourite button is very simple so that you can use it very easily. Press the
Power button, then press the My Favourite button,and then turn the dial to the
Wash Program. Select the washing way which is frequently used,for example,rinse
cycle,water temperature,and spin cycles. This way the settings are saved. If you
select the Wash Program for your next wash, you can wash your clothes as the
same way as just previous one.
5
4
3
2
1
10
9
7
6
5
4
211
38
1
6
7
A
WF7700N6W-02375E-04_EN.indd 10 2009-2-20 15:27:41

Washing a load of laundry _11
Child Lock
selection button
This is a button for preventing children from manipulating the washing machine.
On/Off - To set the program on: Press the Start/Pause button to turn on the
washing machine.
Press and hold down the [Rinse] + [Spin] button for 2-3 seconds. It can only be
activated when the machine is turned on. Once you set the Child Lock function
while in washing, no button is activated until you set it off. Only POWER button
can activate. The Child Lock lamp lights on and off. To set the program off:
Press and hold down the [Rinse] + [Spin] button again for 2-3 seconds, then
the lamp lights off and is set off.
Check out the Baby Program button first when no button is activated
while the washing machine is working.
Fuzzy Control
dial
Turn the dial to select one of the 14 available wash programs.
Cotton, Coloureds, Synthetics, Delicates, Wool, Hand wash, Quick, Rinse+Spin,
Spin, Drain, Heavy Soil, Mixed Load, Bedding, Water Saving.
Start/Pause
selection button
Press to pause and restart programs.
Press the Start/Pause button before adding the laundry. This can only be
selected within 5 minutes of the start.
(On/Off)
selection button
Press once to turn the washing machine on, press again to turn the washing
machine off. If the washing machine power is left on for longer than 10 minutes
without any buttons being touched, the power automatically turns off.
02 Washing a load of laundry
10
11
9
8
WF7700N6W-02375E-04_EN.indd 11 2009-2-20 15:27:43

12_ Washing a load of laundry
WASHING FOR THE FIRST TIME
Before washing clothes for the first time, you must run a complete cycle without clothes.
1. Press the (On/Off) button.
2. Pour a little detergent into compartment in the detergent
drawer.
3. Turn on the water supply to the washing machine.
4. Press the Temperature button repeatedly until 40 ˚C is
displayed.
5. Press the Start/Pause button.
• This will remove any water from the manufacturer’s test run
remaining in the machine.
Dispenser : Detergent for prewash or starch.
Dispenser : Detergent for main wash, water softener, pre-soaking agent, bleach and stain
removal product.
Dispenser : Additives,e.g.fabric softener or former (fill no higher than lower edge of insert “ A”)
washing a load of laundry
WF7700N6W-02375E-04_EN.indd 12 2009-2-20 15:27:44

Washing a load of laundry _13
PUTTING DETERGENT IN THE WASHING MACHINE
1. Pull out the detergent drawer.
2. Add laundry detergent into compartment ( ).
3. Add softener into compartment ( ) (if you desire).
4. Add prewash detergent into compartment ( ) (if you desire).
Concentrated or thick fabric softener and conditioner must
be diluted with a little water before being poured into the
dispenser (prevents the overflow from becoming blocked).
When using dry detergent it is recommended to pre dissolve
the dry powder in some warm water before adding to the
detergent dispenser or tub.
WASHING CLOTHES USING FUZZY LOGIC
Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Logic” automatic control
system. When you select a wash programme, the machine will set the correct temperature, washing time,
and washing speed.
To wash clothes using the Fuzzy Logic programs:
1. Turn on your sink’s water faucet.
2. Press the (On/Off) button.
3. Open the door.
4. Load the articles one at a time loosely into the drum, without overfilling.
5. Close the door.
6. Add the detergent, softener, and prewash detergent (if necessary) into the appropriate
compartment.
Wash is only available when washing Duvet, Bedding, Towel, Curtain, Cotton, Coloureds,
Synthetics and Delicates programs. It is only necessary if your clothing is heavily soiled.
7. Turn the Fuzzy Control dial to select the
appropriate program for the type of clothes
Cotton , Coloureds, Synthetics, Delicates,
Wool, Handwash,
Quick, Rinse+Spin,
Spin,Drain, Heavy Soil, Mixed Load,
Bedding, Water Saving.
You will see the indicators light up on the control
panel.
8. At this time, you can control the washing type, wash temperature, Rinse times, spin speed,
delay time by pressing the appropriate option button.
9. Press the Start/Pause button on the Fuzzy Control dial and the wash cycle will begin. The
process indicator will light up and the remaining time for the cycle will appear in the display.
When the cycle is finished:
After the total cycle has finished, the power will turn off automatically.
1. Open the door.
The door will not open untill 3 minutes after the machine stops or the power turns off.
2. Remove laundry.
02 Washing a load of laundry
CAUTION
WF7700N6W-02375E-04_EN.indd 13 2009-2-20 15:27:45

14_ Washing a load of laundry
washing a load of laundry
WASHING CLOTHES MANUALLY
You can wash clothes manually without using the Fuzzy Logic feature.
To do so:
1. Turn the water supply on.
2. Press the (On/Off) button on the washing machine.
3. Open the door.
4. Load the articles one at a time loosely into the drum, without overfilling.
5. Close the door.
6. Put the detergent and, if necessary, softener or prewash detergent, in the appropriate
compartments.
7. Press the Temperature button to select the temperature.
(cold water, 30˚C, 40˚C, 60˚C, 95˚C)
8. Press to rinse button to select the required number of rinse cycles.
Maximum number of rinse cycles is five.
The washing duration will be prolonged accordingly.
9. The rinse hold program allows you to take clothes that are dripping wet out of the washing
machine.
: No Spin
10. Press the button repeatedly to cycle through the available delayed start options (from 3 hour
to 24 hours in one hour increments). Displayed hours means the time of finished washing-
cycle.
11. Press the Start/Pause button and the machine will begin the cycle.
USING DELAY START
You can set the washing machine to finish your wash automatically at a later time, choosing from 3 to 24
hour delay (in 1 hour increments). Displayed hours means the time of finished washing-cycle.
To do this:
1. Manually or automatically set your washing machine for the type of clothes you are washing.
2. Press the Delay Start button repeatedly until the delay time is set.
3. Press the Start/Pause ( ) button. The Delay Start indicator will light, and the clock will
begin counting down until it reaches your finish time.
4. To cancel Delay Start, press the (On/Off) button, then turn the washing machine on again.
WF7700N6W-02375E-04_EN.indd 14 2009-2-20 15:27:46

Washing a load of laundry _15
WASHING TIPS AND HINTS
Sorting your laundry: Sort your laundry according to the following characteristics:
• Type of fabric care label symbol: Sort laundry into cottons, mixed fibers, synthetics( ),
silks, wools and rayon.
• Colour: Divide whites and colours. Wash new, coloured items separately.
• Size: Placing items of different sizes in the same load will improve the washing action.
• Sensitivity: Wash delicate items separately, using the Delicate wash programme for pure
new wool, curtains and silk articles. Check the labels on the items you are washing or refer to
the fabric care chart in the appendix.
Emptying pockets: Coins, safety pins and similar items can damage linen, the washing
machine drum, and the water tank.
Securing fasteners: Close zippers and fasten buttons or hooks; loose belts or ribbons should
be tied together.
Prewashing cotton: Your new washing machine, combined with modern detergents, will give
perfect washing results, thus saving energy, time, water and detergent. However, if your cotton is
particularly dirty, use a prewash with a protein-based detergent.
Determining load capacity: Do not overload the washing machine or your laundry may not
wash properly. Use the chart below to determine the load capacity for the type of laundry you are
washing.
Fabric Type
Load Capacity
WF7704N6/
WF7702N6/
WF7700N6/
WF7708N6
WF7604N6/
WF7602N6/
WF7600N6/
WF7608N6
WF7522N6/
WF7520N6/
WF7528N6
WF7452N6/
WF7450N6/
WF7458N6
WF7350N6/
WF7358N6
Coloured/
cotton
average/
lightly soiled 7.0 kg 6.0 kg 5.2 kg 4.5 kg 3.5 kg
heavily
soiled 7.0 kg 6.0 kg 5.2 kg 4.5 kg 3.5 kg
Synthetics 3.0 kg 3.0 kg 2.5 kg 2.5 kg 2.0 kg
Delicate 2.5 kg 2.5 kg 2.0 kg 2.0 kg 1.5 kg
Wool 2.0 kg 2.0 kg 1.5 kg 1.5 kg 1.5 kg
Detergent tips: The type of detergent you should use is based on the type of fabric (cotton,
synthetic, delicate items, wool), colour, wash temperature, degree and type of soiling.
Always use “low suds” laundry soap, which is designed for automatic washing machines.
Follow the detergent manufacturer’s recommendations based upon the weight of the
laundry, the degree of soiling, and the hardness of the water in your area. If you do not know
how hard your water is, ask your water authority.
Keep detergents and additives in a safe, dry place out of the reach of children.
02 Washing a load of laundry
WF7700N6W-02375E-04_EN.indd 15 2009-2-20 15:27:47

16_ Maintaining the washing machine
maintaining the washing
machine

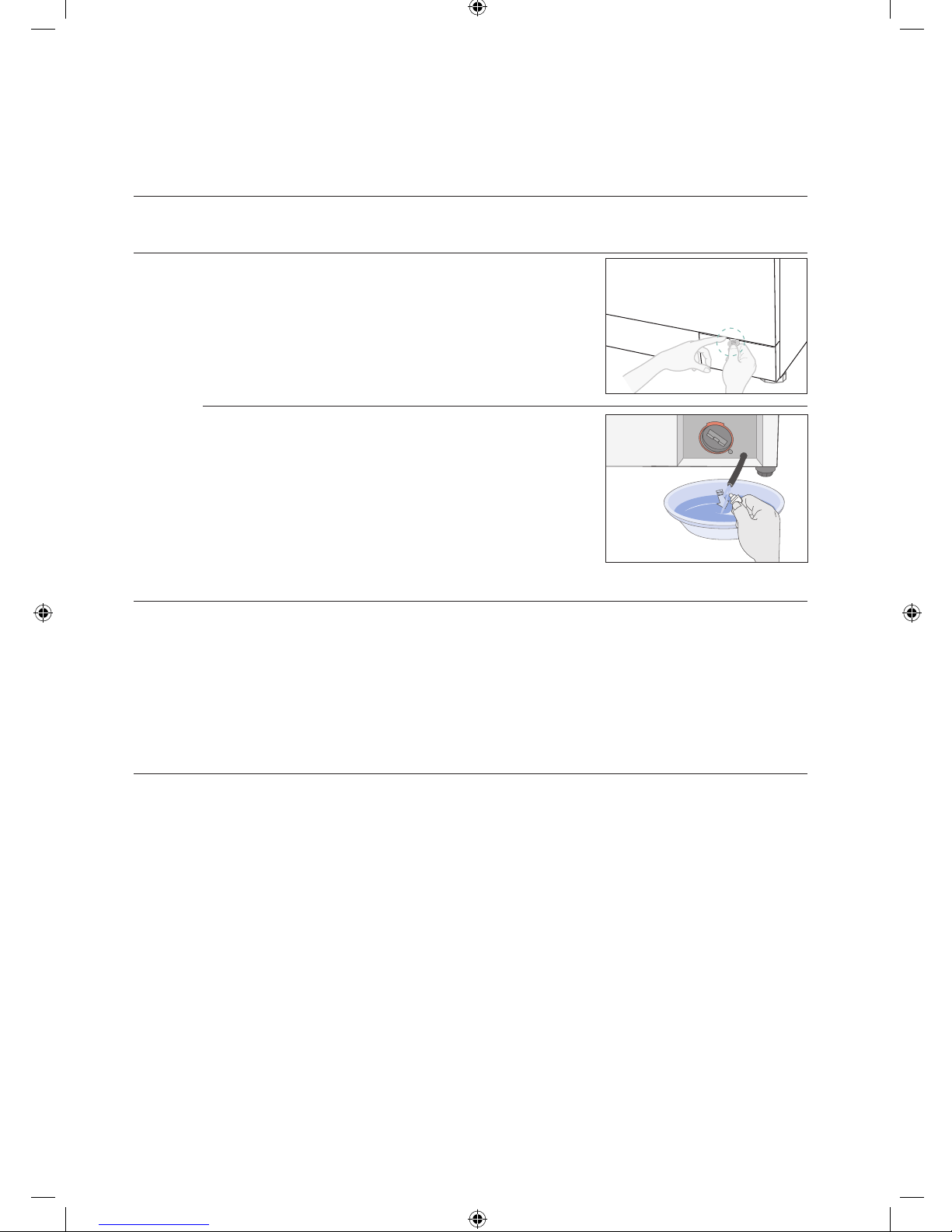

DRAINING THE WASHING MACHINE IN AN EMERGENCY
1. Unplug the washing machine from the power supply.
2. Open the filter-cover by using a coin or a key.
3. Unscrew the emergency drain cap by turning left. Grip the
cap on the end of the emergency drain tube and slowly pull
it out about 15 cm.
4. Allow all the water to flow into a bowl.
5. Reinsert the drain tube and screw the cap back on.
6. Replace the filter-cover.
REPAIRING A FROZEN WASHING MACHINE
If the temperature drops below freezing and your washing machine is frozen:
1. Unplug the washing machine.
2. Pour warm water on the source faucet to loosen the water supply hose.
3. Remove the water supply hose and soak it in warm water.
4. Pour warm water into the washing machine drum and let it sit for 10 minutes.
5. Reconnect the water supply hose to the water faucet and check if the water supply and drain
operations are normal.
CLEANING THE EXTERIOR
1. Wipe the washing machine surfaces, including the control panel, with a soft cloth and nonabrasive
household detergents.
2. Use a soft cloth to dry the surfaces.
3. Do not pour water on the washing machine.
WF7700N6W-02375E-04_EN.indd 16 2009-2-20 15:27:48

Maintaining the washing machine _17

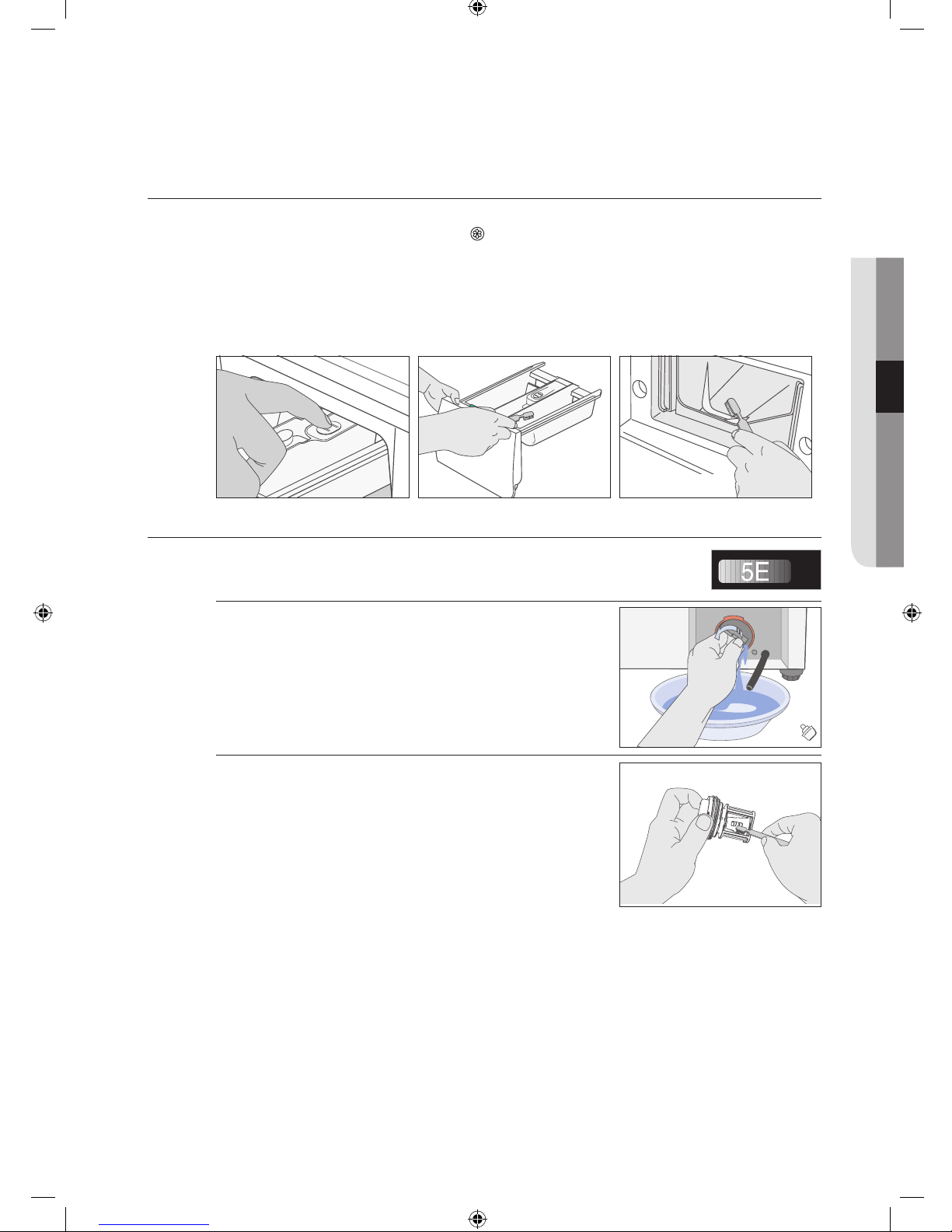

CLEANING THE DETERGENT DRAWER AND RECESS
1. Press the release lever on the inside of the detergent drawer and pull it out.
2. Remove the cap from compartment ( ).
3. Wash all of the parts under running water.
4. Clean the drawer recess with an old toothbrush.
5. Reinsert the cap (Pushing it firmly into place) and replace the liquid detergent divider into the
drawer.
6. Push the drawer back into place.
7. Run a rinse programme without any laundry in the drum.
CLEANING THE DEBRIS FILTER
Clean the debris filter 5 or 6 times a year, or when you see the following
error message on the display:
1. Open the filter-cover, see “Draining the washing machine in
an emergency” on page 16.
2. Unscrew emergency drain cap by turning left and drain off
all the water.
See “Draining the washing machine in an emergency” on
page 16.
3. Unscrew the filter cap and take it out.
4. Wash any dirt or other material from the filter. Make sure
the drain pump propeller behind the filter is not blocked.
Replace the filter cap.
5. Replace the filter-cover.
03 Maintaining the washing machine
WF7700N6W-02375E-04_EN.indd 17 2009-2-20 15:27:50

18_ Maintaining the washing machine
CLEANING THE WATER HOSE MESH FILTER
You should clean the water hose mesh filter at least one time per year, or
when you see the following error message on the display:
To do this:
1. Turn off the water source to the washing machine.
2. Unscrew the hose from the back of the washing machine.
3. With a pair of pliers, gently pull out the mesh filter from the
end of the hose and rinse it under water until clean. Also
clean the inside and outside of the threaded connector.
4. Push the filter back into place.
5. Screw the hose back onto the washing machine.
6. Turn on the faucet and make sure the connections are
watertight.
maintaining the washing
machine
WF7700N6W-02375E-04_EN.indd 18 2009-2-20 15:27:51

Troubleshooting _19
troubleshooting
PROBLEMS AND SOLUTIONS
PROBLEM SOLUTION
The washing machine will
not start
• Make sure the door is firmly closed.
• Make sure the washing machine is plugged in.
• Make sure the water source faucet is turned on.
• Make sure to press the Start/Pause button.
No water or insufficient
water supply
• Make sure the water source faucet is turned on.
• Make sure the water source hose is not frozen.
• Make sure the water intake hose is not bent.
• Make sure the filter on the water intake hose is not clogged.
Detergent remains in the
detergent drawer after the
wash program is complete
• Make sure the washing machine is running with sufficient water pressure.
• Put the detergents in the inner parts of the detergent drawer(away
from the outside edges).
Washing machine vibrates
or is too noisy
• Make sure the washing machine is set on a level surface. If the
surface is not level, adjust the washing machine feet to level the
appliance.
• Make sure that the shipping bolts are removed.
• Make sure the washing machine is not touching any other object.
• Make sure the laundry load is balanced.
The washing machine does
not drain and/or spin
• Make sure the drain hose is not squashed or bent.
• Make sure the water hose mesh filter is not clogged.
The Door does not open • Disconnect the power plug from the power supply.
• Remove the water from the washing machine.
• Open the filter cover using a coin.
• Locate the orange plastic tab and pull forward to
open the door.
; Except 800rpm models as WF7708N6(W/V/S/C/R),7608N6(W/V/S/
C/R),7528N6(W/V/S/C/R),7458N6(W/V/S/C/R) ,7358N6(W/V/S/C/R)
• The door will not open until 3 minutes after the machine stops or the
power turns off.
; Only 800rpm models as WF7708N6(W/V/S/C/R),7608N6(W/V/S/C/
R),7528N6(W/V/S/C/R),7458N6(W/V/S/C/R),7358N6(W/V/S/C/R)
UNDERSTANDING ERROR MESSAGES
ERROR CODE SOLUTION
dE • Close the door.
4E • Make sure the source water faucet is turned on.
• Check the water pressure.
5E • Clean the debris filter.
• Make sure the drainage hose is installed correctly.
UE
• Laundry load is unbalanced; loosen any tangled laundry.
If only one item of clothing needs washing, such as a bathrobe or
jeans, the final spin result might be unsatisfactory and an “UE” error
message will be shown in the display window.
cE/3E • Call after-sales service.
Before contacting After-Sales service:
1. Try to remedy the problem (See “Troubleshooting” on this page).
2. Restart the programme to see if the fault is repeated.
3. If the malfunction persists, call after-sales service and describe the problem.
04 Troubleshooting
WF7700N6W-02375E-04_EN.indd 19 2009-2-20 15:27:51

20_ Programme chart
programme chart
PROGRAMME CHART
( user option)
Program
Max Load(kg) Detergent and additives
Temp
(Max)
WF
7704N6/
7702N6/
7700N6/
7708N6
WF
7604N6/
7602N6/
7600N6/
7608N6
WF
7522N6/
7520N6/
7528N6
WF
7452N6/
7450N6/
7458N6
WF
7350N6/
7358N6
Pre-
Wash Wash Softener
Cotton 7.0 6.0 5.2 4.5 3.5 yes 95
Coloureds 7.0 6.0 5.2 4.5 3.5 yes 60
Synthetics 3.0 3.0 2.5 2.5 2.0 yes 60
Delicates 2.5 2.5 2.0 2.0 1.5 yes 40
Wool 2.0 2.0 1.5 1.5 1.5 - yes 40
Handwash 2.0 2.0 1.5 1.5 1.5 - yes 40
Quick 3.0 3.0 2.0 2.0 1.5 - yes 60
Heavy Soil 7.0 6.0 5.2 4.5 3.5 yes 60
Mixed Load 7.0 6.0 5.2 4.5 3.5 yes 60
Bedding 2.5 2.5 2.0 2.0 1.5 yes 95
Water Saving 7.0 - - - - yes 95
Program
Spin Speed (Max) rpm
Delay
Start
Cycle Time (min)
WF
7704N6/
7604N6
WF
7702N6/
7602N6/
7522N6/
7452N6
WF
7700N6/
7600N6/
7520N6/
7450N6/
7350N6
WF
7708N6/
7608N6/
7528N6/
7458N6/
7358N6
WF
7704N6/7702N6/7700N6/
7708N6/7604N6/7602N6/
7600N6/7608N6/7522N6/
7520N6/7528N6/7452N6/
7450N6/7458N6/7350N6/
7358N6
WF
7708N6W1
WF
7700N6W1
Cotton 1400 1200 1000 800+ 143 143 143
Coloureds 1400 1200 1000 800+ 98 98 98
Synthetics 800 800 800 800 70 70 70
Delicates 800 800 600 600 53 53 53
Wool 400 400 400 400 41 41 41
Handwash 400 400 400 400 36 36 36
Quick 1400 1200 1000 800+ 28 28 28
Heavy Soil 1400 1200 1000 800+ 108 108 108
Mixed Load 800 800 800 800 76 76 76
Bedding 1400 1200 1000 800+ 98 98 98
Water Saving - - 1000 800+ 164 194 214
1. Programme with prewash lasts approx.15 minutes longer.
2. The programme duration data has been measured under the conditions specified in Standard IEC
60456 / EN 60456.
3. Consumption in individual homes may differ from the values given in the table due to variations in
the pressure and temperature of the water supply, the load and the type of laundry.
WF7700N6W-02375E-04_EN.indd 20 2009-2-20 15:27:51
The "Water Saving" program is recommended for a normally soiled cotton load.
