Samsung HW-J650 User manual

Wireless Audio - Soundbar
Imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register your product at
www.samsung.com/register
User manual
'This Nanum Gothic Eco font is provided by NAVER'
HW-J650
HW-J651
Wireless Subwoofer
(PS-WJ650 / PS-WJ651)

32
GETTING STARTED
FEATURES
GETTING STARTED
Streaming Music Services
The Soundbar makes diving into all your favorite
music easier than ever before, thanks to its Wi-Fi
capabilities. Simply access the Samsung Multiroom
App to experience the best of the internet’s
subscription streaming music services.
Surround Sound Expansion
The Surround Sound Expansion feature adds depth
and spaciousness to your listening experience.
TV SoundConnect
Listen to TV audio through the Soundbar by
connecting your TV and the Soundbar via Bluetooth
with TV SoundConnect. Easy connectivity and the
absence of trailing wires between the Soundbar and
TV allows you to showcase the slim and sleek design
of both systems, while maintaining a clean look in
your living environment. Easily control the Soundbar
and TV from a single TV remote.
Music Source Sharing (= Multiroom Play)
Controlling and sharing one music source across
multiple audio devices in various locations is made
easy with Multiroom Link. The mobile app remotely
controls volume and music on your system across
different devices, including your TV, Soundbar, Home
Entertainment System and Blu-ray Disc Player. Enjoy
the audio you want, where you want.
HDMI
HDMI transmits digital video and audio signals
simultaneously, and provides a clearer picture.
The unit is also equipped with the ARC function
which lets you listen to sound from your TV through
the Soundbar via an HDMI cable. This function is
only available if you connect the unit to an ARC
compliant TV.
USB Host Support
You can connect and play music files from external
USB storage devices such as MP3 players, USB flash
memory, etc. using the Soundbar's USB HOST
function.
Bluetooth Function
You can connect a Bluetooth device to the Soundbar
and enjoy music with high quality stereo sound, all
without wires!
LICENSES
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, & DTS and the Symbol
together are registered trademarks, and DTS 2.0
Channel is a trademark of DTS, Inc. © DTS, Inc. All
Rights Reserved.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.

3
ENG
GETTING STARTED
SAFETY INFORMATION
●The following also applies to the Wireless Subwoofer (PS-WJ650, PS-WJ651).
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
The lighting flash and arrowhead within the
triangle indicates that there is dangerous
voltage Inside the product.
The explanation point within the triangle
indicates that there are important instructions
accompanying the product.
WARNING
• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
• This product contains chemicals known to the State of California to cause cancer and reproductive toxicity.
CAUTION
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug
must be easily and readily accessible at all times.
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment.
To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and
connectors for connections.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorienting or relocating the receiving antenna.
• Increasing the separation between the equipment and receiver.
• Connecting the equipment to an outlet that is on a different circuit than the radio or TV.
• Consulting the dealer or an experienced radio/TV technician for help.
Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's
authority to operate it.
Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these
operating instructions handy for future reference.
1) Read these instructions.
2) Keep these Instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance
with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachment/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning
storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any
way, such as when the power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.

54
GETTING STARTED
PRECAUTIONS
Ensure that the AC power supply in your house complies with the power requirements listed on the
identification sticker located on the back of your product. Install your product horizontally, on a suitable base
(furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots are not
covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed
for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if
you intend to leave it unused for a long period of time.
3.9 inch 3.9 inch
2.7 inch
3.9 inch
During thunderstorms, disconnect the AC plug from
the wall outlet. Voltage peaks due to lightning could
damage the unit.
Protect the product from moisture (i.e. vases), and
excess heat (e.g. a fireplace) or equipment creating
strong magnetic or electric fields. Unplug the power
cable from the AC wall socket if the unit
malfunctions. Your product is not intended for
industrial use. It is for personal use only.
Condensation may occur if your product has been
stored in cold temperatures. If transporting the unit
during the winter, wait approximately 2 hours until
the unit has reached room temperature before using.
Do not expose the unit to direct sunlight or other
heat sources. This could lead to overheating and
cause the unit to malfunction.
The battery used with this product contains
chemicals that are harmful to the environment. Do
not dispose of the battery in the general household
trash. Do not expose the battery to excess heat,
direct sunlight, or fire. Do not short circuit,
disassemble, or overheat the battery. Danger of
explosion if the battery is replaced incorrectly.
Replace only with the same or equivalent type.
WARNING: DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD. The remote control supplied
with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed,
it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used
batteries away from children. If the battery compartment does not close securely, stop using the
remote and make sure to keep it away from children. If you think the battery might have been swallowed or
placed inside any part of the body, seek immediate medical attention.

5
ENG
GETTING STARTED
Figures and illustrations in this User Manual are
provided for reference only and may differ from
actual product appearance.
CONTENTS
2 GETTING STARTED
2 Features
3 Safety Information
6 What’s Included
7 DESCRIPTIONS
7 Top / Front Panel
8 Rear / Bottom Panel
9 Remote Control
11 INSTALLATION
11 Installing the Wall Mount
11 Installation Precautions
12 Installing the Bracket without Referring to
the Wall-Mount Installation Guide
13 Detaching the Soundbar from the Wall
Mount
14 CONNECTIONS
14 Connecting the Subwoofer
16 Connecting to a TV
16 Connecting to a TV Using a Digital Optical
Cable
17 Connecting to a TV Using an HDMI (Digital)
Cable
17 TV SoundConnect
19 Connecting to External Devices
19 HDMI Cable
19 Optical or Analog Audio Cable
20 USB
22 FUNCTIONS
22 Input Mode
23 Bluetooth
25 Using the Multiroom App
26 Using the Network Standby On Function
27 Software Update
29 TROUBLESHOOTING
29 Troubleshooting
30 APPENDIX
30 Specifications

76
GETTING STARTED
WHAT’S INCLUDED
BEFORE READING THE USER’S MANUAL
Note the following terms before reading the user manual.
+Icons used in this manual
Icon Term Definition
Caution
Indicates a situation where a function does not operate or settings may be
canceled.
Note
Indicates tips or instructions on the page that help you operate a function.
Check for the supplied accessories shown below.
Remote Control /
Lithium Battery (3V : CR2032)
(AH59-02692A / 4301-001042)
Power Cord : 2EA
(3903-000599)
DC Adapter
(BN44-00799A)
Optical Cable
(AH39-00779A)
(Wall Mount L)
(Wall Mount R)
USB Cable
(AH39-01178B)
User Manual /
Quick Guide
(AH68-02832A) /
(AH68-02826E)
Bracket-Wall Mount
(L : AH61-03833A / R : AH61-03834A)
Holder-Screw 1: 2EA
(AH61-03342A)
Holder-Screw 2: 2EA
(6001-001961)
Wall Mount Guide
(AH63-03710D)
●The appearance of the accessories may differ slightly from the illustrations above.
●Use the dedicated USB cable to connect external USB devices to the unit.

7
ENG
DESCRIPTIONS
TOP / FRONT PANEL
(Power) Button
Turns the power on and off.
VOL. - / +
Controls the volume level.
The numeric value of the volume level
appears in the front panel display.
Display
Displays the current mode.
(Source) Button
Selects the D.IN, AUX, HDMI, BT, TV, or USB
input.
●While the unit is powered on, pressing
the
(Source) button for more than 3
seconds sets the button to act as the
(Mute) button. To cancel the (Mute)
button setup, press the
(Source)
button for more than 3 seconds again.
●When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.
●When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
●If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the
Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.
DESCRIPTIONS

98
DESCRIPTIONS
REAR / BOTTOM PANEL
AUX IN OPTICAL IN
HDMI IN HDMI OUT
(TV-ARC)
AUXIN
HDMIIN HDMIOUT
(TV-ARC)
OPTICALIN
LAN 5V0.5A
LAN 5V 0.5A
DC 24V
SPK ADDWi-Fi SETUP
DC 24V
SPK ADDWi-Fi SETUP
DC 24V (Power Supply In)
Connect the DC power adaptor to the power
supply jack, and then connect the AC power
adaptor plug to a wall outlet.
HDMI IN
Inputs digital video and audio
signals simultaneously using
an HDMI cable. Use when
connecting a supported
external device.
HDMI OUT (TV-ARC)
Outputs digital video and
audio signals
simultaneously using an
HDMI cable.
OPTICAL IN (D.IN)
Connect to the digital
(optical) output of an
external device.
AUX IN
Connect to the Analog output of an
external device.
LABEL
SPK ADD
Press this button to
connect the
Soundbar to a
Samsung HUB.
(not supplied)
Wi-Fi SETUP
Press this button to
connect your Soundbar
to your network using
Wi-Fi setup. (Requires a
smart device and the
Samsung Multiroom app.
See page 25.)
LAN
Lets you connect to a network using
a LAN cable.
(USB Port)
Connect USB devices here to play
files on the devices.
●When disconnecting the power cable of the AC power adaptor from a wall outlet, pull the plug.
Do not pull the cable.
●Do not connect this unit or other components to an AC outlet until all connections between
components are complete.

9
ENG
DESCRIPTIONS
REMOTE CONTROL
Anynet+
Press the Anynet+ button to turn the Anynet+ function on or off.
(Default : Auto Power Link OFF, ON - ANYNET+ / OFF - POWER LINK or OFF
- ANYNET+ / ON - POWER LINK). The Anynet+ function lets you control the
Soundbar with the remote from an Anynet+ compatible Samsung TV. The
Soundbar must be connected to the TV via an HDMI cable.
* Auto Power Link
Synchronizes the Soundbar to a connected Optical source via the
Optical jack so it turns on automatically when you turn on your TV.
(See page 16)
You can also activate Wi-Fi SETUP function by pressing and holding
Anynet+ button on the remote for over 7 seconds.
Repeat
Press to set the Repeat function during music playback from a USB device.
OFF - REPEAT : Cancels Repeat Playback.
TRACK - REPEAT : Repeatedly play a track.
ALL - REPEAT : Repeatedly play all tracks.
RANDOM - REPEAT : Plays tracks in random order.
(A track that has already been played may be played again.)
Mute
You can turn the volume down to 0 with the push of a button.
Press again to restore the sound to the previous volume level.
SOURCE
Press to select a source connected to the Soundbar.
Skip Forward
If there is more than one file on the device you are playing, and you
press the ] button, the next file is selected.
SOUND CONTROL
Press to select TREBLE, BASS, or AUDIO SYNC. Then, use the
[ , ]
buttons to adjust the Treble or Bass volume from -3 to +3.
Press and hold the SOUND CONTROL button for about 5 seconds to adjust
the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz,
2.5KHz, 5KHz, and 10KHz are selectable and each can be adjusted to a
setting between -6 and +6.
If the Soundbar is connected to a digital TV and the video appears out of
sync with the audio, press the SOUND CONTROL button to sync the audio
with the video. Use the
[ , ] buttons to set the audio delay between
0 ms and 300 ms. In USB mode, TV mode, and BT mode, the Audio Sync
function may not available.
●Soundbar is a Samsung proprietary name.
●Operate the TV using the TV's remote control.

1110
DESCRIPTIONS
STREAMING MUSIC
Press STREAMING MUSIC button to listen to an Internet radio station.
Each time you press this button, the Soundbar switches to the next default
station, cycling through the 3 default stations.
To use the STREAMING MUSIC function, the Soundbar must be connected
to the Internet. (See page 26)
DRC (Dynamic Range Control) *
Lets you apply dynamic range control to Dolby Digital, Dolby Digital Plus,
and Dolby TrueHD audio.
Press and hold the STREAMING MUSIC button to toggle the DRC
(Dynamic Range Control) function ON and OFF.
WOOFER
Press the WOOFER button. Then, use the [ , ] buttons to adjust the
Subwoofer volume from -12, -6 to +6.
You can also activate SPK ADD function of the soundbar by pressing and
holding WOOFER button of the remote for over 5 seconds.
SOUND
Surr.Sound adds depth and spaciousness to the sound. Pressing the
SOUND button repeatedly cycles through the Surr.Sound settings :
ON - SURROUND SOUND, OFF - SURROUND SOUND
Volume
Adjusts the volume level of the unit.
Power
Turns the Soundbar on and off.
SOUND EFFECT
You can select the sound modes - STANDARD (Original Sound), MUSIC,
VOICE, SPORTS, CINEMA, and NIGHT MODE - depending on the content
you want to listen to.
Select the STANDARD mode if you want to enjoy the original sound.
Play / Pause
Press the
p button to pause a file temporarily.
Press the
p button again to play the selected file.
Skip Back
If there is more than one file on the device you are playing, and you press
the
[ button, the previous file is selected.
INSTALLING THE BATTERY IN THE REMOTE CONTROL
1. Use a suitable coin to turn the
remote control's battery cover
counterclockwise to remove it
as shown in the figure above.
2. Insert a 3V lithium battery. Keep the
positive (+) pole facing up when
inserting the battery. Put the battery
cover on and align the '●' marks side
by side as shown in the figure above.
3. Use a suitable coin to
turn the remote control
battery cover clockwise
as far as it will go to fix
it in place.

11
ENG
INSTALLATION
INSTALLING THE WALL MOUNT
You can use the wall mount bracket to mount this unit on a wall.
INSTALLATION PRECAUTIONS
● Install on a vertical wall only.
●For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the
weight of the set.
●Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or
install the unit on a different wall that can support the unit's weight.
●Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board,
iron board, wood, etc.). If possible, fix the support screws into wall studs.
●Purchase wall mounting screws according to the type and thickness of the wall you will mount the
Soundbar on.
-Diameter : M5
-Length: 1 3/8 inches or longer recommended.
●Connect cables from the unit to external devices before you install it on the wall.
●Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric
shock.
2 inches or more
1. Place the installation guide against the wall surface.
• The installation guide must be level.
• If the TV is mounted on the wall, install the Soundbar at least 2 inches (5 cm) below the TV.
2. Mark the location where the screws will go through on the wall, and then remove the installation guide.
Next, drill holes for the screws using an appropriately sized drill bit.
INSTALLATION

1312
INSTALLATION
3. Fasten the wall mounts and screws to the marked locations.
• The left and right mounts are different shapes. Make sure to position them correctly.
DC24V
SPKADD
Wi-FiSETUP
Wall Mounting the Sound Bar
4. Secure the two holder screws to the screw holes on the back of the Soundbar's main body, one on the left
and one on the right.
●Insert the included USB cable into the back of the Soundbar before installing it on the wall.
5. Set the holder screws on the back of the Soundbar into the grooves of the wall mounts. For safe
installation, make sure to push the holder screws all the way to the bottom of the grooves.
INSTALLING THE BRACKET WITHOUT REFERRING TO THE
WALL-MOUNT INSTALLATION GUIDE
2 inches or more
2 inches or more
6.3 inches 6.9 inches
Minimum 12.9 ~ 13.2 inches

13
ENG
INSTALLATION
1. Place Wall Mount L on the desired wall surface parallel to the floor as shown on the previous page. Mark
the location of the screw holes on the wall. Drill holes for the screws at the places you have marked.
2. Match the screw holes on Wall Mount L to the screw holes on the wall, and then screw one screw through
the hole in its right end. Tighten the screw until it is firmly fixed to the wall.
3. Place Wall Mount R on the desired wall surface parallel to the floor and aligned with Wall Mount L as
shown on the previous page. Mark the location of the screw holes on the wall. Drill holes for the screws at
the places you have marked.
4. Match the screw holes on Wall Mount R to the screw holes on the wall, and then screw one screw
through the hole in its right end. Tighten the screw until it is firmly fixed to the wall.
• If you are mounting the Wall Mounts beneath the TV, make sure to position the mounts 2 or more
inches below the TV and to align the mounts with the center of the TV as shown on the previous page.
5. Insert screws through the remaining holes, and then tighten.
DETACHING THE SOUNDBAR FROM
THE WALL MOUNT
1. Pull the Soundbar upwards as shown in the figure to separate it from the wall mounts.
Detaching the Soundbar from the
Wall Mounts
●Do not hang onto the installed unit and avoid striking or dropping the unit.
●Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an
injury or damage the product.
●When the unit is installed on a wall, please make sure that children do not pull any of the
connecting cables, as this may cause it to fall.
●For the optimal performance of a wall mount installation, install the speaker system at least 2 inches
(5 cm) below the TV, if the TV is mounted on the wall.
●For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it
is unlikely to fall.

1514
CONNECTIONS
●Do not connect the power cord of this product or your TV to a wall outlet until all connections
between components are complete.
●Before moving or installing this product, be sure to turn off the power and disconnect the power
cord.
CONNECTING THE SUBWOOFER
CONNECTING TO THE SUBWOOFER AUTOMATICALLY
The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect
wirelessly) automatically when the main unit and subwoofer are turned on.
• When the subwoofer is completely connected, the blue LED Link Indicator on the subwoofer stops blinking.

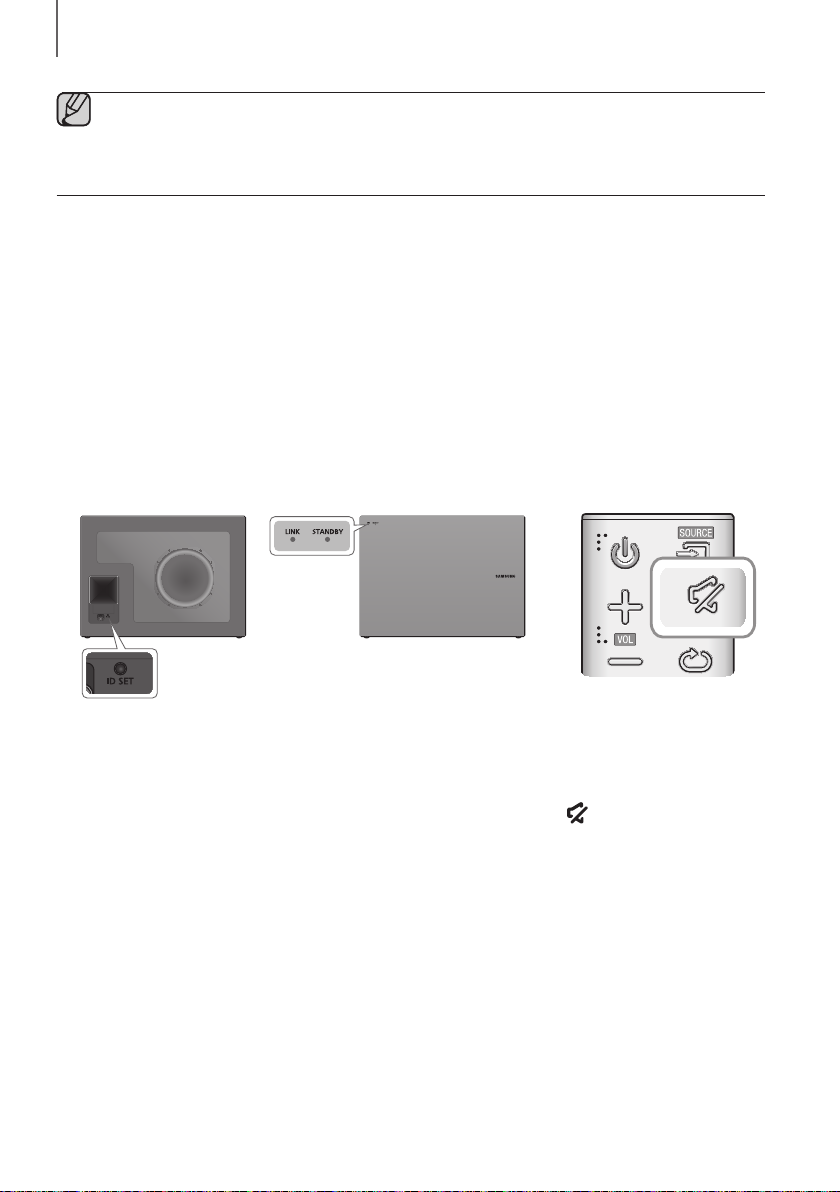

CONNECTING TO THE SUBWOOFER MANUALLY
If the blue LED light does not stop blinking when the main unit and subwoofer are turned on, please set the ID
by following the procedure below.
POWER
1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.
2. Press the ID SET button on the back of the subwoofer with a small, pointed object for
5 seconds.
• The STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly.
3. While the main unit is powered off (in STANDBY mode), press and hold the (Mute) on the remote
control for 5 seconds.
4. The ID SET message appears on the Soundbar's display.
5. To finalize the link, turn the main unit’s power on while the subwoofer’s Blue LED blinks.
• The main unit and the subwoofer should now be linked (connected).
• The Link indicator (Blue LED) on the subwoofer should be glowing continuously and not blinking.
• If the Link indicator is not solid blue, the linking process has failed. Turn off the main unit and start
again from Step 2.
• You can enjoy better sound from the wireless subwoofer by selecting a Sound Effect.
(See page 10)
CONNECTIONS

15
ENG
CONNECTIONS
●Before moving or installing the product, be sure to turn off the power and disconnect the power
cord.
●If the main unit is powered off, the wireless subwoofer will be in standby mode and the STANDBY
LED on the upper side will come on after the Link indicator (Blue LED) blinks for 30 seconds.
●If you use a device that uses the same frequency (2.4GHz) as the Soundbar near the Soundbar,
interference may cause some sound interruption.
●The maximum transmission distance of the wireless signal between the main unit and subwoofer is
about 32.8 ft, but may vary depending on your operating environment. If a steel-concrete or
metallic wall is between the main unit and the wireless subwoofer, the system may not operate at
all, because the wireless signal cannot penetrate metal.
●If the main unit doesn't make a wireless connection, follow steps 1-5 on the previous page to re-set
the connection between the main unit and wireless subwoofer.
●The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water
and moisture.
●For optimal listening performance, make sure that the area around the wireless subwoofer location
is clear of any obstructions.

1716
CONNECTIONS
CONNECTING TO A TV
CONNECTING TO A TV USING A DIGITAL OPTICAL CABLE
AUXIN
HDMIIN HDMIOUT
(TV-ARC)
OPTICALIN
LAN 5V0.5A
DC24V
SPKADDWi-FiSETUP
OPTICAL IN
OPTICAL OUT
OPTICAL IN
Optical Cable
1. Connect the OPTICAL IN (Audio) jack on the Soundbar to the OPTICAL OUT jack of the TV with a digital
optical cable.
2. Press the (Source) button on the top panel of the Soundbar or the SOURCE button on the remote
control to select the D.IN mode.
+Auto Power Link
If you have connected the main unit to a TV with a digital optical cable, you can set the Auto Power
function ON to have the Soundbar turn on automatically when you turn the TV on.
AUTO POWER LINK Display
ON OFF - ANYNET+ / ON - POWER LINK
OFF ON - ANYNET+ / OFF - POWER LINK
1. Connect the Soundbar and a TV with a digital optical cable.
2. Press the (Source) button on the main unit’s top panel or the SOURCE button on the remote control
to select the D.IN mode.
3. Press the Anynet+ button on the remote control to toggle the Auto Power Link function on and off.
●Depending on the connected device, Auto Power Link may not function.

17
ENG
CONNECTIONS
CONNECTING TO A TV USING AN HDMI (DIGITAL) CABLE
AUXIN
HDMIIN HDMIOUT
(TV-ARC)
OPTICALIN
LAN 5V0.5A
DC24V
SPKADDWi-FiSETUP
HDMI IN HDMI OUT
(TV-ARC)
HDMI OUT
(TV-ARC)
HDMI Cable
(not supplied)
1. Connect an HDMI cable (not supplied) from the HDMI OUT (TV-ARC) jack on the back of the product to
the HDMI IN jack on your TV.
2. Press the (Source) button on the top panel of the Soundbar or the SOURCE button on the remote
control to select the D.IN mode.
●HDMI is an interface that enables the digital transmission of video and audio data with just a single
connector.
●If the TV provides an ARC port, connect the HDMI cable to the HDMI IN (ARC) port.
●We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one
whose diameter is less than 0.55 inches.
●Anynet+ must be turned on.
●This function is not available if the HDMI cable does not support ARC.
TV SOUNDCONNECT
You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the TV
SoundConnect function.
Connect
1. Turn on the TV and Soundbar.
• Open the menu of the TV.
• Navigate to Speaker Settings on the Sound tab.
• Set the "Add New Device" menu to "On".
2. Press the (Source) button on the main unit’s top panel or the SOURCE button on the remote control
to select the TV mode.
3. On the TV, a message asking whether to enable the TV SoundConnect function appears.
4. Select <Yes> using the TV's remote control to finish connecting the TV and Soundbar.

1918
CONNECTIONS
●Switching the Soundbar’s mode from TV to another mode automatically terminates TV
SoundConnect.
●To connect the Soundbar to another TV, the existing connection must be terminated.
●To terminate the existing connection, press and hold the p button on the remote for 5 seconds or
switch to another mode. To connect to the other TV, follow Steps 1 through 4 on the previous
page.
●The TV SoundConnect (SoundShare) function is supported by some Samsung TVs released from
2012 on. Check whether your TV supports the TV SoundConnect (SoundShare) function before
you begin. (For further information, refer to the TV’s user manual.).
●If your Samsung TV was released before 2014, check the SoundShare setting menu.
●If the distance between the TV and Soundbar exceeds 32.8 ft, the connection may not be stable or
the audio may stutter. If this occurs, relocate the TV or Soundbar so that they are within operational
range, and then re-establish the TV SoundConnect connection.
●TV SoundConnect Operational Ranges:
-Recommended pairing range: within 78.7 inches (within 2m).
-Recommended operational range: within 32.8 ft. (10m).
●The Play/Pause, Next, and Prev buttons on the Soundbar or Soundbar's remote do not control the
T V.

19
ENG
CONNECTIONS
CONNECTING TO EXTERNAL DEVICES
HDMI CABLE
HDMI is the standard digital interface for connecting to TVs, projectors, DVD players, Blu-ray players, set top
boxes, and more.
HDMI prevents any degradation to the signal due to conversion to analog and maintains the video and
audio quality of the original digital source.
Digital Devices
AUXIN
HDMIIN HDMIOUT
(TV-ARC)
OPTICALIN
LAN 5V0.5A
DC24V
SPKADDWi-FiSETUP
HDMI OUT HDMI IN
HDMI IN
HDMI Cable
(not supplied)
1. Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI
OUT jack on your digital device.
2. Press the (Source) button on the top panel of the Soundbar or the SOURCE button on the remote
control to select the HDMI mode.
OPTICAL OR ANALOG AUDIO CABLE
This unit comes equipped with one digital optical in jack and one analog audio (AUX) in jack, giving you
two ways to connect it to external devices.
AUXIN
HDMIIN HDMIOUT
(TV-ARC)
OPTICALIN
LAN 5V0.5A
DC24V
SPKADDWi-Fi SETUP
OPTICAL IN
AUX IN
OPTICAL OUT
AUX OUT
AUX IN OPTICAL IN
BD / DVD player /
Set-top box /
Game console
Optical Cable
Audio Cable
(not supplied)

2120
CONNECTIONS
+AUX Cable
1. Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the Source Device.
2. Press the (Source) button on the top panel of the Soundbar or the SOURCE button on the remote
control to select the AUX mode.
+Optical Cable
1. Connect OPTICAL IN (Audio) on the main unit to the OPTICAL OUT jack of the Source Device.
2. Press the (Source) button on the top panel of the Soundbar or the SOURCE button on the remote
control to select the D.IN mode.
USB
You can play music files located on USB storage devices through the Soundbar.
AUXIN
HDMIIN HDMIOUT
(TV-ARC)
OPTICALIN
LAN 5V0.5A
DC24V
SPKADD
Wi-FiSETUP
DC14V
AUX IN
HDMI IN HDMI OUT
(TV-ARC)
OPTICAL IN
LAN 5V 0.5A
Display
USB port
1. Connect the USB device to the USB port on the back of the product.
2. Press the (Source) button on the main unit’s top panel or the SOURCE button on the remote control
to select the USB mode.
3. USB appears on the display screen.
• The Soundbar connection to the USB device is complete.
• The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more
than 15 minutes.
+Before you connect a USB device
Be aware of the following:
●If the file name of a file or folder on a USB device exceeds 10 characters, it is not displayed on the
Soundbar's display.
●This product may not be compatible with certain types of USB storage media.
●The Soundbar supports the FAT16 and FAT32 file systems.
-The NTFS file system is not supported.
●Connect USB devices directly to the USB port of the product. Otherwise, you may encounter a USB
compatibility problem.
●Do not connect multiple storage devices to the product via a multi-card reader. It may not operate
properly.
