Sandpipper S30 Owner's manual

s a n d p i p e r p u m p .c o m
Model S30
Metallic
Design Level 1
Certied Quality
Warren Rupp, Inc.
A Unit of IDEX Corporation
800 N. Main St.,
Manseld, Ohio 44902 USA
Telephone [phone]
Fax [phone]
SANDPIPERPUMP.COM
© Copyright 2016 Warren Rupp, Inc.
All rights reserved
Quality System
ISO 9001 Certied
Environmental Management System
ISO 14001 Certied
SERVICE & OPERATING MANUAL
Original Instructions
1: PUMP SPECS2: INSTAL & OP3: EXP VIEW4: AIR END5: WET END6: OPTIONAL7: WARRANTY

s30mdl1sm-rev0316
sandp ipe rpu mp.c om
IMPORTANT
Read the safety warnings and instructions in this manual
before pump installation and start-up. Failure to comply with
the recommendations stated in this manual could damage the
pump and void factory warranty.
When used for toxic or aggressive uids, the pump should
always be ushed clean prior to disassembly.
Airborne particles and loud noise hazards. Wear eye and ear
protection.
Before maintenance or repair, shut off the compressed air line,
bleed the pressure, and disconnect the air line from the pump.
Be certain that approved eye protection and protective clothing
are worn at all times. Failure to follow these recommendations
may result in serious injury or death.
When the pump is used for materials that tend to settle out
or solidify, the pump should be ushed after each use to
prevent damage. In freezing temperatures the pump should be
completely drained between uses.
Before pump operation, inspect all fasteners for loosening
caused by gasket creep. Retighten loose fasteners to prevent
leakage. Follow recommended torques stated in this manual.
CAUTION
WARNING
Nonmetallic pumps and plastic components are not UV
stabilized. Ultraviolet radiation can damage these parts and
negatively affect material properties. Do not expose to UV light
for extended periods of time.
Model S30 Metallic
In the event of diaphragm rupture, pumped material may enter
the air end of the pump, and be discharged into the atmosphere.
If pumping a product that is hazardous or toxic, the air exhaust
must be piped to an appropriate area for safe containment.
This pump is pressurized internally with air pressure during
operation. Make certain that all fasteners are in good condition
and are reinstalled properly during reassembly.
Take action to prevent static sparking. Fire or explosion can
result, especially when handling ammable liquids. The pump,
piping, valves, containers and other miscellaneous equipment
must be properly grounded.

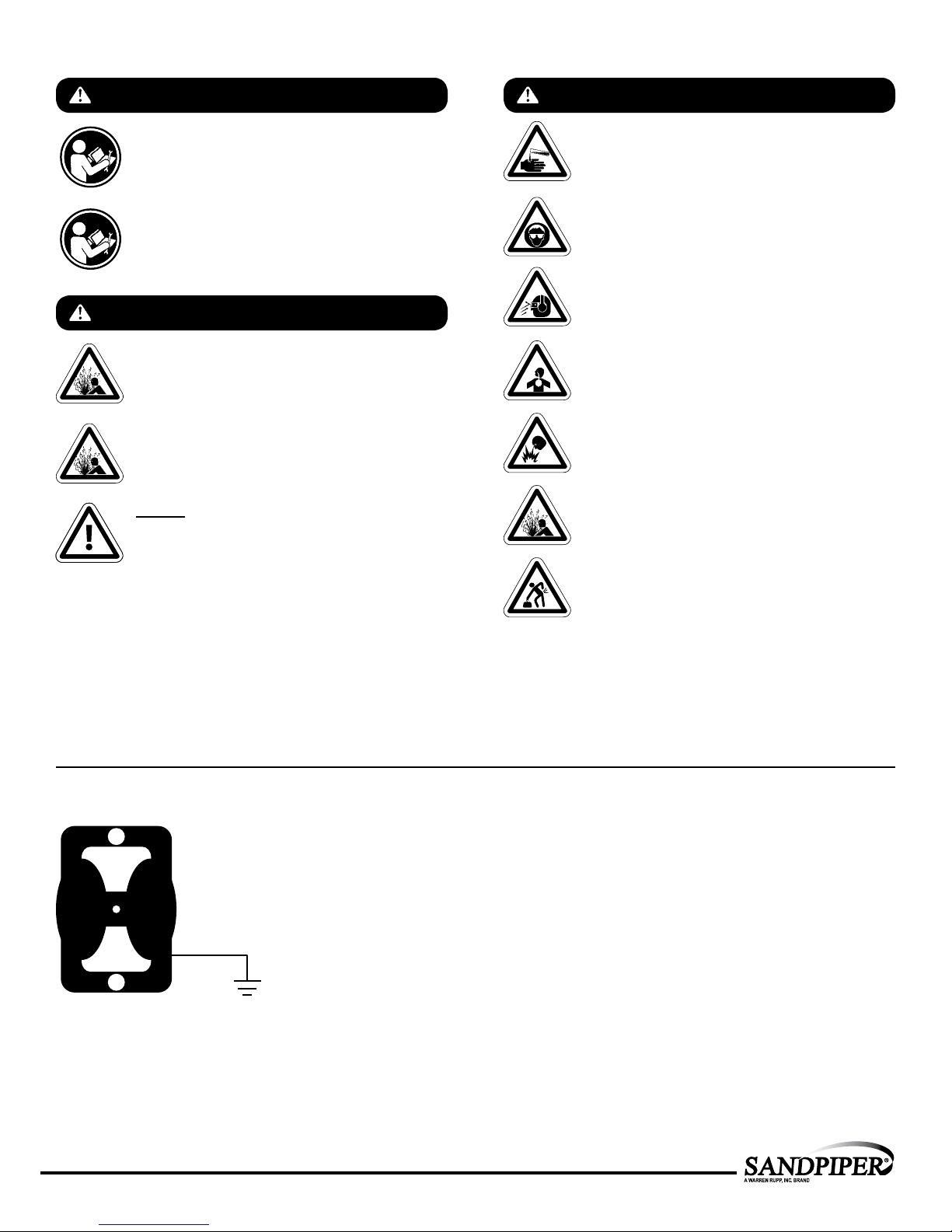

Safety Information
WARNING
Pump not designed, tested or certied to be powered by
compressed natural gas. Powering the pump with natural
gas will void the warranty.
Use safe practices when lifting
kg
ATEX compliant pumps are suitable for use in explosive atmospheres when the equipment is properly grounded
in accordance with local electrical codes. Pumps equipped with electrically conductive diaphragms are suitable for
the transfer of conductive or non-conductive uids of any explosion group. When operating pumps equipped with
non-conductive diaphragms that exceed the maximum permissible projected area, as dened in EN 13461-1: 2009
section 6.7.5 table 9, the following protection methods must be applied:
• Equipment is always used to transfer electrically conductive uids or
• Explosive environment is prevented from entering the internal portions of the pump, i.e. dry running
For further guidance on ATEX applications, please consult the factory.
Grounding ATEX Pumps
UNIVERSAL ALL AODD

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om Model S30 Metallic
Table of Contents
MODEL SPECIFIC
SECTION 1: PUMP SPECIFICATIONS ................1
• Explanation of Nomenclature
• Performance
• Materials

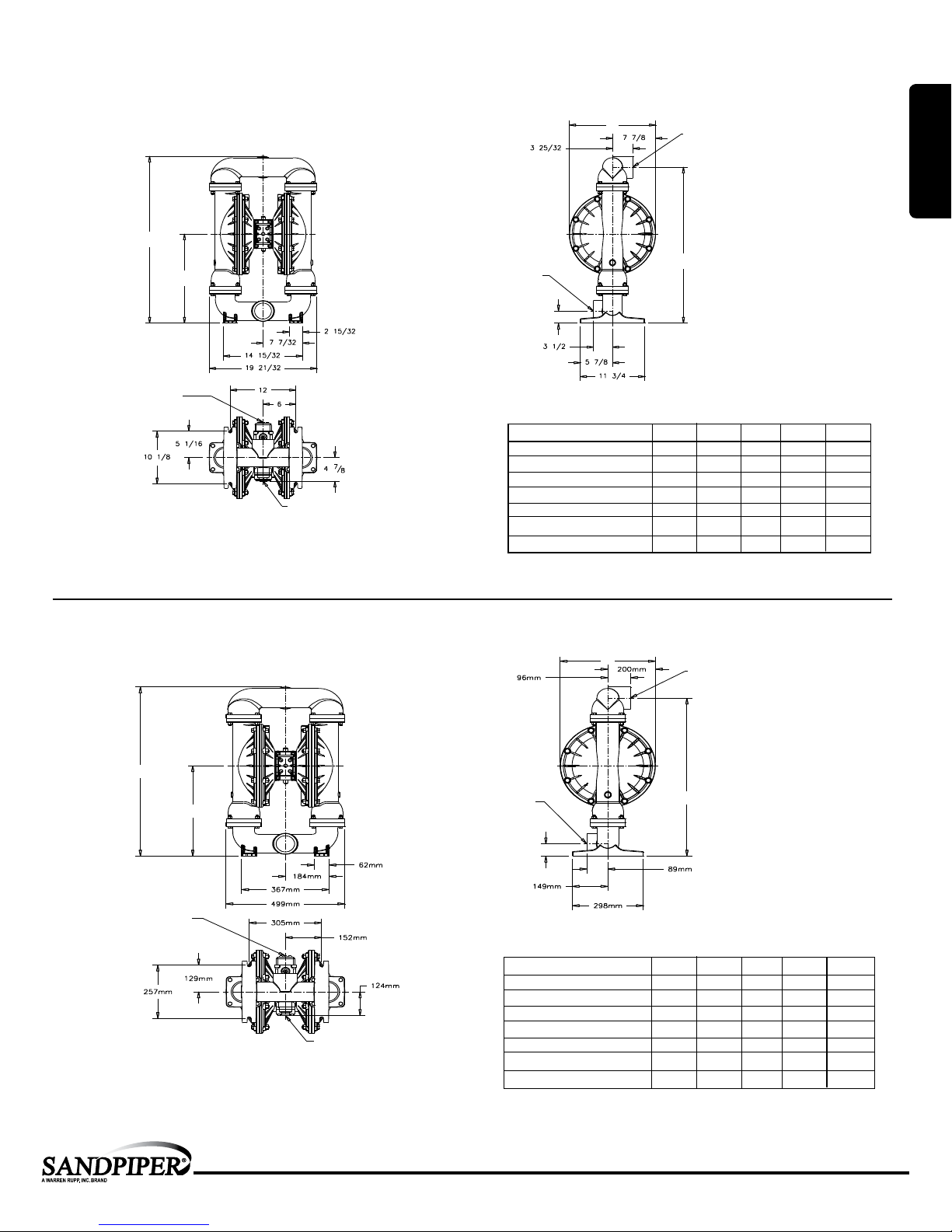

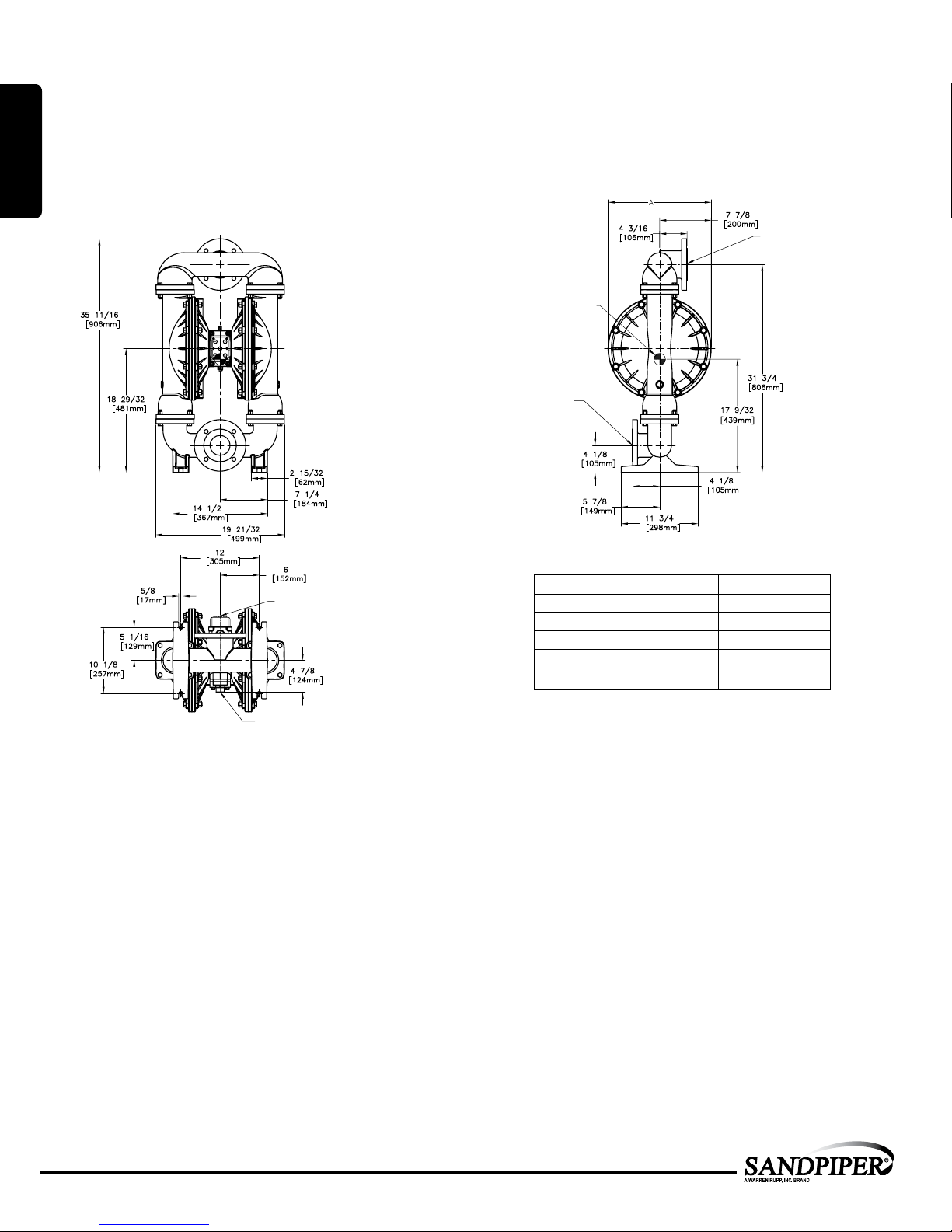

• Dimensional Drawings
SECTION 2: INSTALLATION & OPERATION ......5
• Principle of Pump Operation

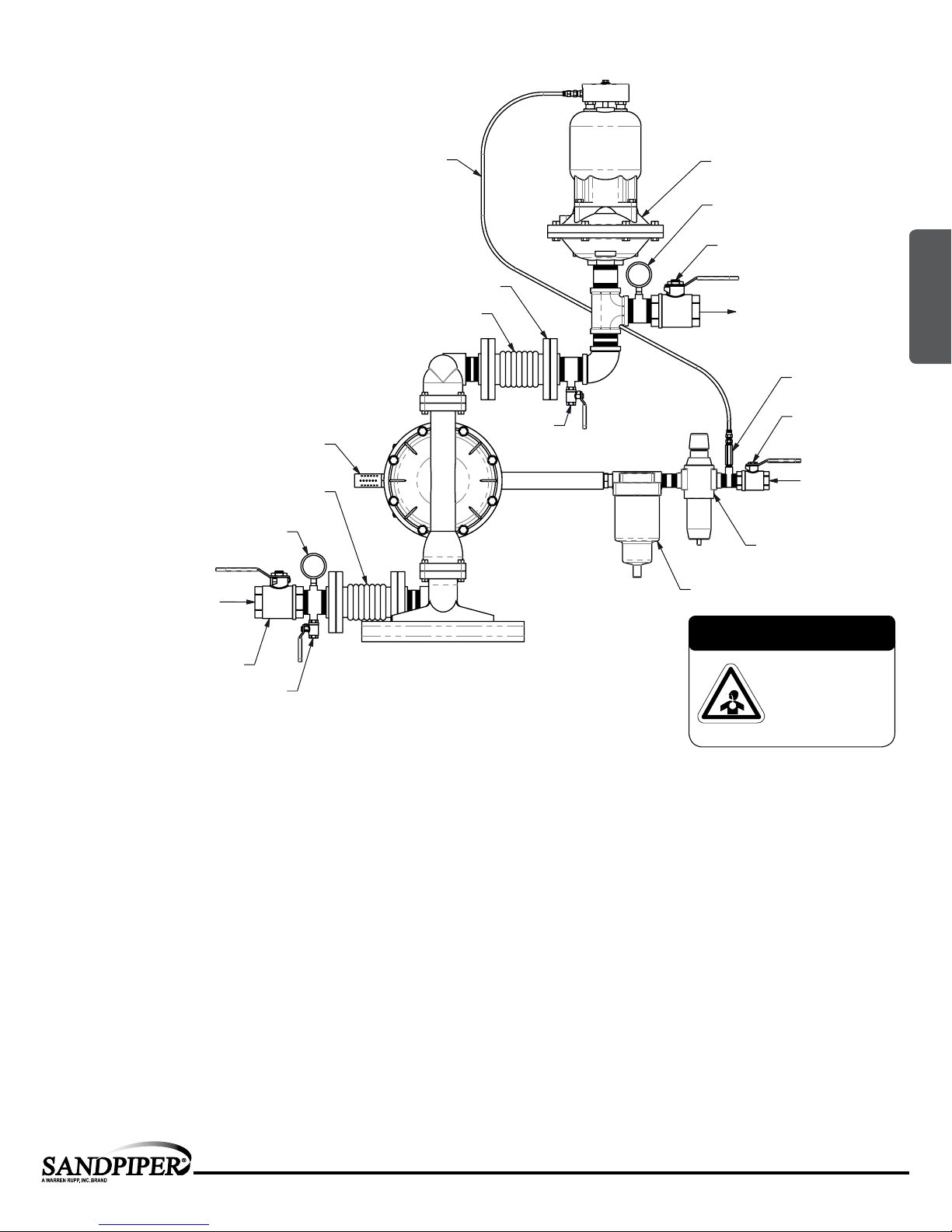

• Recommended Installation Guide
• Troubleshooting Guide
SECTION 3: EXPLODED VIEW ...........................8
• Composite Repair Parts Drawing
• Composite Repair Parts List
• Material Codes
SECTION 4: AIR END .......................................11
• Air Distribution Valve Assembly
• Air Valve with Stroke Indicator Assembly
• Pilot Valve Assembly

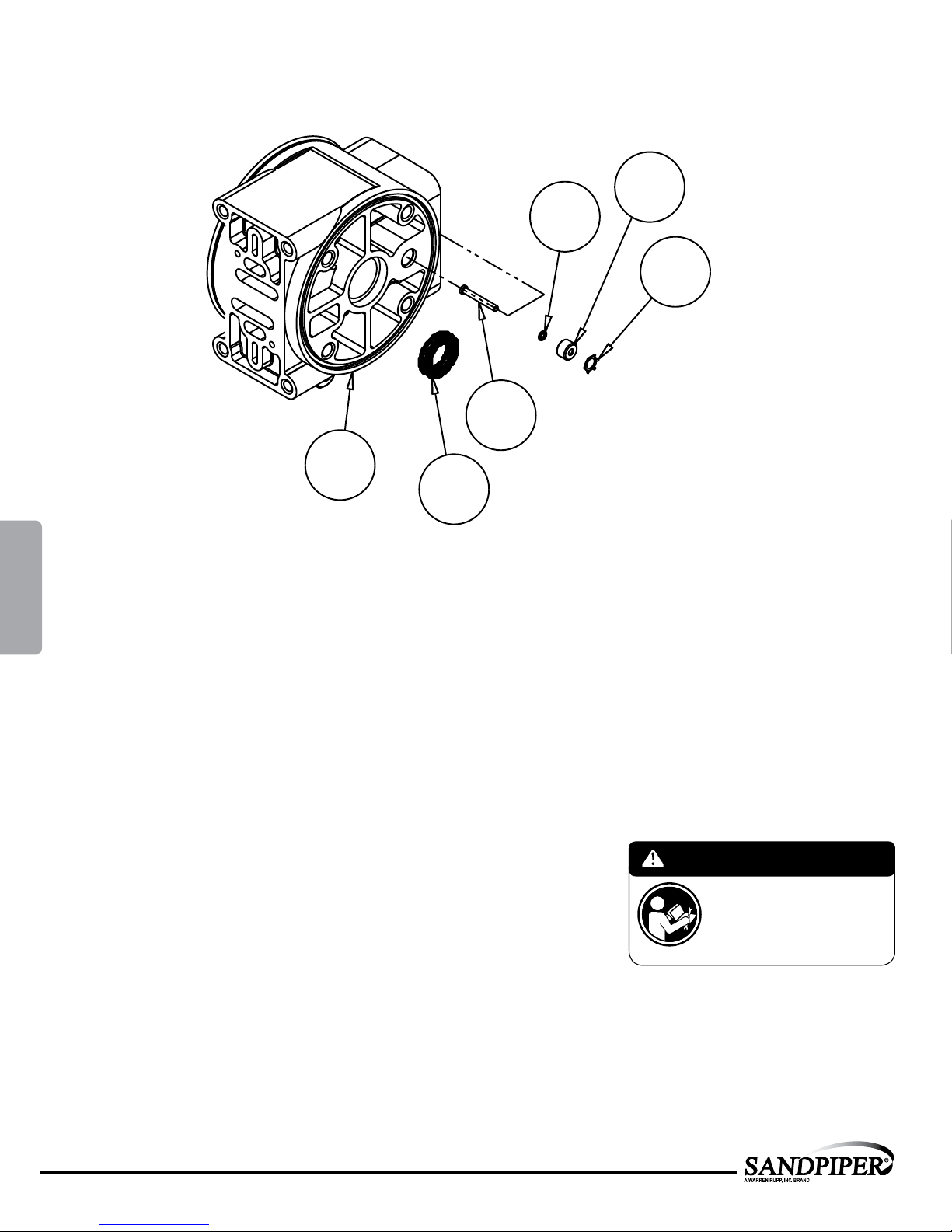

• Intermediate Assembly
SECTION 5: WET END .....................................17
• Diaphragm Drawings
• Diaphragm Servicing
SECTION 6: OPTIONAL CONFIGURATIONS ....19
• Solenoid Shifted Air Valve
SECTION 7: WARRANTY & CERTIFICATES ....20
• Warranty
• CE Declaration of Conformity - Machinery
• ATEX Declaration of Conformity
1: PUMP SPECS2: INSTAL & OP3: EXP VIEW4: AIR END5: WET END6: OPTIONAL7: WARRANTY

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om
1 • Model S30 Metallic
Explanation of Pump Nomenclature
Non-Wetted Material Options
APainted Aluminum
ICast Iron
JPainted Aluminum w/PTFE
Coated Hardware
SStainless Steel with
Stainless Steel Hardware
YPainted Aluminum with
Stainless Steel Hardware
ZCast Iron with
Stainless Steel Hardware
Porting Options
A150# Raised Face 3" ANSI Flange
(Integral Manifold)
D80 DIN Flange (Integral Manifold)
NNPT Threads
BBSP (Tapered) Threads
Pump Style
SStandard
Pump Options
0None
6 MetalMufer
Kit Options
00. None
P0. 10.30VDC Pulse Output Kit
P1. Intrinsically-Safe 5.30VDC,
110/120VAC 220/240 VAC
Pulse Output Kit
P2. 110/120 or 220/240VAC
Pulse Output Kit
E0. Solenoid Kit with 24VDC Coil
E1. Solenoid Kit with 24VDC
Explosion-Proof Coil
E2. Solenoid Kit with 24VAC/12VDC Coil
E3. Solenoid Kit with 12VDC
Explosion-Proof Coil
E4. Solenoid Kit with 110VAC Coil
Pump Brand
SSANDPIPER®
Pump Size
30 3"
Check Valve Type
BBall
Design Level
1Design Level
Wetted Material
AAluminum
ICast Iron
SStainless Steel
HAlloy C
XUnpainted Aluminum
Diaphragm/Check Valve Materials
1Santoprene/Santoprene
2PTFE-Santoprene/PTFE
BNitrile/Nitrile
CFKM/PTFE
EEPDM/EPDM
I EPDM/Santoprene
GPTFE-Neoprene/PTFE
MSantoprene/PTFE
NNeoprene/Neoprene
Check Valve Seat
AAluminum
BNitrile
CCarbon Steel
EEPDM
NNeoprene
SStainless Steel
TPTFE
VFKM
WUHMW Polyethylene
Your Serial #: (ll in from pump nameplate) _____________________________________
Pump Pump Check Design Wetted Diaphragm/ Check Valve Non-Wetted Porting Pump Pump Kit
Brand Size Valve Level Material Check Valve Seat Material Options Style Options Options
S XX X X X X X X X X X XX
Model #:
S
__ ____ __ __ __ __ __ __ __ __ __ ____
(ll in from pump
nameplate)
Your Model #:
Kit Options (continued)
E5. Solenoid Kit with 110VAC
Explosion-Proof Coil
E6. Solenoid Kit with 220VAC Coil
E7. Solenoid Kit with 220VAC
Explosion-Proof Coil
E8. Solenoid Kit with 110VAC, 50 Hz
Explosion-Proof Coil
E9. Solenoid Kit with 230VAC, 50 Hz
Explosion-Proof Coil
S P. Stroke Indicator Pins
A1. Solenoid Kit with 12 VDC
ATEX Compliant Coil
A2. Solenoid Kit with 24 VDC
ATEX Compliant Coil
A3. Solenoid Kit with 110/120 VAC
50/60 Hz ATEX Compliant Coil
A4. Solenoid Kit with 220/240 VAC
50/60 Hz ATEX Compliant Coil
IEC EEX m T4
Note: Pump models equipped with these
explosion-proof solenoid kit options E1, E3,
E5, E7, E8 or E9, are certied and approved
by the above agencies. They are NOT ATEX
compliant.
S05 S05, S1F
ATEX Detail Wetted Material
Options
Non-Wetted
Material Options
Pump
Options Kit Options ATEX Detail Wetted Material
Options
Non-Wetted
Material Options
Pump
Options Kit Options
S1F, M1F remove wetted material option X S15, S20
ATEX Detail
Wetted Material
Options
Non-Wetted
Material Options
Pump
Options
Kit Options ATEX Detail
Wetted Material
Options
Non-Wetted
Material Options
Pump
Options
Kit Options
S15, S20, S30
ATEX Detail Wetted Material
Options
Non-Wetted
Material Options
Pump
Options Kit Options
PB 1/4
ATEX Detail
Construction Muffler Options Options
II 1G c T5
II 1D c T100°C
I M1 c
I M2 c
CA 00
II 2G c T5
II 2D c T100°C CA 00
II 2G Ex ia c IIC T5
II 2D Ex c iaD 20 IP67 T100°C CA P1
Metal
Integral
Integral
II 1G c T5
II 1D c T100°C
I M1 c
I M2 c
II 2G c T5
II 2D c T100°C
II 2G Ex ia c IIC T5
II 2D Ex c iaD 20 IP67 T100°C
II 2G EEx m c II T5
II 2D c IP65 T100°C
A, H, S A, C, Y **0, 6 P1
00
A, H, S A, C, Y **0, 6 A1, A2, A3, A4
H, S C 6 00
A, H, S A, C, Y **0, 6
A1, A2, A3, A4
**Pump option 0 is only ATEX compliant with non-wetted material option C
00
II 2G Ex ia c IIC T5
II 2D Ex c iaD 20 IP67 T100°C A, H, I, S, X A, I, Y, Z 6 P1
II 1G c T5
II 1D c T100°C
I M1 c
I M2 c
H, I, S I, Z 600
II 2G c T5
II 2D c T100°C A, H, I, S, X A, I, Y, Z 6
II 1G c T5
II 1D c T100°C
I M1 c
I M2 c
H, I, S I, S, Z 600
II 2G c T5
II 2D c T100°C A, H, I, S, X A, I, S, Y, Z 6
C0, 6 A1, A2, A3, A4
II 1G c T5
II 1D c T100°C
I M1 c
I M2 c
C, V C 6 00
II 2G EEx m c II T5
II 2D c IP65 T100°C A, H, I, S, X A, I, S, Y, Z 6A1, A2, A3, A4
00
II 2G Ex ia c IIC T5
II 2D Ex c iaD 20 IP67 T100°C A, H, I, S, X A, I, S, Y, Z 6 P1
II 2G EEx m c II T5
II 2D c IP65 T100°C A, H, I, S, X A, I, Y, Z 6
0, 6 P1
II 1G c T5
II 1D c T100°C
I M1 c
I M2 c
C C 6 00
II 2G c T5
II 2D c T100°C C C 0, 6
METALLIC
000, 6CC, V
II 2G c T5
II 2D c T100°C
II 2G EEx m c II T5
II 2D c IP65 T100°C C C 0, 6
II 2G Ex ia c IIC T5
II 2D Ex c iaD 20 IP67 T100°C C, V C0, 6 P1
II 2G EEx m c II T5
II 2D c IP65 T100°C C, V
A1, A2, A3, A4
NON-METALLIC
00
II 2G Ex ia c IIC T5
II 2D Ex c iaD 20 IP67 T100°C C C
ATEX Detail
MODEL SPECIFIC
1: PUMP SPECS

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om Model S30 Metallic • 2
Performance
S30 METALLIC
SUCTION/DISCHARGE PORT SIZE
• 3" NPT or 3" BSP Tapered
• 3" ANSI Flange or 3" DIN Flange
CAPACITY
• 0 to 235 gallons per minute
(0 to 889 liters per minute)
AIR DISTRIBUTION VALVE
• No-lube, no-stall design
SOLIDS-HANDLING
• Up to .38 in. (9.65mm)
HEADS UP TO
• 125 psi or 289 ft. of water
(8.6 Kg/cm2 or 86 meters)
DISPLACEMENT/STROKE
• .94 Gallon / 3.56 liter
MAXIMUM OPERATING PRESSURE
• 125 psi (8.6 bar)
SHIPPING WEIGHT
• Aluminum 116 lbs. (53kg)
• Cast Iron 215 lbs. (98kg)
• Stainless Steel 194 lbs. (87kg)
100
20(34) 40(68)
60(102)
80(136)
100(170)
80
60
40
20
0
0
1
2
3
4
5
6
7
0 20 40 60 80
100 120 140 160 180 200
900800
700
600
5004003002001000
220 240
120(204)
140(238)
30
20
25
10
15
5
9.1
6
7.6
3
4.5
1.5
CAPACITY
Liters per minute
BAR
PSI
HEAD
U.S. Gallons per minute
100 PSI (6.8 Bar)
60 PSI (4.08 Bar)
20 PSI (1.36 Bar) Air Inlet Pressure
40 PSI (2.72 Bar)
NPSHR
METERS FEET

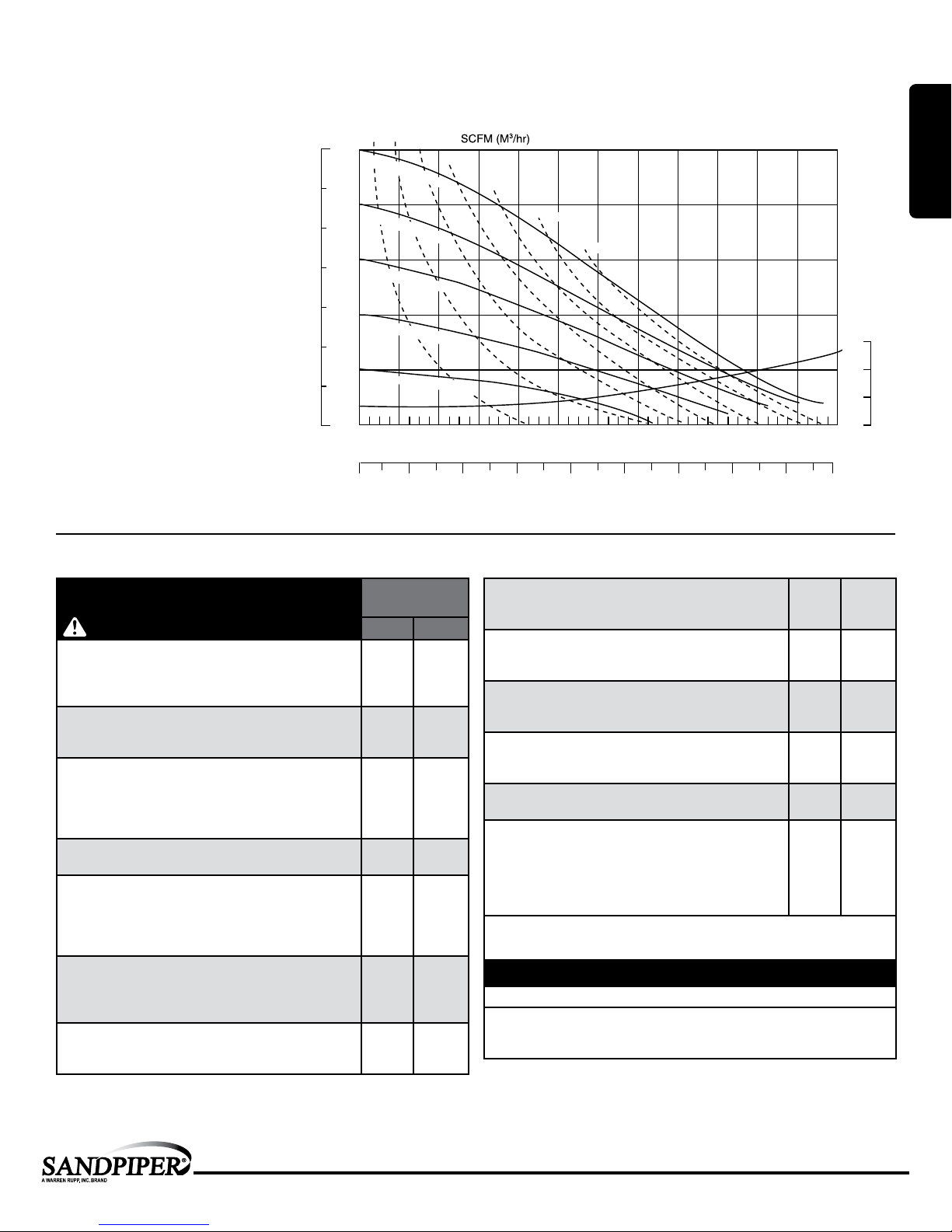

MODEL S30 Metallic Performance Curve
Performance based on the following: elastomer fitted pump, flooded suction, water at ambient conditions.
The use of other materials and varying hydraulic conditions may result in deviations in excess of 5%.
80 PSI (5.44 Bar)
Materials
Material Prole: Operating
Temperatures:
Max. Min.
Conductive Acetal: Tough, impact resistant, ductile. Good
abrasion resistance and low friction surface. Generally inert, with
good chemical resistance except for strong acids and oxidizing
agents.
190°F
88°C
-20°F
-29°C
EPDM: Shows very good water and chemical resistance. Has
poor resistance to oils and solvents, but is fair in ketones and
alcohols.
280°F
138°C
-40°F
-40°C
FKM: (Fluorocarbon) Shows good resistance to a wide range
of oils and solvents; especially all aliphatic, aromatic and
halogenated hydrocarbons, acids, animal and vegetable oils.
Hot water or hot aqueous solutions (over 70°F(21°C)) will
attack FKM.
350°F
177°C
-40°F
-40°C
Hytrel®: Good on acids, bases, amines and glycols at room
temperatures only.
220°F
104°C
-20°F
-29°C
Neoprene: All purpose. Resistance to vegetable oils. Generally
not affected by moderate chemicals, fats, greases and many
oils and solvents. Generally attacked by strong oxidizing acids,
ketones, esters and nitro hydrocarbons and chlorinated aromatic
hydrocarbons.
200°F
93°C
-10°F
-23°C
Nitrile: General purpose, oil-resistant. Shows good solvent, oil,
water and hydraulic uid resistance. Should not be used with
highly polar solvents like acetone and MEK, ozone, chlorinated
hydrocarbons and nitro hydrocarbons.
190°F
88°C
-10°F
-23°C
Nylon: 6/6 High strength and toughness over a wide
temperature range. Moderate to good resistance to fuels, oils
and chemicals.
180°F
82°C
32°F
0°C
Polypropylene: A thermoplastic polymer. Moderate tensile
and ex strength. Resists stong acids and alkali. Attacked by
chlorine, fuming nitric acid and other strong oxidizing agents.
180°F
82°C
32°F
0°C
PVDF: (Polyvinylidene Fluoride) A durable uoroplastic with
excellent chemical resistance. Excellent for UV applications.
High tensile strength and impact resistance.
250°F
121°C
0°F
-18°C
Santoprene®: Injection molded thermoplastic elastomer with
no fabric layer. Long mechanical ex life. Excellent abrasion
resistance.
275°F
135°C
-40°F
-40°C
UHMW PE: A thermoplastic that is highly resistant to a broad
range of chemicals. Exhibits outstanding abrasion and impact
resistance, along with environmental stress-cracking resistance.
180°F
82°C
-35°F
-37°C
Urethane: Shows good resistance to abrasives. Has poor
resistance to most solvents and oils.
150°F
66°C
32°F
0°C
Virgin PTFE: (PFA/TFE) Chemically inert, virtually impervious.
Very few chemicals are known to chemically react with PTFE;
molten alkali metals, turbulent liquid or gaseous uorine and
a few uoro-chemicals such as chlorine triuoride or oxygen
diuoride which readily liberate free uorine at elevated
temperatures.
220°F
104°C
-35°F
-37°C
Maximum and Minimum Temperatures are the limits for which these materials can be operated.
Temperatures coupled with pressure affect the longevity of diaphragm pump components.
Maximum life should not be expected at the extreme limits of the temperature ranges.
Metals:
Alloy C: Equal to ASTM494 CW-12M-1 specication for nickel and nickel alloy.
Stainless Steel: Equal to or exceeding ASTM specication A743 CF-8M for corrosion
resistant iron chromium, iron chromium nickel and nickel based alloy castings for
general applications. Commonly referred to as 316 Stainless Steel in the pump industry.
Forspecicapplications,alwaysconsulttheChemicalResistanceChart.
CAUTION! Operating temperature limitations are as follows:
Ambient temperature range: -20°C to +40°C
Process temperature range: -20°C to +80°C for models rated as category 1 equipment
-20°C to +100°C for models rated as category 2 equipment
In addition, the ambient temperature range and the process temperature range do not exceed the operating temperature range of the applied non-metallic parts as listed in the manuals of the pumps.
MODEL SPECIFIC UNIVERSAL ALL AODD
1: PUMP SPECS

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om
3 • Model S30 Metallic
FRONT VIEW
BOTTOM VIEW
SIDE VIEW
PUMP WEIGHT: 273 lbs
CENTER OF GRAVITY
SUCTION PORT
3” RF ANSI STYLE (#150) FLANGE
3/4 4 HOLES EQUALLY SPACED
ON A 6 BOLT CIRCLE
DIN FLANGE CONFIGURATION
80 DIN (10 BAR) FLANGE
19MM 8 HOLES EQUALLY SPACED
ON A 160MM BOLT CIRCLE
SUCTION PORT
3” RF ANSI STYLE (#150) FLANGE
3/4 4 HOLES EQUALLY SPACED
ON A 6 BOLT CIRCLE
DIN FLANGE CONFIGURATION
80 DIN (10 BAR) FLANGE
19MM 8 HOLES EQUALLY SPACED
ON A 160MM BOLT CIRCLE
1” NPT EXHAUST PORT
FOR OPTIONAL PIPING EXHAUST
AIR IN SUBMERGED APPLICATIONS
AIR INLET
3/4” NPT
DIMENSION
STANDARD PUMP
PULSE OUTPUT
METAL MUFFLER
MESH MUFFLER
SOUND DAMPENING MUFFLER
A
15 3/4 / (400MM)
16 1/32 / (407MM)
16 3/4 / (429MM)
17 3/16 / (441MM)
17 3/16 / (441MM)
S30 Metallic, Flanged Ports
Dimensional Tolerance:±1/8" Dimensional Tolerance:± 3mm
Dimensional Drawings
1: PUMP SPECS

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om Model S30 Metallic • 4
D
E
A
B
C
STANDARD
INTEGRAL MUFFLER
1" NPT EXHAUST PORT
FOR OPTIONAL MUFFLER
STYLES OR PIPING EXHAUST
AIR IN SUBMERGED
APPLICATIONS.
SUCTION PORT
3" NPT TAP
DISCHARGE PORT
3" NPT TAP
AIR INLET
3/4” NPT
BOTH SUCTION AND
DISCHARGE PORTS ARE
AVAILABLE WITH
3" BSP TAPERED THREADS
BOTTOM VIEW
FRONT VIEW
SIDE VIEW
Pulse Output Kit
Aluminum
SoundDampeningMufer
IntegralMufer
Stainless Steel
MetalMufer
DIMENSION BCD E
15 3/4
15 3/4
29 31/32 2 11/32 17 9/64 32 1/16
30 3/16 2 9/16 17 23/64 32 9/32
MeshMufer 17 3/16
17 3/16
16 3/4
A
E
D
C
B
A
STANDARD
INTEGRAL MUFFLER
3" NPT EXHAUST PORT
FOR OPTIONAL MUFFLER
STYLES OR PIPING EXHAUST
AIR IN SUBMERGED
APPLICATIONS.
SUCTION PORT
3" NPT TAP
DISCHARGE PORT
3" NPT TAP
AIR INLET
3/4” NPT
BOTH SUCTION AND
DISCHARGE PORTS ARE
AVAILABLE WITH
3" BSP TAPERED THREADS
BOTTOM VIEW
FRONT VIEW
SIDE VIEW
Pulse Output Kit
Aluminum
SoundDampeningMufer
IntegralMufer
Stainless Steel
MetalMufer
DIMENSION BCD E
400
400
761 60 435 815
767 66 441 821
MeshMufer 437
437
425
A
S30 Metallic, Threaded Ports
Dimensions in Millimeters. Dimensional Tolerance:± 3mm
S30 Metallic, Threaded Ports
Dimensions in Inches. Dimensional Tolerance:±1/8"
Dimensional Drawings
MODEL SPECIFIC
1: PUMP SPECS

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om
5 • Model S30 Metallic
Air-Operated Double Diaphragm (AODD) pumps are powered
by compressed air or nitrogen.
The main directional (air) control valve ①distributes
compressed air to an air chamber, exerting uniform pressure
over the inner surface of the diaphragm
②. At the same time,
the exhausting air ③ from behind the opposite diaphragm
is directed through the air valve assembly(s) to an exhaust
port ④.
As inner chamber pressure (P1) exceeds liquid chamber
pressure (P2), the rod ⑤connected diaphragms shift
together creating discharge on one side and suction on the
opposite side. The discharged and primed liquid’s directions
are controlled by the check valves (ball or ap)⑥orientation.
The pump primes as a result of the suction stroke. The
suction stroke lowers the chamber pressure (P3) increasing
the chamber volume. This results in a pressure differential
necessary for atmospheric pressure (P4) to push the uid
through the suction piping and across the suction side check
valve and into the outer uid chamber ⑦.
Suction (side) stroking also initiates the reciprocating
(shifting, stroking or cycling) action of the pump. The suction
diaphragm’s movement is mechanically pulled through its
stroke. The diaphragm’s inner plate makes contact with an
actuator plunger aligned to shift the pilot signaling valve.
Once actuated, the pilot valve sends a pressure signal to the
opposite end of the main directional air valve, redirecting the
compressed air to the opposite inner chamber.
Principle of Pump Operation
Air Line
Discharged
Fluid
Discharge
Stroke Suction
Stroke
Primed
Fluid
SAFE AIR
EXHAUST
DISPOSAL
AREA
PUMP INSTALLATION AREA
1" DIAMETER AIR
EXHAUST PIPING
1" DIAMETER AIR
EXHAUST PIPING
1" DIAMETER AIR
EXHAUST PIPING
MUFFLER
LIQUID
LEVEL
SUCTION
LINE
LIQUID
LEVEL
SUCTION
LINE
MUFFLER
MUFFLER
SUBMERGED ILLUSTRATION
Pump can be submerged if the pump materials of construction
are compatible with the liquid being pumped. The air exhaust
must be piped above the liquid level. When the pumped product
source is at a higher level than the pump (ooded suction
condition), pipe the exhaust higher than the product source to
prevent siphoning spills.
UNIVERSAL ALL AODD
2: INSTAL & OP

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om Model S30 Metallic • 6
Installation And Start-Up
Locate the pump as close to the product being pumped as possible. Keep the suction line length and number of ttings to a minimum. Do not reduce the suction line
diameter.
Air Supply
Connect the pump air inlet to an air supply with sufcient capacity and pressure to achieve desired performance. A pressure regulating valve should be installed to
insure air supply pressure does not exceed recommended limits.
Air Valve Lubrication
The air distribution system is designed to operate WITHOUT lubrication. This is the standard mode of operation. If lubrication is desired, install an air line lubricator
set to deliver one drop of SAE 10 non-detergent oil for every 20 SCFM (9.4 liters/sec.) of air the pump consumes. Consult the Performance Curve to determine air
consumption.
Air Line Moisture
Water in the compressed air supply may cause icing or freezing of the exhaust air, causing the pump to cycle erratically or stop operating. Water in the air supply can
be reduced by using a point-of-use air dryer.
Air Inlet And Priming
To start the pump, slightly open the air shut-off valve. After the pump primes, the air valve can be opened to increase air ow as desired. If opening the valve
increases cycling rate, but does not increase the rate of ow, cavitation has occurred. The valve should be closed slightly to obtain the most efcient air ow to pump
ow ratio.
Principle of Pump Operation
Surge Suppressor
Shut-Off Valve
Pressure Gauge
Drain Port
Shut-Off
Valve
Check
Valve
Air Inlet
Discharge
Unregulated Air
Supply to Surge
Suppressor
Pipe Connection
(Style Optional)
Flexible Connector
Flexible Connector
Vacuum
Gauge
Suction
Shut-Off Valve
Drain Port
Air Dryer
Filter Regulator
Muffler
(Optional Piped Exhaust)
Recommended Installation Guide
Available Accessories:
1. Surge Suppressor
2. Filter/Regulator
3. Air Dryer
1
2
3
Note: Surge Suppressor and
Piping must be supported after
the exible connection
CAUTION
The air exhaust should
be piped to an area
for safe disposition
of the product being
pumped, in the event of
a diaphragm failure.
SUBMERGED ILLUSTRATION
UNIVERSAL ALL AODD, EXCEPT FLAP
2: INSTAL & OP

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om
7 • Model S30 Metallic
Troubleshooting Guide
For additional troubleshooting tips contact After Sales Support at [email protected] or 419-524-8388
Symptom: Potential Cause(s): Recommendation(s):
Pump Cycles Once Deadhead (system pressure meets or exceeds air
supply pressure).
Increase the inlet air pressure to the pump. Pump is designed for 1:1 pressure ratio at zero ow.
(Does not apply to high pressure 2:1 units).
Air valve or intermediate gaskets installed incorrectly. Install gaskets with holes properly aligned.
Bent or missing actuator plunger. Remove pilot valve and inspect actuator plungers.
Pump Will Not Operate
/ Cycle
Pump is over lubricated. Set lubricator on lowest possible setting or remove. Units are designed for lube free operation.
Lack of air (line size, PSI, CFM). Check the air line size and length, compressor capacity (HP vs. CFM required).
Check air distribution system. Disassemble and inspect main air distribution valve, pilot valve and pilot valve actuators.
Discharge line is blocked or clogged manifolds. Check for inadvertently closed discharge line valves. Clean discharge manifolds/piping.
Deadhead (system pressure meets or exceeds air
supply pressure).
Increase the inlet air pressure to the pump. Pump is designed for 1:1 pressure ratio at zero ow.
(Does not apply to high pressure 2:1 units).
Blocked air exhaust mufer. Remove mufer screen, clean or de-ice, and re-install.
Pumped uid in air exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.
Pump chamber is blocked. Disassemble and inspect wetted chambers. Remove or ush any obstructions.
Pump Cycles and Will
Not Prime or No Flow
Cavitation on suction side. Check suction condition (move pump closer to product).
Check valve obstructed. Valve ball(s) not seating
properly or sticking.
Disassemble the wet end of the pump and manually dislodge obstruction in the check valve pocket.
Clean out around valve ball cage and valve seat area. Replace valve ball or valve seat if damaged.
Use heavier valve ball material.
Valve ball(s) missing (pushed into chamber or
manifold).
Worn valve ball or valve seat. Worn ngers in valve ball cage (replace part). Check Chemical
Resistance Guide for compatibility.
Valve ball(s) / seat(s) damaged or attacked by product. Check Chemical Resistance Guide for compatibility.
Check valve and/or seat is worn or needs adjusting. Inspect check valves and seats for wear and proper setting. Replace if necessary.
Suction line is blocked. Remove or ush obstruction. Check and clear all suction screens or strainers.
Excessive suction lift. For lifts exceeding 20’ of liquid, lling the chambers with liquid will prime the pump in most cases.
Suction side air leakage or air in product. Visually inspect all suction-side gaskets and pipe connections.
Pumped uid in air exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.
Pump Cycles Running
Sluggish / Stalling,
Flow Unsatisfactory
Over lubrication. Set lubricator on lowest possible setting or remove. Units are designed for lube free operation.
Icing. Remove mufer screen, de-ice, and re-install. Install a point of use air drier.
Clogged manifolds. Clean manifolds to allow proper air ow.
Deadhead (system pressure meets or exceeds air
supply pressure).
Increase the inlet air pressure to the pump. Pump is designed for 1:1 pressure ratio at zero ow.
(Does not apply to high pressure 2:1 units).
Cavitation on suction side. Check suction (move pump closer to product).
Lack of air (line size, PSI, CFM). Check the air line size, length, compressor capacity.
Excessive suction lift. For lifts exceeding 20’ of liquid, lling the chambers with liquid will prime the pump in most cases.
Air supply pressure or volume exceeds system hd. Decrease inlet air (press. and vol.) to the pump. Pump is cavitating the uid by fast cycling.
Undersized suction line. Meet or exceed pump connections.
Restrictive or undersized air line. Install a larger air line and connection.
Suction side air leakage or air in product. Visually inspect all suction-side gaskets and pipe connections.
Suction line is blocked. Remove or ush obstruction. Check and clear all suction screens or strainers.
Pumped uid in air exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.
Check valve obstructed. Disassemble the wet end of the pump and manually dislodge obstruction in the check valve pocket.
Check valve and/or seat is worn or needs adjusting. Inspect check valves and seats for wear and proper setting. Replace if necessary.
Entrained air or vapor lock in chamber(s). Purge chambers through tapped chamber vent plugs. Purging the chambers of air can be dangerous.
Product Leaking
Through Exhaust
Diaphragm failure, or diaphragm plates loose. Replace diaphragms, check for damage and ensure diaphragm plates are tight.
Diaphragm stretched around center hole or bolt holes. Check for excessive inlet pressure or air pressure. Consult Chemical Resistance Chart for compatibility
with products, cleaners, temperature limitations and lubrication.
Premature Diaphragm
Failure
Cavitation. Enlarge pipe diameter on suction side of pump.
Excessive ooded suction pressure. Move pump closer to product. Raise pump/place pump on top of tank to reduce inlet pressure.
Install Back pressure device (Tech bulletin 41r). Add accumulation tank or pulsation dampener.
Misapplication (chemical/physical incompatibility). Consult Chemical Resistance Chart for compatibility with products, cleaners, temperature limitations
and lubrication.
Incorrect diaphragm plates or plates on backwards,
installed incorrectly or worn.
Check Operating Manual to check for correct part and installation. Ensure outer plates have not been
worn to a sharp edge.
Unbalanced Cycling Excessive suction lift. For lifts exceeding 20’ of liquid, lling the chambers with liquid will prime the pump in most cases.
Undersized suction line. Meet or exceed pump connections.
Pumped uid in air exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.
Suction side air leakage or air in product. Visually inspect all suction-side gaskets and pipe connections.
Check valve obstructed. Disassemble the wet end of the pump and manually dislodge obstruction in the check valve pocket.
Check valve and/or seat is worn or needs adjusting. Inspect check valves and seats for wear and proper setting. Replace if necessary.
Entrained air or vapor lock in chamber(s). Purge chambers through tapped chamber vent plugs.
UNIVERSAL ALL SANDPIPER, EXCEPT FLAP
2: INSTAL & OP

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om Model S30 Metallic • 8
476-227-000 Air End Kit (Aluminum Center)
Air Valve Assembly, Pilot Valve Assembly, Seals,
O-Rings, Gaskets, Plungers.
**476-170-000 Air End Kit
(Air Valve with Stroke Indicator Pin,
Aluminum Center)
Seals, O-Ring, Gaskets,
Retaining Rings, Air Valve Sleeve and Spool Set,
and Pilot Valve Assembly.
476-171-360 Wet End Kit
Nitrile Diaphragms, Balls, and Seats.
476-171-656 Wet End Kit
Santoprene Diaphragms, Balls and EPDM Seats.
476-171-364 Wet End Kit
EPDM Diaphragms, Balls and Seats.
476-171-365 Wet End Kit
Neoprene Diaphragms, Balls, and Seats.
476-171-633 Wet End Kit
FKM Diaphragms, PTFE Balls and PTFE Seats.
476-171-635 Wet End Kit
Neoprene Diaphragms, PTFE Overlay,
PTFE Balls and PTFE Seats.
Torque: 90 in.lbs.
Torque: 90 in.lbs.
Torque Plate to Rod:
360 in.lbs.
Torque Plate to Plate:
480 in.lbs.
600 in.lbs. Santoprene
Torque:
360 in.lbs. Aluminum
and Stainless Steel
500 in.lbs. Cast Iron
**Electronic Leak Detector Kits
032-040-000 110VAC
032-037-000 220VAC
**Note: Pumps equipped with these components are not
ATEX compliant
476-171-644 Wet End Kit
Santoprene Diaphragms, PTFE Balls and PTFE Seats
476-171-654 Wet End Kit
Santoprene Diaphragms, PTFE Overlays, PTFE
Balls, PTFE Seats.
475-217-000 Micsection Conversion Kit
(Replaces Aluminum Midsection with Cast Iron
Components) Air Inlet Cap, Intermediate Bracket,
Inner Chambers, and Inner Diaphragm Plates.
Hardware Kits
475-197-330 Zinc Plated Capscrews, Washers, and Hex Nuts.
475-197-115 Stainless Steel Capscrews, Washers, and Hex Nuts.
Troubleshooting Guide Composite Repair Parts Drawing
Service & Repair Kits
Symptom: Potential Cause(s): Recommendation(s):
Pump Cycles Once Deadhead (system pressure meets or exceeds air
supply pressure).
Increase the inlet air pressure to the pump. Pump is designed for 1:1 pressure ratio at zero ow.
(Does not apply to high pressure 2:1 units).
Air valve or intermediate gaskets installed incorrectly. Install gaskets with holes properly aligned.
Bent or missing actuator plunger. Remove pilot valve and inspect actuator plungers.
Pump Will Not Operate
/ Cycle
Pump is over lubricated. Set lubricator on lowest possible setting or remove. Units are designed for lube free operation.
Lack of air (line size, PSI, CFM). Check the air line size and length, compressor capacity (HP vs. CFM required).
Check air distribution system. Disassemble and inspect main air distribution valve, pilot valve and pilot valve actuators.
Discharge line is blocked or clogged manifolds. Check for inadvertently closed discharge line valves. Clean discharge manifolds/piping.
Deadhead (system pressure meets or exceeds air
supply pressure).
Increase the inlet air pressure to the pump. Pump is designed for 1:1 pressure ratio at zero ow.
(Does not apply to high pressure 2:1 units).
Blocked air exhaust mufer. Remove mufer screen, clean or de-ice, and re-install.
Pumped uid in air exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.
Pump chamber is blocked. Disassemble and inspect wetted chambers. Remove or ush any obstructions.
Pump Cycles and Will
Not Prime or No Flow
Cavitation on suction side. Check suction condition (move pump closer to product).
Check valve obstructed. Valve ball(s) not seating
properly or sticking.
Disassemble the wet end of the pump and manually dislodge obstruction in the check valve pocket.
Clean out around valve ball cage and valve seat area. Replace valve ball or valve seat if damaged.
Use heavier valve ball material.
Valve ball(s) missing (pushed into chamber or
manifold).
Worn valve ball or valve seat. Worn ngers in valve ball cage (replace part). Check Chemical
Resistance Guide for compatibility.
Valve ball(s) / seat(s) damaged or attacked by product. Check Chemical Resistance Guide for compatibility.
Check valve and/or seat is worn or needs adjusting. Inspect check valves and seats for wear and proper setting. Replace if necessary.
Suction line is blocked. Remove or ush obstruction. Check and clear all suction screens or strainers.
Excessive suction lift. For lifts exceeding 20’ of liquid, lling the chambers with liquid will prime the pump in most cases.
Suction side air leakage or air in product. Visually inspect all suction-side gaskets and pipe connections.
Pumped uid in air exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.
Pump Cycles Running
Sluggish / Stalling,
Flow Unsatisfactory
Over lubrication. Set lubricator on lowest possible setting or remove. Units are designed for lube free operation.
Icing. Remove mufer screen, de-ice, and re-install. Install a point of use air drier.
Clogged manifolds. Clean manifolds to allow proper air ow.
Deadhead (system pressure meets or exceeds air
supply pressure).
Increase the inlet air pressure to the pump. Pump is designed for 1:1 pressure ratio at zero ow.
(Does not apply to high pressure 2:1 units).
Cavitation on suction side. Check suction (move pump closer to product).
Lack of air (line size, PSI, CFM). Check the air line size, length, compressor capacity.
Excessive suction lift. For lifts exceeding 20’ of liquid, lling the chambers with liquid will prime the pump in most cases.
Air supply pressure or volume exceeds system hd. Decrease inlet air (press. and vol.) to the pump. Pump is cavitating the uid by fast cycling.
Undersized suction line. Meet or exceed pump connections.
Restrictive or undersized air line. Install a larger air line and connection.
Suction side air leakage or air in product. Visually inspect all suction-side gaskets and pipe connections.
Suction line is blocked. Remove or ush obstruction. Check and clear all suction screens or strainers.
Pumped uid in air exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.
Check valve obstructed. Disassemble the wet end of the pump and manually dislodge obstruction in the check valve pocket.
Check valve and/or seat is worn or needs adjusting. Inspect check valves and seats for wear and proper setting. Replace if necessary.
Entrained air or vapor lock in chamber(s). Purge chambers through tapped chamber vent plugs. Purging the chambers of air can be dangerous.
Product Leaking
Through Exhaust
Diaphragm failure, or diaphragm plates loose. Replace diaphragms, check for damage and ensure diaphragm plates are tight.
Diaphragm stretched around center hole or bolt holes. Check for excessive inlet pressure or air pressure. Consult Chemical Resistance Chart for compatibility
with products, cleaners, temperature limitations and lubrication.
Premature Diaphragm
Failure
Cavitation. Enlarge pipe diameter on suction side of pump.
Excessive ooded suction pressure. Move pump closer to product. Raise pump/place pump on top of tank to reduce inlet pressure.
Install Back pressure device (Tech bulletin 41r). Add accumulation tank or pulsation dampener.
Misapplication (chemical/physical incompatibility). Consult Chemical Resistance Chart for compatibility with products, cleaners, temperature limitations
and lubrication.
Incorrect diaphragm plates or plates on backwards,
installed incorrectly or worn.
Check Operating Manual to check for correct part and installation. Ensure outer plates have not been
worn to a sharp edge.
Unbalanced Cycling Excessive suction lift. For lifts exceeding 20’ of liquid, lling the chambers with liquid will prime the pump in most cases.
Undersized suction line. Meet or exceed pump connections.
Pumped uid in air exhaust mufer. Disassemble pump chambers. Inspect for diaphragm rupture or loose diaphragm plate assembly.
Suction side air leakage or air in product. Visually inspect all suction-side gaskets and pipe connections.
Check valve obstructed. Disassemble the wet end of the pump and manually dislodge obstruction in the check valve pocket.
Check valve and/or seat is worn or needs adjusting. Inspect check valves and seats for wear and proper setting. Replace if necessary.
Entrained air or vapor lock in chamber(s). Purge chambers through tapped chamber vent plugs.
MODEL SPECIFIC
3: EXP VIEW

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om
9 • Model S30 Metallic
Item Part Number Description Qty
518-143-112 Manifold, Suction 1
518-143-112E Manifold, Suction 3' BSP Tapered 1
518-171-010 Manifold, ANSI Flange Suction 1
518-171-010E Manifold, DIN Flange Suction 1
518-171-110 Manifold, ANSI Flange Suction 1
518-171-110E Manifold, DIN Flange Suction 1
518-171-156 Manifold, ANSI Flange Suction 1
518-171-156E Manifold, DIN Flange Suction 1
23 518-144-010 Manifold, Discharge 1
518-144-010E Manifold, Discharge 3" BSP Tapered 1
518-144-110 Manifold, Discharge 1
518-144-110E Manifold, Discharge 3" BSP Tapered 1
518-144-112 Manifold, Discharge 1
518-144-112E Manifold, Discharge 3" BSP Tapered 1
518-144-156 Manifold, Discharge 1
518-144-156E Manifold, Discharge 3" BSP Tapered 1
518-172-010 Manifold, ANSI Flange Discharge 1
518-172-010E Manifold, DIN Flange Discharge 1
518-172-110 Manifold, ANSI Flange Discharge 1
518-172-110E Manifold, DIN Flange Discharge 1
518-172-156 Manifold, ANSI Flange Discharge 1
518-172-156E Manifold, DIN Flange Discharge 1
24 545-007-115 Nut, Hex 7/16-14 16
545-007-330 Nut, Hex 7/16-14 16
25 545-008-115 Nut, Hex 1/2-13 16
545-008-330 Nut, Hex 1/2-13 16
26 560-001-360 O-Ring 2
27 560-105-360 Seal (O-Ring) (See item 34) 8
560-105-363 Seal (O-Ring) (See item 34) 8
560-105-364 Seal (O-Ring) (See item 34) 8
560-105-365 Seal (O-Ring) (See item 34) 8
720-055-608 Seal (O-Ring) (See item 34) 8
28 612-192-157 Plate, Inner Diaphragm Assembly 2
612-192-010 Plate, Inner Diaphragm Assembly 2
29 612-194-157 Plate, Outer Diaphragm Assembly 2
612-194-010 Plate, Outer Diaphragm Assembly 2
612-194-110 Plate, Outer Diaphragm Assembly 2
612-194-112 Plate, Outer Diaphragm Assembly 2
30 620-020-115 Plunger, Actuator 2
31 675-042-115 Ring, Retaining 2
32 685-040-120 Rod, Diaphragm 1
33 720-004-360 Seal, Diaphragm Rod 2
34 722-090-360 Seat, Check Ball 4
722-090-363 Seat, Check Ball 4
722-090-364 Seat, Check Ball 4
722-090-365 Seat, Check Ball 4
722-090-550 Seat, Check Ball 4
722-090-600 Seat, Check Ball 4
722-090-080 Seat, Check Ball
(seals required see item 27) 4
722-090-110 Seat, Check Ball
(seals required see item 27) 4
722-090-150 Seat, Check Ball
(seals required see item 27) 4
35 901-038-115 5/16 Flat Washer 4
901-038-330 5/16 Flat Washer 4
36 901-048-115 3/8 Flat Washer
(Stroke Indicator Only) 4
901-048-330 3/8 Flat Washer
(Stroke Indicator Only) 4
 42 530-033-000 MetalMufer 1
Item Part Number Description Qty
 1 031.140.000 AirValveAssemblyw/Integralmufer
(Cast Iron Centers Only) 1
031.141.000 Air Valve Assembly (Cast Iron Centers Only) 1
  031.146.000 AirValveAssemblyw/Integralmufer
(Stroke Indicator Only) 1
031.147.000
AirValveAssembly(StrokeIndicatorOnly)(NoMufer) 1
  031.173.000 AirValveAssemblyw/Integralmufer 1
031.173.001
Air Valve Assembly (with Stainless Steel Hardware) 1
031.183.000 Air Valve Assembly 1
031.179.000 Air Valve Assembly
(
Cast Iron or Stainless Steel Centers Only) 1
2 050-014-354 Ball, Check 4
050-014-360 Ball, Check 4
050-014-364W Ball, Check 4
050-014-365 Ball, Check 4
050-015-600 Ball, Check 4
3 070-006-170 Bushing 2
4 095-110-000 Pilot Valve Assembly 1
095-110-558 Pilot Valve Assembly
(Cast Iron Centers Only) 1
095-110-110 Pilot Valve Assembly
(Cast Iron Centers Only) 1
5 114-024-157 Intermediate Bracket 1
114-024-010 Intermediate Bracket 1
114-024-110 Intermediate Bracket 1
6 132-035-360 Bumper, Diaphragm 2
7 135-034-506 Bushing, Plunger 2
8 165-113-157 Cap, Air Inlet Assembly 1
165-113-010 Cap, Air Inlet Assembly 1
165-113-110 Cap, Air Inlet Assembly 1
9 170-055-115 Capscrew, Hex Hd 1/2-13 X 2.50 16
170-055-330 Capscrew, Hex Hd 1/2-13 X 2.50 16
10 170-060-115 Capscrew, Hex Hd 7/16-14 X 2.00 16
170-060-330 Capscrew, Hex Hd 7/16-14 X 2.00 16
11 170-069-115 Capscrew, Hex Hd 5/16-18 X 1.75 4
170-069-330 Capscrew, Hex Hd 5/16-18 X 1.75 4
12 171-053-115 Capscrew, Soc Hd 3/8-16 X 2.50
(Stroke Indicator Only) 4
171-053-330 Capscrew, Soc Hd 3/8-16 X 2.50
(Stroke Indicator Only) 4
170-006-115 Capscrew, Hex HD 3/8-16 X 1.00 4
170-006-330 Capscrew, Hex HD 3/8-16 X 1.00 4
13 171-059-115 Capscrew, Soc Hd 7/16-14 X 1.25 8
171-059-330 Capscrew, Soc Hd 7/16-14 X 1.25 8
171-011-115 Capscrew, Soc Hd 1/2-13 x 1.00
(Stainless Center) 8
14 196-164-156 Chamber, Outer 2
196-164-015 Chamber, Outer 2
196-164-110 Chamber, Outer 2
196-164-112 Chamber, Outer 2
15 196-165-156 Chamber, Inner 2
196-165-157 Chamber, Inner 2
196-165-010 Chamber, Inner 2
196-165-110 Chamber, Inner 2
16 286-098-604 Diaphragm, Overlay 2
17 286-098-360 Diaphragm 2
286-098-363 Diaphragm 2
286-098-354 Diaphragm 2
286-098-365 Diaphragm 2
18 360-093-360 Gasket, Air Valve 1
19 360-114-360 Gasket, Pilot Valve 1
20 360-104-379 Gasket, Air Inlet 1
21 360-105-360 Gasket, Inner Chamber 2
22 518-143-156 Manifold, Suction 1
518-143-156E Manifold, Suction 3" BSP Tapered 1
518-143-010 Manifold, Suction 1
518-143-010E Manifold, Suction 3" BSP Tapered 1
518-143-110 Manifold, Suction 1
518-143-110E Manifold, Suction 3" BSP Tapered 1
Composite Repair Parts List
ATEX Compliant
LEGEND:
= Items contained within Air End Kits
= Items contianed within Wet End Kits
Note: Kits contain components specic to the material codes.
MODEL SPECIFIC
3: EXP VIEW

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om Model S30 Metallic • 10
Material Codes - The Last 3 Digits of Part Number
000.....Assembly, sub-assembly;
and some purchased items
010.....Cast Iron
015.....Ductile Iron
020.....Ferritic Malleable Iron
080.....Carbon Steel, AISI B-1112
110 .....Alloy Type 316 Stainless Steel
111 .....Alloy Type 316 Stainless Steel
(Electro Polished)
112 .....Alloy C
113 .....Alloy Type 316 Stainless Steel
(Hand Polished)
114 .....303 Stainless Steel
115 .....302/304 Stainless Steel
117 .....440-C Stainless Steel (Martensitic)
120.....416 Stainless Steel
(Wrought Martensitic)
148.....Hardcoat Anodized Aluminum
150.....6061-T6 Aluminum
152.....2024-T4 Aluminum (2023-T351)
155.....356-T6 Aluminum
156.....356-T6 Aluminum
157.....Die Cast Aluminum Alloy #380
158.....Aluminum Alloy SR-319
162.....Brass, Yellow, Screw Machine Stock
165.....Cast Bronze, 85-5-5-5
166.....Bronze, SAE 660
170.....Bronze, Bearing Type,
Oil Impregnated
180.....Copper Alloy
305.....Carbon Steel, Black Epoxy Coated
306.....Carbon Steel, Black PTFE Coated
307.....Aluminum, Black Epoxy Coated
308.....Stainless Steel, Black PTFE Coated
309.....Aluminum, Black PTFE Coated
313.....Aluminum, White Epoxy Coated
330.....Zinc Plated Steel
332.....Aluminum, Electroless Nickel Plated
333.....Carbon Steel, Electroless
Nickel Plated
335.....Galvanized Steel
337.....Silver Plated Steel
351.....Food Grade Santoprene®
353.....Geolast; Color: Black
354.....Injection Molded #203-40
Santoprene® Duro 40D +/-5;
Color: RED
356.....Hytrel®
357.....Injection Molded Polyurethane
358.....Urethane Rubber
(Some Applications)
(Compression Mold)
359.....Urethane Rubber
360.....Nitrile Rubber Color coded: RED
363.....FKM (Fluorocarbon)
Color coded: YELLOW
364.....EPDM Rubber
Color coded: BLUE
365.....Neoprene Rubber
Color coded: GREEN
366.....Food Grade Nitrile
368.....Food Grade EPDM
371.....Philthane (Tuftane)
374.....Carboxylated Nitrile
375.....Fluorinated Nitrile
378.....High Density Polypropylene
379.....Conductive Nitrile
408.....Cork and Neoprene
425.....Compressed Fibre
426.....Blue Gard
440.....Vegetable Fibre
500.....Delrin® 500
502.....Conductive Acetal, ESD-800
503.....Conductive Acetal, Glass-Filled
506.....Delrin® 150
520.....Injection Molded PVDF
Natural color
540.....Nylon
542.....Nylon
544.....Nylon Injection Molded
550.....Polyethylene
551.....Glass Filled Polypropylene
552.....Unlled Polypropylene
555.....Polyvinyl Chloride
556.....Black Vinyl
557.....Unlled Conductive Polypropylene
558.....Conductive HDPE
559.....Glass Filled - Conductive Polypropylene
570.....Rulon II®
580.....Ryton®
600.....PTFE (virgin material)
Tetrauorocarbon (TFE)
603.....Blue Gylon®
604.....PTFE
606.....PTFE
607.....Envelon
608.....Conductive PTFE
610.....PTFE Encapsulated Silicon
611 .....PTFE Encapsulated FKM
632.....Neoprene/Hytrel®
633.....FKM/PTFE
634.....EPDM/PTFE
635.....Neoprene/PTFE
637.....PTFE, FKM/PTFE
638.....PTFE, Hytrel®/PTFE
639.....Nitrile/TFE
643.....Santoprene®/EPDM
644.....Santoprene®/PTFE
656.....Santoprene®Diaphragm and
Check Balls/EPDM Seats
661.....EPDM/Santoprene®
666.....FDA Nitrile Diaphragm,
PTFE Overlay, Balls, and Seals
668.....PTFE, FDA Santoprene®/PTFE
• Delrin and Hytrel are registered
tradenames of E.I. DuPont.
• Nylatron is a registered tradename
of Polymer Corp.
• Gylon is a registered tradename
of Garlock, Inc.
• Santoprene is a registered tradename
of Exxon Mobil Corp.
• Rulon II is a registered tradename
of Dixion Industries Corp.
• Ryton is a registered tradename
of Phillips Chemical Co.
• Valox is a registered tradename
of General Electric Co.
RECYCLING
Many components of SANDPIPER®AODD
pumps are made of recyclable materials.
We encourage pump users to recycle worn
out parts and pumps whenever possible,
after any hazardous pumped fluids are
thoroughly ushed.
UNIVERSAL ALL SP
3: EXP VIEW

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om
11 • Model S30 Metallic
Air Distribution Valve Assembly
(Use with Aluminum Centers ONLY)
**Note: Pumps equipped with this valve assembly are not ATEX
compliant
Air Valve Assembly Parts List
Item Part Number Description Qty
1 031-173-000 Air Valve Assembly 1
1-A 095-109-157 Body, Air Valve 1
1-B 031-139-000 Sleeve and Spool Set 1
1-C 132-029-357 Bumper 2
1-D 560-020-360 O-Ring 10
1-E 165-127-157 Cap, End 2
1-F 170-032-330 Hex Head Capscrew
1/4-20 x .75 8
1-G 530-028-550  Mufer   1
1-H 165-096-551  MuferCap  1
1-J 706-026-330 Machine Screw 4
**Air Valve Assembly Parts List
1 031-173-001 Air Valve Assembly 1
Consists of all components above except:
1-F 170-032-115 Hex Head Capscrew
1/4-20 x .75 8
1-J 706-026-115 Machine Screw 4
IMPORTANT
Read these instructions completely, before installation
and start-up. It is the responsibility of the purchaser
to retain this manual for reference. Failure to comply
with the recommendations stated in this manual will
damage the pump, and void factory warranty.
Air Distribution Valve Servicing
See repair parts drawing, remove screws.
Step 1: Remove Hex Head Cap Screws (1-F).
Step 2: Remove end cap (1-E).
Step 3: Remove spool part of (1-B) (caution: do not scratch).
Step 4: Press sleeve (1-B) from body (1-A).
Step 5: Inspect O-Ring (1-D) and replace if necessary.
Step 6: Lightly lubricate O-Rings (1-D) on sleeve (1-B).
Step 7: Press sleeve (1-B) into body (1-A).
Step 8: Reassemble in reverse order, starting with step 3.
Note: Sleeve and spool (1-B) set is match ground to a specied clearance
sleeve and spools (1-B) cannot be interchanged.
MODEL SPECIFIC
4: AIR END

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om Model S30 Metallic • 12
Air Distribution Valve Assembly
ATEX Compliant
Air Valve Assembly Parts List
(Use w/Aluminum centers only)
Item Part Number Description Qty
1 031-183-000 Air Valve Assembly 1
1-A 095-109-157 Body, Air Valve 1
1-B 031-139-000 Sleeve and Spool Set 1
1-C 132-029-357 Bumper 2
1-D 560-020-360 O-Ring 10
1-E 165-127-157 Cap, End 2
1-F 170-032-330 Hex Head Capscrew
1/4-20 x .75 8
Air Valve Assembly Parts List
1 031-183-001 Air Valve Assembly 1
Consists of all components above except:
1-F 170-032-115 Hex Head Capscrew
1/4-20 x .75 8
Air Valve Assembly Parts List
(Use w/Cast Iron and Stainless Steel centers)
Item Part Number Description Qty
1 031-179-000 Air Valve Assembly 1
1-A 095-109-110 Body, Air Valve 1
1-B 031-139-000 Sleeve and Spool Set 1
1-C 132-029-357 Bumper 2
1-D 560-020-360 O-Ring 10
1-E 165-127-110 Cap, End 2
1-F 170-032-115 Hex Head Capscrew
1/4-20 x .75 8
*
*
1-A
*
Note: Cannot be
used with Integral
Muferoption0.
IMPORTANT
Read these instructions completely, before installation
and start-up. It is the responsibility of the purchaser
to retain this manual for reference. Failure to comply
with the recommendations stated in this manual will
damage the pump, and void factory warranty.
Air Distribution Valve Servicing
See repair parts drawing, remove screws.
Step 1: Remove Hex Head Cap Screws (1-F).
Step 2: Remove end cap (1-E).
Step 3: Remove spool part of (1-B) (caution: do not scratch).
Step 4: Press sleeve (1-B) from body (1-A).
Step 5: Inspect O-Ring (1-D) and replace if necessary.
Step 6: Lightly lubricate O-Rings (1-D) on sleeve (1-B).
Step 7: Press sleeve (1-B) into body (1-A).
Step 8: Reassemble in reverse order, starting with step 3.
Note: Sleeve and spool (1-B) set is match ground to a specied clearance
sleeve and spools (1-B) cannot be interchanged.
4: AIR END

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om
13 • Model S30 Metallic
Air Valve with Stroke Indicator Assembly
1-E
1-A
1-B
1-E
1-J
1-D
1-F
1-G
1-H
1-G
1-M
1-C
1-G
1-M
1-C
1-K
Note: Stroke Indicator is standard on Spill Containment models
Air Valve Assembly Parts List
Item Part Number Description Qty
1 031-146-000 Air Valve Assembly 1
1-A 031-143-000 Sleeve and Spool Set w/Pins 1
1-B 095-119-559 Body, Air Valve 1
1-C 132-039-551 Bumper 2
1-D 165-096-559 Cap, Mufer 1
1-E 165-156-147 Cap, End 2
1-F 530-028-550 Mufer 1
1-G 560-020-360 O-Ring 8
1-H 675-068-115 Staple 2
1-J 710-015-115 Screw, Self-Tapping 4
1-K 210-008-330 Clip, Safety 1
1-M 560-029-360 O-Ring 2
For Pumps with PTFE Coated Hardware:
1 031-146-002 Air Valve Assembly 1
1-J 710-015-308 Screw, Self Tapping 4
(includes all other items on 031-146-000 above)
For Pumps with Piped Exhaust:
1 031-147-000 Air Valve Assembly 1
(includes all items on 031-146-000 minus 1-D, 1-F, & 1-J)
ATEX Compliant
Air Distribution Valve Servicing
See repair parts drawing, remove screws.
Step 1: Remove staple retainer (1-H).
Step 2: Remove end cap (1-E), bumper (1-C).
Step 3: Remove spool part of (1-A) (caution, do not scratch).
Step 4: Press sleeve (1-A) from body (1-B).
Step 5: Inspect O-Ring (1-G) and replace if necessary.
Step 6: Lightly lubricate O-Rings (1-G) on sleeve (1-A).
Step 7: Press sleeve (1-A) into body (1-B).
Step 8: Reassemble in reverse order.
Note: Sleeve and spool (1-A) set is match ground to a specied clearance
sleeve and spools (1-A) cannot be interchanged.
NOTE: CHECK GAP AFTER ASSEMBLY
TO INSURE COMPLETE
INSTALLATION OF RETAINING RING
MODEL SPECIFIC
4: AIR END

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om Model S30 Metallic • 14
Pilot Valve Assembly
Pilot Valve Assembly Parts List
Item Part Number Description Qty
4 095-110-000 Pilot Valve Assembly 1
4-A 095-095-157 Valve Body 1
4-B 755-052-000 Sleeve (With O-Rings) 1
4-C 560-033-360 O-Ring (Sleeve) 6
4-D 775-055-000 Spool (With O-Rings) 1
4-E 560-023-360 O-Ring (Spool) 3
4-F 675-037-080 Retaining Ring 1
For Pumps with Cast Iron Center Section
Item Part Number Description Qty
4 095-110-558 Pilot Valve Assembly 1
4-A 095-095-558 Valve Body 1
(includes all other items used on 095-110-000)
For Pumps with Stainless Steel Center Section
Item Part Number Description Qty
4 095-110-110 Pilot Valve Assembly 1
4-A 095-095-110 Valve Body 1
(includes all other items used on 095-110-000)
Pilot Valve Servicing
With Pilot Valve removed from pump.
Step 1: Remove snap ring (4-F).
Step 2: Remove sleeve (4-B), inspect O-Rings (4-C),
replace if required.
Step 3: Remove spool (4-D) from sleeve (4-B),
inspect O-Rings (4E), replace if required.
Step 4: Lightly lubricate O-Rings (4-C) and (4-E).
Reassemble in reverse order.
MODEL SPECIFIC
4: AIR END

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om
15 • Model S30 Metallic
Intermediate Assembly Drawing
Intermediate Repair Parts List
Item Part Number Description Qty
5 114.024.157 Bracket, Intermediate 1
114.024.010 Bracket, Intermediate 1
114.024.110 Bracket, Intermediate 1
7 135.034.506 Bushing, Plunger 2
26 560.001.360 O-Ring 2
30 620.020.115 Plunger, Actuator 2
31 675.042.115 Ring, Retaining* 2
33 720.004.360 Seal, Diaphragm Rod 2
*Note: It is recommended that when plunger components
are serviced, new retaining rings be installed.
Intermediate Assembly Drawing
Step 1: Remove plunger, actuator (30) from center of
intermediate pilot valve cavity.
Step 2: Remove Ring, Retaining (31), discard.
Step 3: Remove bushing, plunger (7), inspect for wear
and replace if necessary with genuine parts.
Step 4: Remove O-Ring (22), inspect for wear and
replace if necessary with genuine parts.
Step 5: Lightly lubricate O-Ring (22) and insert into
intermediate.
Step 6: Reassemble in reverse order.
Step 7: Remove Seal, Diaphragm Rod (33).
Step 8: Clean seal area, lightly lubricate and install new Seal,
Diaphragm Rod (33).
IMPORTANT
When the pumped product source is at a higher
level than the pump (ooded suction condition),
pipe the exhaust higher than the product source
to prevent siphoning spills. In the event of a
diaphragm failure a complete rebuild of the
center section is recommended.
33
30
5
31
7
26
MODEL SPECIFIC
4: AIR END

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om Model S30 Metallic • 16
Intermediate Repair Parts List
Item Part Number Description Qty
5 114.024.157 Bracket, Intermediate 1
114.024.010 Bracket, Intermediate 1
114.024.110 Bracket, Intermediate 1
7 135.034.506 Bushing, Plunger 2
26 560.001.360 O-Ring 2
30 620.020.115 Plunger, Actuator 2
31 675.042.115 Ring, Retaining* 2
33 720.004.360 Seal, Diaphragm Rod 2
*Note: It is recommended that when plunger components
are serviced, new retaining rings be installed.
Diaphragm Service Drawing, Non-Overlay
Diaphragm Service Drawing, with Overlay
32
25
15
13
6
28
17
16
29
9
14
24
24
32
25
15
13
6
28
17
29
9
14
24
24
32
25
15
13
6
28
17
16
29
9
14
24
24
32
25
15
13
6
28
17
29
9
14
24
24
5: WET END

s30mdl1sm-rev0316
sa ndp ipe rpu mp.c om
17 • Model S30 Metallic
Step 1: With manifolds and outer chambers
removed, remove diaphragm assemblies from
diaphragm rod. DO NOT use a pipe wrench or similar
tool to remove assembly from rod. Flaws in the rod
surface may damage bearings and seal. Soft jaws
in a vise are recommended to prevent diaphragm
rod damage.
Step 1.A: NOTE: Not all inner diaphragm plates
are threaded. Some models utilize a through hole
in the inner diaphragm plate. If required to separate
diaphragm assembly, place assembly in a vise,
gripping on the exterior cast diameter of the inner
plate. Turn the outer plate clockwise to separate the
assembly.
Always inspect diaphragms for wear cracks or
chemical attack. Inspect inner and outer plates for
deformities, rust scale and wear. Inspect intermediate
bearings for elongation and wear. Inspect diaphragm
rod for wear or marks.
Clean or repair if appropriate. Replace as required.
Step 2: Reassembly: There are two different types
of diaphragm plate assemblies utilized throughout the
Sandpiper product line: Outer plate with a threaded
stud, diaphragm, and a threaded inner plate.
Outer plate with a threaded stud, diaphragm, and
an inner plate with through hole. Secure threaded
inner plate in a vise. Ensure that the plates are being
installed with the outer radius against the diaphragm.
Step 3: Lightly lubricate, with a compatible material,
the inner faces of both outer and inner diaphragm plates
when using on non Overlay diaphragms (For EPDM
water is recommended). No lubrication is required.
Step 4: Push the threaded outer diaphragm
plate through the center hole of the diaphragm.
Note: Most diaphragms are installed with the
natural bulge out towards the fluid side. S05,
S07, and S10 non–metallic units are installed
with the natural bulge in towards the air side.
Step 5: Thread or place, outer plate stud into
the inner plate. For threaded inner plates, use a
torque wrench to tighten the assembly together.
Torque values are called out on the exploded view.
Repeat procedure for second side assembly.
Allow a minimum of 15 minutes to elapse after
torquing, then re-torque the assembly to compensate
for stress relaxation in the clamped assembly.
Step 6: Thread one assembly onto the diaphragm
rod with sealing washer (when used) and bumper.
Step 7: Install diaphragm rod assembly
into pump and secure by installing the outer
chamber in place and tightening the capscrews.
Step 8: On opposite side of pump, thread the
remaining assembly onto the diaphragm rod. Using a
torque wrench, tighten the assembly to the diaphragm
rod. Align diaphragm through bolt holes, always going
forward past the recommended torque. Torque values
are called out on the exploded view. NEVER reverse
to align holes, if alignment cannot be achieved
without damage to diaphragm, loosen complete
assemblies, rotate diaphragm and reassemble as
described above.
Step 9: Complete assembly of entire unit.
Diaphragm Servicing
IMPORTANT
Read these instructions completely,
before installation and start-up.
It is the responsibility of the
purchaser to retain this manual for
reference. Failure to comply with
the recommendations stated in this
manual will damage the pump, and
void factory warranty.
UNIVERSAL ALL SP
5: WET END
