SANJOSE Technology Unictron SANAV SJ-205HAB User manual

1
SANAV SJ-205HAB
Home Unit
User Manual
Part Number: SJ-205HAB
Doc Type : User Manual
Doc Id: WI-RD-E-047
Reversion : V1.0
Copyright © 2020 San Jose Technology, Inc. All Rights Reserved.
This document contains information that is the property of SANAV. This document may
not be copied, reproduced, reduced to any electronic medium or machine readable form,
or otherwise duplicated, and the information herein may not be used, disseminated or
otherwise disclosed, except with the prior written consent of SANAV

Contents
Document Amendments...............................................................................................5
SJ-205HAB Hardware General Introduction......................................................... 6
Specification...................................................................................................................... 6
Package Contents............................................................................................................7
Front View.......................................................................................................................... 8
SJ-205HAB Quick START/Setting Guide.............................................................. 10
Command Setup for SJ-205HAB.............................................................................11
Change User Name...................................................................................................... 12
Change Password..........................................................................................................13
Request IMEI Number................................................................................................ 14
Set up APN for mobile network Service...............................................................15
Set up URL.......................................................................................................................17
Set up TCP ACK function............................................................................................19
Set up Phone Book List.............................................................................................. 20
Set up Location Auto Report Mode........................................................................ 21
Set up Answer Call Mode...........................................................................................22
Set up Mandatory Polling report............................................................................. 23
Set up Route for Data Transmission......................................................................24
Get Pairing Information..............................................................................................25
Set up Auto Reboot Time.......................................................................................... 26
Set up TCP/UDP Server Address............................................................................ 27
Set up Turbo Link Mode............................................................................................. 28
Set up Command By GPRS....................................................................................... 29
Set up Device Position................................................................................................ 30
Set up RTC time............................................................................................................ 31
Set up Tamper Function.............................................................................................32
Set up Vibration Detection Function..................................................................... 33
Set up Alarm OFF......................................................................................................... 34
Disable the beep sound when alarm event is triggered................................35
Set up RF power of Home unit................................................................................ 36
Set up AES 128 Encryption.......................................................................................37
Set up FOTA (Over-the-Air Technology).............................................................. 38
Set up paired with the bracelet (NB5)................................................................. 39
Set up unpaired with the bracelet (NB5)............................................................ 40
IDRST (Clear all of the idpair at the same time)............................................. 41
RF Command..................................................................................................................42
Erase the Backup Data(Clear the flash memory)............................................ 43
Setup buzzing when receiving RF signal............................................................. 44
Setup RFall feature...................................................................................................... 45
Set up Low Power reminder..................................................................................... 46
Appendix 1: Tracker Event List............................................................................... 47
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
2
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
© Unictron Technologies Corp.
All specifications subject to change without notice.

Appendix 2: Report Data Output Format............................................................ 48
Appendix 3: NB5 & RF Within SJ-205HAB Range(RF Tag event)...............49
Warranty Regulation.................................................................................................... 50
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
3
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
© Unictron Technologies Corp.
All specifications subject to change without notice.

SJ-205HAB User Documentation
Introduction SANAV SJ-205HAB is a low-powered, more compact version of 2G/3G tracker
targeting the animal or asset tracking market. Moving targets can be tracked in
real-time through internet or specified terminals. The device can communicate with
the server through 2G/3G networks, to provide emergency & power alerts, geo-
fencing, remote monitoring, and automatic back-up regarding tracking history.
This User Manual details the product specifications, hardware features, SMS
commands, and Tracker Status of SJ-205HAB. If you have any further questions about
using SANAV’s SJ-205HAB product, please contact SANAV Customer Service at
www.sanav.com.
Disclaimer This document, and all other related products, such as device, firmware, and software,
is developed by SANAV. At the time of release, the product is known to be most
compatible with the specified firmware version. SANAV continuously seeks to research,
develop and improve the functionalities of the devices, which may subject the device
to change in protocol, specification, and firmware functions without prior notice.
SANAV is obligated to modify all documentation without limitation of time frame. A
change notice shall be released to SANAV customers upon the completion of document
modification.
SANAV products are not intended to be used as life support or rescue equipment.
SANAV is not liable for any loss or injury caused by using or referencing any products.
Any possible means of using or integrating SANAV products shall be avoided.
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
4
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
© Unictron Technologies Corp.
All specifications subject to change without notice.

Document Amendments
Revision
Date
Comments
1.0
2020/10/26
Formal release
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
5
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
© Unictron Technologies Corp.
All specifications subject to change without notice.

SJ-205HAB Hardware General Introduction
Specification
Specifications
Electrics Data
RF Frequency:
436.8MHz
Antenna
Embedded GSM and RF Antenna
GSM Frequency
GSM/GPRS/EDGE: Quad band 850/900/1800/1900MHz
UMTS/HSPA+: Five band 800/850/900/1900/2100MHz
GSM Module
Cinterion EHS6
Memory
Built-in 32M X 8bit NAND FLASH
Power Supply
External Power Supply
12V DC / 18W
Internal Battery Life
4 hours (based on 1 report/1 minutes, No alarm)
Environmental Conditions
Charging Temperature
0°C ~40°C
Operating
Temperature
-10°C to +45°C
Relative Humidity
5% to 95 %, non-condensing
Mechanics Data
Size
181mm (L) * 138mm (W) * 50mm (H)
Weight
600g (2600mAhLi-ION battery included)
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
6
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
© Unictron Technologies Corp.
All specifications subject to change without notice.

11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
7
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
Package Contents
SJ-205HAB x 1
Adapter
AC Adapter x 1 100～240V AC / 1.2A
Note: Connect Power Cord to AC Adapter to be a whole power charging solution.
© Unictron Technologies Corp.
All specifications subject to change without notice.

Flash once when transmitting a data via GPRS or SMS
Green LED (Label 5): External Power Detection Indicator
Turn on when external power has been plugged
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
8
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
Front View
Green LED (Label 1): Power ON – both external and internal
Light on when it is powered on
Red LED (Label 2): SIGNAL Status
Turn on when GSM is in service
Flash per 1s when without GSM service
Red LED (Label 3): Home Unit Tamper Alert
Light on when Home Unit is tampered
Orange LED (Label 4): Status of Home Unit
© Unictron Technologies Corp.
All specifications subject to change without notice.

Charging SJ-205HAB
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
9
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m

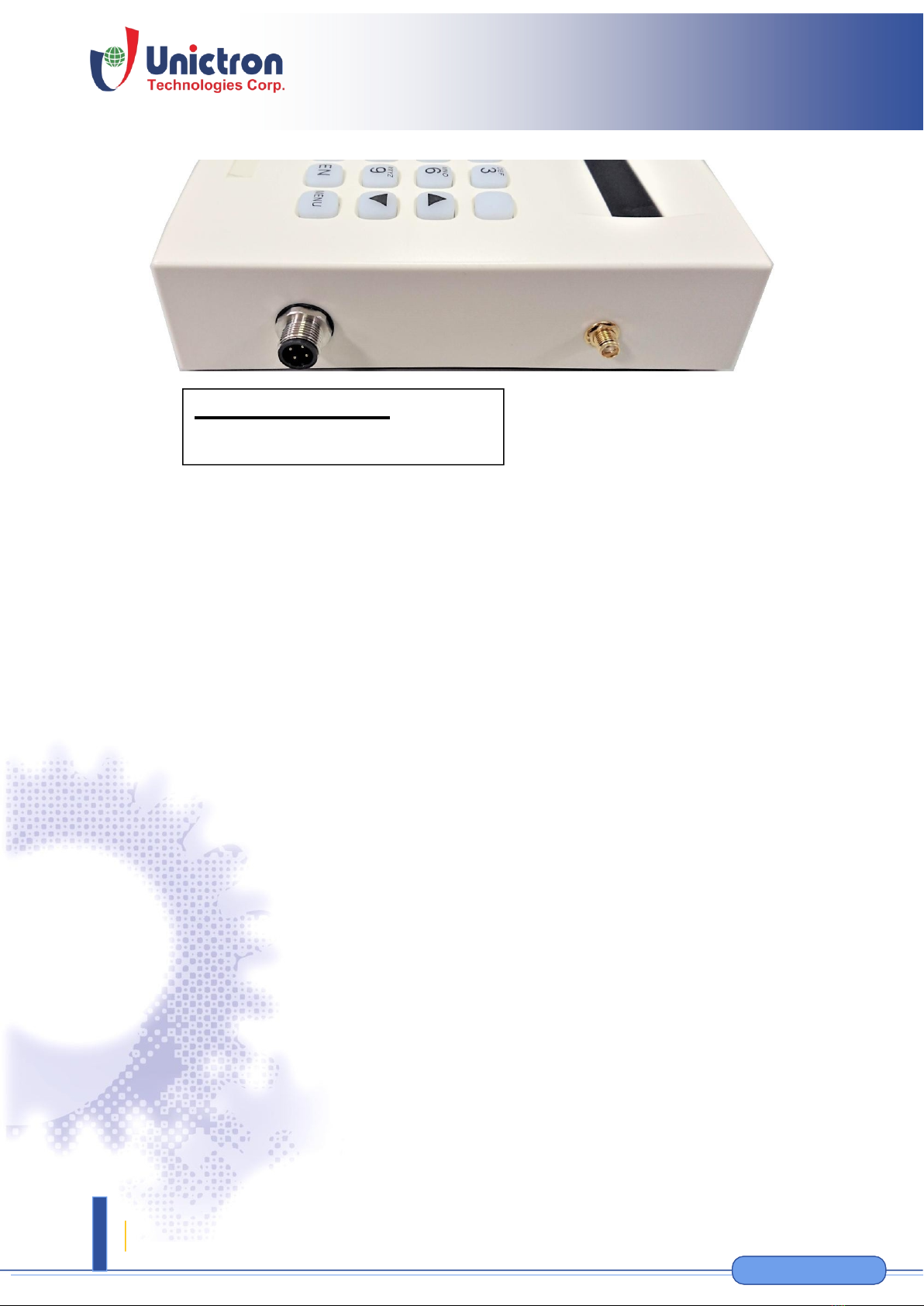

Power Supply Connect
12V DC Input
© Unictron Technologies Corp.
All specifications subject to change without notice.

SJ-205HAB Quick START/Setting Guide
STEP 1: APN Identification. Ensure APN Name, APN username and APN password for GSM SIM Card
Cell carrier. Wrong APN setting will cause the device unable to report via internet service.
STEP 2: Send SMS command to device (Check the IMEI and make sure device can be set up by
SMS): #username,0000,imei*
STEP 3: Send SMS command to device to set up APN:
#username,0000,3,APN,username,password,DNS (if needed)*
default: #username,0000,3,internet,,*(if empty, leave commas right after)
STEP 4: Send SMS command to point to TCP server: #username,0000,18,192.168.1.100:18888*
(Send SMS Message to point to http server: #username,0000,4,http://www.xyz.com/Data*)
STEP 5: Send SMS command to device to report via TCP: #username,0000,14,7*
(Send SMS Message to device to report via http: #username,0000,14,2*)
SETP 6: Set RTC Time：#username,0000,setrtc,161012141000*
SETP 7: Pair with bracelets
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
10
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
© Unictron Technologies Corp.
All specifications subject to change without notice.

Command Setup for SJ-205HAB
SJ-205HAB currently provides SMS command and COTA (TCP) command for remote setup. User can setup the
SJ-205HAB by following the instructions shown in following chapters via SMS/COTA. Key the specific SMS
message in your cellular phone and send it to the SIM number of SJ-205HAB. The setup messages are showed
in the following sections.
1: The default setting:
Default ID is “USERNAME”. Please read chapter Change User Name to desired ID.
Default password is “0000”. Please read chapter Change Password to change the password.
There is no number in the default contact. Please read chapter Set up Phone Book List to add the number.
Default setting of Retrospective Location Mode is deactivated. Please read chapter Set up Retrospective
Location Mode by Time to setup the regular Retrospective Location Mode.
Default setting of APN is only suitable for mobile network. Please read chapter Set up APN for MOBILE
NETWORK Service to change the APN.
Default setting of URL is http://www.sanavtw.com/uploadM1.php. Please read chapter Set up URL to
change the URL for http server setup.
Before doing any setup, please ensure the device is connected with the GSM network. The GSM LED must light
on. And please note the device is not in SOS/Panic mode.
2: Please note that all the characters which include #, * and comma (,) should be HALFWIDTH form.
3: Please be aware of the upper (capital)/lower cases when entering the SMS command.
4: While entering any SMS command, note that NO SPACE is allowed between the characters, comma and
signs in the SMS.
5: Any setup command must be started with a “#” sign and ended up with a “*” sign.
6: The comma (,) can be abbreviated if no further setup required for the command besides Set up APN for LTE
Service. Please refer to the examples of Set up Retrospective Location Mode.
7: Add or not add the “+ “sign in front of the cellular phone number(s) are both acceptable, while the”+” sign
should precede the international call prefixes. The specified international call prefix is required if “+ “sign is not
added.
8: The device will update setting Only when the password, USERNAME and setup command are all correct.
If the command is not valid, a failure report is going to be sent to the user’s cell phone.
9: Some PREPAID PHONE CARD SIM modules do not enable or even support MOBILE NETWORK service. Please
consult with GSM carrier for further information.
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
11
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
© Unictron Technologies Corp.
All specifications subject to change without notice.

Table 1: User Name Change Format Description
Table 2: User Name Change Response Description
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[email protected]m
12
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
© Unictron Technologies Corp.
All specifications subject to change without notice.
Change User Name
Generally, SMS command execution needs correct user name with password, or it will remain the same setting.
The SMS command default user name is “username”. It can be changed by following the command format.
For example, entering the SMS command as the following allows user to change the user name from “username”
to a new user name “SANAV”.
Only enter new command with new user name after it has been changed.
Setup Format: #「username」,「Password」,「Function Mode」,「New User Name」*
Command: #username,0000,1,SANAV *
SMS/ COTA Command
Description
#
Start sign.
username
Default username of the device.
0000
Default password.
If you have changed the password, please use the updated one.
1
Mode 1 defines user name setup mode.
SANAV
New user name changed by the user.
At the maximum of 16 characters, including a~z,A~Z,0~9, @ - _ / .!%&
Please note whether the letters are capitalized or lowercased when
sending the command.
*
End sign.
Situation
Message Reply
Setup Succeeds
[username] + Device username is updated.
Setup Fails
[username] + Device username setup fail!
Incorrect username or
password,
Incorrect command format
[username] + command error

Table 3: Password Change Format Description
Table 4: Password Change Response Description
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[email protected]m
13
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
Change Password
Generally, SMS command execution needs correct user name with password, or it will remain the same setting.
The SMS command default password is “0000”. It can be changed by following the command format.
For example, entering the SMS command as the following allows user to change the password from “0000” to
a new password “1111”.
Only enter new command with new password after it has been changed.
Setup Format: #「username」,「Password」,「Function Mode」,「new Password」,「new Password」*
Command: #USERNAME,0000,2,1111,1111*
SMS/ COTA Command
Description
#
Start sign.
USERNAME
Default ID of the device.
If you have changed the USERNAME, please use the updated one.
0000
Default password.
If you have changed the password, please use the updated one.
2
Mode 2 defines the password setup mode.
1111
New password (Please note at the maximum of 4 number)
1111
Reconfirm the password
*
End sign.
Situation
Message Reply
Setup Succeeds
[username] + Device Password is updated.
Setup Fail
[username] + Password setup Fail!
Incorrect password
[username] + Password setup Fail!
Incorrect username or SMS
format
[username] + command error
© Unictron Technologies Corp.
All specifications subject to change without notice.

Request IMEI Number
IMEI stands for International Mobile Equipment Identification, a unique number for identifying mobile devices
validity in 2G/3G network.
As above stated, each device has a unique IMEI number. Entering the command as the following allows user to
check the IMEI number of the device for network registration and tracking.
Setup Format: #「USERNAME」,「Password」,「Function Mode」*
Command: #USERNAME,0000,imei*
SMS/ COTA Command
Description
#
Start sign.
USERNAME
Default ID of the device.
If you have changed the user name, please use the updated one.
0000
Default password.
If you have changed the password, please use the updated one.
imei
Mode “imei” defines the device IMEI number request mode.
*
End sign.
Table 5: IMEI Number Request Format Description
Situation
Message Reply
Setup Succeeds
[username] + ‘,[imei]’
Incorrect username or
password,
Incorrect command format
[username] + command error
Table 6: IMEI Number Request Response Description
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
14
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
© Unictron Technologies Corp.
All specifications subject to change without notice.

Set up APN for mobile network Service
Access Point Name (APN) is a protocol that typically allows a user's device to access the internet using the
mobile phone network. It is a network identifier used by a mobile device when connecting to a 2G/3G carrier.
The carrier will then examine this identifier to determine what type of network connection should be created.
For uploading the data to a web server, a set of 2G/3G APN from your 2G/3G network is required. Various
2G/3G networks provide different 2G/3G APN settings. Please ask your 2G/3G carrier about the APN settings.
If the user name and password of APN are indefinite or showed in blank, just leave the parameters empty (no
space). User can follow the Setup Format below to setup the APN that is provided by your 2G/3G carrier.
Setup Format: #「USERNAME」,「Password」,「Function Mode」,「APN」,「APN name」,「APN password」,
「APN DNS」*
Example1: #USERNAME,0000,3,internet,guest,guest,172.20.2.10*
Leave the parameters empty (no space) if other parameters are not required.
Example2: #USERNAME,0000,3,internet,,,*
Note1: The total length of APN name, APN USERNAME, APN Password, and APN DNS should be less than 70
characters.
Note2: Some PREPAID PHONE CARD SIM modules do not enable or even support 2G/3G service. Please consult
with 2G/3G carrier for further information.
Table 7: APN Setup Format Description
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
15
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
© Unictron Technologies Corp.
All specifications subject to change without notice.
SMS/ COTA Command
Description
#
Start sign.
USERNAME
Default ID of the device.
If you have changed the user name, please use the updated one.
0000
Default password.
If you have changed the password, please use the updated one.
Function Mode
Mode 3 defines the APN setup mode.
internet
APN Name
guest
APN user name (optional)
guest
APN Password (optional)
172.20.2.10
APN DNS (optional)
*
End sign.

Situation
Message Reply
Setup Succeeds
[username] + Device GPRS APN is updated.
Setup Fail
[username] + Device GPRS APN setup Fail!
Incorrect username or
password,
Incorrect command
format
[username] + command error
Table 8: APN Setup Response Description
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
16
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
© Unictron Technologies Corp.
All specifications subject to change without notice.

Set up URL
This SMS command instructs the device to transmit GPS (GPRMC) positioning data to a specified URL (Uniform
Resource Locator) or IP address of HTTP protocol server for real time GPS tracking.
Entering the SMS command as the following allows user to changes the address to
“http://www.sanavtw.com/uploadM1.php”. The address will be assigned to receive the GPS data sent by
the device. Then you can link to Sanav Test Website: https://www.sanavtw.com to view your device
data.
Setup Format: #「USERNAME」,「Password」,「Function Mode」,「URL」*
Command: #USERNAME,0000,4,http://www.sanavtw.com/uploadM1.php*
Note: The URL should be less than 80 characters.
Note1: The question mark ‘?’ or any symbol is not allowed to be entered behind the URL. The DEVICE will add
the necessary symbol(s) on automatically.
Note2: For setting up TCP/IP (Transmission Control Protocol) or UDP/IP (User Datagram Protocol) server, please
refer to Set up TCP or UDP/IP.
Note3: HTTP, TCP/IP, UDP/IP and SMS are different protocols (routes). Please refer to Set up Route for Data
Transmission to set up corresponded route code for GPS data transmission.
SMS/ COTA Command
Description
#
Start sign.
USERNAME
Default ID of the device.
If you have changed the user name, please use the updated one.
0000
Default password.
If you have changed the password, please use the updated one.
Function Mode
Mode 4 defines the URL setup mode.
Address
URL of the HTTP server.
*
End sign.
Table 9: URL or IP Setup Format Description
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
17
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
© Unictron Technologies Corp.
All specifications subject to change without notice.

Situation
Message Reply
Setup Succeeds
[username] + Device IP/Domain is updated.
Setup Fail
[username] + IP/Domain setup Fail!
Incorrect username or
password
Incorrect command format
[username] + command error
Table 10: URL or IP Setup Response Description
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
18
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
© Unictron Technologies Corp.
All specifications subject to change without notice.

Set up TCP ACK function
The Home Unit has TCP ACK function to make sure no data lose. Use this command to toggle this feature.
Setup format: #<User Name>, <Password>, <Function Code>, <ON/OFF>, <Timeout>*
Command: #username,0000,tcpack,1,10*
SMS/ COTA Command
Description
#
Start sign.
USERNAME
Default ID of the device.
If you have changed the user name, please use the updated one.
0000
Default password.
If you have changed the password, please use the updated one.
tcpack
Function code.
1
1: ON, 0: OFF
10
Timeout (sec) The range is 1~255.
*
End sign.
Table 11: TCP Ack Setup Format Description
Situation
Response
Setup Succeeds
[username] + setup OK. Device tcp ack mode is updated.
Incorrect username or
password,
Incorrect command
format
[username] + command error
Table 12: TCP Ack Setup Response Description
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[e-mail]
19
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
© Unictron Technologies Corp.
All specifications subject to change without notice.

Table 13: Phone Book List Setup Format Description
Table 14: Phone Number List Setup Response Description
11F., No.2, Sec. 4, Jhongyang Rd., Tucheng Dist., New Taipei City 236, Taiwan (R.O.C.)
Tel: [phone]｜Fax: [phone]｜[email protected]m
20
w
w
w
w
w
w
.u
.
n
sa
ic
n
tr
a
o
v
n
.
.
c
c
o
o
m
m
Set up Phone Book List
There are three main purposes of Phone Book List setup:
The Home Unit can save 10 phone numbers for receiving or sanding SMS.
Function Code “5” can setup phone1~3
Function Code “e5” can setup phone4~10
Use this SMS command to set up the cellular phone book as the following format:
Setup Format: #<User Name>, <Password>, <Function Code>, <Phone number>*
Command: #username,0000,5, phone1,phone2,phone3*
#username,0000,e5,phone4,phone5,phone6,phone7,phone8,phone9,phone10*
SMS/ COTA Command
Description
#
Start sign.
USERNAME
Default ID of the device.
If you have changed the user name, please use the updated one.
0000
Default password.
If you have changed the password, please use the updated one.
5 or e5
Mode ‘5’ or ‘e5’ defines phone number setup mode.
Phone Number
Add phone number
*
End sign.
Situation
Message Reply
Setup Succeeds
[username] + Device phone book is updated.
Setup Fail
[username] + Phone book setup Fail!
Incorrect username or
password,
Incorrect command format
[username] + command error
© Unictron Technologies Corp.
All specifications subject to change without notice.
