SANTA CRUZ SC-934-1 User manual

Santa Cruz Gunlocks LLC. 450 Tyler Rd. Webster, NH 03303 USA
Phone: [phone] • Fax: [phone]
E-mail: [email protected] • Web: www.santacruzgunlocks.com
09/2015
SC-934-1
Fixed Overhead Pump Shotgun Gun Rack with SC-1 Lock
1/3
Components:
1xSC-1900 Butt Plate
6xSC-8002 Allen Head Bolt
2xSC-932 Roll Bar Bases
1xSC-9903 L-Bracket
3/3
Exploded view:
1xSC-1 Gun Lock
2xSC-9906 U-Bolts
4xSC-8002 Allen Head Bolt
2xSC-932 Roll Bar Bases
1xSC-1900 Butt Plate
1xSC-9903 L-Bracket
1xSC-1 Gun Lock
Comment: Muzzle may face any direction.
Warning: During installation continuously
monitor correct position and direction of the
components.
2xSC-9906 U-Bolts

2/3
Install the L-Bracket (SC-9903) on the Roll Bar
Base (A) (SC-932) and install Butt Plate (B) (SC-
1900) on the L-Bracket.
Since this is not the nal installation, do not
tighten bolts.
Mark the position of U-Bolts (as measured above) on the back of the partition wall pipe.
Warning: After installation the gun must have enough room under the ceiling with leaving room on
both sides.
SC-934-1
Fixed Overhead Pump Shotgun Gun Rack with SC-1 Lock
A
B
2Install Butt Plate
1Install Gun Lock
3Adjust the parts
Assemble the setup on a table and if the gun is in its proper position measure the location of
U-Bolts.
Keep the measurements and remove the Gun Lock and the L-Bracket from the 2 Roll Bar Base.
A B
Install Gunlock (in case of SC-934-1)Install the Gun Lock
(SC-1) temporarily on Roll Bar Base (SC-932).Since this
is not the nal installation, do not tighten bolts.
4Mark the U-Bolts 5Install Base Plates
3X
7Tighten the screws
Place your weapon into the setup, test and retest your installation by repeatedly
inserting and removing the weapon from the assembly.
When satised, tighten all screws and test again.
6
Assembly Elements
Install Gun Lock on Roll Bar Base (as shown in
Step 1) and on the L-Bracket (as shown in
Step 2).
How to use the
SC-9906 U-Bolts
A
B
C
D
Perforate the foam lining of the partition wall
pipe from back to front with the help of spikes
attached to the U-
Bolts. Press hard on
the U-Bolts to reach
their nal position.
On the other side,
pull off the spikes
and install the 2 Roll
Bar Base (SC-932) by
tightening the bolts.

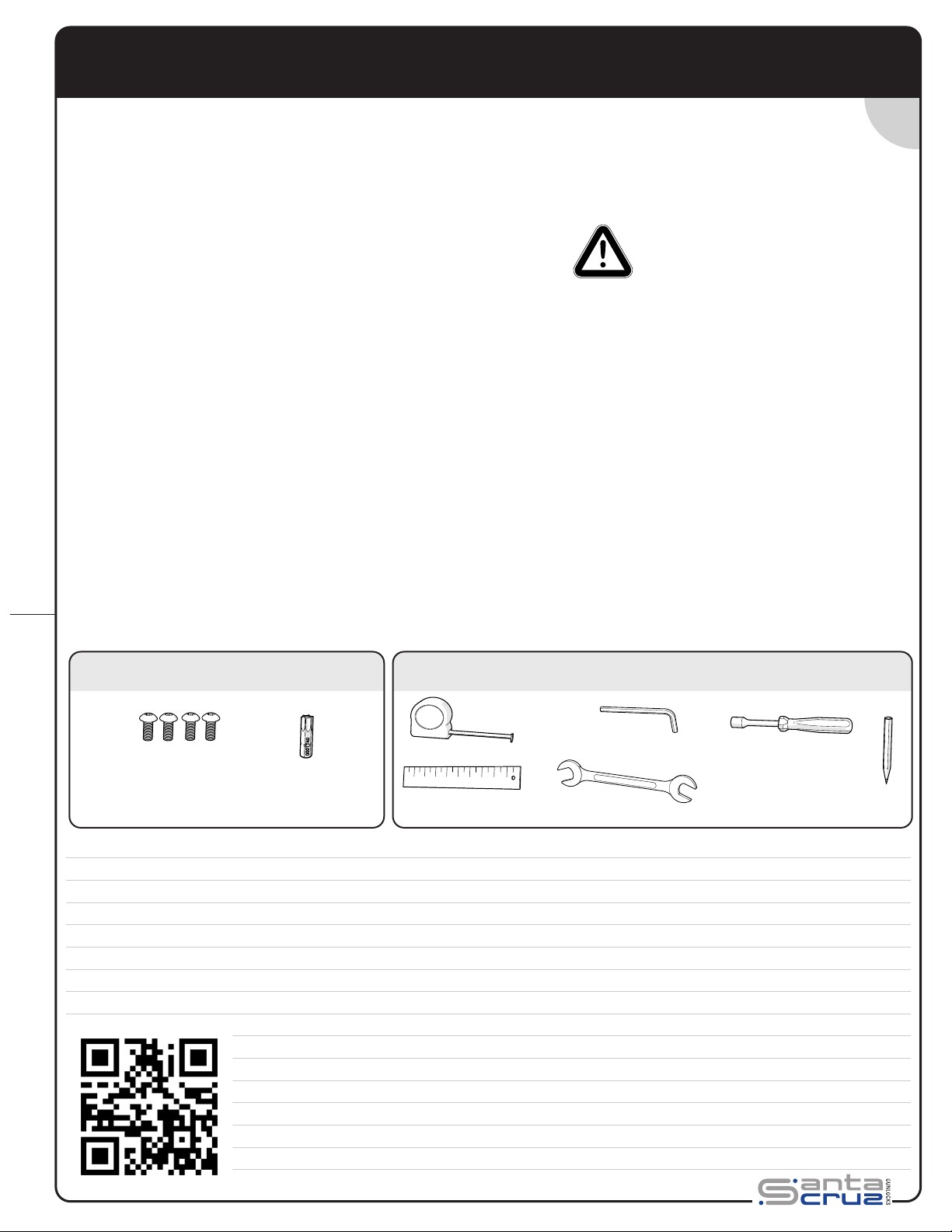

Tools needed for installation
Nutdriver
Tape Measure 3/16" Hex Wrench
Ruler
Pencil
3/4” Wrench
Note:
3/3
Tamper resistant hardware (optional)
TT-40 Torx Bit
4xTamper Resistant
Torx Head Bolt
5/16-18
SC-934-1
Fixed Overhead Pump Shotgun Gun Rack with SC-1 Lock
