Important Note
IMPORTANT NOTE
ATTENTION: This unit must be protected from damp because of the risk of fire and the
possibility of electric shocks.
1. Make sure that you have the correct mains voltage. Only operate the unit at the mains
voltage marked on the rear panel.
2. Make sure that nothing especially no metal objects are inserted into the device. This
could result in electric shock or malfunction.
3. If the unit is subjected to extreme fluctuations of temperature e.g. On being transported
from outside into a heated room, condensation can form. This unit should not be used untill
it has reached room temperature.
4. In the event of water or any other fluid being accidentally spilt on the unit switch the
unit off immediately and send it to a qualified service workshop for inspection.
5. Make sure that the unit is always well ventilated and never exposed to direct sunlight
6. Do not use sprays to clean the unit as they have a detrimental effect on the unit and could
ignite suddenly.
7. The machine use single power switch, please cut off the power before fix.
8. Please do not put the cup, vessel of flower or container above the machine, in case the
leak out water then cause the leakage current off the machine.
WARNING NOTICES
SAFEGUARDS
Electrical energy can perform many useful funtions, This unit has been engineered and
manufactured to assure your personal safety. Imporoper use can result in potential electrical
shock or fire hazards. In order not to defeat the safeguards, observe the following precautions
for its installation, use and servicing.
Explanation of Graphical Symbols
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
RISK OF ELECTRIC SHOCK：
OPEN ONLY IF QUALIFIED
AS SERVICE PERSONNEL
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE
SANWAY AUDIO
http://www.china-sanway.comhttp://www.china-sanway.com

Control elements
3
SANWAY AUDIO
http://www.china-sanway.comhttp://www.china-sanway.com

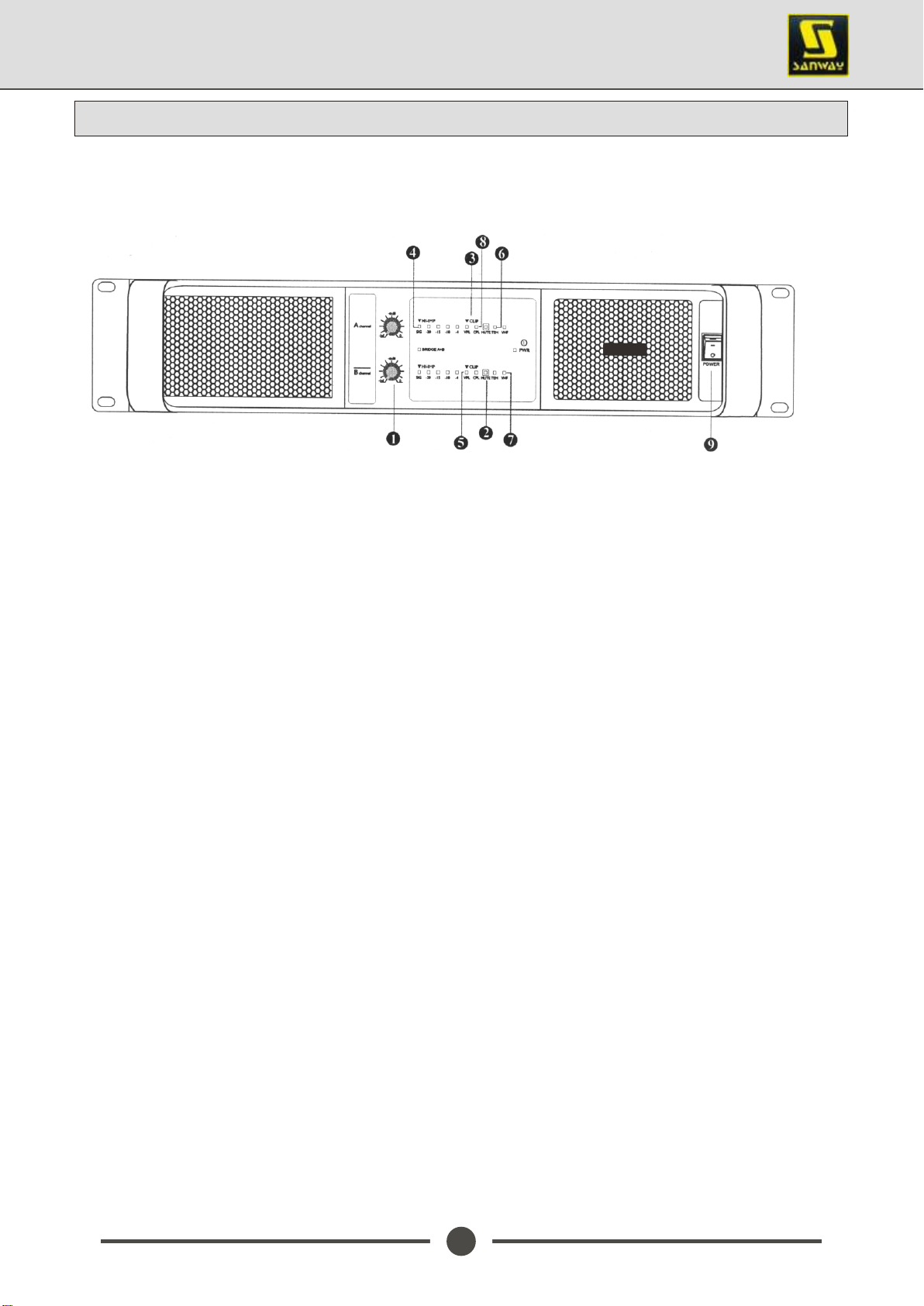

Front Panel
The front panel LED area includes the following indicators per channel:
1. LEVEL CONTROL
Calibrated detente potentiometers to alter the total gain of the power amplifier. In order to avoid
distortions in mixing consoles upstream, these controls should normally be positioned between 0 and
10. The calibrated markings show the additional attenuation directly.
2. MUTE LED
MUTE-Au protection under mute position.
3. CLIP/LIMIT INDICATOR
This indicator signals if the amplifier output is clipping or limiting. It has two different indication
states:
If the clip limiter is engaged, it has a short time constant, and it illuminates briefly.
If the clip limiter is not engaged, it has an increased time constant, and it illuminates for a longer period.
4. SIGNAL LED
Green SIG Indicates output signal levels in normal operating range
5. LIMIT POWER LED
When the LED lights up, the limit power function is working.
6. TEMP
This LED lights up if the limiter has been activated and the power amplifier is being operated at the
clip level. If the LED flashes briefly, this is not a cause for concern. If this LED is lit permanently, the
volume should be reduced to avoid overload damages to the connected loudspeaker systems.
7. VHF
VHF-Very High Frequency protection active ( output muted ) ( Yellow Constant )
8. CPL LED
CPL-( Orange constant with output muted ): Low impedance/Short Circuit Detection Fault
9. POWER SWITCH
Turn the unit power on or off

SANWAY AUDIO
http://www.china-sanway.comhttp://www.china-sanway.com
4
Rear panel features introduction
Rear panel features introduction

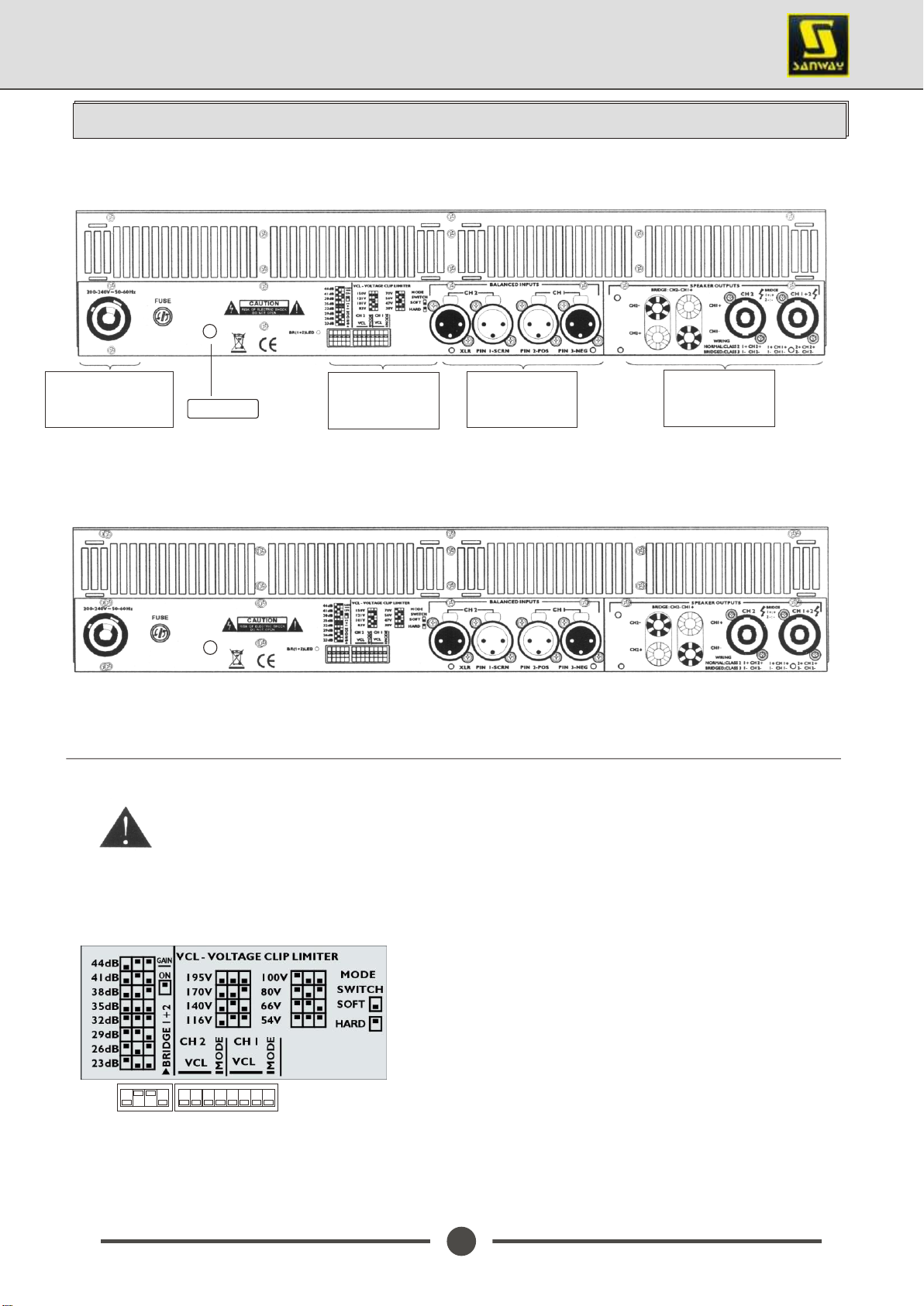

Rear view of 2-channel model fitted with Speakon Connectors
Two-channel model shown. Two-channel versions have VCL and Bridge Mode switches for
channel 1 and 2 only. All models have different VCL values. Functions are otherwise
identical.
6.2.2 The DIP switch features
The following features may be adjusted using the DIP
switches on the rear-panel of the amplifier. Gain -
Globally set for all channels, from +23 dB to +44 dB in 3
dB steps.
Bridge 1+2 Switches the channel pairs into bridge mode
operation An automatic -6 dB gain compensation is
applied.
Mains input 200V-240V
or 100V-120V operation
DIP switches
for adjusting key
features
(See below)
XLR connectors for
inputs and loop thru
2 channel version
shown with Neutrik
Speakon output
connectors
-
+
-
+
Fans Speed

SANWAY AUDIO
http://www.china-sanway.comhttp://www.china-sanway.com
5
Rear panel features introduction
Mode-Select VCL mode to either Hard or Soft operation. For channels driving sub-woofers
and low-frequency drivers, it is recommended to use the Hard setting for optimal operation.
For mid- and high-frequency drivers, always select Soft.
Output connectors Input or output connectors
Speakon outputs-2-channel models Audio inputs or ouput-2-channel models
Two-channel amplifiers Additional connectors
are provided for Channel 1.
VCL-Voltage Clip Limiter adjustment is provided for eight discrete levels for each channel.
Select the setting most appropriate for connected speakers.

6
Audio input and output connections
SANWAY AUDIO
http://www.china-sanway.comhttp://www.china-sanway.com

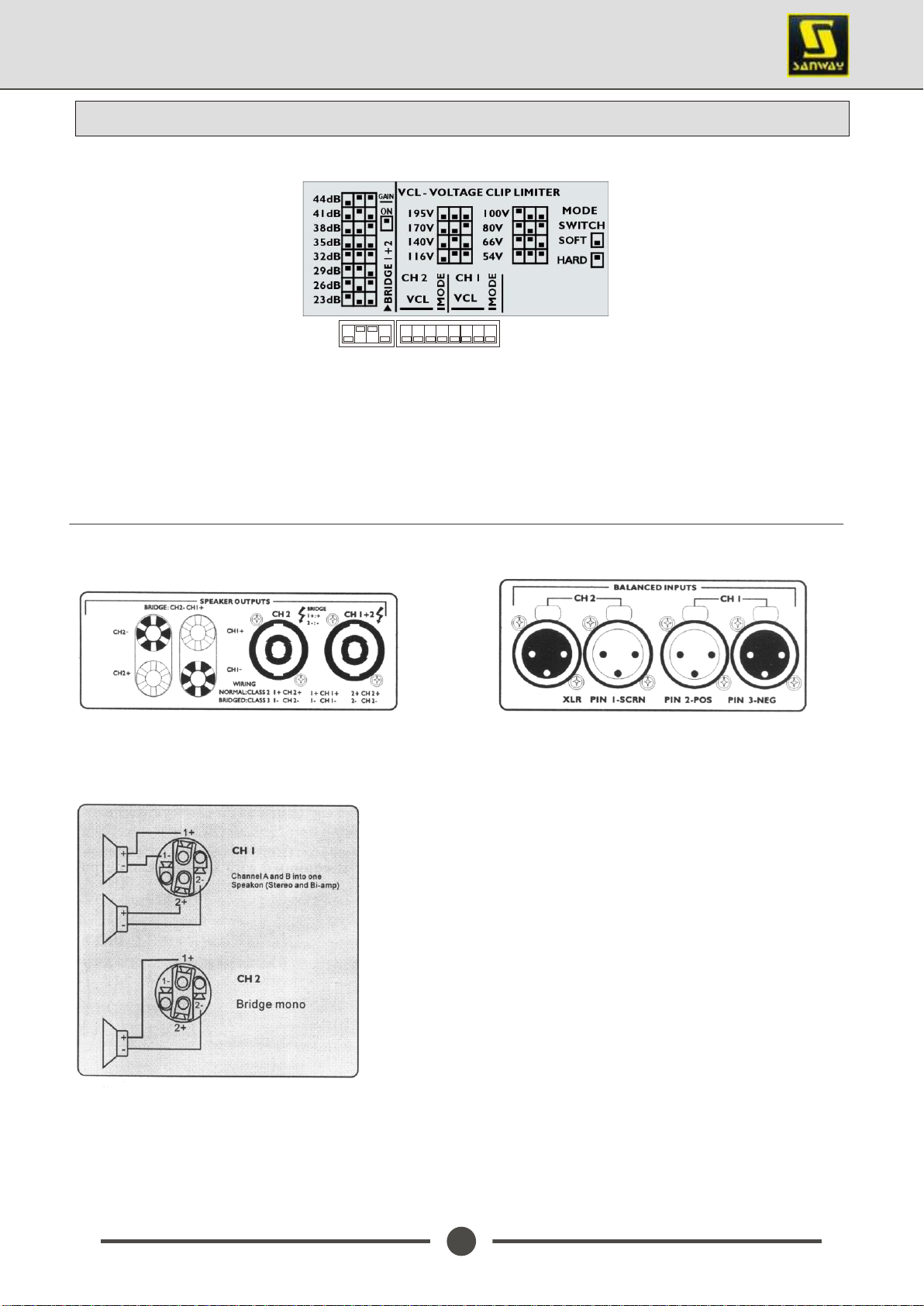

BALANCED INPUT CONNECTIONS
The XLR input connectors are electronically balanced,
and wired according to the IEC 268 standard ( pin 2=
hot ). XLR input connectors should be wiredas follows:
Audio input-2-channel models
Pin 1 Ground/Shield
Pin 2 Hot (+)
Pin 3 Cold (-)
When linking the same source signal to several input channels, be aware that there
is a limit to the number of channels an output source can "drive". A typical output
sourse (e.g. a DSP crossover unit) can drive up to two amplifier channels before
external line-drivers might be required to buffer the signal.
To connect an input to an unbalanced source, it is
possible to connect pins1 and 3 in the XLR plug at the
amplifier end of the cable. However, a better method
is to connect pin 3 to the shield at the source end of the
cable, as this usually results in better hum and noise
rejection. Balanced input connections are recommended
whenever possible.
Unbalanced Input connections
Speakon Output connections
Refer to the instructions in this section if your amplifier is equipped with the Speakon output
connectors
Speakon outputs-2-channel models

7
Output Mode
SANWAY AUDIO
http://www.china-sanway.comhttp://www.china-sanway.com
Before setting the mode, please turn off the amplifier and slide the
mode select switch to below (Picture 1) . In this mode, Channel 1
an Channel 2 operate independently (Just traditional stereo
amplifier). The signal input into channel 1 can be output from
channel 1 only, similarly, the signal input into channel 2 can be
output from channel 2 only. The many channels, one by one in
order type pushes.
(Picture1)
Bridge Mode
Before setting the mode, please turn off the amplifier and slide the
mode select switch to above (Picture 2), channel 1 and channel 2
are bridged.At time, the signal input into channel 1 will be output
from the bridge end. On other hand, the output level control of
channel 2 should be turn down to smallest. Only the volume
control of channel 1 are used to control the volume of whole
system.
(Picture2)
Stereo Mode
-
+
-
+
Fans Speed
Fans Speed

8
Professional Power Amplifier Specifications
SANWAY AUDIO
http://www.china-sanway.comhttp://www.china-sanway.com
ADD:JinLe Industrial Area,PinBu Road,HuaDu District 510800,Guangzhou China
http://www.china-sanway.com
Sanway Professional Audio Equipment Co., Limited
Dimension
Airframe
Weight
Weight(net)
483×377×88mm
13Kg
MODEL HT-14K
2×2350W
2×4400W
2×7000W
8700W
13000W
Output Power
8R Stereo Power
4R Stereo Power
2R Stereo Power
8R Bridged Monon Power
4R Bridged Monon Power
FREQUENTY RESPONSE
THD+N(Rated power,4ohm/1KHz)%
Signal Noise Ration(dB)
Input Impedance
Ampitier gain selectable
(All channels)-rell-panel switches
Output Connectors
Power Requirement
20Hz-25kHz ±0.5dB
0.10%
20Kohm Balanced / 10kohm Unbalanced
23,26,29,32,35,38,41,44dB
Speakon Connectors(NEUTRIK)
100-120V-50-60Hz or 200-240V-50-60Hz
110dB
