FILE NO.

Service Manual

CONTENTS

DVD Video Player

PRODUCT CODE No.

137 121 03

REFERENCE No. SM5810463

DVD Mechanism Replacement ............................................. 1

Laser beam safety precaution ............................................... 1

Mechanism replacement ....................................................... 2

Exploded View (Cabinet & Chassis) ..................................... 4

Parts List ............................................................................... 5

Exploded View (DVD Mechanism) ........................................ 7

Parts List ............................................................................... 7

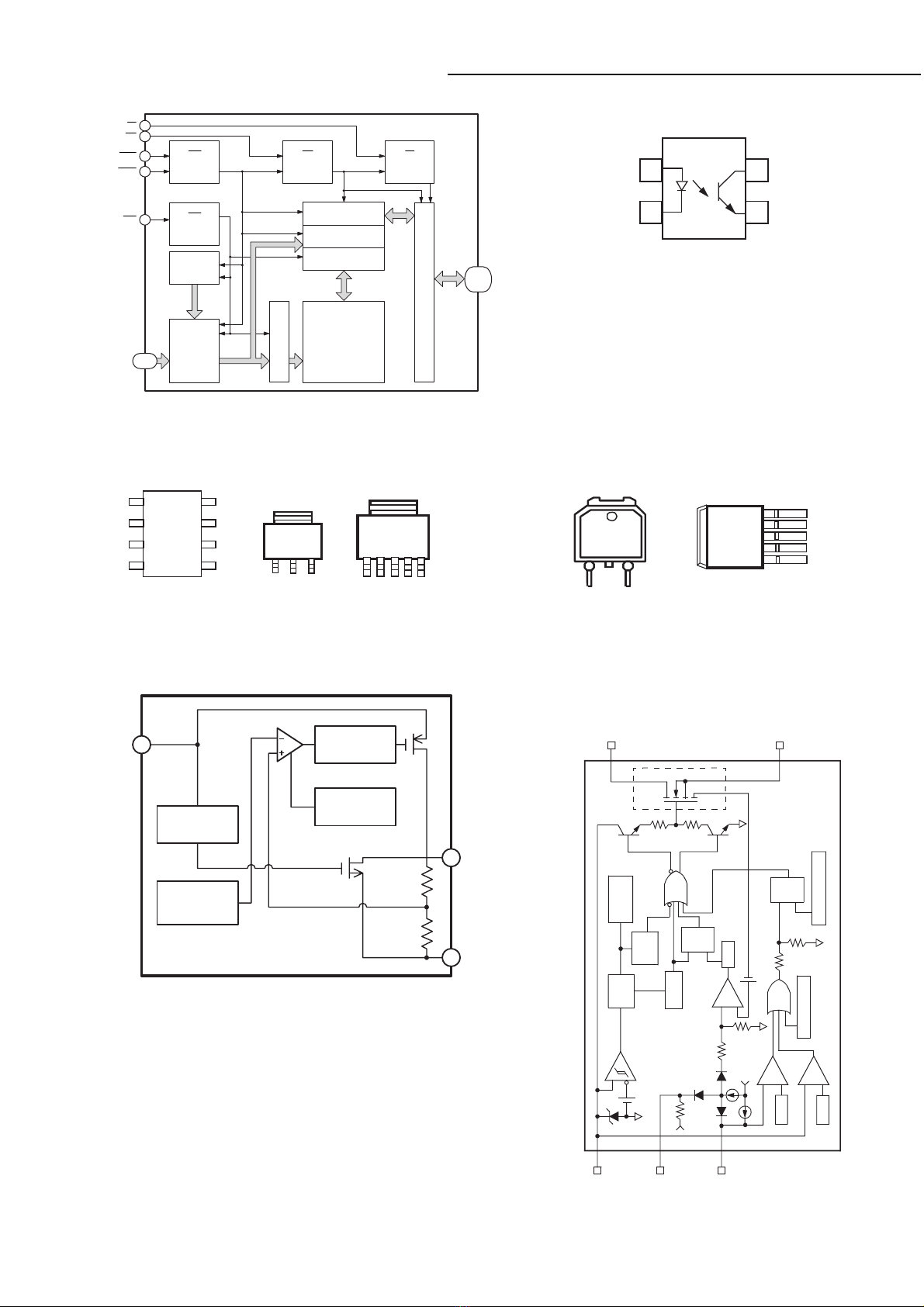

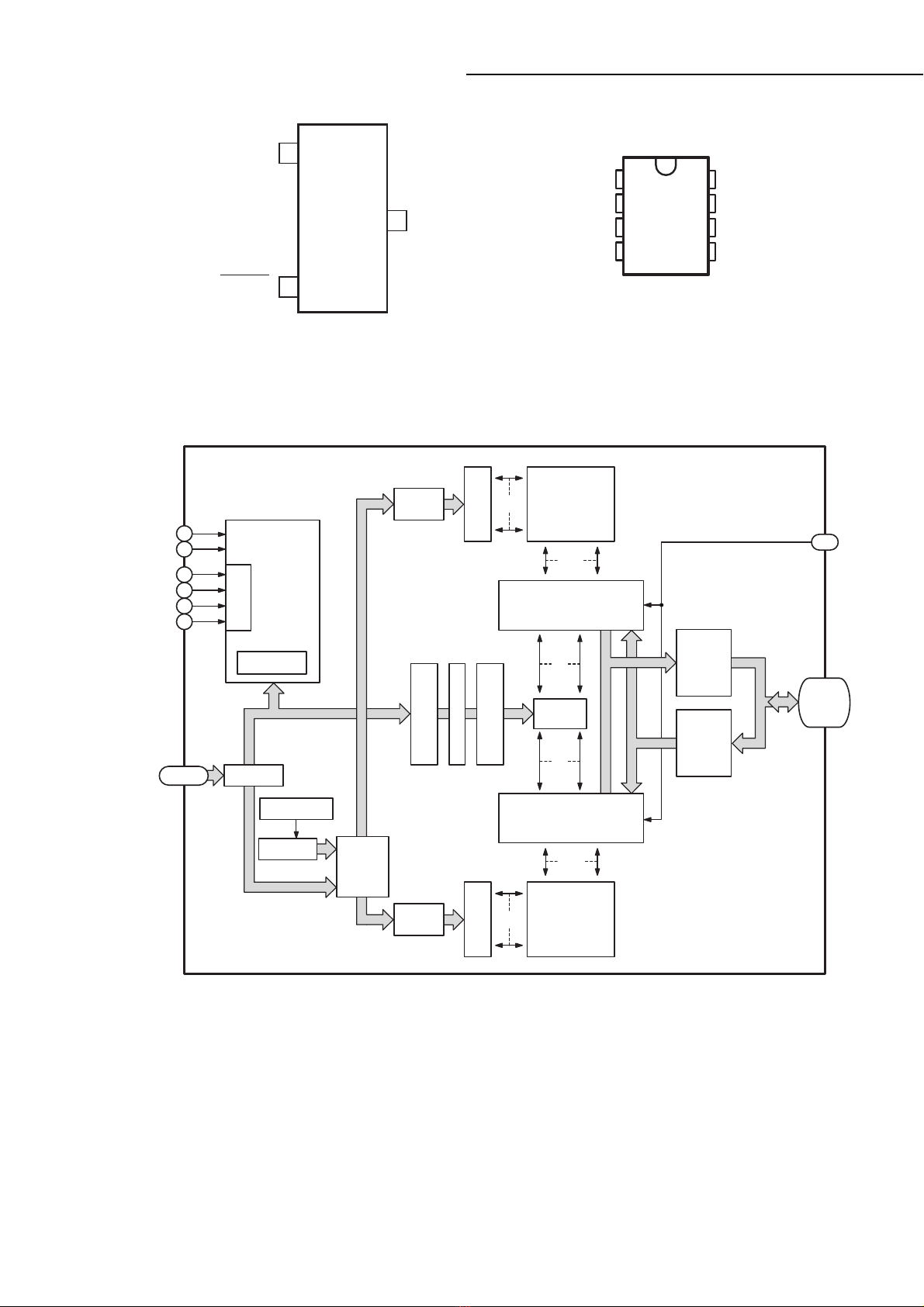

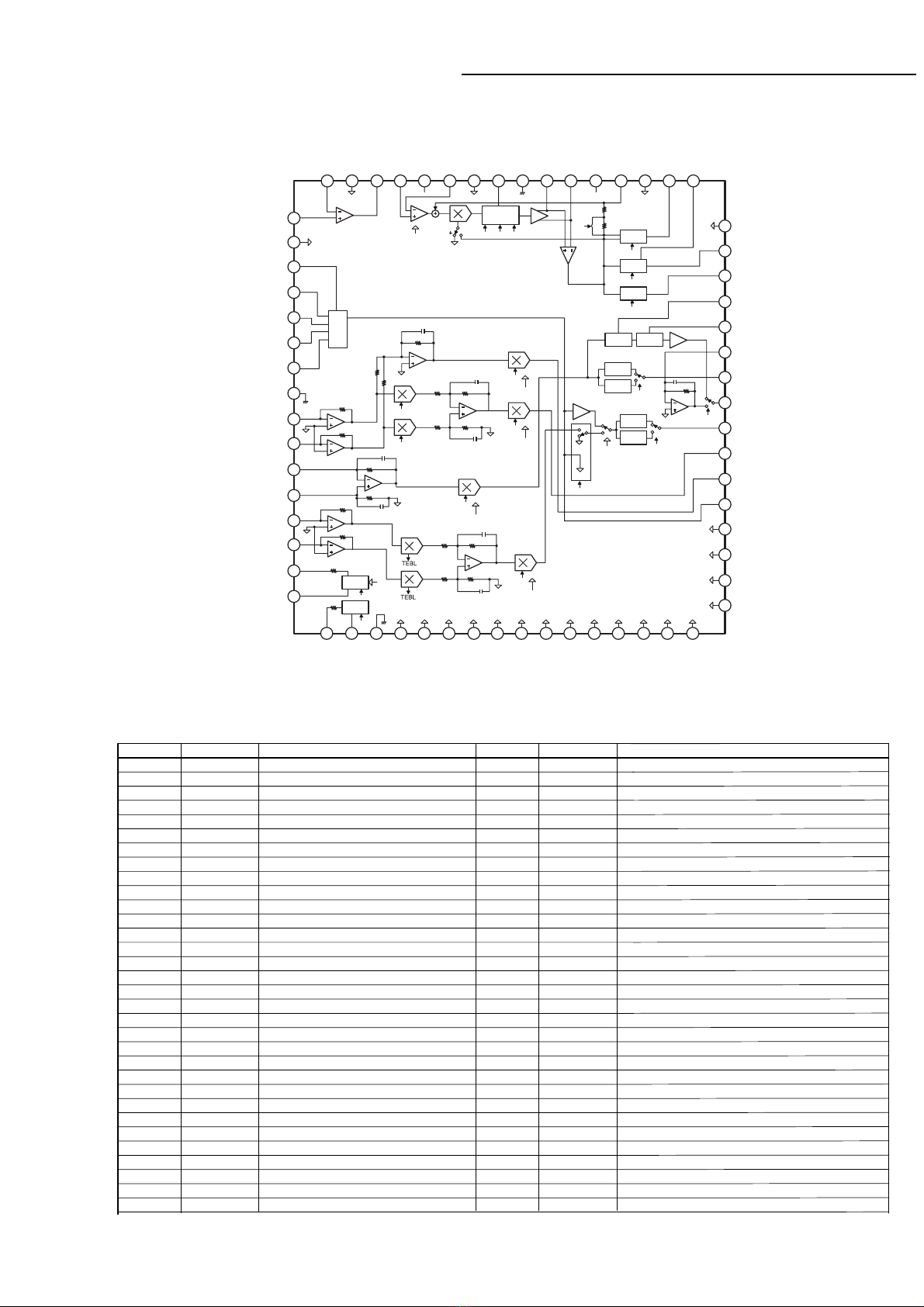

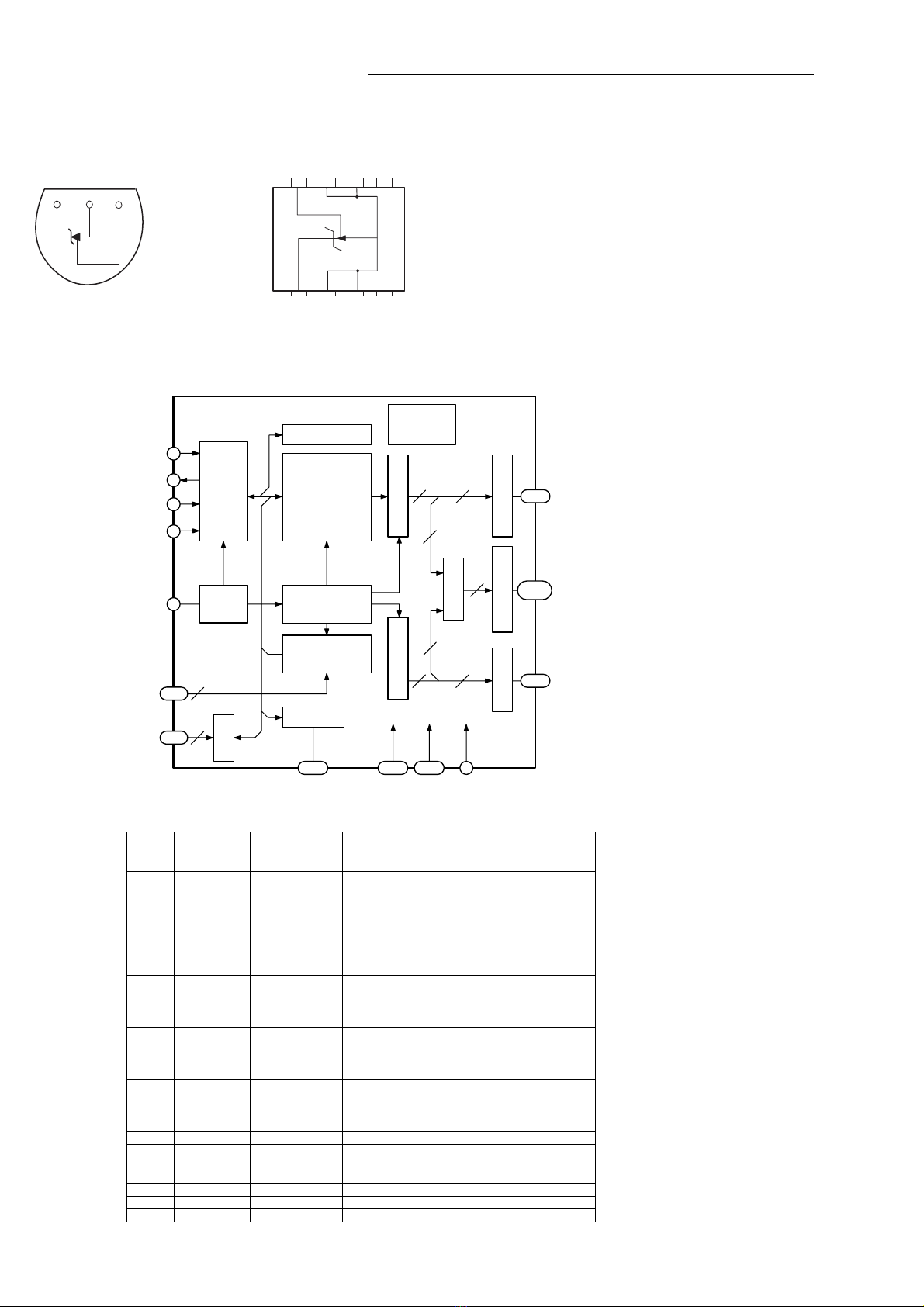

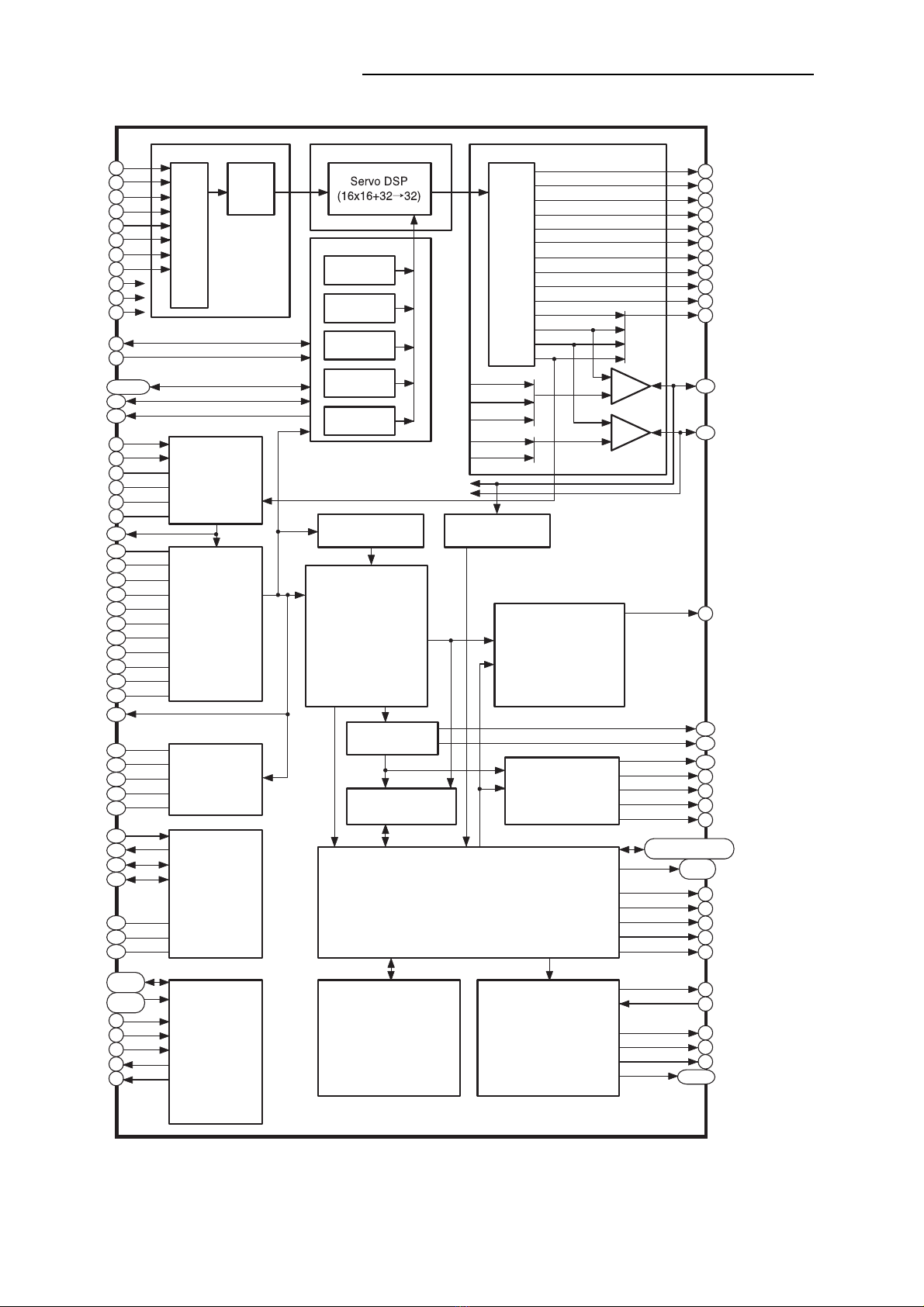

IC Block Diagram & Description ............................................ 8

Schematic Diagram ............................................................... 18

Wiring Diagram .................................................................... 34

Block Diagram ...................................................................... Rear

REMOTE CONTROLLER RB-SL22

LAST MEMO


MODE

OPEN/CLOSE

/ON

REPEAT A-BREPEAT

PROGRAM

/RANDOM

ON SCREEN ZOOM ANGLE

ANGLE

REPLAY

SETUP MENU

SUBTITLE

CHANGE

ENT

SUBTITLE

ON/OFF

AUDIO RETURN

TOP MENU

REV SLOW FWD SLOW

PAUSE/STEP

PREV NEXT

PLAY

REV FWD

CLEAR

123C

4560

789

MODE

/ON

OPEN/CLOSE

DVD-SL33 (AU)

- 1 -

(Connectors)

Do not connect or disconnect while power is on.

Connecting or disconnecting signal wires or the main power cord

when the power is on may destruct the unit or fixture.

When connecting, push all the way in securely.

An insufficient insertion may cause a bad contact, leading to an

erroneous operation.

Do not connect or disconnect roughly by an excessively strong

force, or a broken wire or bad contact may result.

Semiconductors are connected. Do not touch connector terminals

directly.

If the worker is grounded, there is nothing to worry about static

electricity, but the rust on the connector terminal surface caused

by the touch may result in bad contact.

(Caution)

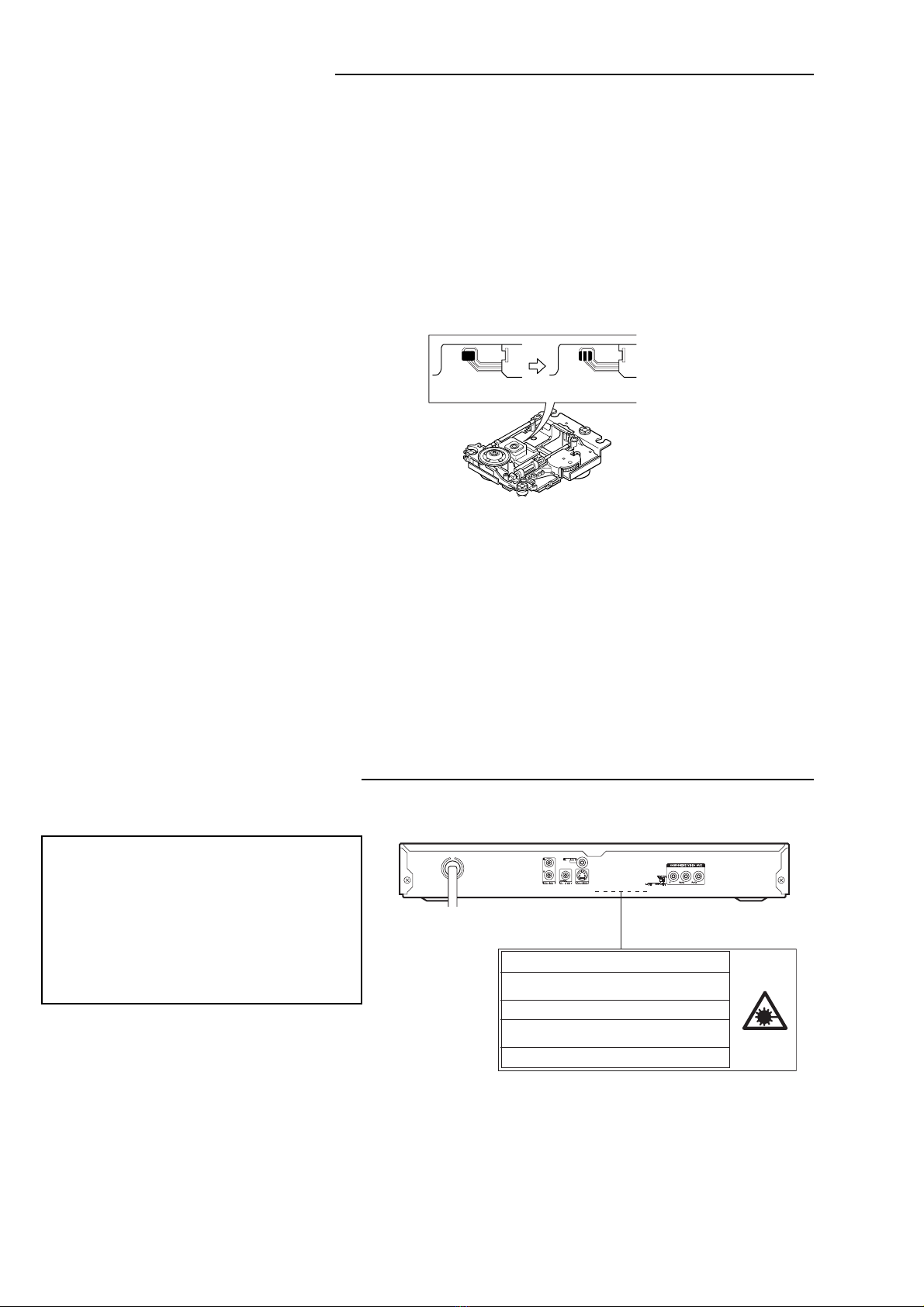

Before disconnecting FFC

cable, make it "SHORT" as

shown left.

After connecting FFC

cable,make it "OPEN" as

shownleft.

(Power source)

The power source need be good in quality (free from

instantaneous interruptions or noises).

A low quality power source may well cause malfunction.

(Storage)

Do not place or store in a dusty place or a place where dew

condensation is possible.

The entry and deposition of dirt or dust into or on the pickup lens

or moving section will cause malfunction or degradation.

Also, dew condensation causes rust; the rust penetrate into the

precision part of a pickup, causing malfunction, or degrading the

optical quality of the internal lens and reflector, which also leads

to malfunction.

1. Cautionary instructions in handling the assy

(Safety instructions)

Optical pickup

The laser beam used in the pickup is classified as "class 2".

Exposing your eyes or skin to the beam is harmful. Take care

not to do so.

(Caution against static electricity and leakage voltage)

Ground securely the work tables, tools, fixtures, soldering irons

(including those made of ceramic) and measuring instruments

used in the production lines and inspection departments that

handle loaders. The workers shall also be grounded.

(Cautionary instructions in handling)

Do not touch the object lens when handling a loader, or the lens

will be stained, resulting in inadequate playability.

There is no power supply protection circuit provided for this

product or adjustment/inspection device. Short-circuiting may lead

to fire or damage.

Take care so as to protect from exposure to water, the entry of

metallic pieces or dew condensation.

In particular, a strong magnet adjacent to the pickup will not only

get inoperative but can damage the pickup if a small metallic

piece, such as a screw or swarm, enters.

The loader edge can cause injury if inadvertently handled.

Do not touch a rotating disk, or injury may result.

This product is a precision device. Handle carefully.

A shock or dropping will cause misalignment or destruction. If it

should occur, refer to clause 2.

This product is so designed as to endure an initial shock

equivalent to a drop from a height of approx. 90 cm under the

packed condition.

After the initial shock, the resistivity will still remain at a level of

50 to 60 G, but the mechanical robustness will weaken.

Do not place in a dusty location.

The entry and deposition of dirt into or on the pickup lens or

moving section will cause malfunction or degradation.

DVD MECHANISM REPLACEMENT

(OPEN)(SHORT)

LASER BEAM SAFETY PRECAUTION

•Pick-up that emits a laser beam is used in this CD player section.

CAUTION :

USE OF CONTROLS OR ADJUSTMENTS

OR PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED HEREIN

MAY RESULT IN HAZARDOUS RADIATION

EXPOSURE

LASER OUTPUT.......... 0.6 mW Max. (CW)

WAVELENGTH ............. 790 nm

CAUTION –IN VISIBLELASERRADIA TION WHENO PENAND

INTERLOCKSDE FEATED.A VOIDE XPOSURETOBEA M.

ADVARSEL –US YNLIGLA SERSTR ÅLINGVE D ÅBNING,N ÅR

SIKKERHEDSAFBRYDEREERUDEA F FUNKTION,UN DGÅUD S ÆTTELSE

FORSTR ÅLING.

VARNING –OS YNLIGLA SERSTR ÅLNINGN ÄRDENNADEL ÄR ÖPPNAD

OCHS PÄRR ÄRUR KOPPLAD.ST RÅLEN ÄR FARLIG.

VORSICHT –UN SICHTBARELASERSTRA HLUNGTR ITTAUS , WENN

DECKEL GEÖFFNETUND WENNSIC HERHEITSVERRIEGELUNG

ÜBERBRÜCKTIST .NI CHT,DE MST RAHLAUSSET ZEN.

VARO –A VATTAESSA JASUO JALUKITUSO HITETTAESSAOLETAL TTIINA

NÄKYMÄTTÖMÄLLELASERS ÄTEILYLLE. ÄLÄ KATSOS ÄTEESEEN.

- 2 -

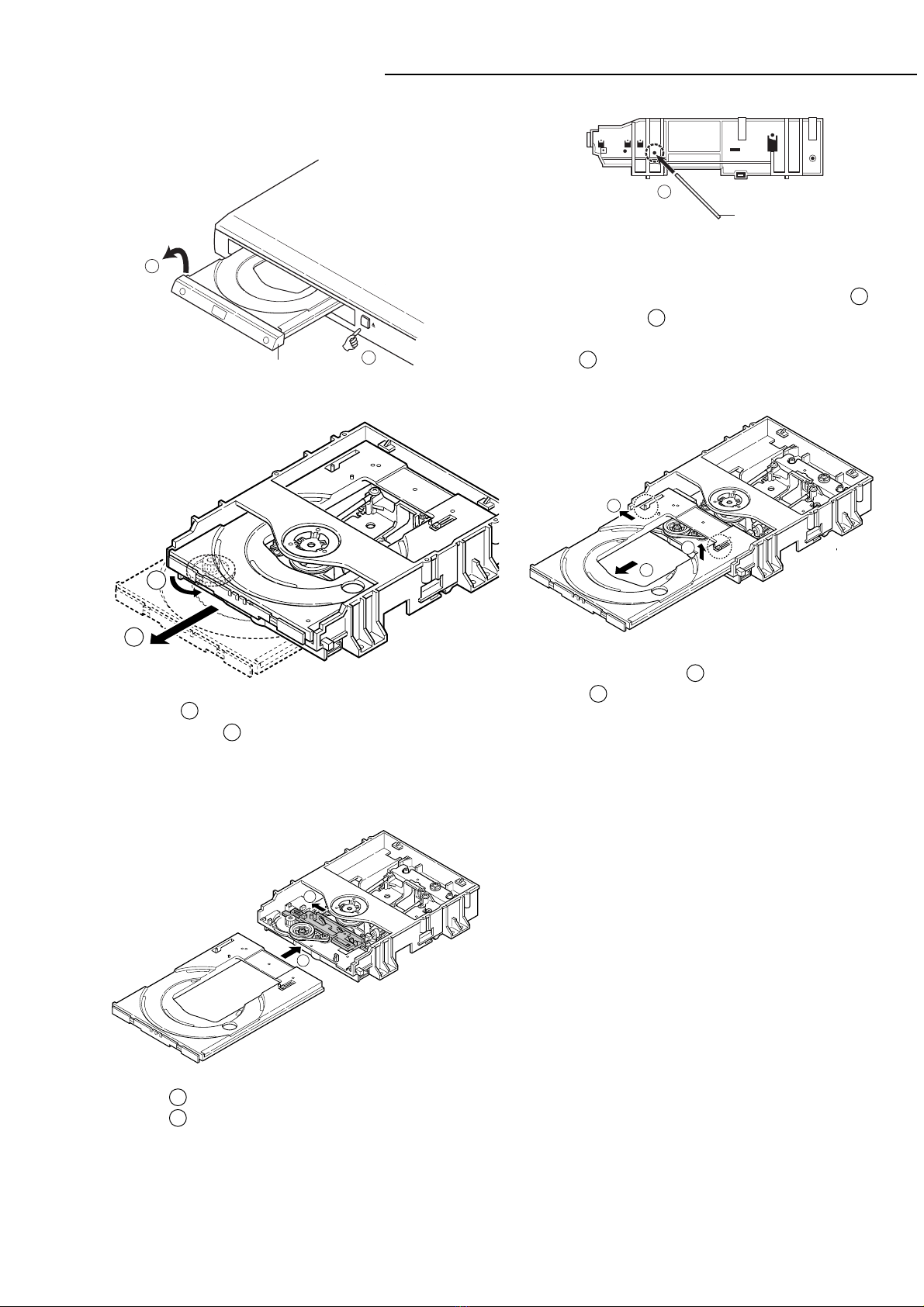

MECHANISM REPLACEMENT

2. How to remove the tray.

3. How to insert the tray.

Escutcheon

1. How to Remove DVD Mechanism

First, it is necessary to remove Escutcheon.

Move both the right and left 1 tray pins to the ends.

Remove the 2 tray.

Rotate the 1 gear.

Move forward the 2 tray.

Move the 1 slide to the left end.

Insert the 2 tray.

How to remove Escutcheon.

An eject button is pushed and a tray is taken out.

Please remove Escutcheon, as shown in the left figure 2 .

When an eject button 1 does not function. Above figure

Please insert a cylindrical thing with a diameter of 3mm or less

in the hole 3 in the side of a DVD mechanism.

A tray is pushed out.

Side of DVD mechanism

Front Rear

Cylindrical thing

- 3 -

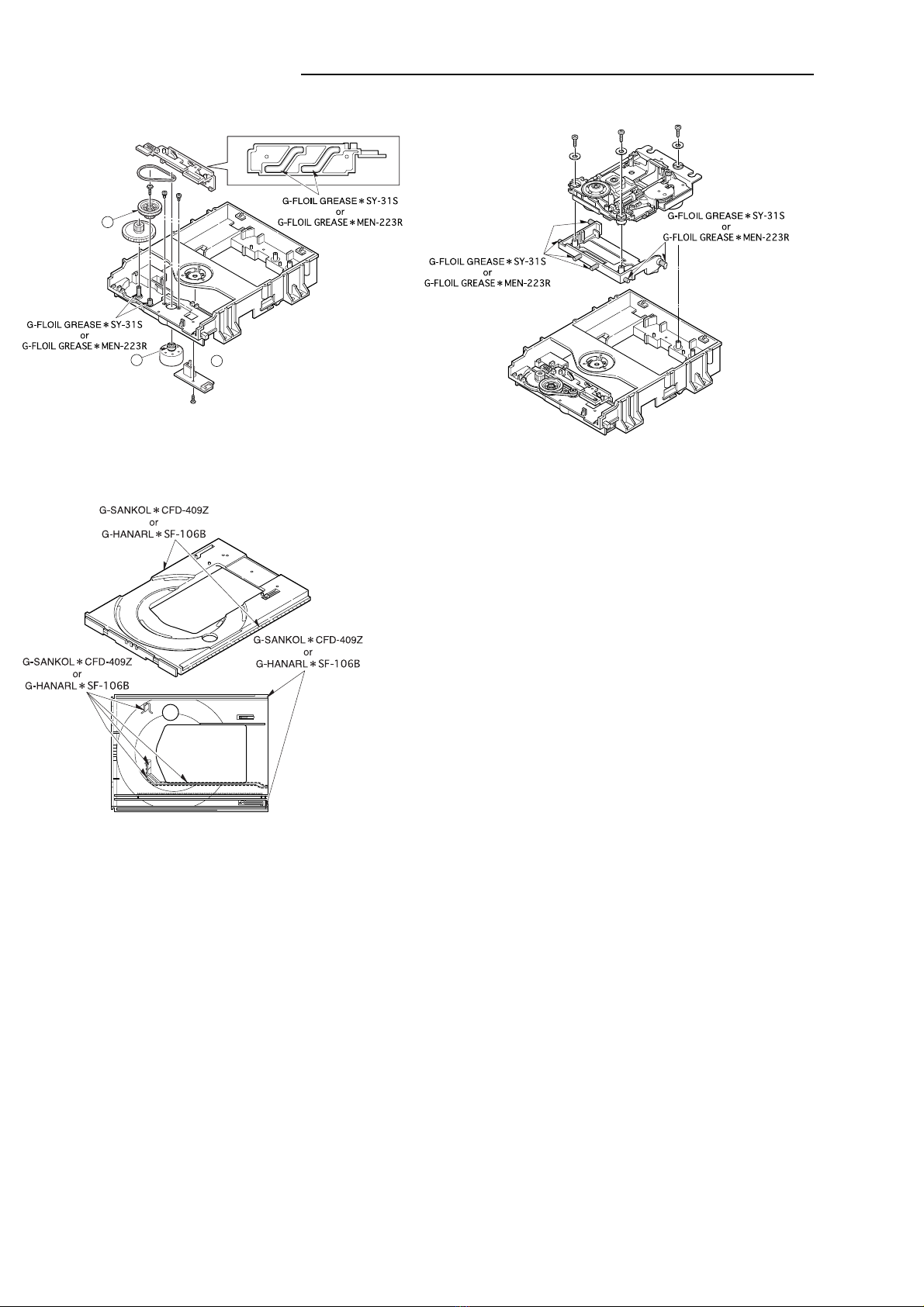

4. Base mechanism mounting parts.

5. Tray parts.

MECHANISM REPLACEMENT

: Clean the groove by alcohol well.

- 4 -

EXPLODED VIEW (CABINET & CHASSIS)

- 5 -

PARTS LIST

CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.

Regular type resistors are less than 1/4 W carbon type and chip resistors.

Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.

PRODUCT SAFETY NOTICE

EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE

IEC SYMBOL !

!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY AND

PERFORMANCE CAN BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY !

!! , USE ONLY THE

REPLACEMENT PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT

ARE DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE

MADE TO DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE

RETURNING THE PRODUCT TO THE CUSTOMER.

PACKING & ACCESSORIES

REF.NO. PART NO. DESCRIPTION

645 064 8335 GIFT BOX

645 064 8410 INSTRUCTION MANUAL

645 064 0834 POLYFOAM,BOTTOM RIGHT

645 064 0841 POLYFOAM,BOTTOM LEFT

645 064 0858 POLYFOAM,RIGHT TOP BACK

645 064 0865 POLYFOAM,RIGHT TOP FRONT

645 064 0872 POLYFOAM,LEFT TOP FRONT

645 064 0889 POLYFOAM,LEFT TOP BACK

645 063 3607 POLYBAG,IB

645 064 0902 POLYBAG,UNIT

645 064 0919 SOFT BAG

645 060 7011 POLYBAG,AC CORD

645 060 7011 POLYBAG,RCA CABLE

!! 645 064 8427 AC LINE CORD

645 064 0490 REMOTE CONTROL,RB-SL22

645 064 0711 RCA CABLE

CABINET & CHASSIS

REF.NO. PART NO. DESCRIPTION

1645 064 0650 KNOB PLAY STOP

2645 064 0643 BRACKET

3 645 064 0681 DISPLAY LENS

4645 064 0001 ASSY DVD DOOR

6 645 064 0667 KNOB OPEN CLOSE

7645 064 8441 FRONT PANEL

8645 064 0773 BRACKET

9 645 064 0742 BOTTOM CABINET

12 645 064 0759 TOP COVER

13 645 064 8472 REAR CABINET

15 645 064 0780 SPACER

20 645 064 8311 ASSY FRONT PANEL

FIXING PARTS

REF.NO. PART NO. DESCRIPTION

S1 645 060 6779 SCR 3X8,BACK CABINET

S2 645 064 0797 SCREW 3X6,

BACK CAB TO TOP CAB

ELECTRICAL-PARTS

REF.NO. PART NO. DESCRIPTION

645 064 0377 24P FFC CABLE UL2069,

DVD PICK UP TO CN801

645 064 0360 6P FFC CABLE UL20696,

DVD PICK UP TO CN802

645 064 0414 5P FLAT CABLE AWG26,

DVD LOADER TO CN803

YUV OUT P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

10 614 328 3874 ASSY PWB,YUV OUT(Only initial)

CN106 645 064 0407 3P J WIRE AWG26 2468,

RB106 TO CN406

CN107 645 064 0810 4P J WIRE AWG28 UL25,

RB107 TO CN405

RCA02 645 064 0537 RCA JACK,RCA314C

SW501 645 064 0803 SWITCH SLIDE,SW5001

ZD001 645 060 4904 ZENER DIODE 5.6V

ZD002 645 060 4904 ZENER DIODE 5.6V

ZD003 645 060 4904 ZENER DIODE 5.6V

MAIN P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

14 614 328 3843 ASSY PWB,MAIN(Only initial)

CN405 645 063 2433 4P CONNECTOR

CN406 645 060 5062 3P CONNECTOR

CN801 645 064 0438 24P CONNECTOR

CN802 645 064 0070 6P CONNECTOR

CN803 645 063 2440 5P CONNECTOR

CN901 645 064 0308 14P CONNECTOR

CN902 645 064 0308 14P CONNECTOR

D0401 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0404 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0405 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0406 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0408 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0409 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0410 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0411 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0412 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0413 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0414 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0416 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0417 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0419 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0422 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0801 645 064 0056 DIODE CHIP 1N4148W,BAV16W

D0804 645 064 0056 DIODE CHIP 1N4148W,BAV16W

FB101 645 064 0018 CHIP BEAD 80OHM

FB102 645 063 2518 BEAD FERRITE 100MHZ

FB103 645 064 0018 CHIP BEAD 80OHM

FB104 645 064 0018 CHIP BEAD 80OHM

FB107 645 064 0018 CHIP BEAD 80OHM

FB401 645 064 0018 CHIP BEAD 80OHM

FB406 645 064 0018 CHIP BEAD 80OHM

FB407 645 064 0018 CHIP BEAD 80OHM

FB408 645 064 0018 CHIP BEAD 80OHM

FB409 645 064 0018 CHIP BEAD 80OHM

FB410 645 064 0018 CHIP BEAD 80OHM

FB411 645 064 0018 CHIP BEAD 80OHM

FB412 645 064 0018 CHIP BEAD 80OHM

FB413 645 064 0018 CHIP BEAD 80OHM

FB414 645 064 0018 CHIP BEAD 80OHM

FB415 645 064 0018 CHIP BEAD 80OHM

FB801 645 063 2518 BEAD FERRITE 100MHZ

FB802 645 064 0018 CHIP BEAD 80OHM

FB901 645 063 2518 BEAD FERRITE 100MHZ

- 6 -

PARTS LIST

REF.NO. PART NO. DESCRIPTION

FB902 645 063 2518 BEAD FERRITE 100MHZ

FB903 645 063 2518 BEAD FERRITE 100MHZ

FB904 645 064 0018 CHIP BEAD 80OHM

FB905 645 064 0018 CHIP BEAD 80OHM

FB907 645 063 2518 BEAD FERRITE 100MHZ

FB908 645 064 0018 CHIP BEAD 80OHM

FB909 645 064 0018 CHIP BEAD 80OHM

FB910 645 064 0018 CHIP BEAD 80OHM

FB911 645 064 0018 CHIP BEAD 80OHM

FB912 645 064 0018 CHIP BEAD 80OHM

FB913 645 064 0018 CHIP BEAD 80OHM

FB914 645 064 0018 CHIP BEAD 80OHM

FB915 645 064 0018 CHIP BEAD 80OHM

FB916 645 063 2518 BEAD FERRITE 100MHZ

FB917 645 063 2518 BEAD FERRITE 100MHZ

FB918 645 064 0018 CHIP BEAD 80OHM

JK402 645 064 0520 RCA JACK,RCA-213

JK403 645 064 0513 RCA JACK,RCA-108D5

JK404 645 064 0506 RCA+DIN JACK,RCA-125

L0401 645 064 0292 CHIP INDUCTOR

L0402 645 064 0285 CHIP INDUCTOR

L0403 645 064 0285 CHIP INDUCTOR

L0404 645 064 0285 CHIP INDUCTOR

L0801 645 064 0018 CHIP BEAD 80OHM

Q0402 645 063 2457 TR 2SC1623

Q0403 645 063 2457 TR 2SC1623

Q0405 645 063 2488 TR 2SA733

Q0406 645 063 2488 TR 2SA733

Q0410 645 063 2488 TR 2SA733

Q0801 645 064 0278 TRANSISTOR CM5783GR

Q0802 645 064 0278 TRANSISTOR CM5783GR

Q0803 645 064 0278 TRANSISTOR CM5783GR

Q0804 645 064 0278 TRANSISTOR CM5783GR

Q0805 645 064 0322 TRANSISTOR CM5051-0

Q0806 645 064 0261 TRANSISTOR DDTC114EC

Q0807 645 064 0322 TRANSISTOR CM5051-0

RN101 645 064 0339 RESISTOR,RES ARRAY

RN102 645 064 0346 RESISTOR,RES ARRAY

U0101 645 064 0087 IC IMP809SEUR-T,

MICRO CTL PWR SUPPLY

U0102 645 064 0162 IC ZR36748P,

INTERGATED DVD DECODER

U0103 645 064 0186 IC 1MX16Y3VTW-7,

1MEGX16SDRAM HT40

U0104 645 064 0209 IC SST39VF800

U0105 645 064 0155 IC AT24C02N-10SI-2.7

U0401 645 064 0100 IC RC4558

U0403 645 064 0131 IC WM8761ED,STEREO ADC

U0404 645 064 0230 IC 74HCU04D,COMS INVERTER IC

U0405 645 064 0223 IC NC7SZ157P6X,

2 I/P N-INVERTING MULTIP

U0801 645 064 0124 IC LA6560,MOTOR DRIVER

U0802 645 064 0094 IC LM358MX,

LOW PWR DUAL OP AMP

U0803 645 064 0216 IC IC41LV16256-35T,

256KX16 (4MBIT) D-RAM

U0804 645 064 0179 IC LC78663NRW,

DVD FRONT END IC

U0805 645 064 0148 IC LA9703W,DVD PLAYERS RF AMP

U0901 645 064 0247 IC FS8860-18CJ,

VOLT. LDO LINEAR REG.

U0902 645 064 0193 IC B1117N

U0903 645 064 0193 IC B1117N

U0904 645 064 0254 IC FS8860-25CJ,

VOLT. LDO LINEAR REG.

Y0101 645 064 0698 CRYSTAL 27MHZ

Y0801 645 060 6519 CRYSTAL 16.9344MHZ

POWER P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

16 614 328 8015 ASSY PWB,POWER(Only initial)

C0101 645 064 0988 CONDUCTOR SAFETY

C0106 403 135 7409 ELECT 22U M 50V

C0107 645 064 0995 CONDUCTOR SAFETY

C0108 645 064 0995 CONDUCTOR SAFETY

C0109 645 064 0995 CONDUCTOR SAFETY

C0203 403 135 4705 ELECT 2200U M 10V

C0204 403 135 4507 ELECT 1000U M 10V

C0205 403 125 5507 ELECT 1000U M 16V

CN102 645 064 0315 4P CONNECTOR,C0N102

CN201 645 064 0384 14P FLAT CABLE AWG26,CON201

D0101 645 063 2228 DIODE 1N4007

D0102 645 063 2228 DIODE 1N4007

D0103 645 063 2228 DIODE 1N4007

D0104 645 063 2228 DIODE 1N4007

D0105 645 063 9937 DIODE UF4007

D0107 645 063 9920 DIODE FR103

D0202 645 064 0445 DIODE 1N5822

D0204 645 063 9944 RECITIFER 1N5819

D0205 645 063 9920 DIODE FR103

D0206 645 063 9920 DIODE FR103

D0207 645 063 9920 DIODE FR103

F0001 !

!! 645 064 8458 FUSE

IC101 645 064 0452 IC KA5M02659RN,

POWER SWITCH IC

IC102 645 064 0476 IC SFH615A-3,OPT SENSOR

IC201 645 063 2662 IC TL431,VOLT. REGULATOR

L0202 645 064 0483 COIL 10UH

L0203 645 064 0483 COIL 10UH

L0204 645 064 0483 COIL 10UH

L0205 645 060 4805 CHOKE COIL 10UH

T0101 645 064 0421 AC FILTER 25MH

T0102 !

!! 645 064 0735 POWER TRANSFORMER

ZD201 645 063 9968 ZENER DIODE 12V

645 060 5222 FUSE CLIP

DISPLAY P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

17 614 328 3850 ASSY PWB,DISPLAY(Only initial)

CN501 645 064 0391 14P FLAT CABLE AWG26,

TO MAIN CN902

D0501 645 060 4775 DIODE 1N4148

D0502 645 060 4775 DIODE 1N4148

IC501 645 064 0117 IC TP6312F,VFD DRIVE IC

Q0501 645 063 2457 TR 2SC1623

SN501 645 064 0469 REMOTE SENSOR B38F,

IRT SENSOR

TA201 645 060 4874 SW TACT,B.SKIP

TA202 645 060 4874 SW TACT,F.SKIP

TA203 645 060 4874 SW TACT,ON,STAND

TA204 645 060 4874 SW TACT,STOP

TA205 645 060 4874 SW TACT,OPEN,CLOSE

TA206 645 060 4874 SW TACT,PLAY,PAUSE

VD501 645 064 0582 VFD,VFD501

ZD501 645 063 9951 ZENER DIODE 3.6V

- 7 -

PARTS LIST

EXPLODED VIEW (DVD MECHANISM)

DM05

DM06

DM07

DM08

DM09

DM10

DM11

DM22

DM01

DM19

DM16

DM15

DM18 DM17

DM20

DM21

DM12

DM13

DM14

DM02

DM17

DM15

DM16 DM15

DM16

DM17

DM03

DM04

DM2

DVD MECHANISM CHASSIS

REF.NO. PART NO. DESCRIPTION

11 614 325 7943 ASSY,MECHA,KIT890 SP,

MECHANISM ASSY

DM01 614 325 0074 DISC,CHUCK DISC

DM02 645 051 4920 MAGNET(CHUCK),MAGNET CHUCK

or 645 054 0448 MAGNET(CHUCK),MAGNET CHUCK

DM03 614 325 4591 SLIDE,BASE UP/DOWN

DM04 411 184 1408 SCR PAN PCS+SW 1.7X4,

LOADING MOTOR FIX

DM05 614 325 6021 BELT,SQUARE,LOADING

DM06 412 065 3603 SPECIAL SCREW 2.0X8.0,PULLEY

FIX

DM07 614 325 4584 PULLEY,LOADING RETARD PULLY

DM08 614 325 4492 GEAR,LOADING GEAR

DM09 614 325 4478 CHASSIS,LOADING CHASSIS

DM10 614 325 4614 TRAY

DM11 645 057 4603 ASSY,MOTOR,LOADING,

LOADING MOTOR

or 645 057 4467 ASSY,MOTOR,LOADING,

LOADING MOTOR

DM12 614 325 0081 HOLDER,CHUCK HOLDER

DM14 411 021 3008 SCR S-TPG BIN 2.6X8,

PWB MECHA SW FIX

DM15 411 185 0004 SCR S-TPG BIN 2X10,BASE FIX

DM16 411 185 0103 WASHER Z 2.1X9.5X0.5,BASE FIX

DM17 614 325 5369 SPACER,MECHA,

BASE MECHA FLOATING FRON

DM18 411 185 0202 SCR PAN PCS+SW 1.7X3,

SLED MOTOR FIX

DM19 645 057 4641 ASSY,MOTOR SLED,SLED MOTOR

or 645 057 4504 ASSY,MOTOR SLED,SLED MOTOR

DM21 411 098 4700 SCR S-TPG BIN 2.3X8,

PWB MECHA IF + MOUNT FIX

DM22 614 325 4553 MOUNTING,

BASE MECHA MOUNTING

DM23 614 325 7950 ASSY,MECHA,KIT800BASE SP,

BASE MECHA

MECHA SW P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

DM20 614 326 1612 ASSY,PWB,MECHA IF(Only initial)

CN002 645 057 5945 SOCKET,FPC 6P,MECHA IF

MECHA SW P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

DM13 614 326 1605 ASSY,PWB,MECHA SW,

MOTOR&SW PWB(Only initial)

CN001 614 310 2618 PLUG,5P,MOTOR&SW PWB CONNE

or 645 006 0922 PLUG,5P,MOTOR&SW PWB CONNE

S0001 645 057 1381 SWITCH,LEVER,MECHA SW

- 8 -

IC BLOCK DIAGRAM & DESCRIPTION

U0101 IMP809SEUR-T(3 PIN POWER SUPPLY)

IMP809

(IMP810)

GND

(RESET) RESET

VCC

U0103 1MX16Y3VTW-7(DRAM)

BANK0

MEMORY

ARRAY

(2,048 x 256 x 16)

DATA

OUTPUT

DATA

INPUT

SENSE AMPLIFIERS

I/O GATING

DQM MASK LOGIC

COLUMN

DECODER

REFRESH

CONTROLLER

ROW-

ADDRESS

LATCH

ROW-

ADDRESS

LATCH

ROW

DECODER

2,048

BANK1

MEMORY

ARRAY

(2,048 x 256 x 16)

SENSE AMPLIFIERS

I/O GATING

DQM MASK LOGIC

ROW-

ADDRESS

MUX

ROW

DECODER

COLUMN-

ADDRESS LATCH

COLUMN-

ADDRESS BUFFER

2,048

256

(x16)

256

(x16)

256

REFRESH

COUNTER

CONTROL

LOGIC

ADDRESS

BURST COUNTER

MODE

COMMAND

DECODE

CKE

CLK

CS#

WE#

CAS#

RAS#

21~24,19

27~32,20

A0-A10,

14,36 DQML,

DQMH

2,3,5,6,

8,9,11,

12,39,40,

42,43,45,

46,48,49

DQ0-

DQ15

U0401 RC4558(AMP)

1OUT

1IN-

1IN+

2OUT

2IN-

2IN+

- 9 -

IC BLOCK DIAGRAM & DESCRIPTION

U0104 SST39VF800(FLASH)

Memory Address Address Buffer

& Latches

Control Logic

X-Decoder SuperFlash

Memory

Y-Decoder

I/O Buffer and Data

Latches

-DQ

CE#

OE#

WE#

Symbol Pin Name Function

To provide memory addresses. During Sector-Erase A

-A

address

lines will select the sector. During Block-Erase A

-A

address lines will

select the block.

To output data during Read Cycles and receive input data during Write

Cycles.

Data is internally latched during a Write Cycle.

The outputs are in tri-state when OE# or CE# is high.

To activate the device when CE# is low.

To gate the data output buffers.

To control the Write operations.

To provide power supply voltage:

Unconnected pins 3.0-3.6V for SST39LF200A/400A/800A

2.7-3.6V for SST39LF200A/400A/800A

Address Inputs

Data Input/output

Chip Enable

Output Enable

Write Enable

Power Supply

Ground

No connection

AMS

-A

-DQ

CE#

OE#

WE#

U0105 AT24C02N-10SL-2.7(EEPROM)

Vcc

GND

SCL

SDA

START

STOP

LOGIC

LOAD

DEVICE

ADDRESS

COMPARATOR

COMP

LOAD INC

SERIAL

CONTROL

LOGIC

DATA W O R D

ADDR/COUNTER

Y DEC

H,V. PUMP/TIMING

E PROM

SERIAL MUX

DATA RECOVERY

X DEC

OUT

/ACK

LOGIC

OUT

R/W

Other manuals for DVD-SL33

Table of contents

Sanyo DVD-SL33 User manual

Popular DVD Video Player manuals by other brands
