SANYO ultra low freezers provide energy savings
while minimizing carbon footprint throughout the
laboratory without compromising performance.
Ideally suited for ultra low storage for biosafety,
security, accessibility and performance. Long term
preservation of biologics, reagents, specimens,
components, and in testing of various types.
Model: MDF-U73VC
GREEN V.I.P.®-86°C Ultra Low Freezers
MDF-U73VC
MDF-U53VC

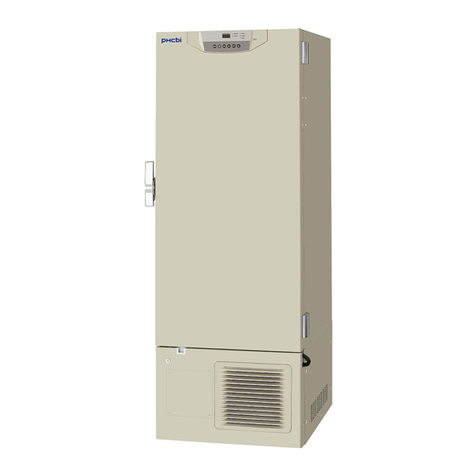

MDF-U33V
GREEN
product
SANYO is committed to developing green
technologies that provide energy efficiency
resulting in lower operational costs with less
impact on the environment.

Laboratory facilities present a unique challenge for energy
efficient and sustainable design, with their inherent
complexity of systems, health and safety requirements,
long-term flexibility and adaptability needs, energy use
intensity, and environmental impact. The typical laboratory
is about five times to as much as ten times as energy
intensive as a typical office building and costs about three
times as much per unit area. Any effort to reduce energy use
and environmental impact are heavily influenced by special
functional and health and safety requirements, which need
to be considered in rating and benchmarking the overall
environmental performance of a laboratory.
Elements of the SANYO ULT design that reflect GREEN
initiatives include:
• CFC Free Refrigerants
• RoHS Compliance
• Energy Efciency
• Noise Reduction
• Operating Costs
• High Density Storage
• Storage Volume Efciency
SANYO V.I.P.®Ultra Low temperature freezers offer the most
advanced combination of low-temperature refrigeration,
cabinet and control technology in the clinical and life science
industry. These units offer lower operational costs than
conventionally insulated models. Space-saving, high-density
V.I.P.®vacuum insulation panel construction allows up to 25%
more storage volume in the same or less foot print than
conventional freezers.
SANYO GREEN Advantage Summary
Energy Efficiency - SANYO freezers provide reduced power
consumption by capacity. This allows for lower operational
costs while maintaining high performance and reliability.
CFC Free Refrigerants - SANYO was the first ultra-low
freezer manufacturer to employ non-HCFC R508 low-stage
refrigerant, now recognized as today’s industry standard
and widely available. This universal refrigerant is available to
refrigeration service professionals on the open market.
SANYO High Density Storage - VIP®vacuum insulation
panel cabinet, SANYO can offer more useable storage
volume within the same sq.ft. of floor space than competitive
models. The cost per cu.ft. (or liter) of interior storage space
is significantly lower in a SANYO ultra-low freezer.
SANYO Ultra Low Refrigeration System - Allows for better
temperature uniformity, permitting the entire interior volume
to be used for long-term storage. This ensures greater
system longevity and reliability by minimizing compressor
operating temperatures, efficient location of evaporator
systems around the interior chamber, and balanced
refrigeration system.
Noise Reduction - If operating noise from refrigeration
compressors is excessive, the working environment is
severely compromised. SANYO has included advanced noise
abatement in all contemporary ultra-low freezers and noise
reduction levels are well below those of competitive freezers.
ISO 14001 Environmental Standard - This standard is
applicable to any organization that wishes to implement,
maintain and improve an environmental management system
SANYO GREEN Ultra Low Freezers
As part of our global commitment to help the environment, SANYO took
the initiative to revamp and redesign newer refrigeration systems that
resulted in lower operating costs and efficiency (Chart 1). SANYO ultra
low freezers provide energy savings while minimizing carbon footprint
throughout the laboratory without compromising performance (Chart 2).
SANYO GREEN Benefits:
• Minimize carbon footprint with less impact on the environment.
• Maximized lab space with smaller footprint for ultra high density storage.
• Reduced operational costs through high storage volume efciency.
• Minimized HVAC loads and air handling requirements in facilities.
• Emits less heat into the laboratory environment, minimizing air
conditioning costs.
Chart 2 - SANYO Freezers emit less heat into the
laboratory, minimizing air conditioning costs.*
Annual CO2
Emissions by Box
Capacity
Total Annual
Cost per Box
Capacity
Chart 1 - SANYO Freezers help the environment
by reducing carbon footprint.*
SANYO GREEN: -86°C Ultra Low Temperature Freezers

to assure itself of its conformance with its own stated
environmental policy.
Electrical Standards - All SANYO products including ultra-
low temperature freezers are tested and certified by SGS
NRTL (National Recognized Testing Laboratory) to assure
compliance with US and International standards for electrical
safety prescribed in 29 CFR 1910.7( c ).
RoHS Compliance - RoHS relates to the restriction of
hazardous substances (i.e. lead, cadmium, mercury,
chromium 6+, PBB and PBDE) and reductions in
environmental pollution. All SANYO ultra-low freezers and
components are now 100% compliant to RoHS standards.
How is SANYO conscious of the need to
protect our environment and conserve energy?
This commitment was demonstrated when SANYO took
the initiative to revamp and redesign newer refrigeration
systems that would employ new, environmentally-friendly
refrigerants throughout the laboratory without compromising
performance. “Think GREEN, Think GAIA” expresses
SANYO’s commitment to run its business and product
development in a way that recognizes the need to protect the
environment and conserve energy.
SANYO’s focus on “green products” is expressed through
more efficient motor operation with reduced energy
consumption in their ultra low freezers. As a corporate
pioneer in the life science and commercial equipment
industries, and a global source of solutions ranging from
energy management to solar power and alternative energies,
SANYO remains committed to providing the best possible
laboratory equipment for research and clinical needs.
Criteria for Energy Efficient Laboratory
Equipment
Whether your facility is seeking LEED certification
or incorporating more sustainable practices, SANYO
offers laboratory equipment to provide a more
energy efficient environment
• Lower energy use – More research buildings are
conforming and adopting to energy conscious directives such
as LEEDs with the recommendation of energy efficient lab
equipment
• Efcient space utilization – Biomedical – High density
storage is strongly advocated as lab design is focusing on
making researchers share ULT storage space.
• Selecting energy efcient and low-demand lab equipment is
thus one of the most effective and immediate ways to reduce
energy consumption.
• Energy, electrical and ventilation systems can benet from
recapture and reuse potentials.
Sustainable Operations
Think GREEN,Think GAIA
SANYO’s Application Specific Compressor
SANYO’s new ultra low temperature compressor employs a unique orientation of conventional components to reduce
discharge temperatures and compressor heat. The result is more efficient internal cooling and greater system reliability.
Heat reduction results range more than 40°C below leading brand compressors used by numerous competitors (Chart 5).
With lower compressor discharge temperatures and pressures, newer refrigerants can be more effective. Combined with
SANYO’s patented VIP®insulation, the migration of ambient heat from the laboratory to the interior is minimized. This
improves operational efficiency and lowers air conditioning costs (Chart 4). SANYO continues to improve the efficiency of
their compressors for meeting green requirements.
Discharge
Temperature by
Box Capacity
Heat Rejection
by Box Capacity
Chart 4 - SANYO Freezers reduce your air conditioning costs and
allow you to reduce the size of air handling requirements.*
Chart 5 - SANYO Compressors offer lower discharge
temperatures, greater reliability and efficient operation.*
Power Consumption by Box Capacity
Chart 3 - SANYO freezers provide reduced
operational costs for highly efficient sample

Green Data
SANYO Commercial Solutions
A Division of SANYO North America Corporation
1300 Michael Drive, Wood Dale, IL 60191 USA
Toll Free USA 800-858-8442 • Fax [phone]
www.sanyobiomedical.com
SANYO Canada, Inc.
1- 300 Applewood Crescent, Concord, Ontario L4K 5C7
905-760-4025 • Fax [phone]
LR.VIP-GRN7.08
SANYO GREEN Justification
Patented V.I.P.®Insulation Increases Interior Volume
By As Much As 25%
SANYO patented V.I.P.®Vacuum Insulation Panel technology
and high-tech, thin profile cabinet walls increase interior
volume by as much as 25% for high density storage in a
minimal cabinet footprint (Chart 6). Cellular wall construction
combines vacuum insulation with polyurethane foam for
structural stability and highest insulation values while reducing
wall thickness by as much as 50% over conventional methods.
Ultra Low Freezer Case Study
In June 2008, a green justification study was conducted for
a major research university that instituted key sustainable
directives in their procurement process. This study examined
several key areas that focus on energy efficiency and
sustainable design including: annual CO2emissions, life
cycle operational and facility HVAC costs. The study showed
operational and energy savings for SANYO ultra low freezers
when compared to other brands. The following graphs show
the energy savings, which is then translated into cost savings
and CO2savings per year.
Outer Barrier Film
Inner Cabinet Wall
Closed Cell Foam
Open Cell Substrate Under Vacuum
Outer Cabinet Wall
U.S. Patent No. 6,260,377 Annual CO2Emissions by Box Capacity*
Additional Energy Consumption for cooling
by the HVAC system by Box Capacity*
Total Cost for Operation and Cooling per Box Capacity*
Box Capacity
Chart 6 - SANYO freezers maximize available space
at a reduced footprint for high density storage.*
*Based on internal performance data. Tested in 25°C ambient environment. Freezer cycling at -80°C.
Cabinet volume, 25 cu. ft. Average cabinet temperature based on temperature mapping (15 thermocouples).
Green Ultra Low Refrigeration System
SANYO refrigeration technology provides for a
greater system reliability, energy efficiency and lower
operational costs with reduced carbon footprint.
