saro MW025SELF User manual

Seite 1von 11
Stand 02/2023 SvN
Operating instructions
Microwave model MW025SELF
Art-Nr.: 288-1030

Seite 2von 11
Stand 02/2023 SvN
CONTENTS
Scope of delivery ............................................................................................................................................ 3
Standards and guidelines .............................................................................................................................. 3
Technical overview ........................................................................................................................................ 3
General notes .........................................................................................................................................................4
Safety instructions ..................................................................................................................................................5
Device installation ..................................................................................................................................................6
Device connection ......................................................................................................................................... 6
Structure and parts ......................................................................................................................................... 6
First commissioning........................................................................................................................................ 6
Operation - Settings (Display).................................................................................................................................7
Cleaning..................................................................................................................................................................7
Maintenance ...........................................................................................................................................................7
Taking the unit out of operation / Storage / Transport ...........................................................................................8
Troubleshooting......................................................................................................................................................8
Circuit diagram.................................................................. ... ...................................... ........... ......8
Exploded view with legend ...............................................................................................................................9/10
Packaging disposal ..............................................................................................................................................11
Equipment disposal...............................................................................................................................................11

Seite 3von 11
Stand 02/2023 SvN
Dear Customer,
Congratulations on your new SARO microwave.
The item you have purchased is designed for commercial use in restaurants, hotels, cafés,
canteens and supermarkets. The microwave is particularly suitable for heating food.
Please read the operating instructions carefully before commissioning.
We hope you enjoy your new SARO product.
SCOPE OF DELIVERY
• 1 Combi microwave with turntable
• 1 Operating instructions
STANDARDS AND GUIDELINES
The unit complies with the current EU standards and directives:
Low Voltage Directive - NSP 2014/35/EU,
Electromagnetic Compatibility Directive - EMC 2014/30/EU,
RoHS Directives 2011/65/EU and 2015/863/EU.
If required, we will send you the corresponding declaration of conformity.
TECHNICAL OVERVIEW
Microwave
Model
MW025SELF
Order no.
288-1030
Material
Stainless steel
Door(s)
1
Connection preparation
Ready to plug in with safety plug
Gross content
25 litres
Connection
230 V / 50 Hz / 1 kW
Dimensions inside
W 335 x D 364 x 312 mm
External dimensions
W 520 x D 456 X H 312 mm
Gross weight
17.7 kg
GTIN [EAN code]
4017337047680

Seite 4von 11
Stand 02/2023 SvN
GENERAL NOTES
•Keep these operating instructions within easy reach near the unit.
•The manufacturer/dealer cannot be held responsible for damage caused by failure to observe these operating
instructions.
•If these operating instructions are not observed, the safety of the unit can no longer be guaranteed.
•If the unit is passed on to third parties, these operating instructions must also be handed over.
•This appliance must not be operated by children or persons with reduced physical, sensory or mental capabilities, as
they may not understand the hazards involved in the use of electrical appliances, resulting in accidents, fire, explosion
or property damage.
•After unpacking the unit, make sure that everything is in perfect condition. If you discover any damage, do not connect
the unit but notify your dealer.
•Check whether all components specified in the scope of delivery are present. If this is not the case, inform your dealer.
•Keep the packaging of the unit. The unit can only be transported safely in its original packaging, e.g. for repair
purposes, when moving house, etc. Note that all components of the packaging (plastic bags, cardboard, polystyrene
parts, etc.) can endanger children and must therefore not be stored near them.
•If it is not possible to store the packaging, separate the different packaging materials and deliver them to the nearest
collection point for proper disposal.
•Do not use the unit outdoors in the rain or in damp rooms.
•Do not operate the unit unattended.
•Observe the accident prevention regulations and general safety regulations applicable to the area of use.
•Place the unit in a dry, adequately ventilated place and on a straight, safe surface.
•Make sure there is at least 10 cm of space between the back of the microwave and the wall. Otherwise the air cannot
circulate properly.
•The ventilation slots must always be kept clear and must not be covered or obstructed.
•Before connecting the appliance to the mains and before using it, clean it carefully as indicated under "Cleaning".
•Before connecting the appliance, make sure that a shockproof socket (with earth) and a 230 volt connection are
available and that this corresponds to the information on the type plate. Other types of current than those specified on
the type plate may cause the appliance to overheat or become defective.
•Do not drill or pierce holes in the inside or outside of the unit. The circuit could be damaged.
•The manufacturer/dealer cannot be held responsible for damage caused by failure to observe the operating
instructions. Likewise, the safety of the unit is then no longer guaranteed.
•In the event of a malfunction, disconnect the appliance from the mains and inform your dealer. He will carry out the
repair with original spare parts.
•Metal tableware is not suitable for use in the microwave. Use only microwaveable dishes.
•Always use oven mitts when removing food.
•Arrange the dishes carefully. Place the large portions towards the outside.
•To achieve an even cooking result, stir or rotate the food, or rearrange the food during cooking. If recommended, leave
the food in the microwave for a while after cooking or defrosting.
•Cover the food during cooking. Covers prevent splashing and help to cook the food evenly.
•The usual hygiene standards for food preparation must also be observed when cooking with microwaves (storage,
handling, preparation). Store ready-made meals as recommended by the manufacturer and do not use the food after
the best-before date.

Seite 5von 11
Stand 02/2023 SvN
SAFETY INSTRUCTIONS
•Incorrect operation and improper handling can lead to malfunctions of the unit and injury to the user.
•Observe the accident prevention regulations and general safety regulations applicable to the area of use.
•Ensure that the unit stands securely on a dry, non-slip surface that is adequate for the weight of the unit and in a well-
ventilated place.
•Do not expose the appliance to direct sunlight, do not place it near other heat sources (heater, cooker, oven... open fire)
and/or do not place it on a hot surface.
•Do not store highly flammable or explosive substances near the appliance.
Do not carry out any work with highly flammable substances in the vicinity of the unit (no spray paint or similar). It could
otherwise lead to a fire or explosion.
•The unit requires sufficient space for air circulation.
•Do not place heavy objects, loads or liquids on the unit.
•Make sure that the air inlet and exhaust openings of the appliance are always free of dirt. Check them regularly and
remove any dust deposits using a hoover.
Do not cover or block the air openings.
•Before connecting to your mains, check that the type of current and mains voltage correspond to the specifications on
the type plate. Commissioning is only possible if they match in order to avoid accidents/defects.
•Do not use adapters, power strips and/or extension cords; otherwise the cables/cords can quickly overheat if other
appliances are also connected. The risk of fire increases.
•Do not move the appliance during use.
•Before moving the unit, switch it off (if there is a switch for this purpose) and disconnect the mains plug.
•Always pull the cable out of the socket by the plug housing only.
•Make sure that the unit does not tilt when moving. This could lead to injuries.
•After a possible power failure or a short unplugging, switch off the unit briefly, wait 5 minutes, plug in again and start the
unit.
•Do not let the mains cable hang over sharp edges, do not crush it and keep it away from hot objects and open flames.
•Make sure that it is not possible to accidentally pull on the cable or trip over it.
•Check the cable regularly. If it is damaged, e.g. by crushing, then it must be replaced by a qualified specialist.
•Do not touch the appliance, cable or plug with wet or damp hands.
•Caution! The unit is live as long as it is connected to the mains.
•Protect the unit from moisture.
•Do not clean the appliance with an open jet of water.
•Do not immerse the unit in water or other liquids or wet it with liquids.
If the unit does get wet, unplug it from the mains immediately and have it checked by a specialist before using it again.
There is a danger to life from electric shock.
•A damaged unit must not be used!
In this case, disconnect the unit from the mains and contact your specialist dealer!
•Never attempt to open or repair the unit yourself. There is a danger to life!
•Do not drill or pierce a hole in the unit, either from the outside or inside.
Do not install any other appliances on the microwave and do not put any foreign things there.
•Repairs must be carried out by appropriate specialists using the original spare parts.
•Always disconnect the appliance from the mains before cleaning, and also if it is not going to be used for a long time.
•For hygienic reasons, at least daily cleaning is recommended, but also in the course of a day if necessary.
•Remove all caps and lids from jars and other containers before heating the food in them. If this is not done, heat will
build up in the sealed containers and high pressure will build up. It may cause the containers to explode. Take special
care when heating baby food.
•Foods with a high fat or sugar content, require less cooking time and should be constantly checked during cooking.
Overheating can lead to a fire.

Seite 6von 11
Stand 02/2023 SvN
DEVICE INSTALLATION
Set up the unit in a dry and sufficiently ventilated room. Ensure that the unit stands securely on a dry and non-slip surface.
Place the back of the appliance at least 10 cm from the wall to ensure sufficient air circulation at all times. There should be at
least 30 cm above the unit and 10 cm to each side.
Ensure that the mains plug is always freely accessible and can be disconnected from the mains without difficulty.
DEVICE CONNECTION
Before connecting the unit, make sure that the voltage and frequency of the power supply match the specifications on the type
plate! Other voltages can cause the unit to overheat!!!
Only connect the appliance to an earthed socket outlet with a 230 volt connection.
After a power failure or if the unit has been disconnected from the mains, wait at least 5 minutes before reconnecting the unit
and putting it into operation!
STRUCTURE AND PARTS
FIRST COMMISSIONING
Before first use:
Unpack the appliance, check that it is complete and set it up (see Setting up the appliance). Clean the appliance (see Cleaning).
Connect the cleaned microwave (see appliance connection) to a 230 V socket.

Seite 7von 11
Stand 02/2023 SvN
OPERATION - SETTINGS
Operation
When the microwave is connected to the mains for the first time, an acoustic signal sounds and the system goes into standby
mode
Once the warm-up process is complete, the system reminds the user with a beep every two minutes until the user presses any
button or opens the door.
When the door is open and any button is pressed, a beep sounds to remind you to close the door.
In standby mode, press the START button once and the microwave will automatically start cooking for 1 minute.
No cooking time can be added during this process.
If you press the STOP button or open the door during cooking, the programme will stop.
Press the START field again to continue. If the STOP field is pressed twice, the programme is aborted.
Example:
You want to cook for 1 minute, at full microwave power:
- Place the food to be cooked in the microwave.
- Press the start button once and the cooking process starts automatically for 1 minute.
The initial temperature of food influences the cooking time required. Chilled food needs to be cooked longer than food that is
already at room temperature.
The temperature of the container in which the food is placed does not give a sufficient indication of the actual temperature.
Check the temperature.
The density and quantity of the food also influences the required cooking time. Note that potatoes, for example, require a longer
cooking time and peas a shorter one.
CLEANING
Make sure that the unit is no longer connected to the power supply.
Wipe the outside and inside with a damp, soft cloth.
A mild washing-up liquid can be used for this purpose.
Wipe again without cleaning additive, then rub dry well.
Do not use abrasive, bleaching, corrosive or scratching cleaning agents/cleaning aids, as this could damage/scratch the surfaces.
MAINTENANCE
The microwave requires very little maintenance. Check the ventilation slots for dirt. Brush with a soft brush and at the same time
vacuum up the dirt with a vacuum cleaner.

Seite 8von 11
Stand 02/2023 SvN
TAKING MICROWAVES OUT OF SERVICE / STORAGE / TRANSPORT
Switch off the unit, disconnect the mains plug.
Clean the appliance thoroughly inside and out and open the door to allow the appliance to dry sufficiently.
If it is dry and the unit is not to be used for a longer period of time, store it in a dry, dust-free and not hot place. It is best to cover
the unit or use the original packaging to protect the unit from damage.
Secure the unit against children and pets climbing into it, so that they cannot be trapped there.
When storing only the packaging material, please note that components of the packaging such as plastic bags, cardboard,
polystyrene parts, etc., can be dangerous for children if they play with them unsupervised (e.g. choking hazard). can endanger
children if they play with them unsupervised (e.g. choking hazard).
When transporting the unit, it is best to use the original packaging so that the unit is optimally protected against impact, sharp
edges, weather conditions, etc. Do not expose it to moisture or rain and avoid strong vibrations
TROUBLESHOOTING
Problem
Cause and solution
Unsatisfactory warming
Direct sunlight? Is the ventilation of the environment poor? Does the door close properly?
Is the door sealing strip deformed or damaged? Is there too much product inside?
Strong noises
The unit is not properly levelled.
The unit is touching the wall or other objects. Something is loose on the unit.
Correct the safe, straight stance and/or remove the touches.
The operation of the microwave may cause interference with your radio, TV or similar equipment.
If malfunctions occur, they can be reduced or eliminated by the following measures:
- Reorient the receiving antenna of the radio or TV.
- Re-align the microwave oven.
- Connect the microwave oven to another socket so that the microwave oven and receiver are at
are located in different branch circuits.
Contact your dealer if the problems cannot be solved by simple troubleshooting.
CURCUIT DIAGRAM

Seite 9von 11
Stand 02/2023 SvN

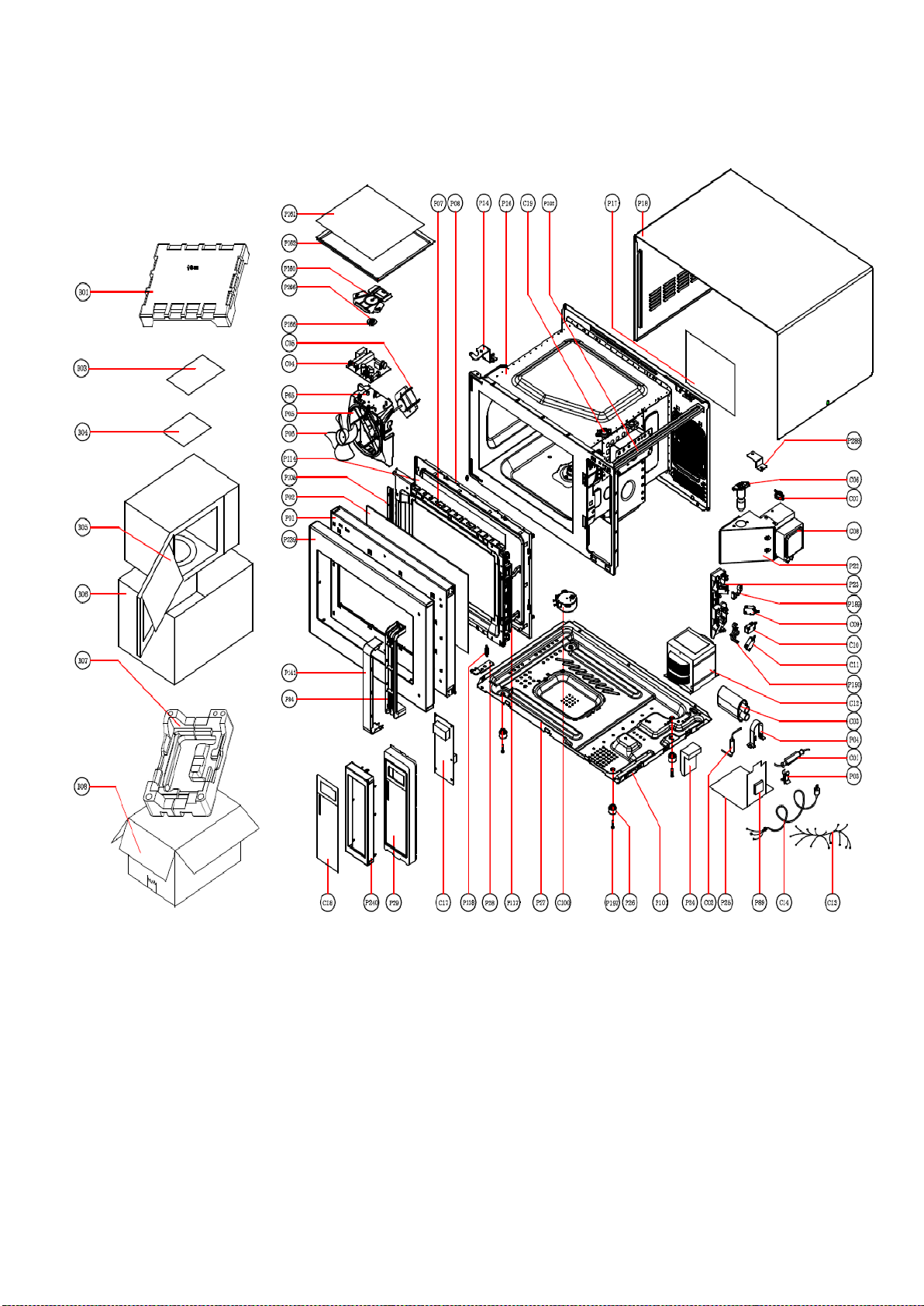

EXPLOSION DRAWING
EXPLOSIONSZEICHNUNG - Legende
P01 Mounting plate C01 Fuse
P02 Door window C02 Diode
P03 Fuse Socket C04 Wave filter
P04 Capacitor holder C05 Fan motor
P05 Fan shroud C06 Lamp
P06 Fan blade C07 Thermostat
P07 Door frame C08 Magnetron
P08 Metal cover frame C09 Microswitch

Seite 10 von 11
Stand 02/2023 SvN
P14 Upper hinge C10 Microswitch
P16 Inner box C11 Microswitch
P17 Label C12 Transformer
P18 Outer box C13 Wiring harness
P22 Air duct C14 Power Cord
P23 Microswitch mounting C17 P.C. board
P24 Shockproof rubber C18 Thin film switch
P25 Bracket C19 Thermostat
P26 Foot C100 Motor for rotary plate
P27 Base plate B01 Upper foam cushion
P28 Lower hinge B03 Plastic Bag
P29 Control Panel B04 Manual
P34 Handle B05 Protection film
P65 Noise filter bracket B06 Plastic bag
P89 Rubber stab B07 Lower cushion
P101 Shockproof pad B08 Caron
P102 Bracket
P105 Noise filter bracket
P114 Indoor frame
P117 Door hook
P118 Door hook spring
P141 Handle front cap
P160 Antenna
P161 Ceramic board
P162 Seal band
P166 Stirrer bracket
P189 Upper rotary arm
P190 Lower rotary arm
P197 Foot fixing
P239 Outer door frame
P240 Board covering
P266 Axis
P288 Magnetron bracket
PACKAGING DISPOSAL
Please separate the packaging materials accordingly and send them to the responsible collection points.
for recycling and environmental protection.

Seite 11 von 11
Stand 02/2023 SvN
EQUIPMENT DISPOSAL
Once the appliance has reached the end of its service life, please dispose of it properly at a collection
point for electrical appliances.
Electrical appliances do not belong in household waste.
Your local administration will inform you about the addresses and opening hours of collection points.
This is the only way to ensure that old appliances are disposed of and recycled properly.
Thank you very much!
Diese Tabelle können Sie für Ihren eigenen, eventuell späteren Bedarf ausfüllen und nutzen.
Unit designation
Mikrowelle
Model name:
MW025SELF
Order number
288-1030
Serial number
From the type plate
From the type plate
If applicable
If shown separately
Refrigerant
Production date
From the type plate
From the type plate
Bought on:
Telephone number of the seller
Bought where:
If available
(name of the dealer)
E-mail address of the seller
Possibly
More notes
Name of the seller
Made in P.R.C for:
Dealer : SARO Gastro-Products GmbH
Sandbahn 6, 46446 Emmerich am Rhein, Germany
Tel. [phone]
Fax [phone]
E-Mail [email protected]
Web www.saro.de
Note: Technical / design / model changes and errors excepted.
