Schifler SWC 120 WT User manual

Magnetic Drilling Machine
OPERATING MANUAL
SWC 120 WT
SWC 120 WT

Magnetic Drilling Machine
Operating Manual
Table of contents
5.4 Thread Cutting

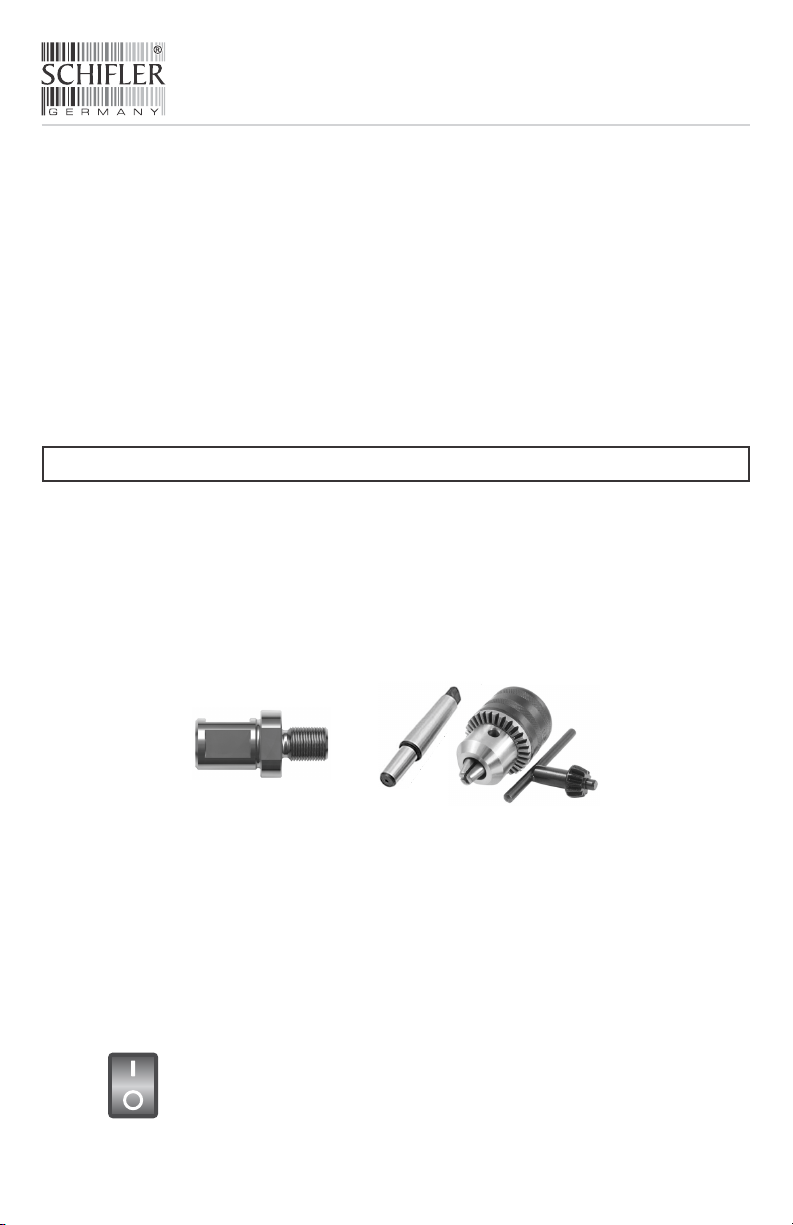

4. Accessories
9. Warranty
1. Description & Technical Data
5. Operating manual
7. Helpful Tips
2. Components Content
5.5 Counter Sinking
6. Exploaded View
5.3 Drilling with twist drills
8. Troubleshooting
3. Safety Procedures
5.1 How to mount tools or adapters in a Weldon arbor
5.2 Drilling with broach cutters
This manual is for information only & not a legal document, the company has all
rights to change, cancel, amend any designs, specifications etc. without any prior notice. SWC 120 WT

Weight 35 kg
Counter sinking ø 80 mm
RPM 80-125min-1/ 175-300 min-1
Input supply voltage 220-230 V
Motor power 2500 watt
Spindle MK-4
Broach cutter ( 35 mm length) ø 12 mm - ø 120 mm
Broach cutter (50 mm length) ø 12 mm - ø 120 mm
Broach cutter (80/100 mm length) ø 18 mm - ø 120 mm
Twist drill ø45 mm
Tapping M6-M38
Reaming ø50 mm
SWC 120 WT
Magnetic Drilling Machine
Operating Manual
DESCRIPTION & TECHNICAL DATA
605
391
540-860
8446 260115
257
SWC 120 WT
SWC 120 WT
1

Magnetic Drilling Machine
Operating Manual
COMPONENTS CONTENT
1. Packing case 1 No.
2. Cooling Bottle 1 No.
3. Safety Belt 1 No.
4. 2,5 mm Allen Wrench 1 No.
13. Taper Drift 1 No.
8. Magnetic Drill Machine 1 No.
10. 32 To 19.05 Adaptor 1 No.
11. Pilot Pin 6x50 1 No.
12. Pilot Pin 8x50 1 No.
6. 6,0 mm Allen Wrench 1 No.
9. MT 4x32 Arbor 1 No.
5. 5,0 mm Allen Wrench 1 No.
7. Instruction Manual 1 No.
SWC 120 WT
2

Please read
the manual
Use eye
protection
Use ear
protection
Use safety
helmet
Use safety
gloves
Wear appropriate
clothing
Disconnect before
opening
Use safety
chain
Warning for
electrical shock
Dangerous
environment
Don’t use in
wet places
Pacemaker
warning
Magnetic Drilling Machine
Operating Manual
UNDERSTANDING SAFETY SYMBOLS
When using magnetic drilling machines please follow the general
safety instructions for electric power tools.
CAUTION : Care taken to avoid danger or mistakes during operation of
the machine
WARNING : A statement or event that warns of something or that serves
as a cautionary example while using the machine
NOTE : A brief record of points or ideas written down as an aid to
memory while using the machine
DANGER : The possibility of suffering harm , injury or even death if the
situation is not avoided during operation of the machine
SWC 120 WT
3

Magnetic Drilling Machine
Operating Manual
SWC 120 WT
4
1. Always secure the machine with the supplied safety chain before starting to
operate, this is to protect the user in case of power failure or breaking loose
of the magnet while in use.
3. Disconnect from the power source when changing cutters or working on the
machine.
4. Always ensure cutter retaining screws are secure – they sometimes vibrate
loose in use.
8. Should the cutter get stuck in the workpiece, stop the motor immediately to
prevent personal injury. Disconnect from the power source and push and pull
the arbor by hand. DO NOT ATTEMPT TO FREE THE CUTTER BY SWITCHING
THE MOTOR ON AND OFF.
10. Regularly inspect the machine and check the nuts and screws are tight.
2. Always wear safety goggles, gloves and ear plugs.
5. Regularly clean the work area and machine., remove swarf and dirt, paying
particular attention to the underside of the magnet.
6. With a gloved hand, after switching off the power, remove any swarf which
might have gathered around the cutter and arbor before proceeding to the
next hole.
7. Remove tie, rings, watches and any loose adornments which might entangle
with the rotating parts of the machine.
9. If the machine is accidentally dropped, always thoroughly examine the
machine for signs of damage and check that it functions correctly before
trying to drill a hole.
11. Always ensure when using the machine in an inverted position use special
cutting paste or cutting spray which is specially designed for inverted position
drilling.
12. Use only spare parts advised by your dealer for magnetic drilling machines.
13. Use the magnetic drilling unit on a clean and flat surface only, to prevent the
machine breaking out because of poor clamping force.
14. If you discover any irregularity on machine cables immediately bring the
machine to a recognized dealer for a repair or maintenance service.
WARNING: THIS APPLIANCE MUST BE EARTHED.
WARNING : DO NOT USE YOUR MAGNETIC DRILL ON THE SAME STRUCTURE
WHEN ARC WELDING IS IN PROGRESS. D.C. CURRENT WILL EARTH BACK
THROUGH THE MAGNET AND CAUSE IRREPARABLE DAMAGE.

Magnetic Drilling Machine
Operating Manual
WARNING
It is mandatory to read and follow all the safety norms, regulations and
instructions given in this Guide before you operate the machine to avoid
unwanted and fatal accidents. Follow the mentioned workplace safety measures
in the guide strictly to ensure your safety against electric shocks or injuries.
SELF PROCTECTION
The machine operators must start their work only after the protective glasses,
earmuffs and insulated shoes tightened to the legs but must ensure a
comfortable movement too. In case the operator has long hair, he must wear a
cap suited to the work environment. You must strictly adhere to these rules and
prohibit the staff from wearing clothes that are loosely fitted.
Never operate the machine using your feet or remove the slug without wearing
the gloves. Never work towards the maintenance of the circuit board if you
haven't followed all the rules mentioned above.
MANDATORY RULES FOR THE WORK PLACE
1. Say no to a messy work environment completely. Keep yourself protected
against fatal accidents by keeping the area clean.
2. In case the floor is wet, stop the usage of the drill machine immediately. You
will expose yourself to the risk of shock if you don't.
3. Only when the surroundings around are brightly lit, use the machine instead
of a dark environment.
4. You must never place flammable material near the machine or avoid using the
drill machine in the presence of anything flammable. The Drill machine tends
to produce sparks in the process of working, which may cause fire.
5. Children should never be allowed near the drill machine, especially when it is
being operated.
6. Nobody should be in the area where the Drill machine is being used by the
Operator.
1. Before you start using the Drill machine, make sure you inspect the condition
MANDATORY RULES TO ENSURE SAFETY
SAFETY INSTRUCTIONS
5SWC 120 WT

Magnetic Drilling Machine
Operating Manual
of the power cord and the plug. Replace them immediately if you see any
damage.
8. Do not overload the motor for than a total duration of 30 minutes. If done
otherwise, it will lead to extreme heat getting generated that will result in
a fire or explosion. Switch off the motor when it is not in use.
5. Don't press the drill machine too hard as that may lead to an overload,
which tends to shorten the life of the magnetic drill. When in use, be
extremely attentive to the condition of the magnetic absorption of the
drill. Stop using the drill immediately if you notice any instability in the
magnetic absorption.
3. Study this manual well to understand the Do's and Don'ts of the Drilling
tools. They should be used strictly according to the size specified. The
material of the drilling workpiece comes with a magnetized absorption
and works better on a smooth surface. Double check that its thickness
ranges between 10mm-75mm, without the 0.5mm thickness of Iron
scrap and the presence of paint, granular impurities and any other
foreign particles should be avoided.
7. Do not continuously operate the magnetic base with a full load as that
will cast a strong effect negatively on the life of the magnetic base. It may
also get heated up to an extent that it may catch fire. Never touch the
magnetic base, especially when it is extremely hot as that will cause a
serious burn. Turn off the switch and unplug immediately once you stop
using the magnetic base.
4. If the thickness of the drilling machine is less than 10mm, you must
ensure that it is well-supported by iron plates right at the bottom that
come with a thickness higher than 10mm. The supporting iron plate must
have a base area greater than the drilling machine's area of the magnetic
base if you need to improvise the reliability of the capability of the
magnetic base's absorption. In case you opt for a supporting iron plate
which is thinner than the requirement, you will notice the drilling
machine becoming lose in the process of absorption that may lead to
unwanted and fatal accidents.
2. The power supply should always be in sync with what the equipment
requires. Hence, ensure the same while making sure that safety
measures for grounding and leakage are made available.
6. Whenever the drill starts to operate or shuts down, ensure that the
operating sequence of the motor and magnetic switch has been
complied.
SWC 120 WT
6

Magnetic Drilling Machine
Operating Manual
17. The generation of the magnetic field affects devices such as watches, mobile
phones and pacemaker installed to regulate the heartbeat. Make sure that
the operator takes of the watch and keeps the mobile phone before
operating the drilling machine and doesn't have a pacemaker installed in
him.
12. Do not remove the drill if the spindle and the drill are in continuous motion.
Unplug the drill from the main power supply to change its gear and never
touch it with your bare hands.
13. Even when the equipment stops working, never use your bare hands to
remove the iron fillings after the drilling process as that can cause injuries.
10. Whenever the magnetic drilling machine is in use and is suspended either in a
vertical or a horizontal position, you must get it fixedwith a device that gets
attached to the equipment so that it doesn't come down falling caused by the
sudden loss of power of the magnetic base. When you choose to drill in an
upside-down position, always opt for a cooling method that is reasonable.
Say a frank NO to the option of Liquid Cooling method as liquid will easily
infiltrate into the equipment and result in leakage of electricity. Instead of
Liquid Cooling method, choose Mist Spray Cooling.
11. If a Supplier has provided or approved of the Parts and Tools, only then must
you use them as once installed on the equipment, they come with a
guaranteed usage safety.
15. Use the handle function of the drilling machine to move it from one place to
another instead of pulling the power cable.
16. Switch off the main power supply and unplug the drilling machine after the
usage. If this is not done and the spindle and the tool continue to rotate, then
do not let the operator remove the drill and replace the gear with his bare
hands. Make sure you practice this to avoid injuries.
9. Add a certain amount of coolant to the equipment whenever you replace the
drill. In case you notice a blockage, switch off the motor immediately.
However, you must leave the magnetic base power on. The logic behind this
process is that in case you shut down the power supply of the magnetic base
directly, it may result in the operator suffering from injuries. It will also harm
the motor because of the sudden loss of magnetic force of the magnetic
base.
14. While you use the magnetic drill on a particular workpiece, do not do the
process of welding on the same.
SWC 120 WT
7

Magnetic Drilling Machine
Operating Manual
7. Switch the machine off and unplug it from the main power socket before you
start the process or maintenance and cleaning.
2. Disposal of grease: Follow the instructions given by the lubricant's
manufacturer.
CLEANING AND MAINTENANCE
4. It is always the After-Sales Service Department or the designated dealer who
cater to the maintenance of the drill machine.
2. Inspect the carbon brush and change it immediately if you notice that it is
worn out.
ENVIRONMENTAL PROTECTION AND WASTE DISPOSAL
6. Whenever you indulge in the process of cleaning the Drill with compressed
air, you must wear Goggles and protective gloves to protect yourself and the
other people around you at the workstation.
1. Keep a close check on the bolt of the magnetic drill. It should not be lose and
the gap in the spindle should not be too large. The power cable of the drill
should be in a good condition. You must make sure that the machine is
maintained well.
3. The Lubricating Grease in the Gear Box should be changed by a professional
once you have used the drill for three months. Inspect well once the
professional finishes to double check that all the parts have been fully
lubricated.
5. The operator must clean the magnetic drill after finishing the work, scrub the
side where the drill slides while working and apply lubricating oil on the drill
for the machine to last longer.
When it comes to the process of Maintenance, Inspection and Repair pertaining
to their electrical aspects, only a qualified electrician must be contacted to cater
to the task. The qualifications of these electricians change according to their
respective countries. They must follow the effective rules put in place when it
comes to processing, inspection and the maintenance of a Circuit Board in order
to avoid accidents.
1. Disposal of the old electrical equipment: Make sure you process the product
in accordance with EC Directive 2002/96/EC-WEEE, also known as Waste
Electrical and Electronic Equipment. In case of doubts or queries, contact the
Department of Waste Disposal.
SWC 120 WT
8

Magnetic Drilling Machine
Operating Manual
OPTIONAL TOOLS & ACCESSORIES
Drill Chuck
Weldon Drill Chuck Adaptor Weldon Tapping Adaptor
Weldon Counter Sink
Pilot Pin Taper Drift
Core Drill
MT 3 Arbour
SWC 120 WT
9

5.1 How to mount tools or adapters in a Weldon arbor?
1) Make sure the machine is disconnected from the power supply.
2) Put the center pilot in the cutter hole.
4) Tighten the retaining screws.
5) Check if the center pilot can move inside the cutter (up and down).
5.2 Drilling with Core Drills
3) Put the cutter or adapter in the arbor, making sure the flat sides are
exactly in front of the arbor retaining screws.
2 Switch on the magnet.
1 Place the machine at the desired position
3 Ensure that the magnetic drilling unit is secure on the working piece.
4 Fill the arbor with lubrication/cutting oil in the special meant holes. Always
use cutting oil from your dealer.
CAUTION : For 100% magnet clamping force you need at least 10 mm of steel.
Coatings, paintings and dirt between magnet and workpiece will affect clamping
force.
5 Start the motor by pressing the green motor start button (I).
Magnetic Drilling Machine
Operating Manual
OPERATING MANUAL
3
7
SWC 120 WT
10

Magnetic Drilling Machine
Operating Manual
These adapters will allow you to attach a drill chuck on to the hole cutter arbor.
Also twist drills with a direct Weldon connection are available
5.3 Drilling with twist drills
There are several accessories available to be able to use twist drills with your
magnetic drill.
- Adapter 19 mm Weldon – B16 taper connection
6 Start bringing the cutter to the workpiece but handle with care and do not
apply too much pressure. The cutter has to find its way in to the material by
itself. After 2 mm, the groove of the cut will help the cutter maintain its place
and you can increase the power. Still it is not necessary to use a lot of
pressure. Too much pressure will cause damage and breakage.
- Adapter 19 mm Weldon – B18 taper connection
WARNING: THE SLUG WILL BE EJECTED AND IS VERY HOT
8 If the slug gets stuck in the cutter, move the machine to a flat surface. Switch
on the magnet and gently bring the cutter down in contact with the surface.
This usually allows a slug to straighten and to eject.
- Adapter 19 mm Weldon - ½”x20 UNF
7 After the cut is finished the slug will automatically be ejected from the cutter,
switch the machine off by pushing the red button(0).
(ranging from Ø 6 – Ø 12 mm)
1 Place the machine at the desired position
2 Switch on the magnet
Drill ChuckWeldon Drill Chuck Adaptor
SWC 120 WT
11

Magnetic Drilling Machine
Operating Manual
4 Apply cutting oil to the twist drill and workpiece. Always use cutting oil from
your dealer.
3 Ensure that the magnetic drilling unit is secure on the working piece.
5 Start the motor by pressing the green motor start button.
7 After the cutting is finished switch the machine off by pushing the red button.
6 Start bringing the twist drill to the workpiece but handle with care and do not
apply too much pressure. The drill has to find its way in to the material by
itself. It is not necessary to use a lot of pressure. Too much pressure will cause
damage and breakage.
5.4 SPEED SELECTION
It is recomednded to run the machine for diameter upto 35mm on speed 1-A (300
-1 -1
min ), for diameter above 35mm to 50 mm on speed 1-B (175 min ), for diameter
-1
above 50mm to 80mm on speed 2-A (125 min ) and for diameter above 80mm ot
120mm on speed, 2-B as shown.
Switch off the machine before changing the gear knob.
Warning:
2
1
B
A
-1
300 min
2
1
B
A
-1
125 min
2
1
B
A
-1
175 min
2
1
B
A
-1
80 min
Gear HSS Carbide
max. Ф
1-A
-1
(300 min )
25mm
1"
35mm
1-3/8"
1-B
-1
(175 min )
45mm
1-3/4"
50mm
2"
2-A
-1
(125 min )
60mm
2-3/8"
80mm
3-1/8"
2-B
-1
(80 min )
100mm
4"
SWC 120 WT
12

Magnetic Drilling Machine
Operating Manual
TAPPING IS ONLY RECOMMENDED FOR THROUGH HOLES.
4. Adjust speed with the help of speed controller
It might be possible that while shifting the gears it could have stuck with the
already selected speed gear, adjust spindle of the machine by moving it clockwise
and anti clockwise direction simultaneously moving the speed knob.
5.4 THREAD CUTTING
ONLY USE SPIRAL TAP FOR TAPPING OPERATIONS
These adapters will allow you to attach tap on the hole cutter arbor. Attach
desired tap to the adaptor.
Various tapping adaptors are used for thread cutting with your magnetic drilling
machine SWC 120 WT
SHOW PICTURE
1. Drill a hole using suitable drill or annular cutter.
2. Place the machine at the position to be tapped , place tapping cutter adaptor
in the hole cutter arbor.
3. Bring speed lever to the lowest position.
SWC 120 WT
13

Magnetic Drilling Machine
Operating Manual
7. Once the tapping is done, stop the machine and shift tapping button to the
left (see figure) and start the machine. Spindle of the machine will
automatically reverse to its starting position. Use the handles to take adaptor
with tap completely out from the work piece.
How can you use the machine for Reaming/Counter-sinking?
2. In this process, always observe the limitations stated in the technical data for
the tools to be made use of.
6. Now bring the machine lever down toward the drilled hole. Once the
machine makes one rotation with the tap it will automatically cut the thread
in the hole as per required length.
5.5 REAMING/COUNTER-SINKING
5. Shift tapping button to the right
1. You can make use of the machine for the process of Reaming or Counter-
sinking too, considering the machine's wide range of speed availability to
operate.
0
L R
0
L R
SWC 120 WT
14

Magnetic Drilling Machine
Exploded View
SWC 120 WT Motor complete / Antriebseinheit
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
105
125
126
127
128 122
123
124
SWC 120 WT
15

Magnetic Drilling Machine
Exploded View
SWC 120 WT Magnetic frame / Magnetbohrständer
59 0709311709342 Motor Cover 100×100×54 1
66 0709311709410 Carbon Brush Holder 15.8×6.2×20 2
67 0709311709427 Carbon Brush 15.8×6.2×20 220V 1
68 0709311709434 Lock Washers 4 2
60 0709311709359 Motor Air Inlet Cover 101×101×61 1
61 0709311709366 Screws ST2.9×10 2
69 0709311709441 Scroll Spring 5×0.35 2
70 0709311709458 Screws ST3.5×9.5 3
63 0709311709380 Pcb – Olp 70×70 220V 1
58 0709311709335 Self Tapping Screw ST4.2×60 4
62 0709311709373 Washer 3 2
65 0709311709403 Spring Washer 4 4
Part no. Article Article Description Pcs
64 0709311709397 Self Tapping Screw M4×12 6
93 0709311709687 Needle Roller Bearings NK 12/12 1
98 0709311709731 Flat Washer ?17×?26×1 1
100 0709311709755 Hex Screw M5×12×2.5 1
74 0709311709502 Self Tapping Screw ST4.2×90 2
104 0709311709793 Ball Plunger 4 2
110 0709311709854 Clutch Helical Gear z37m1.25h8.5 1
112 0709311709878 1 # Transmission Gear Shaft z25m1h8/z18m1h9 1
115 0709311709908 Flat Washer ?16×?22×1 2
107 0709311709823 Hex Nuts M8 1
77 0709311709533 Deep Groove Ball Bearing 6000 ZZ 1
92 0709311709670 Clutch Gasket ?12×?18×1 1
79 0709311707256 Circlip ?32 1
97 0709311709724 Flat Key A6×6×37 1
90 0709311709656 Split Ring ?9 1
81 0709311709564 Seal ?15×?21×3 1
102 0709311709779 Shift Lever-Right ?6×23 M6 1
75 0709311709519 Air Guide ?109×59 1
94 0709311709694 Needle Roller Bearings NK 14/16 1
103 0709311709786 O Ring 25×2.65 2
108 0709311709830 Fixture Lever M8×90 1
89 0709311709649 Ball Bearing 6000-2RS 1
109 0709311709847 2 # Transmission Gear Shaft z15m1.25h10/z25m1.25h9 1
113 0709311709885 Flat Key A5×5×13 1
88 0709311709632 ‘O’ Ring ?120×?2.65 1
72 0709311709472 Motor Housing 119×119×184 1
82 0709311709571 Hex Screw M5×20 4
86 0709311709618 Rotor Seal Ring ?12×?15×7.5 1
78 0709311709540 Armature 2500W 220V 1
83 0709311709588 Spring Washer 5 4
76 0709311709526 Bearing Sleeve 6000 1
87 0709311709625 Shaft Retaining Ring 12 1
91 0709311709663 Clutch Limit Gasket ?12×?18×1 1
71 0709311709465 Motor Wire Cover 34×40×13 1
73 0709311709496 Field Coil 2500W 220V 1
80 0709311709557 Ball Bearing 6201 ZZ 1
95 0709311709700 #2 Double Gear z32m1.25h8/z43m1.25h9 1
84 0709311709595 Gearbox Cover 135×142.5×54 1
85 0709311709601 Self Tapping Screw ST5.5×38 4
96 0709311709717 #3 Transmission Gear Shaft z13m1.5h25 1
99 0709311709748 Needle Bearing 4903 1
101 0709311709762 Gear Box 135×143.5×240 1
105 0709311709809 Shift Knob-Right ?30.8×26.5 1
106 0709311709816 Positioning Pin ?6.35×12 2
111 0709311709861 Flat Key A5×5×34 1
114 0709311709892 1 # Double Gear z37m1h7/z44m1h8 1
116 0709311709915 Needle Bearing 4901 2
119 0709311709946 Spindle Gear z51m1.5h24 1
121 0709311709960 Seal ?30×?55×10 1
122 0709311709977 Cylindrical Pin ?3×10 1
123 0709311709984 Shift Knob-Left ?36×36.8 1
125 0709311710003 Ball Bearing 6008 ZZ 1
126 0709311710010 Circlip ?68 1
128 0709311710034 Socket Spindle ?44×196.6 MT4 1
118 0709311709939 Circlip ?30 2
120 0709311709953 Ball Bearing 6206 ZZ 1
124 0709311709991 Shift Lever ?6×31.5 M6 1
127 0709311710027 Flat Key B8×7×23.5 1
117 0709311709922 Cylindrical Pin ?5×12 1
SWC 120 WT
16

Magnetic Drilling Machine
Exploded View
SWC 120 WT Magnetic frame / Magnetbohrständer
SWC 120 WT Circuit Diagram / Schaltplan
SWC 120 WT
17

Magnetic Drilling Machine
Exploded View
SWC 120 WT Magnetic frame / Magnetbohrständer
Part no. Article Article Description Pcs
35 0709311709106 Round Steel Ball ?8 3
37 0709311709120 Feed Handle ?30×192 M12 3
9 0709311708840 Hex Screw M5×25 1
40 0709311709151 Control Panel 90×130×2 1
42 0709311709175 Rocker Switch Magnet Switch 1
17 0709311708925 Panel 90×130×2 1
33 0709311709083 Torsion-Resistant Joint MA16-P-10 1
26 0709311709014 Retaining Ring ?25 1
5 0709311708802 Pcb 60×48 220V 2500W 1
10 0709311708857 Spring Washer 5 4
14 0709311708895 Hex Screw M6×25 4
6 0709311708819 Magnet 116×260×54 220V 1
27 0709311709021 Flat Washer ?25×?33×1 1
2 0709311708772 Hex Screw M5×16 5
13 0709311708888 Flat Washers M6 4
8 0709311708833 Hex Screw M6×35 4
12 0709311708871 Rack 15×15×270 m1.5 1
15 0709311708901 Hex Screw M5×15 13
18 0709311708932 Nylon Cable Fixing Head MB16L-10 1
20 0709311708956 R - Clip 6.4mm 1
25 0709311709007 Cylindrical Pin ?3.5×14 1
29 0709311709045 Cylindrical Compression Spring ?3.8×?0.6×13 1
22 0709311708970 Cover 112×68×8 1
24 0709311708994 Lock Handle ?30×22 1
30 0709311709052 Locking Clutch Shaft ?14×53.5 1
21 0709311708963 Slide Guide 15×21×406 2
7 0709311708826 Spring Washer 6 8
16 0709311708918 Hex Screw M6×16 2
11 0709311708864 Slide 26.5×280 1
31 0709311709069 Connector ZT-M16-AD13 1
4 0709311708796 Pcb Box 66×52×30.5 1
28 0709311709038 Round Steel Ball ?4 1
32 0709311709076 Hose ?13 0.18
34 0709311709090 Feed Bushing ?35×?25×15 2
3 0709311708789 Hex Nuts M5 5
19 0709311708949 Screws M4×8 2
1 0709311708765 Main Body 100-450×283×116 1
23 0709311708987 Hex Screw M5×10 2
36 0709311709113 Feed Gear Shaft ?40×136.3 Z14m1.5 1
38 0709311709137 L&R Switch ZH-A 1
39 0709311709144 Screws M3×12 2
41 0709311709168 Motor Switch 220V 1
44 0709311709199 Circuit Board Cover 66×52×24 1
43 0709311709182 Hex Screw M4×10 8
49 0709311709243 Flat Washers 8 2
50 0709311709250 Coolant Bottle Cap ?58×12 1
51 0709311709267 Coolant Bottle 600ml 1
46 0709311709212 Lock Washers 4 1
53 0709311709281 Aluminium Valve Fitting ?15.5×37-90 1
54 0709311709298 Hoop ?6 1
48 0709311709236 Spring Washer 8 2
55 0709311709304 Pu Pipe ?6×?4 0.6
56 0709311709311 Nozzle 4 1
57 0709311709328 Coolant Bottle Assembly 600ml 1
52 0709311709274 Nut M8×1 1
45 0709311709205 Spring Washer 4 1
47 0709311709229 Hex Screw M8×30 2
SWC 120 WT
18
