Schifler SWC 35 AT User manual

Magnetic Drilling Machine
OPERATING MANUAL
SWC 35 AT
SWC 35 AT
FULLY
AUTOMATIC
AT

Magnetic Drilling Machine
Operating Manual
1. Description & Technical Data
Table of contents
2. Components Content
5.1 How to mount tools or adapters in a Weldon arbor
5.2 Drilling with broach cutters
7. Helpful Tips
4. Accessories
8. Troubleshooting
9. Warranty
5.3 Drilling with twist drills
5. Operating manual
6. Exploaded View
3. Safety Procedures
SWC 35 AT
This manual is for information only & not a legal document, the company has all
rights to change, cancel, amend any designs, specifications etc. without any prior notice.

SWC 35 AT
Magnetic Drilling Machine
Operating Manual
DESCRIPTION & TECHNICAL DATA
1SWC 35 AT
1100 watt
19 mm (3/4”) Weldon
Ø12 mm - Ø35 mm
Ø12 mm - Ø35 mm
Upto Ø13 mm
450 min-1
240 mm
15 kg (26,8 lbs)
10000 N
220 V
Yes
Motor power
Spindle
Broach cutter (35 mm length)
Broach cutter(50 mm length)
Twist drill
RPM
Flexible Stroke upto
Weight
Magnet power
Input supply voltage
Electro Torque Control
SWC 35 AT

Magnetic Drilling Machine
Operating Manual
COMPONENTS CONTENT
2. Cooling Bottle 1 No.
4. 2,5 mm Allen Wrench 1 No.
5. 4,0 mm Allen Wrench 1 No.
6. 6,0 mm Allen Wrench 1 No.
8. Magnetic Drill Machine 1 No.
9. Pilot Pin 6x50 1 No.
11. Drill Chuck Adaptor 1 No.
12. Drill Chuck 1 No.
3. Safety Belt 1 No.
1. Packing case 1 No.
7. Instruction Manual 1 No.
10. Pilot Pin 8x50 1 No.
2SWC 35 AT

Please read
the manual
Use eye
protection
Use ear
protection
Use safety
helmet
Use safety
gloves
Wear appropriate
clothing
Disconnect before
opening
Use safety
chain
Warning for
electrical shock
Dangerous
environment
Don’t use in
wet places
Pacemaker
warning
Magnetic Drilling Machine
Operating Manual
UNDERSTANDING SAFETY SYMBOLS
When using magnetic drilling machines please follow the general
safety instructions for electric power tools.
DANGER : The possibility of suffering harm , injury or even death if the
situation is not avoided during operation of the machine
WARNING : A statement or event that warns of something or that serves
as a cautionary example while using the machine
CAUTION : Care taken to avoid danger or mistakes during operation of
the machine
NOTE : A brief record of points or ideas written down as an aid to
memory while using the machine
3SWC 35 AT

Magnetic Drilling Machine
Operating Manual
4SWC 35 AT
8. Should the cutter get stuck in the workpiece, stop the motor immediately to
prevent personal injury. Disconnect from the power source and push and pull
the arbor by hand. DO NOT ATTEMPT TO FREE THE CUTTER BY SWITCHING
THE MOTOR ON AND OFF.
10. Regularly inspect the machine and check the nuts and screws are tight.
13. Use the magnetic drilling unit on a clean and flat surface only, to prevent the
machine breaking out because of poor clamping force.
14. If you discover any irregularity on machine cables immediately bring the
machine to a recognized dealer for a repair or maintenance service.
1. Always secure the machine with the supplied safety chain before starting to
operate, this is to protect the user in case of power failure or breaking loose
of the magnet while in use.
2. Always wear safety goggles, gloves and ear plugs.
3. Disconnect from the power source when changing cutters or working on the
machine.
4. Always ensure cutter retaining screws are secure – they sometimes vibrate
loose in use.
6. With a gloved hand, after switching off the power, remove any swarf which
might have gathered around the cutter and arbor before proceeding to the
next hole.
7. Remove tie, rings, watches and any loose adornments which might entangle
with the rotating parts of the machine.
5. Regularly clean the work area and machine., remove swarf and dirt, paying
particular attention to the underside of the magnet.
9. If the machine is accidentally dropped, always thoroughly examine the
machine for signs of damage and check that it functions correctly before
trying to drill a hole.
12. Use only spare parts advised by your dealer for magnetic drilling machines.
11. Always ensure when using the machine in an inverted position use special
cutting paste or cutting spray which is specially designed for inverted position
drilling.
WARNING: THIS APPLIANCE MUST BE EARTHED.
WARNING : DO NOT USE YOUR MAGNETIC DRILL ON THE SAME STRUCTURE
WHEN ARC WELDING IS IN PROGRESS. D.C. CURRENT WILL EARTH BACK
THROUGH THE MAGNET AND CAUSE IRREPARABLE DAMAGE.

Magnetic Drilling Machine
Operating Manual
SAFETY INSTRUCTIONS
5SWC 35 AT
MANDATORY RULES FOR THE WORK PLACE
WARNING
The machine operators must start their work only after wearing protective gears
like eyeglasses, ear muffs, and insulated shoes tightened to the legs ensuring
comfortable movement.
SELF PROCTECTION
1. Say no to a messy work environment completely. Keep yourself protected
against fatal accidents by keeping the area clean.
2. In case the floor is wet, stop the usage of the drill machine immediately. You
will expose yourself to the risk of shock if you don't.
3. Only when the surroundings around are brightly lit, use the machine instead
of a dark environment.
4. You should not never place flammable material near the machine or avoid
using the drill machine in the presence of anything flammable. The drill
machine tends to produce sparks in the process of working, which may cause
fire.
Never operate the machine using your feet or remove the slug without wearing
the gloves. Never work towards the maintenance of the circuit board if you
haven't followed all the rules mentioned above.
It is mandatory to read and follow all the safety norms, regulations and
instructions given in this Guide before you operate the machine to avoid
unwanted and fatal accidents. Follow the mentioned workplace safety measures
in the guide strictly to ensure your safety against electric shocks or injuries.
6. Nobody should be in the area where the drill machine is being used by the
Operator.
5. Children should never be allowed near the drill machine, especially when it is
being operated.

Magnetic Drilling Machine
Operating Manual
6SWC 35 AT
MANDATORY RULES TO ENSURE SAFETY
5. Don't press the drill machine too hard as that may lead to an overload,
which tends to shorten the life of the magnetic drill. When in use, be
extremely attentive to the condition of the magnetic absorption of the
drill. Stop using the drill immediately if you notice any instability in the
magnetic absorption.
3. Study this manual well to understand the do's and don'ts of the drilling
tools. They should be used strictly according to the size specified. The
material of the drilling workpiece comes with a magnetized absorption
and works better on a smooth surface. Double check that its thickness
ranges between 10mm-75mm, without the 0.5mm thickness of Iron
scrap and the presence of paint, granular impurities and any other
foreign particles should be avoided.
6. Whenever the drill starts to operate or shuts down, ensure that the
operating sequence of the motor and magnetic switch has been
complied.
8. Do not use drilling machine for not more than a total duration of 30
1. Before starting the drill machine, make sure you inspect the condition of
the power cord and the plug. Replace them immediately if you see any
damage.
2. The power supply should always be in sync with what the equipment
requires. Hence, ensure the same while making sure that safety
measures for grounding and leakage are made available.
4. If the thickness of the drilling machine is less than 10mm, you must
ensure that it is well-supported by iron plates right at the bottom that
come with a thickness higher than 10mm. The supporting iron plate must
have a base area greater than the drilling machine's area of the magnetic
base if you need to improvise the reliability of the capability of the
magnetic base's absorption. In case you opt for a supporting iron plate
which is thinner than the requirement, you will notice the drilling
machine magnet becoming lose in the process of absorption that may
lead to unwanted and fatal accidents.
7. Do not continuously operate the magnetic base with a full load as that
will cast a strong effect negatively on the life of the magnetic base. It may
also get heated up to an extent that it may catch fire. Never touch the
magnetic base, especially when it is extremely hot as that will cause a
serious burn. Turn off the switch and unplug immediately once you stop
using the magnetic base.

Magnetic Drilling Machine
Operating Manual
7SWC 35 AT
11. Only use genuine spare parts and tools as it comes with guaranteed usage
safety.
14. While using the magnetic drill on a particular workpiece, do not do the
process of welding on the same work piece.
15. Use the handle function of the drilling machine to move it from one place to
another instead of pulling the power cable.
13. Even when the equipment stops working, never use your bare hands to
remove the slug after the drilling process as it is very hot.
17. The generation of the magnetic field affects devices such as watches, mobile
phones and pacemaker installed to regulate the heartbeat. Make sure that
the operator takes off the watch and keeps off the mobile phone before
operating the drilling machine and doesn't have a pacemaker installed in him.
16. Switch off the main power supply and unplug the drilling machine after the
usage. If this is not done and the spindle and the tool continue to rotate, then
do not let the operator remove the drill and replace the gear with his bare
hands. Make sure you practice this to avoid injuries.
9. Add a certain amount of coolant to the equipment whenever you replace the
drill. In case you notice a blockage, switch off the motor immediately.
However, you must leave the magnetic base power on. The logic behind this
process is that in case you shut down the power supply of the magnetic base
directly, it may result in the operator suffering from injuries. It will also harm
the motor because of the sudden loss of magnetic force of the magnetic
base.
minutes at a stretch. If done otherwise, it will lead to extreme heat getting
generated that will result in a fire or explosion. Switch off the motor when it is
not in use.
12. Do not remove the drill if the spindle and the drill are in continuous motion.
Unplug the drill from the main power supply to change its gear and never
touch it with your bare hands.
10. Whenever the magnetic drilling machine is in use and is suspended either in a
vertical or a horizontal position, you must get it fixedwith a device that gets
attached to the equipment so that it doesn't come down falling caused by the
sudden loss of power of the magnetic base. When you choose to drill in an
upside-down position, always opt for cutting paste or cutting spray a cooling
method that is reasonable. Say a frank NO to the option of liquid cooling
method as liquid will easily infiltrate into the equipment and result in leakage
of electricity. Instead of liquid cooling method, choose cutting paste or spray
coolant.

Magnetic Drilling Machine
Operating Manual
8SWC 35 AT
ENVIRONMENTAL PROTECTION AND WASTE DISPOSAL
CLEANING AND MAINTENANCE
1. Keep a close check on the bolt of the magnetic drill. It should not be loose and
the gap in the spindle should not be too large. The power cable of the drill
should be in a good condition. You must make sure that the machine is
maintained well.
4. It is always the after-sales service department or the designated dealer who
cater to the maintenance of the drill machine.
5. The operator must clean the magnetic drill after finishing the work, scrub the
side where the drill slides while working and apply lubricating oil on the drill
for the machine to last longer.
7. Switch the machine off and unplug it from the main power socket before you
start the process of maintenance and cleaning.
When it comes to the process of maintenance, inspection and repair pertaining
to their electrical aspects, only a qualified electrician must be contacted to cater
to the task. The qualifications of these electricians change according to their
respective countries. They must follow the effective rules put in place when it
comes to processing, inspection and the maintenance of a Circuit Board in order
to avoid accidents.
3. The lubricating grease in the Gear Box should be changed by a professional
once you have used the drill for three months. Inspect well once the
professional finishes to double check that all the parts have been fully
lubricated.
1. Disposal of the old electrical equipment: Make sure you process the product
in accordance with EC Directive 2002/96/EC-WEEE, also known as Waste
Electrical and Electronic Equipment. In case of doubts or queries, contact the
Department of Waste Disposal.
2. Disposal of grease: Follow the instructions given by the lubricant's
manufacturer.
6. Whenever you indulge in the process of cleaning the Drill with compressed
air, you must wear safety goggles and protective gloves to protect yourself
and the other people around you at the workstation.
2. Inspect the carbon brush and change it immediately if you notice that it is
worn out.

Magnetic Drilling Machine
Operating Manual
Drill Chuck
Weldon Drill Chuck Adaptor Weldon Tapping Adaptor
Weldon Counter Sink
Core Drill
MT 3 Arbour
9SWC 35 AT
Pilot Pin Taper Drift
OPTIONAL TOOLS & ACCESSORIES

5 Start the motor by pressing the green motor start button (I).
3) Put the cutter or adapter in the arbor, making sure the flat sides are
exactly in front of the arbor retaining screws.
5) Check if the center pilot can move inside the cutter (up and down).
1) Make sure the machine is disconnected from the power supply.
3 Ensure that the magnetic drilling unit is secure on the working piece.
2) Put the center pilot in the cutter hole.
5.2 Drilling with Core Drills
5.1 How to mount tools or adapters in a Weldon arbor?
4) Tighten the retaining screws.
CAUTION : For 100% magnet clamping force you need at least 10 mm of steel.
Coatings, paintings and dirt between magnet and workpiece will affect clamping
force.
2 Switch on the magnet.
1 Place the machine at the desired position
4 Fill the arbor with lubrication/cutting oil in the special meant holes. Always
use cutting oil from your dealer.
Magnetic Drilling Machine
Operating Manual
OPERATING MANUAL
3
7
10 SWC 35 AT

Magnetic Drilling Machine
Operating Manual
9. SWC 35 AT is equipped with over load protection, machine stops
automatically sensing over load avoiding cutter breakages.

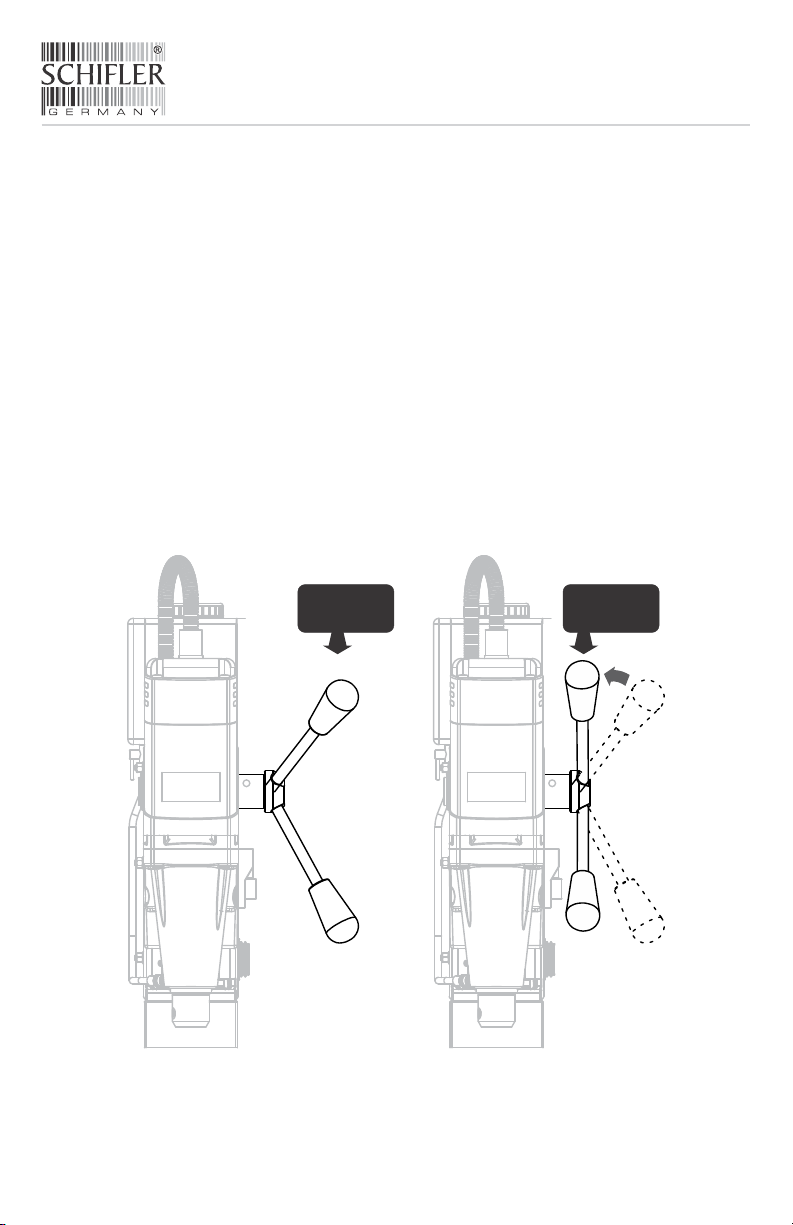

6. Fig. A depicts machine in manual mode. Bring handle lever down, once the
pilot pin touches the surface, push the handle lever as shown in fig. B to
initiate in automatic feed mode.
8. Let machine reverse automatically to its original position in order to get
grease rotate and motor to cool down.
7. Once the hole is drilled the machine will automatically reverse to its original
position and stop automatically.
10. If the slug gets stuck in the cutter, move the machine to a flat surface. Switch
on the magnet and gently bring the cutter down in contact with the surface.
This usually allows a slug to straighten and to eject.
11 SWC 35 AT
Manual
Mode
Auto
Mode
Fig. A Fig. B

Magnetic Drilling Machine
Operating Manual
6 Start bringing the twist drill to the workpiece but handle with care and do not
apply too much pressure. The drill has to find its way in to the material by
itself. It is not necessary to use a lot of pressure. Too much pressure will cause
damage and breakage.
5 Start the motor by pressing the green motor start button.
7 After the cutting is finished switch the machine off by pushing the red button.
WARNING: THE SLUG WILL BE EJECTED AND IS VERY HOT
4 Apply cutting oil to the twist drill and workpiece. Always use cutting oil from
your dealer.
Also twist drills with a direct Weldon connection are available
5.3 Drilling with twist drills

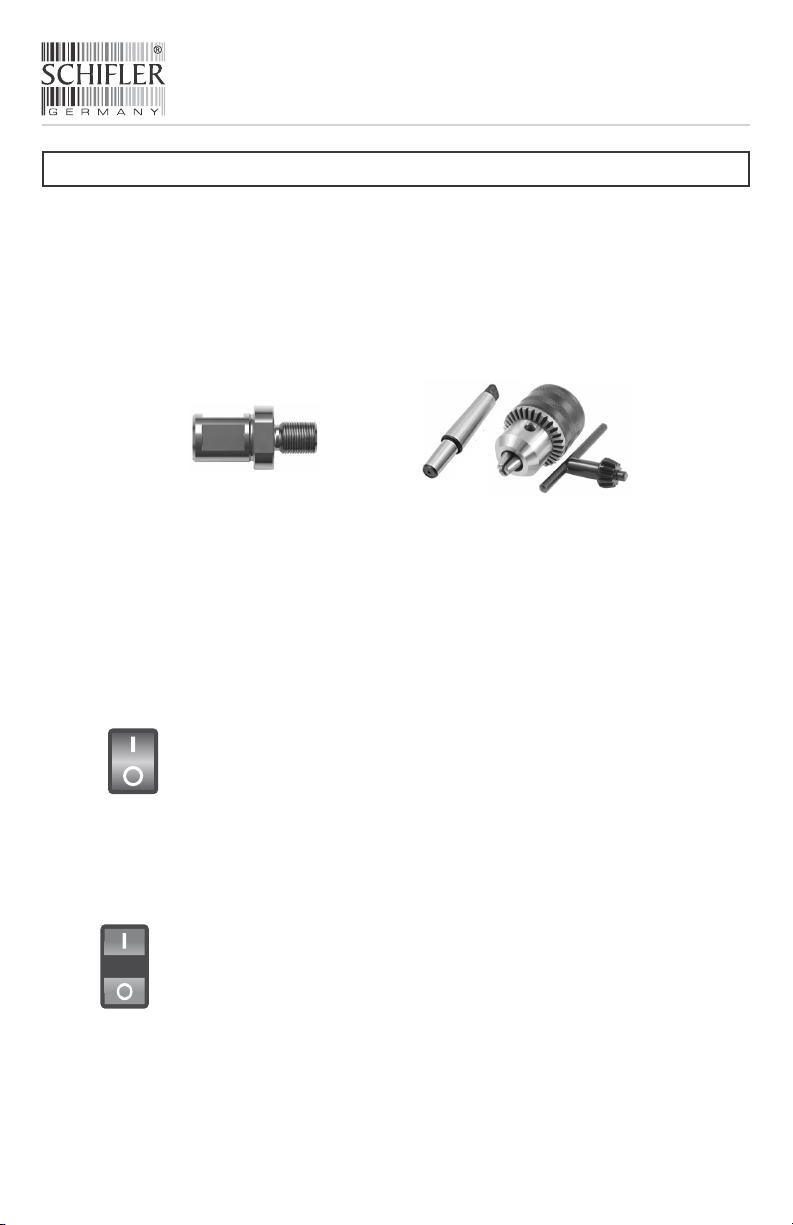

- Adapter 19 mm Weldon – B18 taper connection
- Adapter 19 mm Weldon – B16 taper connection
There are several accessories available to be able to use twist drills with your
magnetic drill.
These adapters will allow you to attach a drill chuck on to the hole cutter arbor.
- Adapter 19 mm Weldon - ½”x20 UNF
(ranging from Ø 6 – Ø 12 mm)
1 Place the machine at the desired position
2 Switch on the magnet
3 Ensure that the magnetic drilling unit is secure on the working piece.
12 SWC 35 AT
Drill ChuckWeldon Drill Chuck Adaptor

Magnetic Drilling Machine
Exploded View
SWC 35 AT Motor complete / Antriebseinheit
13 SWC 35 AT
102
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
98
97
99
100
101
103
SA

Magnetic Drilling Machine
Exploded View
SWC 35 AT Motor complete / Antriebseinheit
14 SWC 35 AT
95 0709311711062 Spring Washer M8 1
100 0709311711116 Screw ST4.8x90 2
90 0709311711017 Straight gear Z40ml.25h10 1
Part no. ARTICLE NO. Article Description Pcs
71 0709311710829 Carbon brush holder 18x6.2x9.9 2
72 0709311710836 Spring 5x0.3 2
73 0709311710843 Motor shell (black) SWC 35 AT 1
78 0709311710898 O-ring seal ring ø22x2.5- 1
70 0709311710812 Carbon brush 18x6.2x9.9 220V 1
89 0709311711000 Oil guide ø78x22.6 1
77 0709311710881 Air Sleeve ø75.5xø45x30 1
80 0709311710911 Armature 1100W 220V 1
83 0709311710942 Gear box cap 35-85x85x24 1
86 0709311710973 Ball Bearing 608 P6 2
91 0709311711024 Ball Bearing 6003-2RS P6 1
92 0709311711031 Skeleton ring 20x30x9 2
88 0709311710997 Pinion Z8ml.25L45 1
82 0709311710935 Ball Bearing 6001Z P6 1
74 0709311710850 Fuse 275V 0.1uf 1
87 0709311710980 Helical gear Z34mlh9 1
94 0709311711055 Screw M8x60-10.9 1
96 0709311711079 Washer M8 1
97 0709311711086 Gear box 35-85x99x125 1
98 0709311711093 Brass nozzle M6x16 1
81 0709311710928 Hole circlip ø28 1
85 0709311710966 Shaft circlip ø10 1
67 0709311710782 Motor cap SWC 35 AT 1
69 0709311710805 Washer M4 6
75 0709311710867 Field coil 1100W 220V 1
66 0709311710775 Screw ST4.8x60 4
76 0709311710874 Screw ST3.9x62 2
79 0709311710904 Ball Bearing 608ZZ P6 1
68 0709311710799 Screw M4x12 6
84 0709311710959 Paper gasket seal ø78x0.5 1
93 0709311711048 Cylindrical pin ø4x12 1
99 0709311711109 Clamping block ø20x24 1
101 0709311711123 Screw ST4.8x50 2
103 0709311711147 Drill spindle assembly ø37xø19.05x136 1
102 0709311711130 Ball Bearing 61904-2RS P6 1

Magnetic Drilling Machine
Exploded View
SWC 35 AT Magnetic frame /
Magnetbohrständer
15 SWC 35 AT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
40
39
38
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65

SWC 35 AT Circuit Diagram / Schaltplan
32
31 30 29 28 27 26 25
24 23 21 20
22 19 18
3334
35
3637
Magnetic Drilling Machine
Exploded View
SWC 35 AT Magnetic frame /
Magnetbohrständer
16

Magnetic Drilling Machine
Exploded View
SWC 35 AT Magnetic frame / Magnetbohrständer
17 SWC 35 AT
Part No. Article Description Pcs
1 0709311710126 MAIN BODY
2 0709311710133 PCB
3 0709311710140 Screws
4 0709311710157 Washer
40 0709311710515 Straight wave tube fittings
27 0709311710386 TRANSMISSION GEAR SHAFT
11 0709311710225 Slide SWC 50
44 0709311710553 Hex Nut
46 0709311710577 Hoop
23 0709311710348 Washer
9 0709311710201 Hex Screws
25 0709311710362 SPACER
34 0709311710454 PROTECTION PLATE
5 0709311710164 Magnetic base
8 0709311710195 Hex Screws
10 0709311710218 Spring Washer
12 0709311710232 Cable Mount
7 0709311710188 Hex Screws
21 0709311710324 Hex Screws
35 0709311710461 PLANETARY MOTOR GEAR
31 0709311710423 Screws
36 0709311710478 Screws
30 0709311710416 Washer
13 0709311710249 Rack
32 0709311710430 PLASTIC SHIELD
29 0709311710409 SPUR GEAR
33 0709311710447 PLANETARY DC MOTOR
38 0709311710492 Cable
39 0709311710508 Nylon wave tube
18 0709311710294 BIMETAL BUSH
6 0709311710171 Spring Washer
15 0709311710263 Hexagon round head screws
17 0709311710287 R' Clip
22 0709311710331 CIRCLIP
24 0709311710355 BALL BEARING
26 0709311710379 BALL BEARING
28 0709311710393 CIRCLIP
14 0709311710256 Gasket flat washer-A level
20 0709311710317 CLUTCH GEAR
16 0709311710270 Slideway
19 0709311710300 BALL BEARING
37 0709311710485 Screws
41 0709311710522 Coolant Bottle Assembly
42 0709311710539 Coolant Bottle Lid
43 0709311710546 Coolant container
45 0709311710560 Aluminium Valve
52 0709311710638 PANEL
54 0709311710652 WATER PROOF MAGNET SWITCH
55 0709311710669 Screws
56 0709311710676 FEEDING HANDLE COVER
50 0709311710614 TORSION JOINT
47 0709311710584 PU TUBE
49 0709311710607 POWER CABLE
48 0709311710591 COOLANT NOZZLE
51 0709311710621 Hex Screws
53 0709311710645 MOTOR ON/OFF SWITCH
57 0709311710683 SHAFT
60 0709311710713 HANDLES
62 0709311710737 GRASP SLEEVE
64 0709311710751 SPRING WASHER
65 0709311710768 Hex Screws
59 0709311710706 MOVEMENT HANDLE
63 0709311710744 WASHER
61 0709311710720 FEED GEAR SHAFT
58 0709311710690 FEED HOUSING

Magnetic Drilling Machine
Operating Manual
WARNING: When drilling in inverted position, cutting oil can enter the motor and can
cause irreparable damage.
TIP: Do not use your magnetic drill on the same structure when ARC welding is in
progress. D.C. current will earth back through the magnet and cause irreparable damage.
TIP: For 100% magnet clamping force you need at least 10 mm of steel. Coatings,
paintings and dirt between magnet and workpiece will affect clamping force.
6. Handy Tips
TIP: When using models with gear and variable speed always select a setting with low
transmission ratio and high motor speed, if possible.
WARNING: After drilling the slug will be ejected and is very hot.
WARNING: When drilling in inverted position, metal swarf can enter the motor. This can
cause irreparable damage and can cause electrical shocks.
WARNING: This appliance must be earthed.
TIP: Most situations which cause problems or question marks have already occurred for
other users. Contact Schifler or your dealer to see if a solution exists for your situation.
(example: for drilling into non-magnetic material with your magnetic drill, a special
vacuum system has been designed).
WARNING: Steel plates of less than 10 mm thickness, coatings, paints and dirt between
magnet and workpiece can affect clamping force and create a possible dangerous
situation. Always make sure your magnetic drill is fastened with the supplied safety chain
and make sure your machine is sufficient attached to the workpiece to start drilling.
TIP: During drilling it is recommended after a certain depth the cutter should be pulled up
on free load in order to permit grease to run across the gear box.
TIP: It is recommended that machine is laid to rest every 30 minutes in order to permit
grease to run across the gear box .
18 SWC 35 AT
