Schiller BOB-CAT PREDATOR PRO CV750 User manual

OPERATOR’S MANUAL
MAN 4168254 Rev. A 08-2012
PARTS MANUAL 4168253 www.bobcatturf.com
942512J
PREDATOR PRO GVT990 GEN W/61” SIDE DISCHARGE
942513J
PREDATOR PRO GVT990 GEN W/72” SIDE DISCHARGE
942514J
PREDATOR PRO FX921V KAW W/61” SIDE DISCHARGE
942515J
PREDATOR PRO FX1000V-DFI KAW W/61” SIDE DISCHARGE
942516J
PREDATOR PRO FX1000V-DFI KAW W/72” SIDE DISCHARGE
942518J
PREDATOR PRO CV750 KOHLER W/72” SIDE DISCHARGE
942519J
PREDATOR PRO FX921V KAW W/72” SIDE DISCHARGE

CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of its
constituents are known to the State of
California to cause cancer, birth defects
and other reproductive harm.
Californie Proposition 65Avertisse-
ment
Les échappements des moteurs diesel et
certainsdeleurscomposéssontreconnuspar
l’Etat de Californie pour être cancérigènes,
provoquerdesdéfautscongénitauxetd’autres
dangers en matière de reproduction.
California Advertencia
de la Proposicion 65
ADVERTENCIA
AVERTISSEMENT
WARNING
The engine exhaust from this product
containschemicalsknowntotheState
of California to cause cancer, birth
defects or other reproductive harm.
El estado de California hace saber que
los gases de escape de los motores diesel
y algunos de sus componentes producen
cáncer, defectos de nacimiento y otros
daños en el proceso de reproducción
humana.
L’ é missiondumoteur de ce mat é rielcon-
tient des produits chimiques que l’Etat de
Californie consid è re ê tre canc é rig è nes,
provoquer des d
é fauts cong é nitaux et
d’autres dangers en mati
è re de reproduc-
tion.
ElestadodeCaliforniahacesaberquelos
gasesdeescapedeesteproductocontienen
productosquÍmicosqueproducencáncer,
defectos de nacimiento y otros daños en
el proceso de reproducción humana.
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, wiring
insulation, and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
WASH HANDS AFTER HANDLING.

1
PREDATOR-PRO
SERIES
08-2012
IMPORTANT MESSAGE
Thank you for purchasing this Schiller Grounds Care, Inc. product. You have purchased a world class mowing
product, one of the best designed and built anywhere.
ThismachinecomeswithanOperationandSafetyManualandaseparateSetup,PartsandMaintenanceManual.
The useful life and good service you receive from this machine depends to a large extent on how well you read
and understand these manuals. Treat your machine properly, lubricate and adjust it as instructed, and it will give
you many years of reliable service.
Your safe use of this Schiller Grounds Care, Inc. product is one of our prime design objectives. Many safety
features are built in, but we also rely on your good sense and care to achieve accident-free operation. For best
protection, study the manuals thoroughly. Learn the proper operation of all controls. Observe all safety precau-
tions. Follow all instructions and warnings completely. Do not remove or defeat any safety features. Make sure
those who operate this machine are as well informed and careful in its use as you are.
See a Schiller Grounds Care, Inc. dealer for any service or parts needed. Schiller Grounds Care, Inc. service
ensures that you continue to receive the best results possible from Schiller Grounds Care, Inc. products. You
can trust Schiller Grounds Care, Inc. replacement parts because they are manufactured with the same high
precision and quality as the original parts.
Schiller Grounds Care, Inc. designs and builds its equipment to serve many years in a safe and productive man-
ner. For longest life, use this machine only as directed in the manuals, keep it in good repair and follow safety
warnings and instructions. You'll always be glad you did.
Schiller Grounds Care, Inc.
One Bob Cat Lane
Johnson Creek, WI 53038-0469
TABLE OF CONTENTS PAGE
SAFETY.........................................................................................................................................................2-8
LABELS.......................................................................................................................................................9-13
CONTROLS...............................................................................................................................................14-17
PRE-OPERATION CHECK LIST....................................................................................................................18
OPERATION .............................................................................................................................................19-21
MAINTENANCE CHART ...............................................................................................................................22
MAINTENANCE RECORD.............................................................................................................................23
MAINTENANCE .......................................................................................................................................24-30
ADJUSTMENTS........................................................................................................................................31-35
BELT REPLACEMENT ..................................................................................................................................36

2
PREDATOR-PRO
SERIES
SAFETY
NOTICE !!!
Unauthorized modications may present extreme
safety hazards to operators and bystanders and
could also result in product damage.
Schiller Grounds Care, Inc. strongly warns against,
rejects and disclaims any modications, add-on
accessories or product alterations that are not
designed,developed,testedandapprovedbySchiller
Grounds Care, Inc. Engineering Department. Any
Schiller Grounds Care, Inc. product that is altered,
modied or changed in any manner not specically
authorized after original manufacture–including the
addition of “after-market” accessories or component
parts not specically approved by Schiller Grounds
Care, Inc.–will result in the Schiller Grounds Care,
Inc. Warranty being voided.
Anyandallliabilityforpersonalinjuryand/orproperty
damage caused by any unauthorized modications,
add-on accessories or products not approved by
Schiller Grounds Care, Inc. will be considered
the responsibility of the individual(s) or company
designing and/or making such changes. Schiller
Grounds Care, Inc. will vigorously pursue full
indemnication and costs from any party responsible
for such unauthorized post-manufacture modications
and/or accessories should personal injury and/or
property damage result.
MODEL NUMBER: This number appears on
sales literature, technical manuals and price lists.
SERIAL NUMBER: This number appears only
on your mower. It contains the model number
followed consecutively by the serial number.
Use this number when ordering parts or seeking
warranty information.
This symbol means:
ATTENTION!
BECOME ALERT!
Your safety and the safety of others is involved.
Signal word denitions:
The signal words below are used to identify levels
of hazard seriousness. These words appear in this
manualandonthesafetylabelsattachedtoSchiller
Grounds Care, Inc. machines. For your safety and
thesafetyofothers,readandfollow theinformation
given with these signal words and/or the symbol
shown above.
DANGER indicates an imminently hazardous
situationwhich,if not avoided, WILL result in death
or serious injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, COULD result in
death or serious injury.
CAUTIONindicatesapotentiallyhazardoussituation
which,ifnotavoided,MAY resultinminorormoderate
injury. It may also be used to alert against unsafe
practices or property damage.
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, MAY result in property damage

3
PREDATOR-PRO
SERIES
SAFETY

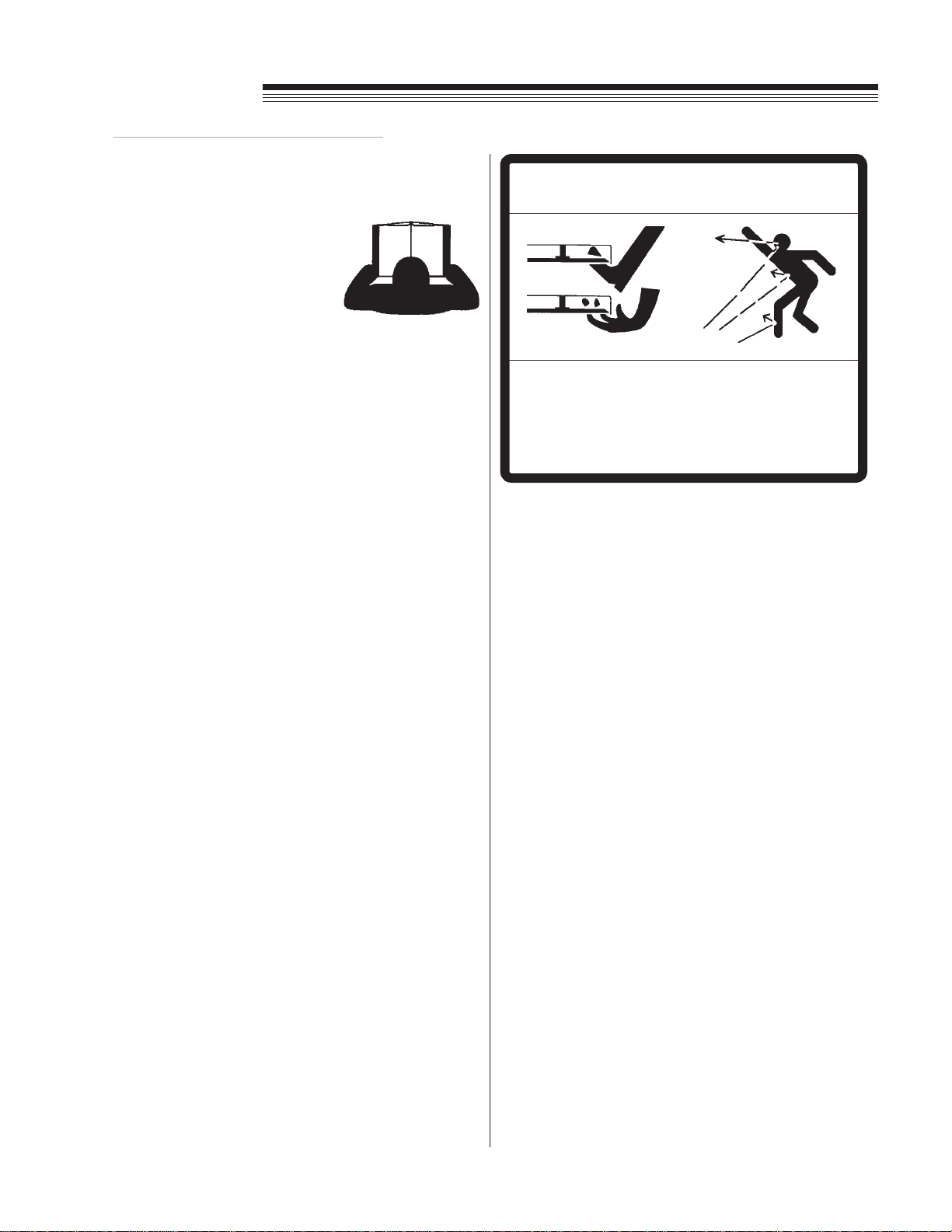

PREPARING FOR SAFE OPERATION
Operator preparation and training
Read the Operation & Safety
Manual
– If an operator or mechanic
cannot read English, it is
the owner's responsibility
to explain this material to
them. If any portion of this
material is unclear, contact
your dealer representative for
clarication.
– Become familiar with the safe operation of the
equipment, operator controls and safety signs.
Be prepared to stop the engine and attachments
quickly in an emergency. Do not operate or
allow another person to operate this machine if
there are any questions about safety.
– All operators and mechanics should be trained.
The owner is responsible for training the users.
– Wear appropriate clothing, including long
trousers and safety goggles or safety glasses
with side shields when operating mower. Do not
operate barefoot or wearing open sandals. Long
hair, loose clothing or jewelry may get tangled in
moving parts.
– Wear hearing protection.
– Never allow underage children, unskilled
or improperly trained people to operate this
equipment. Local regulations can restrict the age
of the operator.
– Data indicates that those operators age 60 years
and above are involved in a large percentage of
riding mower-related injuries. Those operators
should evaluate their ability to operate the riding
mower safely enough to protect themselves and
others from injury.
– Do not carry passengers, especially small chil-
dren. They may fall off and be seriously injured.
– Keep warning labels and this operator's manual
legible and intact. Replacement labels and
manuals are available from the factory.
– Do not operate machine while under the
inuence of drugs or alcohol.
– The owner/user can prevent and is responsible
for accidents or injuries occurring to themselves,
other people or property.
All rotary lawnmowers are potentially
dangerous.They canamputatehandsand
feet and throw objects. Failure to follow
these safety and operating instructions
could result in serious injury or death.
WARNING
Site preparation and circumstances
– Evaluate the terrain to determine what
accessories and attachments are needed to
properly and safely perform the job. Only use
accessories and attachments approved by the
manufacturer.
– Clear the area to be mowed of objects such as
rocks, toys, wire or other debris that may be
picked up or thrown by the mower.
– Be sure the area is clear of pets and people,
especially young children. Never assume they
will remain where you last saw them. Stop the
machine if any enter the area.
– Mow only in daylight or in good articial light.
– Do not mow wet grass as tires may lose traction.

4
PREDATOR-PRO
SERIES
SAFETY
OPERATING SAFELY
In general
– Use extra care when loading or unloading the
machine onto a trailer or truck.
– Watch out for trafc when near or crossing
roadways.
– Do not run the engine in an enclosed area where
dangerous carbon monoxide fumes can collect.
– Do not place your foot on the ground while
operating the machine.
– Before operating, lower the discharge chute,
install the mulcher or put the entire grass catcher
in place.
– Keep clear of the discharge opening at all times.
Never direct the discharge toward a bystander.
Stop operation if someone approaches.
– Keep washout ports and other mower housing
service openings closed when mowing.
– Use care when pulling loads or using heavy
equipment.
- Use only approved drawbar hitch points.
- Limit loads to those you can safely control.
- Do not turn sharply. Use care when reversing.
- Use counterweight(s) or wheel weights when
suggested in the operator's manual.
– Never leave a machine unattended. Always turn
off blades, set parking brake, stop engine and
remove keys before dismounting.
MACHINE OPERATION
– Check operator present interlock system and
brake operation. Adjust or repair any problems
before using.
– Do not tamper with or defeat safety devices.
Keep guards, shields and interlock safety devices
in place and in proper working condition. They
are for your protection.
– Keep all fasteners such as nuts, bolts and pins
well secured.
– Visually inspect blades, blade bolts and the cutter
assembly for wear or damage. Replace worn or
damaged blades and bolts to preserve balance.
– Verify that machine and attachments, if any, are
in good operating condition.
– Do not engage blades until ready to mow.
Starting
– Start only according to instructions in this manual
or on the machine.
– Before attempting to start the engine, make sure:
- the parking brake is on;
- the PTO is disengaged;
- the traction drive is in NEUTRAL.
– When starting the engine, make sure hands and
feet are clear of the blades.
– Do not start the machine while standing in front
of the discharge chute or with the chute directed
at someone.
– Do not engage PTO at full throttle. Throttle to
idle or lowest possible engine speed.
– Do not change engine governor settings or
overspeed the engine. Operating the engine
at excessive speed can increase the hazard of
personal injury.
MANEUVERING SAFELY
In general
– Slow down before turning.
– Do not mow in reverse unless absolutely
necessary. Always look behind and down
for small children and pets before and during
backing.
– Be aware when approaching blind corners,
shrubs, trees, tall grass or other objects that may
obscure vision.
– If tires lose traction, disengage the blades. If on
a slope, head down.

5
PREDATOR-PRO
SERIES
SAFETY
Interrupting operation
– Before leaving the operator's position:
- Park on level ground;
- Disengage the PTO;
- Set the parking brake;
- Shut off the engine and remove the key.
– Disengage the PTO and wait until the blades quit
rotating:
- before raising cutterdeck;
- when not mowing;
- for transport;
- when crossing surfaces other than grass.
– Stop the engine, disengage the PTO and wait
until the blades quit rotating:
- before refueling;
- before removing grass catcher;
- before making height adjustment unless the
adjustment can be made from the operator's
position.
– Stop the engine, disengage the PTO and
disconnect the spark plug wire(s) or remove the
key:
- before clearing blockages or unclogging chute;
- before checking, cleaning or working on the
machine;
- after striking a foreign object. Inspect the
machine for damage and make repairs before
restarting.
- if the machine begins to vibrate abnormally:
Inspect and make repairs as needed before
restarting;
- except for repairs or adjustments as
specically noted, such as for carburetor
adjustment, where the engine must be running.
Keep hands and feet clear of moving parts in
these circumstances.
– Allow the blades to come to a complete stop
when stopping operation to clear blockages,
unclog, inspect the machine, do maintenance or
repair.
– Reduce the throttle setting during engine shut-
down and, if the engine is provided with a shut-
off valve, turn the fuel off at the conclusion of
mowing.
MOWING SLOPES
Slopes are a major factor in loss-
of-control and tipover accidents
that sometimes lead to severe
injury or death. All slopes require
extra caution.
– Do not mow on slopes if uneasy or uncertain.
Ultimate reponsibility for safe operation on slopes
rests with the operator.
– Do not mow excessively steep slopes.
– With ride-on machines, including articulated
steering machines, mow up and down slopes, not
across, except for zero turn machines. Zero turn
machines should mow across slopes.
– With walk-behind machines, always mow across
slopes, not up and down.
– Avoid starting or stopping on a slope. If tires lose
traction, disengage the blades and proceed slowly
straight down the slope.
– With a zero turn machine, if tires lose traction
going down a slope, steering control may be
regained by speeding up.
– Mid-mount zero turns (belly mounted deck) have
much greater traction pointed up slope than down
slope. Be aware that traction may be lost going
down a slope. Do not operate a mid-mount zero
turn on slopes it cannot back up.
– Keep all movement on the slopes slow and
gradual. Do not make sudden changes in speed
or direction.
– Do not turn on slopes unless necessary, and then
turn slowly and downhill when possible.
– Stay away from slopes if the ground is loose or if
caught in the rain during mowing.
– Use lower speeds on a slope to avoid stopping or
shifting.
– Use extra care with grass catchers or other
attachments. These can change the stability of
the machine.
– Avoid driving over ruts, holes, rocks and roots
whenever possible. Be alert to dips and rises.
Uneven terrain can overturn a mower or cause it
to slide.
– Do not mow dropoffs, ditches or embankments.
The machine could suddenly turn over if a wheel
runs over the edge or an edge caves in.
– Follow the manufacturer's recommendations
for wheel weights or counterweights to improve
stability.
WARNING

6
PREDATOR-PRO
SERIES
SAFETY
ROLL OVER PROTECTION STRUCTURE (ROPS)
•A folding Rollover Protection Structures (ROPS)
is attached on this machine.
•If a ROPS is installed and the machine is
overturning, hold onto the steering levers. Do not
attempt to jump out or leave the seat. Wear the
seatbelt
ROPS in Vertical Position
•The ROPS should be in the vertical position for
normal operation. Insure that the seat plate pins
are in the lock position. WEAR the seatbelt when
the ROPS is in the vertical position.
ROPS in Folded Position
•A folding ROPS allows the overall height of the
machine to be reduced for increased clearance
to get into a low ceiling height trailer or under low
hanging branches. DO NOT wear the seatbelt
when the ROPS is folded. Stop the machine and
restore the ROPS to the vertical position as soon
as the need for increased clearance is past.
A ROPS is a Roll Over Protective Structure. The
ROPS reduces the risk of serious or fatal injury
in the unlikely event of a tip over, although the
system cannot protect the operator from all possible
injuries. It is not designed, made, or intended to
provide protection for a machine that is driven off an
embankment, retaining wall or similar situation. A
ROPS does not replace the need to exercise care
when operating on slopes.
IMPORTANT:
a) Do not cut, drill, modify or repair a ROPS
structure in any manner..
b) Always replace a damaged ROPS.
c) Keep Roll Bar in the raised position and use the
seat belt.
d) There is NO roll over protection when the roll
bar is lowered. Lower the roll bar only when
necessary. DO NOT remove it. DO NOT use
the seat belt when the roll bar is in the lowered
position. Raise the roll bar as soon as clearance
permits.
e) Use extreme care when working close to fences,
ditches, trees, and on hills.
f) Check overhead clearances carefully before
driving under any objects.
g) DO NOT leave operator's position while unit is
running.
h) DO NOT carry passengers.
SERIOUS INJURY OR DEATH MAY RESULT
FROM MACHINE ROLLOVER
 • DO NOT OPERATE MACHINE ON STEEP
SLOPES OR NEAR DROP OFFS
 • ALWAYS USE SEAT BELTS WITH ROPS IN
RAISED POSITION
 • AVOID SHARP AND/OR QUICK TURNS
 • DO NOT EXCEED THE MACHINE WEIGHT
RATING OF THE ROPS
ROLLOVER MAY CAUSE PERMANENT INJURY OR DEATH.
• ROPS RAISES THE CENTER OF GRAVITYAND REDUCES STABILITY ON SLOPES.
• SUDDEN STARTS OR TURNS ON RAMPS OR SLOPES CAN CAUSE OVERTURN.
• USE GREATER CARE ON RAMPSAND AS THE SLOPE INCREASES.
Remove cotter pin Dfrom hitch pin C. Pull
out hitch pin C, rotate upper hoop to the
upright position. Reinstall hitch pin C.
Reinstall cotter Pin Dthrough hitch pin C.
Insure that the lynch pins L are securely in
the seat plate pin P.

7
PREDATOR-PRO
SERIES
SAFETY
MAINTENANCE SAFETY
IN GENERAL
– Maintain machine according to manufacturer's
schedule and instructions for maximum safety
and best mowing results.
– Park machine on level ground.
– Never allow untrained personnel to service ma-
chine.
– Adjust or repair only after the engine has been
stopped and the blades have stopped rotating.
– Inspect grass catcher components regularly. If
worn, damaged or deteriorated, they may expose
moving parts or allow objects to be thrown.
– Replace parts if worn, damaged or faulty.
For best results, always replace with parts
recommended by the manufacturer.
– Disconnect battey or remove spark plug wire(s)
before making any repairs. Disconnect the nega-
tive terminal rst and the positive last. Reconnect
positive rst and negative last.
– Do not dismantle the machine without releasing
or restraining forces which may cause parts to
move suddenly.
– Provide adequate support for lifted machine or
parts if working beneath.
– Do not put hands or feet near or under rotating
parts.
– Clean up oil or fuel spillage thoroughly.
– Replace faulty mufers.
– To reduce re hazards, keep the engine, mufer,
battery compartment and fuel storage area free
of grass, leaves, debris buildup or grease.
BLADES
– Mower blades are sharp and
can cut. Use extra caution when
handling. Remove obstructions
with care. Wrap the blade(s) or
wear gloves.
– Be aware that rotating one blade
on multiblade mowers can cause other blades to
rotate.
– Only replace blades. Never straighten or weld
them.
– Keep other persons away from blades.
WARNING
FUEL
– Gasoline and diesel fuels are
ammable; gasoline vapors are
explosive. Use extra care when
handling.
– Store only in containers speci-
cally designed for fuel.
– When refueling or checking fuel level:
- Stop the engine and allow to cool;
- Do not smoke;
- Refuel outdoors only;
- Use a funnel;
- Do not overll;
- If fuel is spilled, do not attempt to start the
engine until the spill is cleaned up and vapors
have cleared.
Sparks from static electricity can start res or couse
explosions. Flowing fuel can generate static
electricity. To prevent static electricity sparks:
– Do not ll containers in a vehicle or on a truck or
trailer bed with a plastic liner. Fill containers on
the ground away from the vehicle.
– When practical, remove gas powered equip-
ment from the truck or trailer and refuel it on the
ground. If equipment must be refueled on the
truck or trailer, refuel from a portable container
rather than a dispenser nozzle.
– Keep the dispenser nozzle in contact with the rim
of the fuel tank or container opening until fuel-
ing is complete. Do not use a nozzle lock-open
device
– Replace caps on fuel cans and tanks securely.
WARNING
WARNING
HYDRAULIC SYSTEM
The machine's hydraulic system
operates under high pressure.
– When checking for leaks, do
not use your hands to attempt
to nd a leak. Instead, use
cardboard or paper.
– Escaping hydraulic uid can be under sufcient
pressure to penetrate skin and cause serious
injury.
– If hydraulic uid is injected into the skin, it must
be promptly removed by a doctor familiar with
this form of injury or gangrene may result.
– Check that all hydraulic uid connections are
tight and all hydraulic hoses and lines are in good
condition before applying pressure to the system.

8
PREDATOR-PRO
SERIES
SAFETY
BATTERY
Battery acid is caustic and fumes
are explosive and can cause seri-
ous injury or death.
To reduce the risk of personal in-
jury when working near a battery:
– When working with battery
acid, use protective equip-
ment such as, but not limited to,
goggles, face shield, rubber gloves and apron.
– Avoid leaning over a battery.
– Do not expose a battery to open ames or
sparks.
– Be sure batteries with ller caps are properly
lled with uid.
– Do not allow battery acid to contact eyes or skin.
Flush any contacted area with water immediately
and get medical help.
– Charge batteries in an open, well ventilated area,
away from sparks and ames. Unplug charger
before connecting or disconnecting from bat-
tery.
STORAGE SAFETY
– Stop the engine and allow to cool before storing.
– Drain the fuel tank outdoors only.
– Store fuel in an approved container in a cool, dry
place.
– Keep the machine and fuel containers in a
locked storage place to prevent tampering and to
keep children from playing with them.
– When the machine is to be parked, stored or left
unattended, lower the cutterdeck unless a posi-
tive mechanical lock is used.
– Do not store the machine or fuel container near
heating appliances with an open ame such as a
water heater or an appliance with a pilot light.
– Keep gasoline storage area free of grass, leaves
and excessive grease to reduce re hazard.
Jump starting
1. Be sure the jumper cables are in good condition.
Turn off the ignition and all electrical accessories
on both machines.
2. Position the machine with a good (charged) bat-
tery next to but not touching the machine with the
dead battery so jumper cables will reach.
3. When making cable connections:
- make sure the clamps do not touch anywhere
except to intended metal parts,
- Never connect a positive ("+" or red) terminal
to a negative ("–" or black) terminal.
- Make sure the cables won't get caught in any
parts after the engines are started.
4. Connect one end of the rst jumper cable to the
positive terminal on one battery. Connect the
other end to the positive terminal on the other
battery.
5. Connect one end of the other cable to the
negative terminal of the machine with a good
(charged) battery. Make the nal connection on
the engine of the machine to be started, away
from the battery.
6. Start the vehicle with the good battery, then the
machine with the discharged battery.
7. Remove the cables in the exact reverse order of
installation. When removing each clamp, take
care it does not touch any other metal parts while
the other end remains attached.
WARNING

9
PREDATOR-PRO
SERIES

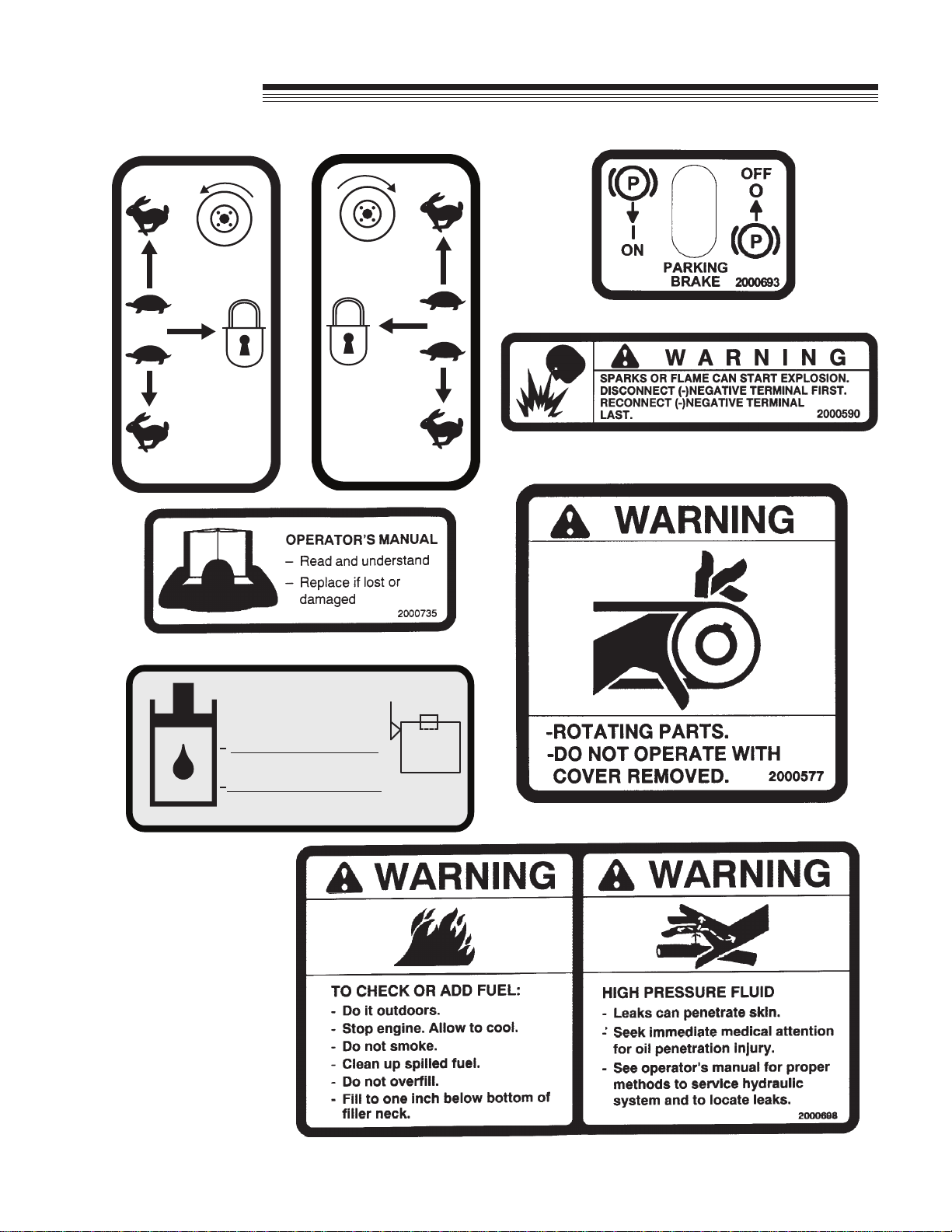

LABELS
PTO SWITCH
4165639
CHECK
ENGINE
PTO SWITCH
4165638

10
PREDATOR-PRO
SERIES
LABELS
4158401
OFF
LH TANK RH TANK
4147617
AVOID INJURY OR DEATH
FROM ROLL OVER:
Keep roll bar in the raised
position and use seat belt.
THERE IS NO ROLL OVER
PROTECTION WHEN THE
ROLL BAR IS LOWERED.
Lower the roll baronly
when necessary and
NEVER remove it.
Do NOT use seat belt when
the roll bar is down.
Raise the roll bar as soon
as clearance permits.
Read and follow all safety
instructions and warnings
in the operator’s manual.
ROLL OVER PROTECTION
STRUCTURE
To maintain opeartor
protection and roll bar
sertification:
Replace a damaged roll
bar. DO NOT attempt to
repair or modify.
Any alteration of the roll
bar must be approved by
the manufacturer.
DO NOT exceed the
machine weight rating of
the roll bar.
WARNING
CAUTION

11
PREDATOR-PRO
SERIES
LABELS
4165610
- Leer el manual del operador. No permitir que
personas no capacitadas para ello usen la máquina.
- Mantener los protectores en su lugar y sus tornillos
debidamente fijados.
- Antes de limpiar, ajustar o reparar este equipo,
apagar todos los mandos, aplicar el freno de
estacionamiento y apagar el motor.
- Mantener las manos, los pies y la ropa alejados de
las piezas en movimiento.
- No conducir como pasajero ni llavar pasajeros en
máquinas sin asiento para ello.
- Mantener a las demás personas alejadas durante
el funcionamiento de la máquina.
- Si no sabe leer inglés, solicitarie a otra persona
que le lea y explique el contenido de las etiquetas y
del manual de la máquina.
- Remove debris buildup. Debris under belt cover or
near muffler can cause fires.
- Blades continue to rotate for a few seconds after
blades are turned off.
- Blades must be at least 1/8" above bottom of housing.
- All blades must be identical. Check blade bolts daily
for tightness.
- Inspect for damage after striking a foreign object.
Make repairs before restarting operation.
- Find and repair cause of any abnormal vibration.
AVOID SERIOUS INJURY OR DEATH:
- Read and obey the Operation & Safety Manual.
- Remove objects that could be thrown by the blades.
- Use caution on slopes. Stay off slopes the machine
cannot back up.
- Stop blades and drive down slowly if machine slides
or stops going on slope.
- Do not mow when children or others are around.
- Do not carry a child or passenger-even with blades off.
- Look down and behind before and while backing.
- Do not operate unless trained.
- Do not operate unless guards, shields and interlocks
are in place and working.
- Replace labels and Operation and Safety Manual if lost
or damaged.
- Be sure machine is in safe operating condition.
- Move traction levers to neutral lock, parking brake to ON.
- Set PTO switch to OFF.
BEFORE LEAVING SEAT:
- Move traction levers to neutral lock, parking brake to ON.
- Set PTO switch to OFF.
- Turn engine keyswitch to OFF.
- Remove key.
Read and understand the
Operator's Manual & labels.
BEFORE STARTING OR SERVICING:
OPERATOR'S MANUAL
IS LOCATED UNDER
THE FOOT PLATE.
4165730
LOCATED UNDER THE FLOOR PLATE
DECK SIZE
52 IN
61 IN
61 IN GENERAC
72 IN
72 IN GENERAC
BELT P/N
4165619
4165618
4165644
4165645
4165617
BLADE P/N
112111-02
112111-03
112111-03
112111-07
112111-07
4165653

12
PREDATOR-PRO
SERIES
1
1
1
4
1
1
2
13
4
2
1
4
23
4
3
1
4
3
3
4
4
4
1
4
41
2
5
2
1
2
2
3
3
1
2
TRANSPORT
43
4
1
5
4
5
1
2
4165655
LABELS
2
2
1
4
11
4
1
3
4
1
2
1
5
51
4
TRANSPORT
43
4
4
5
41
2
21
2
3
23
4
4
1
4
4
33
1
34
1
1
2
31
2
4165654

13
PREDATOR-PRO
SERIES
LABELS
F
N
R
4165615
N
F
N
N
4165616
R
4165722
HYDRAULIC OIL
Fill to level shown with
any of the following oils:
Mineral base motor oils
15W40 or 20W50
Synthetic base motor oil
15W50

14
PREDATOR-PRO
SERIES
CONTROLS
Non DFI operator's right side
THROTTLE (T) - Move the throttle lever forward to
increase engine speed until the maximum governed
engine RPM is reached. Move the lever rearward to
decrease engine speed until the engine reaches its
idle speed.
KEYSWITCH (K) - The keyswitch has three
positions: OFF, RUN, and START. Insert the key
and turn it clockwise to move the switch from OFF to
RUN. Turn it further to START and hold to engage
the starter. Release the key and the switch will return
to RUN from START. Turn the key counterclockwise
to OFF to stop the engine. On the Predator Pro
DFI models, if either tank runs out of fuel, cycle the
keyswitch to the ON or RUN position 2 to 3 times,
without cranking, for 10 seconds to prime the fuel
system.
CHOKE (C) - Pull the choke control out to set the
choke ON. Push it in to set the choke OFF.
ENGINE INDICATOR LIGHT (E) - A check
engine light is provided on DFI units for Kawasaki
engine dealers to diagnose engine codes. NOTE:
When starting the engine, the indicator light will come
on briey as an engine system check. If the light
continues to blink after initial start-up, shut off engine,
insure the battery cables are connected properly and
securely, and that the battery is charged properly.
Re-start the engine. If the indicator light continues to
blink, contact an authorized BobCat dealer.
DFI operator's right side
POWER TAKE OFF (PTO) SWITCH (P) -
The operator must be in the seat when engaging the
PTO or the engine will kill. Pulling the PTO switch
out engages (turns on) the PTO and starts the blades
or other attachment. Pushing the PTO switch in
disengages (turns off) the PTO and stops the blades
or other attachment.
NOTE: The PTO switch does not control
attachments powered by a separate engine.
–Disengage the PTO whenever you stop or leave
the operator’s position.
–Shut off engine with the key and remove the
spark plug wires before making adjustments or
unplugging a clogged mower.
–Do not engage the PTO until ready to start
mowing.
HOUR METER (M) - Records accumulated time
the machine is in operation and provides service
alerts. Push and release MODE button to toggle
between functions. Provided service alerts include
change engine oil and lter, change hydraulic oil,
and service air lter. When the service time is
approaching, an alert message will ash temporarily,
interrupting whatever mode the meter is in. This
will continue until the alert is reset. When the
service interval reaches "0" hours, the word "NOW"
replaces the hours remaining. To reset the service
alert, depress and hold down the mode button for 6
seconds while in the alert to be cleared.

15
PREDATOR-PRO
SERIES
Reverse movement - To move the machine straight
back, pull both traction levers back equally from their
neutral position. Reverse speed increases as the
levers are moved back farther. Maximum reverse
speed is reached when the levers hit the rear of the
forward-reverse slot. When moving in reverse, push-
ing the levers forward slows the machine, and the
machine stops when the neutral position is reached.
NOTE: Reverse is spring loaded to return to neutral.
This spring resistance may be felt when moving the
traction levers into reverse. When the levers are
released in reverse, spring tension will slowly return
them to the neutral position.
STEERING - To steer, move one lever forward and
one back.
Turns during forward movement:
–Right turn - move the right traction lever back
toward neutral to slow the right drive wheel.
–Left turn - move the left traction lever back to-
ward neutral to slow the left drive wheel.
Turns during reverse movement:
–Reverse right turn - move the right traction lever
forward toward neutral to slow the right drive
wheel.
–Reverse left turn - move the left traction lever
forward toward neutral to slow the left drive
wheel.
Slow, sweeping turns are made with both traction
levers on the same side of neutral and slightly
apart. True zero radius turns about the center of the
machine are made by having one lever in reverse
while the other is in forward. By varying the relative
positions of the two levers, the rate of turn is varied to
suit the mowing situation.
Slow down before making sharp turns. The machine
is capable of turning very rapidly when the levers are
moved further apart from each other. Loss of control
and/or turf damage may result.
Lift and traction levers
(operator's right side)
HEIGHT OF CUT PIN (C) - Sets height of cut
and allows easy return from transport to desired
height of cut. Raise the deck to transport with the
lift lever F. Position pin Cin the hole corresponding
to th desired height of cut. Lower the lift lever until it
rests on pin C.
TRACTION LEVERS (L) - Each of the two trac-
tion levers controls the drive wheel located on the
same side. They control the forward and reverse
movement of the machine, provide steering and also
provide dynamic braking.
The operator must be in the seat and the parking
brake must be OFF or the traction drive cannot be
engaged. To engage traction drive, move the traction
levers toward the center of the machine until they are
out of neutral lock slot S.
Forward movement - To move the machine straight
ahead, push both traction levers forward equally from
their neutral position. Forward speed increases as
the levers are moved farther forward from the neutral
position. Maximum forward speed is reached when
the levers hit the front of the forward-reverse slot.
When traveling forward, pulling the traction levers
rearward slows the machine, and the machine stops
when the neutral position is reached.
CONTROLS

16
PREDATOR-PRO
SERIES
CONTROLS
Located on oil cooler bracket behind seat.
FUEL VALVES (U) - A fuel tank selector valve is
provided on oil cooler mounting bracket.The fuel tank
selector valve has three positions:
Off: The tank selector is off when the lever points to-
ward the machine. The selector should be off when-
ever the machine is transported or stands unused for
any length of time. Shutting off the fuel supply avoids
the possibility of ooding should any dirt get under
the carburetor oat needle. Leaving the tank selec-
tor in either tank position can allow severe ooding,
which may ruin the engine by diluting the oil.
Right Tank: Fuel ows from the right tank when the
selector is turned 1/4 turn toward the left, when fac-
ing the valve.
Left Tank: Fuel ows from the left tank when the
selector is turned 1/4 turn toward the right, when fac-
ing the vlave.
DFI - FULE VALVES (V)-
(942515G - S/N 00288 AND BELOW)
(942516G - S/N 00187 AND BELOW)
A fuel tank selector valve is provided on the left side
behind operator's seat.
Off: The tank selector is off when the lever points to
the front of the machine. The selector should be off
whenever the machine is transported or stands un-
used for any length of time. Shutting off the fuel sup-
ply avoids the possibility of ooding should any dirt
get under the carburetor oat needle. Leaving the
tank selector in either tank position can allow severe
ooding, which may ruin the engine by diluting the oil.
Right Tank: Fuel ows from the right tank when
the selector is turned 1/4 turn toward the rear of the
machine. Left Tank: Fuel ows from the left tank when the
selector is turned 1/4 turn toward the left hand side of
the machine.
12 VOLT POWER OUTLET (X) - A 12 volt
power outlet is provided to operate 12 volt personal
accessories.

17
PREDATOR-PRO
SERIES
FOOT LIFT PEDAL
The foot lift pedal A, allows the operator to raise the
mower deck to the highest position without removing
his/her hands from the traction controls.
To use the foot lift pedal A, press on it to raise the
deck. The picture shows the foot lift pedal mounted
on the RH side of the machine. If you prefer to have
the foot mounted lift pedal on the left hand side,
simply loosen the existing hardware and mount the
foot lift pedal in a similar manner to the left hand side.
Tighten the hardware to secure the foot lift pedal.
CONTROLS
PARKING BRAKE (R) - Pull the parking brake
lever up and back to put the parking brake ON. Push
it forward and down to put the parking brake OFF.
The parking brake must be ON to start the engine. It
must also be ON and the traction levers must be in
neuetral to keep the engine running if the operator
leaves the seat. The parking brake must be OFF
to keep the engine running when a traction lever is
moved out of neutral lock.
PUSHING THE MACHINE
Hydrostat bypass valves (“dump valves”) on each
hydrostatic pump allow the machine to be pushed or
towed without the engine running. Parking Brake
must be off. Raise the seat to gain access to these
two valves V. Turn both valves counterclockwise 1
turn to release the hydrostatic system. Restore the
hydrostatic system by turning the valves clockwise
only until they re-seat. DO NOT overtighten.
Use caution if it is necessary to tow the machine.
With the bypass valves open, the dynamic braking
and steering provided by the hydrostats is disabled.
Towing should be done only if a disabled machine
cannot be repaired where it broke down.
Compartment beneath the seat,
viewed from above
Parking brake in ON position
(operator's left side)

18
PREDATOR-PRO
SERIES
PRE-OPERATION CHECK LIST
(OWNER’S RESPONSIBILITY)
___ Review and follow all safety rules and safety
decal instructions.
___ Check that all safety decals are installed and in
good condition. Replace if damaged.
___ Check to make sure all shields and guards
are properly installed and in good condition.
Be sure that either the discharge shield or
complete vacuum attachment is installed.
___ Check that all hardware is properly installed.
and secured.
___ Check that equipment is properly and securely
attached to power unit.
___ Check to be sure engine is free of dirt and
debris. Pay particular attention to the cooling
ns, governor parts and mufer. Clean air
intake screen. Check air cleaner; service if
necessary.
___ Never allow riders.
___ Inspect area and remove stones, branches or
other hard objects that might be thrown,
causing injury or damage.
___ Clean area around oil ll dipstick. Remove
dipstick and check to be sure oil is in operating
range (between marks on dipstick). Add oil if
necessary but Do Not Overll. Install dipstick
assembly rmly until cap bottoms out on tube.
Dipstick assembly must always be secured into
ll tube when engine is running.
___ Check all lubrication points and grease as
instructed in manual.
___ Check hydrostatic uid level. Check to be sure
cooling ns on hydrostat are clean.
___ Perform a functional check of the safety
interlock system each time you operate the
unit.
PRE-OPERATION CHECK LIST
