SKOPE Centaur Series
Horizontal and Vertical Chillers and Freezers
User Manual MAN11086 Rev.5.0 Nov. 2018

CONTENTS
1 Models
Undercounter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Sandwich. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Pizza . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Vertical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Installation
Safety First . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Locating the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Positioning the Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Castors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Adjustable Height Legs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Shelving. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Gastronorm Containers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Sandwich and Pizza Cabinets . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Drawer Cabinets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Operation
Automatic Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Refrigeration Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Electronic Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Electronic Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Faceplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Stand-by Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Temperature Setpoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

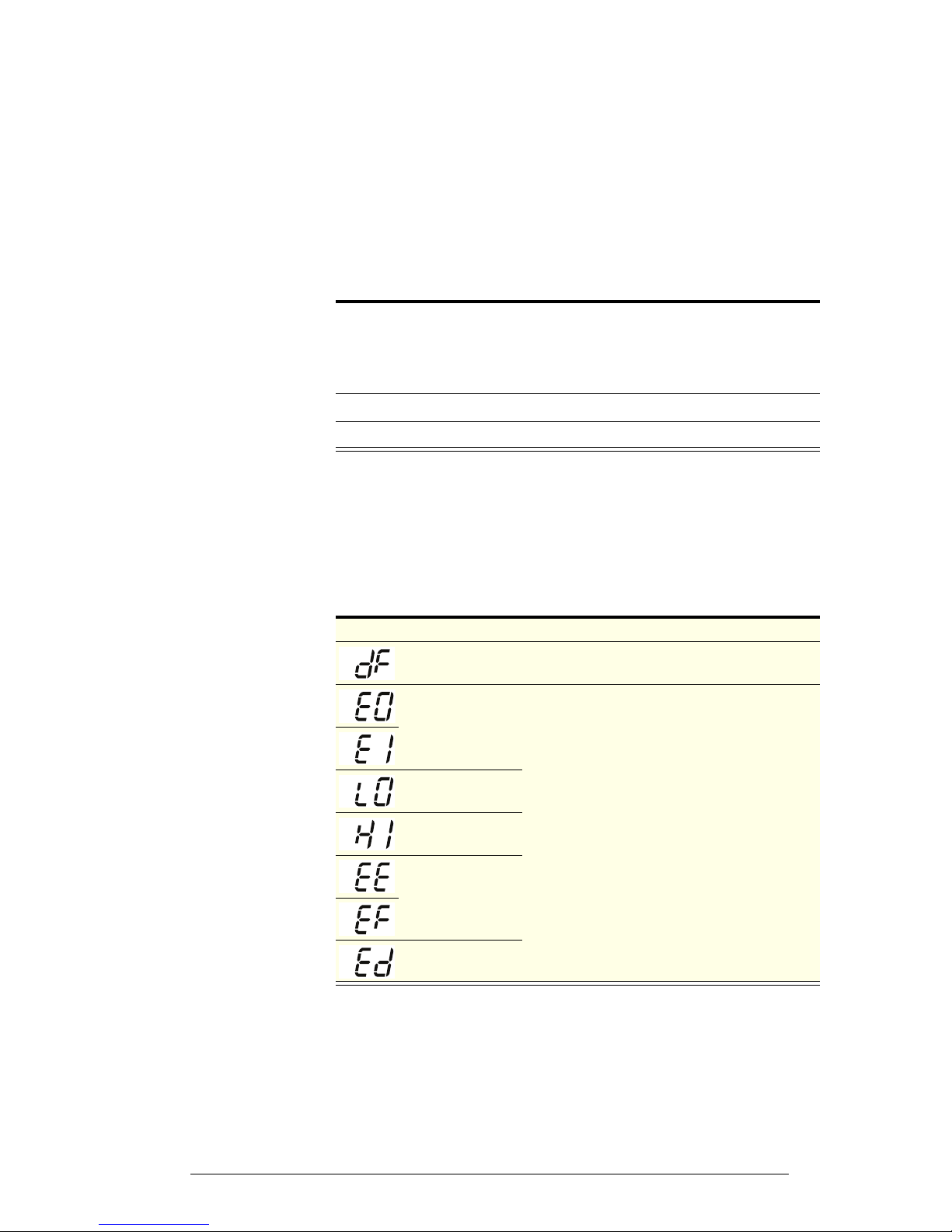

Controller Messages and Alarms . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Maintenance
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

SKOPE Centaur Series
User Manual 4
1Models
Undercounter
Sandwich
Pizza
Vertical
Model Type Part No. Doors Operating temperature
range
BC070-CB
Chiller
B070CB-1ROOS-E 1 × solid door
1°C to 4°C up to 38°C
ambient
BC090-C B090-C-1ROOS-E 1 × solid door
BC090-CS B090-CS-3ROOS-E 3 × drawers
BC120-C B120-C-2RROS-E 2 × solid door
BC180-C B180-C--3RRRS-E 3 × solid door
BC180-CS B180-CS-6RROS-E 6 × drawers
BC120-CG B120-CG-2RROS-E 2 × glass door 1°C to 4°C up to 32°C
ambient
BC180-CG B180-CG-3RRRS-E 3 × glass door
BC120-C Freezer B120-C-2FFOS-E 2 × solid door -23°C to -18°C up to 38°C
ambient
BC150-C Chiller/Freezer B150-C-2FROS-E 2 × solid door
Chiller: 1°C to 4°C up to
38°C ambient
Freezer: -23°C to -18°C up
to 38°C ambient
Model Type Part No. Doors Operating temperature
range
BC120-S
Chiller
B120-S-2RROS-E 2 × solid door 0°C to 5°C for up to 4
hours in 30°C ambient
(with hinged pan covers
raised)
BC180-S B180-S-3RRRS-E 3 × solid door
Model Type Part No. Doors Operating temperature
range
BC180-P
Chiller
B180-P-2RROS-E 2 × solid door 0°C to 5°C for up to 4
hours in 30°C ambient
(with hinged pan covers
raised)
BC240-P B240-P-2RRRS-E 3 × solid door
BC240-PS B240-PS-22RRRS-E 2 × solid doors
and 2 × drawers
Model Type Part No. Doors Operating temperature
range
BC074 Chiller B074-1ROOS-E 1 × solid door 1°C to 4°C up to 38°C
ambient
BC126 B126-2RROS-E 2 × solid doors
BC074 Freezer B074-1FOOS-E 1 × solid door -23°C to -18°C up to 38°C
ambient
BC126 B126-2FFOS-E 2 × solid doors
BC126 Chiller/Freezer B126-2RFOS-E 2 × solid doors
Chiller: 1°C to 4°C up to
38°C ambient
Freezer: -23°C to -18°C up
to 38°C ambient

5
SKOPE Centaur Series
Installation
User Manual
2Installation
Safety First Always observe safety precautions when using any electrical appliance.
Read these instructions carefully and retain them for future reference.
When the appliance is used by or near young children or infirm persons,
close supervision is necessary, especially to ensure children do not play
with it.
Do not use this appliance for other than its intended use.
Do not cover the grilles or block the entry or exhaust of airflow by
placing objects up against the refrigeration unit.
Do not probe any opening.
Only use this appliance with the voltage specified on the rating label.
Ensure the appliance has adequate ventilation as this is essential to
economical, high performance.
Be careful not to touch moving parts and hot surfaces.
For your own safety and that of others, ensure that all electrical work is
done by authorised personnel.
If the power supply flexible cord becomes damaged, it must be replaced
by an authorised service agent or similarly qualified person in order to
avoid a hazard.
Ensure all necessary safety precautions are observed during installation
or removal of the refrigeration unit.
The appliance is not designed to be stable while in motion. Use extreme
caution when moving or transporting it.
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
Please contact SKOPE customer services for advice regarding disposal
of this appliance.
CAUTION
Never overload the power supply, which could damage the
cabinet and product. See the rating label inside the cabinet for
the safe power supply and current draw.
WARNING
Always disconnect the cabinet from the mains power supply
before any cleaning or maintenance.

6Installation
User Manual
SKOPE Centaur Series
Locating the Cabinet
Location When positioning the cabinet, avoid direct sunlight and warm draughts etc,
and areas where the refrigeration unit could be exposed to water or
moisture. The cabinet must NOT be situated where it is affected by warm or
hot air from adjacent equipment, as this will compromise the airflow and
performance of the cabinet. This chiller is designed to operate within a
specific climatic class environment (see cabinet rating label for climate class
number).
Climate Classes
The cabinet must be positioned on a level surface for the doors to shut and
seal correctly, and to prevent the condensate tray from overflowing.
Adequate allowance should be made for door and/or drawer opening.
Sandwich and Pizza cabinets have pan openings with hinged pan covers on
the top of the cabinet. Maximum air movement around the opening area of
the cabinet must not exceed 0.3 m/s. Excessive air movement will cause
failure of the air curtain above the pans and excessive temperature rise.
When installing the cabinet
Ensure all packaging is removed from the cabinet.
Avoid direct sunlight and warm draughts etc.
Allow adequate space for the door/s and/or drawer/s to open fully.
Ensure the cabinet is positioned on a level surface so the door/s shut
and seal correctly and to prevent the condensate tray from overflowing.
Air movement above Sandwich and Pizza cabinets must not exceed 0.3
m/s.
Ventilation It is critical that the hot refrigeration exhaust air is not restricted and that it
can easily flow out and away from the front of the cabinet. Never store
cardboard cartons or other items in front of or on top of the refrigeration unit.
The ventilation slots on the refrigeration unit front cover and at the rear of
the cabinet must be kept clear at all times. Normal operating conditions
should not exceed the operating temperature range (see page 4).
Horizontal cabinets (undercounter, sandwich and pizza)
Ensure there is always at least a 150mm gap around the back and the
refrigeration unit side of the cabinet.
Vertical cabinets
Ensure there is always at least a 150mm gap around the back and sides of
the cabinet, and at least 500mm above the cabinet.
Power Supply The cabinet is supplied with a flexible power cord and plug which exits the
rear of the cabinet.
Before final positioning of the cabinet, pull the power cord out from the rear
compartment and connect to the power supply. For convenience, any
surplus cord length may be left inside the cabinet compartment.
Climate Class Ambient Temperature Relative Humidity (RH)
325°C 60%
430°C 55%
540°C 40%
WARNING
Do NOT overload the power supply. See the rating label inside
the cabinet for power supply and current draw.

7
SKOPE Centaur Series
Installation
User Manual
Positioning the Cabinet
The cabinet is fitted with a set of four swivel castors, and is supplied with a
set of four adjustable height legs, which can be fitted in place of the castors
depending on specific height and manoeuvrability requirements. The legs or
castors should be fitted to the base of the cabinet before final positioning.
Castors The castors screw into the castor mounting plates on the bottom of the
cabinet. Where castors are fitted, the two lockable castors should be fitted
to the front of the cabinet and the non-locking castors fitted to the rear.
Adjustable
Height Legs
The adjustable height legs screw into the castor mounting plates on the
bottom of the cabinet. Remove the castors to fit the legs.
Rotate the bottom section of the legs to adjust the height. The legs can be
used to raise the cabinet between 100mm and 160mm above the floor.
To adjust leg height
Refer to the table below for the adjustable height leg part number.
Adjustable height leg part number
1. Turn the plastic foot at the bottom of the leg clockwise to increase, or counter-
clockwise to decrease the height.
Item description SKOPE part number
Centaur adjustable height leg BC-AJL03-00

8Installation
User Manual
SKOPE Centaur Series
Shelving
The cabinet is supplied with shelves and shelf support brackets which can
be positioned at different heights to suit various products.
To fit the shelves
The cabinet should be left running for 30 minutes before loading with
product.
When loading product
Allow air space around all the product to ensure even cooling and
efficient operation of the cabinet.
Do not allow products to overhang the front of the shelf as this could
prevent the doors from shutting. Leave an airspace of at least 75mm
above product loaded on the top shelf.
Do not exceed a maximum loading of 20kg per shelf.
Remove some product if the shelves are flexing or bending.
1. Unpack the shelving items from inside the cabinet.
2. Establish the desired position for each of the shelves, based on the height of
the product intended to go on each shelf.
3. Fit the shelf support brackets into the corresponding slots in both the front
and back support strips. Each shelf requires four support brackets.
4. Sit each shelf on the support brackets.

9
SKOPE Centaur Series
Installation
User Manual

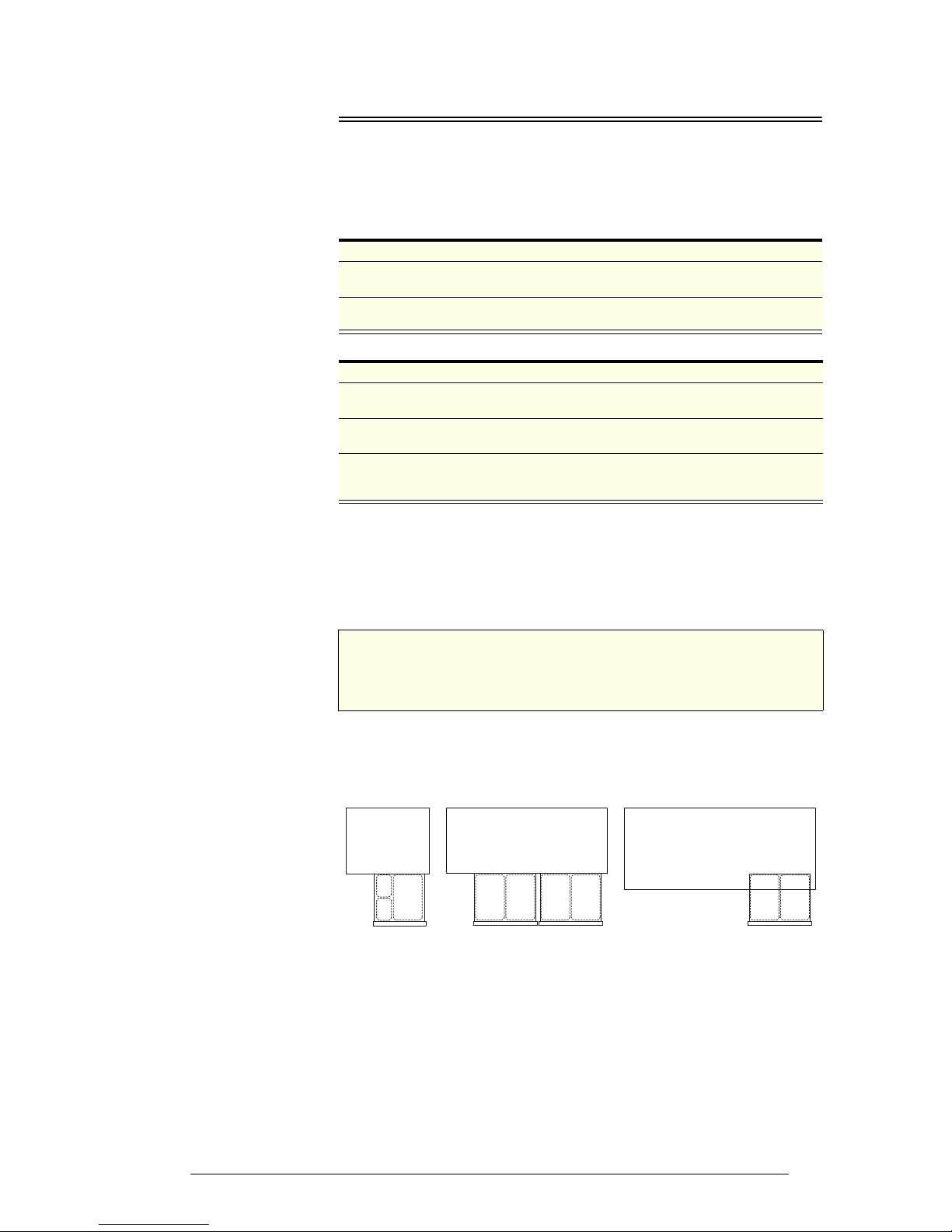

Gastronorm Containers
Sandwich and
Pizza Cabinets
Sandwich and Pizza cabinets are supplied with gastronorm food preperation
containers which fit into openings on top of the cabinet, and hinged covers.
Refer to the tables below for standard container and hinged cover quantities:
Sandwich cabinet
Pizza cabinet
For correct operation of the cabinet, the hinged covers must stay closed to
cover the food preparation containers when not in use. The maximum
recommended operating ambient temperature for Sandwich and Pizza
cabinets is 30°C. Leaving the covers raised for more than 4 hours at the
maximum operating temperature will compromise the performance of the
chiller.
Drawer
Cabinets
Drawer cabinets are fitted with dividers designed to fit various 150mm deep
gastronorm containers, as shown below. Containers are not included with
the cabinet.
Model Doors Pans Hinged covers
BC120-S 2 doors 6 × 1/3 refrigerated containers
(176mm wide × 325mm deep) 1
BC180-S 3 doors 9 × 1/3 refrigerated containers
(176mm wide × 325mm deep) 1
Model Doors/Drawers Pans Hinged covers
BC180-P 2 doors 9 × 1/3 refrigerated containers
(176mm wide × 325mm deep) 2
BC240-P 3 doors 12 × 1/3 refrigerated containers
(176mm wide × 325mm deep) 3
BC240-
PS
2 doors and 2
drawers
12 × 1/3 refrigerated containers
(176mm wide × 325mm deep)
(drawer pans not included)
3
IMPORTANT
The hinged pan covers should be closed when the pans are not
in use. Leaving the covers open for extended periods will
compromise performance of the cabinet.
1/4
1/4
1/1 1/1 1/1 1/11/1 1/1 1/1
BC090-CS
3 × refrigerated
stainless steel
drawers
BC180-CS
6 × refrigerated
stainless steel
drawers
BC240-PS
2 × refrigerated
stainless steel
drawers

10 Operation
User Manual
SKOPE Centaur Series
3Operation
Automatic Start-Up
Connect the cabinet to the mains power supply and check operation of the
refrigeration unit and electronic controller. Ensure the cabinet power switch
is turned on.
Power Switch The cabinet is fitted with a power switch, usually located beside the
electronic controller. Depending on the model, it may be necessary to open
the unit front cover to access the switch.
Refrigeration
Unit
The compressor, and the condenser and evaporator fans should all operate
within two minutes from the time the cabinet is plugged in. This may be
verified by listening for compressor switch-on and checking for air
movement inside the cabinet. The compressor and condenser fan will switch
off when the cabinet internal air reaches a pre-set temperature.
Electronic
Controller
When the cabinet is connected to the power supply, the electronic controller
will display the current cabinet temperature. The compressor symbol will
come on after a few minutes, indicating the compressor and condenser fan
is operating.
To ensure efficient operation, the electronic controller forces regular
defrosts. During the defrost cycle, the compressor and condenser fan switch
off and the evaporator fan stays on.
IMPORTANT
If the cabinet has been on its back, leave for 30 minutes
before running.

11
SKOPE Centaur Series
Operation
User Manual
Electronic Controller
Introduction Depending on the model, the cabinet will be fitted with a CAREL Easy
electronic controller or a CAREL ir33 electronic controller (refer to faceplate
below to identify the type of electronic controller.
The electronic controller is visible through a cut-out in the front panel. It
controls and displays the cabinet interior temperature and signals
temperature alarms. It uses temperature probes around different areas of
the refrigeration system to collect data and runs the cabinet accordingly .
The electronic controller is pre-programmed and requires no initial setup or
additional programming. SKOPE does not recommend that the settings be
changed unless it is absolutely necessary.
Faceplate Because the electronic controller plays such an important role, it’s helpful to
know the parts of the faceplate you may use.
CAREL Easy electronic controller
1 2 3
5
4
CAREL Easy
electronic controller
faceplate
Item Icon Function
1
Compressor indicator: ON when the compressor and
condenser fan starts. Flashes when activation of the compressor
is temporarily delayed.
2Display: Shows the cabinet temperature. Flashes when the door
is open.
3
Stand-by (up) button: Turns stand-by mode on and off. To scroll
settings up (in program mode).
Note: This is not an isolation switch.
4Mute (set) button: Mutes the audible alarm (buzzer) and
deactivates the alarm relay, and used in program mode.
5Manual defrost button: Press for more than 5 seconds to initiate
manual defrost. To scroll settings down (in program mode).

12 Operation
User Manual
SKOPE Centaur Series
CAREL ir33 electronic controller
910
11
12
43
15
14
1312
8
7
6
5
5
CAREL ir33 electronic
controller faceplate
Item Icon Function
1
Mute / program: Mutes the audible alarm (buzzer) and
deactivates the alarm relay. To initiate program sets, press for 5
seconds.
2Up: To scroll settings up (in program mode).
3Set point: If pressed for more than 2 seconds displays and / or
enables changing the temperature setpoint.
4Manual defrost / down: Press for more than 5 seconds to initiate
manual defrost. To scroll settings down (in program mode).
5
Compressor: ON when the compressor and condenser fan
starts. Flashes when activation of the compressor is temporarily
delayed.
6Fan: Shows when the fan is operational.
7
Defrost: ON when the defrost is activated. Flashes when the
activation of the defrost is temporarily delayed due to procedures
in progress.
8Aux: n.a.
9Alarm: Flashes in the event of alarms.
10 Clock: n.a.
11 Light: n.a.
12 Service: Flashes in the event of malfunctions.
13 DISPLAY: Shows the cabinet temperature. Flashes when the
door is open.
14 HACCP: n.a.
15 CONTINUOUS CYCLE: On when freezer is running in continuous
run mode.

13
SKOPE Centaur Series
Operation
User Manual
Stand-by
Mode
Only applicable on the CAREL Easy electronic controller. Press and hold the
stand-by button for three seconds to turn stand-by mode on or off. When
stand-by mode is on, the controller display will alternate between the cabinet
temperature and Of, and the compressor, fans and alarms are disabled.
Where applicable, the interior lights are still activated by the door switch and
will come on when a door is opened.
Temperature
Setpoint
The temperature setpoint is factory set and can be adjusted if necessary.
SKOPE do not recommend that the setpoint be changed unless it is
absolutely necessary, and then only by small increments at a time.
To view and adjust the temperature setpoint
Controller
Messages and
Alarms
The following table explains messages that the electronic controller displays
and related alarms. Alarms signal unexpected operational changes in the
freezer and stop when action is taken to resolve the problem.
Note: The messages and alarms differ between the CAREL Easy electronic
controller and the CAREL ir33 electronic controller. Refer to the relevant
table either below (CAREL Easy) or over page (CAREL ir33).
CAREL Easy messages and alarms
1. Press and hold the set button until the controller display shows SEt followed
by a temperature value. The temperature value is the current setpoint.
Note: If PS appears on the display, the set button has been held for to long.
Release it, then press the set button twice to restart the procedure.
2. Press the up and down buttons to adjust the value to the required setpoint.
3. Press the set button again to memorise the new setpoint value.
Code Alarm Action
Defrost cycle in
progress mesasge
Cabinet is running correctly. Message will stop
displaying once the defrost cycle is complete.
Temperature sensor
fault alarm
Reset alarm by unplugging the cabinet from the power
supply for one minute, then reconnect.
If alarm persists, arrange service call.
Product low
temperature alarm
Product high
temperature alarm
Parameter error alarm
Defrost error alarm

14 Operation
User Manual
SKOPE Centaur Series
CAREL ir33 messages and alarms
Code Display Alarm Action
Flashing
Product HIGH
temperature alarm
(auto reset)
1. Check the cabinet product loading to ensure
ventilation slots are not blocked, and that
product does not overhang the shelves.
Ensure the doors are closed.
2. Ensure the cabinet is installed with good
refrigeration unit ventilation.
3. Check and clean the condenser coil (see
page 16).
4. If immediate alarm recovery is required -
unplug the cabinet from the power supply for
1 minute, then reconnect to power supply. If
alarm persists, contact SKOPE.
Flashing
Product LOW
temperature alarm
(auto reset)
Flashing
Refrigeration
system high
temperature
pre-warning (auto
reset)
1. Clean the condenser coil (see page 16).
2. Check refrigeration ventilation. Ensure clear
airpath in front of the cabinet.
3. Ensure the cabinet is installed in a suitable
environment.
4. To reset the ‘CHt’ alarm - unplug the cabinet
from the power supply for 1 minute, then
reconnect to power supply. If alarm persists,
contact SKOPE.
Flashing
Refrigeration
system and
cabinet high
temperature
shutdown (manual
reset)
Flashing
Ambient probe
fault (also flashes
‘rE’)
To reset alarm - unplug the cabinet from the
power supply for 1 minute, then reconnect to
power supply.
1. If alarm persists, contact SKOPE.
Flashing
Evaporator probe
fault
Flashing
Condenser probe
fault
None Defrost over-time
limit
Flashing
Real-time clock
fault
Flashing
Controller E prom
error
Flashing
Controller E prom
error
None Start defrost
request
None
None End defrost
request
Flashing
Door open alarm
Check that a door or drawer has not been left
open. Note: The audible alarm buzzer cannot
be turned off manually.

15
SKOPE Centaur Series
Maintenance
User Manual
4Maintenance
Cleaning
To ensure the chiller continues to run efficiently and reliably, the following
maintenance should be carried out:
Cleaning Cabinet Keep the interior and exterior of the cabinet
clean by regular wiping with a damp cloth.
The food preparation pans and air diffuser
panels can be easily lifted from the cabinet
for cleaning (Sandwich and Pizza cabinets
only).
Be careful not to wash any liquid down into
the refrigeration system, as this could lead
to refrigeration failure.
Cleaning Condenser Coil The condenser coil must be cleaned at least
monthly with a soft brush to remove dust
and fluff (see instructions on page 16).
Regular Servicing A thorough service clean must be
completed by qualified service personnel
every six months.
Time Frames Time frames specified above are indicative
only. More regular cleaning and servicing
may be required depending on chiller
placement and operating environment.

16 Maintenance
User Manual
SKOPE Centaur Series
To clean the condenser coil on horizontal cabinets
To clean the condenser coil on vertical cabinets
1. Isolate the cabinet from the power supply by unplugging it from the wall.
2. Open the unit front cover (usually located on the LH side of cabinet) to gain
access to the condenser filter and coil.
Note: On model BC070-CB, the condenser coil is located at the rear of the
cabinet. Pull the cabinet out so access is available at the rear of the cabinet,
and unscrew the condenser coil cover to access the coil.
3. If fitted, remove the condenser filter by sliding it up, and remove all dust and
fluff from the filter.
4. Brush the condenser coil in the directions of the fins to remove all dust and
fluff.
5. Refit the condenser filter, close the unit front cover and reconnect the cabinet
to the power supply.
1. Isolate the cabinet from the power supply by unplugging it from the wall.
2. Swing the top panel (above the door/s) out to gain access to the condenser
coil.
3. Brush the condenser coil in the directions of the fins to remove all dust and
fluff.
4. Close the top panel and reconnect the cabinet to the power supply.
CAUTION
Unplug the cabinet from the mains power supply before
cleaning the condenser coil or washing the cabinet with water.

17
SKOPE Centaur Series
Maintenance
User Manual
Lighting
Cabinet
Interior Lights
Depending on the model, the cabinet may be fitted with one of the light
variations shown in the table below. Follow the relevant procedure further
below to replace the light.
Note: Some models are not fitted with interior lights.
Centaur light variations
To replace an interior 25W bulb (OSRAM PYGMY CL25E14)
To replace an interior 15W T8 fluorescent tube
Centre pillar LED strip light
Centre pillar LED strip lights are non-serviceable items and must not be
tampered with in any way. If a component is suspected of being faulty, a
service call should be arranged so that a replacement component can be
fitted.
Light type
25W bulb (OSRAM PYGMY CL25E14)
15W T8 fluorescent tube
Centre pillar LED strip light
1. Isolate the cabinet from the power supply by unplugging it from the wall.
2. Unscrew and remove the light cover.
3. Remove the light, and replace with the same type.
4. Refit the light cover and reconnect the cabinet to the power supply.
1. Isolate the cabinet from the power supply by unplugging it from the wall.
2. Remove the diffuser by squeezing it until it is released from the housing, and
then push the diffuser out of the way.
3. Rotate the fluorescent tube until the pins on the ends of the tube align with
the slots, then slide it out. Note: Access can be made easier by removing the
shelves.
4. Fit a new fluorescent tube and clip the diffuser back into place. When fitting
vertically mounted fluorescent tubes, ensure the tube is fitted with the ‘Power’
end at the top.

18 Maintenance
User Manual
SKOPE Centaur Series
Troubleshooting
Complaint Possible Cause Repair
1. Cabinet not
operating and
no controller
display:
• Loss of power supply. • Check that the cabinet
power switch is turned on
(see page 10).
• Check mains power supply.
2. Power
consumption
is higher than
expected:
• Unit operating too hot. • Clean condenser. Ensure
the cabinet is installed with
good ventilation around the
refrigeration unit.
• Cabinet doors are opened
excessively.
• Keep door/s open for
minimum time.
3. Product is too
warm and
spoiling:
• Restricted cabinet airflow. • Ensure product is not
blocking airflow slots and the
product is no closer than
75mm from the cabinet top.
• Temperature setpoint is too
warm.
• Adjust setpoint (see
page 13).
• Food preparation covers
raised for extended periods.
• The covers must stay closed
when not in use (see
page 9).
4. Warm cabinet
temperatures
and/or
compressor
operating for
long periods
(more than 1
hour):
• Blocked condenser. • Clean condenser coil (see
page 16).
• Poor refrigeration unit
ventilation.
• Ensure the cabinet is
installed with good
ventilation around the
refrigeration unit.

SKOPE Contacts
SKOPE Industries Limited
NEW ZEALAND CONTACT
Head Office
PO Box 1091, Christchurch
New Zealand
Freephone: 0800 947 5673
Fax: [phone]
E-mail: [email protected]
Website: www.skope.co.nz
AUSTRALIAN CONTACT
A.B.N. 73 374 418 306
PO Box 7543, Baulkham Hills B.C.
NSW 2153, Australia
Freephone: 1800 121 535
Fax: [phone]
E-mail: [email protected]
Website: www.skope.com.au
SKOPE Centaur Series
Horizontal and Vertical Chillers and Freezers
User Manual
MAN11086
Rev. 5.0 Nov. 2018
© 2015 SKOPE Industries Limited. All rights reserved.
SKOPE Industries Limited reserve the right to alter specifications without notice.
and are registered trademarks of SKOPE Industries Limited.
