screwfix 3345F Manual

For your safety, always switch off the supply before changing lightbulbs, or cleaning.
This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should be scrapped.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.
Recycling advice
Safety information
Care and cleaning
Do not use solvents or abrasive cleaners as these could damage the finish.
In normal circumstances, stainless steel is very resistant to corrosion. It does however require maintenance to
preserve the high quality appearance. Wash the product with warm soapy water, removing all surface deposits. Rinse
with clear water and with a soft cloth, wipe dry.
In some cases, surface corrosion may arise after installation. This is normally caused by tiny iron particles left behind
after the brushing process when finishing.
Wash and dry as detailed above. Then with a soft cloth soaked with a protective oil, wipe all over.
However if the product is subject to extreme environmental conditions such as marine locations, industrial pollution
and acid rain these maintenance procedures should be carried out around four times a year. For severe corrosion,
non-abrasive cream cleaners or proprietary stainless steel cleaners should be used to remove the corrosion. Wash
and dry as detailed above. Then with a soft cloth soaked with a protective oil, wipe all over.
Do not clean the units with a pressure washer.
Instruction leaflet
Inca LED Outdoor Wall Light
3345F
The LEDs are protected by a glass shade. The shade cannot be replaced, if the shade becomes cracked or damaged,
this fitting must be discarded.
20/09/2021
UK Manufacturer:
BH17 7BY
EU Manufacturer:
1 Gnarrenburg, 27442
This product contains a light source of energy efficiency class F.

Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and
satisfactory operation of this product. Please retain these instructions for future reference.
Warning
Specification
Voltage: 240V 50Hz a.c.
Lamp: 3W LED Module
IP rating: 44
Installation
Existing fittings must be completely removed before installation of
a new product. Before removing the existing fitting, carefully note
the position of each set of wires.
• Remove mounting box (A) from the product by removing
dome nuts (C) and washers (D). Pull terminal block off of
retaining pegs. Carefully pierce a small hole in the rubber
gasket in the centre of the mounting box to allow the cable
to pass through.
• Thread the cable through the hole, ensuring the drain hole is
at the base of the mounting box.
• Fix the mounting box to the wall using the screws and plugs
supplied (B). Ensure the wall is capable of holding the weight
of the product. Take care to avoid damaging any concealed
wiring and pipes. The correct fixings should be used for brick
or cavity walls.

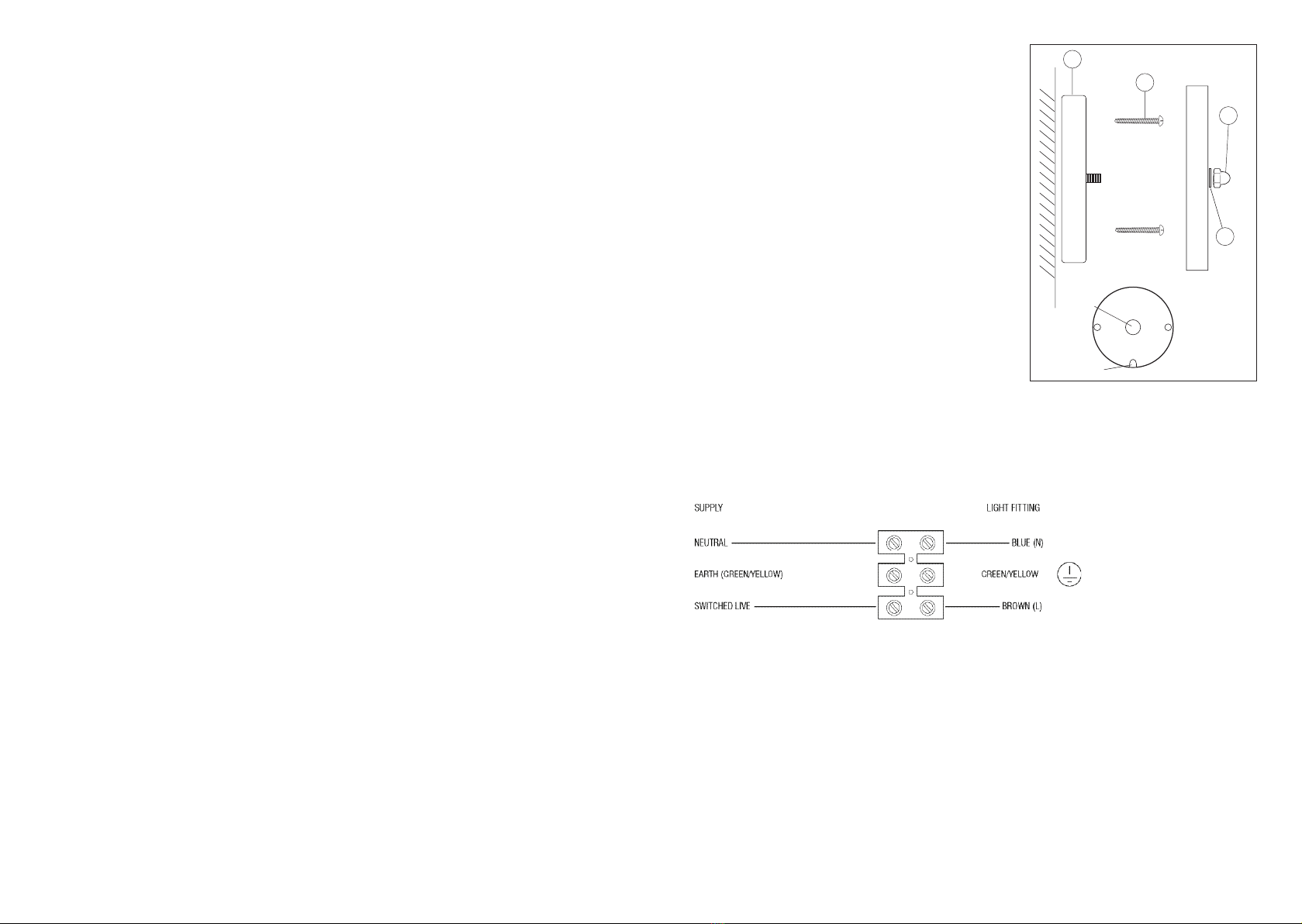

Having correctly identified the wiring from your existing light fitting, pull the wire through the hole and connect to the
connection block inside the product in the following way:
Wiring
This is a Class 1 product and must be earthed.
Please read these instructions carefully before commencing any work.
This unit must be fitted by a competent and qualified electrician.
Install in accordance with IEE Wiring regulations and current Building Regulations.
To prevent electrocution switch off at mains supply before installing or maintaining this fitting. Ensure other persons
cannot restore the electrical supply without your knowledge. If you are in any doubt, please consult a qualified
electrician.
This light fitting should be connected to a circuit with a 30mA RCD fitted.
If replacing an existing fitting, make a careful note of the connections.
This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should be scrapped.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authority or retailer for recycling advice.
This product is not suitable for dimming.
This product is rated at IP44.
This product is not suitable for location in or near a marine or sea environment.
• Fit the product back on to the mounting box and refit washers (D) and dome nuts (C), tighten dome nuts to
secure.
• Replace fuse or circuit breaker and switch on. Your light is now ready for use.
Commissioning
This system contains non-replaceable parts and cannot be serviced.
Fitting/replacing bulbs
A
B
C
D
Gasket
Drain hole
Front view of
mounting box
• You have correctly identified
the wires.
• The connections are tight.
• No loose strands have been
left out of the connection
block.
Check that...
