Scrollvac SCROLLVAC SC 5 D User manual

SCROLLVAC
SC 5 D, SC15 D, SC 30 D, SC 60 D
Oil-free Vacuum Pump
Operating Instructions GA01423_002_C0
Part Nos.
133 000
133 001
133 002
133 003
133 004
133 008
133 100
133 101
133 102

Contents
2
GA01423_002_C0 - 10/2016 - © Leybold
Page
0 Important Safety Information 4
0.1 Mechanical Hazards 4
0.2 Electrical Hazards 4
0.3 Thermal Hazards 4
0.4 Hazards Caused by Materials and Substances 5
0.5 Danger of Damages to the Pump 5
1 Description 8
1.1 Design and Operation 8
1.2 Component Designations of the Individual Pump Types 10
1.2.1 Ordering Information 10
1.3 Technical Data 11
1.3.1 Motor Data 12
1.3.2 Dimensions 15
2 Transport and Storage 18
3 Installation 19
3.1 Checking the Product 19
3.2 Conforming Use 20
3.3 Ambient Conditions 21
3.4 Setting up the Pump 22
3.5 Electrical Connections 23
3.5.1 Single-phase Motors 23
3.5.2 Three-phase Motors 26
3.6 Connection to the Vacuum System 29
4 Operation 30
4.1 Start-up 31
4.2 Pumping 32
4.3 Purge Gas Operation (pumping of vapours) 32
4.4 Shutdown 34
5 Maintenance 35
5.1 Table - Maintenance 37
5.2 Leybold Service 38
5.3 Waste Disposal 38
6 Troubleshooting 39
7 Spare Parts 40
EC Declaration of Conformity 41

Safety Information
3
GA01423_002_C0 - 10/2016 - © Leybold
Original Operating Instructions.
Obligation to Provide Information
Before installing and commissioning the equipment, carefully read these
Operating Instructions and follow the information so as to ensure optimum
and safe working right from the start.
The Leybold SCROLLVAC has been designed for safe and efficient opera-
tion when used properly and in accordance with these Operating Instructions.
It is the responsibility of the user to carefully read and strictly observe all safe-
ty precautions described in this section and throughout the Operating
Instructions. The pump must only be operated in the proper condition and
under the conditions described in the Operating Instructions. It must be oper-
ated and maintained by trained personnel only. Consult local, state, and
national agencies regarding specific requirements and regulations. Address
any further safety, operation and/or maintenance questions to our nearest
office.
DANGER indicates an imminently hazardous situation which, if not avoid-
ed, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE is used to notify users of installation, operation, programming or
maintenance information that is important, but not hazard related.
We reserve the right to alter the design or any data given in these Operating
Instructions. The illustrations are not binding.
Retain the Operating Instructions for further use.
NOTICE
DANGER
WARNING
CAUTION
NOTICE

Safety Information
4
GA01423_002_C0 - 10/2016 - © Leybold
0 Important Safety Information
0.1 Mechanical Hazards
1 Avoid exposing any part of the human body to the vacuum.
2 Never put fingers or foreign matter into the pump‘s inlet or the clear-
ance of fan blades. If done, it can cause injury.
3 Make sure that the gas flow from the exhaust port is not blocked or
restricted in any way.
4 Pumps with single-phase motors have an internal thermal protector.
These motors restart without warning after the protector trips back.
0.2 Electrical Hazards
1 Wiring must be done by a qualified electrician. Otherwise there is the
risk of suffering an electric shock.
2 Prevent short-circuits with a ground fault circuit interruptor (GFCI) of
proper capacity. Failure to do so can result in electric shock or fire.
3 Be sure to install a main disconnect switch. Failure to do so can result
in damage, fire, or injury.
4 Be sure to disconnect the electric source before changing the wiring or
before an inspection. Failure to do so can result in electric shock or
damage by the rotating fan.
5 Ensure proper grounding of the pump. Otherwise there exists the risk
of suffering an electric shock or igniting a fire.
6 Install in an area which is not exposed to moisture such as rain or
steam. Exposure to moisture can cause eIectric shock.
7 Be sure to check wiring diagram before connecting a power supply.
Failure to do so can result in damage.
8 Be sure to disconnect the electric source before changing the wiring or
before an inspection. Failure to do so can result in electric shock or
damage by the rotating fan.
0.3 Thermal Hazards
1 Do the maintenance after the pump has fully cooled down. Performing
maintenance on a hot pump can cause burns.
WARNING
DANGER
CAUTION

Safety Information
5
GA01423_002_C0 - 10/2016 - © Leybold
0.4 Hazards Caused by Materials and Substances
1 Never pump toxic, explosive, flammable, corrosive gases, chemicals,
solvents or powders. Flowing substances, explosion or fire can cause
bodily injury.
2 Install the pump in an area without explosive or flammable substances.
Otherwise, it can cause explosion or fire.
0.5 Danger of Damages to the Pump
1 Ask a specialist to perform repairs. Otherwise there exists the risk that
the pump may fail, is damaged or its service life is severely reduced.
Trained customers may perform maintenance themselves.
2 Use at ambient temperatures of 5 - 40 °C (during operation). Operating
outside of this range can cause damage or shorten service life.
Always operate the pump with the fan and terminal covers in place.
Always operate the single-phase pumps with the capacitor cover in
place.
3 Conduct periodic maintenance and inspections. Failure to do so can
cause damage or reduced service life.
4 Be sure to close the isolation valve between pump and vacuum sys-
tem (chamber) during startup and shutdown. If this valve is open,
debris attached to the inside of pump can be drawn back into the vac-
uum chamber.
DANGER
NOTICE

Safety Information
6
GA01423_002_C0 - 10/2016 - © Leybold
Fig. 0.1 Placement of the warning stickers
Electric
shock
Terminal cover Capacitor
cover
SC 5 D
Single-phase
SC 15 D
Single-phase
SC 15 D
Three-phase
Always keep warning stickers clean. If they become dirty or lost, replace them with new ones.
If you need stickers, contact Leybold.
Electric
shock
Terminal cover
Capacitor
cover
Cover for operating
hours counter
Electric
shock
Terminal cover Cover for operating hours
counter

Safety Information
7
GA01423_002_C0 - 10/2016 - © Leybold
SC 30 D
Single-phase
SC 30 D
Three-phase
Electric
shock
Terminal
cover
Cover for operating
hours counter
Capacitor cover
Electric
shock
Terminal cover Cover for operating hours
counter
Fig. 0.2 Placement of the warning stickers
Always keep warning stickers clean. If they become dirty or lost, replace them with new ones.
If you need stickers, contact Leybold.
SC 60 D
Three-phase
Electric
shock
Terminal cover
Cover for operating hours
counter

Description
8
GA01423_002_C0 - 10/2016 - © Leybold
1 Description
1.1 Design and Operation
The SCROLLVAC vacuum pumps are oil-free vacuum pumps. Each
SCROLLVAC consists of two Archimedes spirals offset within each other by
180 °. Thus several crescent-shaped pockets of different sizes are created.
With the aid of an eccentric drive, the second spiral orbits about the fixed
spiral thereby reducing, respectively increasing the volume of the pockets
whereby the gases are conveyed from outside to inside thereby being com-
pressed.
Fig. 1.1 Component designations (SC 5 D)
SC 5 D Inlet Fan
Motor
ON /OFF switch under the cover
Operating hours counter
Fixed scroll (1)
Orbiting scroll
Venting connection
Fixed scroll (2)
Fan
Fan cover
Inlet flange
(DN 25)
Fan cover
Venting connection
Exhaust flange
(DN 16)
Carrying handle
Motor
Direction indicating arrow
Motor terminal box

Description
9
GA01423_002_C0 - 10/2016 - © Leybold

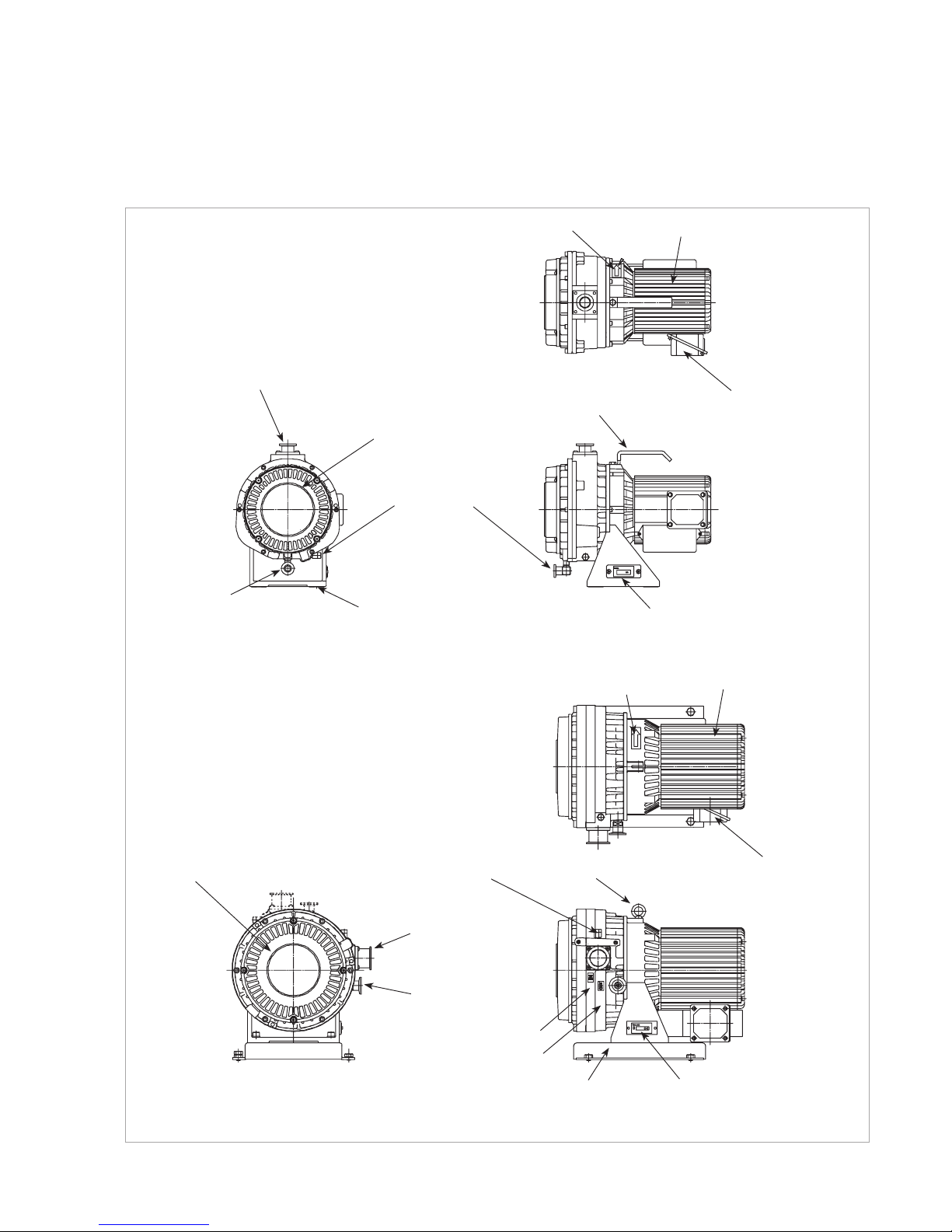

Fig. 1.2 Component designations (SC 15 D/30 D)
SC 15 D
SC 30 D
Motor
Direction indicating arrow
Direction indicating arrow Motor
Motor terminal box
Motor terminal box
Operating hours counter
Operating hours counter
Fan cover
Fan cover
Carrying handle
Venting connection
Rubber support
Outlet flange
DN 16
Inlet flange
DN 25
Crane eyelet
IN plate
OUT plate
Frame
Inlet flange
DN 40
Venting connection
Outlet flange
DN 25

Description
10
GA01423_002_C0 - 10/2016 - © Leybold
1.2 Component Designations of the Individual Pump Types
1.2.1 Ordering Information
Part No.
SC 5 D, single-phase motor, cable with Schuko plug 133 000
SC 15 D, single-phase motor, cable with Schuko plug 133 001
SC 30 D, single-phase motor, cable with Schuko plug 133 002
SC 15 D, three-phase motor 133 003
SC 30 D, three-phase motor 133 004
SC 60 D, three-phase motor 133 008
SC 5 D, single-phase motor, cable with NEMA plug 133 100
SC 15 D, single-phase motor, cable with NEMA plug 133 101
SC 30 D, single-phase motor, cable with NEMA plug 133 102
Fig. 1.3 Component designations (SC 60 D)
Belüftungsanschluss
Einlassflansch DN 40 KF
Auspuffflansch DN 40 KF
Ventilatorabdeckung
Drehrichtungsmarkierung Motor
Motoranschlusskasten
Betriebsstundenzähler
Rahmen
Kranöse
SC 60 D
Fan opening
Direction indicating arrow Motor
Motor terminal box
Fan cover
Venting connection
Outlet flange DN 40 KF
Inlet flange DN 40 KF
Operating hours counter
Crane eyelet
Frame

Description
11
GA01423_002_C0 - 10/2016 - © Leybold
1.3 Technical Data
Model SC 5 D SC 15 D SC 30 D SC 60 D
50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz
Displacement l · min-1 90 108 250 300 500 600 1000 1200
(swept volume) m3· h-1 5 6,48 15 18 30 36 60 72
cfm 3.1 3.8 8.8 10.6 17.6 21.2 35.3 42.3
Pumping speed1 l · min-1 80 93 210 230 420 500 880 1020
m3· h-1 4,8 6,2 13,6 16,4 26,3 31,5 52 62
cfm 2.8 3.6 8 9.6 15.4 18.5 31.0 36.0
Ultimate pressure Pa  ≤5   ≤1.6   ≤1.0   ≤1.0   
  mbar  ≤0.05   ≤0.016   ≤0.01   ≤0.01  
  Torr ≤0.037  ≤0.012  ≤0.0075 ≤0.0075
Leak rate3mbar · l · s-1 1.0 · 10-6 1.0 · 10-6 1.0 · 10-6 1.0 · 10-4
Max. inlet pressure Atmospheric pressure
Ambient operating °C 5 - 40 5 - 40 5 - 40 5 - 40
temperature range
Gas temperature at inlet °C max. 50 max. 50 max. 50 max. 50
Inlet connection DN 25 25 40 40
Exhaust connection DN 16 16 25 40
Cooling Air cooling
Protection class IP 20 20 20 20
Class of equipment Class 1
Miscellaneous With operating hours counter und
purge gas connection
Water vapour tolerance g/day 5 25 25 25
at 25 °C, humidity 60 %,
with opened purge gas4l · min-1 9 10 10 10

Description
12
GA01423_002_C0 - 10/2016 - © Leybold
1.3.1 Motor Data
Motor data SC 5 D
Type Single-phase induction motor / Motor 4P / totally enclosed
insulation class B IP 44
thermal protector TP 212 - automatic reset type
Power consumption W 150
Voltage V 100 115 200 230
Rated current 50 Hz A 2.6 – 1.3 1.6
60 Hz A 2.1 2.2 1.1 1.1
Speed at 50 Hz min-1 1430 – 1430 1440
60 Hz min-1 1730 1740 1730 1740
Noise level2at1m dB(A) ≤52
withpurgegasopen(ON) dB(A) ≤57
Direction of inlet Vertical
Dimensions (L x W x H) mm 308 x 214 x 225
Weight kg 14
Part numbers 133 100 133 000
Motor Data SC 15 D
Type Single ph. induction motor 4P Three-phase induction motor54P
totally enclosed totally enclosed
insulation class B / IP 44 insulation class B / IP 44
thermal protector TP 212
automatic reset type
Power consumption kW 0.4 0.4
Voltage V 100 115 200 230 200 208 230 380 400 415 460
Rated current 50 Hz A 4.8 - 2.6 2.4 1.6 - - 0.9 0.9 1.0 -
60 Hz A 4.8 4.3 2.8 2.4 1.9 1.9 1.8 - - - 1.0
Speed at 50 Hz min-1 1440 - 1430 1450 1420 - - 1440 1440 1440 -
60 Hz min-1 1710 1740 1700 1730 1660 1660 1690 - - - 1720
Noise level2at1m dB(A)  ≤58
withpurgegasopen(ON) dB(A) ≤66
Direction of inlet Vertical
Dimensions (L x W x H) mm 400 x 252 x 336 370 x 252 x 336
Weight kg 25 23
Part numbers 133 101 133 001 133 003

Description
13
GA01423_002_C0 - 10/2016 - © Leybold
Motor Data SC 30 D
Type Single-phase induction motor 4P Three-phase induction motor54P
totally enclosed totally enclosed
insulation class B / IP 44 insulation class B / IP 44
thermal protector TP 212
automatic reset type
Power consumption kW 0.6 0.6
Voltage V 100 115 200 230 200 208 230 380 400 415 460
Rated current 50 Hz A 8.5 - 4.3 3.9 2.7 - - 1.57 1.57 1.63 -
60 Hz A 10 8.6 4.8 4.0 2.8 2.6 2.5 - - - 1.47
Speed at 50 Hz min-1 1430 - 1430 1450 1460 - - 1470 1470 1470 -
60 Hz min-1 1660 1720 1690 1730 1740 1740 1760 - - - 1770
Noise level2at1m  dB(A) ≤62      ≤60       
withpurgegasopen(ON) dB(A) ≤70      ≤68
Direction of inlet Horizontal (arranged at the side)
Dimensions (L x W x H) mm 443 x 328 x 372 (443 x 298 x 397) 372 x 328 x 372 (372 x 298 x 397)
Weight kg 44 38
Part numbers 133 102 133 002 133 004
Motor Data SC 60 D
Type Three-phase induction motor54P
totally enclosed
insulation class B / IP44
Power consumption kW 1.4
Voltages V 200 208 230 380 400 415 460
Rated current 50 Hz A 5.5 -- -- 3.3 3.6 3.8 --
60 Hz A 5.8 5.8 5.7 -- -- -- 3.5
Speed at 50 Hz min-1 1460 -- -- 1470 1470 1470 --
60 Hz min-1 1730 1740 1750 -- -- -- 1760
Noise level2at 1m dB(A) 67
with purge gas open (ON) dB(A) 74
Direction of inlet Horizontal (arranged at the side)
Dimensions (L x W x H) mm 467 x 390 x 421
Weight kg 60
Part number 133 008
*Cannot operate at 115V/50 Hz, 208V/50Hz, 230V/50Hz, 460V/50 Hz, 380V/60 Hz or 415V/60 Hz
Note 1: Pumping speed remains unchanged independently of whether the purge gas inlet is open or closed
Note 2: Noise level is measured at ultimate pressure in an anechoic room
Note 3: The leak rate is measured when the pump is stopped and the purge gas supply is closed (condition as delivered)
Note 4: When the pump is delivered, the purge gas inlet is closed
Note 5: The three-phase motors do not have internal thermal protection. Be sure to install the protection from the side of the remaining system.

Description
14
GA01423_002_C0 - 10/2016 - © Leybold
Fig. 1.4 Pumping speed curves of the SCROLLVAC SC 5 D to SC 60 D
0,10
1,00
10,00
100,00
0,0010,010 0,100 1,00010,000 100,000 1000,000
50 Hz with and without Purge
60 Hz with and without Purge
SC5D
SC15D
SC30D
SC60D
Pumping Speed
Pressure
m3/h
mbar

Description
15
GA01423_002_C0 - 10/2016 - © Leybold
1.3.2 Dimensions
Fig. 1.5 Dimensional drawing of the SC 5 D
SC 5 D
(Dimensions in mm)

Description
16
GA01423_002_C0 - 10/2016 - © Leybold
Fig. 1.6 Dimensional drawing of the SC 15 D
3-phasig 1-phasig
SC 15 D
(Dimensions in mm)
Three-phase Single-phase

Description
17
GA01423_002_C0 - 10/2016 - © Leybold
Fig. 1.7 Dimensional drawing of the SC 30 D
3-phasig 1-phasig
SC 30 D
Fig. 1.8 Dimensional drawing of the SC 60 D
390
218
285
163
320
467
133
421
35055
42
168
SC 60 D
(Dimensions in mm)
Three-phase Single-phase

Transport and Storage
18
GA01423_002_C0 - 10/2016 - © Leybold
2 Transport and Storage
Lift the pump only at the provided handles, respectively crane eyelets.
Exclusively use lifting facilities with sufficient lifting capability. Never stand
under the hanging pump when it is being moved.
Avoid any other orientations during transportation.
CAUTION

Installation
19
GA01423_002_C0 - 10/2016 - © Leybold
3 Installation
3.1 Checking the Product
Check that the package is right-side-up and then open it.
Check that model of the product is one that you ordered.
Check that there is no damage. If there is any damage, file a damage claim
with the carrier.
Remove inlet blank flange and outlet blank flange. If you operate the pump
with blank flanges in place, it can cause damage.
Check that the silencer for the purge gas inlet is present in the plastic bag.
NOTICE
Fig. 3.1 Product check (SC 5 D / SC 15 D)
SC 5 D
SC 15 D
Plastic bag
Silencer Clamp
Blank flange
O-ring
Inlet
Outlet
Clamp
Blank flange
O-ring
Plastic bag
Silencer
Clamp
Blank flange
O-ring
Clamp
Blank flange
O-ring
Inlet
Outlet

Installation
20
GA01423_002_C0 - 10/2016 - © Leybold
3.2 Conforming Use
SCROLLVAC pumps can pump gases and vapours, and evacuate vessels or
vacuum systems in the fine vacuum range.
The pumps are suited for pumping water vapour within the specified water
vapour tolerance limits. Avoid vapours that can condense into liquids when
being compressed inside the pump, if these substances exceed the vapour
tolerance of the pump.
Fig. 3.2 Product check (SC 30 D / SC 60 D)
Blank flange
O-ring Clamp
Inlet
Outlet
SC 60 D
SC 30 D
Plastic bag Silencer
Clamp
Blank flange
O-ring
Clamp
Blank flange
O-ring
Inlet
Outlet
Plastic bag
60 D
60 72
8
1,4
