SCS 2600 User manual

FOR YOUR SAFETY
PLEASE READ THESE INSTRUCTIONS CAREFULLY
AND RETAIN THEM FOR FUTURE USE.
OWNER’S MANUAL
10’’ 26CC CHAINSAW

PAGE 2
1. For Safe Operation 3 - 8
2. Kick Back Prevention 9 -11
3. Protecting Yourself From Vibration 12
4. Explanation of Symbols on the Machine 13
5. Component Diagram 14 - 15
6. Installing Guide Bar and Saw Chain 16 - 19
7. Fuel and Chain Oil 20 - 25
8. Operating the Engine 26 - 30
9. During Operation 31 - 34
10. Maintenance 33 - 38
11. Maintenance of Saw Chain and Guide Bar 39 - 42
12. Troubleshooting Guide 43 - 44
13. Specifications 44
14. Certificate of Conformity 45
CONTENTS
WWW.SGS-ENGINEERING.COM
CALL FOR ASSISTANCE: 01332 576 850

PAGE 3
1. FOR SAFE OPERATION
Read operator’s instruction book before
operating this machine.
Read, understand and follow all warnings.
Wear head, eye and ear protection.
Wear suitable protective clothing for your
safety.
Always use the chain saw with two hands.
Warning! Danger of kickback.
This saw is for trained tree service
operators only.

PAGE 4
WARNING
WARNING!
RISK OF DAMAGING HEARING
Wear head, eye and ear protection
1. FOR SAFE OPERATION
This chainsaw has been especially designed for
tree maintenance and should therefore only be
used by trained operators when working on trees.
Never operate a chain saw when you are
fatigued, ill, upset, or under the influence of
alcohol, drugs or medication.
Use safety footwear, snug fitting clothing,
eye, hearing and head protection devices.
Use chainsaw gloves.
Keep the saw chain sharp and the saw,
including the AV system, well maintained.
A dull chain will increase cutting time, and
pressing a dull chain through wood will
increase the vibrations transmitted to your
hands. A saw with loose components or with
damaged or worn AV buffers will also tend
to have higher vibration levels.
WWW.SGS-ENGINEERING.COM
CALL FOR ASSISTANCE: 01332 576 850

PAGE 5
1. FOR SAFE OPERATION

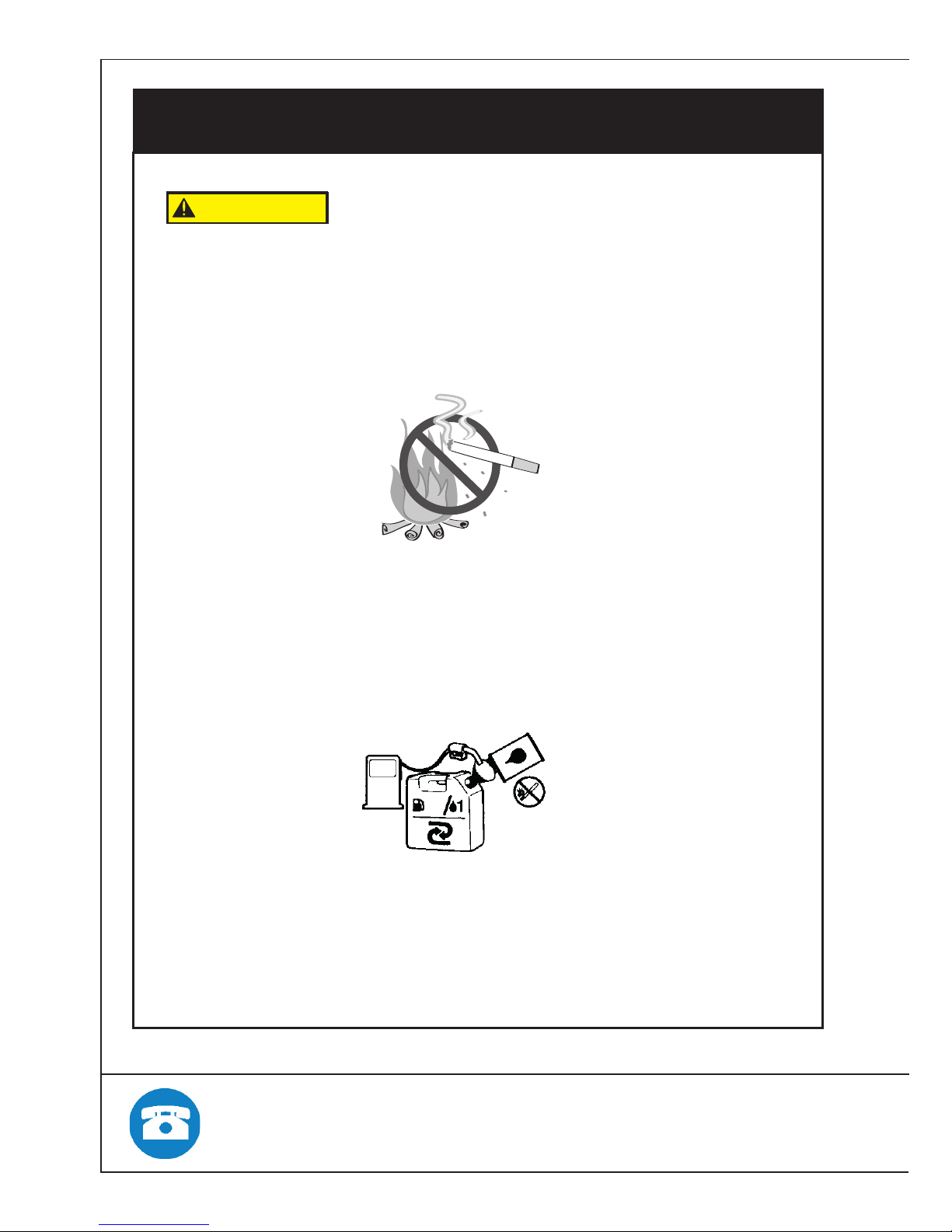

Always use caution when handling fuel.
Wipe up all spills and then move the
chain saw at least 3m from the fueling
point before starting the engine.
Eliminate all sources of sparks or flame
(i.e. smoking, open flames, or work that
can cause sparks) in the areas where fuel
is mixed, poured or stored.
Do not smoke while handling fuel or while
operating the chain saw.
Do not allow other persons to be near
the chain saw when starting or cutting.
Keep bystanders and animals out of the
work area. Children, pets and bystanders
should be a minimum of 10 m away when
you start or operate the chain saw.
Never start cutting until you have a clear
work area, secure footing, and a planned
retreat path from falling trees.
Always hold the chain saw firmly with both
hands when the engine is running. Use
a firm grip with thumb and fingers encir-
cling the chain saw handles.

PAGE 6
Keep all parts of your body away from
the saw chain when the engine is running.
Before you start the engine, make sure the
saw chain is not touching anything.
Always carry the chain saw with the engine
stopped, the guide bar and saw chain to the
rear, and the muffler away from your body.
Never carry whilst engine is running.
Always inspect the chain saw before each
use for worn, Ioose, or damaged parts.
Never operate a chainsaw that is damaged,
improperly adjusted, or is not completely
and securely assembled. Be sure that the
saw chain stops moving when the throttle
control trigger is released.
1. FOR SAFE OPERATION
WWW.SGS-ENGINEERING.COM
CALL FOR ASSISTANCE: 01332 576 850

PAGE 7
1. FOR SAFE OPERATION
All chain saw service, other than the items
listed in the Owner’s Manual, should be per-
formed by competent chain saw service
personnel. (E.g., if improper tools are used
to remove the flywheel, or if an improper
tool is used to hold the flywheel in order to
remove the clutch, structural damage to the
flywheel could occur which could subse-
quently cause the flywheel to disintegrate.)
Always shut off the engine before setting it
down.
Use extreme caution when cutting small size
brush and saplings because slender material
may catch the saw chain and be whipped
toward you or pull you off balance.
When cutting a limb that is under tension,
be alert for spring-back so that you will not
be struck when the tension in the wood
fibers are released.
Never cut in high wind, bad weather, when
visibility is poor or in very high or low tem-
peratures. Always check the tree for dead
branches which could fall during felling
operations.
Keep the handles dry, clean and free
of oil or fuel mixture.

PAGE 8
1. FOR SAFE OPERATION
( 2 )
Operate the chain saw only in well ventilated
areas. Never start or run the engine inside
a sealed room or building. Exhaust fumes
contain dangerous carbon monoxide, and
can easily kill.
Do not operate the chain saw in trees unless
specially trained to do so.
Guard against kickback. Kickback is the up-
ward motion of the guide bar which occurs
when the saw chain at the nose of the guide
bar contacts an object. Kickback can lead to
dangerous loss of control of the chain saw.
When transporting your chain saw, make
sure the appropriate guide bar scabbard is
in place.
Never touch the muffler guard, guide bar,
saw chain or nut with bare hands while the
engine is in operation or immediately after
shutting down the engine. Doing so could
result in serious burns because of high
temperature.
(1) muffler guard
(2) guide bar
(3) saw chain
WWW.SGS-ENGINEERING.COM
CALL FOR ASSISTANCE: 01332 576 850
ENF
EPF

PAGE 9

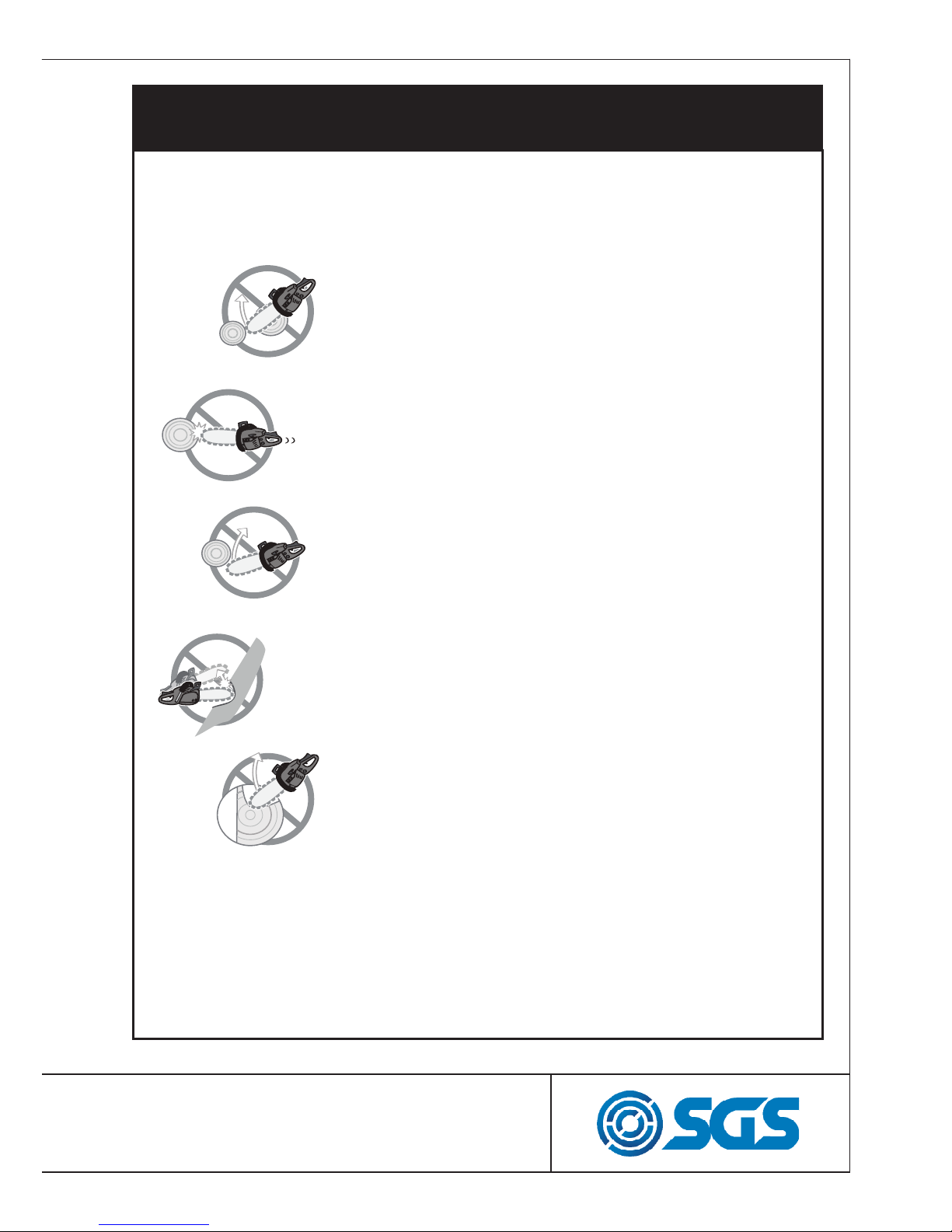

2. KICKBACK PREVENTION
Kickback may occur when the nose or tip of
the guide bar touches an object, or when
the wood closes in and pinches the saw
chain in the cut.
Tip contact in some cases may cause a
lightning fast reverse reaction, kicking the
guide bar up and back towards the opera-
tor.
Pinching the saw chain along the top of the
guide bar may push the guide bar rapidly
back towards the operator.
Either of these reactions may cause you to
Iose control of the saw, which could result in
serious personal injury.
Do not rely exclusively on the safety devices
built into your saw. As a chain saw user you
should take several steps to keep cutting
jobs free from accident or injury- such as:
-Steady, methodical work
-Proper revision of this manual
-Good dilligance
-A clear visual of your work area

PAGE 10
2. KICKBACK PREVENTION
WWW.SGS-ENGINEERING.COM
CALL FOR ASSISTANCE: 01332 576 850
With a basic understanding of kickback
you can reduce or eliminate the element
of surprise. Sudden surprise contributes to
accidents.
Keep a good grip on the saw with both
hands- the right hand on the rear handle;
and the left hand on the front handle, when
the engine is running. Use a firm grip with
thumbs and fingers encircling the chain saw
handles. A firm grip will help you reduce
kickback and maintain control of the saw.
Make sure that the area in which you are
cutting is free from obstructions. Do not
let the nose of the guide bar contact a log,
branch, or any other obstruction which
could be hit while you are operating the
saw.
Cut at high engine speeds.
Do not overreach or cut above shoulder
height.
Follow the manufacturer’s sharpening and
maintenance instructions for the saw chain.
Only use replacement bars and chains
specified by SGS Engineering.
