Sears 849. 62300 Datasheet
INSTALLATION,
OPERATING
INSTRUCTIONS
AND
PARTS
LIST
FOR
SEARS
EIGHT-
TRACK
MOBIL
STEREO
TAPE
PLAYER
12
VOLT
NEGATIVE
GROUND
MODEL
MU:Ai
-
5ER
849.
62300
The
MODEL
NUMBER
of
your
stereo
tape
player
will
be
found
stamped
on
a
metal
label,
attached
to
the
back.
Always
give
this
number
when
com-
municating
with
us
regarding
this
unit,
or
when
ordering
parts.
All
parts
listed
herein
may
be
ordered
through
SEARS,
ROEBUCK
AND
CO.
or
SIMPSONS-SEARS
LIMITED.
When
ordering
parts
by
mail,
selling
prices
will
be
furnished
on
request
or
parts
will
be
shipped
at
prevailing
prices
•.
and
you
will
be
billed
accordingly.
WHEN
ORDERING
REPAIR
PARTS,
ALWAYS
GIVE
THE
FOLLOWING
11400R-
MATION
AS
SHOWN
IN
THIS
LIST:
1.
The
PART
NUMBER
2.
The
PART
NAME
3.
The
MODEL
NUMBER
849.
62300
4.
The
NAME
of
item—
SEARS SOLID
STATE
STEREO
TAPE
PLAYER
COAST
TO
COAST
NATION-WIDE
SERVICE
FROM
SEARS
FOR
YOUR
SEARS
TAPE
PLAYER
SEARS,
ROEBUCK
AND
CO.
and
SIMPSONS-SEARS
LIMITED
in
Canada
back
up
your
investment
with
quick,
expert
mechanical
service
and
genu-
ine
SEARS
replacement
parts.
If
and
when
you
need
repair
or
serv-
ice,
call
on
us
to
protect
your
invest-
ment
in
this
fine
piece
of
equipment.
SEARS,
ROEBUCK
and
CO.,
U.S.A.
AND
IN
CANADA-SIMPSONS-SEARS
LIMITED
es.
DESCRIPTION
Your
SEARS
849.
62300
Mobile
Stereo
Car-
tridge
Player
is
a
fully-
transistorized
unit
which
will
play
all
presently-
available
eight-
track
stereo
cartridges.
Program
switching
is
fully
automatic,
with
manual
program
change
at
any
time
by
front-
panel
button.
The
high
sound
output
power (
12
watts
peak
total)
will
provide
ample
volume
even
in
converti-
bles,
with
low
battery
drain (
less
than
1
ampere
playing).
Normal
operation
with
precise
governor-
controlled
speed
is
maintained
over
the
full
range
of
battery
voltage (
11-16
volts)
from
a
NEGA-
TIVE-
GROUND
battery
system
only.
OPERATION

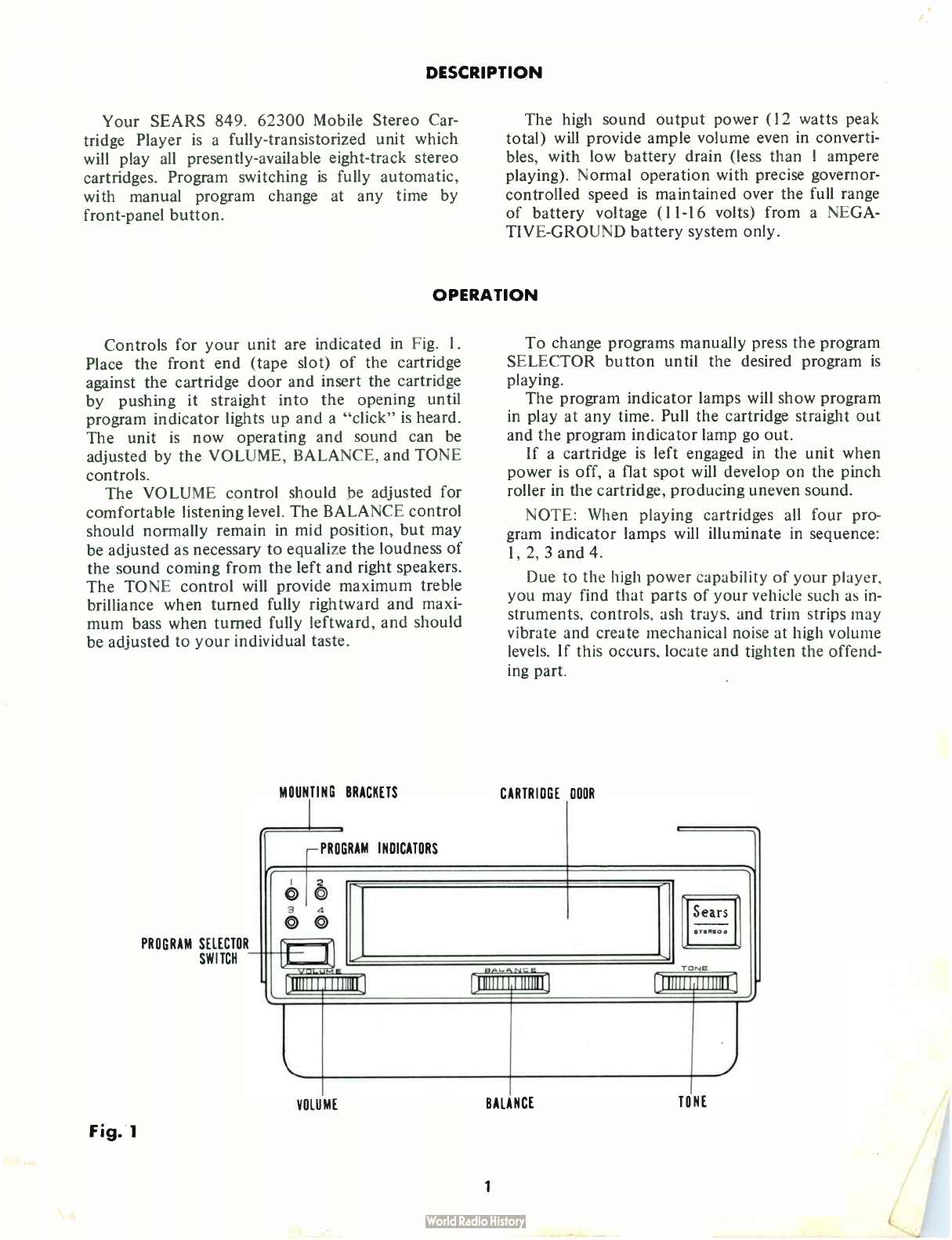

Controls
for
your
unit
are
indicated
in
Fig.
1.
Place
the
front
end (
tape
slot)
of
the
cartridge
against
the
cartridge
door
and
insert
the
cartridge
by
pushing
it
straight
into
the
opening
until
program
indicator
lights
up
and
a "
click"
is
heard.
The
unit
is
now
operating
and
sound
can be
adjusted
by
the
VOLUME,
BALANCE,
and
TONE
controls.
The
VOLUME
control
should
be
adjusted
for
comfortable
listening
level.
The
BALANCE
control
should
normally
remain
in
mid
position,
but
may
be
adjusted
as
necessary
to equalize
the
loudness
of
the
sound
coming
from
the
left
and
right
speakers.
The
TONE
control
will
provide
maximum
treble
brilliance
when
turned
fully
rightward
and
maxi-
mum
bass
when
turned
fully
leftward,
and
should
be
adjusted
to
your
individual
taste.
PROGRAM
SELECTOR
SWITCH
Fig.
1
MOUNTING
BRACKETS
PROGRAM
INDICATORS
To
change
programs manually
press
the
program
SELECTOR
button
until
the
desired
program
is
playing.
The
program
indicator
lamps
will
show
program
in
play
at
any
time.
Pull
the
cartridge
straight
out
and
the
program
indicator
lamp
go
out.
If
a
cartridge
is
left
engaged
in
the
unit
when
power
is
off,
a
flat
spot
will
develop
on
the
pinch
roller in
the
cartridge,
producing
uneven
sound.
NOTE:
When
playing
cartridges
all
four
pro-
gram
indicator
lamps
will
illuminate
in
sequence:
1,
2,
3
and
4.
Due
to the
high
power
capability
of
your
player,
you
may
find that
parts
of
your
vehicle
such
as
in-
struments,
controls,
ash
trays,
and
trim
strips
may
vibrate
and
create
mechanical
noise
at
high
volume
levels.
If this
occurs,
locate
and
tighten
the
offend-
ing
part.
CARTRIDGE
DOOR
00
0
L
pHhIUmIIII
VOLUME
Sears
ISTRIMO•
l'ONE
lininnumul
BALANCE
TONE
1
CARE
AND
MAINTENANCE
Tape
Cartridges
The
cartridge
case
is
made
of
high-
impact
plastic
and
should
not
be
exposed
to
heat
exceeding
130
°
F.,
as
this
may
result
in
deforming.
On
the
other
hand,
the
cartridge
should
not
be
left
in
excessive
cold
atmosphere
below
20
°
F.,
as
this
may
make
the
tape
brittle
and
result
in
tape
breakage
during
playback.
If
the
tape
has
been
exposed
to
cold
atmos-
phere,
it
should be used
only
after
leaving
it
in
normal
temperature (
about
70
°
F.),
for
about
15
to
30
minutes.
Never
place
the
tape
in
the
vicinity
of
a
strong
magnetic
field (
such
as
electric
motors,
loud-
speakers,
TV
sets,
radios,
or
other
electrical
appli-
ances)
as
this
may
result
in
erasure
of
the
sound
contained
in
the tape
or
hum
and
noise.
Tape
cartridges
should
be
placed
in
plastic
bags
and
stored
in
places
that
are
not
exposed
to
the
sun: that
are
not
excessively
hot
or
cold:
or
that
do
not
have
excessive
humidity.
This
will
ensure
lasting
satisfaction.
Periodic
Maintenance
This
stereo
tape
player
should be
cleaned
and
lubricated
every
three
months (
or
200
hours
of
use).
This
work
should
be
performed
only
by
a
qualified
service
technician
equipped
with
the
proper
tools
and
instruments.

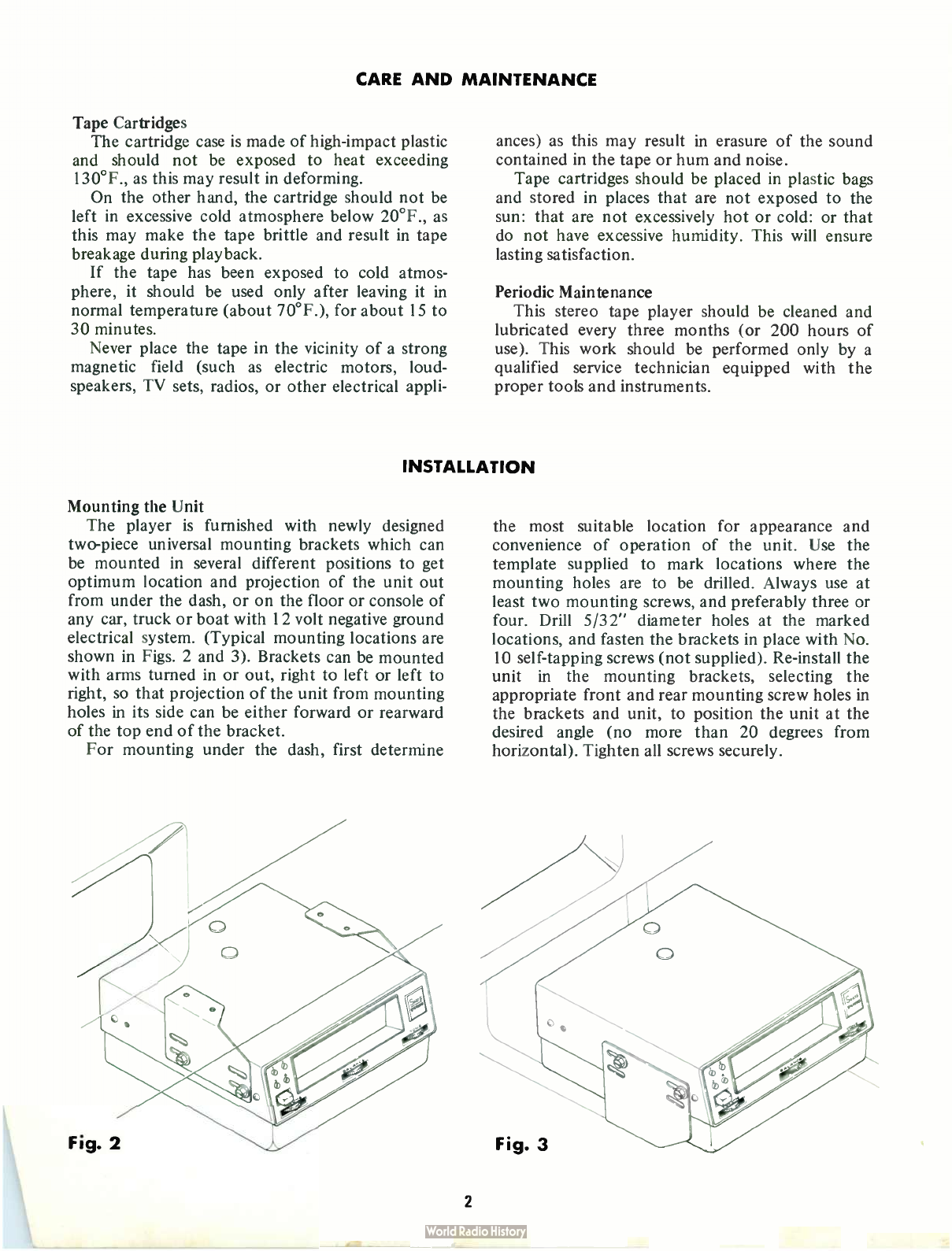

INSTALLATION
Mounting
the
Unit
The
player
is
furnished
with
newly
designed
two-piece
universal
mounting
brackets
which
can
be
mounted
in
several
different
positions
to
get
optimum
location
and
projection
of
the
unit
out
from
under
the
dash,
or
on
the
floor
or
console
of
any
car,
truck
or boat
with
12
volt
negative
ground
electrical
system. (
Typical
mounting
locations
are
shown
in
Figs.
2
and
3).
Brackets
can be
mounted
with
arms
turned
in
or
out,
right
to
left
or
left
to
right,
so
that
projection
of
the
unit
from mounting
holes
in
its
side
can
be
either
forward
or
rearward
of
the
top
end
of
the
bracket.
For
mounting
under
the
dash,
first
determine
the
most
suitable
location
for
appearance
and
convenience
of
operation
of
the
unit.
Use
the
template
supplied
to
mark
locations
where
the
mounting
holes
are
to
be
drilled.
Always
use
at
least
two
mounting
screws,
and
preferably
three
or
four.
Drill
5/32"
diameter
holes
at
the
marked
locations,
and
fasten
the
brackets
in
place
with
No.
10
self-
tapping
screws (
not
supplied).
Re-
install
the
unit
in
the
mounting
brackets,
selecting
the
appropriate
front
and
rear
mounting
screw
holes
in
the
brackets
and
unit,
to
position
the
unit
at
the
desired
angle (
no more
than
20
degrees
from
horizontal).
Tighten
all
screws
securely.
2
If
the
mounted
unit
shows
significant
vibration
when
the
vehicle
is
in
motion,
it
will
be
necessary
to
further
support
the
unit
at
the
rear.
This
can
be
done
by
using
the
perforated
support
strap
furnish-
ed.
Install
the
mounting
screw
for
strap (
in
the
mounting
kit)
in
the
tapped
hole
at
the
upper
rear
of
the
unit.
Place
the
end
hole
of
the
strap,
spring
washer
and
hexagonal
nut
onto
the
mounting
screw,
and
tighten
the
nut.
The
strap
should
be
pointing
upward
at
this
time.
Suitably
bend
the
strap
so
that
the
free
end
can
be
attached
to
the
Electrical
Connection
CAUTION:
REMOVE
THE
FUSE
FROM
THE
FUSEHOLDER
IN
THE
RED
LEAD
WIRE
BE-
FORE
MAKING
ELECTRICAL
CONNECTIONS.
THIS
UNIT
WILL
WORK
ONLY
ON
NEGATIVE
GROUND
SYSTEMS
WITH
12
VOLT
BATTER-
IES.
To
determine
that
your
vehicle
has
the
proper
system,
examine
the
battery.
It
should
appear
as
shown
in
Fig.
4,
with
six
filler
caps.
If
the
smaller
of
the
two
terminals (
sometimes
marked—)
has
a
heavy
piece
of
metal
braid
or
a
heavy
cable
Fig.
4
BRAID
OR
BLACK
ROUND
CABLE
firewall
or
other
structure
by
another
No. 10
self-
tapping
screw
at
some
point
as
far
as
possible
above
the
unit.
When
installed,
minor
adjustments
of
the
mounting
screw
may
be
necessary
to
ensure
that
this
strap
is
tight
and
is
properly
supporting
the
rear
of
the
unit.
To
mount
the
unit
on
the
floor
or
console
follow
a
procedure
similar
to
that
outlined
above
with
the
arms
of
the
bracket
pointed
upward
as
shown
in
Fig.
3.
The
rear
support
strap
will
not
normally
be
required
for
this
type
of
mounting.
connecting
to
the
vehicle
frame
or
chassis,
the
electrical
system
is
negative
ground
and
is
suitable
for
operation
of
the
player.
Electrical
connections
are
made
as
shown
in
Fig.
5.
The
RED
lead
from
the
fuseholder
should
be
connected
to
the
fuseblock,
ammeter,
or
other
terminal
where
power
is
always
available.
Do
not
connect
to
the
accessory
terminal
of
the
ignition
switch,
since
this
could
result
in
removal
of
power
to
the
unit
when
the
cartridge
is
in
play
position.
Under
this
condition,
a
flat
spot
will
soon
develop
on
the
pinchroller,
producing
uneven
sound.
NEGATIVE
ATTACHED
TO
METAL
PORTION
BODY
OR
ENGINE
BLOCK
POSITIVE -
3
Loudspeakers
Your
unit
is
designed
to
work
with
speaker
load
impedances
of
2-8
ohms.
Peak
performance
will
result
from
the use
of
matched
sets
of
two
or
four
speakers
of
4
ohm
impedance,
but
essentially
equal
quality
can be
obtained with
two
or
four
8
ohm
units.
Mixing
speakers
of
different
impedance
or
type
can
cause
unbalanced
sound.
NOTE:
POWER
TO
THE
STEREO
UNIT
MUST
BE
REMOVED
DURING
SPEAKER
CONNEC-
TION
TO
AVOID
POSSIBLE
DAMAGE
DUE
TO
ACCIDENTAL
SHORTING
OF
SPEAKER
LEADS
DURING
THE
INSTALLATION
PRO-
CESS.
You
must
always
install
a
minimum
of
two
speakers,
one
on
the
right
and
the
other
on
the
left,
to
get
the
proper
stereo
effect.
For
the
ultimate
in
stereo
performance,
install
four
speakers,
two
in
front
and
two
in
rear
right
and
left
areas
of
the
car.
Connections
should
be
made
as
shown
in
Fig.
5.
Although "
built-in"
speaker
installations
in
the
car
doors
will
give
optimum
baffling
for
maximum
frequency
range,
other
possible
locations
include
the
right
and
left
sides
of
the
package
shelf
behind
the
rear
seat,
and/or
front
kick panel
areas.

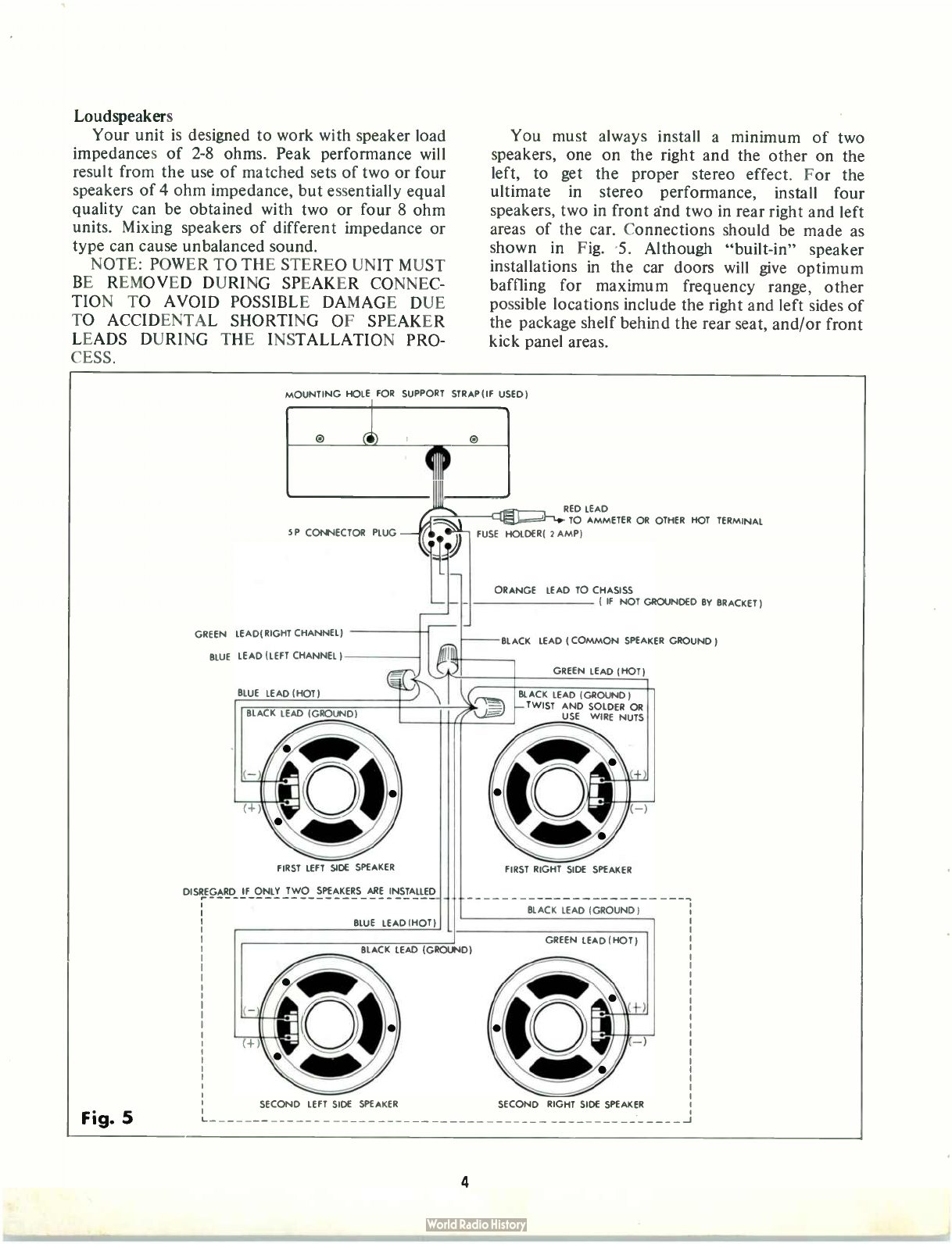

MOUNTING
HOLE
FOR
SUPPORT
STRAP
I
IF
USED)
5P
CONNECTOR
PLUG
GREEN
LEAD(RIGFIT
CHANNEL)
BLUE
LEAD (
LEFT
CHANNEL )
BLUE
LEAD (
HOT)
BLACK
LEAD (
GROUND)
FIRST
LEFT SIDE
SPEAKER
DISREGARD
IF
ONLY
TWO
SPEAKERS
ARE
INSTALLED
(+)
Fig.
5
BLUE
LEAD (
HOT)
BLACK
SECOND
LEFT
SIDE
SPEAKER
SECOND
RIGHT
SIDE
SPEAKER
LEAD (
GROUND)
RED
LEAD
TO
AMMETER
OR
OTHER
HOT
TERMINAL
FUSE
HOLDER(
2
AMP)
ORANGE
LEAD
TO
CHASISS
(
IF
NOT
GROUNDED
BY
BRACKET)
BLACK
LEAD (
COMMON
SPEAKER
GROUND)
GREEN
LEAD (
HOT)
BLACK
LEAD (
GROUND)
TWIST
AND
SOLDER
OR
USE
WIRE
NUTS
BLACK
LEAD (
GROUND)
GREEN
LEAD (
HOT
4

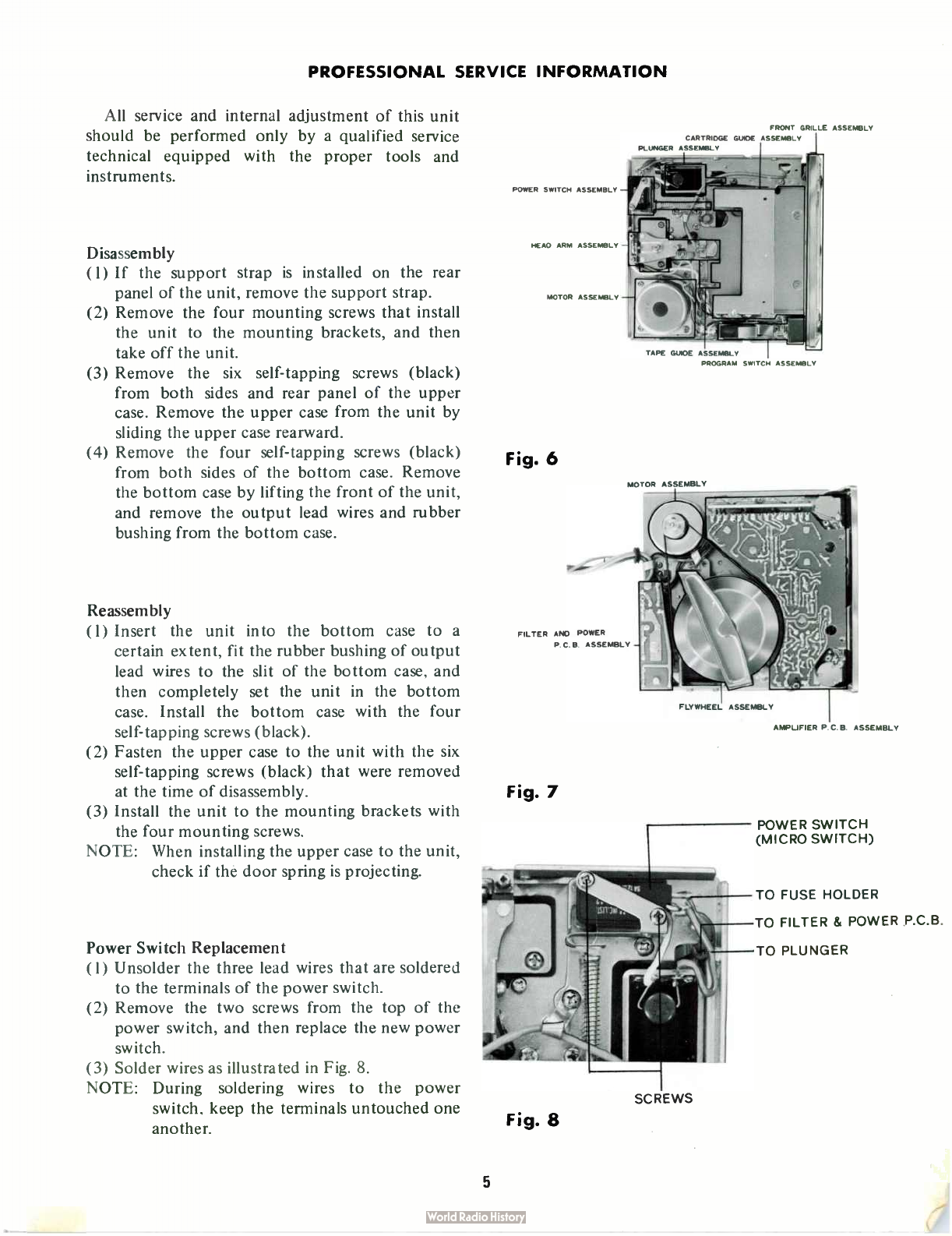

PROFESSIONAL
SERVICE
INFORMATION
All
service
and
internal
adjustment
of
this
unit
should be
performed
only
by
a
qualified
service
technical
equipped
with
the
proper
tools
and
instruments.
Disassembly
(1)
If
the
support
strap
is
installed
on
the
rear
panel
of
the
unit,
remove
the
support
strap.
(2)
Remove
the
four
mounting
screws
that
install
the
unit
to
the
mounting
brackets,
and
then
take
off the
unit.
(3)
Remove
the
six
self-
tapping
screws (
black)
from
both
sides
and
rear
panel
of
the
upper
case.
Remove
the
upper
case
from
the
unit
by
sliding
the
upper
case
rearward.
(4)
Remove
the
four
self-
tapping
screws (
black)
from
both
sides
of
the
bottom
case.
Remove
the
bottom
case
by
lifting
the
front
of
the
unit,
and
remove
the
output
lead
wires
and
rubber
bushing
from
the
bottom
case.
Reassembly
(1)
Insert
the
unit into
the
bottom
case to
a
certain
extent,
fit
the
rubber
bushing
of
output
lead
wires
to
the
slit
of
the
bottom
case,
and
then
completely
set
the
unit
in
the
bottom
case.
Install
the
bottom
case
with
the
four
self-
tapping
screws (
black).
(2)
Fasten
the
upper
case to
the
unit
with
the
six
self-
tapping
screws (
black)
that
were
removed
at
the
time
of
disassembly.
(3)
Install
the
unit
to
the
mounting
brackets
with
the
four
mounting
screws.
NOTE:
When
installing
the
upper
case to
the
unit,
check
if
the
door
spring
is
projecting.
Power
Switch
Replacement
(1)
Unsolder
the
three lead
wires
that
are
soldered
to
the
terminals
of
the
power
switch.
(2)
Remove
the
two
screws
from
the
top
of
the
power
switch,
and
then
replace
the
new
power
switch.
(3)
Solder
wires
as
illustrated
in
Fig.
8.
NOTE:
During
soldering
wires
to
the
power
switch,
keep
the
terminals
untouched
one
another.
POWER
SWITCH
ASSEMBLY
HEAD
ARM
ASSEMBLY
MOTOR
ASSE
MBLY
Fig.
6
FRONT
GRILLE
ASSEMBLY
CARTRIDGE
GUIDE
ASSEMBLY
PLUNGER
ASSEMBLY
TAPE
GUIDE
ASSEMBLY
PROGRAM
SRI
TCH
ASSEMBLY
MOTOR
ASSEMBLY
FILTER
AND
POWER
P C B
ASSEMBLY
Fig.
7
SCREWS
Fig.
8
5
FLYWHEEL
ASSEMBLY
AMPLIFIER
P C B
ASSEMBLY
POWER
SWITCH
(MICRO
SWITCH)
TO
FUSE
HOLDER
TO
FILTER &
POWER PC
B
TO
PLUNGER
Flywheel
and
Flywheel
Bearing
Replacement
(1)
Remove
the
two
screws
that
install
the
fly-
wheel
plate
to
the
chassis,
and
then
remove
the
flywheel
plate.
Extract
the
flywheel
from
the
bearing.
Do
not
lose
the
nylon
ball.
(2)
Remove
the
three
mounting
screws
from
the
flywheel
bearing,
and
remove
the
bearing
from
the
chassis.
(3)
Install
the
new
flywheel
bearing
to
the
chassis
with
the
three
screws.
Be
sure
to
install
the
bearing
in
the
correct
direction.
(4)
Clean
the
flywheel
bearing
with
clean
cloth,
and
apply
oil
to
the
bearing.
Attach
the
oil
proof
felt
to
the
new
flywheel
by
using
an
adhesive
material,
put
the
cushion
ring
on
the
capstan
shaft,
and
insert
the

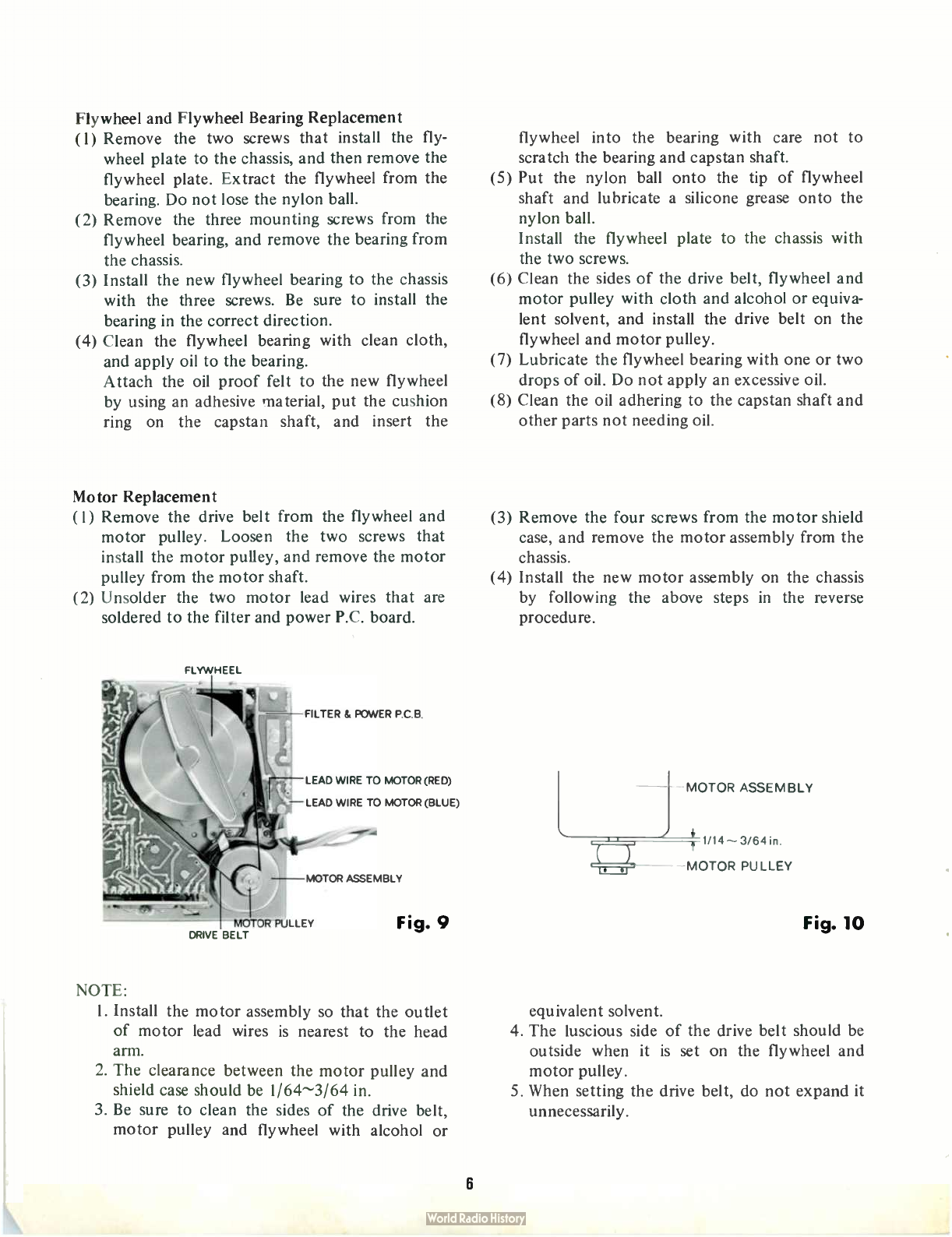

Motor
Replacement
(1)
Remove
the
drive
belt
from
the
flywheel
and
motor
pulley.
Loosen
the
two
screws
that
install
the
motor
pulley,
and
remove
the
motor
pulley
from
the
motor
shaft.
(2)
Unsolder
the
two
motor
lead
wires
that
are
soldered
to
the
filter
and
power
P.C.
board.
FLYWHEEL
FILTER &
POWER
PC
B
n
LEAD
WIRE
TO
MOTOR (
RED)
—
LEAD
WIRE
TO
MOTOR (
BLUE)
MOTOR
ASSEMBLY
MOTOR
PULLEY
DRIVE
BELT
Fig.
9
NOTE:
1.
Install
the
motor
assembly
so
that
the
outlet
of
motor
lead
wires
is
nearest
to
the
head
arm.
2.
The
clearance
between
the
motor
pulley
and
shield
case
should
be
1/64-3/64
in.
3.
Be
sure
to
clean
the
sides
of
the
drive
belt,
motor
pulley
and
flywheel
with
alcohol
or
flywheel
into
the
bearing
with
care
not
to
scratch the
bearing
and
capstan
shaft.
(5)
Put
the
nylon
ball
onto
the
tip
of
flywheel
shaft
and
lubricate
a
silicone
grease
onto
the
nylon
ball.
Install
the
flywheel
plate
to
the
chassis
with
the
two
screws.
(6)
Clean
the
sides
of
the
drive
belt,
flywheel
and
motor
pulley
with
cloth
and
alcohol
or
equiva-
lent
solvent,
and
install
the
drive
belt
on
the
flywheel
and
motor
pulley.
(7)
Lubricate
the
flywheel
bearing
with
one
or
two
drops
of
oil.
Do
not
apply
an
excessive
oil.
(8)
Clean
the
oil
adhering
to
the
capstan
shaft
and
other
parts
not
needing
oil.
(3)
Remove
the
four
screws
from
the
motor
shield
case,
and
remove
the
motor
assembly
from
the
chassis.
(4)
Install
the
new
motor
assembly
on
the
chassis
by
following
the
above
steps
in
the
reverse
procedure.
MOTOR
ASSEMBLY
1/14 —
3/64in.
MOTOR
PULLEY
Fig.
10
equivalent
solvent.
4.
The
luscious
side
of
the
drive
belt
should be
outside
when
it is
set
on
the
flywheel
and
motor
pulley.
5.
When
setting
the
drive
belt,
do
not
expand
it
unnecessarily.
6
HEAD
Amplifier
Assembly
Replacement
(
I)
Unsolder
the
two
lead
wires
of
the
amplifier
assembly
that
are
soldered
to
the
filter
and
power
P.C.
board.
Also
unsolder
the
lead
wire
that
is
connected
from
the
fuse
holder
to
the
power
switch.
(2)
Remove
the
two
screws
that
install
the
ampl-
ifier
assembly
to
the
chassis,
and
the
two
screws
that
install
the
volume
control
panel.
(3)
Remove
the
amplifier
assembly
while
extract-
ing
the
radiation
plate
from
the
fixing
pieces
of
SCREW
FOR
VOLUME
PANEL
SCREW
FOR
AMPLIFIER
ASSEMBLY
«re
LEAD
TO
AMPLIFIER
L
FI
\i
—
LEAD
TO
AMPLIFIER
ASSEMBLY
(
BLACK)
ASSEMBLY (
RED)
•
6
4". 411'
SCREW
FOR
AMPLIFIER
ASSEMBLY
Fig.
11
•
Measureing
Instruments
(1)
Vacuum-
tube
voltmeter (
VTVM)
or
high-
accuracy,
circuit
tester (
VOM).
(2)
Load
resistor (
42 ±
5%;
more
than
5 W
in
rated
capacity).
(3)
DC
power
supply (
12-
volt
automotive
battery
or
DC
voltage
regulator).
HEIGHT
ADJUSTING
SCREW
UR&
•
USTING
SCREW
PRESSURE
ADJUSTING
SPRING
L
LUG
Fig.
13
the
chassis.
(4)
Install
the
new
amplifier
assembly
by
following
the
above
steps
in
the
reverse
procedure.
Head
Replacement
and
Adjustment
Since
this
adjustment
is
very
critical
follow
with
extra
care
the
procedure
described
hereunder.
Demagnetize
the
head
and
all
tools (
screw-
driver,
pliers,
long-
nose
pliers)
to
be used
on
head
screw,
otherwise
the
head
may
be
accidentally
magnetized
and
result
in
noise
in
playback
operation.
PROGRAM
I
HEAD
ADJUSTING
SET
r
HEAD
rTi7A
-é
PROGRAM
2
I2
6
L__
J
rT70
-
76(
1
PROGRAM
3 3
17
I
L___J
rf
R
idp
PROGRAM
4
AMPLIFIER (
I.)
INPUT
OUT
PUT
VTVM
(4)
Head-azimuth
adjusting
test
cartridge.
*,
32V
DC
Fig.
12
•
Head
Replacement
(1)
Unsolder
the
shielded
wire
that
is
soldered
to
the
oval
lug
installed
to the
head
arm.
Loosen
the
head
mounting
screw
and
extract
the
head
RED
WHITE
SHIELDED
WIRE
Fig.
14
7
forward.
(2)
Unsolder
the
lead
wires
soldered
to
the
four
terminals
of
the
head.
(3)
Solder
the
above
lead
wires
to
the
four
terminals
of
the
new
head
as
shown
in
Fig.
14.
The
figure-
marked
side
of
the
head
should
be
upside.
(4) Insert
the
new
head
into
the
head
arm,
set
the
head
so
that
the
distance
from
the
head
height
adjusting
screw
to
the
head
surface
is
1-11/32"
as
shown
in
Fig.
15,
and
tighten
the
head
mounting
screw.
(5)
Make
sure
that
the
gap
between
the
tape
guide
and
the
clamp
of
the
head
arm
is
1/64-3/64
in.
(6)
Adjust
the
head
height
and
head
azimuth.
•
Head
Arm
Pressure
Adjustment
Adjust
the
pressure
of
the
head
arm
pressure
adjusting
spring to
be
3.6-5.4
lbs
by
turning
the
head
arm
pressure
adjusting
screw
shown
in
Fig.
13.
The
spring
pressure
will
increase
when
the
screw
is
rotated
clockwise.
•
Head
Height
Adjustment
Make
certain
that
the
line
A-
A'
shown
in
Fig.
15
and
the
center
line
of
the
head
arm
is
parallel
and
1-3/64"
apart
from
each
other.
Also
make
sure
that
the
tip
of
the
head
height
adjusting
screw
is
at
the
center
of
the
flat
portion
of
the
cam
face.
If
either
of
the
above
is
improper,
loosen
the
mounting
screws,
adjust
the
position
of
the
head
arm,
and
retighten
the
screws.
•
Head
Azimuth
Adjustment
(1)
Set
the
volume
control
to
an
appropriate
position,
and
the
tone
control
to
the
fully
clockwise
turned
position.
(2)
Loosen
about
one
quarter
turn
the
head
arm
lock
screws
shown
in
Fig.
13.
(3)
Place
the
head
azimuth
adjusting
test
cartridge
in
the
unit.
•
The
following
describes
the
adjusting
procedure
(1)
Adjustment
of
head
height
and
azimuth
re-
quires
the
use
of
special
test
tapes
for
best
result.
Recommended
tapes
are
RCA
No.
328
for
head
height
and
RCA
No.
326
for
azimuth.
Fig.
15
PCA
No.
8TSC101
gives
both
height
and
azi-
muth
tests,
and
Delco
No.
J-22683
is
also
suitable
for
both
adjustments.
(2)
Using
an
azimuth
test
tape
producing
a
5000
Hz
or
8000
Hz
signal,
loosen
the
lock
screw
about
1/4
turn.
Turn
the
azimuth
adjusting
screw
for
maxi-
mum
output
as
indicated
by
a
vacuum-
voltmeter
or
an
audio
output
meter
connected
across the
load
resistors
or
appropriate
speaker
leads.
Retighten
the
lock
screw.
(3)
Using
a
medium-
frequency
test
tape (
400'-
3000
Hz)
with
the
signal
recorded
on
one
program
track ( or
one
pair
of
tracks)
with
adjacent
blank
programs
select
the
signal
pro-
gram.
Turn
the
height
adjusting
screw
for
maximum
output.
New
select
the
adjacent
programs (
Nos.
1
and
3
if
the
test
program
is
No.
2)
and
check
that
there
is
no
crosstalk
coming
from
the
No.
2
program
signal.
If
there
is
crosstalk,
make
a
slight
readjustment
of
the
height
screw
to
minimize
crosstalk
on
both
adjacent
program,
at
maximum
volume
setting.
(4)
After
all
adjustments have
been
made,
secure
the
adjusting
screws
with
daubs
of
paint
or
glue.
8

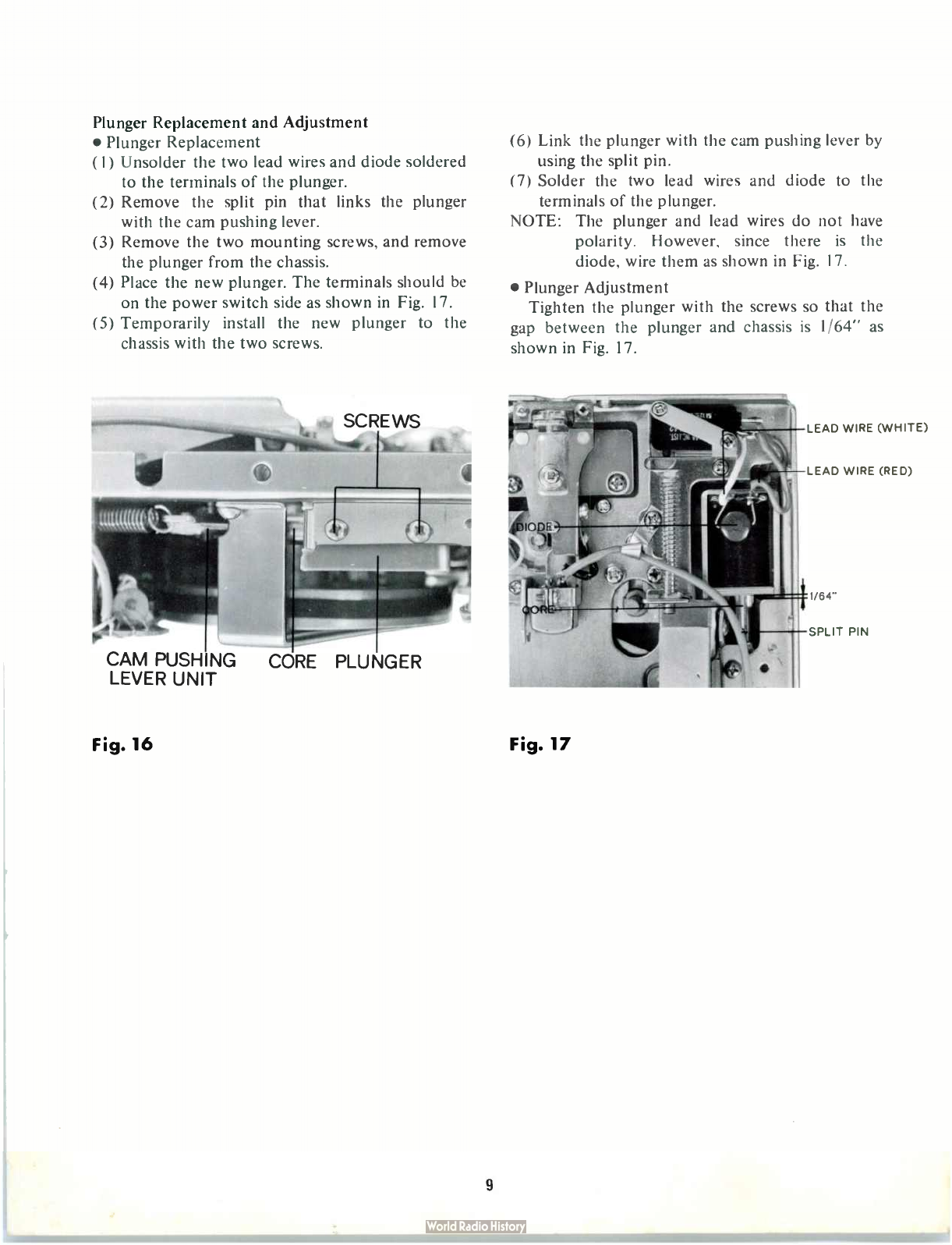

Plunger
Replacement
and
Adjustment
•
Plunger
Replacement
(1)
Unsolder
the
two
lead
wires
and
diode
soldered
to
the
terminals
of
the
plunger.
(2)
Remove
the
split
pin
that
links
the
plunger
with
the
cam
pushing
lever.
(3)
Remove
the
two
mounting
screws,
and remove
the
plunger
from
the
chassis.
(4)
Place
the
new
plunger.
The
terminals
should
be
on
the
power
switch
side as
shown
in
Fig.
17.
(5)
Temporarily
install
the
new
plunger
to
the
chassis
with
the
two
screws.
CAM
PUSHING
CORE
PLUNGER
LEVER
UNIT
Fig.
16
(6)
Link
the
plunger
with
the
cam
pushing
lever
by
using
the
split
pin.
(7)
Solder
the
two
lead
wires
and
diode
to
the
terminals
of
the
plunger.
NOTE:
The
plunger
and
lead
wires
do
not
have
polarity.
However,
since
there
is
the
diode,
wire
them
as
shown
in
Fig. 17.
•
Plunger
Adjustment
Tighten
the
plunger
with
the
screws
so
that
the
gap
between
the
plunger
and
chassis
is
1/64"
as
shown
in
Fig.
17.
Fig.
17
-
LEAD
WIRE (
WHITE)
-
LEAD
WIRE (
RED)
9
TROUBLE-
SHOOTING
Symptom
Possible
Cause
Remedy
Program
lamp
does
not
light.
Tape
does
not
move.
I.
Power
fuse
has
blown.
2.
Fuse
and
fuse
holder
are
in
poor
con-
tact.
3.
Power
wires
are
poorly
connected.
4.
Power
switch
is
faulty
or
in
poor
con-
tact.
J.
Replace
the
fuse.
2.
Polish
the
contacts
of
fuse
holder
with
emery-
paper.
3.
Make
sure
to
link
the
fuse
holder.
Polish
the
battery
connecting
tips
with
emery-
paper
and/or
reconnect
the
other
hot
terminal
connection.
4.
Replace
the
power
switch
or
adjust
the
contacting
position.
Fuse
blows
when
the
power
switch
is
turned
on.
5.
Loudspeaker
lead
wire or
loudspeaker
internal
circuit
is
shorted.
6.
A
positive
lead
wire
inside
the
unit
is
shorted.
7.
Circuit
inside
the
motor
is
shorted.
8.
Capacitor
C2
9 (
470
µF)
is
shorted.
5.
Replace
the
lead
wire or
cover
it
with
vinyl
tape.
6.
Correct
the
lead
wire
by
replacement,
resoldering,
etc.
7.
Replace
the
motor
assembly.
8.
Replace
the
capacitor.
Program
lamp
lights,
but
tape
does
not
move.
9.
Drive
belt
is
loose.
10.
Screws
of
motor
pulley
is
loose
and
the
pulley
idles.
11.
Motor
is
frozen
or
burnt.
12.
Capstan
is
frozen.
13.
Tape
is
tangled
inside
the
cartridge.
9.
Replace
the
drive
belt.
10.
Tighten
the
screws.
11.
Replace
the
motor
assembly.
12.
Remove
the
flywheel,
clean
the
shaft
and
bearing,
and
lubricate.
Or,
replace
the
flywheel
and
flywheel
bearing.
13.
Have
the
tape
cartridge
replaced.
Tape
cartridge
cannot
be
set
smoothly.
14.
Head
or
tape
guide
position
is
malad-
justed.
15.
Tape
cartridge
is
faulty.
14.
Re-
adjust
the
position
of
head
or
tape
guide.
15.
Have
the
tape
cartridge
replaced.
Wow
and
flutter
are
inten-
sive.
16.
Side
of
pinch
roller
is
dented.
17.
Drive
belt
has elongated
and
is
loose.
18.
Motor
rotation
is
unstable.
19.
Capstan
is
almost
frozen.
20.
Tape
movement
is
irregular
slips
as
pinch
roller,
capstan,
flywheel,
drive
belt
or
motor
pulley
is
oily
or
dirty.
21.
Tape
in
the
cartridge
is
wound
hard,
or
has
been
abraded
and
elongated.
22.
Pinch
roller
of
the
cartridge
is
eccentric.
16.
Have
the
tape
cartridge
replaced.
17.
Replace
the
drive
belt.
18.
Replace
the
motor
assembly.
19.
Remove
the
flywheel,
clean
the
shaft
and
bearing,
and
lubricate.
Or,
replace
the
flywheel
and
flywheel
bearing.
20.
Clean
oil
from
the
pinch
roller,
capstan,
flywheel,
drive
belt
and
motor
pulley
with
cloth
dampened
with
alcohol
or
equivalent
solvent.
21.
Have
the
tape
cartridge
replaced.
22.
Have
the
tape
cartridge
replaced.
Electrical
and
mechanical
noises
are
high.
23.
Ignition
noise
of
the
automobile.
24.
Motor
generates
noise.
25.
Capstan
generates
noise.
26.
Rotary
parts
and
tape
pad
arm
of
the
tape
cartridge
generate
noise.
27.
Transistor,
resistor
or
capacitor
of
the
amplifier
P.C.
board
is
defective.
28.
Head
is
magnetized,
case
and
core
is
not
shorted,
or
a
soldered
part
is
not
com-
pletely
connected,
29.
Head
assembly
is
almost
shorted
to
the
chassis.
23.
Repair
or
replace
the
filter
and
power
P.C.
board
assembly.
24.
Replace
the
motor
assembly.
25.
Lubricate
the
flywheel
bearing,
or
re-
place
the flywheel.
26.
Have
the
tape
cartridge
replaced.
27.
Check
Qi,
Q2 (
2SC373W),
Ri,
R2,R3
and
R4 (
100
kS2),
and
replace
faulty
ones.
28.
Demagnetize
or
replace
the
head,
short
the
case
and
core,
or
completely
solder
the
part.
29.
Replace
and
adjust the
insulating
board
of
the
head
arm
assembly,
or
repair
so
that
the
head
arm
assembly
does
not
touch
the
chassis.
No
output
or
a
low
out-
put.
30.
Speaker
or
speaker
lead
wire
is
in
bad
connection,
or
speaker
winding
is
broken.
31.
Recorded
sound
on
the
tape
is
erased
or
the
tape
is
abraded.
30.
Replace
the
speaker
or
repair
the
con
-
nection.
31.
Have
the
tape
cartridge
replaced.
10
Symptom
Possible
Cause
Remedy
32.
Amplifier
assembly
is
faulty.
33.
Head
is
faulty
or
maladjusted.
34.
Head
face
is
dirty.
35.
Power
voltage
is
lower than
the
required
value.
36.
Tape
pad
arm
of
the
tape
cartridge
is
bent
and
the
pad
is
not
working.
37.
Head
is
projecting
or
retracted
too
much.
32.
Check
the
voltages
of
transistor
in
each
stage
of
the
amplifier.
Also
check
C23
and
Cz
a .
Repair
or
replace
faulty
parts.
33.
Replace
or
re-
adjust
the
head.
34.
Clean
the
head
face
with
cloth
and
alcohol
or
equivalent
solvent.
35.
Check
the
terminal
voltage
of
the
power
source (
12
V
DC).
If
the
voltage
is
low,
re-
connect
the
unit
to
a
nearer
power
source.
36.
Correct
the
tape
pad
arm
to
the
requir-
ed
position,
or
have
the
cartridge
re-
placed.
37.
Adjust
the
head
position.
High
distortion.
38.
Power
voltage
is
lower
or
higher
the
required
value.
39.
Amplifier
assembly
is
faulty.
40.
Record
sound
on
the
tape
is
distorted
or
the
tape
has
been
abraded.
41.
Voice
coil
of
the
speaker
touches
the
magnet
or
the
cone
paper
is
broken.
38.
Check
the
power
voltage (
10.7-16
V).
39.
Check
voltages
of
the
transistor
in
each
amplifier
stage.
Check
the
mylar
film (
power
transistor
insulator)
of
Q
9,
QI
0,
QI 1
and
Q
12,
and
if
the
film
is
shorted,
replace
it.
Replace
or
repair
defective
parts.
40.
Have
the
tape
cartridge
replaced.
41.
Replace
the
speaker.
Crosstalk
is
intensive.
42.
Head
height
is
maladjusted.
43.
Record
sound
on
the
tape
is
bad
in
quality.
44.
Cam
vertically
moving
the
head
is
faulty.
42.
Re-
adjust the
head
height.
43.
Have
the
tape
cartridge
replaced.
44.
Replace
the
cam.
Treble
is
not
reproduced.
45.
Head
face
is
dirty.
46.
Head
face
has
been
abraded.
47.
Head
is
faulty
or
maladjusted.
48.
Tape
pad
arm
of
the
rape
cartridge
is
bent
and
the
pad
is
not working.
45.
Clean
the
head
face
with
cloth
and
alcohol
or
equivalent
solvent.
46.
Replace
the
head.
47.
Replace
or
re-
adjust
the
head.
48.
Correct
the
tape
pad
arm
to
the
requir-
ed
position,
or
have
the
cartridge
re-
placed.
Howling
occurs.
49.
Speaker
lead
wire
is
too
close
to
the
head.
50.
Amplifier
assembly
is
faulty.
51.
Head arm
assembly
is
almost
shorted
to
the
chassis.
49.
Let
the
speaker
lead
wire
away
from
the
head.
50.
Check
capacitors
C19
through
Cz
a .
Replace
the
defective
capacitor.
Check
soldered
parts
on
the
amplifier
P.C.
board.
Re-
solder
the
poorly
solder-
ed
parts.
51.
Replace
and
adjust
the
insulating
board
of
the
head
arm
assembly,
or
repair
so
that
the
head
arm
assembly
does
not
touch
the
chassis.
Program
cannot
be
chang-
ed
although
the
program
lamp
changes.
52.
Head
arm
is
maladjusted.
53.
Head
height
adjusting
screw
is
faulty.
54.
Head arm
hinges
are
faulty.
52.
Adjust
the
head.
53.
Replace
the
screw.
54.
Replace
the
head
arm
assembly.
Amplifier
and
motor
oper-
ate,
but
some
or
all
pro-
gram
lamps
do
not
change.
55.
Program
selector
switch
is
faulty.
56.
Lamp
selector
P.C.
board
is
faulty.
57.
Lamp
selector
P.C.
board
and
slide
piece
are
in
poor
contact.
58.
Cam
pushing
lever
vertically
moving
the
head
is
in
incorrect
position.
59.
Plunger
is
faulty.
55.
Replace
the
switch.
56.
Replace
the
board.
57.
Disassemble
and
clean
them
with
al-
cohol
or
equivalent
solvent,
or
replace
them.
58.
Adjust
the
cam
pushing
lever.
59.
Replace
the
plunger.
Sound
reproduction
is
abnormal
when
vertical
vibration
occurs.
60.
Head arm
pressure
is
low.
60.
Adjust
the
head
arm
pressure
adjusting
spring.
11

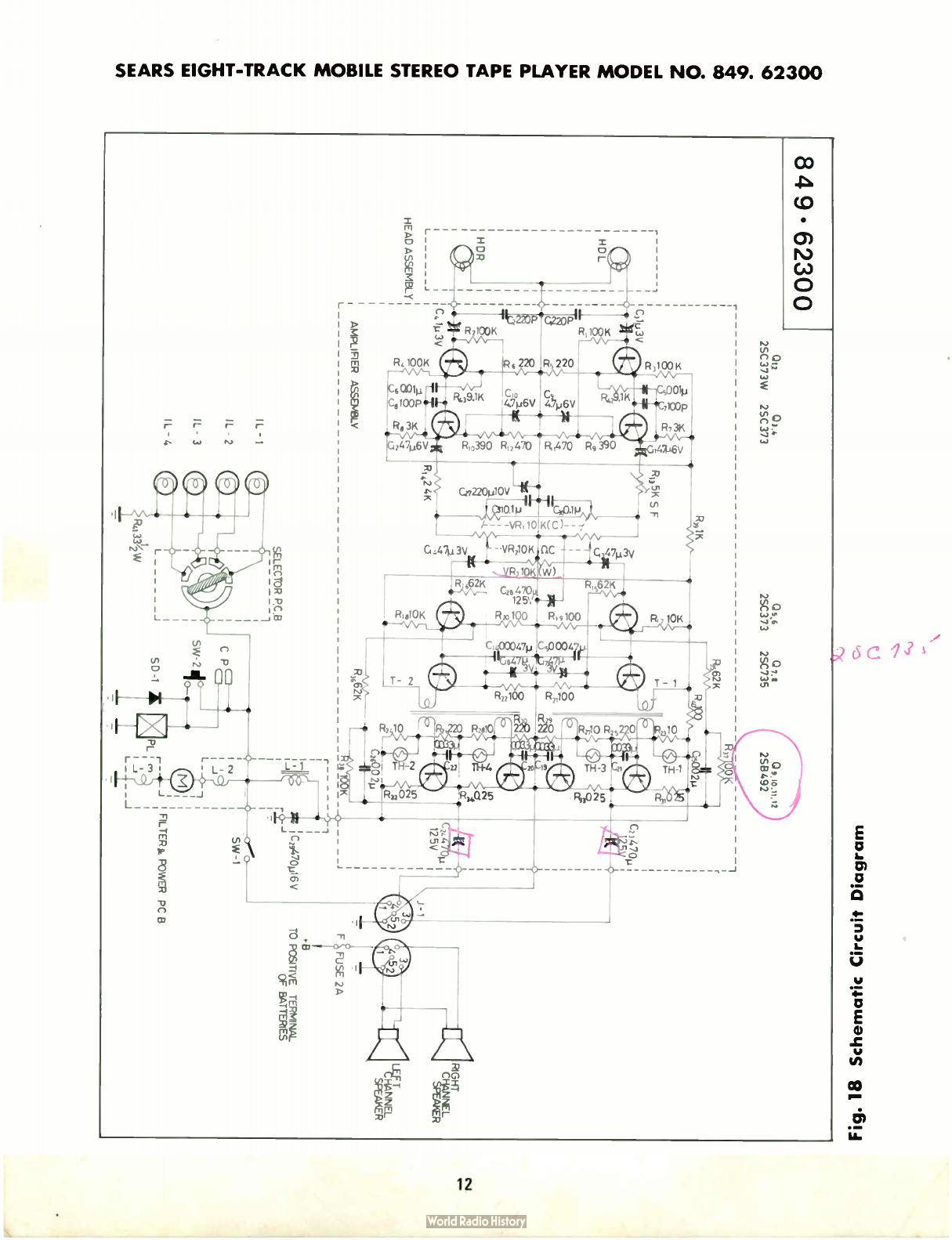

SEARS
EIGHT-
TRACK
MOBILE
STEREO
TAPE
PLAYER
MODEL
NO.
849.
62300
•
ts)
`)
u,
99
9
I
L -
3
bgMOd
le:13171d
—0-
rs)
L -
1
-n
rn
o
▪
1:16
100K
IS)
001µ
Ce
100
P
R.
3K
,47µ6V
o
R6
220
R
220
471,66V
X
R,
0
390
R,
2
470
R,470
R9
390
c,7220
t
itov
G
447µ
3V
0.1
Ck
alP
.
VR
2
10K
Cis
470
1251,
RI .
10
K R
20
1
K(C
)- - -/
LZ
-
47113V
Re2K
o
R3
100
K
01
P
1C0p
R7
3K
41.46V
00eZ9 •
6 t 9
cc
12 I
Schematic
Circuit
Diagram
12
SEARS
EIGHT-
TRACK
MOBILE STEREO
TAPE
PLAYER
MODEL
NO.
849.
62300
WHEN
ORDERING
REPAIR
PARTS,
ALWAYS
GIVE
THE
FOLLOWING
INFORMATION
AS
SHOWN
ON
THIS
LIST;
1.
PART
NUMBER
3.
MODEL
No.-
849.
62300
2.
PART
NAME
4.
NAME
OF
ITEM-
STEREO
TAPE
PLAYER
ALWAYS ORDER
BY
PART
No.-
NOT
BY
KEY
No.
PARTS
LIST
FOR
SCHEMATIC
CIRCUIT
DIAGRAM
NOTE:
Resistors;
In
ohm,
unless
otherwise
noted
K=Kilohm,
M=Megohm,
VV=Watt
Capacitors;
In
µF,
unless
otherwise
noted
P=µµF.
Ref.
Key
Parts
No.
Description
Ri,
R2
R3,
Ra
R37,
R38
Rs,
R6
RI9,
R20
Rn,
R22
Rao
R7,
R8
Rv,
Rio
Ri
1,
R12
Ri
3
R14
Ris,
RI 6
R35,
R36
R17,
RI8
R23,
R24
R27,
R28
R2s,
R26
R29,
R30
R3I,
R32
R33,
R34
R39
Ra
C
I,
C2
C3,
Ca
Cs,
C6
C25,
C26
C7,
C8
C9,
C
IO
CI
1 ,
CI 2
C13,
C14
C17,
C18
Y05-
346-K
V05-
264-K
Y135-
258-K
Y05-
297-K
Y05-
271-K
Y05-
274-K
C92-605-0
Y05-
294-K
Y05-
338-K
V05-
317-K
Y05-
231-K
V05-2
64-K
I/
Y40-
002-K
Y05-
287-K
Y04-
441-K
C07-
104-K
COO-
002-P
CO3-
230-K
CO3-
234-K
C07-
101-K
COO-
1
13-P
COO-
033-P
Carbon
Resistor
100K
1/4W
Semi-
Variable
Resistor
Carbon
Resistor
Flexible
Wire
Resistor
Carbon
Resistor
Ceramic
Capacitor
Electrolytic
Capacitor
Mylar
Capacitor
Ceramic
Capacitor
Electrolytic
Capacitor
220K
100K
„
3K
390
470
5K
S.F.
2.4K
1/4W
62K
10K
10
220
0.25
1/2W
0.25
1/2W
1K 1/4W
33
1/2W
220P/50V
1 /
3V
0.01/50V
0.02/50V
100P/50V
4.7/6V
47/3V
Ref.
Key
Parts
No.
Description
C15,
CI 6
C19,
C20
C21 ,
C22
C23,
C24
C28
C27
C29
C30,C31
VA-
1
VA-
2
VA-
3
Ti,
T2
L-1
L-2,
L-3
Qi
03,
05,
G05-
015-D
07,
08
G05-
015-E
09,
010
G04-
703-A
Qi
i,
012
THI,
TH2
G10-
003-A
TH3,
TH4
Di
GOO-
502-A
PL
N15-
604-A
ILI,
IL2
E32-
604-A
1L3,11_4
HD-L/R
P52-601-0
W71-750-0
SW1
S21-602-0
SW2
S21-002-0
E21-005-0
CO3-
218-K
CO3-
239-K
COO-
353-P
C00-
247-P
COO-
533-P
CO3-
254-K
C82-615-0
C82-614-0
C82-609-0
T62-603-0
T63-613-0
T63-612-0
02
G05-
011-A
Qa
G05-
010-A
06
Mylar
Capacitor
0.0047/50V
0.033/50V
Electrolytic
Capacitor
470/12V
220/10V
470/16V
Mylar
Capacitor
0.1/50V
10K,
2
Sect.
B (
Tone)
10K,
2
Sect.
C (
Volume)
10K,
W (
Balance)
Driver
Transformer
1500
ohm,
100
ohmx2
Choke
Coil
Choke
Coil
Transistor
2SC373W
2SC373
Thermistor
MT-010
Diode
SO-
1Y
Plunger
Indicator
Lamp
Head
Motor
Assembly
Power
Switch
Program
Switch
Fuse
2A
2SC735
2SB492
13

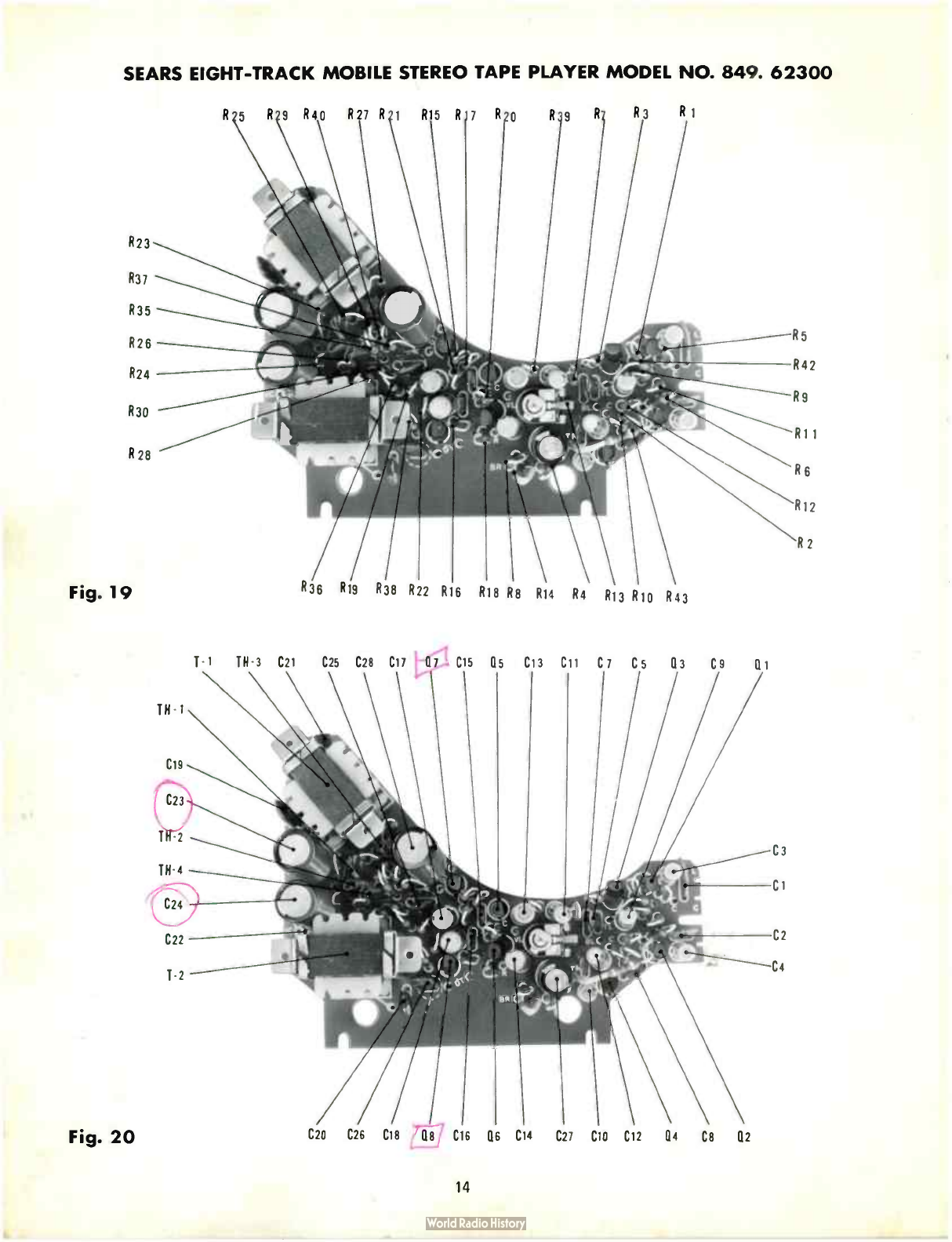

SEARS
EIGHT
—
TRACK
MOBILE
STEREO
TAPE
PLAYER
MODEL
NO
.
849.
62300
R23
R37
R35
R26
R24
R30
R28
F
ig.
19
TH-
1
C19
T'2
TH-
4
-
C22
T-2
R 9
R40
R 7
R2i
R15
R 7 R
R36
Ri
9
R38 R22
R16
TH-
3
C21
C25
C28
C17
o
R9
R
R3
RI
RI 8
R8
1114
R4
R13
R
IO
R43
C
is
Q5
C13
Cii
C7 C5
F
ig.
20
C20
C26
C18
C16
06
C14
CV
C10
C12
C9
CI
C2
C4
R5
R42
Rs
RI 1
6
R12
R2
14

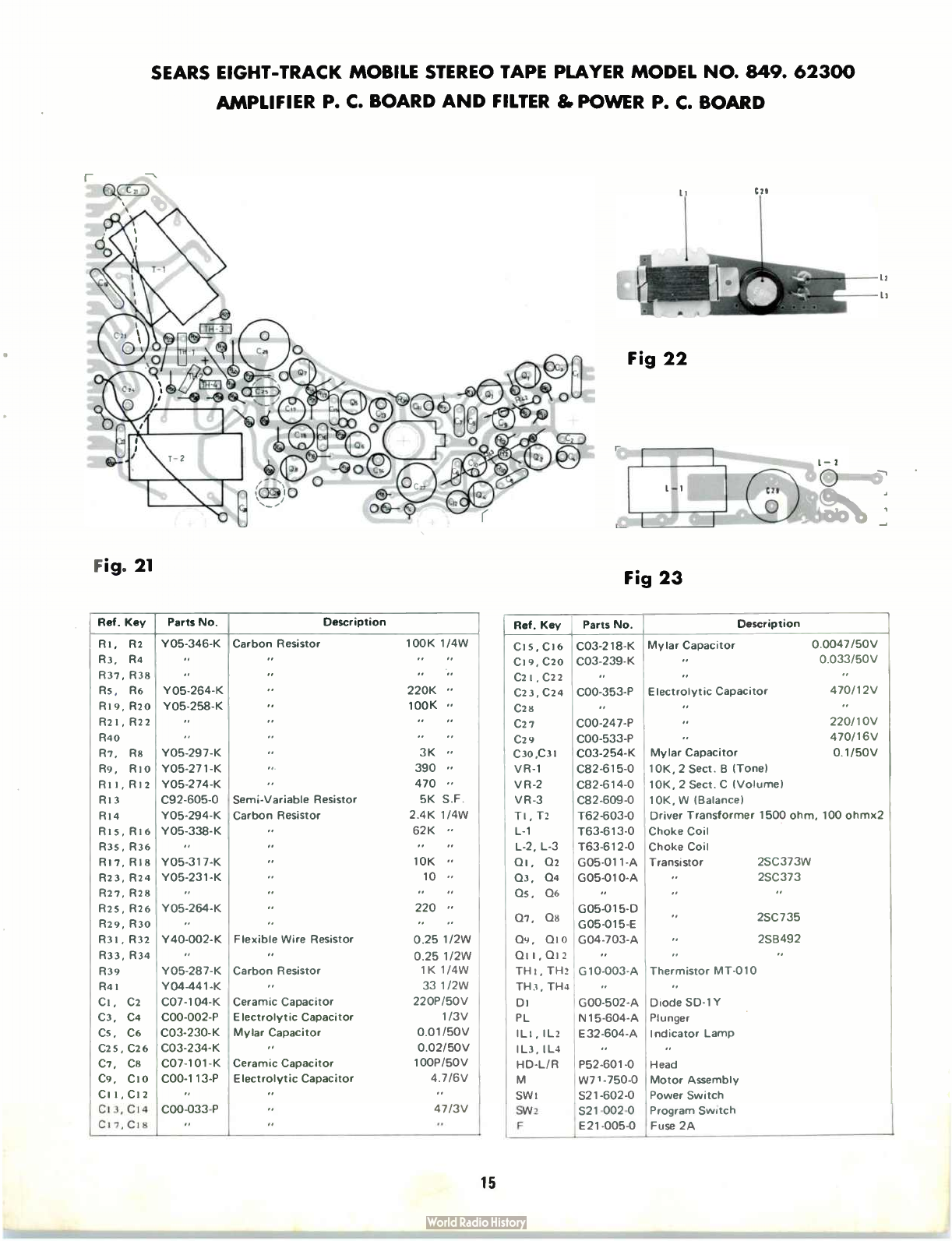

SEARS
EIGHT-
TRACK
MOBILE
STEREO
TAPE
PLAYER
MODEL
NO.
849.
62300
AMPLIFIER
P. C.
BOARD
AND
FILTER &
POWER
P.
C.
BOARD
QÇID
Fig.
21
Ref.
Key
Parts
No.
Description
Ri,
R2
11
05-346-K
Carbon
Resistor
100K
1/4W
I
R3,
R4
R37,
R38
„ „ 1
Rs,
R6 Y05-
264-K
,,
220K -
R i
9,
Rzo
VOS
-
258-K
,,
100K -
R2
I,
R22
R40
„
..
R'7,
As
Y05-
297-K
"
3K .,
R9,
Rio
Y05-
271-K
,,
390 -
R i
1,
R
12
1,
05-274-K
,,
470 -
RI3
C92-605-0
Semi-
Variable
Resistor
5K
S.F.
RI4
Y05-
294-K
Carbon
Resistor
2.4K
1/4W
RI5,
RI6
Y05-
338-K
«
62K -
R35,
R36
„
RI7,1318
Y05-
317-K
"
10K -
Rz3,
Rza
Y05-
231-K
-
10
R27,
R28
..
R2s,
R26
Y05-
264-K
„
220 -
R29,
R30
„
R3I,
R32
Y40-
002-K
Flexible
Wire
Resistor
0.25
1/2W
R33,
R34
0.25
1/2W
R39
VOS
-
287-K
Carbon
Resistor
1K
1/4W
R41
1/04-441-K
«
33
1/2W
Ci,
C2
C07-
104-K
Ceramic
Capacitor
220P/50V
1
C3,
Ca
COO-
002-P
Electrolytic
Capacitor
1/3V
Cs,
C6
CO3-
230-K
Mylar
Capacitor
0.01/50V
C25,
Cm
CO3-
234-K
0.02/50V
C7,
CS
C07-
101-K
Ceramic
Capacitor
100P/50V
C9,
Clo
COO-
113-P
Electrolytic
Capacitor
4.7/6V
1
CI
1,
Cl2
C13,
C
14
COO-
033-P
,,
47/3V •
Ci2,C18
„ „ I
Fig
22
Fig
23
Ref.
Key
Parts
No.
C15,
C
16
C19,
C
20
C
21,
C
22
C23,
C24
C28
C27
C29
C30,C31
VA-
1
VA-
2
VR-3
,
T2
L-1
L-2,
L-3
,
02
03,
04
05,
06
G05-
015-D
07,
Qs
2SC735
G05-
015-E
09,
Oit)
,
G04-
703-A
2S6492
Qi
Qi
THI,
TH2
G10-
003-A
TH
3,
TH4 ••
DI
GOO-
502-A
PL
N15-
604-A
ILI,
IL2
E32-
604-A
IL3,1L4
HD-L/R
P52-601-0
rvi
1W7
1
-
750-0
SW1
S21-602-0
SW2
S21-002-0
E21-005-0
Ls
t
°mite"
Description
CO3-
218-K
Mylar
Capacitor
CO3-
239-K
C00-
353-P
Electrolytic
Capacitor
COO-
247-P
COO-
533-P
CO3-
254-K
C82-615-0
C82-614-0
C82-609-0
T62-603-0
T63-613-0
T63-612-0
G05-
011-A
G05-
010-A
Mylar
Capacitor
10K,
2
Sect.
B (
Tone)
10K,
2
Sect.
C (
Volume)
10K,
W (
Balance)
Driver
Transformer
1500
ohm,
100
ohmx2
Choke
Coil
Choke
Coil
Transistor
2SC373VV
2SC373
0.0047/50V
0.033/50V
470/12V
Thermistor
MT-
010
Diode
SD-
1Y
Plunger
Indicator
Lamp
Head
Motor Assembly
Power
Switch
Program
Switch
Fuse
2A
220/10V
470/16V
0.1/50V
15

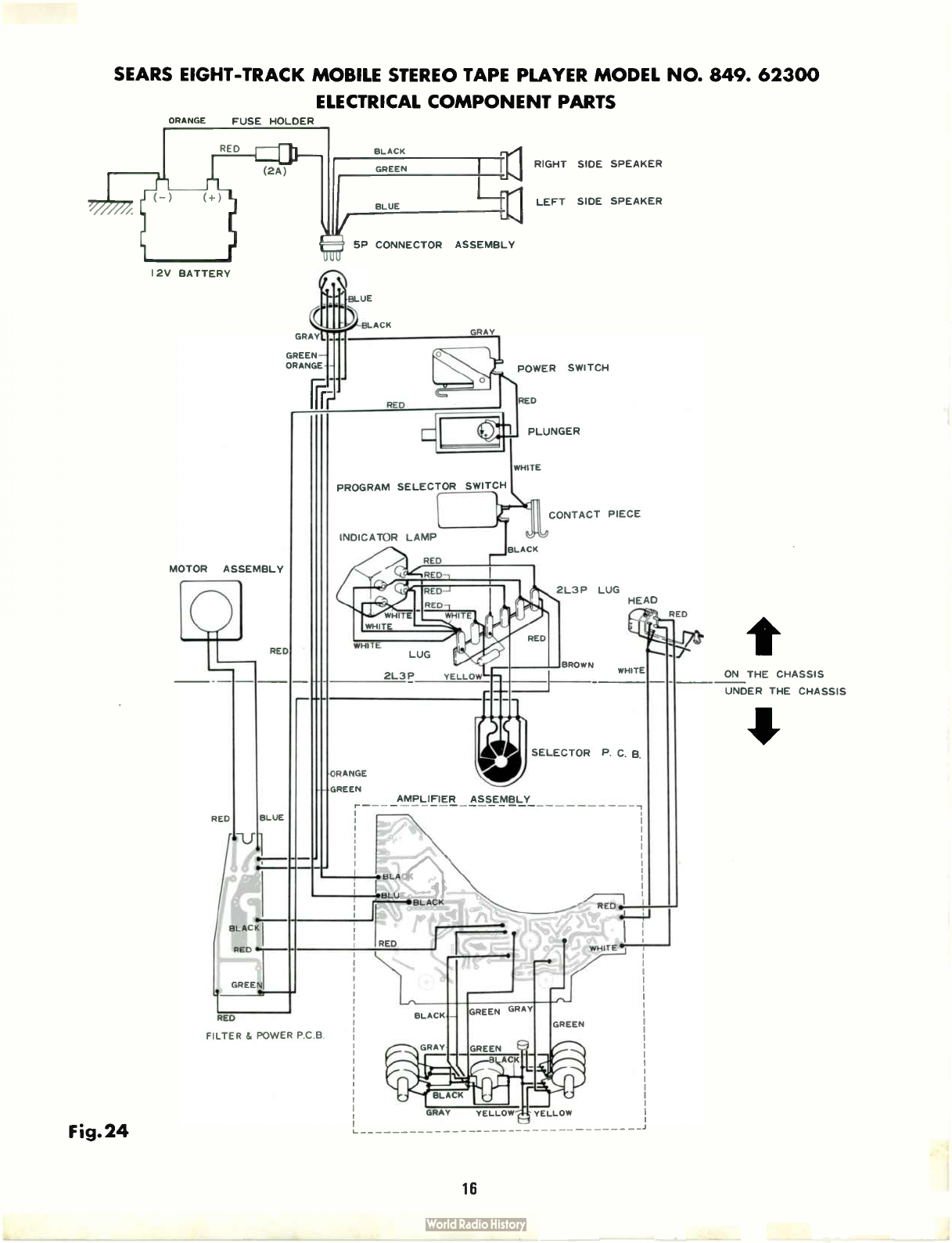

SEARS
EIGHT-
TRACK
MOBILE
STEREO
TAPE
PLAYER
MODEL
NO.
849.
62300
ELECTRICAL
COMPONENT
PARTS
ORANGE
I
2V
BATTERY
FUSE
HOLDER
MOTOR
ASSEMBLY
RED
GRAY
GREEN
ORANGE
RED
BL
,
•
an-
BLACK
I
RED
RED
FILTER &
POWER
PC
B
Fig.24
BLACK
GREEN
BLUE
5P
CONNECTOR
ASSEMBLY
BLUE
BLACK GRAY
PROGRAM
SELECTOR
SWITCH
INDICATOR
LAMP
WHITE
WHITE
ORANGE
GREEN
RED-
1
RED-
1
WHITE
2L3P
VELLO
RIGHT
SIDE
SPEAKER
LEFT
SIDE
SPEAKER
POWER
SWITCH
RED
PLUNGER
WHITE
BLACK
AMPLIFIER
ASSEMBLY
BLACK
•BLUE
n
•
BLACK
BLACK
BLACK
CONTACT
PIECE
2L3P
LUG
BROWN
HEAD
WHITE
SELECTOR
P. C. B.
GREEN
GRAY
GREEN
GREEN
GRAY
YELLOW
2.
YELLOW
RED
1
WHITE
RED
ON
THE
CHASSIS
UNDER
THE
CHASSIS
16
SEARS
EIGHT-
TRACK
MOBILE
STEREO
TAPE
PLAYER
MODEL
NO.
849.
62300
DISASSEMBLY
PARTS
AND
PARTS
LIST
Fig.
25
Ref.
Key
Parts
No.
Description
1
N93-674-0
Rubber
Cap
2
M49-
646-A
Mounting
Bracket (
R)
3
M32-613-0
Upper
Case
4
800-863-E
Plus
Brassiere
Head
Self-
tapping
Slotted
Screw
M3
x
6 (
Black)
5
B21-613-0
Washer
for
Mounting
Screw
6
B11-651-0
Screw
for
Mounting
Bracket
7
B00-
863-C
Plus
Brassiere
Head
Self-
tapping
Slotted
Screw
M3
x 6
8
W72-
706-B
Tape
Guide Assembly
2
Ref.
Key
Parts
No.
Description
9
E32-656-0
10
W72-
733-C
11
M32-
614-B
12
800-064-C
13
M21-
612-B
14 '
B11-608-0
15
N24-
608-E
16
W71-750-0
17
i
M49-
645-A
Tape
Protector
C
Chassis
Assembly
Bottom
Case
Plus
Round
Head
Self-
tapping
Screw
M3
x 8
Front
Grille
Set
Screw
Motor
Pulley
Motor
Assembly
Mounting
Bracket (
L)
17
SEARS
EIGHT-
TRACK
MOBILE
STEREO
TAPE
PLAYER
MODEL
NO.
849.
62300
DISASSEMBLY
PARTS
AND
PARTS
LIST
13
1
2--
1 1
8
7
6
5
15
Fig.
26
1 4
1 3
12
1 1
10
9
Fig.
27
II
1
2
3
4
5
2
Ref.
Key
Parts
No.
Description
1
B00-
863-C
Plus
Brassiere
Head
Self-
tapping
Slotted
Screw
M3
x 6
2
N62-
786-B
Cartridge
Guide
3
B20-
111-H
E-
Type
Washer
E-1.5
4
W72-
733-C
Chassis
5
Teflon
Washer
M4
6
Teflon
Washer
M3
7
B23-630-0
Mylar
Washer
M2
8
N64-
692-A
Cartridge
Door
9 -
N54-827-0
Cartridge
Guide
Roller
Shaft
10 B33-
614-B
Cartridge
Door
Spring
11
E32-603-0
Guide
Chip
12
B33-613-0
Cartridge
Door
Shaft
13
B10-
263-C
Plus
Round
Head
Screw
M3
x 6
Ref.
Key
Parts
No.
Description
1
B10-
267-C
Plus
Round
Head
Screw
M3
x
14
2
B20-
012-C
Spring
Washer
M3
3
S21-602-0
Program
Switch
4
M46-
626-B
Program
Switch
Holder
5
820-203-B
Split
Pin
M2
x15
6
N62-820-0
Program
Lever
7
B32-631-0
Program
Knob
Lock
Spring
8
A19-614-0
Program
Knob
9
M46-716-0
Lamp
Holder
10
B10-
263-C
Plus
Round
Head
Screw
M3
x 6
11
B31-756-0
Program
Lever
Return
Spring
12
B21-
662-B
Program
Lever
Guide
Collar
13
B10-
264-C
Plus
Round
Head
Screw
M3
x 8
14
633-612-A
Program
Switch
Actuator
Spring
15
N62-
781-A
Program
Switch
Actuator
Ref.
Key
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Parts
No.
B10-
211-C
B20-
011-C
N61-798-0
W72-
707-A
K16-663-0
B20-
012-C
B10-
263-C
N62-784-0
800-865-C
E32-633-0
E33-633-0
P52-601-0
E
31-712-C
811-601-0
B31-768-0
B10-
270-C
Description
Plus
Round
Head
Screw
M2.6
x 6
Spring
Washer
M2.6
Hinge Supporting
Plate
Head
Arm
Unit
Oval
Type
Lug
M3
Spring
Washer
M3
Plus
Round
Head
Screw
M3
x 6
Hinge
Stand
Plus
Brassiere
Head
Self-
tapping
Slotted
Screw
M3
x
10
Insulating
Bushing
Insulating
Sheet
Head
Lock
Sheet
Head
Height
Ajusting
Screw
Pressure
Ajusting
Spring
Plus
Round
Head
Screw
M3
x
20
18
Table of contents
