Aiwa HS-RDS70YZ User manual

SERVICE MANUAL
HS-RDS70 YZ
STEREO RADIO
CASSETTE PLAYER BASIC TAPE MECHANISM : 7ZM–5 P1N
S/M Code No. 09-99B-420-7R1
REVISION

SPECIFICATIONS
Frequency range:
Reception area “ EU ”AM 531–1,602kHz
(9kHz steps)
FM1,FM 2 87.5–108MHz
(50kHz steps)
Reception area “ US ”AM 530–1,710kHz
(10kHz steps)
FM1,FM2 87.5–108.1MHz
(200kHz steps)
Maximumoutput: 4mW + 4mW
(EIAJ 32ohms)
Load impedance: 16 – 32ohms
Power source: DC 3V using two R6
(size AA) dry cell batteries
AC house current using the
optional AC adaptor Aiwa
Maximum dimensions: 113.1(W)x86.8(H)x35(D)mm
(41/2 x 31/2x 17/16 in.)
Weight: Approx.180g (6.3 oz)
• Design and specifications are subject to change
without notice.
2
1 8Z-HR7-907-010 IB,YZ(EGF)S
1 8Z-HR7-909-010 IB,YZ(PHNCZ)S
1 8Z-HR7-908-010 IB,YZ(SID)S
2 84-447-019-310 CLIP,BELT
3 87-B30-254-110 HEADPHONE,HP-M007B(T)
ACCESSORIES / PACKAGE LIST
DESCRIPTION
REF.NO. KANRI
NO.
PARTNO.

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO. DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.
ELECTRICAL MAIN PARTS LIST
3
IC
87-A20-851-040 C-IC,TA2111F
87-A21-555-040 IC,MM1376BF
87-A20-983-040 C-IC,RN5RK501A
87-A20-904-080 C-IC,TK11823MTL
87-A21-289-040 C-IC,TC9418FN
87-A20-440-040 C-IC,BU1920FS
87-A21-224-040 C-IC,LB1877M
87-A21-444-010 C-IC,UPD753017A-012
87-A21-402-040 C-IC,S-81223SG-QW-T2
87-A20-755-080 C-IC,AK93C45AF
87-A20-757-040 C-IC,S-80815ANNP-EDC-T2
TRANSISTOR
87-026-268-080 C-TR,RN2411
89-327-143-080 TR,2SC2714 (0.1W)
89-327-125-080 CHIP TR,2SC2712GR
87-026-417-080 TR,RN1310
89-113-625-080 TR,2SA1362GR(120MHZ,0.
87-026-261-080 CHIP-TR,RN1404
DIODE
87-001-553-080 C-DIODE 1SS322
87-020-027-080 CHIP-DIODE 1SS184
87-001-166-080 DIODE,1SS301
87-A40-630-040 C-DIODE,RB411D
MAIN C.B
BPF101 87-A90-601-010 FLTR,BPF GFWB7
C101 87-010-196-080 CHIP CAPACITOR,0.1-25
C102 87-010-574-080 C-CAP,S 470P-50 UJ
C103 87-010-196-080 CHIP CAPACITOR,0.1-25
C104 87-010-149-080 C-CAP,S 5P-50 CH
C105 87-012-155-080 C-CAP 180P-50CH
C106 87-010-197-080 CAP, CHIP 0.01 DM
C108 87-010-311-080 CAP 12P
C109 87-012-155-080 C-CAP 180P-50CH
C110 87-010-145-080 C-CAP,S 1P-50 CH
C111 87-010-322-080 C-CAP,S 100P-50 CH
C112 87-010-312-080 C-CAP,S 15P-50 CH
C113 87-010-154-080 CAP CHIP 10P
C114 87-010-197-080 CAP, CHIP 0.01 DM
C115 87-010-822-040 CAP,E 220-4 (MJ)
C116 87-010-805-080 CAP, S 1-16
C117 87-012-157-080 C-CAP,S 330P-50 CH
C118 87-010-805-080 CAP, S 1-16
C119 87-010-196-080 CHIP CAPACITOR,0.1-25
C120 87-010-805-080 CAP, S 1-16
C121 87-010-196-080 CHIP CAPACITOR,0.1-25
C122 87-010-178-080 CHIP CAP 1000P
C124 87-016-461-080 C-CAP,S 0.47-16F
C125 87-010-500-040 CAPE 33-4
C126 87-010-805-080 CAP, S 1-16
C127 87-010-213-080 C-CAP,S 0.015-50 B
C128 87-010-213-080 C-CAP,S 0.015-50 B
C129 87-010-154-080 CAP CHIP 10P
C130 87-010-178-080 CHIP CAP 1000P
C131 87-012-156-080 C-CAP,S 220P-50 CH
C132 87-010-178-080 CHIP CAP 1000P
C133 87-012-155-080 C-CAP 180P-50CH
C134 87-012-156-080 C-CAP,S 220P-50 CH
C135 87-012-155-080 C-CAP 180P-50CH
C136 87-010-322-080 C-CAP,S 100P-50 CH
C137 87-010-318-080 C-CAP,S 47P-50 CH
C138 87-010-197-080 CAP, CHIP 0.01 DM
C139 87-010-197-080 CAP, CHIP 0.01 DM
C140 87-010-186-080 CAP,CHIP 4700P
C141 87-010-186-080 CAP,CHIP 4700P
C143 87-010-196-080 CHIP CAPACITOR,0.1-25
C144 87-010-196-080 CHIP CAPACITOR,0.1-25
C150 87-010-322-080 CHIP CAPACITOR,100P
C201 87-010-177-080 CHIP CAP 820P
C202 87-010-177-080 CHIP CAP 820P
C203 87-012-156-080 C-CAP,S 220P-50 CH
C204 87-012-156-080 C-CAP,S 220P-50 CH
C205 87-A10-703-080 C-CAP,TN 47-2.5 M A
C206 87-A10-703-080 C-CAP,TN 47-2.5 M A
C207 87-010-218-080 C-CAP,S 0.015-25 B
C208 87-010-218-080 C-CAP,S 0.015-25 B
C209 87-010-180-080 C-CER 1500P
C210 87-010-180-080 C-CER 1500P
C211 87-010-196-080 CHIP CAPACITOR,0.1-25
C212 87-010-196-080 CHIP CAPACITOR,0.1-25
C213 87-012-156-080 C-CAP,S 220P-50 CH
C217 87-010-196-080 CHIP CAPACITOR,0.1-25
C218 87-010-196-080 CHIP CAPACITOR,0.1-25
C219 87-010-196-080 CHIP CAPACITOR,0.1-25
C220 87-010-805-040 CAP,E 1-16 ZF
C221 87-010-196-080 CHIP CAPACITOR,0.1-25
C223 87-010-822-040 CAP,E 220-4 (MJ)
C224 87-010-499-040 CAP,E 22-6.3 GAS
C225 87-010-196-080 CHIP CAPACITOR,0.1-25
C226 87-010-820-040 CAP,E 47-4 (MJ)
C227 87-010-196-080 CHIP CAPACITOR,0.1-25
C301 87-016-563-080 C-CAP,TN 10-10 SV A
C302 87-010-805-080 CAP, S 1-16
C303 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C304 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C401 87-010-149-080 C-CAP,S 5P-50 CH
C402 87-010-320-080 CHIP CAP 68P
C403 87-010-152-080 C-CAP,S 8P-50 CH
C404 87-010-805-080 CAP, S 1-16
C405 87-010-805-080 CAP, S 1-16
C501 87-010-314-080 C-CAP,S 22P-50 CH
C502 87-010-314-080 C-CAP,S 22P-50 CH
C503 87-010-805-080 CAP, S 1-16
C504 87-010-198-080 CAP, CHIP 0.022
C505 87-010-505-080 CA, CHIP TANTALUM 1-16
C506 87-010-805-080 CAP, S 1-16
C507 87-010-198-080 CAP, CHIP 0.022
C601 87-012-145-080 CAP, CHIP S 270P CH
C602 87-016-563-080 C-CAP,TN 10-10 SV A
C603 87-010-197-080 CAP, CHIP 0.01 DM
C604 87-010-315-080 C-CAP,S 27P-50 CH
C605 87-010-315-080 C-CAP,S 27P-50 CH
C606 87-010-197-080 CAP, CHIP 0.01 DM
C607 87-016-563-080 C-CAP,TN 10-10 SV A
C608 87-010-186-080 CHIP CAPACITOR,S 4700P-50 KB
C609 87-010-186-080 CHIP CAPACITOR,S 4700P-50 KB
C801 87-016-669-080 C-CAP,S 0.1-25 K B
C802 87-016-669-080 C-CAP,S 0.1-25 K B
C803 87-016-669-080 C-CAP,S 0.1-25 K B
C804 87-A10-201-080 C-CAP,S0.33-16 KB
C805 87-016-669-080 C-CAP,S 0.1-25 K B
C806 87-010-196-080 CHIP CAPACITOR,0.1-25
C807 87-016-526-080 C-CAP,S 0.47-16 BK
C808 87-010-992-080 C-CAP,S 0.047-25 B
C809 87-010-502-040 CAP ELECT GAS 100/4
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C901 87-010-822-040 CAP,E 220-4 (MJ)
CF101 87-A90-710-010 FLTR,AM IF PFS450A3
CF102 87-A90-776-010 FLTR,SFE10.7 MS233-A
CF103 87-A90-777-010 FLTR,CDA10.7 MG77-A
D101 87-A40-478-070 C-VARI-CAP,KV1590TL
D102 87-A40-655-080 C-VARI-CAP,HVU200A
D103 87-A40-655-080 C-VARI-CAP,HVU200A

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO. DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.
4
IFT105 87-A90-663-010 IFT,MW 5L H6.4
J1 87-A60-438-010 JACK,3.5 BLK ST W/O SW (1537)
J2 87-A60-849-010 JACK,DC DIA 2.75 BLK
L101 87-HRA-603-010 BAR-ANT,MW
L102 8Z-HR9-605-010 COIL,FM RF
L103 8Z-HR7-605-010 COIL,OSC FM
L104 87-003-226-080 MICRO INDUCTOR 100UJ
L201 87-A50-038-010 COIL,RF CHOKE 100MHZ
L301 87-A50-174-080 C-COIL, 82UH 7004-2
L401 87-A50-230-080 C-COIL,D-D(CP4LBM)
L901 87-A50-012-080 C-COI,100UH LQH3C
S201 87-A91-191-010 SW,SL 2-2-2 SK22D04
S202 87-A90-050-010 SW, SL 2-2-2 NS (BLK)
S203 87-A90-050-010 SW, SL 2-2-2 NS (BLK)
S901 87-A90-423-010 SW,LEAF
SFR801 87-A90-734-080 C-SFR,33K B RH03AXAN4X
TC101 87-011-252-080 TRIMMMER 10P LAR
TH801 87-A90-542-080 C-THMS,NTH5G2M35A472K04TE
VR1 87-A90-479-010 VR,RTRY 20KAX2
X501 87-A70-187-010 VIB,XTAL 75KHZ CFV206
X601 87-A70-235-010 VIB,XTAL 4.332MHZ CSA-309(S)
CONT C.B
C701 87-A10-263-080 CHIP CAPACITOR,0.1-16 ZF
C704 87-A10-263-080 CHIP CAPACITOR,0.1-16 ZF
C705 87-A11-056-080 C-CAP,U 1-10 ZF
C706 87-012-178-080 CAP CHIP,U 18P-50 J CH
C707 87-012-178-080 CAP CHIP,U 18P-50 J CH
C711 87-012-195-080 C-CAP,S 100P-50 CH
C713 87-012-195-080 C-CAP,S 100P-50 CH
C714 87-A10-263-080 CHIP CAPACITOR,0.1-16 ZF
C715 87-A10-263-080 CHIP CAPACITOR,0.1-16 ZF
D751 87-017-827-070 C-LED,SEC 1201C RED
LCD701 8Z-HR7-604-010 LCD,HLC7492-011400
S701 87-A90-665-280 C-SW,TACT LS7A2M
S702 87-A90-665-280 C-SW,TACT LS7A2M
S703 87-A90-665-280 C-SW,TACT LS7A2M
S704 87-A90-665-280 C-SW,TACT LS7A2M
S705 87-A90-665-280 C-SW,TACT LS7A2M
S706 87-A90-665-280 C-SW,TACT LS7A2M
S707 87-A90-665-280 C-SW,TACT LS7A2M
S708 87-A90-665-280 C-SW,TACT LS7A2M
S709 87-A90-665-280 C-SW,TACT LS7A2M
S710 87-A90-665-280 C-SW,TACT LS7A2M
S711 87-A90-665-280 C-SW,TACT LS7A2M
S712 87-A90-192-080 C-SW,SL 1-1-2 3MT
X701 87-A70-229-080 C-VIB,CER4.19MHZ CSTCC4.19MG
X702 87-A70-079-110 VIB,XTAL 32.768KHZ-M-200
HEAD FLEX C.B
PH1 87-A90-435-010 HEAD ASSY, 7ZM-5
FLEX C.B
8Z-HR7-603-010 PWB,FLEX
88
1608
2125
3216
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
:A
:A
0.55
Resistor
Dimensions

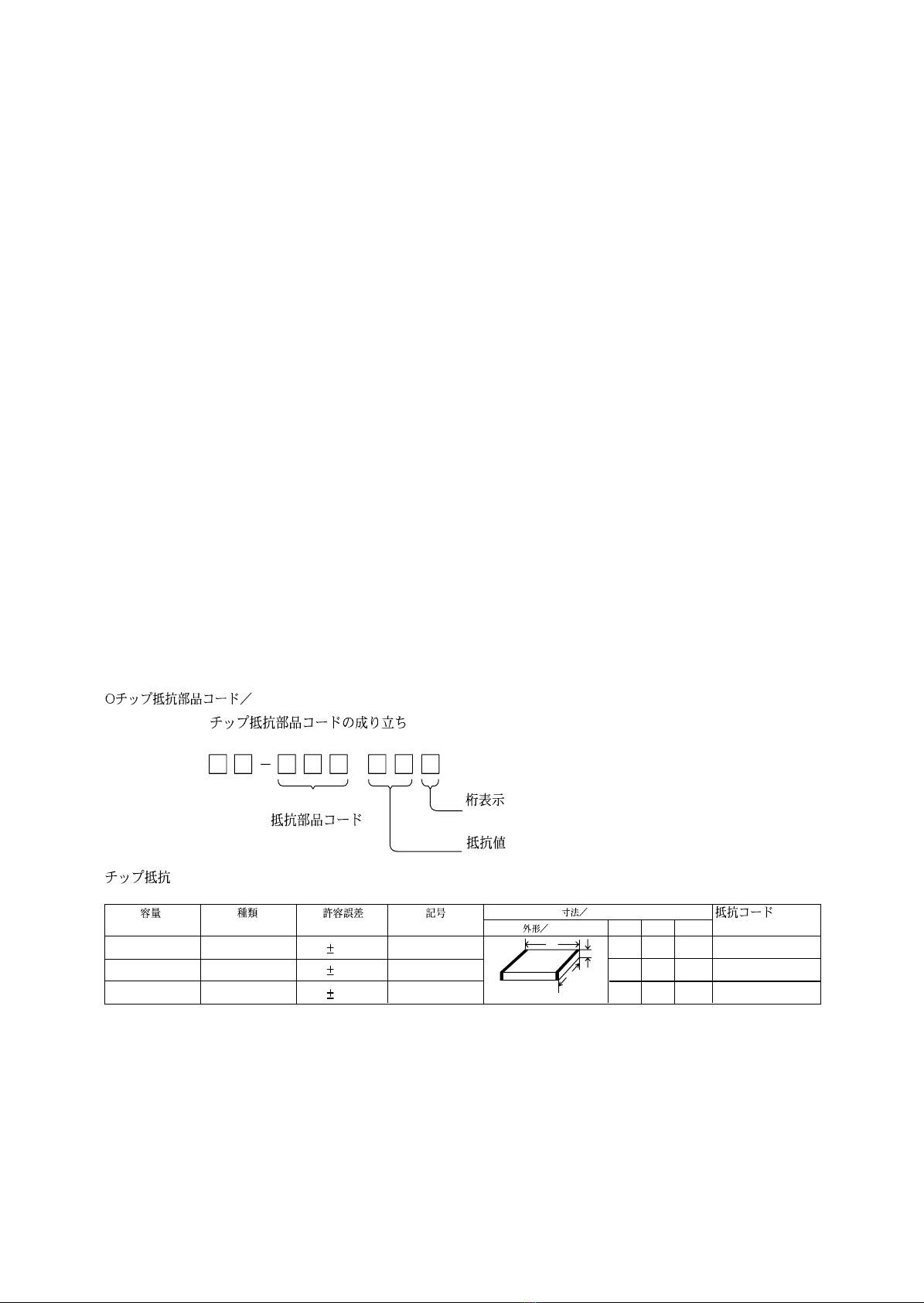

CHIP RESISTOR PART CODE
Chip Resistor Part Coding
A
Resistor Code Figure
Value of resistor
Chip resistor
Wattage
1/16W
1/10W
1/8W
Type Tolerance
5%
5%
5%
Symbol
CJ
CJ
CJ
Form
Lt
W
L
W
t

65
LCD DIAGRAM
LCD,HLC7492-011400
GRID ASSIGNMENT
ANODE CONNECTION
TRANSISTOR ILLUSTRATION
RN1310
RN1404
RN2411
2SC2714
2SC2712
2SA1362
B
C
E

WIRING–1 (MAIN)
7 8
14 13 12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
OO
PP
QQ
RR
SS
TT
UU

SCHEMATIC DIAGRAM–1 (MAIN / CONT)
109

11 12
WIRING–2 (CONT)
28272625242322212019181716151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

13 14
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

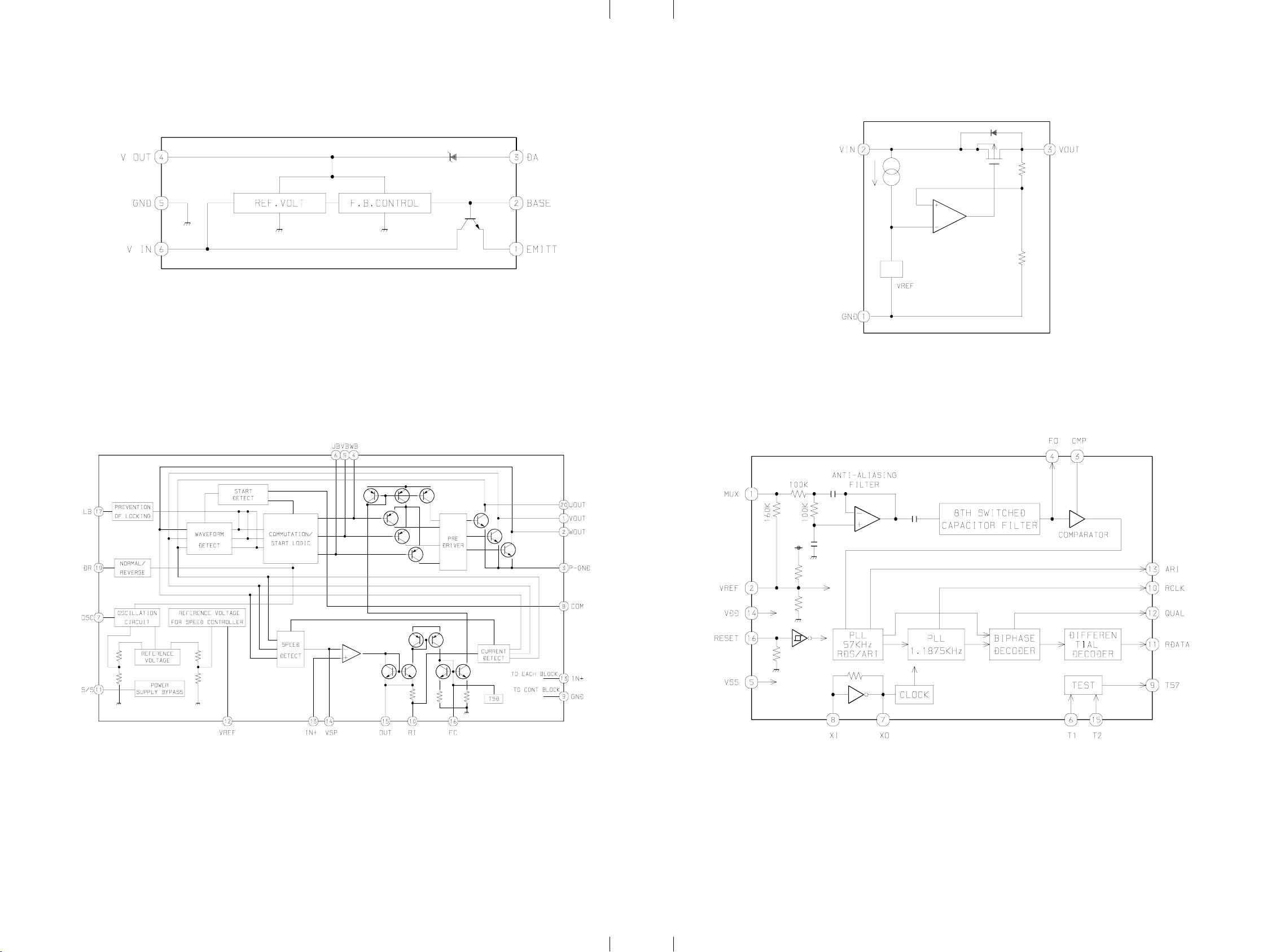

IC BLOCK DIAGRAM
IC, TK11823MTL
IC, BU1920FSIC, LB1877M
15 16
IC, S-81223SG-QW-T2

IC DESCRIPTION
17
IC, UPD753017A-012
1 ~ 20 S12~S31 O LCD segment output.
21 ~ 24 COM0 ~ COM3 O LCD common output.
25 BIAS O
Power supply for LCD.
26 ~ 28 VLC0~VLC2 –
29 P40 (WORLD AREA) I Area switch. “H” = Enable, “L” = Disable.
30 P41 (CHECK) I Check all LCD lights turn on. “H” = Normal, “L” = All lights turn on.
31 P42 – Connected to VDD through a resistor.
32 P43 (RDS DATA) I Input serial communication data to RDS IC.
33 VSS – Connected to ground.
34 P50 (POWER OUT) O Output power. “H” = Power off, “L” = Power on.
35 P51 (RDS OUT) O Output when RDS is under operation. “H” = RDS off, “L” = RDS on.
36 P52 (TU OUT) O Output TUNER/TAPE. “H” = TAPE, “L” = TUNER. (Connected to ground)
37 P53 (LO/DX) O FM auto stop control pin. “H” = Local, “L” = DX.
38 P00 (HOLD) I Input HOLD sw. “H” = HOLD off, “L” = HOLD on.
39 P01 (LV STOP) I Voltage reduction stop control pin. “H” = Normal, “L” = Power off.
40 P02 (PLL DIN) I Input serial communication data to PLL IC.
41 P03 (ROM DIN) I Input serial communication data to EEP ROM.
42 P10 (RDS CLK) I Input data clock to RDS IC.
43 P11 (FUNCTION) I Input function.
44 P12 (TAPE) I Input TAPE.
45 P13 – Connected to GND.
46 P20 (ROM CLK) O Output clock data to EEP ROM.
47 P21 (ROM CS) O Output control data to EEP ROM.
48 P22 (PLL CE) O Output control data to PLL IC.
49 P23 (BUZR) O Output beep sound.
50 P30 (MUTE) O Output mute. “H” = Mute off, “L” = Mute on.
51 P31 (ROM DATA) O Output serial communication data to EEP ROM.
52 P32 (PLL CK) O Output clock data to PLL IC.
53 P33 (PLL DOUT) O Output serial communication data to PLL IC.
54 VDD – Power supply pin.
55 ~ 56 XT1 ~ XT2 I Crystal oscillator pin. (32.768 kHz)
57 IC I Internally connected. (Connected to ground)
58 ~ 59 X1 ~ X2 I Input oscillator pin. (4.19 MHz)
60 ~ 63 P60 ~ P63 I Input key. “H” = Exist key, “L” = Not exist key.
64 ~ 67 P70 ~ P73 O Output key. “H” = Scan, “L” = Standby.
68 RESET I Input reset.
69 ~ 80 S0 ~ S11 O LCD segment output.
Pin No. PinName I/O Description
18
IC, S-80815ANNP-EDC-T2
IC, AK93C45AF
IC, RN5RK501A

19
ADJUSTMENT
<TUNER SECTION>
1. AM IF Adjustment
IFT105 ................................................................ 450kHz
2. FM IF Adjustment
L103 ................................................................. 10.7MHz
3. AM VT Check
Settings : • Test point : TP1 (VT)
Method : Set to AM 531kHz and check that the test
point voltage is 1.1V ± 0.3V. Then set to AM
1602kHz and check that the test point voltage
is less than 6.5V.
4. FM VT Check
Settings : • Test point : TP1 (VT)
Method : Set to FM 87.5MHz and check that the test
point voltage is 3.0V ± 0.1V. Then set to FM
108.0MHz and check that the test point
voltage is less than 9.5V.
5. AM Tracking Adjustment
L101 .................................................................... 630kHz
TC101 ............................................................... 1440kHz
6. FM Tracking Adjustment
L102 ............................................................... 87.5MHz
<TAPE PLAYER SECTION>
7. Tape Speed Adjustment
Settings : • Test tape : TTA–100
• Test point : PHONES JACK (J1)
• Tape selector : NORMAL
• S-BASS : OFF
• Volume : MAX
• Adjustment location : SFR801
Method : Play back the test tape and adjust SFR801 for
3015Hz ± 10Hz(FWD) and 3015Hz ± 45Hz
(REV). Then confirm WOW is less than 0.50%.
20
KEY MATRIX
P70 / KR4
P71 / KR5
P72 / KR6
P73 / KR7
TUN – UP
TUN – DOWN
AF
PTY
P60 / KR0
–
–
–
RT
P61 / KR1
–
–
MEMO – SET
AUTOPRESET
P62 / KR2
TRAFFIC
PRESET+
PRESET–
–
P63 / KR3
IC,TC9418FN
1XINI
2 XOUT O Crystal oscillator pin. (75 kHz)
3 VXT –
4 DOUT O Output serial data.
5 DIN I Input serial data.
6 CK I Input clock.
7 CE I Chip enable input.
8 TEST I Not used.
9 ~ 12 I/O 1 ~ I/O 4 – Not used.
13 TU OUT O Output TUNER/TAPE. “H” = TAPE, “L” = TUNER.
14 FM OUT O Output band. “H” = FM, “L” = AM.
15 IF REQ
– Not used.
16 IF GAIN
17 IF IN I Input IF signal.
18 GND – Connected to ground.
19 FM IN I Input FM band broadcast signal.
20 AM IN I Input AM band broadcast signal.
21 VDD – Power supply.
22 DO2 – Output phase comparator. (Not used)
23 DO1 I Output phase comparator.
24 INH I Input in–habit. (Connected to power supply)
Pin No. PinName I/O Description
Output Input
4
3
MAIN C.B
A
PHONES
J1
VR1
VOLUME
SFR801
5
7
L101
BAR ANT
2
4
3
TC101
L102
IFT105
TP1(VT)
IC1 GND
L103
5
6
1
7

DESCRIPTIONREF. NO. KANRI
NO.
PARTNO. KANRI
NO.
REF. NO. DESCRIPTIONPARTNO. DESCRIPTIONREF. NO. KANRI
NO.
PARTNO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
21 22

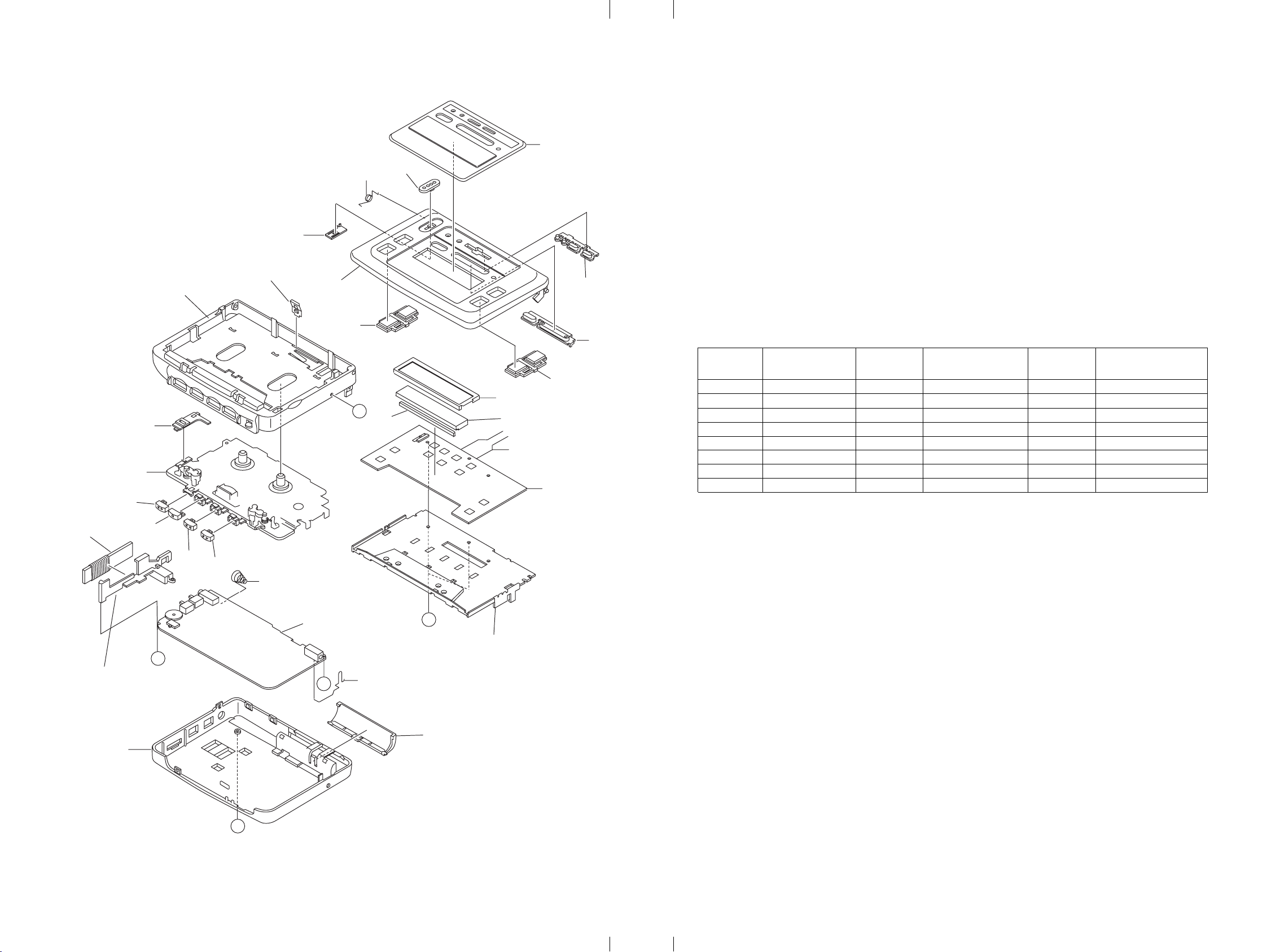

MECHANICAL EXPLODED VIEW 1/1 MECHANICAL PARTS LIST 1 / 1
Basic color Color Basic color Color Basic color Color
symbol symbol symbol
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange
COLOR NAME TABLE
1 8Z-HR7-002-010 PANEL,CASS
2 8Z-HR7-007-010 KNOB,SL HOLD
3 87-HRA-204-010 SPR-T,CLICK
4 8Z-HR7-008-010 PLATE,INDI HOLD
5 8Z-HR7-001-010 LID,CASS SIL
6 8Z-HR7-003-010 KEY,RDS L
7 8Z-HR7-004-010 KEY,RDS R
8 8Z-HR7-006-010 KEY,TUN
9 8Z-HR7-005-010 KEY,PRESET
10 8Z-HR7-201-010 HLDR,PWB
11 87-HG6-204-010 SPR-P,CASS
12 8Z-HR7-009-010 FRAME,CENTER RDS
13 88-HR9-024-010 LEVER,REV MODE WHITE
14 8Z-HR7-012-010 BTN,PLAY RDS
15 8Z-HR7-015-010 BTN,STOP RDS
16 8Z-HR7-014-010 BTN,REW RDS
17 8Z-HR7-013-010 BTN,FF RDS
18 87-HRA-603-010 BAR-ANT,MW
19 8Z-HR7-207-010 BAT-CONTACT, M
20 88-HR9-206-010 BAT-CONTACT,+
21 8Z-HR7-011-010 LID,BAT RDS
22 8Z-HR7-010-010 CABI,REAR RDS
23 8Z-HR7-202-010 HLDR,LCD
24 8Z-HR7-203-010 JOINT,LCD
25 8Z-HR7-603-010 PWB,FLEX
A 87-067-770-010 VT2+1.7-9(3) BLK
B 87-067-384-010 SCREWVT1.4-3.5HL
C 87-067-385-010 SCREW,VT +1.4-2.5HL
D 8Z-HR7-208-010 S-SCREW,+1.4-4.5 BLK HL
21
20
P. C . B
19
17
16
15
14
18
7ZM-5 P1N
13
C
6
24
11
12 5
4
32
1
8
9
7
P. C . B
LCD701
25
23
B
HLDR,BAR ANT
22
A
D
B
10

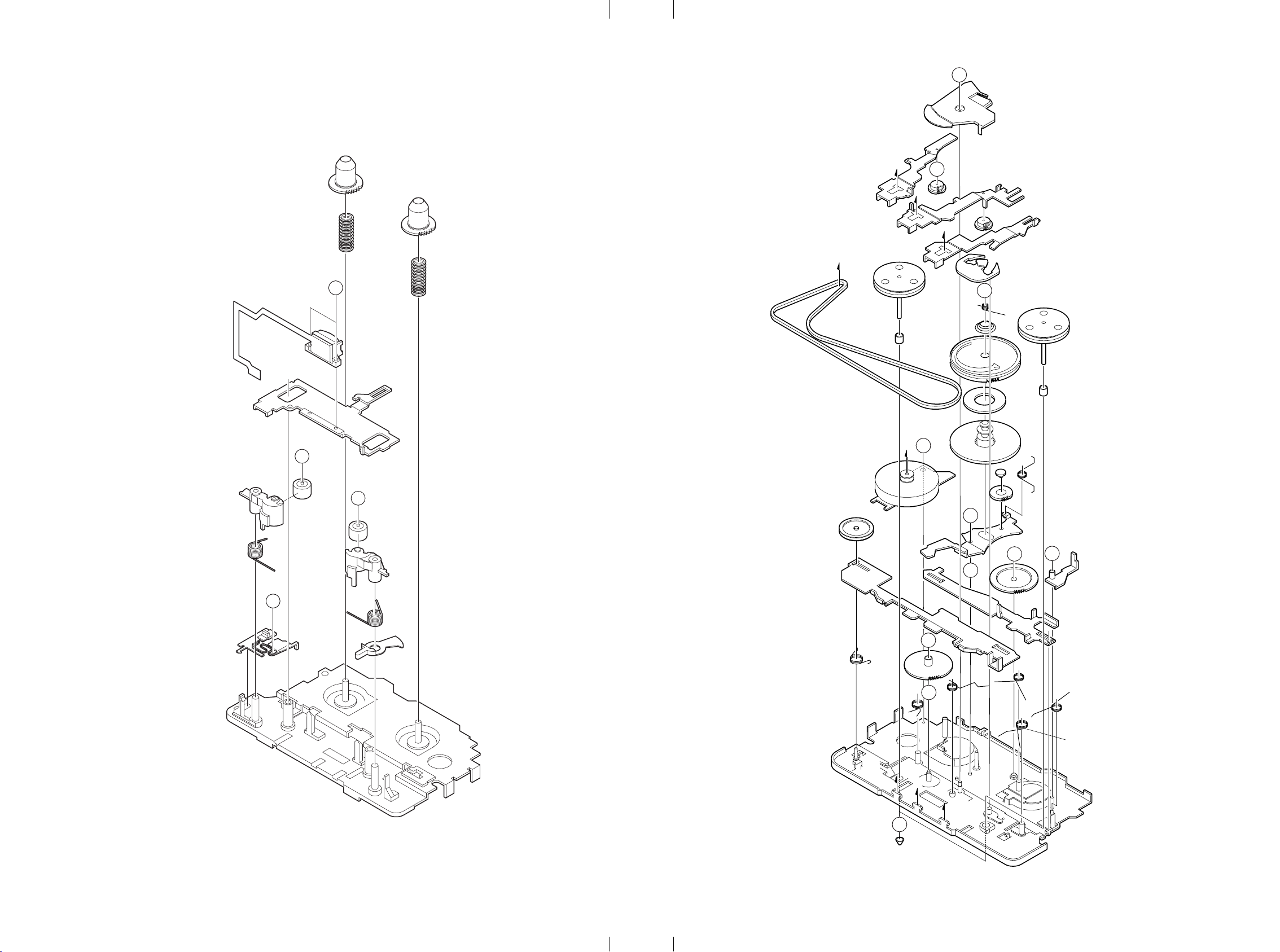

TAPE MECHANISM EXPLODED VIEW 1/1
23 24
D
A
A
E
F
G
a
b
c
a
b
c
H
40
I
33
39
37
36
35
34
13
14
15
16
17
12 20
18
19 38
21
22
23
24
K
25
26
27 28
28
29 30
31
J
43
41
42
42
32
d
d
11
A
45
45
A
1
B
2
34B
10
9
8
4
C
5
6
6
7
7
HEAD FLEX. C.B
44

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO. DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.
25
TAPE MECHANISM PARTS LIST 1/1
1 87-ZM5-218-010 LEVER,MOD SEL 2
2 87-ZM5-248-010 SPR-T,PINCH L
3 87-ZM5-232-010 ARM,PINCH L
4 87-ZM5-255-010 ROLLER ASSY,PINCH
5 87-ZM5-210-010 LEVER,PLAY
6 87-ZM5-251-010 SPR-C,GEAR REEL
7 87-ZM5-276-010 GEAR,REEL L
8 87-ZM5-233-010 ARM,PINCH R
9 87-ZM5-249-010 SPR-T,PINCH R
10 87-ZM5-219-010 BTN,DIR KNOB
11 87-ZM5-221-010 GEAR,IDL A
12 87-ZM5-222-010 GEAR,IDL B
13 87-ZM5-212-010 LEVER,DIR P
14 85-ZM1-212-010 PULLY PM 2
15 87-ZM5-213-010 LEVER,LOCK
16 M8-6ZS-390-000 ABL-63A
17 87-ZM5-208-010 LEVER ASSY,T-UP
18 87-ZM5-223-010 GEAR,PLAY
19 87-ZM5-259-010 CAP,PLAY
20 87-ZM5-216-010 LEVER,PLAY SW
21 87-ZM5-228-010 GEAR,SLIP B
22 87-ZM5-229-010 FELT,CLUTCH
23 87-ZM5-227-010 GEAR,SLIP A
24 87-ZM5-230-010 SPR-C,SLIP
25 87-ZM5-246-010 SPR-T,AUTO
26 87-ZM5-214-010 LEVER,AUTO
27 87-ZM5-204-010 LEVER ASSY,FF
28 87-ZM5-225-010 GEAR,FF/REW
29 87-ZM5-206-010 LEVER ASSY,REW
30 87-ZM5-211-010 LEVER,STOP
31 87-ZM5-261-010 LEVER,AUTO 2S
32 87-ZM5-253-010 BELT,MAIN
33 87-ZM5-258-010 CAP,CAPSTAN
34 87-ZM5-245-010 SPR-T,DIR
35 87-ZM5-243-010 SPR-T,FF
36 87-ZM5-247-010 SPR-T,AUTO 2
37 87-ZM5-244-010 SPR-T,REW
38 87-ZM5-250-010 SPR-T,LEVER T-UP
39 87-ZM5-241-010 SPR-T,LEVER LOCK
40 87-ZM5-242-010 SPR-T,PLAY
41 87-ZM5-236-010 FLY-WHL,R
42 87-ZM5-237-010 CAPSTAN, 1.8-20.2
43 87-ZM5-235-010 FLY-WHL,L
44 87-ZM5-201-010 CHAS ASSY,OUT-SERT P
45 87-ZM5-260-010 CLR,BEARING
A 87-067-860-010 W-P,0.95-3-0.4
B 87-B10-085-010 W-L,1.31-3-0.2
C 87-ZM5-270-010 S-SCREW,1.4-5-STP
D 87-B10-084-010 W-L,2.2-3.2-0.1
E 87-B10-080-010 W-L,0.97-3-0.35
F 87-B10-086-010 W-L,1.57-2.8-0.1
G 87-ZM5-271-010 S-SCREW,1.4-2.6-STP
H 87-B10-087-010 W-L,1.25-2.26-0.1 SLT
I 87-B10-070-010 W-P,1.55-2.9-0.25 SLIT
J 87-ZM5-083-010 W-L,0.95-2.5-0.3
K 87-B10-083-010 W-L,0.95-2.5-0.3

2–11,IKENOHATA1–CHOME,TAITO-KU,TOKYO110,JAPAN TEL:[phone]
L
Printedin Singapore
A4
2-11, IKENOHATA 1-CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
9630469 0251431
