Seatcraft ORLEANS Operating manual

Home Theater Seating
ASSEMBLY & GENERAL USE GUIDE
2177
Rev. 6-5-2018
ORLEANS
WITH MANUAL RECLINE

What’s Inside the Box
Step 1: Attach the Backrest to the Seat Base
Step 2: Connect the Power Cable
Step 3: Attach the Tray Table
Using the Manual Control Panel
Troubleshooting Guide
Seat Part List
Proposition 65 Information
Important Safety Instructions
Warranty Info & Contact Information
2
3
4
5
6
7
8
9
10
11
Table of Contents
PAGE 1

PAGE 2
1. BACKREST
3. RED BAG
2. SEAT
1. BACKREST
2. SEAT
3. RED BAG (Includes: Power Adapter & Power Adapter Cable)
What’s Inside the Box

PAGE 3

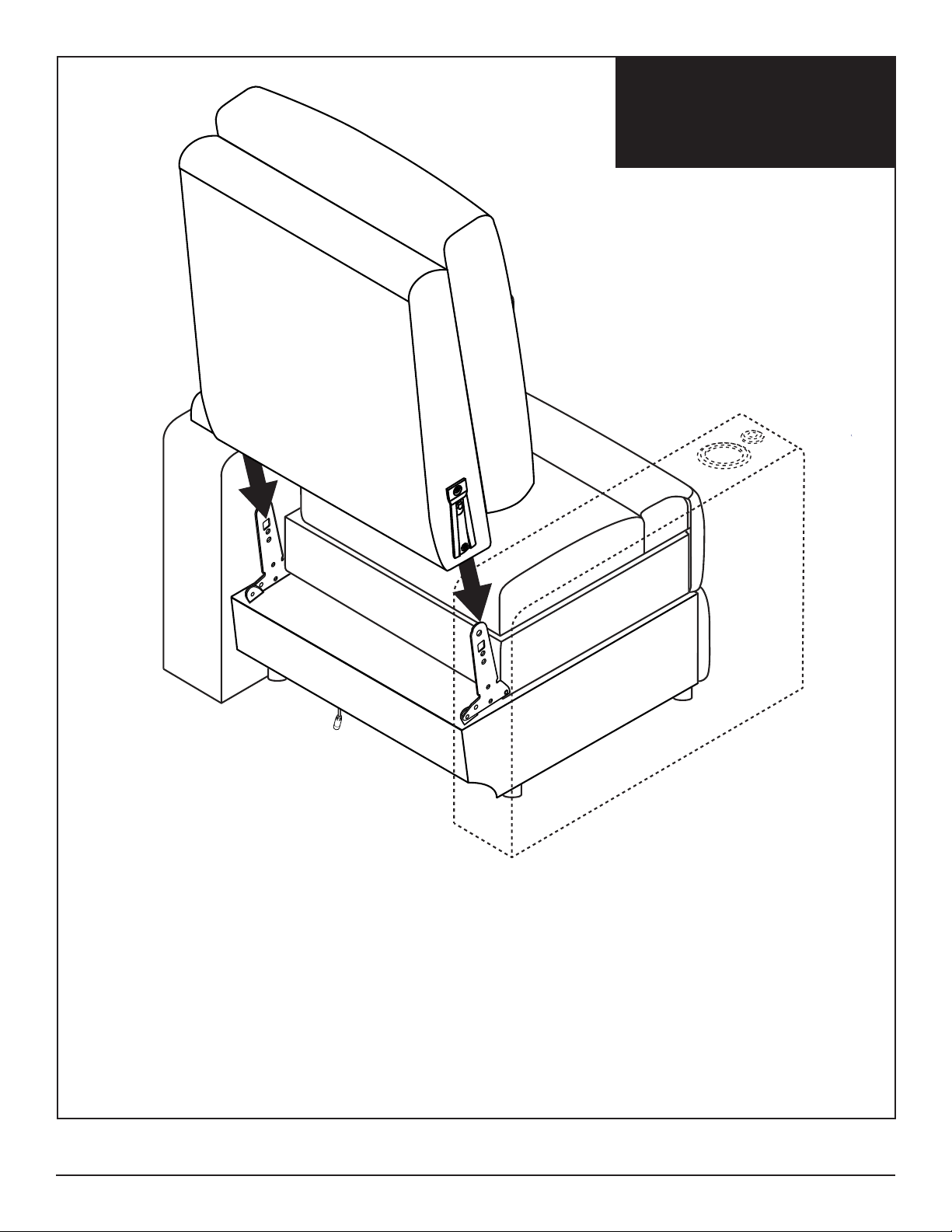

Slide the Backrest Female Brackets onto the Backrest Male Brackets.
Push until you hear a click on both sides. This will indicate that the backrest is secured.
STEP 1
Attach the Backrest to the Seat Base

Power Adapter
Power Adapter
Cable
PAGE 4

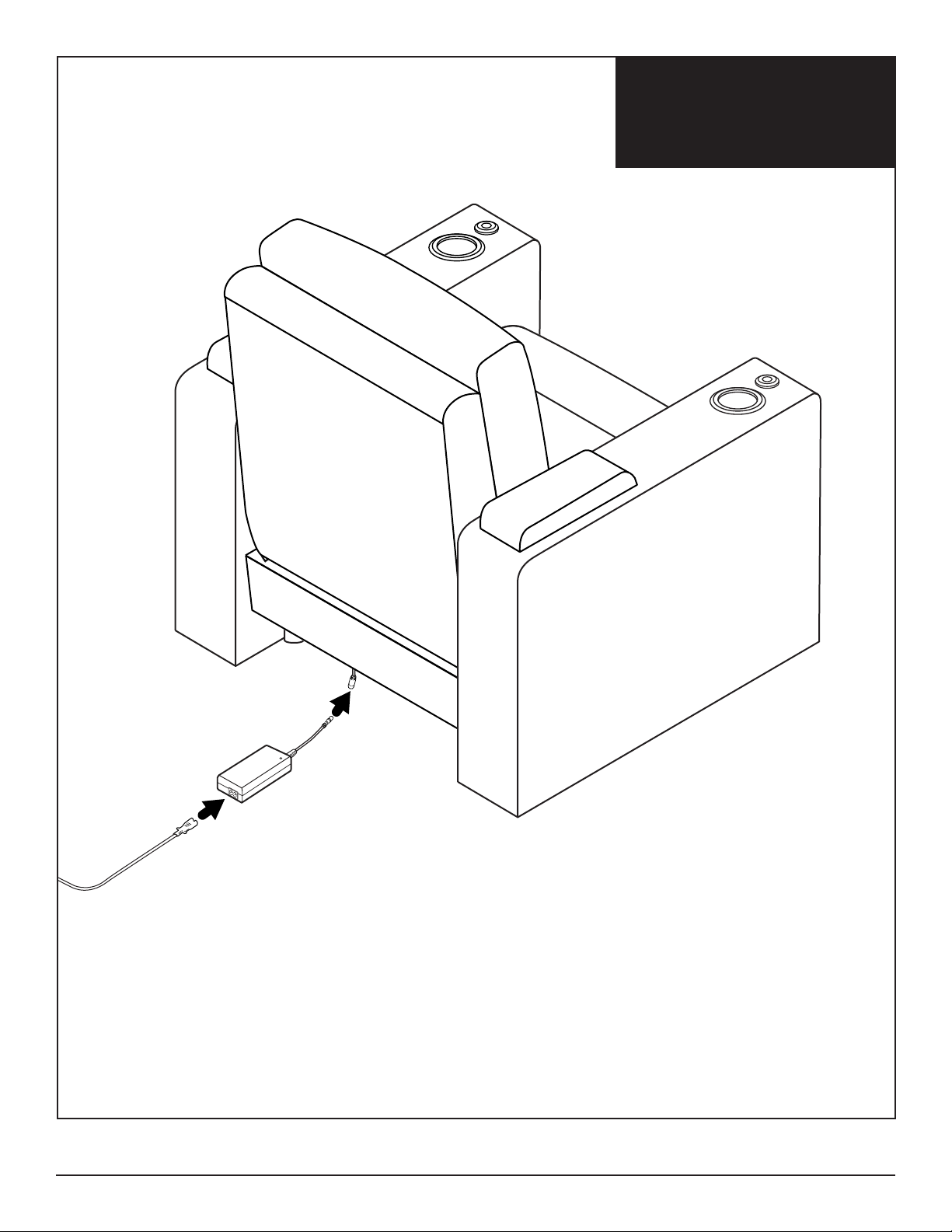

Plug the Power Adapter Cable into the Power Adapter. Connect the Power Adapter to the Power Recline
Cable. Lock the two cables together.
Connect the Power Cable
STEP 2

Attach the Tray Table
PAGE 5
Open the in-arm storage to find your Tray Table. Place the Tray Table into the accessory mount.
STEP 3

AMBIENT
LIGHT
1.
USB CHARGING
PORT
2.
MANUAL
RECLINE
3.

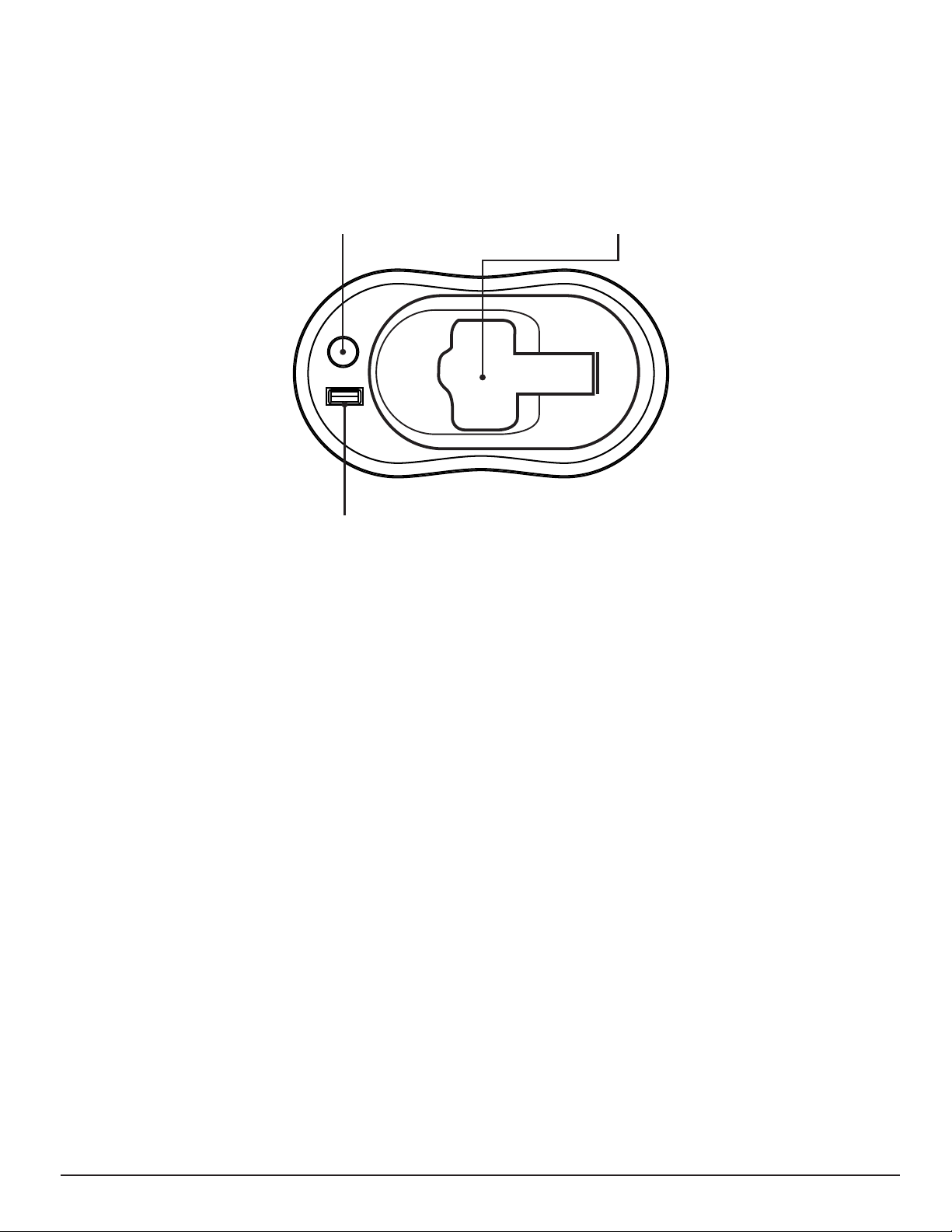

Using the Manual Control Panel
AMBIENT LIGHT CONTROL
Push to turn the ambient base lighting and the lighted cupholders on or off.
1.
USB CHARGING PORT
Plug in any USB-powered device to charge it.
2.
MANUAL RECLINE
Pull to release the manual recline.
3.
PAGE 6

PAGE 7

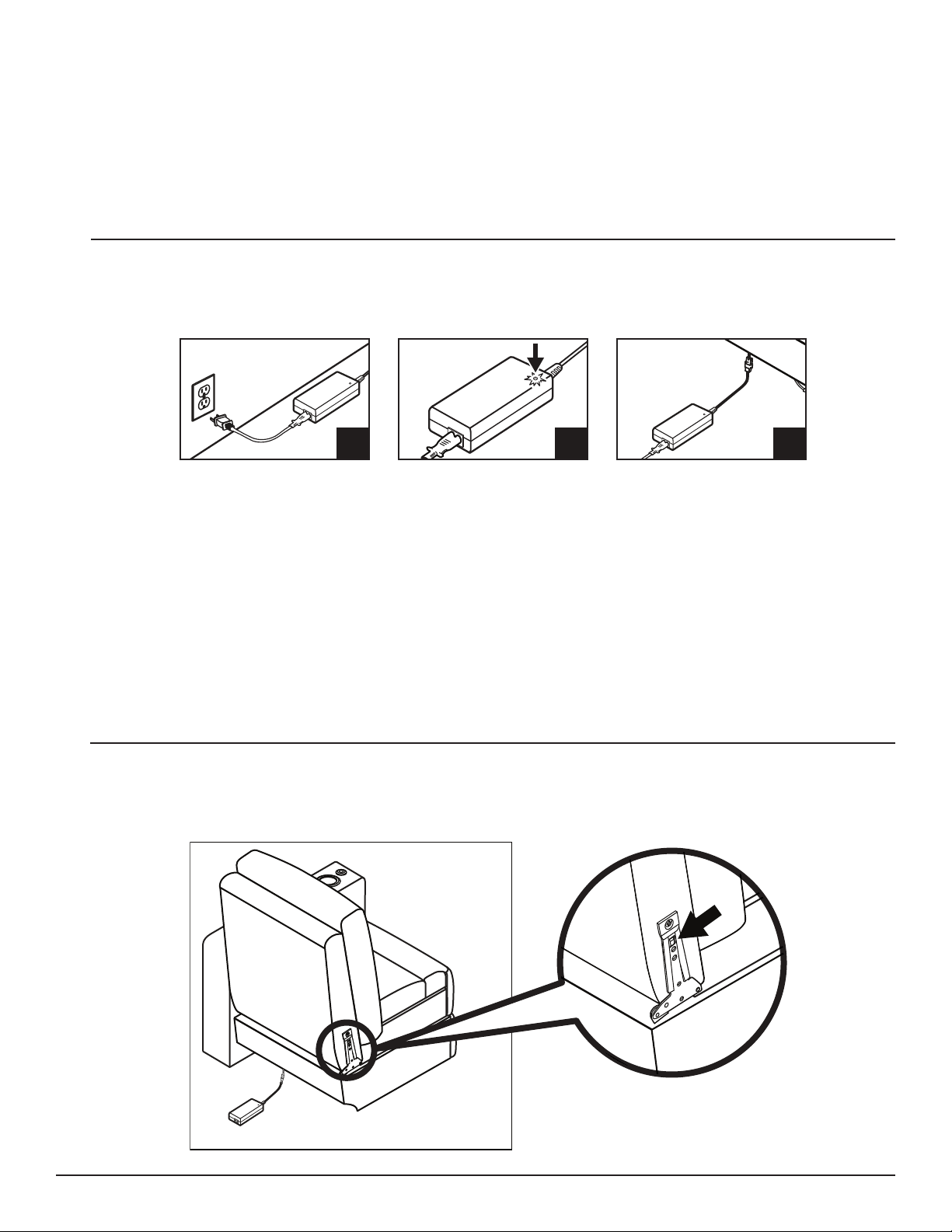

Troubleshooting Guide
How come the lights on my cupholder or seat base are not lighting up?
Q.
A. The Power Adapter has become loose or disconnected.
213
Unplug and re-plug in the
Power Adapter to a wall
outlet.
The green light on the
Power Adapter should be
illuminated.
Unplug and re-plug in
the Power Adapter to the
Powered Recline Cable.
How do I remove the backrest from the seat base?
Q.
A.
Pull up on the locking tab on the
Backrest Female Bracket and firmly
pull the backrest upward.
The Backrest Female Bracket has a locking tab.

Right
Arm
Backrest
Left
Arm
Seat
Seatcraft Orleans with Manual Recline
Double Arm Home Theater Seat
2177-3
PRODUCTION DATE:
5/1/2017 - CURRENT
MANUAL RECLINE
CONTROL PANEL
PT-SM-12V3A
LED BASE LIGHT STRIP
PT-WLS-180
CUP HOLDER INSERT
SILICONE SC LOGO
PT-CHI-24
TRAY TABLE
PT-STT-1
LIGHTED CUPHOLDER
PT-LCH-402B
LIGHTED CUPHOLDER
PT-LCH-402B
HINGE FOR ARMREST
PT-H5-3
PLASTIC GLIDES FOR
MECHANISM
PT-F3-3
SWIVEL TABLE MOUNT
PT-STM-100
BACKREST BRACKET (FEMALE)
PT-LP-1412630001
BACKREST BRACKET (FEMALE)
PT-LP-1412630001
GAS SHOCK SET
PT-EAS16005
POWER ADAPTER
PT-MLTR006
POWER ADAPTER CABLE
PT-PS1300AM
Recline Mechanism - Manual PT-4302-2(L)
Backrest Only 2177-(Material)-BC01
LAF Armrest Only - Manual 2177-(Material)-3MA01
RAF Armrest Only - Manual 2177-(Material)-3MC01
PLASTIC GLIDES FOR
ARM
PT-F4-4
Revised 4/19/2018
PAGE 8
Seatcraft Orleans with Manual Recline
2177

Proposition 65 Information
PAGE 9
Why did I find a Proposition 65 warning on my furniture product?
Q.
A. This warning label is very common and can be found on almost every piece of
furniture sold in the state of California. By law the state of California requires that
we include a Proposition 65 warning on all of our products.
A. You might have seen Proposition 65 warning labels at hotels, banks, restaurants,
and even at theme parks. Proposition 65 is a California law that requires warning
labels on products that may contain one of more than 800-plus chemicals or
ingredients that the California Office of Environmental Health Hazard Assessment
(OEHHA) has deemed to cause cancer or other reproductive toxicity. Chemicals
and elements on this list include saw dust, brass, and other everyday substances,
which can be found in very common household items, such as lamps, tableware,
jewelry, crystal glasses, electric cords, beauty products, automobiles, and furniture.
What is Proposition 65?
Q.

PAGE 10
Important Safety Instructions
• This product is intended for indoor residential use only.
• This product is not intended for use as a healthcare device.
• Do not operate the unit until the back installed and locked.
• Only the occupant should operate the unit. Never attempt
to open the leg rest by pulling on it.
• Sit down in the unit slowly. To avoid tip over, do not throw
your weight against the back of the unit. Move the unit
into or out of the reclining position slowly, making sure
that no children or pets are in close proximity.
• This product has many moving parts, serious injury can
occur if not used properly. Keep hands, ngers and body
parts away from the mechanism. To reduce the risk of
head entrapment and other injuries, keep children and
pets away from the openings and moving parts in and
around furniture.
• Do not stand, sit or place extra weight on the arms, back
or open leg rest.
• Closely supervise children and disabled persons using
this product.
• To safely exit the unit and prevent a tripping hazard bring
the back upright and close the leg rest.
TO REDUCE THE RISK OF SERIOUS
INJURY OR DEATH:
DANGER
• Do not use this product if it is damaged. Do not use
attachments or substitute parts.
• Provide a clear path for operation of the chair, back,
and leg rest. Places tables and area rugs at a distance
to allow the leg rest to fully extend without rubbing or
interference.
• Always keep open ame and lit cigarettes away from
upholstered furniture. Upholstered furniture may burn
rapidly with toxic gas and thick smoke.
• Use care when moving the product. Before lifting the
product, secure the mechanism to prevent unexpected
opening or movement. Never move the product by the
mechanism, leg rest, handle, reclining back or swivel
base. Disconnect modular units. Securely grip non-
moving parts only.
• Do not use Seatcraft furniture in a recreational vehicle
(or other moving vehicles) while the vehicle is in motion.
This furniture is not intended to protect an occupant in an
accident. Safely secure the furniture while the vehicle is
in motion to prevent injury or damages from any sudden
stop.
• To prevent suffocation, keep plastic bags away from children.
TO REDUCE THE RISK OF BURNS, FIRE,
OR SERIOUS INJURY.
WARNING

PAGE 11
Warranty Information
Seatcraft is proud of its high standards of quality and workmanship that go into our products.
The customer is protected by the following Limited Warranty, which applies to seats under
normal indoor residential use. This warranty does not apply to seats used for commercial,
institutional, or other non-residential uses.
ONE YEAR LIMITED WARRANTY: Seatcraft provides (1) one year comprehensive coverage
for all components such as materials, foam and frame parts, and mechanisms including
motorized parts from defective materials or workmanship.
MATERIAL: Normal fabric fading, shrinking, or stretching is not covered by this warranty.
Similarly, the natural markings, stretching, and shrinking of leather is a proud mark of
authenticity and therefore not covered by this warranty. Evidence of improper cleaning, abuse,
or abnormal use of the materials will void this warranty.
FOAM AND FRAME PARTS: Seatcraft warrants these components for (1) one year from the
time of delivery, against manufacturing defects. Foam compression is natural, and therefore
not covered by this warranty.
MECHANISMS: Seatcraft warrants these components for (1) one year from the time of delivery,
against manufacturing defects. After the warranty period, the customer is responsible for
inspection, labor and transportation costs.
No warranties, express or implied, apply after the expiration of this Limited Warranty. The
warranty period covers repair, substitution, and replacement. No returns or refunds are
covered. A proof of purchase is required to service a claim; simply present the bill of sale to the
dealer from whom the item was purchased, to request warranty service. Seatcraft is not liable
for incidental or consequential damages occurring outside the terms of this warranty, even if
advance knowledge of such damages was possible.
Contact Information
We’re here to help. For any missing or damaged parts or installation assistance please call us
at 1-855-244-0170.
HOURS
Mon-Fri 6AM - 7PM PST
Sat 9AM - 5PM PST
Sun 10AM - 5PM PST
