Philips HTS3154/05 User manual

3Enjoy DVD HOME THEATRE SYSTEM
Quick Start Guide
Connect
Set up
Enjoy
1
2
3
What’s in the box?
Start disc playback
APress OPEN/CLOSE çto open the disc tray.
BPlace a disc with the disc label facing up.
CPress OPEN/CLOSE çto close the disc tray.
DPlayback starts automatically.
EIf the disc menu appears on the TV, use  
keys to select an option in the menu and press OK
to start playback.
zTo enjoy the powerful surround sound
from the speakers, press SURROUND
on the remote control to turn on the
multi-channel surround mode.
FPress to stop playback.
Note When you press ubutton, playback
resumes from where it last stopped. To start playback
from the beginning, you have to press .
Playback other supported
devices
USB
USB device
AInsert your USB device to the USB socket.
BPress DISC/USB to switch to ‘USB’ mode.
CPress uto start playback.
DTo stop playback, press DISC/USB to switch to
‘DISC’ mode. You can unplug your USB device now.
Other portable audio player
AUse the supplied MP3 LINE-IN cable to connect the
headphone output socket on your portable audio
player to MP3 LINE-IN socket.
BPress PLAY on your portable audio player.
CPress MP3 LINE-IN to listen to the playback.
-
HTS3154
Main Unit Remote Control
and 2 batteries
User
Manual
1 centre, 2 front, 2 rear speakers
and subwoofer
FM wire
antenna
AM/MW
loop antenna
MP3 INE-IN cable
SLEEP
Need help?
User Manual
See the user manual that came with your Philips DVD Home Theatre System.
Online
Go to www.philips.com/support 2007 CKoninklijke Philips N.V.
All rights reserved.
www.philips.com
Scart Cable
Right side view

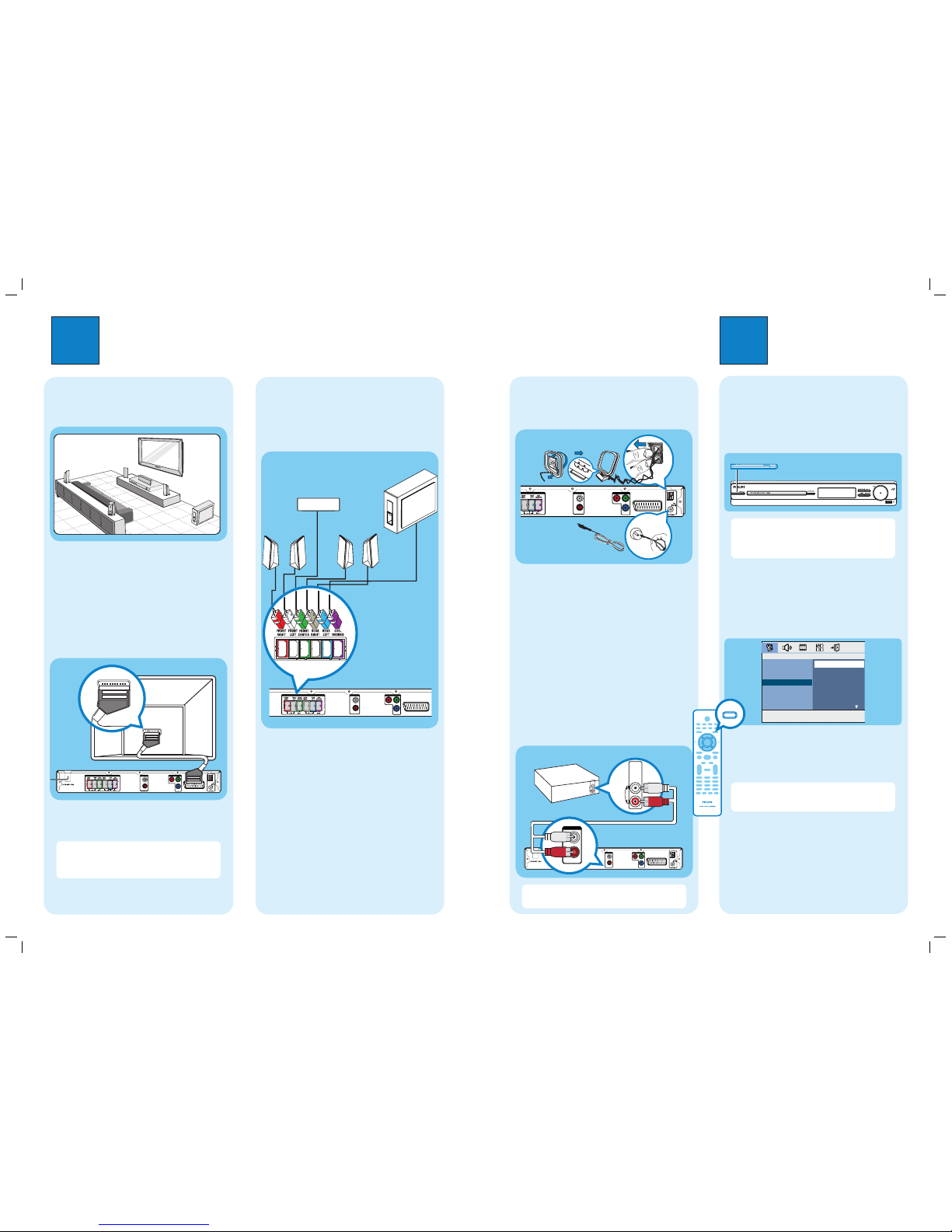

1Connect
A
Placement
Proper speakers system placement is important to
ensure optimum sound performance.
FRONT
RIGHT
FRONT
LEFT
CENTER
REAR
RIGHT
REAR
LEFT
SUBWOOFER
APlace the centre speaker above or close to the TV.
BPlace the subwoofer on the floor, at least one metre
away from the TV.
CPlace the front speakers at equal distances from the
TV.
DPlace the rear speakers at normal listening ear level.
B
Connect the main unit to TV
AUDIOINSPEAKERS VIDEOOUT
AUX
Pr
Pb SCART
Y
L
R
AM/
MW
SCART IN
SCART IN
zConnect a scart cable (supplied) from the SCART
socket on the main unit to the SCART IN socket on
your TV.
Note It is important to connect the main unit
directly to your TV. When watching the TV
programmes, you can press TV on the remote control
to get the sound output from the speakers.
2Set up
C
Connect the speakers and
subwoofer
Connect the various coloured plugs from the speakers
and subwoofer to the same coloured sockets at the rear
of the main unit.
AUDIO INSPEAKERS VIDEO OUT
AUX
Pr
Pb SCART
Y
L
R
Main Unit (rear)
A
Finding the viewing channel
APress 2(STANDBY ON) on the main unit to turn
it on.
BTurn on the TV. Use the TVs remote control to
select the correct viewing channel.
STANDBY-ON
Note To search for the correct viewing channel,
press the Channel Down button on the TVs remote
control repeatedly (or AV, SELECT, °button) until
you see the Video In channel.
B
Select the display language on the
screen
APress SETUP.
The { General Setup Page } appears.
General Setup Page
Disc Lock
Display Dim
Program
OSD Language
Screen Saver
Sleep
DivX(R) VOD Code
English
Dansk
Nederlands
Suomi
Français
Deutsch
Italiano
Norsk
BPress to select { OSD Language } and press .
CUse  keys to select a language option in the
menu and press OK to confirm.
DPress SETUP to exit.
Note The language set here is only for the menus
that are shown on the TV while operating this Home
Theatre system, not for the DVD disc menu.
There are various setup options (Audio Setup, Video
Setup, Preference Setup) available on this Home Theatre
System. Refer to the user manual for more information.
D
Connect the radio antennas
Keep the antennas away from the electronic devices to
prevent unwanted interference.
AUDIO INAKERS VIDEO OUT
AUX
Pr
Pb SCART
Y
L
R
AM/
MW
A
B
AConnect the FM antenna to the inner pin of the
FM 75 socket. For optimum reception, extend the
wire and fix its end to the wall.
BUnfold the AM/MW loop antenna and fix the claw
into the slot. Push the tabs and insert the wires into
the AM/MW sockets.
CConnect the power cable from the main unit to the
AC power outlet.
E
Connect audio output from other
device (optional)
Use a red and white audio cables (not supplied) to
connect the AUDIO IN-AUX sockets on the main unit
to the AUDIO OUT sockets on the connected device
(for example, DVD recorder, VCR, Cable/Satellite Box).
AUDIOINSPEAKERS VIDEOOUT
AUX
Pr
Pb SCART
Y
L
R
AM/
MW
AUDIO
OUT
AUDIO OUT
AUDIO IN
AUX
L
R
AUDIO
OUT
Note Press AUX on the remote control to get the
sound output from the speakers.
Main Unit (rear)
Television (rear)
Main Unit (rear)
DVD recorder/ VCR/
Cable/ Satellite Box
Main Unit (rear)
FM antenna
AM/MW antenna
SUBWOOFER
FRONT
RIGHT
FRONT
LEFT
REAR
RIGHT
REAR
LEFT
FRONT CENTRE
SETUP
