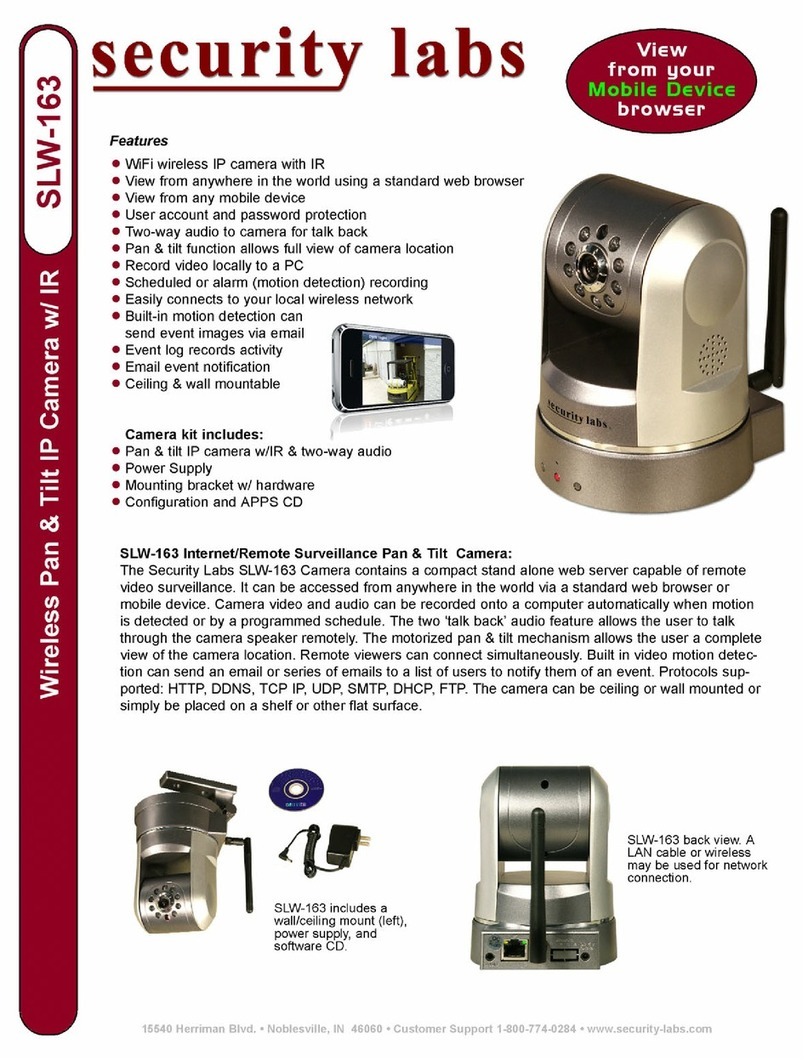

Security Labs SLW-163 User manual

Model SLW-163
Wireless Pan & Tilt IP
Camera w/ IR
Owner’s Manual
15540 Herriman Blvd. Noblesville, IN 46060 -www.security-labs.com
Customer Support 1-800-774-0284

PLEASE NOTE BEFORE YOU BEGIN
This camera is designed for indoor use only.
Make sure you only use the included power supply (Output: 5.0 VDC, 1.5A).
Do not attempt to open the case. There are no user serviceable parts inside.
Do not aim the camera at the sun or similar intense light.
The time allowed to power the camera on and off (reboot) should be a minimum of 10
seconds.
If you update the camera’s firmware:
- connect the camera directly to a network using a network cable
- close other programs that may be in use on the controlling computer
- always keep power connected to the camera when updating the firmware
PRODUCT DESCRIPTION
Your new WiFi Pan Tilt Camera can be set up in minutes for instant monitoring and live
viewing on a Mac or Windows computer plus 3G Smartphones - all via your wireless
network router or switch.
For optional recording, simply install the recording software on a Windows PC and configure
it for your particular requirements.
NOTES ON WINDOWS AND MAC COMPATIBILITY
Your IP camera setup is best accomplished using a Windows PC with Internet Explorer
- Certain features may not be readily available using the Safari, Firefox, or Chrome browsers
FEATURES
Camera combines a high quality CMOS imager with a powerful wireless web server for clear
images sent to anywhere on your local network or over the internet.
Can be used on WiFi or Wired Networks.
Dual resolution: 640x480 or 320x240
Expand your system at any time – up to 9 total cameras can be viewed.
Includes Multi-level user management which can be configured with secure password
access.
Easy to use web browser controls also allow quick configuration changes via the Settings
Menu.
View live images on your 3G Smartphone.
Supports image snapshots and sending images via Email and FTP upload.
View cameras in Split Screen or Full Screen mode.
Cameras can be viewed using standard PC or Mac web browsers including Internet
Explorer, Safari, Chrome and Firefox.
IR LEDs for Night Vision up to 30+ feet typical.

PACKAGE CONTENTS
Glossary of terms:
LAN – Local Area Network
WAN – Wide Area Network (Internet)
ISP – Internet Service Provider
ADSL (or DSL) – Asymmetric Digital Subscriber Line
DHCP – Dynamic Host Configuration Protocol
DNS-Domain Name System (supplied by your ISP)
DDNS – Dynamic Domain Name System
DMZ – An unprotected zone outside of your firewall
BASIC CAMERA SETUP
1.Attach the included antenna to the camera.
2. Connect power to the camera only using the power supply provided.
3. Using the included Ethernet cable, connect the camera to your network’s
router or switch. We recommend you set up the camera initially on your
network using a wired connection
before you use the camera in Wi-Fi mode
4. Insert the included Installation CD into your PC’s CD drive. The installation
screen should appear automatically, or click on My Computer or Windows
Explorer to show the contents on the CD.
5. Double click 'IPCamSetup.exe' and install the software as instructed.

6. Click Next, to complete the software installation.
The computer will restart upon completion of the installation and a new icon
will appear on the desktop automatically called 'IP Camera Tool'.
7. Double click the icon to start the IP Camera Tool software. The software is
designed to search the Local Area Network (LAN) for any similar IP cameras
or devices.

After searching, the software will give one of 3 results:
1) Connected IP cameras are located on the LAN - All similar IP cameras
will be displayed in the result field as shown below.
2) No IP Camera found within LAN - After a one minute search, the result
field will show “Not Found - IP Server” and the software application will shut
down automatically. Check your network connection cable to the camera and
confirm the camera has power.
3) The IP Cameras installed within LAN do not share the same subnet
with the monitoring PC. A prompt will be shown in result field 'Subnet
doesn't match, double click to change!' Double click the highlighted line and
select 'Network Configuration' to set the IP address of the Camera to the same
subnet as your LAN.
Note: Internet Explorer may block the IP Camera Tool or the operation of the
camera itself. Allowing the installation of the ActiveX control used with the camera
is needed. The security settings of Internet Explorer can be adjusted if needed.
Please see further information in the Appendix.
8.Right click on the camera now showing in the list on your screen that you
wish to use, five options are then displayed:
- Basic Properties = Displays Device ID, System
Firmware Version, and Web UI Version.
- Network Configuration = Edit your network settings.
- Upgrade Firmware = Rarely used, but available if
directed by customer service technician.
- Refresh Camera List = Displays most recent
changes to cameras on your network.
- Flush Arp Buffer = ARP stands for Address
Resolution Protocol. It is used to associate an IP
ADDRESS with a MAC address. When a wired
network and a wireless network both use the same
fixed IP address, a problem may occur where the
process of loading a web page may time out and fail. Use the Flush
ARP Buffer to clear the ARP cache and fix this error.

9. Click on Network Configuration
Network Configuration
Configure the Network parameters from this page.
Note: Check the box “Obtain IP from DHCP server” or manually enter your
address information.
•DHCP checkbox: If checked, the camera will obtain an IP address from the
DHCP server in your router. This is an automated process and perhaps the
easiest to use. (Confirm your Router has the DHCP function enabled).
A better solution compared to using DHCP is to enter an IP address that
never changes (static). This will provide a more reliable method of connecting
with your camera via the internet in the future.
•IP address: Manually type in an IP address if you have a Static IP (one that
never changes from your Internet Service Provider). Make sure the subnet
(the first three sections of the number) are the same as the gateway you type
in.
•Mask: The default subnet mask of the camera is: 255.255.255.0
•Gateway: Make sure it is in the same subnet with your PC IP address.
Default Gateway address is 192.168.1.1
•DNS: IP address of your Internet Service Provider (ISP).
•Port: LAN port assigned for the camera, usually 81.
•User & Password: Default User = admin
Password = _________(leave space empty).
10. After completing the Network Configuration, Click OK
Note: You may find it necessary to place the IP address assigned to the camera
in “Trusted Sites” for Internet Explorer. See Appendix.
RESET BUTTON: Press and hold down the RESET BUTTON for 5 seconds. Release
the button and IP camera will be reset back to the factory default settings.
11. Access your camera by double clicking the IP address listed in the
camera finder window, or type the IP address of the camera directly into the
address line of your preferred web browser.
9. The Camera Login page will pop up. Enter your account and password on
the login page. By default, the administrator's username is: admin, leave the
password box blank

Click the 'Sign in' button as shown below:
Note: If you are using a PC, follow the top link for IE Browsers. This will
activate ActiveX which allows access to additional functions of the user
interface. If you are a Mac or Firefox user, you can view the camera via the
second link, Server Push Mode. Server Push Mode offers a few less controls
than ActiveX mode, but has proven to be more stable on some PCs.
WiFi ACTIVATION
Please complete the basic camera setup procedure before activating the WiFi
feature. It is important for the camera to first have an IP Address and Subnet
that are compatible with your wireless network.
1. With the LAN cable still attached to your camera, connect to it using the
IP Camera Tool, or by entering the local IP address into your web browser
address bar.
2. Login with your user name and password (Default is User name = admin,
Password (leave empty). Click <OK> or press <ENTER>.
3. Click on a “Sign in” button depending on the default browser that is being
opened.
4. Click on <For Administrator / Wireless LAN Settings>
5. Click <Scan> next to Wireless Network List.
6. Click on your network name (SSID) that appears in the scan box.

7. Confirm the Network Type and Encryption used are correct.
8. Enter your network password or share key.
9. Click <Submit>, and return to <Live Video>.
10. After completion, remove and re-apply power to the camera to
initialize settings.
You may remove the LAN cable at this time, and place the camera at its
intended location. Please confirm WiFi transmission from the location of the
camera before installing the accessory mounting bracket.
Note: If you are having difficulty properly connecting to the camera, flush the
ARP buffer (IP Camera Tool / right click camera on list / Flush ARP Buffer)
OPERATION / ADDITIONAL SETTINGS
Main User Interface (as seen with Internet Explorer)
Device Status
Camera(s) that are in the process of sending a Motion Alarm flash as a red icon.
For Visitor

If more than one camera has been added to the Multi-Device Menu in the ActiveX mode
(Internet Explorer), you can view multiple cameras using the Internet Explorer web browser.
Select the icons according to the view preferred; Full Screen , Quad, or 3 x 3.
Add timestamp on record
When checked, a time/date stamp will be added in the bottom right corner of recorded
videos.
OSD (On Screen Display)
Displays the date and time on live video. You can also choose the color of the OSD text.
Audio buffer (Model 163 Pan/Tilt only)
The audio buffer allows you to synchronize the audio with the video to best match
your internet connection ‘s capabilities. Number 1 for faster connections, up to
number 5 for slower connections.
Play and Stop icons
Allow you to stop and start the viewing of the selected camera.
Snapshot
Click the camera icon to capture a still image of what you are viewing on your
screen. Right click on the captured image and select “Save picture as” to select a
folder to store your snapshots. By default the date and time the snapshot was
taken will be included in the file name.
Headphone, Microphone, Movie Icons
Click the headphone icon to hear audio from the area near your camera. Click the
microphone icon to speak via your PC’s microphone to the camera’s speaker.
Click the icons again to turn the selected function OFF. Only use one function
(listen or speak) at a time for best results. A feedback loop can be created by
leaving both icons turned ON at the same time.
Clicking the movie camera icon will start the process of saving live action video to
your PC. The first click will bring up the “Save As” window where you can select
the destination folder for your videos. The second click on the icon will stop the
recording process.
All videos are stored as .avi format files that are easily played back by a variety of
movie players including Windows Media Player.
Note: The Administrator, Operator, & Visitor can choose the folder where video
files will be saved.
1. The default path for saving files is C:\Documents and Settings\All

Users\Documents.
2. In Windows Vista, there are two points you need to notice:
• Vista's Security level is higher than Windows XP/2000. For the 'Set Record Path'
function, you will need to add the add the Device IP address to IE's 'Trusted sites'
first. To do this go to: Tools > Internet Properties > Security >Trusted sites > Sites
> Add.
In Vista, there is a prompt to add Trusted sites when the Set Record/
Alarm Record path is clicked.
•You cannot set the Windows System Root Directory as you will do for the
Record/Alarm Record Path. This prompt only pops-up in Vista.
For Operator
Pan / Tilt Movement
Click and hold on an arrow with the blue circle to manually move the pan / tilt
camera mechanism. Letting off your mouse button will stop the selected
movement. Automatic scans can be done with the vertical or horizontal double
arrows. Clicking on the stop button to their right will stop the automatic scans.
Note: The infinity icons “Switch” and “Switch Off” are reserved for future use.
Preset
Up to 8 preset positions can be entered for easy access to commonly viewed
points of interest. Manually pan / tilt the camera to the first view desired, and click
the word “Set”. Manually pan/ tilt the camera to the second desired view, select 2
from the drop list and click on “Set”. Manually pan/ tilt the camera to the third
desired view, select 3 from the drop list and click on “Set”. Continue this process
for up to 8 preset positions. Recall any preset by selecting a number from the
drop list, and click on “Go”.
Resolution
Select either VGA (640x480) for a better picture, or QVGA (320x240) for faster
transmission or less storage space required for recordings..
Mode
Select either 50Hz, 60Hz (USA indoors), or Outdoor to properly sync your camera
to the lighting of the view.
Brightness and Contrast parameters
Click the + or - icons to adjust the brightness and contrast of the camera image.
Default All

Click to return the settings to the factory defaults.
For Administrator
When you login as an Administrator, the 'For Administrator' functions are enabled.
Device Info -You can find information about the camera such as the Device ID,
Firmware Version and Embeded Web UI (User Interface) Version.
Note: Always click “Submit” at the bottom of any settings page to upload
and store your changes to the camera.
Alias Settings -You can change the name of your IP camera.
Data & Time Settings -Set the time and date. If your camera is connected to the
internet, checking the “Sync with NTP Server” box, and selecting “time.nist.gov” is
suggested for the best accuracy and synchronization with other cameras you may
own.
User Settings -You can configure up to 8 user names and passwords and the
permission level of each user as;
Administrator,Operator or Visitor.
Visitor: In this mode, you can view, create local recordings, snapshots, and
control audio.
Operator: You can control the image setting of the IP Camera, set visitor & PTZ
controls.
Administrator: You can setup advanced configurations of the IP Camera.

UPnP Settings -Access this page to activate Universal Plug ‘n Play to sync with
routers that have the same function. This helps with port forwarding and viewing
via the internet.
Upgrade Device Firmware -If directed by our customer service technician, you
can upgrade the camera's Firmware and device embedded web UI (User
Interface) software on this page.
Restore Factory Settings -Restore factory settings of the device.
Reboot Device -Reboot the device.
Multi-Device Settings
Using Internet Explorer (ActiveX Mode) in the Multi Device Settings page, you can
see all similar cameras found on your LAN.
The '1st Device' is the default IP camera. You can add more cameras to the list in
the network for monitoring. Up to 9 IP cameras can be viewed simultaneously with
Internet Explorer.
To add cameras on the LAN
Click 'The 2nd Device' and double click the IP camera from the 'Device List in
LAN'. The Alias Host and HTTP Port will fill in automatically. Enter the correct
User Name and Password then click 'Add'. More cameras can be listed in the
same way.
To add cameras on the Internet
First, make sure the camera to be added can be accessed on the Internet with the

IP address or DDNS domain being entered directly into a web browser’s address
bar (as an example: http://202.96.133.134: 9008 or
http://ipcamera.dyndns.org:9008). 9008 being the port number forwarded in the
router at the location (LAN) of the camera.
Enter in the Host box: 202.96.133.134, Http Port box:9008 or Host:
ipcamera.dyndns.org, Http Port: :9008. Enter the correct User Name and
Password then click 'Add'. More cameras can be listed in the same way.
Basic Network Settings
If the router that the IP camera connects to has a DHCP function, you can choose
'Obtain IP from DHCP Server" The network parameters will automatically fill in.
HTTP Port - In most cases, you can leave this value as 81, however, if your
Internet Service Provider blocks this port, you may have to switch to another port
number such as 8005.
Wireless LAN Settings
Enter the wireless settings page of the Wireless Router to find out the SSID,
Channel, Encryption and Authentication details. This camera supports WEP and
WAP security encryption.

ADSL Settings
When connecting to the Internet via ADSL, enter
the ADSL username and password obtained from your ISP.
DDNS Service Settings
If a static IP address (one that never changes) is not readily available from your
ISP, a DDNS service can be used to provide an address for your camera that will
remain the same, making it easier for you to contact your camera via the internet.
The system supports protocols from some DDNS providers such as dyndns.org.
Enter the following information once the DDNS information has been setup.
User and Password: The User Name and Password used when applying for the
domain name.
DDNS Host: The domain name.
DDNS or Proxy Server: If you access the DDNS host through a proxy, you should
input the Proxy IP.
DDNS or Proxy Port: The Proxy Port.

Mail Service Settings
Configure the Email addresses that will receive and send mails after a motion
detection alarm.

Sender –Enter the e-mail address to be used for the sender.
Receiver –Enter up to four receiver e-mail address
SMTP Server -The SMTP server for the sender mailbox.
Need Authentication -Check the box if the email needs authentication then
input the SMTP User Name & Password.
Mail test: Set the Mail parameters then click 'Submit' first before sending a
test email. “Success” will be the response on your screen if the e-mail
parameters have been entered correctly.
Report Internet IP by Mail – Sends an e-mail when the camera is powered
up or the IP address is changed.
FTP Service Settings
Note: When Alarm Service Settings > Upload Image on Alarm is checked, the
FTP Service takes effect.
FTP Server -The FTP server address.
FTP port -The port usually is 21.
FTP Mode -Supports standard (POST) mode and passive (PASV) mode.
Upload Image Now -Check the box to upload the image. When checked, you
can input the upload interval time in seconds.
FTP Test -Set the FTP parameters and then click 'Submit' before testing the

FTP settings. If successful, it will display the prompt “Success”.
Alarm Service Settings (Motion Detection)
Enter the Alarm Service Settings page to configure the Motion Detection
function. When you enable motion detection, the camera can be triggered to
send email alerts and upload images.
Motion Detection Sensitivity -You can choose a level from 1 to 10. The
most sensitive is 10.
Send Mail on Alarm-Sends picture & mail information to the set Email
address after a motion alarm is triggered.
Upload Image on Alarm -Enable this function to upload an image after a
motion alarm.
Scheduler -Enable this function to schedule the times when you wish for the
alarm function to be active (or not).

ACCESSING YOUR WIFI CAMERA
Via LAN (Local Area Network)
Four ways:
1. Click on the shortcut on your computer to run the IP Camera Tool, then click
on the camera listed that you wish to view.
-or-
2. Enter the local IP address of the camera into the address bar of your
preferred browser.
-or-
3. Add the camera to the Multiple Device Settings in ActiveX Mode (Internet
Explorer).
-or-
4. Add the Local IP address to, and run the CMS software.
Via Internet – WAN (Wide Area Network)
Four ways:
1. Enter the WAN IP address plus the port number (i.e. 173.15.11.23:8000)
into the address bar of your preferred web browser.
-or-
2. Add the WAN IP and port number to the Multiple Device Settings using
Internet Explorer.
-or-
3. Register and use your camera with a DDNS service.
Getting a Static IP address from your ISP is the preferred way to go. If you
are only able to get a Dynamic IP address (one that changes periodically), you
may consider using a DDNS provider.
DDNS (Dynamic Domain Name Service) is an internet service which allows
you to associate the IP address of your IP Camera with a name like
www.myipcamera.com. Some companies such as www.dyndns.org provide
this service free of charge. To use the service you must create an account
with a DNS service. You may register at: www.dyndns.org.

Via a Mobile Device (Smartphone)
View your IP camera using your mobile device’s web browser. Enter the LAN
IP and port number you assigned to the camera if you are within the range of
your wireless router. Enter the WAN IP and port number into the address bar
if you are trying to view your camera via the internet.
After logging in with your User Name and Password (default User = admin,
Password = (empty), sign in using the Server Push Mode button.
The VLC plug-in mode can also be used if you have the VLC player installed
on your device.
Please check our web site for the latest applications that may be available for
your device.
APPENDIX
Frequently Asked Questions
What do I do if I have forgotten the administrator User Name and/or
password?
To reset the administrator User Name and password, Press and hold down
the RESET BUTTON for 5 seconds. Release the power button and the User
Name and password will be reset back to the factory default administrator
User Name and Password.
Default administrator User Name: admin
Default administrator password: (Leave empty – no password required)
IP Address Subnet
When configuring the camera's IP address manually , if you are unable to
access the camera via a web browser, check to see if the IP address of the
camera shares the same subnet as your computer:
Click My Computer > Control Panel > Network & Dial-up Connections > LAN >
Attributes >Internet Protocols (TCP/IP).

Notice the IP Address and Subnet Mask. Make sure the camera is set to the
same subnet.
Port Numbers
If you are running any firewall software, make sure it's allowing inbound
connections to port 81. Also, if you are using a Cable or DSL router, make
sure you've set up port forwarding properly (consult your router's
documentation for more information).
It is also possible that your ISP is blocking inbound connections to port 81.
Many ISPs have done this because of internet worms such as Code Red. If
this is the case, you'll have to set up your Http Port under the “Basic Network
Settings” menu to an alternate port (such as 8080).
Video is choppy
The image frame rate is subjected to the following factors:
1. Network bandwidth.
2. PC performance, network environment and display preference setting
(brightness, theme, etc).
3. The number of visitors (Too many visitors will slow down the image frame
rate).
4. Choice of switch or hub (Use a switch for multiple IP cameras rather than a
hub).
Pop up appears saying 'Fail to connect to the device'
This prompt may appear if using multiple cameras. Enter the Multi-Device
Settings page (login as an Administrator) to check if all Device settings are
correct.
Can't access my camera on the internet?
1. The ActiveX control may not be installed correctly. Confirm that you can
view your camera on your local network (LAN) before attempting access from
the internet.
2. The port the camera is using may be blocked by a firewall or anti-virus
software. Temporarily turn off your firewall and /or web protection software. If
the camera begins to stream video to your computer, you may need to add the
camera to the firewall or web protection software ‘s exception list. Turn your
firewall and protection software back on when finished with your test!
3. Port mapping may not be correct. You can configure port mapping three
different ways. Access your router’s setup menus:
