SEELEY INTERNATIONAL Braemar Invertair KACV125D1S User manual

OWNER’S MANUAL

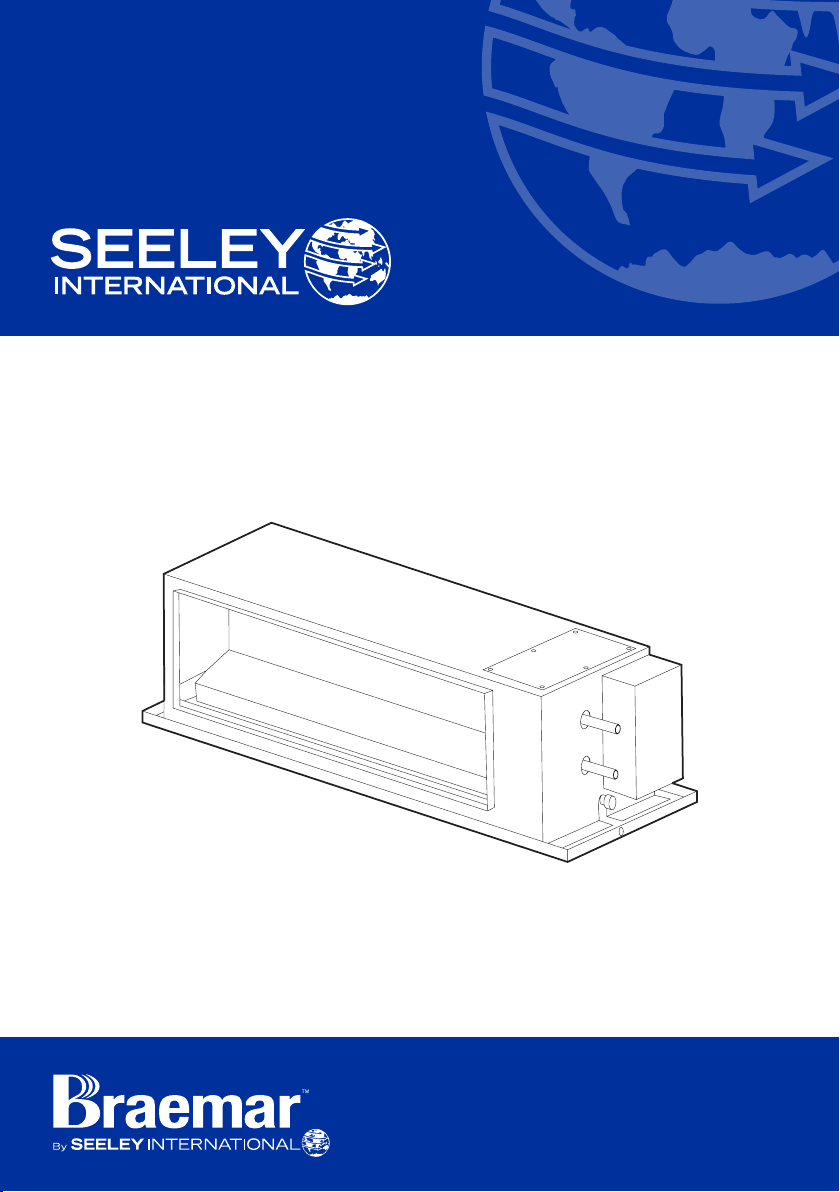

Braemar Invertair™- True Inverter Add-On Cooling Unit
(English) (Invertair)
Original English Instructions
KACV125D1S / KCHV125D1B
KACV140D1S / KCHV140D1B
KACV160D1S / KCHV160D1B

IMPORTANT
As with any product that has moving parts or is subject to wear and tear,
it is VERY IMPORTANT that you maintain your air conditioner and have it
regularly serviced. Accordingly, it is a condition of warranty cover for your
air conditioner that you comply with all of the maintenance and service
requirements set out in this manual. Compliance with these requirements
will prolong the life of your air conditioner. Furthermore, it is also a condition
of warranty cover that the Maintenance Schedule in the manual is filled out
(by signing and dating it in the places indicated) when the item is completed.
ANY FAILURE TO CARRY OUT THE REQUIRED MAINTENANCE AND
SERVICING, AND ANY FAILURE TO FILL OUT THE MAINTENANCE
SCHEDULE, WILL VERY LIKELY VOID YOUR WARRANTY.
(For complete warranty terms, refer to the separate
Warranty Booklet sold with the product. Alternatively, visit
https://www.seeleyinternational.com/warranty/ to download the terms.
Warranty terms are subject to property access and industry safety
standards.)

SEELEY INTERNATIONAL - OWNER’S MANUAL |1
TABLE of contents
MAIN COMPONENTS 2
INTRODUCTION & SAFETY 3

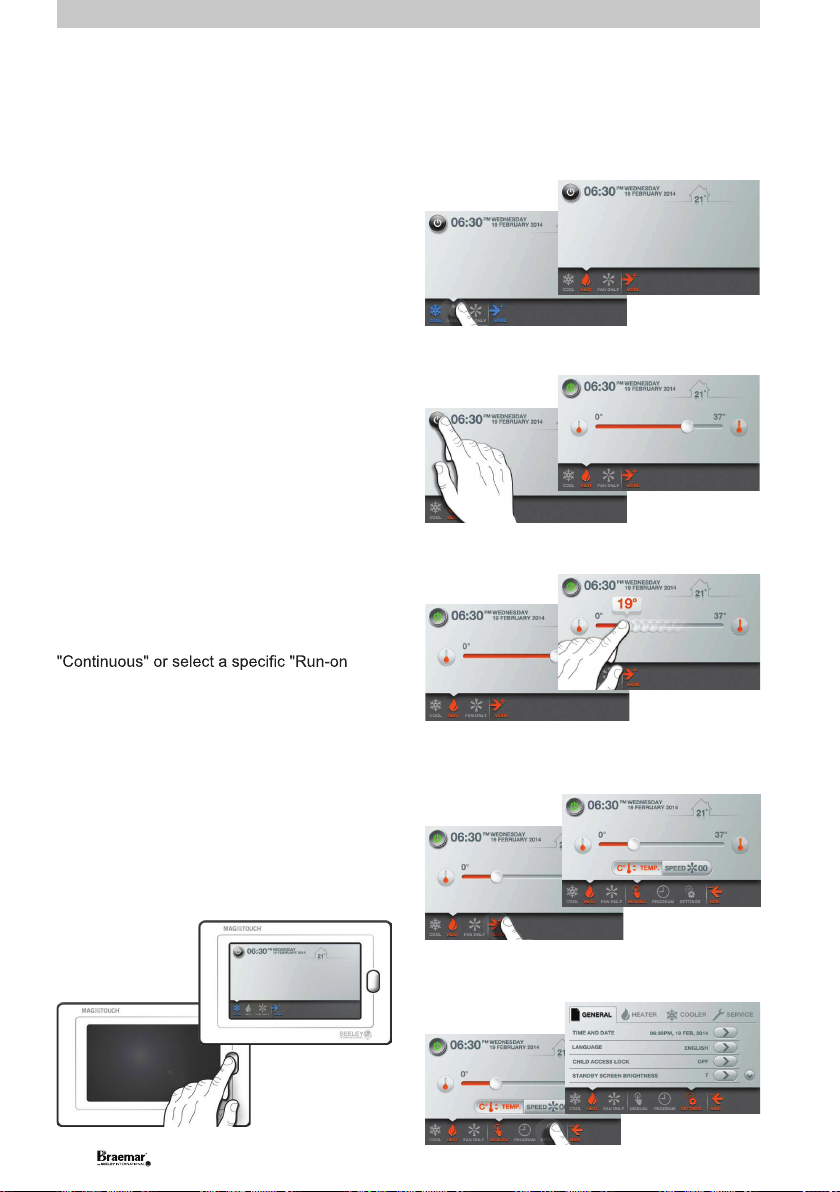

MAGIQTOUCH CONTROLLER®SETTINGS MENU 4
About Appliance 4
Cooler Selection 4
Min/Max Set Temperature 4
Room Fan Run-On Time 4
OPERATION 5
Refrigerated Cooling Zoning 5
Connection to other Ducted Gas Heater Brands 5
MAINTENANCE & SERVICE 5
Air Filter 5
Indoor Coil 5
Outdoor Unit 5
Refrigerant 5

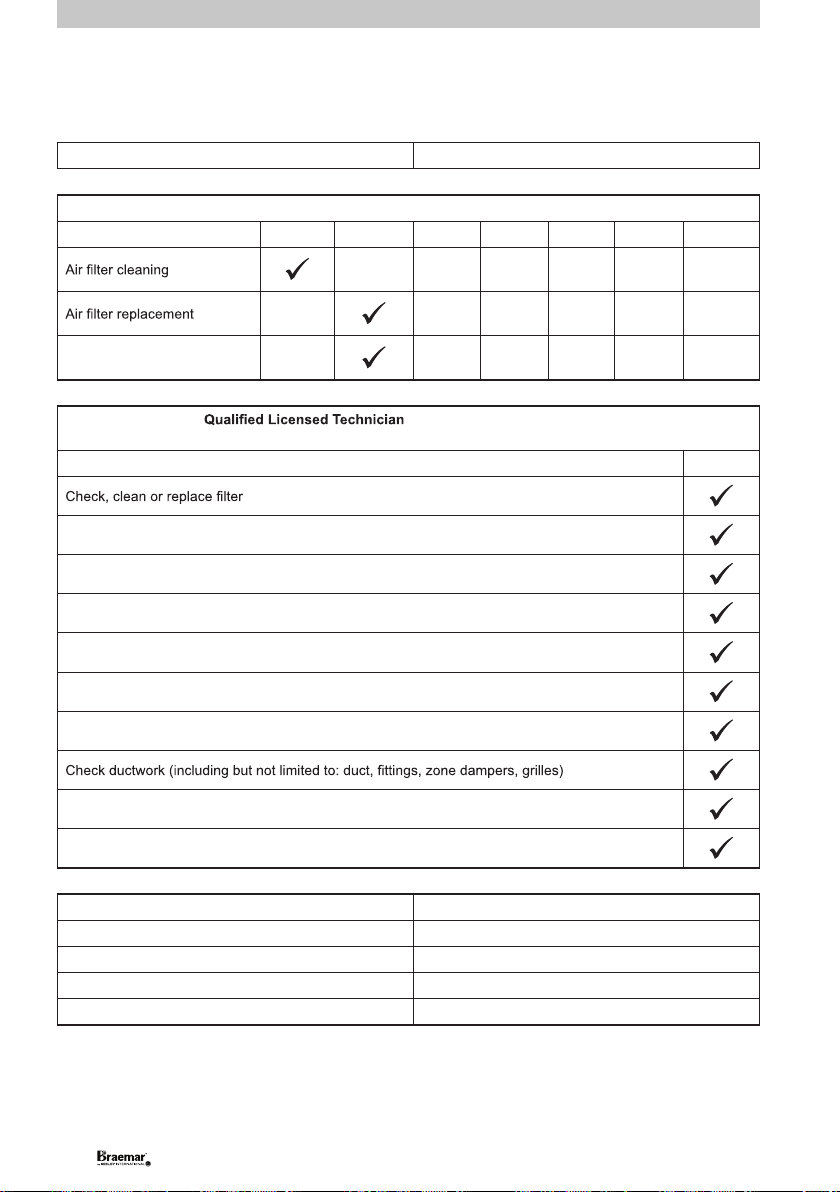

MAINTENANCE SCHEDULE 6
CHECK BEFORE CALLING FOR SERVICE 7
OPERATION TIPS 8
TROUBLESHOOTING GUIDE 9
WARNING! Failure to install and commission the product in compliance
with these instructions, or failure to do the job properly and competently,
may void the customer’s warranty. Further, it could expose the Installer
and/or the Retailer to serious liability.

2 |Invertair™ - True Inverter Add-On Cooling Unit
ILL1989-A

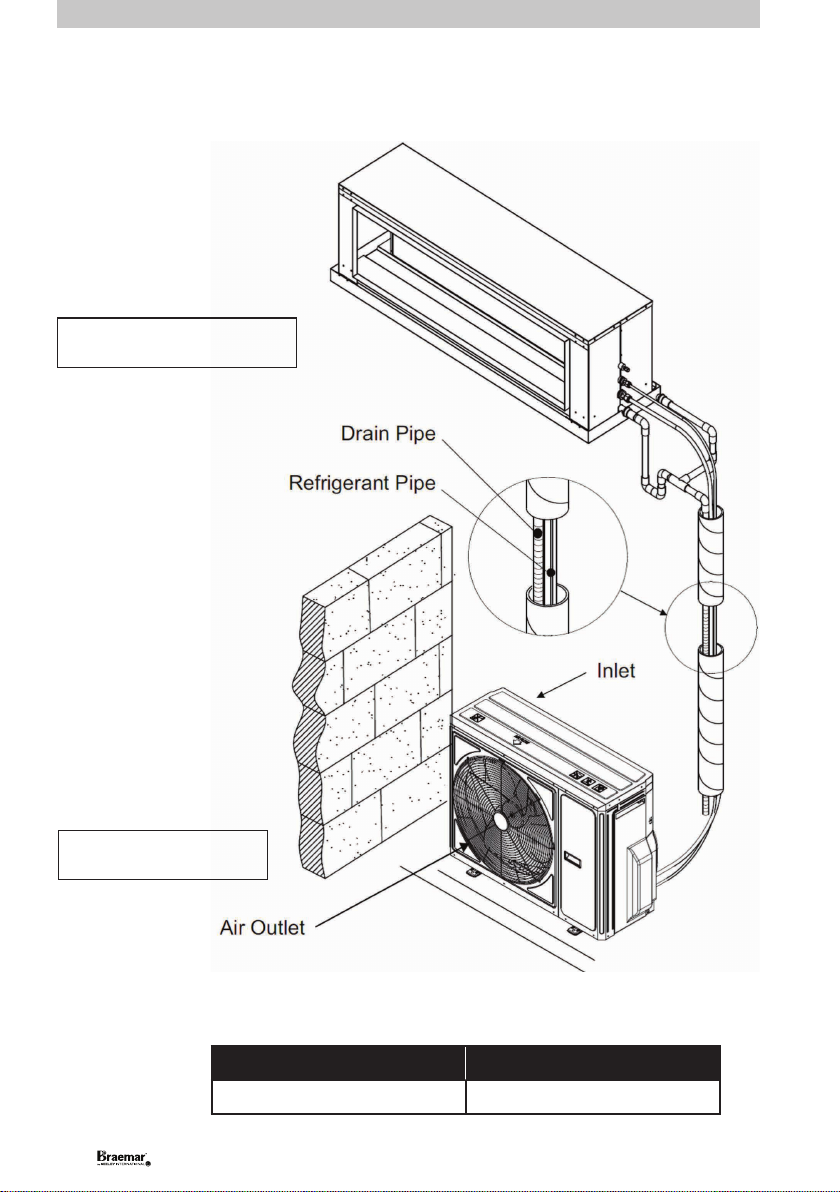

TYPICAL ADD-ON COIL
TYPICAL OUTDOOR UNIT
MAIN COMPONENTS
Indoor and Outdoor unit operating temperature range:
Indoor Unit Outdoor Unit
18°C - 30°C -15°C - 48°C
2 |Invertair™ - True Inverter Add-On Cooling Unit
ILL1989-A
TYPICAL ADD-ON COIL
TYPICAL OUTDOOR UNIT
MAIN COMPONENTS
Indoor and Outdoor unit operating temperature range:
Indoor Unit Outdoor Unit
18°C - 30°C -15°C - 48°C

SEELEY INTERNATIONAL - OWNER’S MANUAL |3
INTRODUCTION & SAFETY
Congratulations on purchasing a new
Braemar Invertair™ - True Inverter Add-On
Cooling unit!
Please keep this Manual and the Warranty
Booklet in a safe place, along with the
original purchase documents, plus all relevant
installation work performed. Please register the
Warranty straight away, by following the steps
set out in the Warranty Booklet.
The Braemar Invertair™ - True Inverter Add-
On Cooling unit is a refrigerated cooling only,
split type air conditioning system, designed
The installer must read the Installation Manual
before installing the Braemar Invertair™ -
True Inverter Add-On Cooling unit. The home
owner/user should read the Owner's Manual
before operating the unit.
To ensure the warranty on the unit is continued
and valid, the unit must be checked and
serviced by the home owner/user as per the
requirements in the Maintenance & Service
section and the Maintenance Schedule. This
will also prolong the life of your air conditioner.
The home owner/user should regularly check
the Air Inlet side of the Outdoor unit (see the
diagram on page 1) to ensure grass, leaf and
other matter are not drawn into or onto the Inlet
side of the Outdoor unit. Restriction to the air
capacity, and result in high operation pressures
and excessive operating costs.
should be inspected and cleaned at least every
two weeks during summer or other periods
when the Braemar Invertair™ - True Inverter
Add-On Cooling unit is used.
Note: the manufacturer recommends that low
level return air grilles are installed.
Important! THE AUSTRALIAN
GREENHOUSE OFFICE HAS ISSUED
VARIOUS REGULATIONS ON THE USE
AND DISPOSAL OF REFRIGERANTS
IN THE UNIT. FAILURE TO FOLLOW
THESE REGULATIONS MAY HARM THE
ENVIRONMENT AND COULD LEAD TO THE
IMPOSITION OF SUBSTANTIAL FINES.
WHERE SPECIFIED, ONLY QUALIFIED
AND LICENSED TECHNICIANS SHOULD
PERFORM WORK ON THIS UNIT, FAILING
WHICH THE WARRANTY ON THE UNIT
WILL BE VOID.
WARNING! This appliance is not intended
for use by persons (including children)
with reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of
the appliance by a person responsible for
Any unventilated area where the appliance is
installed shall be so constructed that should any
refrigerant leak, it will not stagnate so as to create
a fire or explosion hazard.
Ducted systems which have outlets in rooms of
areas less than MINIMUM ROOM AREA shall not
have continuously open flames (i.e. an operating
gas appliance) or other potential ignition source
(i.e. operating electric heater or hot surface).
Auxiliary devices which may be a potential ignition
source shall not be installed in the duct work.
Examples of such potential ignition sources are
hot surfaces with a temperature exceeding 700°C
and electric switching devices. Only auxiliary
devices approved by Seeley International or
declared suitable with the refrigerant shall be
installed in connecting ductwork.
their safety. Children should be supervised to
ensure that they do not play with the appliance.
If the supply cord is damaged, it must be
replaced by a Seeley service agent or similarly
