Seen IRIS-i User manual

© Copyright 2023 Seen Safety Limited. IRIS-i camera installation guide V231010 1

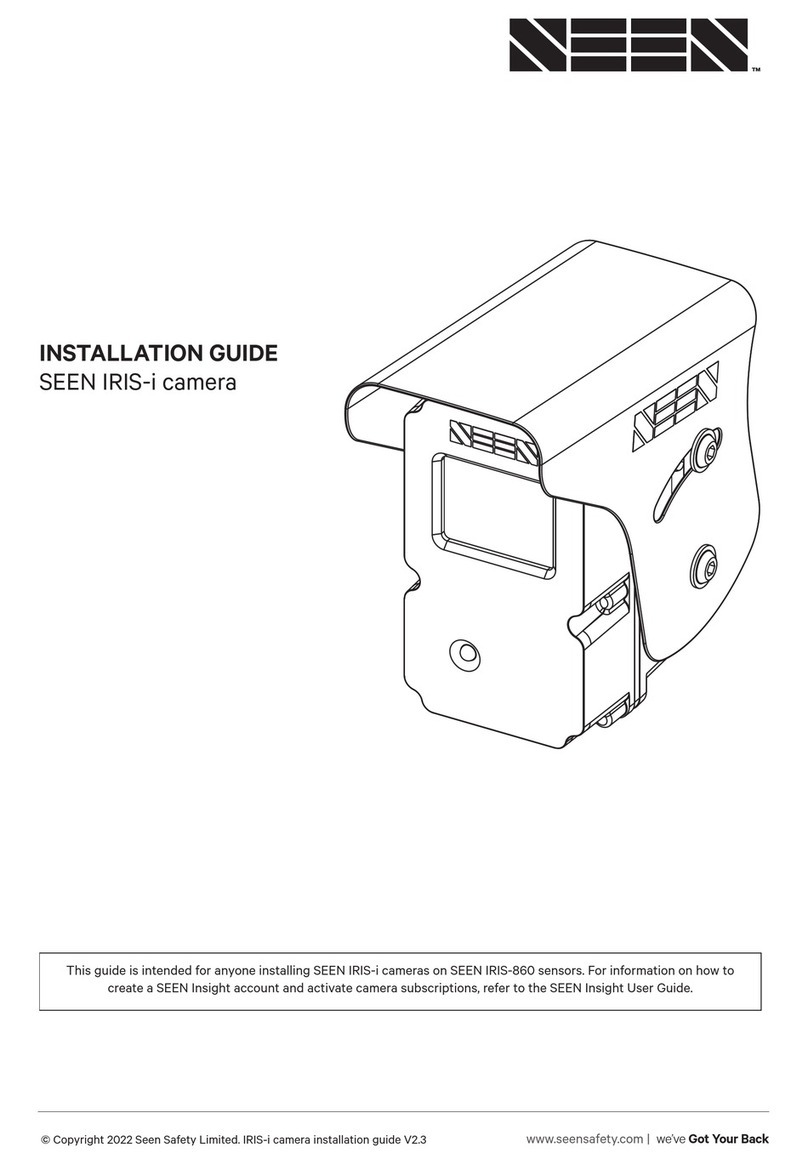

INSTALLATION GUIDE
SEEN IRIS-i Camera
This guide is intended for anyone installing SEEN IRIS-i cameras on SEEN IRIS-860 sensors. For information on how to
create a SEEN Insight account and activate camera subscriptions, refer to the SEEN Insight User Guide.
www.seensafety.com | we’ve Got Your Back

© Copyright 2023 Seen Safety Limited. IRIS-i camera installation guide V231010 2
Contents
Before you start 3
Overview 3
Requirements 3
Installation 4
Antenna 5
LED indication 5
Troubleshooting 5
Internal memory 6
Maintenance 6
Warranty 7
Specifications 7
Seen Safety Limited
Email: [e-mail]
Call Toll free: [phone]
www.seensafety.com
Important
Install and test the IRIS 860 sensor before
installing the IRIS-i camera.
Maximum 80V DC power supply.
Voltages exceeding 80V may result in
damage to the camera and will not be
covered by the warranty.
This installation and set-up guide has been
prepared with all due care and attention,
however, Seen Safety Limited cannot be
held responsible for any errors or omissions
in this guide or any consequences thereof.
In the box
• IRIS-i camera
• 300mm M12 connector cable
• Weather shield
• Mounting bracket
• Antenna + 600mm cable
• Antenna mounting bracket
• 4 x M6 x 12mm hex head screw
• 2 x M6 x 16mm hex head screw
• 2 x M6 Nylock nut

© Copyright 2023 Seen Safety Limited. IRIS-i camera installation guide V231010 3
Before You Start
• Fully install and test the IRIS 860 sensor before attaching
the IRIS-i camera.
• Read these instructions in full before starting.
• IRIS-i cameras do not record sound.
• Cameras must be activated in SEEN Insight before they can
upload data.
Note. Detection events are recorded and saved in the
camera memory even if the IRIS-i is not connected to the
network. These detections will be uploaded once the device
connects to the network. See page 6.
Overview
The IRIS-i camera is designed to be attached to an IRIS 860
sensor. Detection information is automatically uploaded by
IRIS-i to SEEN Insight (insight.seensafety.com).
When powered, IRIS-i cameras automatically connect to the
mobile data network via an embedded roaming SIM card.
IRIS-i cameras upload the following information about each
detection event:
• A still image
• The time, date, duration, and closest distance
• Trace path through the detection zone
• Video (optional upload).
Requirements
• 3G / 4G mobile coverage.
• An installed IRIS 860 sensor.
• A SEEN Insight account.
• SEEN Insight account data credit.
IRIS 860 sensor and IRIS-i camera
IRIS 860 sensor and IRIS-i camera (back)

© Copyright 2023 Seen Safety Limited. IRIS-i camera installation guide V231010 4
Installation
Fully install and test the IRIS 860 sensor before attaching the
IRIS-i camera.
The IRIS-i camera can be attached to either side of an IRIS 860
sensor. Configure Step-1 according to which side of the sensor
the camera will be mounted on.
Step 1
2 x M6 x 12mm + nylock nut. 10Nm
Step 3
2 x M6 x 12mm. 10Nm
(M12 plug sockets at bottom)
Step 5
Connect sensor and camera
using the 300mm M12
connector cable
Step 4
Transfer sensor power
cable to camera
Step 2
Replace the two sensor bracket screws with
the 2 M6 x 16mm screws supplied. 10Nm
Power
Note the sensor accessory
socket is not used.
Finger tight only.
Do not use tools.
Finger tight only.
Do not use tools.

© Copyright 2023 Seen Safety Limited. IRIS-i camera installation guide V231010 5
Antenna Connection
1. The antenna should be mounted upright with minimal
shading from metallic surfaces. (Before attaching the
antenna check that the antenna cable can reach back to the
camera.)
2. Connect the antenna cable to the centre antenna socket.
Finger tighten only, do not use tools.
LED Indication
BLUE LED
A solid blue LED indicates that the IRIS-i is powered and can
communicate with the IRIS 860 sensor.
GREEN LED
A solid green LED indicates that the IRIS-i has connected to
the mobile data network.
FLASHING LED
A flashing LED (either blue or green) indicates that the IRIS-i
camera cannot communicate with the IRIS 860 sensor.
Troubleshooting
IRIS-i LED is not blue
• Check the cables are correctly installed (refer to page 4)
and the camera is receiving power from the machine.
IRIS-i LED does not turn green
• Even in areas with strong mobile coverage the IRIS-i may
take several minutes to first connect to the network.
Connection is indicated by a green LED.
• In areas with weak mobile coverage, connection may take up
to 15 minutes.
• If the LED does not turn green, try moving the machine to
an area with stronger mobile coverage.
• Check the antenna cable is correctly fastened.
• Try repositioning the antenna to get a clearer signal.
• Restart the IRIS-i. It must be powered o for more than 10
seconds to fully shut down.
IRIS-860 sensor LED is not green
• Check the sensor is correctly connected to the camera and
that the camera is receiving suicient power.
Antenna socket
5 pin M12 power socket
(Connected to the
machine power supply)
8 pin M12 sensor socket
(Connected to the
IRIS 860 sensor)
Antenna cable
Up
Antenna
IMPORTANT
The antenna must be mounted at least
10cm away from the IRIS 860 sensor.
DO NOT attach the antenna to either the
sensor bracket or the camera bracket
because it may interfere with the sensor
operation.
10cm+
Finger tight only.
Do not use tools.

© Copyright 2023 Seen Safety Limited. IRIS-i camera installation guide V231010 6
Internal Memory
The IRIS-i camera’s internal memory stores detection data
until it is uploaded to SEEN Insight, or it is over-written by new
data.
Detection event data
Information about each detection (data and still-image) is
immediately uploaded to SEEN Insight when the camera is
online. If the network connection is lost, the camera can store
up to 1,000 detection event records which will be uploaded
next time the camera connects.
Detection event video clips
The camera can store approximately 12,0001detection event
videos before they start to be over-written. Detection event
videos that are still in the camera’s memory can be uploaded
to SEEN Insight. Once the camera’s memory buer is full, the
oldest videos will start to be over-written by new detection
event videos. Sound is not recorded.
Rolling video buer
A 6 hour rolling video buer is saved to the camera’s memory.
This video buer is continuously over-written by new material
when the camera is powered on. Sound is not recorded.
Emergency procedure
In the event of an emergency the camera should be removed
from the machine and not powered on to ensure data is not
over-written or lost. Contact [e-mail]
*The exact number will vary depending on the duration of each
event.
Maintenance
IRIS-i cameras have no user-serviceable parts. If needed, the
window should be cleaned with water and a non-abrasive
cloth. Avoid all solvents, degreasers, petroleum or alcohol
cleaning products.
The camera is rated IP67.
Do not use high pressure water jets to clean.
1 The exact number will vary depending on the duration of
each event.

© Copyright 2023 Seen Safety Limited. IRIS-i camera installation guide V231010 7
Specifications
Input power DC12-80V. Electrical 2.0A Standards FCC Part 15
PTCRB
EN 301489 EMC emissions and immunity
Direction signal input DC 3.5-100V electrical 1mA Ingress protection IP67. Protected from dust ingress and water
ingress at 1 metre submersion for 30 minutes.
Avoid high pressure water jets
Power consumption 24W max with attached sensor plus
sensor accessory
Enclosure ASA injection moulded plastic
Camera field of view 70 degrees horizontal x 55 degrees
vertical
Window Hard coated PMMA with oleophobic and anti-
reflective coatings.
Maintenance Clean with water and a soft clean
cloth. Avoid all solvents, degreasers,
petroleum or alcohol cleaning products
Operating
temperature -20 to +60 degrees C ambient
Connectors M12 5-pin (power supply)
M12 8-pin (to sensor)
Dual SMA antenna connectors (RF
connector in centre)
Dimensions 110mm H x 64mm W x 66mm D
Weight 0.26kg
IRIS-i camera label
Warranty
IRIS-i cameras have been designed for reliable long-term
use on industrial vehicles in indoor or outdoor applications.
The camera is covered by a 1 year replacement warranty on
materials and workmanship. The warranty excludes general
wear and tear, physical damage caused by direct impact
to the camera, over-tightening or misalignment of the M12
connectors, damage to the camera window, damage caused by
high-pressure water jets, damage caused by chemical cleaners
(including alcohol, benzene, thinners, and degreasers),
or damage caused by over-voltage to the power supply.
IRIS-i cameras have no user serviceable parts. Opening the
enclosure will void the warranty.
SCN0023
A0001234
Example camera serial number
SCN0023A0001234

© Copyright 2023 Seen Safety Limited. IRIS-i camera installation guide V231010 8
Power socket (M12 5-pin)
Pin Name Description Direction Max.
input
voltage
Min.
input
voltage
Input
high
voltage
Input
low
voltage
Output
high
voltage
Output
low
voltage
Conditions Notes
1 Vin + Supply positive Input 92v 10.8v - - - - - 24W maximum power draw
2 Vin – Supply negative
(ground)
- - - - - - - - System / chassis ground
3 System
status
High when
system operating
Output - - - - 5.5v max.
4.5v min.
2.7K Ohm load
to ground
PNP output
4 Detection High when target
detected
Output - - - - 5.5V max
4.5V min.
2.7K Ohm load
to ground
PNP output
5 Direction
signal in
Input Input 100v 0v 3.5v min. 1v max. - - - Input current is less than
1.0 mA
Sensor socket (M12 8-pin)
Pin Name Description Direction Max.
input
voltage
Min.
input
voltage
Input
high
voltage
Input
low
voltage
Output
high
voltage
Output
low
voltage
Conditions Notes
1 Vout + Supply output to
IRIS 860 sensor
Output - - - - 16v - Limits IRIS 860 supply
voltage to 16V
2 Vout - Supply negative
(ground)
- - - - - - - - System / chassis ground
3 Reserved
4 Reserved
5 Direction Direction signal
output to sensor
Output - - - - 16V max
6.8V min.
- 10K ohm load
to ground
PNP output
6 Trigger in Camera trigger
input
Input 30V 0V 3.5V
min.
0.7V
max
High impedance external
trigger input for the camera
Product specifications are subject to change without notice to improve reliability, function, design or otherwise.
5 pin power socket
8 pin sensor socket

© Copyright 2023 Seen Safety Limited. IRIS-i camera installation guide V231010 9
Seen Safety Limited
Email: [e-mail]
Call Toll free: [phone]
www.seensafety.com
IMPORTANT. SEEN IRIS 860 sensors can provide collision warning assistance to the operator but do not replace the need for
proper operator training and best practice safe operating procedure. While IRIS 860 sensors can alert the machine operator
to a potential collision, the operator is always fully responsible for the safe operation of the equipment. IRIS 860 sensors do
not comply with the regulatory standards required for devices which are intended to directly control vehicle or machine safety
functions. Using the sensor accessory port to control a vehicle or machine function is entirely at your own risk. Detection can
never be guaranteed.
