Seiki SC-600AUECT User manual

INSTRUCTION
MANUAL
Please read this manual carefully before using, and keep it for future reference.
60CM
CERAMIC
COOKTOP
SC-600AUECT

General Safety 4
Product Overview 7
Installation 8
Cleaning and Maintenance 15
FAQs 16
Specifications 17
Customer Helpline 20
CONTENTS

4
Read this manual thoroughly before you start using the Ceramic Cooktop.
The safety precautions instructions reduces the risk of fire, electric shock and injury when
correctly complied to.
Please follow all instructions and take notice of all warnings.
IMPORTANT INFORMATION
WARNING!
GENERAL SAFETY
• INSTALLATION: This Cooktop must be installed by a licenced electrician.
• Make sure to have this appliance connected to a well place earth wiring system,
before carrying out any work, repairs or maintenance on this appliance, it has to
be disconnected from the mains. If possible switch of the cooktop from the wall
before cleaning, failure to do so may result in electric shock or death.
• During use be sure to avoid any direct contact with the surface as you may
get burned. Always be careful while using this appliance. Do not touch any
components of the cooktop as it will be hot and it is highly recommended
that you use cooktop gloves when handling cookware.
• Do not leave any items on the cooktop as this is a fire hazard. In the case of a fire
do not use a fire extinguisher with water, Highly recommended that you switch
o the cooktop and cover the flames with a fire blanket.

5
USAGE CONDITIONS AND RESTRICTIONS
• Supervision over children is to ensure that they do not play with the
appliance. Never allow them to use, play with or crawl inside the appliance.
Cleaning and maintenance must not be done by children.
• This appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they are being supervised or been given instructions on how to use of the
appliance in a safe way and understand the hazards with using this
appliance incorrectly.
• Make sure to read all rules and regulations in this manual. Anyone who is not
familiar with this appliance are not to operate it. These isntructions do not cover
every possible situation or condition as with any appliance. Use extreme caution
when installing, operating and maintaining this appliance.
• Never leave the cooktop unattended while in use.
• Only for indoor domestic use only. It is not to be used for industrial or
commercial use.
• Do not use this product for anything other than its intended purpose, and only
use it as described in this manual. Do not attempt to alter or modify
this appliance.
• This appliance can become extremely hot and therefore children and pets are
to be kept away. If younger family members are in the kitchen, be sure to
keep close supervision at all times. Do not allow children to operate or play
with this appliance.
• Do not use the cooktop for heating up the area.
• Make sure you do not use the appliance if any part has been damaged.
It must only be repaired by a qualified technician. An incorrect repair could
expose you to risk of electric shock, fire or injury. If you continue to use the
product in such a condition it could cause a fire or electrocution.
Call our customer support on 1300 296 699.
• The appliance is not intended to be operated by means of an external timer or
separate remote control system.
• Do not store items on the cooking surfaces
• Caution: The cooking process has to be supervised, A short term cooking process has
to be supervised continuously.
• Warning: Unattended cooking on a hob with fat or oil can be dangerous and may
result in a fire.
GENERAL SAFETY INSTRUCTIONS (Cont.)

6
GENERAL SAFETY INSTRUCTIONS (Cont.)
• Do not use any unstable or plastic cookware products or aluminium foil
containers. No large cookware are to overlap bench as this can deflect heat
back onto the cooktop and damage the surface. Cookware products can
become hot while in use with this appliance. Be sure to position handles
away from reach of children.
• Make sure not to switch on hotplate without anything on it, do not use
cooktop to warm up plates.
• Do not place anything heavier then 20kgs on the cooktop.
• Checking constantly when frying food to ensure that oil is not overheating
and becomes a fire hazard. Do not overfill deep dry pans with oil (more than
one third) and be sure not to leave unattended.
• Make sure to switch o all control when not in use and allow surface to cool
before cleaning.
• Disconnect the appliance from the mains before cleaning, if its accessible.
Do notcover the appliance or power cord in any water or other liquids.
Do not use any steam cleaning products for the cleaning of this appliance.
• Do not disconnect the appliance with wet hands, Grip end of plug, do not
pull cord to disconnect.
• Do not use appliance if there is a tecnhical fault. All faults must be fixed
by a qualified/authorised person. Contact customer support on 1300 296 699.
• Incorrect use can result in property damage, injury or death. We assume no
liability for misuse of the appliance or noncompliance with these instructions.
• WARNING! If the surface cracks, switch of the appliance immediately to avoid
the possibility of electric shock and call our customer support.
• Be careful when using this cooktop, as the cooktop complies with all safety
regulations, we do not wish for customers to burn themselves as the surface
will become extremely hot during use and will retain heat after use.
Please remember to let the cooktop cooldown before attempting to clean.
• Young children should be kept away from this appliance at all times!
Take extreme caution when using the appliance that they do not come
anywere near the cooktop.
• Do not leave any items ontop of the cooktop as this can become a fire hazard.
• This appliance is not intended to be operated by means of an external timer
or separated remote control system.

7
PRODUCT OVERVIEW
1 Max. 1800W zone
2 Max. 1200W zone
3 Max. 1800W zone
1 Heating Zone Selection
2 Power Regulation
3 Keylock
4 Max. 1200W zone
5 Glass Plate
6 Control Panel
4 On/Off Control
5 Timer Control
1
2 3
5
4
4
1
4
3
25

8
Before installing your appliance, read all safety instructions in this manual,
especially the sections on electrical safety and installation.
INSTALLATION
UNPACKING
• When unpacking the appliance, be sure to keep all the packaging materials
until you have made sure your new appliance is undamaged and in good
working order. This product has been packaging to protect itself
against transportation.
• Be sure to remove all packaging materials around the appliance and that
the plastic film used is also removed.
• CAUTION: Plastic wrapping can be a suffocation hazard for babies and young
children. Make sure all packaging materials are out of reach for children and that
they are disposed of correctly.
THE INSTALLATION OF THIS PRODUCT CAN ONLY EVER BE INSTALLED BY A
LICENCED ELECTRICIAN AND FOLLOWING ALL INSTRUCTIONS IN THIS MANUAL.
IT IS IN YOUR BEST INTEREST OF YOUR SAFETY TO FOLLOW THIS COMPLIANCE.
• Make sure you do not try to install this appliance yourself, doing will expose
you to danger and void the warranty. Incorrect installation, adjustment, alteration
or service can cause injury or damage. We do not assume responsibility for injury
or damage to a person or persons or property as a result of incorrect
use or installation.
• Any adjustments, conversions or maintenance of this product can only be
carried out by a qualified/authorised service respresentitive. The safety and
adjustment devices on the appliance may only be modified by an authorised
service representitive.
WARNING!

9
IMPORTANT ADVICE
• The appliance must only ever be located and installed in a kitchen and not
any other room.
• Where you want to place the Cooktop, the wall and bench around the
appliance must be able to sustain temperatures of 95˚C. Laminates, surface
materials and fixing adhesives must be certified that it can sustain the
tempertures. Do not install the cooktop near curtains or flammable materials.
We assume no liability for any damage caused by this appliance if not
installed correctly as advised.
• Fire resistent surroundings (ceramic tiles for example) are required above the
cooktop of up to 450mm. Walls must be at least 200mm away from the burner.
There must be no overhanging surfaces, Rangehoods or exhaust systems must
not be within 750mm above the gas cooktop.
VENTILATION REQUIREMENTS
This Cooktop is to only be used in kitchens that have plenty of ventilation.
Using a Cooktop appliance produces heat and moisture in the kitchen in
which it is installed. Always make sure there is plenty of ventilation and keep
natural ventilation holes open or install a mechanical extractor hood.
For an extended intensive use of this appliance you will require additional
ventilation such as opening windows or raising the level of suction from a
mechanical extrator hood.
INSTALLATION (Cont.)

10
COOKTOP PREPERATION
• Make sure there is plenty of ventilation and control elements are
easily accessible.
• The cooktop can be fitted to benchtops of 40-50mm
• For rangehood installation above the appliance, check the rangehood
instructions for required clearences before installation of the product.
• Minimum distances for height clearances:
INSTALLATION (Cont.)
760mm
50 50560
490
50
(mm)
CUTOUT DIMENSION
AND MINIMUM SPACE AROUND

11
INSTALLING COOKTOP IN YOUR BENCH
• Measurements for fitting and cutout of the appliance are as below.
1. 560 mm (width)
2. 490 mm (depth)
3. 50 mm
4. 50 mm
INSTALLATION (Cont.)
3 4
1
2
5
6
7
8
5. 50 mm
6. 50 mm
7. 50 mm (space underneath cooktop)
8. 51 mm

12
APPLYING SEAL
The Ceramic Cooktop has a special seal which prevents liquid from infiltrating into the
cabinet. Be sure to strictly follow these instructions in order to correctly apply this seal-
ing tape before inserting the Cooktop into the benchtop.
• Carefully place it upside down to not glass
surface of the cooktop. (use packaging)
• Remove the backstrip of the sealing tape.
• Make sure when applying the sealing tape
to correctly position it on the outer edge
of the cooktop. The ends must fit together
without overlapping.
• Once evenly and securely fixing the seal
to the cooktop, press it firmly in place.
• Do not use a silicon sealant or sealands of
any types to seal the appliance against the
benchtop when placing it. The cooktop
may need to be removed for future needs
such as servicing or repairs.
SPACING UNDERNEATH COOKTOP
If placing an oven directly underneath the
cooktop, please allow the
following measurements of spacing
to allow proper ventilation for the
ceramic cooktop.
INSTALLATION (Cont.)
A 760mm
B 50mm (minimum)
C 20mm (minimum)
D Air Intake
E Air Exit (5mm)

13
INSTALLAING AND MOUNTING THE COOKTOP
Once you have installed the seal underneath the cooktop carefully turn it back to the
right side up and lower it gently into the cutout in your benchtop. Press the side down
gently so that the cooktop is resting firmly on the benchtop surface.

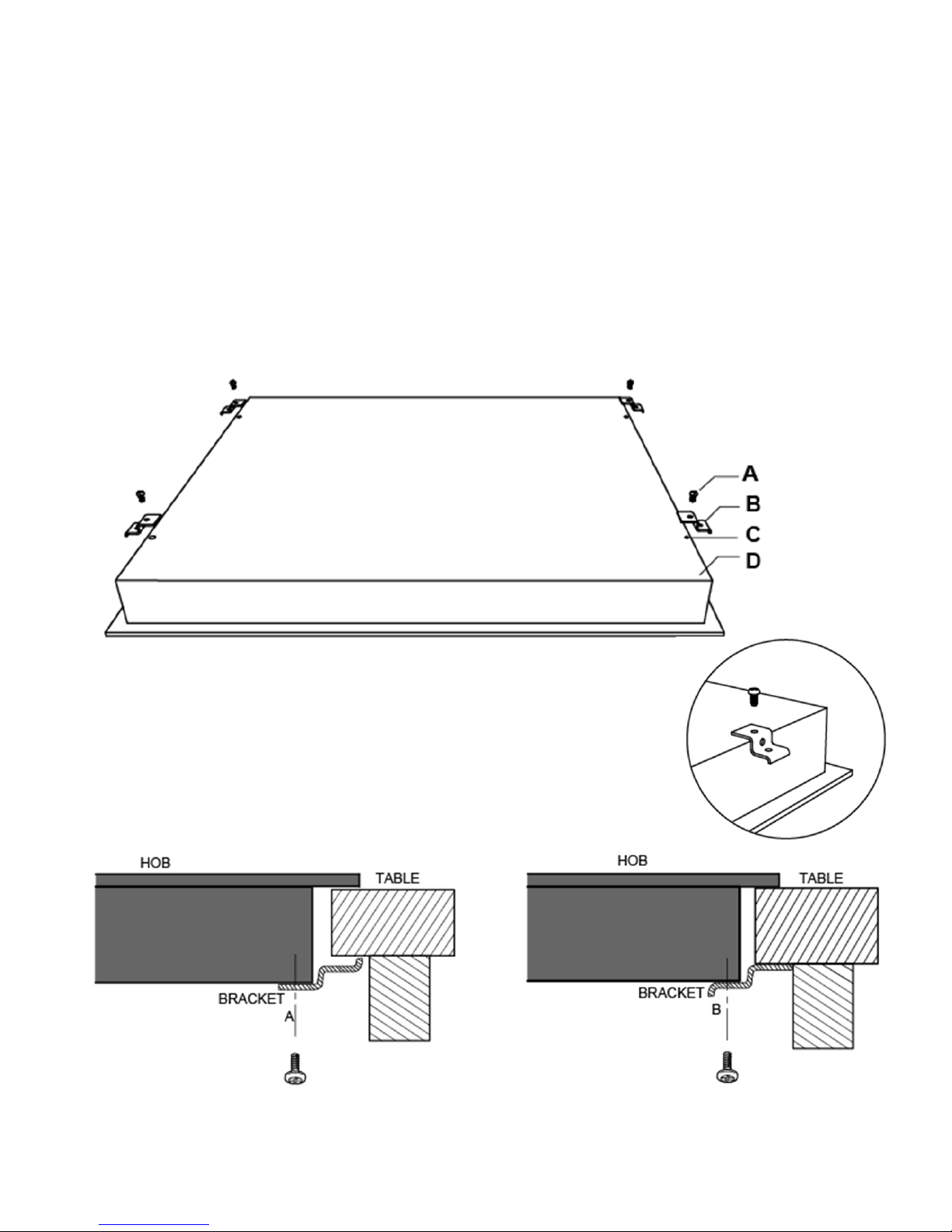

• Now that the Cooktop is in place, secure it with the mounting brackets supplied.
(see below drawing) There are four slots on each corner underneath the cooktop
where you can fix the brackets.
• Make sure when fixing the brackets that you also fix in the screw (V) provided to
help hold the cooktop in place.
INSTALLATION (Cont.)
A Screw
B Bracket
C Screw Hole
D Base
A Position the mounting bracket tip facing upif benchtop is thinner then B.
B Position the mounting bracket tip facing down if benchtop is thick.

14
ELECTRICAL CONNECTION
• Follow the wiring format label located on at the connection terminal.
• The power outlet must be correctly earthed and easily accessible.
The outlet voltage and frequency must cirrespond to the voltage indicated
on the appliance taing label.
• All electrical work is to be carried out by a qualified/licenced electrician.
• Means for disconnection must be incorporated in the fixed wiring in accordance
with the wiring rules.
• Ensure that the rating label is visible after installation.
INSTALLATION (Cont.)
SURFACE TEMPERATUERS OF BASE EXCEED 95˚C, UNDER BENCH ACCESS MUST BE
RESTRICTED BY USE OF NON-COMBUSTIBLE BARRIER ON INSTALLATION
• The barrier must be >50mm from the base of the cooktop.
• The barrier must leave a ventilation gap of 30-70mm but not greater than 70mm.
WARNING!

15
OTHER USEFUL INFORMATION
CLEANING AND MAINTENANCE
SERVICE/REPAIR
To make sure food safety and to keep the cooktop in good working condition, please
clean the appliance regularly every time you finish using it.
• Make sure to wipe the Ceramic glass cooktop surface with a lightly
dampened cloth or sponge.
• After cleaning make sure to dry the surface with a clean, dry cloth.
• Before cleaning any part of the Cooktop, be sure to have all controls
are switched off and the cooktop has called down sufficiently.
• Make sure once all cooking zones are switched off that the cooktop surface is
cool before you commence cleaning.
• Do not use harsh cleaning products such as scouring powders, wire brushes
or sharp objects that can damage and scratch the cooktop surface.
• The Cooktop must ONLY be serviced by authorised personnel.
• If the Cooktop isnt operating as it should be, please contact our
customer support on 1300 296 699. DO NOT ATTEMPT TO REPAIR THE
APPLIANCE YOURSELF
• To keep the Cooktop in proper working order, make sure to have
an authorised technician come and maintain/check the appliance on
a regular basis.
CAUTION!
CAUTION!

16
If experiencing issues with your cooktop and isn’t operating correctly please
check the following pages for solutions to the problems. If none of the solutions offered
help solve the problem with your appliance then please contact our
call centre on 1300 296 699.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
FAQS
Problem Solution
The Cooktop isnt
turning on
• Make sure the cooktop is connected to the
power supply and that its switched on.
The touch control
are unresponsive
• Unlock the controls by pressing the “Lock” symbol
on the touch control panel.
Touch controls arent
operating correctly
• Make sure to only use the tip of your finger
when touching the controls.
The glass is being
scratched
• Make sure you use only cookware with a
complete flat surface, cookware with warped bases
can scratch the ceramic glass over time.
Cookware making
crackling or
clicking noises
• This may be caused by the construction of your
cookware (layers of different metals). This is normal
and does not indicate a fault with your cooktop.

17
SPECIFICATIONS
Power Supply 220-240V ~ 50/60Hz
Cooking Zones 4 Zones
Installed Electric Power 6000W
Product Size 590 (w) x 520 (d) x 55 (h) mm
Cutout Dimensions 560 (w) x 490 (d) mm

18

19

20
CUSTOMER HELPLINE:
[e-mail]
DISTRIBUTED BY:
Ayonz Pty Ltd
