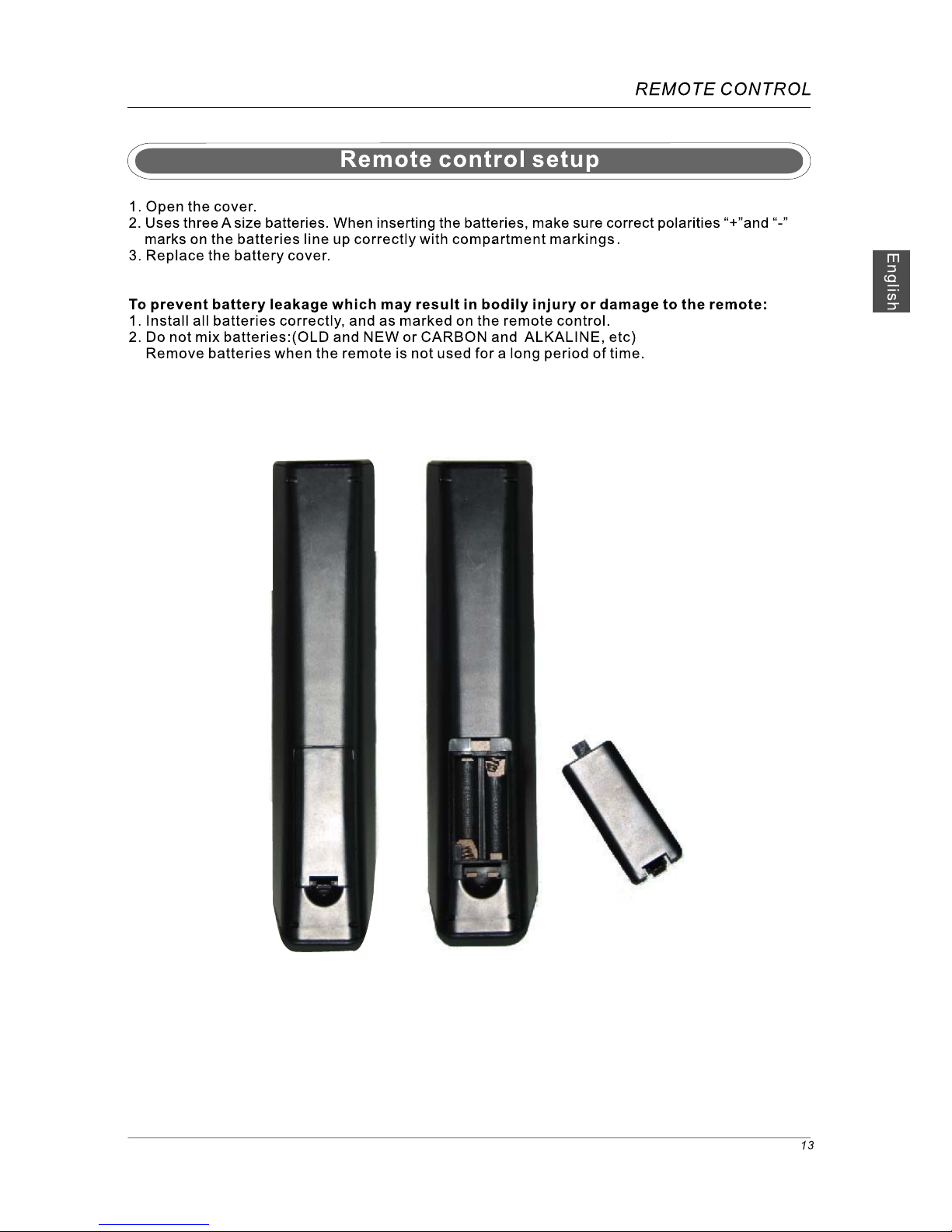

Remote control setup 13
12
14
16
23
27
29

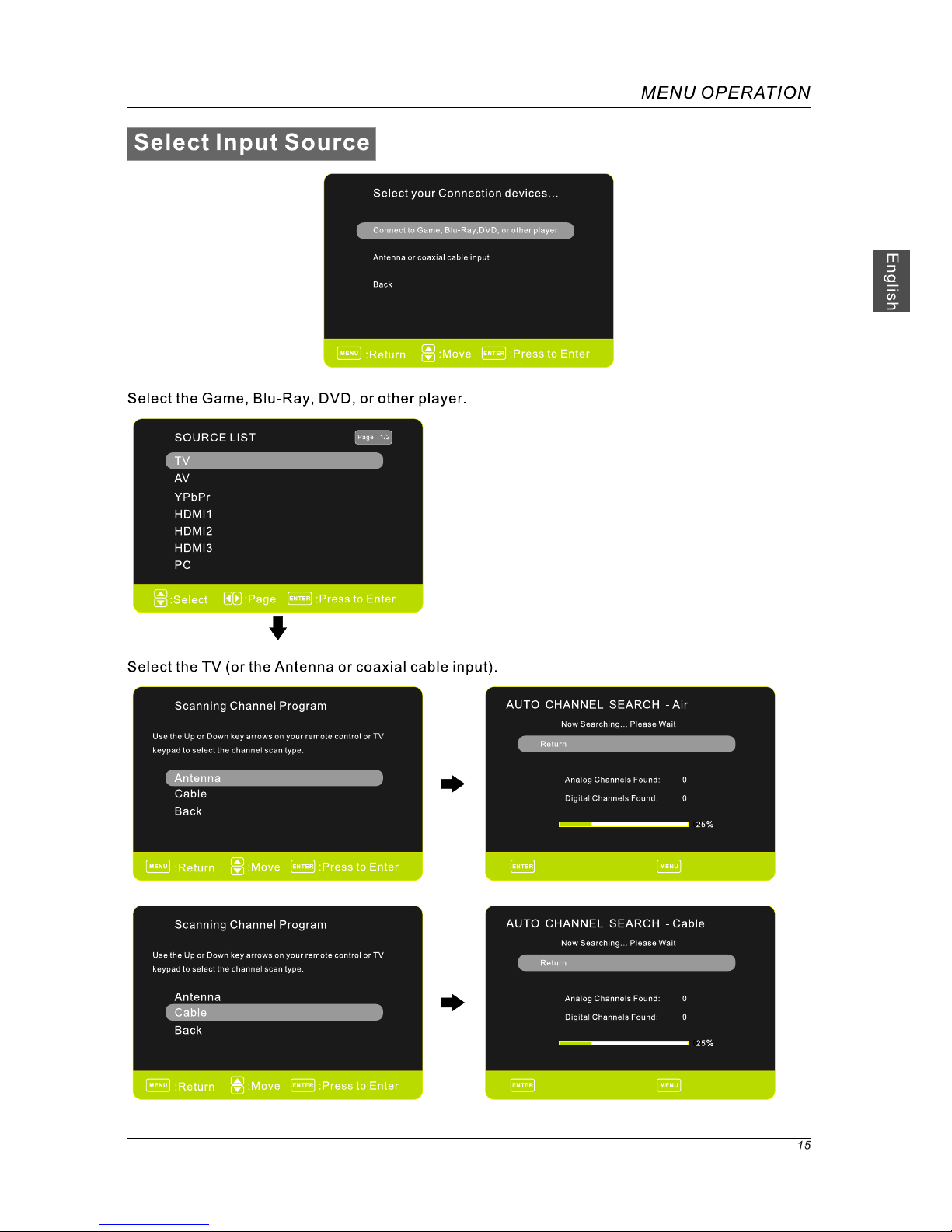

Select Input Source
Setup Menu
Basic Operation
Picture Menu
Sound Menu
Channel Menu
Parental Control
21
Other Menu
Picture Menu
30
19
16
17
Setup Wizard
TABLE OF CONTENTS
English
3
1
5
6
7
4
8
10
9
IMPORTANT
INFORMATION
SPECIFICATIONS
2PREFACE
TROUBLESHOOTING
SAFETY
PRECAUTIONS

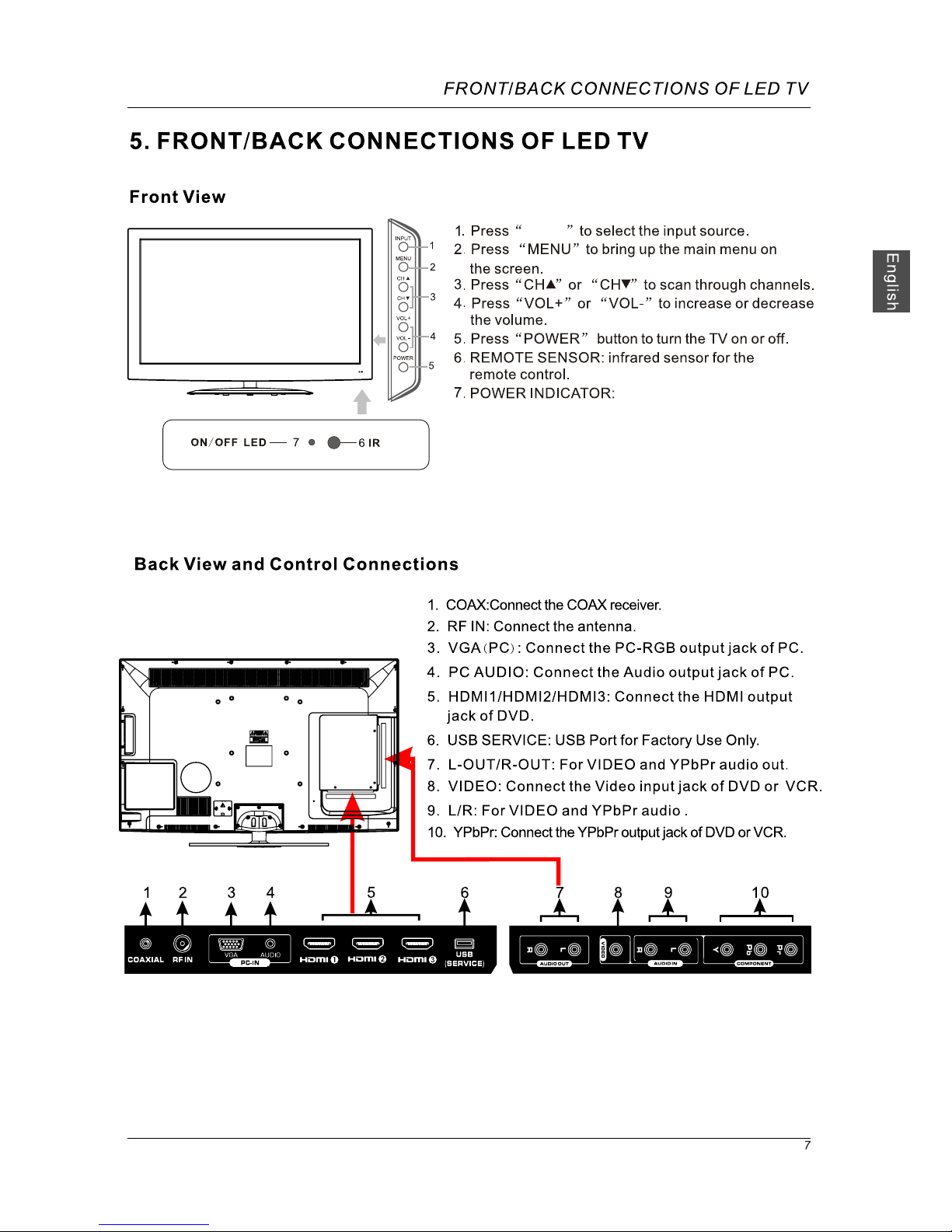

FRONT/BACK
CONNECTIONS
OF LCD TV
REMOTE CONTROL
TV INSTALLATION
DRAWINGS
IN THE CARTON
MENU OPERATION
6
7

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of un-insulated dangerous voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric to persons.
The exclamation point within an equilateral triangle is interded to aler the user to the
presence of important operating and maintenance (servicing) instruction the literature
accompanying the appliance.
CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce
the risk of electric shock, do not perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
Refer to service manual for servicing instructions.
Important Safety Instructions
Note:
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
2
IMPORTANT INFORMATION
English

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11.Only use attachments / accessories specified by the manufacturer.

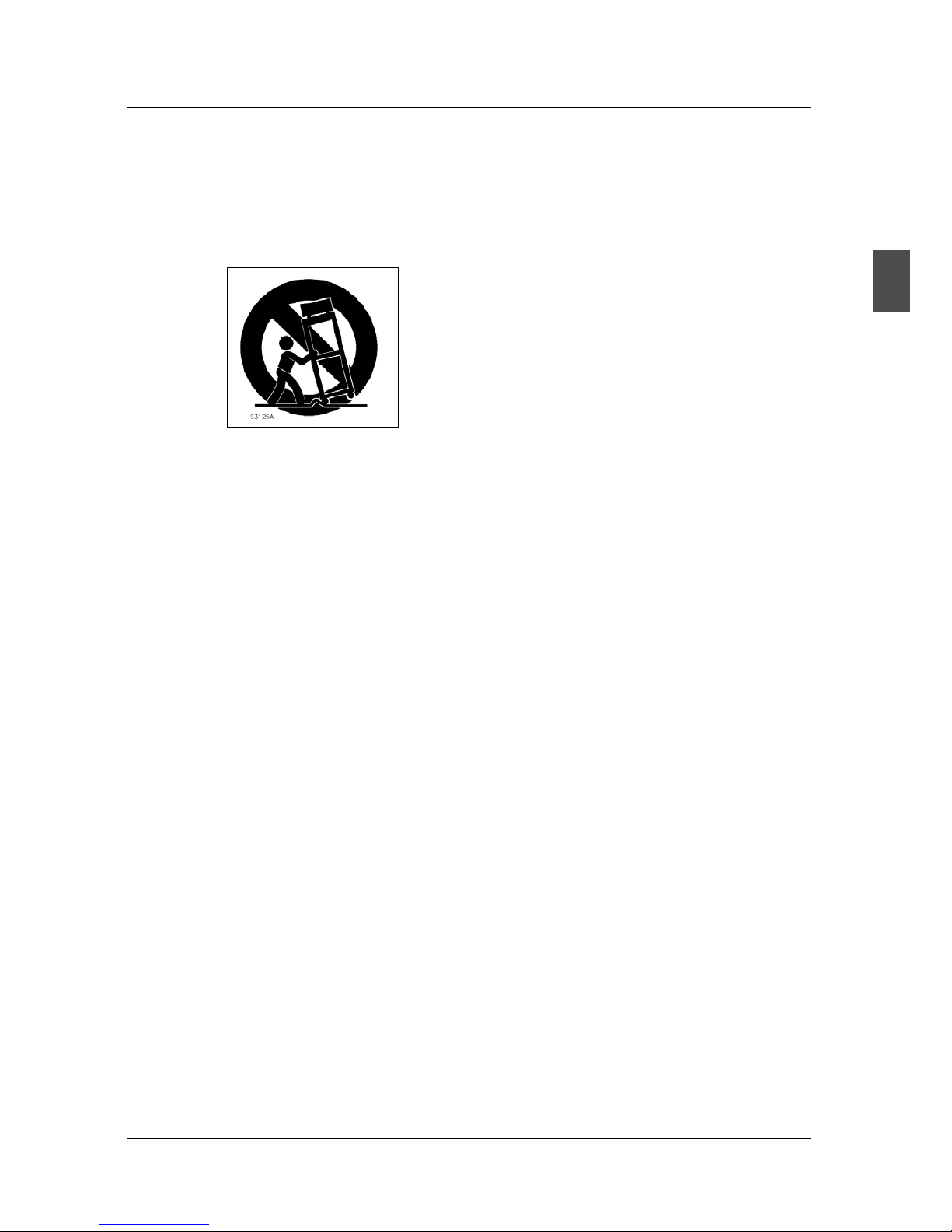

12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.
13.Unplug this apparatus during lightning storms or when unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15.Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, suchas vases, shall be
placed on the apparatus.
16.WARNING:To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
17.Mains plug or appliance coupler is used as the disconnect device, shall be readily operable.
18.The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection.
3
IMPORTANT INFORMATION
English

4
2. PREFACE
Thank you for buying this Please read this manual thoroughly before operating the TV.
Make sure the TV was not damaged in transit. Should the TV be damaged, do not install it and
contact your dealer. Check that you have all the accessories according to the model.
TV!
3. SAFETY PRECAUTIONS
Power cord and cables must be properly routed and protected to prevent
people from stepping on them and causing the TV to fall.
Minimum distances
10cm
20cm
10cm 5cm
Put the TV on a stable surface.
Do not place any material on the TV.
Do not block or cover the ventilation openings on the TV.
If you have a wall mount, check that it is steady.
Do not use the TV with fixtures other than those provided or
suggested by the manufacturer.
English
PREFACE

5
Keep the TV dry and away from humidity.
Keep the TV away from heat sources.
Unplug the TV before cleaning it. Do not use solvent or liquid to clean
the TV.
Only clean the TV with a soft and dry cloth.
In case of troubleshooting, do not use spare parts other than those
suggested by the manufacturer. Using inadequate spare parts can
lead to electric shocks, short-circuits, fire or other incidents.
Unplug the TV during lightning storms or when unused for long periods
of time.
English
SAFETY PRECAUTIONS

PICTURE SOUND SLEEP DISPLAY
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
ENTER
CH+
CH-
123
456
789
0
FAV
CC ASPECT MTS

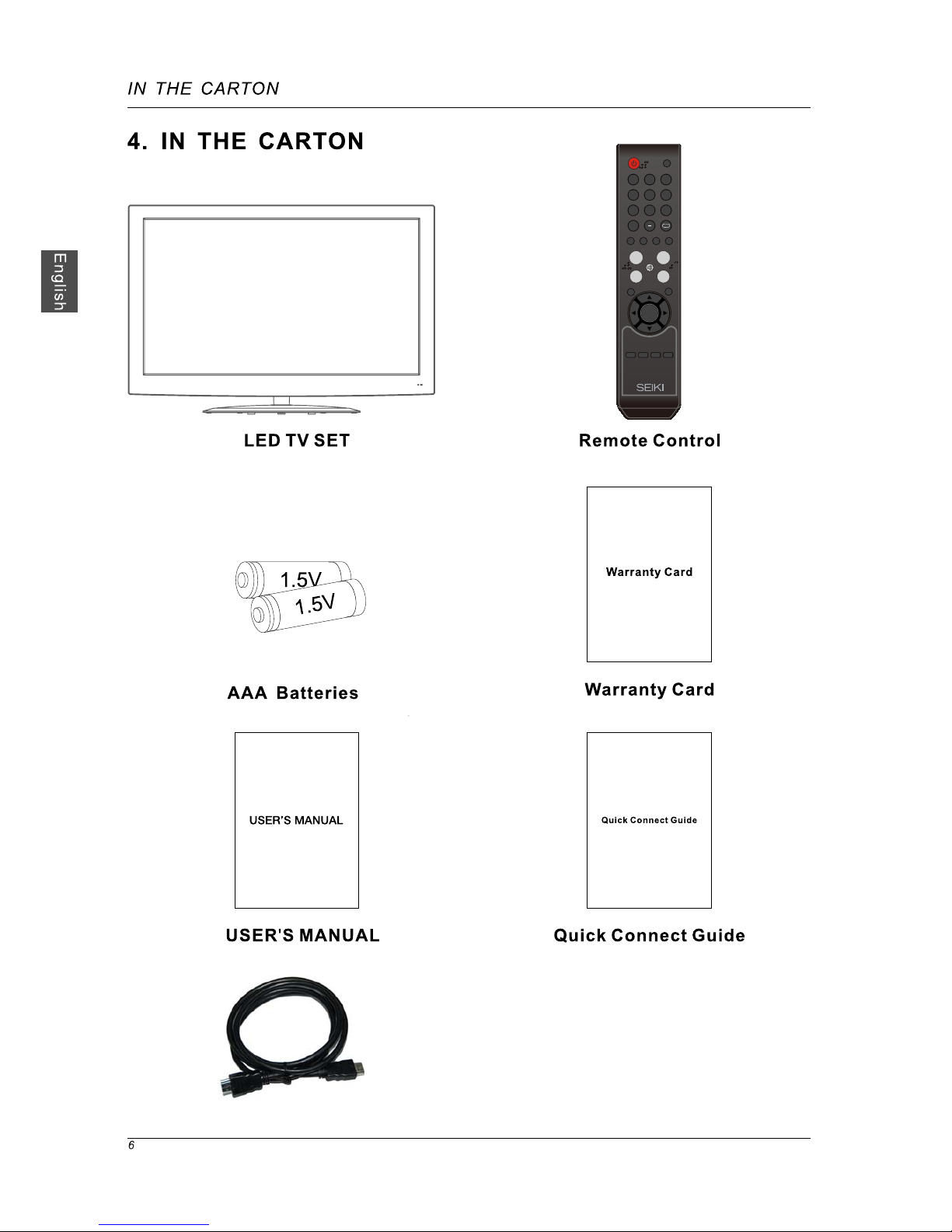

HDMI cable

INPUT
Blue when TV is powered on.
Red when TV is powered off. No color when power switch
is turned off.

POWER

9
YPbPr Connection(Component)
(Component)
Connect the YPbPr output of the DVD or VCR to the YPbPr input on the set. The picture quality is
improved; compared to connecting a regular VCR to the video input. Connect the Audio output of
the DVD or VCR to the Audio input jacks on the set using the RCA cable.
Match the jacks colors :Y is green,Pb is blue,Pr is red,Audio left is white and Audio right in red.
Select component input source using the SOURCE button on the remote control.
Connect the VIDEO and AUDIO output jack of the DVD or VCR to the VIDEO jacks on the set using
the RCA cable. Match the jack colors: Video is yellow, Audio left is white, and Audio right is red.
Select the AV input source using the SOURCE button on the remote control.
AV Connection
English
TV INSTALL TION DRAWINGSA
Video Cable
VIDEO R L
VIDEO R L
DVD or VCR
DVD or VCR Back
DVD or VCR
DVD or VCR Back
YPbPr cable
AUDIO cable
YPb Pr LR
TV Back
TV Back
AUDIO cable

10
VGA(PC) Connection
Connect the RGB output of the PC to the jack on the set. Connect the AUDIO output ofVGA(PC)
The PC to the PC AUDIO jack on the set. Select the RGB input source with using SOURCE button
on the remote control.
COAX Connection
English
TV INSTALL TION DRAWINGSA
COAX Cable
COAX
the audio amplifier back
Audio amplifier
TV Back
VGA Cable
Audio Cable
AUDIO RGB-PC OUTPUT
TV Back
Connect to Audio Amplifier device to the COAX output jack on the TV.

11
HDMI Connection
HDMI plug which replaces the HDMI connection allows transfer of all audio/video/control
signals through one cable only. These signals are transferred in digital.
Service port: (For factory uses only.)
Service Port Function
English
TV INSTALL TION DRAWINGSA
DVD Back
TV Back
TV Back
USB Cable
HDMI Cable

PICTURE SOUND SLEEP DISPLAY
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
ENTER
CH+
CH-
123
456
789
0
FAV
CC ASPECT MTS
INPUT
INPUT
Select the picture mode
SOUND
Select the sound mode
SLEEP
Set the Sleep Timer.
Displays
Displays
set

:Move
MENU :Return
ENTER
:Move :Press to Enter
14

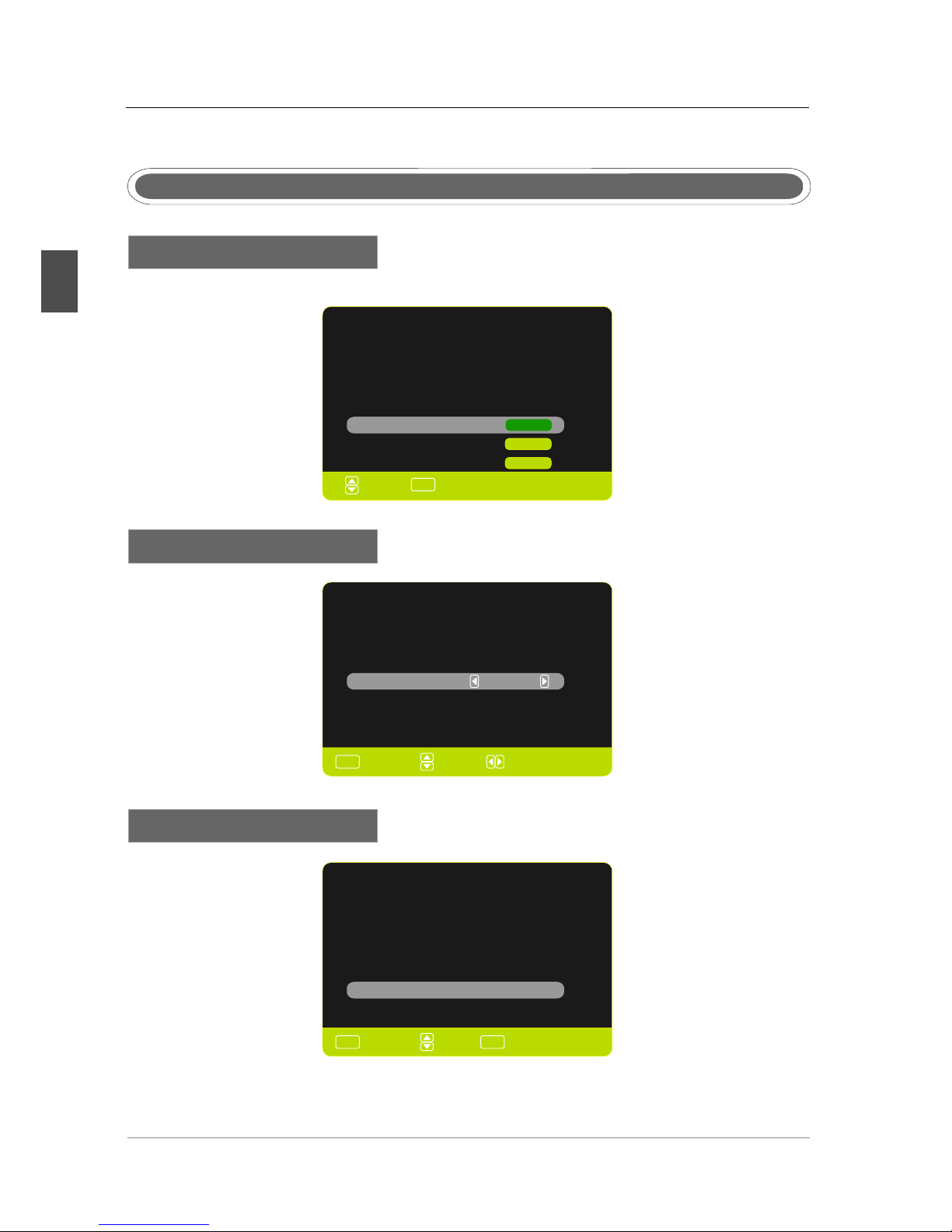

SETUP WIZARD
English
8.Menu Operation
MENU OPERATION
Select Language
Next
Time zone
Time zone
Eastern
Select Language
English Enter
French
Spanish
Enter
Enter
Welcome to the SEIKI HDTV Setup Wizard.Follow this guide to
help setup your HDTV for scanning channels or accessing your
external devices for Antenna,Set-top Box, Blu-ray, DVD, Games
and other player.
Use the up and down arrows on your remote control TV keypad
to select the language of screen menu and message
Use the left and right arrows on your remote control to select
your local time zone .
:Press to Enter
Power On Mode
Retail Mode
Home Mode(Energy Saving)
Select the language you want.
Select Time Zone
Power On Mode
:Move :Change Setting
MENU :Return
Home optimizes the standard video setting for ENERGY
STAR@ qualification.
Retail Mode optimizes the video setting for use on a retail
showroom floor or demo environment.
Use the up/down key arrows on you remote control or TV
keypad to select power on mode.
ENTER

Stop Auto Channel Search Skip
Stop Auto Channel Search Skip

INPUT

17
English
MENU OPERATION
1.Press ENTER when the Picture Settings item is highlighted. Then you will go to the sub-menu
as following.
2.Press ▼/▲ to select the desired menu item. Press ENTER to proceed if necessary.
3.Press ◄/► to the desired level.
4.When you have changed the settings, you can exit from the menu by pressing MENU.
PICTURE SETTINGS
Picture Mode User
Brightness
Contrast
Color
Tint
Sharpness
Press ▼/▲ button to select Picture Mode, then press ◄/► button to adjust. Only in the User mode,
the detail options as following can be adjusted. Available picture mode: Dynamic, Standard,Movie
User.
Picture Mode
Picture Settings
Color Temperature Normal
Advanced Picture Settings
Picture Settings
Screen Size
PC Settings
PICTURE MENU
MENU ENTER
:Return :Move :Go to Next Menu
MENU ENTER
:Return :Move :Go to Next Menu
Wide
Brightness
25
Contrast
25
Press ▼/▲ button to select Brightness,
then press ◄/► button to adjust.
Brightness
Contrast
Press ▼/▲ button to select Contrast,
then press ◄/► button to adjust.

18
English
MENU OPERATION
Screen Size
Screen Settings
Sharpness
27
Tint
27
Sharpness
Tint
Press ▼/▲ button to select Sharpness,
then press ◄/► button to adjust.
Press ▼/▲ button to select Tint,
then press ◄/► button to adjust.
Color
27
Color
Press ▼/▲ button to select Color,
then press ◄/► button to adjust.
Press ▼/▲ button to select Screen Size, then press ◄/► button to adjust. Available Screen Size:
Standard, Wide, Wide Zoom, Zoom.
MENU :Return :Move :Change Setting
Press ENTER when the Color Temperature item is highlighted. Then press ◄/► button to adjust.
Available color temperature: Normal, Warm, Cool.
Color Temperature
Warm
Color Temperature
ADVANCED PICTURE SETTINGS
Dynamic Contrast
Film Mode
Noise Reduction
MPEG Noise Reduction
Off
Off
Off
Advanced Picture Settings
Off
