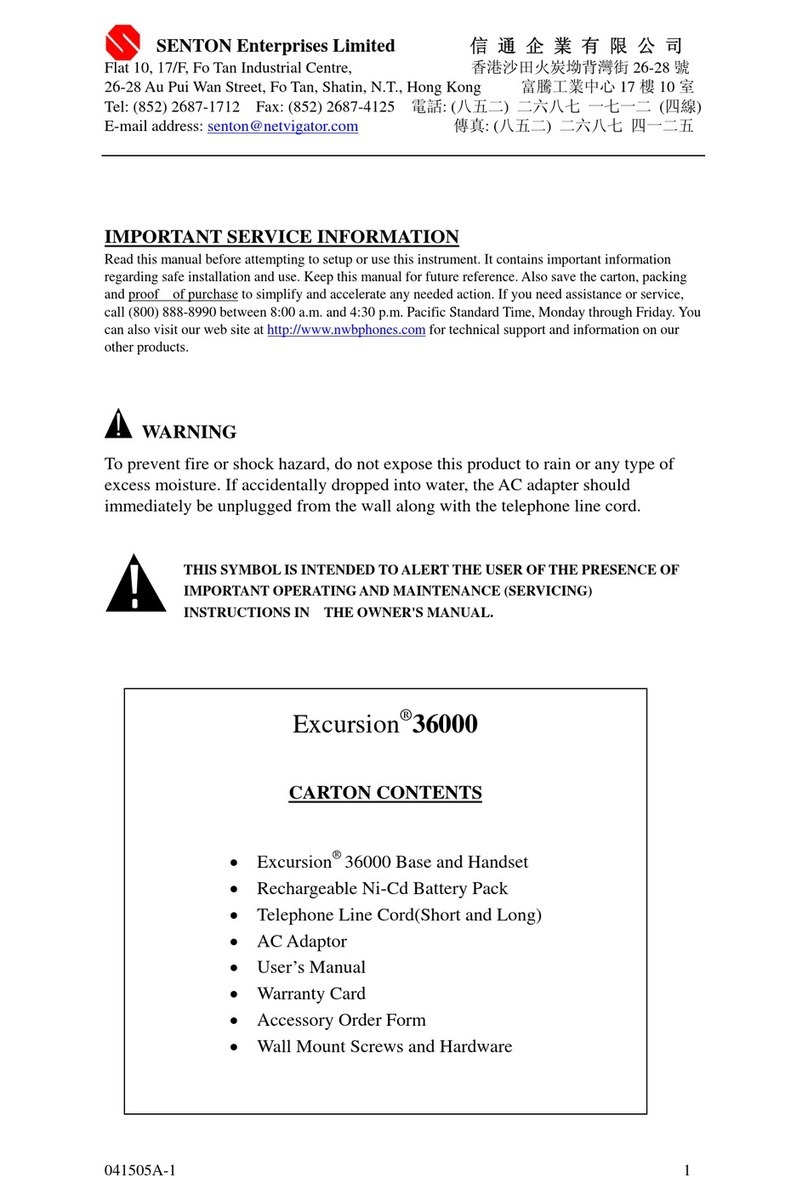

IMPORTANT SERVICE INFORMATION
Read this manual before attempting to setup or use this instrument. It contains important information
regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing
and proof of purchase to simplify and accelerate any needed action. If you need assistance or service,
call [phone] between 8:00 a.m. and 4:30 p.m. Pacific Standard Time, Monday through Friday. You
can also visit our web site at http://www.nwbphones.com for technical support and information on our
other products.
WARNING
To prevent fire or shock hazard, do not expose this product to rain or any type of
excess moisture. If accidentally dropped into water, the AC adapter should
immediately be unplugged from the wall along with the telephone line cord.
THIS SYMBOLIS INTENDED TOALERT THE USER OFTHE PRESENCE OF
IMPORTANT OPERATINGAND MAINTENANCE (SERVICING)
INSTRUCTIONS IN THE OWNER'S MANUAL.
•Wall Mount Screws and Hardware
•AC Adaptor
•User’s Manual
•Warranty Card
•Accessory Order Form
Excursion®36070
CARTON CONTENTS
•Excursion
® 36070 Base and Handset
•Rechargeable Ni-Cd Battery Pack
•Telephone Line Cord(Short and Long)
041505A-1 1

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry
tub, in a wet basement or near a swimming pool.
5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious
damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it
from overheating. These openings should never be blocked or covered. The openings should never
be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product
should never be placed near or over a radiator or heat register. This product should not be placed in
a built-in installation unless proper ventilation is provided.
7. This product should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your home, consult your dealer or local power
company.
8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be
abused by persons walking on it.
9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric
shock.
10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous
voltage points or short out parts that could result in a risk of fire or electric shock. Never spill
liquid of any kind on the product.
11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service
contractor when some service or repair work is required. Opening or removing covers may expose
you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the
appliance is subsequently used.
12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating instructions. Adjust only
those controls that are covered by the operating instructions. Improper adjustments of other
controls may result in damage and will often require extensive work by a qualified technician
to restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinctive change in performance.
13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a
remote risk of electric shock from lightning.
14. Do not use the telephone to report a gas leak in the vicinity of the leak.
041505A-1 2

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
INSTALLATION
PRECAUTIONS
1. Never install telephone wiring during a lightning storm.
2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet
locations.
3. Never touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
4. Use caution when installing or modifying telephone lines.
MAINTENANCE
1. Use a damp cloth to clean the plastic cabinet. A mild soap will help to remove grease or oil. Never
use polish, solvents, abrasives or strong detergents since these can damage the finish.
2. Your phone should be situated away from heat sources such as radiators, heaters, stoves or any other
appliance that produces heat.
CAUTION
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the
instruction. read and follow these instructions:
1. Use only the 3.6V, 450mAh, Ni-Cd battery pack .
2. Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible
special disposal instructions.
3. Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the
eyes or skin. It may be toxic if swallowed.
4. Exercise care in handling the battery in order not to short the battery with conducting material such
as rings, bracelets and keys. The battery or conductor may overheat and cause burns.
5. Recharge only the battery provided with or identified for use with this product. The battery may leak
corrosive electrolyte or explode if it is not the correct type.
6. Do not attempt to rejuvenate the battery provided with or identified for use with this product by
heating them. Sudden release of the battery electrolyte may occur causing burns or irritation to eyes
or skin.
7. When inserting the battery into this product, the proper polarity or direction must be observed.
Reverse insertion of batteries can cause charging that may result in leakage or explosion.
8. Do not store this product, or the battery provided with or identified for use with this product, in
high-temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of
extending shelf life should be stabilized at room temperature prior to use after cold storage.
9. Disconnect telephone lines before installing batteries
SAVE THESE INSTRUCTIONS
FCC NOTICE
The FCC requires that you be advised of certain requirements involving the use of this telephone.
1. This telephone is hearing aid compatible.
2. This equipment complies with 47 CFR Part 68 requirement. On the bottom of this equipment is a
label that contains, among other information, the ACTA registration number and Ringer Equivalence
Number (REN) for this equipment. If requested, provide this information to your telephone
company.
041505A-1 3

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
3. The REN is useful to determine the quantity of devices you may connect to your telephone line and
still have all of those devices ring when your number is called. In most, but not all areas, the sum of
the RENs of all devices should not exceed five (5.0). To be certain of the number of devices you
may connect to your line, as determined by the REN, you should call your local telephone company
to determine the maximum REN for your calling area.
4. If your telephone causes harm to the telephone network, the telephone company may discontinue
your service temporarily. If possible, they will notify you in advance. But if advance notice is not
practical, you will be notified as soon as possible. You will be advised of your right to file a
complaint with the FCC.
5. Your telephone company may make changes to its facilities, equipment,
operations or procedures that could affect the proper operation of your equipment. If they do, you
will be given advance notice so as to give you an opportunity to maintain uninterrupted service.
6. If you experience trouble with the telephone, please contact VTC Service & Manufacturing Co., Inc
at [phone] or write to: VTC Customer Service, 16988 Gale Ave., City of Industry, CA 91745
for repair/warranty information. The telephone company may ask you to disconnect this equipment
from the network until the problem has been corrected or you are sure that the equipment is not
malfunctioning.
7. This equipment may not be used on coin service provided by the telephone company. Connection to
party lines is subject to state tariffs. (Contact your state public utility commission or corporation
commission for information.).
8. USOC jack type is RJ11C and the compatible jack is part 68 compliance.
NOTICE: If your home has specially wired alarm equipment connected to the telephone line,
ensure the installation of this [equipment ID] does not disable your alarm equipment. If you
have questions about what will disable alarm equipment, consult your telephone company or a
installer.qualified
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and, (2) his device must accept
any interference received, including interference that may cause desired operation. Privacy of
communications may not be ensured when using this phone.
Changes or modifications not expressly approved in writing by Northwestern Bell Phones may
void the user's authority to operate this equipment.
Some cordless phones operate at frequencies that may cause interference to nearby TVs an
d
VCRs; to minimize or prevent such interference, the base of the cordless phone should not be
p
laced near or on top of a TV or VCR; and, if interference is experienced, moving the cordless
telephone farther away from the TV or VCR will often reduce or eliminate the interference.
AC ADAPTOR: Use only with Class 2 Transformer, 9VDC output ,
200mA, center pin positive.
041505A-1 4

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五

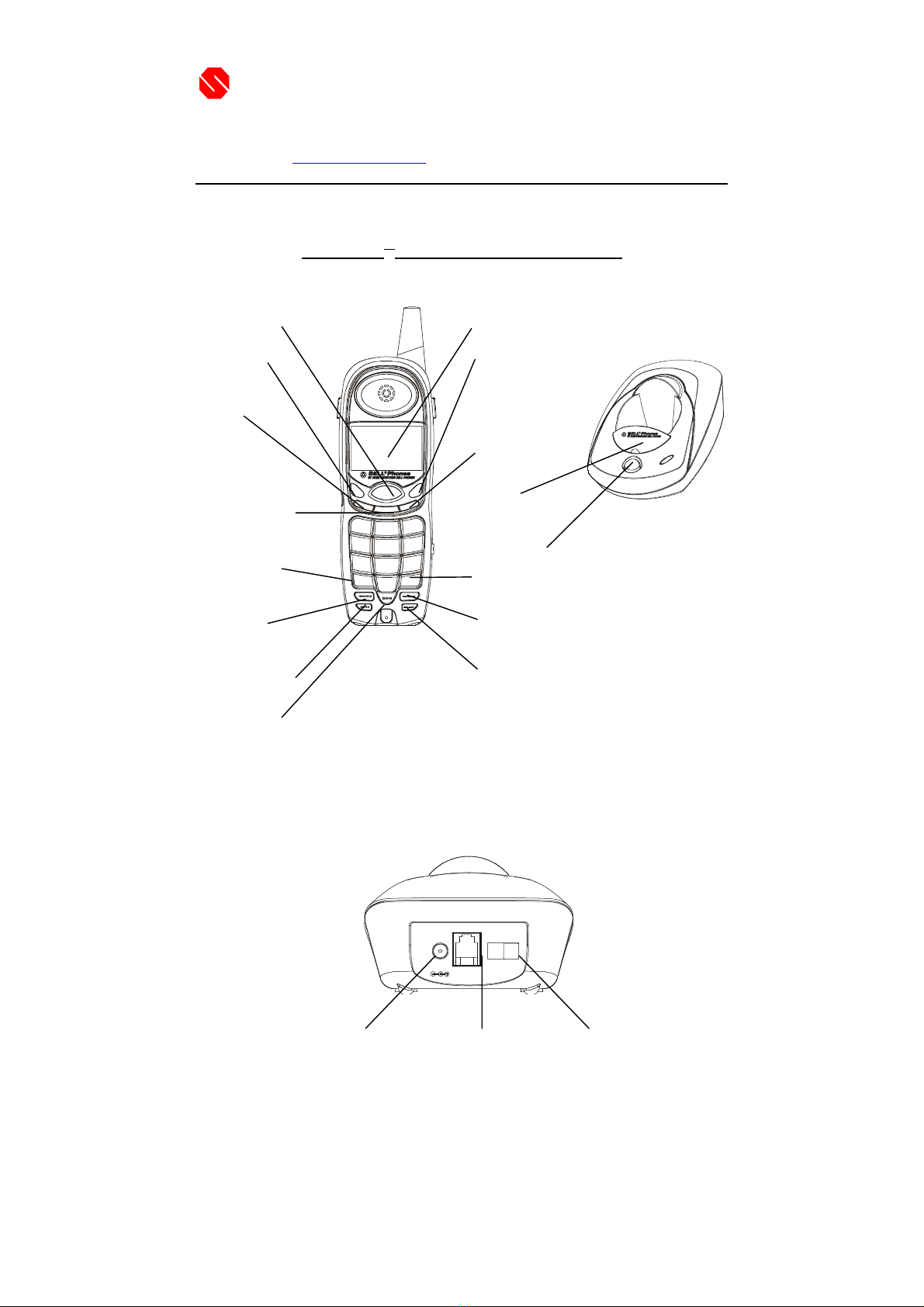

Excursion®36070 CONTROLS DIAGRAM
LINELINE
9V AC
300mA
T P
IN USE
CHG
PAGE
2.4
GHz
TALK
DN
UP
FLASH
SPK
RE/PA
ON/OFF
89
7
456
3
2
1
ABC DEF
GHI JKL MNO
PQRS
TUV
WXYZ
*
#
OPER
0
2.4 Ghz
LCD Display
UP Button
RE/PA Button
IN USE/CHARGE
LED Indicator
PAGE Button
# / Button
EXIT/
MUTEButton
SELECT Button
TALK Button
UP Button
FLASH
SPK ON/OFF
Button
TONE(*)/Button
HOLD
Button
MENU Button
CHN Button
Base Unit
(Rear View)
DC9VJack LINEJack TONE/PULSESwitch
041505A-1 5

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
DESCRIPTIONS
Handset Controls:
LCD Display - Shows call information, phone status, prompts and Phonebook items.
MSG WTG/NEW CALL indicator- Red LED blinks when you have new message(s) and call(s).
TALK Button - Press this button to place a call, answer a call, or end a call. When the unit is in
speakerphone mode, it will be change to Phone mode. And when the unit is already in PHONE mode, this
key will be STANDBY mode.
SPK ON/OFF Button - Press this button to enter the SPEAKERPHONE mode. When the unit is already
in Phone mode, it will be change to SPEAKERPHONE mode. And when the unit is already in
SPEAKERPHONE mode, this key will be STANDBY mode.
HOLD Button – Allows you to HOLD function during phone on. Releasing Hold and restoring to phone
call can be achieved by pressing TALK button or pressing HOLD button again.
TONE/* Button - In programming mode & tone dialing mode, this key is used as a normal number key.
In pulse dialing mode, it is used to initiate temporary DTMF dialing. This key can also be stored into
directory numbers.
# Button - In directory entry/editing & tone dialing mode, this key is used as a normal number key, In
pulse dialing mode, it will be inactive. This key can also be stored into directory numbers.
FLASH Button - Momentarily hangs up the phone to access custom calling features such as Call waiting
or Three-way calling provided by you local phone company.
UP/DOWN Button -Allows you to adjust the handset volume(7 steps) in TALK mode. (UP)It also allows
you to view the caller list. (DOWN) It also allows you to view the directory.
Microphone -Used for speaking with callers.
Headset Jack – A jack located on the side of the handset used for connecting your headset to enjoy a
hands-free communication.
Redial/Pause Button – (Redial) Press to redial the last number you dialed. (Pause) Press to insert pause
while dialing.
CHN (Channel ) Button – While in Talk mode. It is used to manually select one of the 40 operating
channels when you experience interference on the handset.
MUTE /EXIT –In talk mode, this button allows you to temporarily disable the handset microphone. In
standby mode, this key is used to exit all models of operation and return the handset and base unit to the
standby mode.
MENU – While in standby mode, this button allows you to set the handset in Programming mode.
041505A-1 6

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
RINGER+MOTOR/RINGER/OFF Switch – This slide switch is used to control the ringer buzzer and
vibrator. When the slide switch is in OFF position. The ringer buzzer and vibrator is not operation. When
in RINGER+MOTOR position, the ringer and vibrator is following the ring cadence. And in RINGER
position, only the ringer buzzer is operated.
Receiver – Allows you to hear calls.
BASE UNIT CONTROLS:
Base Antenna - A fixed antenna.
Base Unit Charge Terminals - Used for charging handset batteries. We recommend that you clean these
contacts periodically with an alcohol-moistened cloth or cotton swab.
IN USE/CHARGE LED Indicator -This LED illuminates steadily when the handset is resting in the
base unit cradle and the handset battery is being charged. It flashes regularly when the phonies in the
PHONE mode or when the phone is put to On-hold mode. And it also flashes quickly in cadence with an
incoming ring. This LED will also flashes momentarily after the handset is cradled to indicate that
initialization between handset and base is in progress
PAGE Button - Allows you to locate the handset when it is not on the base, or to alert the person near the
handset.
TONE/PULSE Switch - A switch located on the rear of the base unit, which allows you to set the dialing
mode to either Tone dialing or Pulse(rotary) dialing.
DC 9V jack - A jack located on the rear side of the base unit used for connecting the AC adaptor to the
base unit.
LINE jack – Accepts line cord to make connection with modular type telephone outlet.
INSTALLATION
CAUTION: USE ONLY THE NICKEL CADMIUM(Ni-Cd) BATTERY TYPE INCLUDED
WITH THIS UNIT. USE OF OTHER BATTERYTYPES MAY CAUSE INJURIES OR DAMAGE.
1. Remove the battery compartment cover of the handset by pressing the top of the cover and sliding it
down.
2. Connect the Ni-Cd battery pack plug along the slot into the handset’s battery connector as shown
below.
(Figure 1)
Handset
Battery
Compartment
Red
wire
Black
Wire
Battery
Connector
041505A-1 7

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
3. Insert the Ni-Cd battery into the battery compartment.
4. Replace the battery compartment cover by sliding it up towards the handset.
NOTE: Use the type and size of Ni-Cd battery pack, 3.6V, 450mAh. It is recommended that the Ni-Cd
battery pack should be fully charged overnight prior to initial use.
Belt Clip Installation
With the back of handset facing up, insert one side of the belt clip hook into the matching slots at the top
side of handset as shown in Figure2. Slide the other hook until it locks into place from the opposite side
of the handset. Belt cli
p
hoo
k
(Figure 2)
WALL USE:
Wall Mounting (Standard Wall Jack)
1. Install the wall mount bracket at the position as shown in Figure 3.
2. Connect the short telephone line cord to the TELLINE jack..
3. Connect the opposite end of the telephone line cord to the modular wall jack.
4. Align the wall mounting slots with studs located on the modular wall plate and slide base down to
lock in place.
Wall Mount Bracket
Wall Moun
t
Stud
Telephone
Modular
Jack
Wall Moun
t
Stud
(Figure 3)
Wall Mounting (No Standard Wall Jack)
1. Drill two holes with a vertical distance between the two marked positions of 315/16＂（100mm）as
shown in Figure 4.
(Figure 4)
041505A-1 8

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
2. Drive a screw into each of the holes. Tighten them to the end of the screw lines, only leaving the
smooth part of the screw head outside the wall.
3. Hand the unit onto the screws, then slide it down firmly to fasten the base securely.

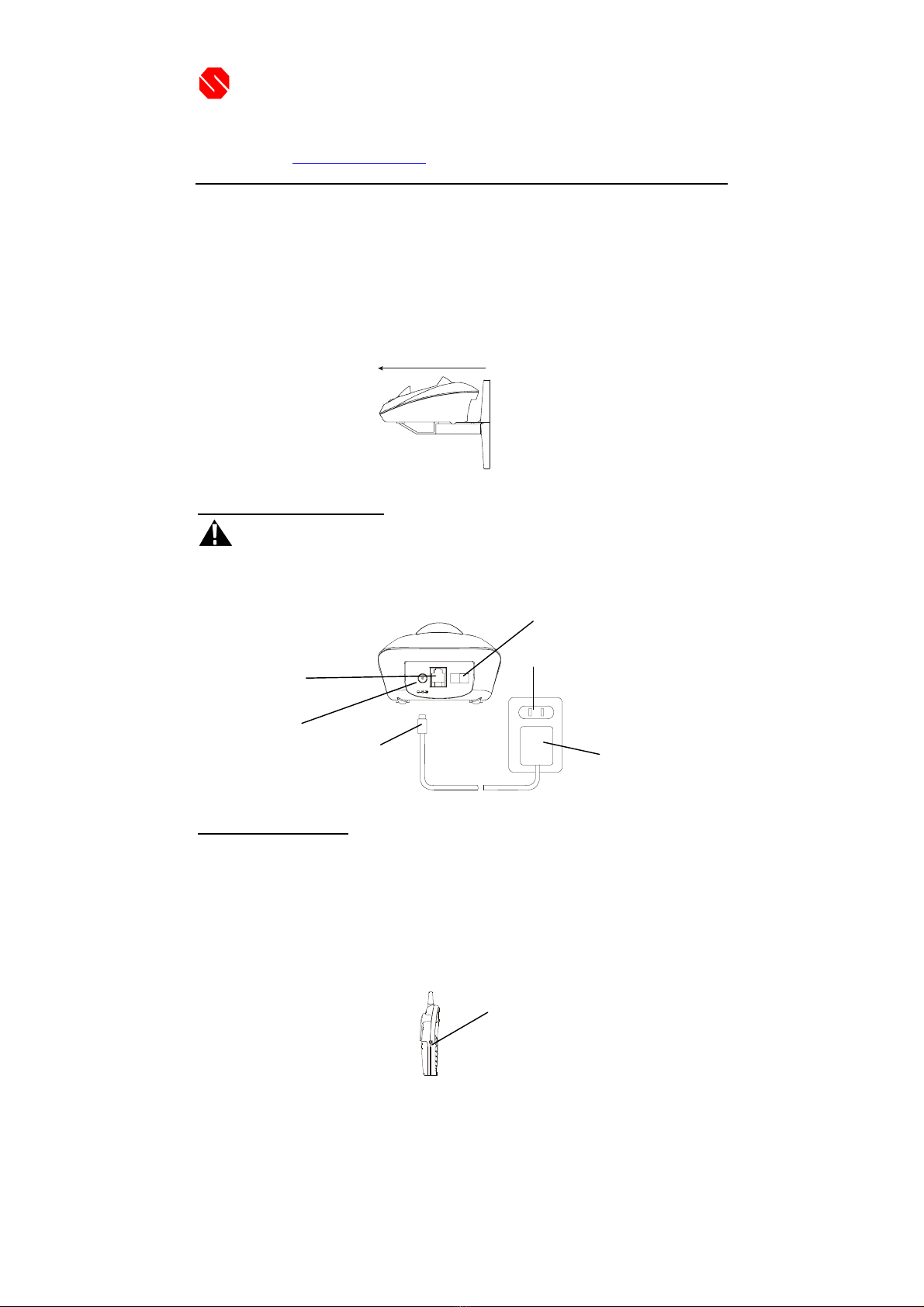

Uninstalling the Wall Mount Bracket
To remove the wall mount bracket from the base unit, pull it front as shown in Figure 5.
POWER CONNECTION (Figure 5)
CAUTION: You must use a Class II, 120 Volt AC/9 Volt DC adaptor that delivers at least 300mA.
The center tip must be positive and the plug must correctly fit the unit’s DC 9V jack.
1. Plug the AC adaptor into a standard AC outlet.
2. Insert the small plug inot the DC 9 jack on the rear of the base unit as shown in Figure 6.
HEADSET CONNECTION
One of the special features of your phone is that your handset could utilize a headset(not included) for
hands-free communication. Insert the small plug at the end of your headset cord to the headset jack at the
side of the handset as shown in Figure 7. Follow the procedures discussed in “Placing a Call” when to
place and receive a call.
Note: The headset jack of your cordless telephone is compatible with 2.5mm headset plugs only. When
you plug in the headset into the headset jack, it automatically mutes the microphone and speaker of the
handset. Unplug the headset to return the handset to normal use.
041505A-1 9
LINELINE
9V AC
300mA
T P
Tone/Pulse
Switch
AC Outle
t
9VDC Ada
p
to
r
DC 9V Jac
k
AC Adapto
r
Plug
(Figure 6)
Telephone Line Jack
Handset Jac
k
(Figure 7)

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
INITIAL SETUP
Please follow these steps before using the cordless telephone for the first time.
1. Ensure that the handset battery pack is installed and charged fully for at least 14 hours.
2. Ensure that all connections(line cord and adaptor cord) are properly inserted into rear of the base
unit.
SETTINGTHE TONE/PULSE MODE
Select the appropriate dialing service by moving the TONE/PULSE switch at the rear of the base unit:
·TONE for Tone service , or
·PULSE for Rotary service.
TELEPHONE OPERATION
A. PLACE A CALL
1. Pick up the handset and press the TALK button. The Call Timer starts to count. The base unit IN
USE LED indicator will light up.
2. Listen for a dial tone.
3. Dial the telephone number. The phone numbers appear on the LCD Display as you enter the
number.
4. When finished with your call, press the TALK button or place the handset on the base unit. The base
IN USE LED indicator will turn off.
NOTE: The call timer will start to count once you press the TALK button.
B. PLACE A CALL
1. Press the SPK ON/OFF Button The Call Timer starts to count. The base unit IN USE LED indicator
will light up.
2. Listen for a dial tone.
3. Dial the telephone number. The phone numbers appear on the LCD Display as you enter the
number.
4. When finished with your call, press the SPK ON/OFF button or place the handset on the base unit.
The base IN USE LED indicator will turn off.
NOTE: The call timer will start to count once you press the SPK ON/OFF button.
RECEIVE A CALL
NOTE: If you are expecting incoming calls, the handset must be programmed to RING ON mode.
If the handset is on the base:
1. When the phone rings, simply pick up the handset from the base cradle if the unit is set to
auto-answer ON mode. If the unit is set to auto-answer OFF mode, press the TALK button. See the
“AUTO ANSWER ON/OFF SETTING” section to set auto-answer mode. The LCD Display will
show “TALK”.
2. Start your conversation.
3. To end your conversation, either press the TALK button or place the handset on the base unit. The
base IN USE LED indicator will turn off.
041505A-1 10

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
A. If the handset is out of the base:
1. When the phone rings, press the TALK button on the handset. The LCD Display will show “ TALK”
and the base unit IN USE LED will light up.
2. Start your conversation.
3. To end your conversation, either press the TALK button or place the handset on the base unit. The
base IN USE indicator will turn off.
B. If the handset is out of the base:
1. When the phone rings, press the SPK ON/OFF button on the handset. The LCD Display will show
“ TALK” and the base unit IN USE LED will light up.
2. Start your conversation.
3. To end your conversation, either press the SPK ON/OFF button or place the handset on the base unit.
The base IN USE indicator will turn off.
LAST NUMBER REDIAL
A. AFTER HEARING A BUSY TONE WHEN PLACINGACAL.
1. If you get a busy tone, press handset TALK button to hang up.
2. Press the handset TALK button again and listen for a dial tone.
3. Press the handset RE/PA button. This will automatically redial the last telephone number you called
(up to 32 digits).
4. When finished with your call, press the TALK button or place the handset on the base unit. The base
IN USE LED indicator will turn off.
B. WHEN THE HANDSET IS OFF THE BASE UNIT AND IN STANDBY MODE
1. Press the TALK button on the handset and listen for a dial tone.
2. Press the RE/PA button. This will automatically redial the last telephone number you called (up to
32 digits).
3. When finished with your call, press the TALK button or place the handset on the base unit. The base
IN USE LED indicator will turn off.
A. PREFERRED CALLS(VIP)
You an assign PREFERRED CALL which will generate a special ringer sound at start of the second ring
to any welcome caller in the Phonebook.
1. Press the SAVE/MEMO button.
2. Press the or button to find the one you need.
3. Press the MUTE/MENU button once. The LCD Display will show “VIP”.
4. Press the SAVE/MEMO button to save the preferred call and go back to STANDBY mode.
B. BLOCKED CALLS
VIP
JOHN SMITH
888-555-1212
#1 TOTAL20
You can assign a BLOCKED CALL which will disable the ringer sound from the second ring to any
caller in the Phonebook.
1. Press the SAVE/MEMO button.
2. Press the or button to find the one you need.
3. Press the MUTE/MENU button twice. The LCD Display will show “REJ”.
4. Press the SAVE/MEMO button to save the preferred call and go back to STANDBY mode.
041505A-1 11

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
SAVING IN THE PHONEBOOK
1. Press the MENU button.
2. Press the SELECT button.
3. Use the TELEPHONE KEYPAD button(0-9) to enter the name, (see the “TELEPHONE KEYPAD
CHARACTERS SETTING” section ) you can store up to 15 characters.
4. Press the SELECT button once.
5. Enter the telephone number using the TELEPHONE KEYPAD button(0-9). You can store up to
24digits.
6. Press the SELECT button to save into memory
7. Press the EXIT/MUTE button to go back to standby mode.
NOTE: If there are no memory locations left in the phonebook, the unit will display “ MEMORY FULL”.
To continue with memory programming, you must delete or edit existing speed dial numbers.
If no active buttons are pressed for 20 seconds, the LCD Display will automatically return to STANDBY
mode.
It will not save a duplicate telephone number or a name without the corresponding telephone number in
the Phonebook.
TELEPHONE KEYPAD CHARACTERS
The TELEPHONE KEYPAD buttons(0-9) are used to enter the characters when entering names. Press
the appropriate KEYPAD button to get the following characters.
KEYPAD
BUTTON CHARACTERS
1 1
2 A B C 2
3 D E F 3
4 G H I 4
5 J K L 5
6 M N O 6
7 P Q R S 7
8 T U V 8
9 W X Y Z 9
0 0
* *
# &
,, - . #
REJ
JOHN SMITH
888-555-1212
#2 TOTAL20
For example, If you want to enter the character “C” , press the “2” KEYPAD button, the first character
displayed will be “A” . Press the “2” button again to display “B”, and press again to display the letter
“C”.
041505A-1 12

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五

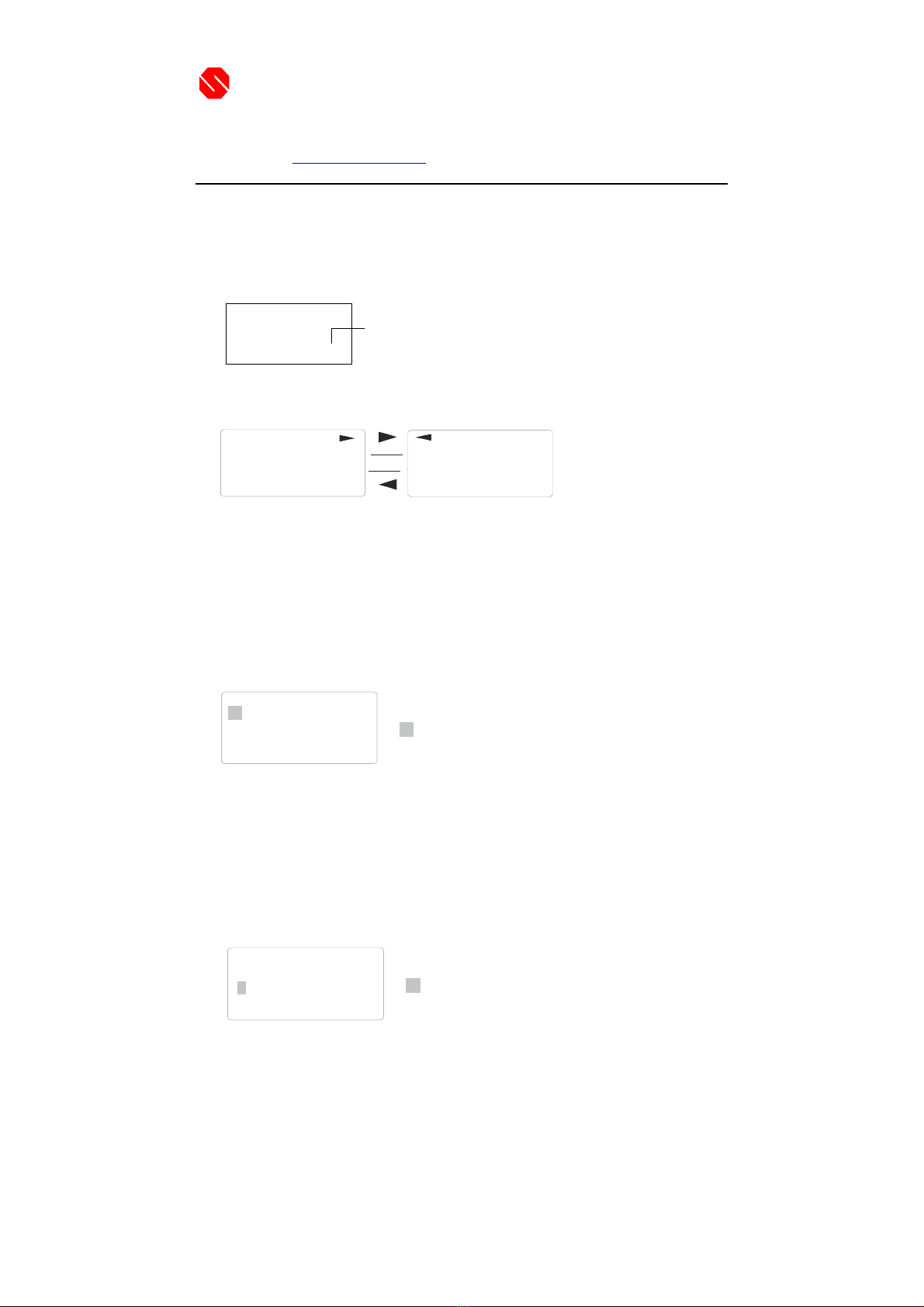

VIEWING THE PHONEBOOK
This Phonebook lets you scroll through the list to find the person you need for one touch dialing. You can
store up to 20 names and telephone numbers in the Memory.
N
o. of memory store
PHONE BOOK
TOTAL 20
1. Press the DN button.
2. Press the UP or DN button to find the one you need
ALEX BROWIN
6045551212
ALEX BROWIN
6045551212
01 01
NOTE: To exit the Phonebook at anytime, Press the EXIT/MUTE button.
EDITING NAME AND NUMBER IN THE PHONEBOOK
1. Press the UP button.
2. Press SELECT button to find the one you want to edit, The LCD will show “QUICK EDIT
ERASE” and then press the UP or DN to select “ ERASE”. Press the SELECT button to confirm a
selection.
3. Press the TELEPHONE KEYPAD button to edit the name.
6045551212
ALEX BROWIN
cursor is blinking
4. Press the UP or DN button to move to the letter or number you want to change.
To erase, press UP Button to remove previous letter, press the DN button a second time will produce
a space
To add, use the TELEPHONE KEYPAD buttons(0-9).
5. Press the SELECT button to edit the number.
6. Press the UP or DN button to move the cursor to the number you want to change.
To erase, press the UP button to remove previous number.
To add, use the TELEPHONE KEYPAD buttons(0-9).
ALEX BROWIN
cursor is blinking
6045551212
7. Press the SELECT button to confirm.
041505A-1 13

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
IMPORTANT: It is not advisable to save a telephone number without the corresponding name in the
Phonebook. This will lead to improper displays on Private and Out of Area calls.
NOTE: When no active buttons are pressed for 20 seconds, the LCD Display will automatically return to
STANDBY mode.
PLACING CALLS FROM THE PHONEBOOK
1. Press the DN button.
2. Press the UP or DN button to find the one you want to call.
3. Press the TALK button to dial out the telephone number.
4. Start your conversation.
5. To end your conversation, either press the TALK button or place the handset on the base unit.
NOTE: Be sure to check that the line is not in use by another extension.
DELETINGA STORED NUMBER
1. Press the DN button.
2. Press the UP or DN button to find the one you want to delete.
3. Press the SELECT button. The LCD Display will show “QUICK EDIT ERASE”.
4. Press the UP or DN button to select “ERASE”, and then press the SELECT button. The LCD will
show “ ERASE NO YES”.
5. Press the UP or DN button to select “ YES” and then press the SELECT button to confirm a
deletion.
6. Press the EXIT/MUTE button to return to STANDBY mode.
MIXED MODE DIALING (Temporary Pulse to Tone Dialing)
1. If you only have pulse (rotary dialing) service in your area and want to access Tone services (Bank
by Phone , etc.), ensure that the Tone/Pulse switch on the rear of the base unit is set to the Pulse
position.
2. Press the TONE(*) button once to switch from Pulse to Tone dialing temporarily. Pulse dialing
mode resumes when the call is ended.
PAUSE FUNCITON
• In some cases, such as PABX or long distance service, a pause may be needed in the dialing
sequence. Pressing the handset RE/PA button inserts the programmed time interval between dialed
numbers.
FLASH FUCTION
• Used to access custom calling features such as Call Waiting or Three-Way Calling provided by your
local phone company. Flash can also be used to restore a dial tone to make a new call.
CHANNEL SELECTION(40 Channels)
• Your cordless telephone lets you select a channel from the 40 frequencies available to transmit
signals between the base unit and handset. If the existing channel becomes noisy or starts having
interference, you can either move closer to the base unit or press the CHN button on the handset
until a better reception is found.
LOW BATTERY WARNNIG
• When the handset battery voltage level is low, the handset LCD Display shows “ ” at the lower
left corner of handset display.
041505A-1 14

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
• Return the handset on the base cradle to charge.
PAGING FUNCTION
• If you have misplaced the handset or need to alert person nearly the handset, press the PAGE button
on the base unit. Each press of this button will activate the handset to beep for 60 seconds and LCD
Display shows “PAGING” while it is being paged by the base unit.
NOTE: Even if the handset is in RING OFF mode, the base unit can page the handset.
CALLER ID OPERATION
GETTINGTO KNOWYOUR NEW PHONE
IMPORTANT: Subscription to Caller ID (CID)/Call Waiting ID services from your local phone
company is required for using the Caller ID/Call Waiting ID features of the Excursion® 36070. Your new
Excursion® 36070 telephone gives you the ultimate in cordless telephone sound quality with the luxury of
Caller ID and Call Waiting ID.
If this is your first cordless telephone, you will soon discover that your cordless is similar to regular
telephones, except without the cord. If you have owned a cordless in the past, you will discover that the
Excursion® 36070 telephone is the most powerful and full-functioned Call Waiting ID cordless telephone
on the market, some key features are:
• 50 name and number Caller ID/Call Waiting ID memory(Call List)
• 20 name and number programmable memory (Phonebook)
• Hearing – aid compatibility
• Automatic or manual selection of the clearest of 40 channels
Unlike regular telephones, your cordless telephone does not work during power failures. We do not
recommend you to use a cordless telephone as the only phone in your residence
INTRODUCTION TO CALLER ID AND CALLWAITING ID
The Excursion® 36070 Caller ID/Calling Waiting ID devices allow you to take advantage of the Caller
identification delivery service offered by your local telephone company. For more information, you can
refer to the following Question and Answer table:
QUESTIONS ANSWERS
What is Caller ID? Caller ID is a device that identifies the calling party before you
answer a call. This device can be used to screen unwanted calls and
eliminate harassment from annoying calls.
What is Caller Waiting ID? Call Waiting ID is a device that can also identifies the call waiting
party before you answer a call.
How does Caller ID and
Call Waiting ID work? When used with Caller ID/Call Waiting service, the Caller ID/Call Waiting ID device displays the name(if available), and the telephone
number (if available) of the person calling before you answer your
telephone.
Who provides Caller ID
service? Your local telephone company. However, not all local telephone companies provide Caller ID service. Please call you local phone
company to confirm that the service is available before you install the
device.
How can I activate my
Caller ID? For you Caller ID unit to function, you must first arrange with your local tele
p
hone com
p
an
y
t
o have Caller ID/Call Waitin
g
ID service
041505A-1 15

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
installed on you line. There is an extra charge added to your monthly
telephone bill for this service. Before using this unit, please read this
instruction manual carefully.
RECEIVING NEW CALL
• When you receive a new call, the call information is stored under CALLER ID List. The “NEW”
segment of LCD Display and Visual Ringer indicator will flash if there is new call(s).
• When you receive a call, the system displays the caller information sent by the telephone company,
called a Call Record. The Call Record consists of the following information:
JOHN SMITH
555-
555-1212
12/15 10:00
AM NEW 08
a. The caller’s name(if available)
b. The caller’s telephone number
c. The time and date of a call
d. A call record number
• If there is no call records, the LCD display shows “NO CALLS”.
VIEWINGTHE CALLER ID LIST
1. In standby mode, press UP button to enter Caller ID list. If there is new call(s), the new call(s) will
be displayed at first.
2. Press UP or DN button to scroll to the next call. The DN button will go through the calls from the
last call received to the first. The UP button will allow you to view the calls from the first call
received to the last.
3. Press EXIT/MUTE button to finish.
NOTE: If no active buttons are pressed for 20 seconds, the LCD Display will automatically return to
STANDBY mode.
CALLER ID DISPLAY
041505A-1 16
ALEX BROWIN
604-
555-1212
ALEX BROWIN
12/15 10:00 01
604-
555-1212
AM NEW
12/15 10:00 01
AM NEW
Time
N
umber of calls recorded
“UNAVAILABLE” will be displayed when Caller ID
information is not available. This call was made from a
telephone company that does not offer Caller ID
services(including international calls).
LCD Display shows name and number, time and date of the
call.
UNAVAILABLE
----------------------------
12/15 10:00
AM OLD 08
Month/Date
JOHN SMITH
555-
555-1212
12/15 10:00
AM OLD 08

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
NOTE: If a call is received from the same number more than once since the records were last viewed, no
new entry is made, but the repeat call icon “*” and the number of repeat calls is displayed.
CALLWAITING
When you subscribe to Call Waiting service from your local telephone Company, this telephone will
display the name and number of the second caller while you are having a conversation.
1. When a second call comes in while you are having a conversation, you will hear a notification tone
from the handset and volume is momentarily muted. The LCD Display will automatically shows the
name and number of the second caller.
2. Press the FLASH button to answer the second caller. The first caller’s name and number will be
displayed.
3. When you have finished, press the FLASH button to continue with your conversation with the first
caller.
Display shows when the Caller ID information was
received incorrectly or only part of the data was
received.
NOTE: When an error is received, none of the date from
This call is saved in memory
ERROR
12/15 10:00
AM OLD 08
Display shows when a voice mail message has been
received and is stored by message waiting service
p
rovided by the phone company.
MESSAGE WAITING
12/15 10:00
AM
This is displayed when DN button is pressed and there is
no Caller ID date stored.
NEW 00 OLD 0
12/15 10:00
AM
1’ST CALLER
JIM CARRY
800-
210-8950
00MIN 18
SEC
ALEX BROWN
800-
210-8950
00MIN 18
SEC
2’ND CALLER
MESSAGE WAITING
If you have subscribed to Voice Mail message service and if you have requested Visual Message
Indication from your local telephone company, the handset visual ringer indicator will blink and the LCD
Display will show “MESSAGE WAITING” when there is voice message(s) for you from your telephone
company. To remove the MESSAGE WAITING indicator, see the “ Message Waiting Setting” section..
041505A-1 17
MESSAGE WAITING
12/15 10:00
AM

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
PLACINGA CALL FROM THE CALLER LIST
1. Press the UP button.
2. Press the UP or DN button to select the call record you wish to call back.
3. Press TALK button to dial out.
4. To end you conversation, either press the TALK button or place the handset on the base unit.
SAVING THE NAME AND NUMBER FROM THE CALLER LIST INTO PHONE BOOK
1. Press the UP button.
2. Press the UP or DN button to scroll to the call record you wish to store into the phonebook.
3. Press SELECT button. The LCD Display shows “DIAL ERASE STORE”. Press the UP or DN
button to select “STORE”, and then press the SELECT button to confirm a selection
4. Press the SELECT button twice to confirm.
5. Press EXIT/MUTE button to return to standby mode.
NOTE: When call records with 10 digits is stored in the phonebook, a “1” is inserted in front of the
number. If you must dial out a 10-digit number for local calls, you must edit the number to exclude that
digit to dial out correctly.
SELECTIVE DELETING IN THE CALLER LIST
1. Press the UP button
2. Press the UP or DN button to scroll to the call record you wish to delete.
3. Press SELECT button. The LCD Display will show “DIAL ERASE STORE”
4. Press the UP or DN button to select “ERASE”, and then press the SELECT button to confirm a
selection. The LCD will show “ERASE NO YES ALL”.
5. Press the UP or DN button to select “YES”, and then press the SELECT button to confirm a deletion
the call record.
6. Press the EXIT/MUTE button to return to STANDBY mode.
DELETINGALL RECORDS IN THE CALLER LIST
1. Press the UP button
2. Press the UP or DN button to scroll to the call record you wish to delete.
3. Press SELECT button. The LCD Display will show “DIAL ERASE STORE”
4. Press the UP or DN button to select “ERASE”, and then press the SELECT button to confirm a
selection. The LCD will show “ERASE NO YES ALL”.
5. Press the UP or DN button to select “ALL”, and then press the SELECT button to confirm a
deletion the call record.
6. Press the EXIT/MUTE button to return to STANDBY mode.
PROGRAMS OPERATION
This unit contains the following special Programs:
041505A-1 18
A. PHONE BOOK
B. QUICK DIAL
C. RINGER
D. DATE/TIME
E. DIAL MODE
F. MESSAGE WAITING
G. LANGUAGE

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
A. PHONE BOOK
You can edit 20 directory memories.
1. Press the MENU button.
2. Press the SELECT button.
3. Use the TELEPHONE KEYPAD button(0-9) to enter the name, (see the “TELEPHONE
KEYPAD CHARACTERS SETTING” section ) you can store up to 15 characters.
4. Press the SELECT button once.
5. Enter the telephone number using the TELEPHONE KEYPAD button(0-9). You can store up to
24digits.
6. Press the SELECT button to save into memory
7. Press the EXIT/MUTE button to go back to standby mode.
B. QUICK DIAL
Allows you to save 9 programmed telephone numbers into the memory.
1. Press the MENU button.
2. Press the UP or DN button to select QUICK DIAL.
3. Press the SELECT button to confirm.
4. Press a number (0-9) on the keypad, where you want the number stored.
5. Use the TELEPHONE KEYPAD button(1-9) to enter the name, (see the “TELEPHONE
KEYPAD CHARACTERS SETTING” section ) you can store up to 15 characters.
6. Press the SELECT button to confirm.
7. Enter the telephone number using the TELEPHONE KEYPAD button(0-9). You can store up to
24digits.
8. Press the SELECT button to save the setting.
Dial 9 Frequently Called Numbers
1. Press and hold a number on the keypad where the desired phone number is stored, and then
will show the “phone number.”
2. Press TALK button to dial.
3. If you don’t want to dial. You can press the EXIT/MUTE button to return the standby mode.
C. RINGER
You can turn off or on the ring of the telephone.
1. Press MENU button.
2. Press UP or DN button to select RINGER.
3. Press SELECT button to confirm.
4. Press the UP or DN button to select the ON(1,2,.3,4) or OFF. The 3 ringer is the preset mode.
5. Press the MUTE/MENU button to go back to standby mode.
D. DATE/TIME
Set the date and time.
1. Press the MENU button.
2. Press the UP or DN button to select DATE/TIME.
PHONE BOO
K
QUICK DIAL
DATE/TIME
3. Press the SELECT button to confirm.
041505A-1 19

SENTONEnterprisesLimited 信通企業有限公司
Flat 10, 17/F, Fo Tan Industrial Centre, 香港沙田火炭坳背灣街 26-28 號
26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 富騰工業中心 17 樓10 室
Tel: [phone] Fax: [phone] 電話: (八五二) 二六八七 一七一二 (四線)
E-mail address: [e-mail] 傳真: (八五二) 二六八七 四一二五
4. Use the UP or DN button to enter the month, and then press the SELECT button to confirm.
5. Repeat step 4 above to set the date, hour and minute.
6. Press the UP or DN for AM or PM setting., and then press the SELECT button to save the
setting, and then go back to STANDBY mode.
NOTE: The date and time will automatically set, if you have subscribed to the Caller ID service from
your local telephone company.
E. DIAL MODE
1. Press the MENU button.
2. Press the UP or DN button to select DIAL MODE.
3. Press the SELECT button to confirm.
4. Press UP or DN button to select TONE or PULSE.
5. Press the SELECT button to save the setting.
6. Press the EXIT/MUTE button to go back to standby mode.
F. MESSAGE WAITING
To turn off the Message Waiting LCD/LED indicator.
1. Press the MENU button.
2. Press the UP or DN button to select MESSAGES WAITING
3. Press the SELECT button to confirm.
4. Press the UP or DN button to select YES or ON.
5. Press the SELECT button to save the setting.
6. Press the EXIT/MUTE button to go back to standby mode.
G. LANGUAG
This telephone offers English, Spanish and French languages for your convenience.
DIAL MODE: TONE
MESSAGES WAITING
LANGUAGE
1. Press the MENU button.
2. PresstheUPorDNbutton to select LANGUAGE.
3. Press the select button to confirm.
4. Press the UP or DN button to select English, Spanish and French.
5. Press the SELECT button to save the setting.
6. Press the EXIT/MUTE button to go back to standby mode.
65,536 Combination Security Coding
The cordless telephone have a digital coding security system to prevent unauthorized use of your
telephone line by other cordless phones nearly. The cordless telephone have 65,536 possible security code
combinations. Each combination of the code is randomly generated every time the handset is picked up.
Resetting Security Code and Channel
Communication between the handset and the base unit may not be possible in any of the following
situations:
1. After a power failure.
2. After relocating the base unit by disconnecting the AC adapter.
3. After replacing the handset battery.
4. The handset goes out of range from the base unit.
To reset, place the handset on the cradle of the base unit for five seconds.
041505A-1 20
