SeQual Regalia User manual

Regalia
Oxygen Concentrator
REGALIA
INSTRUCTION MANUAL
P/N 5167 Rev A
March 2006

SeQual Technologies Inc. Part No: 5167
2
Table of Contents
Warnings and Cautions.............................................................................................................................. 3
Indications for Use..................................................................................................................................... 4
Introduction................................................................................................................................................ 4
Important Safety Instructions..................................................................................................................... 4
Symbols Used in Instruction Manual and on Oxygen Concentrator ......................................................... 4
Oxygen Concentrator Information............................................................................................................. 5
Using Oxygen Concentrators........................................................................................................ 5
Recommended Operating Environment Guidelines .................................................................... 6
The Proper Location ..................................................................................................................... 6
Before Operating Your Oxygen Concentrator.............................................................................. 6
Operating Your Oxygen Concentrator.......................................................................................... 7
Installation Instructions.............................................................................................................................. 8
Select a Location........................................................................................................................... 8
Inspect Inlet Air Filter................................................................................................................... 8
On/Off Button............................................................................................................................... 8
Warm-up Period............................................................................................................................ 8
Flow Rate Adjustment .................................................................................................................. 8
Power Management Feature ...................................................................................................................... 9
Operating Conditions................................................................................................................................. 9
Control Panel Display................................................................................................................... 9
Display of Operating Conditions.................................................................................................. 10
Non-Usage .................................................................................................................................... 10
Maintenance............................................................................................................................................... 11
Trouble Shooting Guide............................................................................................................................. 12
Technical Data........................................................................................................................................... 13
Electromagnetic Compatibility.................................................................................................................. 14
Disposal of Equipment and Accessories.................................................................................................... 14

SeQual Technologies Inc. Part No: 5167
3
Warnings and Cautions
Warning and Caution notices used in this manual apply to hazards or unsafe practices that could result in
personal injury or property damage.
Not for medical purposes.
"Read Instruction Manual" Do Not operate this oxygen concentrator without first reading and
understanding this manual. If you are unable to understand the warnings and instructions,
contact your local SeQual dealer or authorized service representative before attempting to use
this oxygen concentrator.
"Caution or Attention” In certain circumstances, oxygen therapy can be hazardous, therefore,
it is advisable to seek medical advice before using the oxygen concentrator.
Warning: "No Smoking or Naked Flames" The use of oxygen requires that special care be
taken to reduce the risk of fire. Material that burns in air and even some material that will not
burn in air are easily ignited and burn rapidly in high concentrations of oxygen. For safety
concerns, all possible sources of ignition must be kept away from the oxygen concentrator and
preferably out of the room in which it is being used. Smoking in the proximity of an operating
oxygen concentrator is dangerous, and can permanently damage the device and void the warranty.
"Use No Oil or Grease" A spontaneous and violent ignition may occur if oil, grease or other
petroleum substances come into contact with oxygen under pressure. Keep these substances
away from the oxygen concentrator, tubing and connections and any other oxygen source. Do
Not use any petroleum based or other lubricants unless recommended by SeQual Technologies
Inc.
Keep oxygen concentrator and cord away from hot surfaces. Do Not use the oxygen concentrator if it has a
damaged cord or plug; contact qualified service personnel for examination and repair.
Air intake of the oxygen concentrator should be located in a well-ventilated area.
Oxygen concentrator should be located so as to avoid pollutants and fumes.
If oxygen concentrator has been dropped, damaged or exposed to water, contact qualified service personnel
for examination or repair.
Do Not drop or insert any object into any opening.
Do Not block the air opening of the oxygen concentrator or place it on a soft surface, such as a bed or couch,
where the bottom air opening may become blocked.
Do Not cover unit with a blanket, towel, quilt, etc.
Do Not place objects (pillow, blanket) under unit. Maintain at least ½ inch clearance under unit.
Warning: Do Not remove the cover. Cover should only be removed by qualified service personnel.
Warning: An alternate source of supplemental oxygen is recommended in the event of a power outage,
alarm condition, or mechanical failure.

SeQual Technologies Inc. Part No: 5167
4
Indications for Use
The SeQual Regalia Oxygen Concentrator is intended to provide only non-medical oxygen. It is not for medical
purposes.
This oxygen concentrator is not intended for life supporting or life sustaining applications.
Introduction
SeQual's Regalia Oxygen Concentrator is an electronically operated oxygen concentrator that separates oxygen
from room air. It does not remove oxygen from a room any more than by simply breathing the same room air.
You utilize the oxygen by attaching tubing to the oxygen outlet fitting.
As with any electrically powered device, the user may experience periods of non-operation as the result of
electrical power interruption, or the need to have the oxygen concentrator serviced by a technician. This
instruction manual will inform you about the use and care of the Regalia Oxygen Concentrator and will serve as a
reference as you use your oxygen concentrator.
Important Safety Instructions are shown under the following headings:
Warning: Important safety information for hazards that might cause serious injury.
Caution: Information for preventing damage to the oxygen concentrator.
Do Not: Information to which you should pay special attention.
Important: Clarifying information, specific instructions, commentary, sidelights, or interesting points.

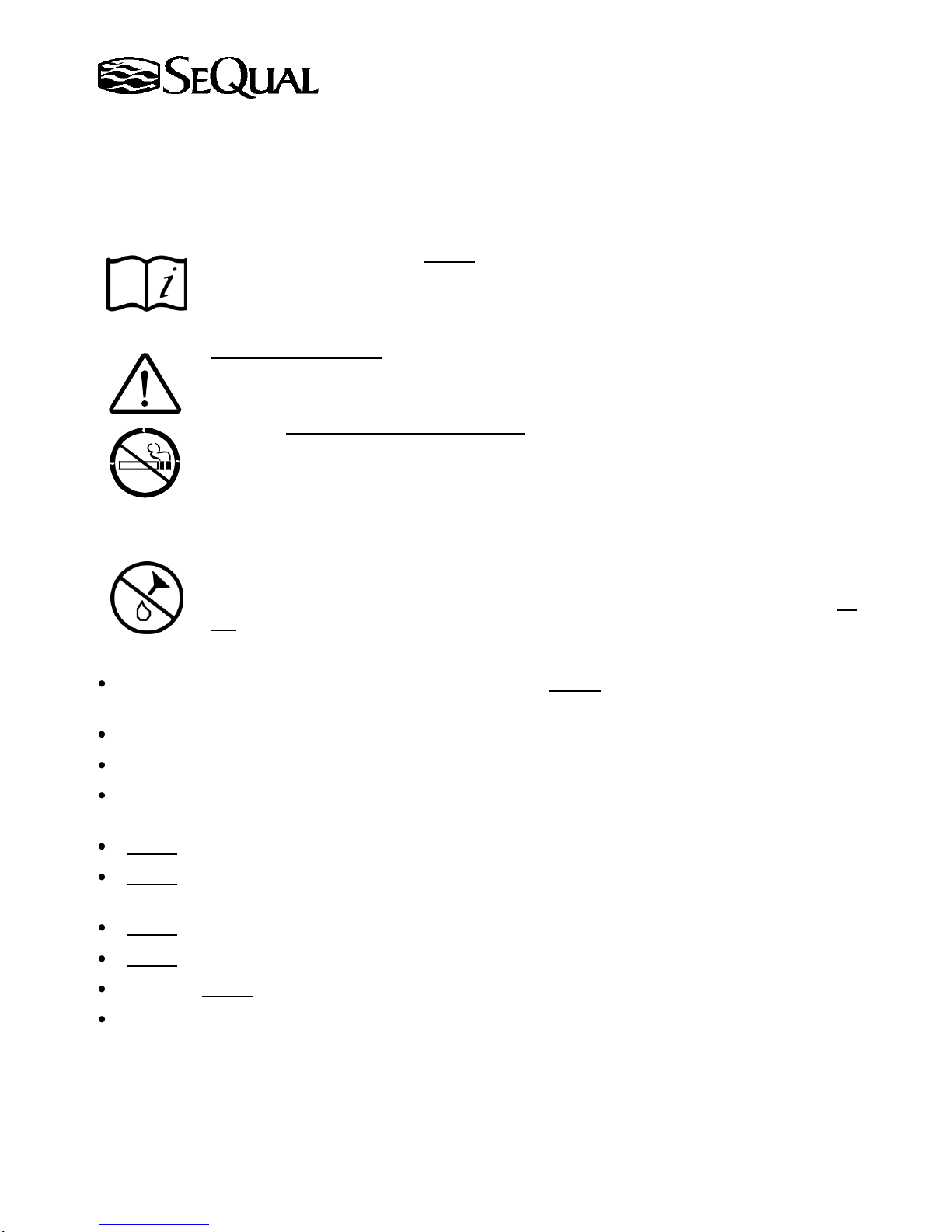

Symbols Used in Instruction Manual and on Oxygen Concentrator
Refer to this section for an explanation of the symbols and the warnings that accompany them.
"Read Instructions" This symbol, when used alone or in conjunction with any of the following
symbols, indicates the need to consult the operating instructions provided with the product. A
potential risk exists if the operating instructions are not followed.
"Attention or Caution" Consult accompanying documents. This symbol indicates important
information that requires the user to take special precautions when certain conditions are present.
"No Smoking or Naked Flames" The use of oxygen requires that special care be taken to reduce
the risk of fire. Materials that burn in air and even some material that will not burn in air are
easily ignited and burn rapidly in high concentrations of oxygen. For safety concerns, all possible
sources of ignition must be kept away from the oxygen concentrator and preferably out of the
room in which it is being used. Smoking in the proximity of an operating oxygen concentrator is
dangerous, and can permanently damage the device and void the warranty.
"Use No Oil or Grease" Indicates important information about the possibility of spontaneous
and violent ignition that may occur if oil, grease or other petroleum based substances come into
contact with oxygen under pressure.

SeQual Technologies Inc. Part No: 5167
5

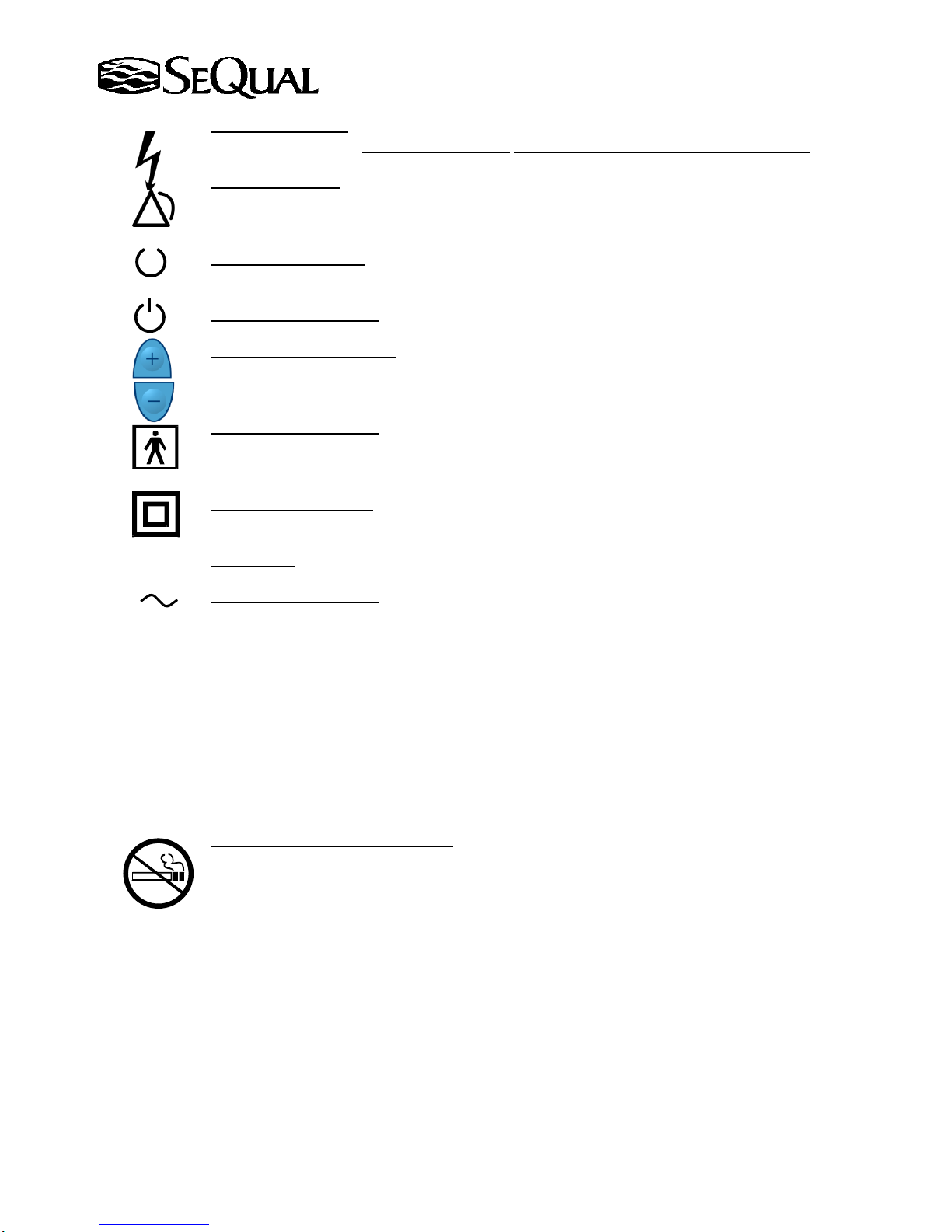

"Electrical Shock” Indicates the presence of an electric shock hazard. Warning: To reduce the
risk of electric shock, do not remove cover. There are no user serviceable parts inside.
"Audible Alarm" An audible indicator is provided to announce, in a tone distinctly different
from the sounds generated by the oxygen concentrator during normal operation, a reduction in
oxygen concentration, or when the mains power has been interrupted.
"Normal Operation" Green light is on indicating the concentrator is running under normal
operating conditions.
"ON/OFF" (condition) Push button starts concentrator running.
"Flow Rate Adjustment" The controlled quantity of oxygen increases or decreases in
increments of 0.5 LPM with each press of the "+" and "-" flow rate adjustment buttons,
respectively.
"Type BF Equipment" F type applied part complying with the specified requirements of IEC
60601-1 to provide a higher degree of protection against electrical shock than provided by type B
applied part.
"Class II Equipment" Equipment in which protection against electrical shock does not rely on
basic insulation only, but in which additional safety precautions are provided.
"Amperes"
"Alternating Current"
Oxygen Concentrator Information
SeQual's Regalia Oxygen Concentrators are quiet, reliable and low maintenance sources of oxygen. The Regalia
is designed and constructed to consistently provide high concentrations of oxygen in a lightweight, compact
cabinet that is easy to maneuver.
Using Oxygen Concentrators
"No Smoking or Naked Flames" The use of oxygen requires that special care be taken to reduce
the risk of fire. Materials that burn in air and even some material that will not burn in air are
easily ignited and burn rapidly in high concentrations of oxygen. For safety concerns, all possible
sources of ignition must be kept away from the oxygen concentrator and preferably out of the
room in which it is being used. Smoking in the proximity of an operating oxygen concentrator is
dangerous, and can permanently damage the device and void the warranty.
A

SeQual Technologies Inc. Part No: 5167
6
Recommended Operating Environment Guidelines
Temperature
50ºF to 104ºF (10ºC to 40ºC)
Electrical
Use no extension cords or electrical outlets controlled by a switch.
Placement
No closer than 3 inches (7.6 cm) from the wall, draperies and furniture.
Environment
Smoke, pollutant, and fume free. Relative Humidity: 10% - 95%
Operating Time
Up to 24 hours per day.
Flow Rate
From 0.5 LPM to 10.0 LPM (for the 10 LPM version)
From 0.5 LPM to 7.0 LPM (for the 7 LPM version)
0
0
30
35
40
55
60
65
70
75
80
85
90
95
Relative Humidity, %
Temperature, °C
Important: For rated performance at 10 LPM (or 7 LPM for the 7 LPM version) do not operate the Oxygen
concentrator above the indicated boundaries. Operating at flow rates less than 10 (or 7 LPM for the 7 LPM
version) LPM will tolerate higher temperature/humidity conditions.
The Proper Location
Usage in environments other than those described on the previous page may result in the need for increased
oxygen concentrator maintenance. Select a location in a well ventilated space that avoids fumes and pollutants
and allows the oxygen concentrator to draw in room air through the intake filter on the top of the cabinet without
being restricted. Make sure the oxygen concentrator is at least three to six (3 - 6) inches (7.6 –15.2 cm) away
from walls, furniture and especially curtains or draperies that can impede or block adequate airflow to the oxygen
concentrator. Do Not cover unit with a blanket, towel, quilt, etc. Do Not place objects under unit. Maintain at
least ½ inch clearance under unit. Keep the oxygen concentrator at least five (5) feet (1.5 m) away from hot,
sparking objects or open sources of flame. Do Not locate the unit near any heat source or heat register.
Before Operating Your Oxygen Concentrator
There are many different types of oxygen tubing that can be used with this oxygen concentrator.
Oxygen Tubing - Connect the oxygen tubing directly to the oxygen outlet port. Connect the other end of the
tube to the application, if not already attached. Important: The tube fitting may be tight - Do Not use oil or
grease to lubricate. To ensure there is enough pressure to deliver oxygen, the length of the tubing should not
exceed 50 feet (15.2m). Maximum extension tubing length is dependent upon environmental
conditions, tubing type, liter flow and any accessories used between DISS fitting and
application. Shorter tubing lengths will be required in some cases. The internal diameter of
the tubing should be no less than 3/16-inch (0.48 cm).

SeQual Technologies Inc. Part No: 5167
7
Alarm System - The oxygen concentrator has an alarm system with a red visual alarm indicator light and
buzzer. The alarm system will activate in the event of an internal fault or power outage. The
red and/or yellow light may stay on for up to ten (10) minutes after start-up, OM models only.
This is a normal condition during the initial warm-up period.
If the oxygen concentrator is equipped with an oxygen concentration monitor (OM model), this monitor
indicates if the oxygen concentrator is performing to the correct specifications. At normal oxygen
concentration levels, the green light is activated. At lower than normal oxygen levels, the yellow light is
activated. The red light activates and the unit alarms if the system malfunctions or when service is needed.
The oxygen concentrator will continue to run at lower levels of oxygen but may shut down under other
system malfunctions. If the red light turns on, you should discontinue use of the oxygen concentrator and
refer to the troubleshooting section of this manual.
Operating Your Oxygen Concentrator
This manual serves as a supplemental reference to help you operate and maintain the unit. If you have any
further questions or problems call your SeQual dealer or authorized service representative.
General Precautions –Retain the product’s safety and operating instructions for future reference. Follow all
operating and usage instructions. Observe all warnings on the product and in the operating instructions. To
reduce the risk of fire, bodily injuries, and damage to the oxygen concentrator, observe all safety precautions.
Do Not connect to an extension cord or electrical outlet controlled by a switch. No other
appliance should be plugged into the wall outlet. Voltage requirements are marked on the label
on back of unit.
Important: Read “Important Safety Guidelines” section of this manual before plugging-in the power cord.
Do Not use the unit if the power cord is damaged.
Warning: Improper use of the power cord and plug may result in a fire or electrical shock hazard.
Check to see if the power cord is plugged in and there is power to the outlet.
Check that the oxygen concentrator is not placed near a heat register.
Important: SeQual’s products operate safely when used according to their marked electrical ratings and product
usage instructions. The power cord used with the Regalia Oxygen Concentrator must meet the requirements of
the country where the product is used.

SeQual Technologies Inc. Part No: 5167
8
Installation Instructions
1. Select a Location
Caution: Locate oxygen concentrator in a well-ventilated space that provides adequate airflow
and check if air is being prevented from entering the oxygen concentrator by furniture,
draperies or clothing.
2. Inspect Inlet Air Filter
Air filter cleaning instructions are located in the maintenance section of this manual.
Caution: Always check to see if the inlet air filter is clean.
3. ON/OFF Button
Insert the plug into the electrical wall outlet. Push the On/Off button; the green light will illuminate to
indicate the unit is running.
4. Warm-up Period
After initially turning on the unit, allow three (3) to ten (10) minutes for the unit to reach its specified
performance. If the unit is equipped with an oxygen concentration monitor (OM models only), the red,
yellow and green light will intermittently illuminate while the unit is warming up. For details on warm-up
refer to the Display of Operating Conditions table on Page 9.
Note: After an initial startup or after a power interruption the unit may automatically reduce the flow rate
briefly before returning to the set flow rate.
5. Flow Rate Adjustment
Adjust the flow rate to desired setting. Press the Plus "+" button to increase or the Minus " " button to
decrease the flow rate until the proper level is displayed.

SeQual Technologies Inc. Part No: 5167
9
Power Management Feature
In the event of a Power Interruption:
Warning: Because the duration of a power interruption is unknown, seek an alternate supply of oxygen
during the power interruption. Resume use of the Regalia when power is restored.
If a power outage occurs, the Regalia will activate both an audible and a visual red light alarm to inform you that the
Regalia is not operating. The Regalia should be located where the alarms can be seen and heard.
If the duration of the interruption is shorter than twenty seconds and the unit has not been turned off, the Regalia will
resume operation twenty seconds after the initial interruption.
Important:
During the power interruption:
The user can press the ON/OFF button to silence the alarms and turn the unit off.
If the unit was not turned off the Regalia will automatically resume operation once power is restored.
If the unit was turned off during the power interruption, the user must press the ON/OFF button again, after
the power is restored, to turn the unit on.
Operating Conditions
1. Control Panel Display –If the concentrator is an OM Model (equipped with an oxygen monitor), the
oxygen concentration is being continuously monitored while the Regalia is running and oxygen is being
produced. If the concentration level falls below preset levels, an indicator light will activate. Operating
conditions are described in the table on the following page.
Green Light
On/Off Button
Red Light
Yellow Light
Increase Flow Button
Decrease Flow Button
LCD Flow Indicator
(LPM)

SeQual Technologies Inc. Part No: 5167
10
2. Display of Operating Conditions
Flow Rate
Shown?
Green
Light
Yellow
Light
Red
Light
Audible
Alarm
Unit
State
Operating Condition
No
Off
Off
Off
Off
Not
Energized
Unit not running / Flow
Indicator Display Not Lit
No
Off
Off
Off
Off
Energized
Unit not running / Flow
Indicator Display Lit
Yes
On
On
On
On for 3
seconds
Started
Running
Unit is Starting
Yes
On
On
On
Periodic
Beep
Running
Unit is warming up*
Yes
On
On
Off
Periodic
Beep
Running
Yes
On
Off
Off
Off
Running
Normal Operating
Condition
Yes
Off
On
Off
Periodic
Beep
Not
Running
Unit turned
On/Off/On Quickly
Yes
Off
Flashing
Off
Off
Running
Oxygen Concentration
Below Normal Level *
Yes
Off
Off
Flashing
On
Running
Oxygen Concentration
Abnormal Level *1
Yes
Off
On
Off
Off
Running
Button Stuck
Yes
On
On
Off
Off
Running
9V Battery Low Voltage
(if enabled)
No
Off
Off
Flashing
On
Not
Running
Unit is overheating
Compressor Malfunction
Power Interruption
Internal Fuse Blown
No
On or
Off
On or
Off
On
On
Running
System Malfunction2
* These conditions are displayed only on units equipped with oxygen monitor.
1If abnormal conditions are detected and cannot be remedied, refer to Troubleshoot
section of this manual.
2During System Malfunction condition the Green and Yellow lights may be On or Off.
3. Non-Usage - When not using the oxygen concentrator, press the On/Off button to turn it off.

SeQual Technologies Inc. Part No: 5167
11
Maintenance
Routine Maintenance: Routine maintenance consists of cleaning the air inlet filter at regular intervals to keep
the unit functioning for years. The user can easily achieve this maintenance.
Warning: Unplug the oxygen concentrator from the power outlet before cleaning or routine
maintenance. Use a damp cloth for cleaning. Do Not directly apply liquid spray cleaners or
aerosol cleaners.
Cabinet and Power Cord
The cabinet and power cord can be cleaned with a mild detergent solution applied with a damp cloth and
towel dried.
Air Inlet Filter
Room air is drawn into the oxygen concentrator through the air inlet filter located on the top backside of the
cabinet. Cleaning the air inlet filter is the most important activity you will perform to keep your oxygen
concentrator performing properly. Check this air filter daily and clean it at least once per week.
1. Remove the filter from the cabinet.
2. Wash the filter in warm water using a mild detergent solution.
3. Rinse the filter thoroughly and squeeze out the excess water.
4. Allow the filter to air dry.
Caution: The filter should be free of liquid water and dry to the touch before reinstallation, as
excess moisture may impair the proper operation of the oxygen concentrator.
5. Reinsert the filter in the cabinet.
Caution: The air inlet filter should be replaced as needed. If the oxygen concentrator is used in
a dusty environment, the filter may need to be replaced more often. Do Not operate the oxygen
concentrator for more than 30 minutes without a filter installed.
Oxygen Delivery Accessories - Follow the instructions supplied by the manufacturer.

SeQual Technologies Inc. Part No: 5167
12
Trouble Shooting Guide
Table 1: Concentrator is not Running
Symptom
Probable Cause
Remedy
Cannot Start Unit
Flow Indicator Blank
Back Light Off
Power cord not plugged into wall outlet.
Plug in power cord.
Internal Fuse Blown
Service required.
Audible Alarm
Blinking Red Light
Flow Indicator Blank
Back Light Off
Power cord pulled from wall outlet.
Plug in power cord.
Power outage.
Push On/Off Button to turn off
unit.
Push On/Off Button to restart
unit when power comes back on.
No power at wall outlet.
Ensure the unit is not plugged
into a wall switched outlet.
Check house circuit breaker or
fuse - reset or replace as needed.
Audible Alarm
Blinking Red Light
Flow Indicator Blank
Back Light On
Unit overheating
Remove any obstruction(s) from
air openings and refer to page 6
“The Proper Location”.
Compressor malfunction
Service required.
Table 2: Concentrator Running
Symptom
Probable Cause
Remedy
No oxygen / flow
(see Alarm Indications in
Table on Page 11)
Tubing blocked or kinked
Clean or replace tubing.
Remove tube kink.
Air Inlet Filter blocked
Clean air inlet filter.
Internal component malfunction
Service required.
Low oxygen / flow
(see Alarm Indications in
Table on Page 11)
Restriction in tubing.
Repair or replace as required.
Air Inlet Filter restricted
Clean air inlet filter.
Internal component worn or
malfunctioning
Service required.
Yellow Light On
Button is stuck
Service required.
Flow Rate not visible on
Flow Indicator Display
LCD malfunction
Service required.
Audible Alarm
Red Light On
Flow Indicator Blank
Back Light On
System malfunction
Remove power cord from wall
outlet.
Service required.

SeQual Technologies Inc. Part No: 5167
13
Technical Data
Flow Rate
0.5 to 10.0 LPM (for the 10 LPM version)
0.5 to 7 LPM (for the 7 LPM version)
Oxygen Concentration
1.0 to 10.0 LPM 91 3% at sea level (for the 10 LPM version)
1.0 to 7.0 LPM 91 3% at sea level (for the 7 LPM version)
Oxygen Concentration Indicator
Green Light = Normal Operation
Yellow Light Flashing = Below Normal Operation (85%*)
Red Light Flashing = Abnormal Operation (70%**)
Oxygen Outlet Pressure
Nominal 6.0 psi (41.4 kPa)1 - Maximum 11.0 psi (75.8 kPa)
Electrical Power
115V~, 60Hz, 5.0A Nominal, 220-240V~, 50Hz, 2.2A Nominal
Operating Temperature
50 F to 104 F (10 C to 40 C)
Dimensions (H x W x D)
26.5 in. (66 cm) H 14.7in. (37 cm) W 19.5 in. (50 cm) D
Audible Alarm Indicators
Power Interruption
Power Surge (simulated circuit breaker)
Compressor Malfunction
Excessive Internal Temperature
Outlet Pressure [35-36 psig (241.2-248.1 kPa) relief valve]
Low Oxygen Output** <70% oxygen
Back-up Alarm Power
9V Battery
Filters
Cabinet Air Inlet, Compressor Inlet and HEPA
Device Classification
IEC Class II, Type BF Applied Part, Continuous Operation
Transport/Storage Requirements
Temperature: -4 F (-20 C) to +140 F (+60 C)
Humidity: Up to 95% Non-Condensing
Back pressure Effect on
Flow Indicator
0 psig (0 kPa): 10.0 LPM
1 psig (7 kPa): 10.0 LPM Nominal
0 psig (0 kPa): 7.0 LPM
1 psig (7 kPa): 7.0 LPM Nominal
OSCI Operation*
Temperature: 50 F to 104 F (10 C to 40 C) Independent of
Atmospheric Pressure.
85 3% and 70 5% oxygen concentration measurement accuracy
*Where equipped. Subject to ±3% system concentration accuracy, and for backpressures up to 7kPa.
**Where equipped. Subject to ±5% system concentration accuracy, and for backpressures up to 7kPa.
1Outlet pressure may decline to 5.0 psig (34.5 kPa) nominal at 10,000 ft altitude.
The system performance may decline above 10,000 ft (3048m).

SeQual Technologies Inc. Part No: 5167
14
Electromagnetic Compatibility
This equipment has been tested and found to comply with the limits for medical devices to the
IEC 60601-1-2: 1994 Electromagnetic Compatibility standard. These limits are designed to provide reasonable
protection against harmful interference in a typical medical installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed according with the instructions, may cause harmful
interference to other devices in the vicinity. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to other devices, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving device.
Increase the separation distance between the equipment.
Connect the equipment into an outlet on a circuit different from that which the other device(s) are
connected.
Consult the manufacturer or service technician for help.
Disposal of Equipment and Accessories
Follow local governing ordinances and recycling plans regarding disposal of device components.
Authorized European Representative: Manufacturer:
MeddiQuest Limited SeQual Technologies Inc.
Business & Technology Centre 11436 Sorrento Valley Road
Bessemer Drive San Diego, CA 92121 USA
Stevenage SG1 2DX [phone]
United Kingdom
Tel: + 44 1763 222505
Fax: + 44 1763 222049
0470
