CONTENTS
SAFETY PRECAUTIONS
NAMES OF THE PARTS
INDOOR UNIT DISPLAY
MODES OF OPERATION
PROTECTION
INSTALLATION MANUAL
MAINTENANCE
TROUBLESHOOTING
EMERGENCY FUNCTION & AUTO-RESTART FUNCTION
REMOTE CONTROL
....................................................................................................1
..........................................................................................................3
.........................................................................................................4
..............................................5
...............................................................................................................6
........................................................................................................9
.........................................................................................................................14
....................................................................................................15
....................................................................................................................24
..........................................................................................................25

During the installation of the indoor and outd-
oor units the access to the working area should
be forbidden to children.
Unforeseeable accidents could happen.
Make sure that the base of the outdoor unit is
firmly fixed.
Check that air cannot enter the refrigerant sys-
tem and check for refrigerant leaks when mo-
ving the air con ditioner.
SAFETY RULES AND RECOMMENDATIONS FOR THE INSTALLER
Carry out a test cycle after installing the air co-
nditioner and record the operating data.
The ratings of the fuse installed in the built in-
control unit are 3.15A / 250V for 220V type
and 3.15A/125V for 110V type .
The user must protect the indoor unit with a
fuse of suitable capacity for the maximum in-
put current or with another overload protection
device.
Ensure that the mains voltage corresponds to
that stamped on the rating plate . Keep the sw-
itch or power plug clean. Insert the power plug
correctly and firmly into the socket, thereby a-
voiding the risk of electric shock or fire due to
insufficient contact.
Check that the socket is suitable for the plug ,
otherwise have the socket changed.
Do not install the appliance at a distance of
less than 50 cm from inflammable substances
(alcohol, etc.) Or from pressurised containers
(e.g. spray cans).
If the appliance is used in areas without the
possibility of ventilation, precautions must be
taken to prevent any leaks of refrigerant gas
from remaining in the environment and creat-
ing a danger of fire
The packaging materials are recyclable and
should be disposed of in the separate waste
bins .Take the air conditioner at the end of its
useful life to a special waste collection centre
for disposal.
Only use the air conditioner as instructed in
this booklet . These instructions are not inten-
ded to cover every possible condition and
situation . As with any electrical household
appliance , common sense and caution are
therefore always recommended for installat-
ion, operation andmaintenance.
The appliance must be installed in accordance
with applicable national regulations.
Before accessing the terminals , all the power
circuits must be disconnected from the power
supply.
Read this guide before installing and using the
appliance.
SAFETY RULES AND RECOMMENDATIONS FOR THE USER
Do not try to install the conditioner alone;
always contact specialized technical personnel.
Cleaning and maintenance must be carried out
by specialised technical personnel. In any case
disconnect the appliance from the mains elect-
ricity supply before carrying out any cleaning
or maintenance.
Ensure that the mains voltage corresponds to
that stamped on the rating plate. Keep the swi-
tch or power plug clean. Insert the power plug
correctly and firmly into the socket , thereby
avoiding the risk of electric shock or fire due
to insufficient contact.
Do not pull out the plug to switch off the app-
liance when it is in operation, since this could
create a spark and cause a fire, etc.
If the appliance gives off smoke or there is a
smell of burning, immediately cut off the pow
er supply and contact the Service Centre.
Have repairs carried out only by an authoris-
ed Service Centre of the manufacturer . Inco-
rrect repair could expose the user to the risk
of electric shock, etc.
The prolonged use of the device in such
conditions could cause fire or electrocution.
Never remain directly exposed to the flow of
cold air for a long time. The direct and prolo-
nged exposition to cold air could be dangero-
us for your health .Particular care should be
taken in the rooms where there are children ,
old or sick people.
1

SAFETY RULES AND RECOMMENDATIONS FOR THE USER
This appliance has been made for air conditi-
oning domestic environments and must not be
used for any other purpose , such as for drying
clothes, cooling food, etc.
The packaging materials are recyclable and
should be disposed of in the sparate waste
bins . Take the air conditioner at the end of its
useful life to a special waste collection centre
for disposal.
Only use the air conditioner as instructed in
this booklet.These instructions are not int end-
ed to cover every possible condition and situ-
ation.As with any electrical household applia-
nce, common sense and caution are therefore
always recommended for installation , operat-
ion and maintenance.
Always use the appliance with the air filter
mounted . The use of the conditioner without
air filter could cause an excessive accumulation
of dust or waste on the inner parts of the device
with possible subsequent failures.
Unhook the automatic switch if you foresee
not to use the device for a long time.
The airflow direction must be properly adjus-
ted.
The flaps must be directed downwards in
the heating mode and upwards in the cooling
mode.
SAFETY RULES AND PROHIBITIONS
Do not bend , tug or compress the power cord
since this could damage it. Electrical shocks or
fire are probably due to a damaged power cord.
Specialised technical personnel only must repl-
ace a damaged power cord.
Do not use extensions or gang modules.
Do not touch the appliance when barefoot or
parts of the body are wet or damp.
Do not obstruct the air inlet or outlet of the in-
door or the outdoor unit.
The obstruction of these openings causes a re-
duction in the operative efficiency of the con-
ditioner with possible consequent failures or
damages.
In no way alter the characteristics of the appli-
ance.
Do not install the appliance in environments
where the air could contain gas , oil or sulphur
or near sources of heat.
Do not climb onto or place any heavy or hot
objects on top of the appliance.
Do not leave windows or doors open for long
when the air conditioner is operating.
Do not direct the airflow onto plants or anim-
als.
A long direct exposition to the flow of cold
air of the conditioner could have negative
effects on plants and animals.
Do not put the conditioner in contact with
water.
The electrical insulation could be damaged
and thus causing electrocution.
Do not climb onto or place any objects on the
outdoor unit
Never insert a stick or similar object into the
appliance. It could cause injury.
The user is responsible for having the appliance
installed by a qualified technician , who must
check that it is earthed in accordance with curr-
ent legislation and insert a thermomagnetic cir-
cuit breaker.
Ensure that the appliance is disconnected from
the power supply when it will remain inoperat-
ive for a long period and before carrying out
any cleaning or maintenance.
Selecting the most suitable temperature can pr-
event damage to the appliance.
2
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory ormental capabilities,
or lack ofexperience and knowledge,un-
less they havebeen given supervisionor in-
struction concerning useof the appliance
by a personresponsible for theirsafety.
Children should besupervised to ensure
that they donot play withthe appliance.
If the supplycord is damaged,it must be
replaced by themanufacturer,its service
agent or similarlyqualified persons in
order to avoida hazard.

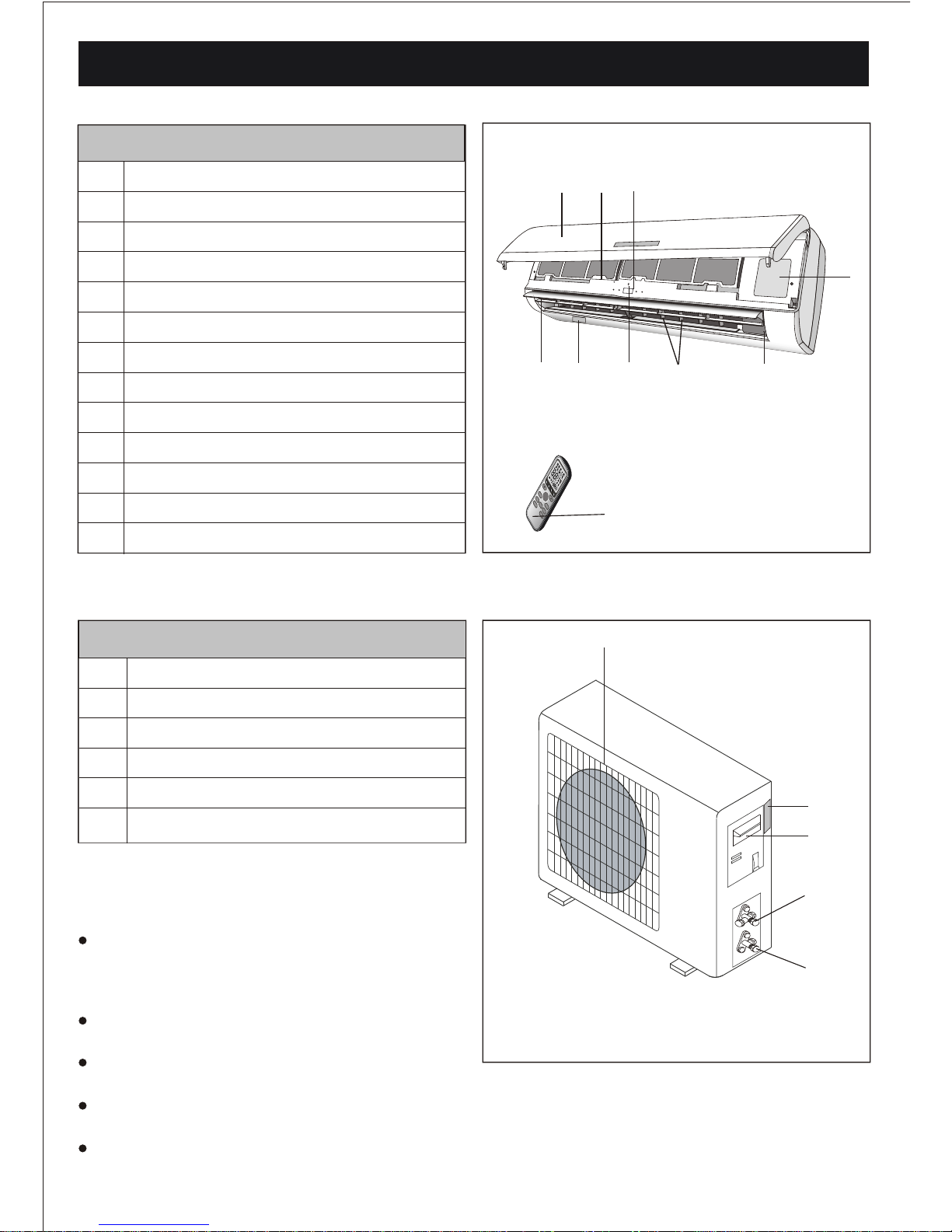

NAMES OF THE PARTS
No. Description
1
2
Front panel
Air filter
Optional filter (if installed)
3
Terminal block cover
4
Emergency button
5
6
LED Display
Signal receiver
7
Airflow direction flaps
8Deflectors
9
Remote control
10
Note: the above figures are only intended to be a
simple diagram of the appliance and may not
correspond to the appearance of the units that
have been purchased.
No. Description
13 Air outlet grille
Cover
14
gas valve
15
liquid valve
16
11
Indoor unit rating label
17
Outdoor unit rating label
WALL AIR-CONDITIONER
The conditioner is made up of two or more units
connected between themselves through copper
pipes (properly insulated) and an electrical con-
necting cable.
The indoor unit is installed on the walls of the
room to be conditioned.
The outdoor unit is installed on the floor or on the
wall on suitable brackets.
Technical data of the air conditioner are printed on
the labels placed on the indoor and outdoor units.
The remote control has been designed for an easy
and fast use.
12
Ionizer (if installed)generator
13
15
16
17
INDOOR UNIT
3
OUTDOOR UNIT
12-3
6
4-5
9
11 8
10 7
14
DISPLAY HEALTHY
3D
ON/OFF
SWING
FAN
TIMERSUPER
SLEEPMODE
ECO
CLOCK
12
