Sharp QW-HT34F423W-DE User manual

EN-1
Home Appliances
QW-HT34F423W-DE
Dishwasher

Thank you for choosing this product.
This User Manual contains important information on safety and instructions intended to
assist you in the operation and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this
book for future reference.
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Fire risk
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly

CONTENTS
1.SAFETY INSTRUCTIONS ................................................................................................ 1
1.1. General Safety Warnings ..............................................................................................1
1.2. Installation Warnings .....................................................................................................1
1.3. During Use.....................................................................................................................2
2.INSTALLATION................................................................................................................. 6
2.1. Machine Positioning .....................................................................................................6
2.2. Water Connection..........................................................................................................6
2.3. Water Inlet Hose............................................................................................................6
2.4. Drain Hose.....................................................................................................................6
2.5. Electrical Connection ....................................................................................................7
2.6. Fitting the Machine Undercounter .................................................................................7
3.TECHNICAL SPECIFICATIONS....................................................................................... 8
3.1. General Appearance......................................................................................................8
3.2. Technical Specifications ................................................................................................8
4.BEFORE USING THE APPLIANCE ................................................................................. 9
4.1. Preparing your Dishwasher for first use .......................................................................9
4.2. Fill the Salt.....................................................................................................................9
4.3. Test Strip ...................................................................................................................10
4.4. Water Hardness Table .................................................................................................10
4.5. Water Softener System ...............................................................................................10
4.6. Setting ...................................................................................................................10
4.7. Detergent Usege .........................................................................................................10
4.8. Filling the Detergent .................................................................................................... 11
4.9. Using Combined Detergents ....................................................................................... 11
4.10. Rinse-aid Usege........................................................................................................ 11
4.11. Filling the Rinse-aid and Setting................................................................................ 11
5.LOADING YOUR DISHWASHER ....................................................................................1
5.1. Recommendations....................................................................................................... 12
5.2. Alternative Basket Loads.............................................................................................15
6.PROGRAMME TABLE.................................................................................................... 1
7.THE CONTROL PANEL.................................................................................................. 1
7.1. Changing a Programme .............................................................................................18
7.2. Cancelling a Programme.............................................................................................18
7.3. Switching the Machine Off...........................................................................................18

8.CLEANING AND MAINTENANCE ................................................................................. 1
8.1. Cleaning the Machine and Filters................................................................................19
8.2. Spray Arms..................................................................................................................19
9.TROUBLESHOOTING....................................................................................................
10.PRACTICAL INFORMATION........................................................................................ 2

EN - 1
1.SAFETY INSTRUCTIONS
1.1. General Safety Warnings
• Read these instructions carefully before using your
appliance and keep this manual for future reference.
Please check the packaging of your machine before
installation and the outer surface of the machine once
the packaging has been removed. Do not operate the
machine if it appears damaged or if the packaging has
been opened.
• Packaging materials protect your machine from any
damage that might occur during transportation. The
packaging materials are environmentally friendly
as they are recyclable. Use of recycled material
reduces raw material consumption and decreases
waste production.
This appliance can be used by children aged from
8 years and above, and by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning the use of the
appliance in a safe way and understand hazards
involved. Children should not be allowed to play with
the appliance.
Remove packaging and keep it out of reach of
children.
Keep children away from detergents and rinse aids.
There may be some residue left in the machine
after washing. Keep children away from the machine
when it is open.

EN - 2
1.2. Installation Warnings
• Choose a suitable and safe place to install your
machine.
• Only original spare parts should be used with the
machine.
Unplug the machine before installation.
Your machine must only be installed by an
authorised service agent. Installation by anyone other
than an authorised agent may cause your warranty to
be void.
Check that the indoor electrical fuse system is
connected in line with safety regulations.
All electrical connections must match the values on
the plate.
Ensure the machine does not stand on the
electrical supply cable.
Never use an extension cord or a multiple socket
connection.
The plug should be accessible after the machine is
installed.
• After installation, run your machine unloaded for the
first time.
The machine must not be plugged in during
positioning.
Always use the coated plug supplied with your
machine.
If the electrical cable is damaged, it should only
be replaced by a qualified electrician.
1.3. During Usege
• This machine is for domestic use only; do not use

EN - 3
• it for other purposes. Commercial use will void the
guarantee.
Do not stand, sit or place loads on the open door of
the dishwasher.
Only use detergents and rinse aids produced
specifically for dishwashers. Our company is not
responsible for any damage that may occur due to
misuse.
Do not drink water from the machine.
Due to the danger of explosion, do not place any
chemical dissolving agents into the machine’s washing
section.
• Check the heat-resistance of plastic items before
washing them in the machine.
Only put items in the machine which are suitable for
dishwashing, and take care not to overfill the baskets.
Do not open the door while the machine is in
operation, hot water may spill out. Safety devices
ensure the machine stops if the door is opened.
The machine door should not be left open. It may
cause accidents.
Place knives and other sharp objects in the cutlery
basket in a blade-down position.
For models with the automatic door-opening
system, when the EnergySave option is active, the
door will open at the end of a program. To prevent
damage to your dishwasher, do not attempt to close
the door for one minute after it has opened. For
effective drying, keep the door open for 30 minutes
after a programme has ended. Do not stand in front of
the door after the auto-open signal sounds.
In the case of a malfunction, repair should only

EN - 4
be performed by an authorised service company,
otherwise the warranty will be void.
Before repair work, the machine should be
disconnected from the mains. Do not pull the cable to
unplug the machine. Switch off the water tap.
Operation at a low voltage will cause a decline in
performance levels.
For safety, disconnect the plug once a program has
finished.
To avoid an electric shock, do not unplug the
machine with wet hands.
Pull the plug to disconnect the machine from the
mains, never pull on the cord.
RECYCLING
• Some machine components and packaging consist of recyclable materials.
• Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. )
• The cardboard parts consist of recycled paper. They can be put into waste paper
containers for recycling.
• Material unsuitable for domestic waste must be disposed of at recycling centres.
• Contact a relevant recycling centre to obtain information about disposal of different
materials.
PACKAGING AND THE ENVIRONMENT
• Packaging materials protect your machine from damage that may occur during
transportation. The packaging materials are environmentally friendly as they are
recyclable. The use of recycled material reduces raw material consumption and
therefore decreases waste production.

CE Declaration of Conformity
We declare that our products meet the applicable European Directives, Decisions and
Regulations and the requirements listed in the standards referenced.
Disposal of your old machine
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead, it shall be handed over to
the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or the shop
where the product was purchased.
EN - 5

EN - 6
2. INSTALLATION
2.1. Machine positioning
When positioning the machine, place it in
an area where dishes can be easily loaded
and unloaded. Do not put the machine in an
area where the ambient temperature falls
below 0°C.
Read all warnings located on the packaging
before removing the packaging and
positioning the machine.
Place the machine close to a water tap
and drain. Take into consideration that the
connections will not be altered once the
machine is in position.
Do not hold the machine by its door or
panel.
Leave an adequate distance around the
machine to allow ease of movement when
cleaning.
Ensure the water inlet and outlet
hoses are not squeezed or trapped
and that the machine does not stand
on the electrical cable while positioning.
Adjust the feet so the machine is level and
balanced. The machine should be placed
on flat ground otherwise it will be unstable
and the door of the machine will not close
properly.
2.2. Water connection
We recommend fitting a filter to your water
inlet supply in order to prevent damage to
your machine due to contamination (sand,
rust, etc.) from indoor plumbing. This will
also help prevent yellowing and deposit
formation after washing.
2.3. Water inlet hose
WARNING: Use the new water inlet
hose supplied with your machine, do not
use an old machine’s hose.
WARNING: Run water through the
new hose before connecting.
WARNING: Connect the hose
directly to the water inlet tap. The pressure
supplied by the tap should be a minimum
of 0.03 MPa and a maximum of 1 MPa. If
the pressure exceeds 1 MPa, a pressure
relief valve must be fitted between the
connection.
WARNING: After the connections are
made, turn the tap on fully and check for
water leaks. Always turn off the water inlet
tap after a wash program has finished.
An Aquastop water spout is available
with some models. Do not damage it
or allow it to become kinked or
twisted.
2.4. Drain Hose
Connect water drain hose directly to water
dra-in hole or to the sink outlet spigot. This
connection should be minimum 50 cm and
maximum 110 cm from flor plane.
IMPORTANT: Items will not wash
properly if a drain hose longer than 4
m is used.

EN - 7
2.5. Electrical connection
WARNING: Your machine is set to
operate at 220-240 V. If the mains voltage
supply to your machine is 110 V, connect
a transformer of 110/220 V and 3000 W
between the electrical connection.
The earthed plug of the machine
must be connected to an earthed outlet
supplied by suitable voltage and current.
In the absence of earthing
installation, an authorised electrician
should carry out an earthing installation.
In the case of use without earthing
installed, we will not be responsible for
any loss of use that may occur.
The indoor fuse current value
should be 10-16 A.
2.6. Fitting the machine undercounter
If you wish to fit your machine undercounter,
there must be sufficient space to do so and
the wiring-plumbing must be suitable to do
so (1). If the space under the countertop is
suitable for fitting your machine, remove the
worktop as shown in the illustration (2).
WARNING: The countertop, of which
the machine will be placed under, must be
stable in order to prevent imbalance.
The top panel of the dishwasher must
be removed to fit the machine under the
countertop.
To remove the top panel, remove the
screws that hold it on, located at the rear
of the machine. Then, push the panel 1 cm
from the front towards the rear and lift it.
Adjust the machine feet according to the
slope of the floor (3).
Fit your machine by pushing it under the
counter taking care not to crush or bend the
hoses (4).
WARNING: After removing the top
panel of your dishwasher, the machine
should be placed in a space of the
dimensions shown in the figure below.
H1: min A
H2: min B1
H3: min B2
A B
All
Products B1B2
Product’s Height
(±2 mm) 820 mm 830 mm 835 mm
A: If there is no felt on the top of the
product; you should take into account this
product’s height.
B1: If there is felt on the top of the product
with 2nd basket; you should take into
account this product’s height.
B2: If there is felt on the top of the product
with 3rd basket; you should take into
account this product’s height.

EN - 8
3. TECHNICAL SPECIFICATIONS
13
3.1. General appearance
1. Worktop
2. Upper basket with racks
3. Upper spray arm
4. Lower basket
5. Lower spray arm
6. Filters
7. Rating plate
8. Control panel
9. Detergent and rinse-aid dispenser
10. Salt dispenser
11. Upper basket track latch
12. Upper Cutlery Basket
13. Turbo Drying Unit: This system provides
better drying performance for your
dishes.
3.2. Technical specifications
Capacity 15 place
settings
Dimensions
(mm)
Height
Width
Depth
850(mm)
598(mm)
598(mm)
Net weight 53 kg
Operating
voltage /
frequency
220-240V
50 Hz,
Total current
(A) 10(A)
Total power
(W) 1900(W)
Water supply
pressure
Maximum:
1 (Mpa)
Minimum:
0.03 (Mpa)

EN - 9
. BEFORE USING
THE APPLIANCE
.1. Preparing your
Dishwasher for first use
• Make sure the electricity and supply
water specifications match the values
indicated in the installation instructions
for the machine.
• Remove all packaging material inside
the machine.
• Set the water softener level.
• Fill the rinse aid compartment.
.2. Fill the salt (IF AVAILABLE)
To add softener salt, open the salt
compartment cap by turning it counter
clockwise. (1) (2) At first use, fill the
compartment with 1 kg salt and water (3)
until it is almost overflowing. If available,
using a funnel (4) will make filling easier.
Replace the cap and close it. After every
20-30 Cycles add salt into your machine
until it fills up (approx. 1 kg).
12
3
SALT
4
Only add water to the salt compartment
on first use.
Use softener salt specifically produced for
use in dishwashers.
When you start your dishwasher, the salt
compartment is filled with water, therefore
put the softener salt in prior to starting your
machine.
If the softener salt has overflowed and you
do not start the machine immediately, run
a short washing program to protect your
machine against corrosion.

EN - 10
.3. Test Strip
Run water
through the
tap (1min.)
Keep the
strip in the
water (1sec)
Shake the
strip. Wait (1min.) Set the hardness level of your machine.
1
2
3
4
5
6
NOTE: The level is set 3 as default. If the water is well water or has a hardness level above
90 dF, we recommend that you use filter and refinement devices.
.4. Water Hardness Table
Level German dH French
dF British dE Indicator
1 0-5 0-9 0-6 L1 is shown on the display.
2 6-11 10-20 7-14 L2 is shown on the display.
3 12-17 21-30 15-21 L3 is shown on the display.
4 18-22 31-40 22-28 L4 is shown on the display.
5 23-31 41-55 29-39 L5 is shown on the display.
6 32-50 56-90 40-63 L6 is shown on the display.
.5. Water Softener System
The dishwasher is equipped with a water softener which reduces the hardness in the
mains water supply. To find out the hardness level of your tap water, contact your water
company or use the test strip (if available).
1.6. Setting
• Push the programme button and hold it down.
• Turn on the machine.
• Hold down the programme button until “SL” disappears from the display.
• The machine will display the last setting.
• Set the level by pushing the “Program” and “Delay” buttons.
• Switch off the machine to save the setting.
.7. Detergent usage
Only use detergents specifically designed for domestic dishwashers.
Add the recommended amount of detergent for the selected programme to ensure the best
performance.
Keep your detergents in cool, dry places out of reach of children.
See the detergent manufacturer’s instructions for a further information.

EN - 11
.8. Filling the detergent
Push the latch to open the dispenser and
pour in the detergent.
Close the lid and press it until it locks in
place. The dispenser should be refilled just
before the start of each programme. If the
dishes are heavily soiled, place additional
detergent in the pre-wash detergent
chamber.
DETERGENT
.9. Using combined detergents
These products should be used according
to the manufacturer’s instructions.
Never put combined detergents into the
interior section or the cutlery basket.
Combined detergents contain not only
the detergent but also rinse-aid, salt
replacement substances and additional
components depending on the combination.
We recommend you do not use combined
detergents in short programmes.
Please use powder detergents in such
programmes.
If you encounter problems when using
combined detergents, please contact the
detergent manufacturer.
When you stop using combined detergents,
make sure that water hardness and rinse
aid settings are set to correct level.
.10. Rinse-aid usage
Rinse-aid makes dishes sparkle and helps
them to dry without spotting. Rinse-aid is
required for stain-free utensils and clear
glasses. Use only rinse-aid for domestic
dishwashers.
.11. Filling the rinse-aid and setting
To fill the rinse aid compartment, open
the rinse-aid compartment cap. Fill the
compartment with rinse aid to the MAX level
and then close the cap. Be careful not to
overfill the rinse aid compartment and wipe
up any spills.
In order to change the rinse aid level,
follow the below steps before turning on
the machine:
• Push the programme button and hold it
down.
• Turn on the machine.
• Hold down the programme button until
“rA” disappears from the display. Rinse
aid set follows water hardness set.
• The machine will display the current
setting.
• Set the level by pushing the programme
(+) and delay (-) buttons.
• Switch off the machine to save the
setting.
The factory setting is “4”.
If the dishes are not drying properly or are
spotted, increase the level. If blue stains
form on your dishes, decrease the level
Level Brightener Dose Indicator
1 Rinse-aid not
dispensed r1 is shown on the display.
2 1 dose is
dispensed r2 is shown on the display.
3 2 doses are
dispensed r3 is shown on the display.
4 3 doses are
dispensed r4 is shown on the display.
5 4 doses are
dispensed r5 is shown on the display.

EN - 12
. GESCHIRRSPÜLER BELADEN
Um bestmögliche Ergebnisse zu erzielen,
beachten Sie die folgenden Hinweise.
Stellen Sie stark verschmutzte größere
Teile in den unteren Korb (Töpfe, Pfannen,
Deckel, Teller und Schüsseln).
Der obere Korb ist für empfindlicheres und
leichteres Geschirr ausgelegt, wie Gläser,
Kaffee- und Teetassen sowie Untertassen.
Geschirrteile so positionieren, dass sie von
den Sprühstrahlen nicht bewegt werden.
Das Besteck in den Besteckkorb legen. Die
Besteckteile einzeln in die Fächer sortieren,
Griffe nach unten gerichtet. Längere
Besteckteile waagerecht in die Körbe legen.
WARNUNG: Drehbewegung der
Sprüharme darf nicht behindert werden!
.1 Empfehlungen
Grobe Verunreinigungen manuell entfernen,
bevor Sie Geschirr in das Gerät stellen. Das
Gerät immer voll beladen starten.
Die Körbe nicht überladen und das
Geschirr nicht in den falschen Korb stellen.
WARNUNG: Scharfe Besteckteile
immer mit den scharfen Kanten nach unten
ausrichten. Becherförmiges Geschirr mit
Öffnung nach unten ausrichten.
Upper Basket
The upper basket includes a mechanism
which enables the height of the basket to be
adjusted up (1) or down (2) without having
to remove the basket. Hold the basket on
both sides and pull it up or push it down,
ensuring both sides of the upper basket are
in the same position.
1
2

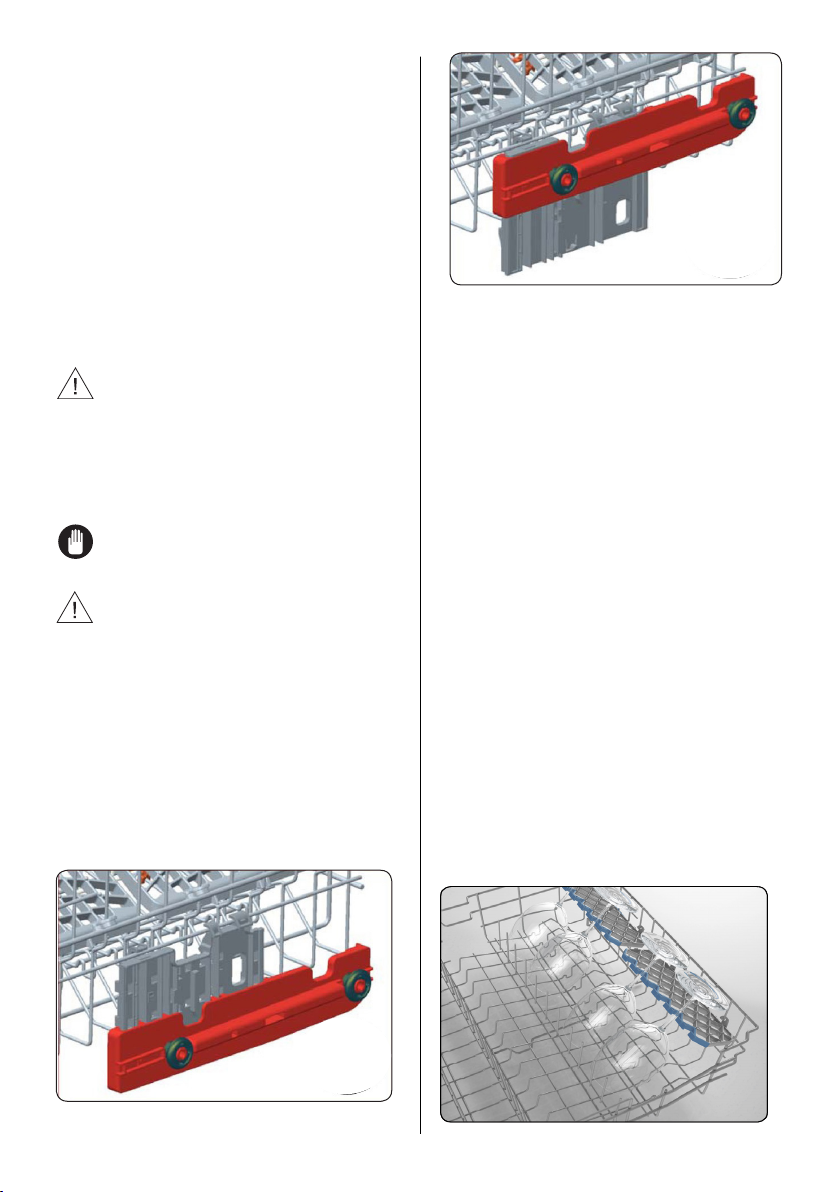

Height Adjustable Rack (peg type)
The height adjustable racks enable glasses
and cups to be placed on or under the
racks. The racks can be adjusted to 2
different heights. Cutlery and utensils can
also be placed on the racks horizontally.
SOFT TOUCH
Top basket
Height Adjustable Rack
These racks are designed to increase the
capacity of the top basket. You can pla-
ce your glasses and cups on the racks.
You can adjust the height of these racks.
Thanks to this feature, you can place
different sizes of glasses under
these racks.
Thanks to height adjustment plastics
mounted on the basket, you can use your
racks in 2 different heights. In addition, you
can place long forks, knives and spoons
on these racks laterally, so that they do not
block the revolution of propeller.
The soft touch feature on the racks serves
to place the ne stemmed glass.
The wineglass is placed in the area shown
at the picture.

EN - 13
Foldable racks
Foldable racks on the upper basket are
designed in order to let you place big items
easier such as pots, pans, etc. If requested,
each part can be folded separately, or all of
them can be folded and larger spaces can
be obtained. You can use foldable racks by
raising them upwards,or by folding down.
Four Folding Racks
(15 pc)
The folding racks allow easier placement of
larger items, such as pots and pans. Each
section can be folded separately. The racks
can be raised up, or folded down, as shown
in the images.
1
2

EN - 14
Upper Cutlery Basket
The upper cutlery basket is designed for the
placement of large and small cutlery and
utensils.
The basket is easily removed from the
dishwasher, therefore allows ease of use
when removing your items, along with the
basket, after washing.
The upper cutlery basket is composed of
two pieces that can be separately removed.
Remove the left or right section of the
cutlery basket in order to obtain more space
for items in the upper basket.
WARNING: Knives and other sharp objects
must be placed horizontally in the cutlery
basket.

EN - 15
5.2. Alternative Basket Loads
Lower Basket
Top basket
Incorrect loads

EN - 16
6. PROGRAMME TABLE
Programme Duration
(min) Description
Mini 14’ 14 Fast programme intended for recently used dishes which are lightly soiled. Suitable
for 4 place settings.
Auto Delicate 79-91 Automatic programme for delicate dishes which are not heavily soiled.
Auto Intensive 107-179 Automatic programme for heavily soiled dishes.
Dual Pro Wash 113 For both lightly soiled delicate glassware and heavily soiled crockery at the same
time.
Quick 30’ 30 Quick wash programme for lightly soiled dishes.
Eco
(Reference) 239 Standard programme for dishes which are used daily but are not heavily soiled.
Super 50’ 50 A faster programme for dishes which are used daily but are not heavily soiled.
Hygiene 123 For heavily soiled dishes which require hygienic washing.
NOTE: PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT
OF DISHES, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL
FUNCTIONS.
• Only use powder detergent in short programmes.
• Short programmes do not include a drying step.
• To assist drying, we recommend partially opening the door after the programme has
finished.
