1. SAFETY INSTRUCTIONS
1. General Safety Warnings
• Read these instructions carefully before using your
appliance and keep this manual for future reference.
Please check the packaging of your machine
before installation and the outer surface of the
machine once the packaging has been removed. Do
not operate the machine if it appears damaged or if
the packaging has been opened.
• Packaging materials protect your machine from any
damage that might occur during transportation. The
packaging materials are environmentally friendly
as they are recyclable. Use of recycled material
reduces raw material consumption and decreases
waste production.
This appliance can be used by children aged from
8 years and above, and by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning the use of the
appliance in a safe way and understand hazards
involved. Children should not be allowed to play with
the appliance.
Remove packaging and keep it out of reach of
children.
Keep children away from detergents and rinse
aids.
There may be some residue left in the machine
after washing. Keep children away from the machine
when it is open.

EN - 2
2. Installation Warnings
• Choose a suitable and safe place to install your
machine.
• Only original spare parts should be used with the
machine.
Unplug the machine before installation.
Your machine must only be installed by an
authorised service agent. Installation by anyone other
than an authorised agent may cause your warranty to
be void.
Check that the indoor electrical fuse system is
connected in line with safety regulations.
All electrical connections must match the values on
the plate.
Ensure the machine does not stand on the
electrical supply cable.
Never use an extension cord or a multiple socket
connection.
The plug should be accessible after the machine is
installed.
• After installation, run your machine unloaded for the
first time.
The machine must not be plugged in during
positioning.
Always use the coated plug supplied with your
machine.
If the electrical cable is damaged, it should only
be replaced by a qualified electrician.
• Connect the hose directly to the water inlet tap. The
pressure supplied by the tap should be a minimum
of 0.03 MPa and a maximum of 1 MPa. If the

EN - 3
pressure exceeds 1 MPa, a pressure relief valve
must be fitted between the connection.
3. During Usage
• This machine is for domestic use only; do not use
• it for other purposes. Commercial use will void the
guarantee.
Do not stand, sit or place loads on the open door of
the dishwasher.
Only use detergents and rinse aids produced
specifically for dishwashers. Our company is not
responsible for any damage that may occur due to
misuse.
Do not drink water from the machine.
Due to the danger of explosion, do not place any
chemical dissolving agents into the machine’s washing
section.
• Check the heat-resistance of plastic items before
washing them in the machine.
Only put items in the machine which are suitable for
dishwashing, and take care not to overfill the baskets.
Do not open the door while the machine is in
operation, hot water may spill out. Safety devices
ensure the machine stops if the door is opened.
The machine door should not be left open. It may
cause accidents.
Place knives and other sharp objects in the cutlery
basket in a blade-down position.
For models with the automatic door-opening
system, when the EnergySave option is active, the
door will open at the end of a program. To prevent
damage to your dishwasher, do not attempt to close

EN - 4
• Some machine components and packaging consist of recyclable materials.
• Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. )
• The cardboard parts consist of recycled paper. They can be put into waste paper
containers for recycling.
• Material unsuitable for domestic waste must be disposed of at recycling centres.
• Contact a relevant recycling centre to obtain information about disposal of different
materials.
PACKAGING AND THE ENVIRONMENT
• Packaging materials protect your machine from damage that may occur during
transportation. The packaging materials are environmentally friendly as they are
recyclable. The use of recycled material reduces raw material consumption and
therefore decreases waste production.
the door for one minute after it has opened. For
effective drying, keep the door open for 30 minutes
after a programme has ended. Do not stand in front of
the door after the auto-open signal sounds.
In the case of a malfunction, repair should only
be performed by an authorised service company,
otherwise the warranty will be void.
Before repair work, the machine should be
disconnected from the mains. Do not pull the cable to
unplug the machine. Switch off the water tap.
Operation at a low voltage will cause a decline in
performance levels.
For safety, disconnect the plug once a program has
finished.
To avoid an electric shock, do not unplug the
machine with wet hands.
Pull the plug to disconnect the machine from the
mains, never pull on the cord.
RECYCLING

EN - 5
CE Declaration of Conformity
We declare that our products meet the applicable European Directives, Decisions and
Regulations and the requirements listed in the standards referenced.
Disposal of your old machine
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead, it shall be handed over to
the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or the shop
where the product was purchased.

EN - 6
2. INSTALLATION
2.1. Machine positioning
When positioning the machine, place it in
an area where dishes can be easily loaded
and unloaded. Do not put the machine in an
area where the ambient temperature falls
below 0°C.
Read all warnings located on the packaging
before removing the packaging and
positioning the machine.
Place the machine close to a water tap
and drain. Take into consideration that the
connections will not be altered once the
machine is in position.
Do not hold the machine by its door or
panel.
Leave an adequate distance around the
machine to allow ease of movement when
cleaning.
Ensure the water inlet and outlet
hoses are not squeezed or trapped
and that the machine does not stand
WARNING: Use the new water inlet
hose supplied with your machine, do not
use an old machine’s hose.
WARNING: Run water through the
new hose before connecting.
WARNING: Connect the hose
directly to the water inlet tap. The pressure
supplied by the tap should be a minimum
of 0.03 MPa and a maximum of 1 MPa. If
the pressure exceeds 1 MPa, a pressure
relief valve must be fitted between the
connection.
WARNING: After the connections are
made, turn the tap on fully and check
for water leaks. Always turn off the
water inlet tap after a wash program has
finished.
An Aquastop water spout is available
with some models. Do not damage it
or allow it to become kinked or
twisted.
on the electrical cable while positioning.
Adjust the feet so the machine is level and
balanced. The machine should be placed
on flat ground otherwise it will be unstable
and the door of the machine will not close
properly.
2.2. Water connection
We recommend fitting a filter to your water
inlet supply in order to prevent damage to
your machine due to contamination (sand,
rust, etc.) from indoor plumbing. This will
also help prevent yellowing and deposit
formation after washing.

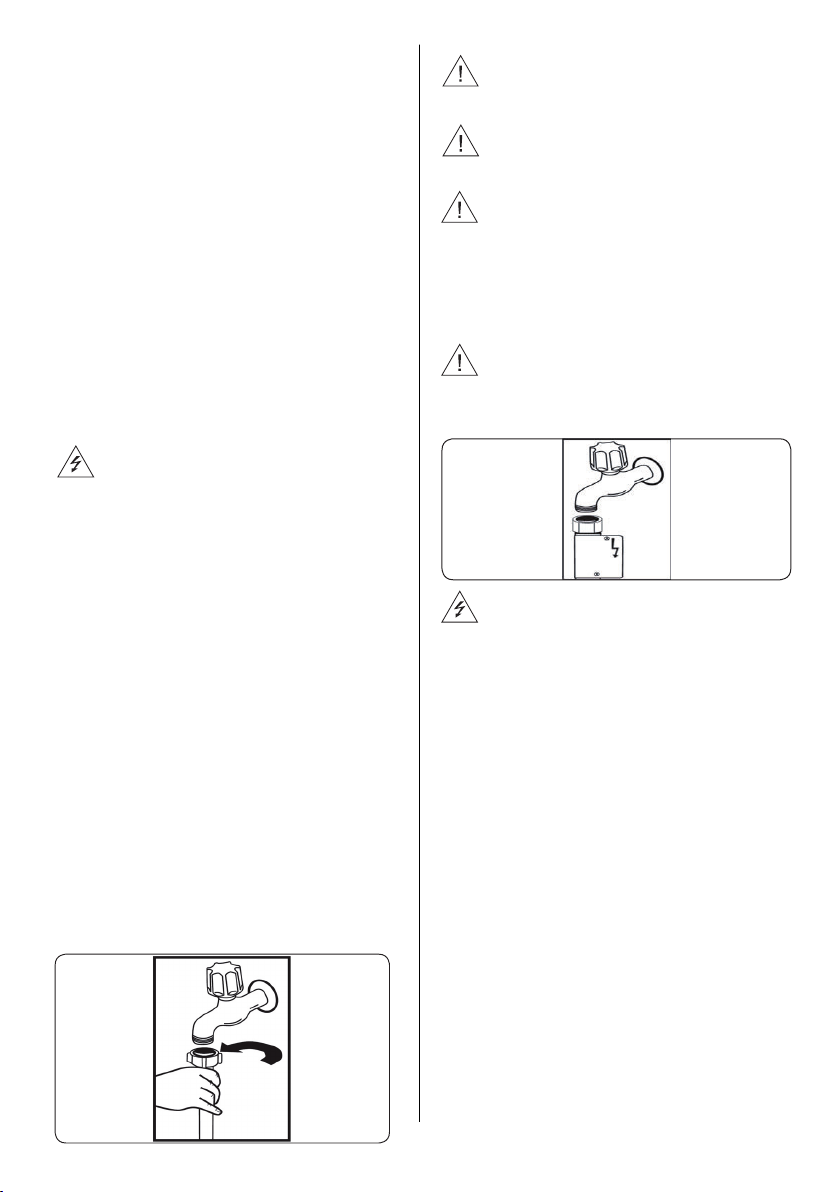

Note printing on the water inlet hose!
If models are marked with 25°, the water
temperature may be max. 25 °C (cold
water).
For all other models:
Cold water preferred; hot water max.
temperature 60 °C.
2.3. Water inlet hose

EN - 7
In the absence of earthing
installation, an authorised
electrician should carry out an
earthing installation. In the case of use
without earthing installed, we will not be
responsible for any loss of use that may
occur.
The plug on this appliance may
incorporate 13A fuse depending on
the target country. (For Example UK,
Saudi Arabia)
2.4. Electrical connection
WARNING: Your machine is set to
operate at 220-240 V. If the mains voltage
supply to your machine is 110 V, connect a
transformer of 110/220 V and 3000 W
between the electrical connection.
Connect the product to a
grounded outlet protected by a fuse
complying with the values in the
"Technical Specifications" table".
The earthed plug of the
machine must be connected
to an earthed outlet supplied by
suitable voltage and current.

EN - 8
3. TECHNICAL SPECIFICATIONS
12

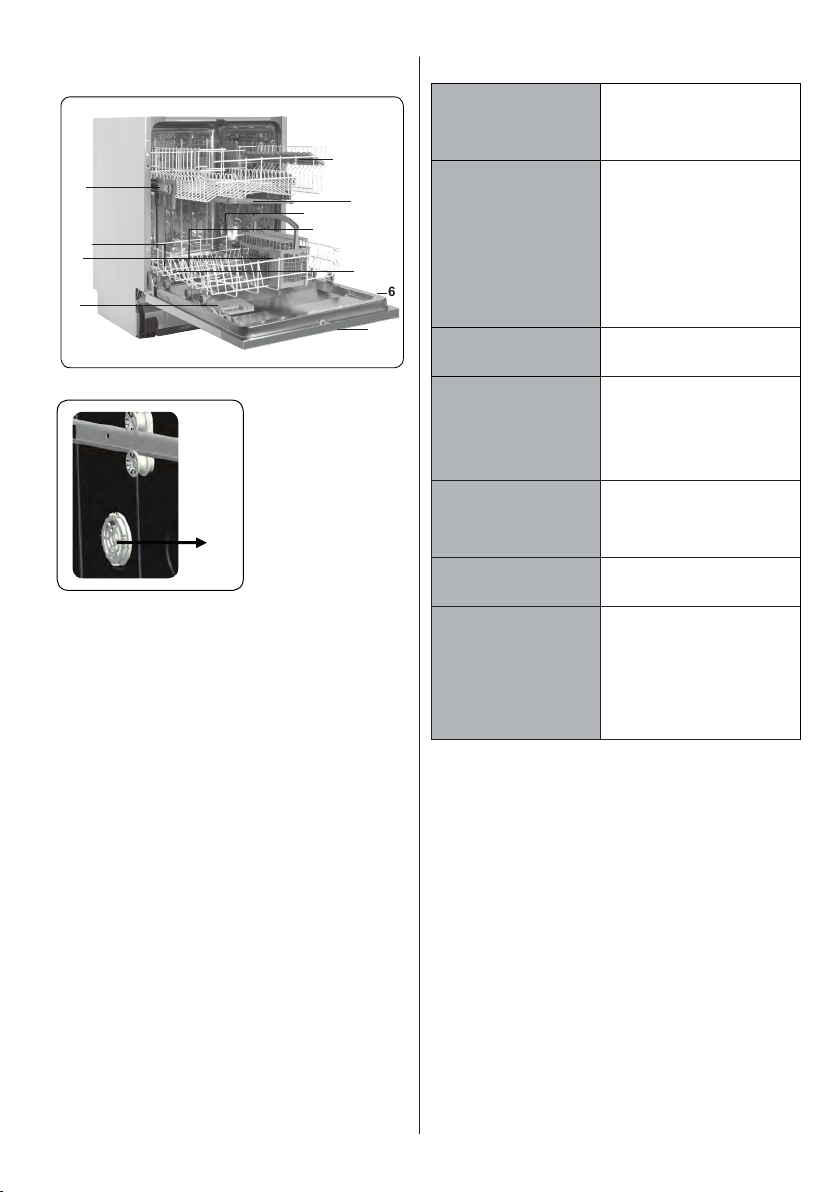

3.1. General appearance
1. 
2. 
3. 
4. 
5. 
6. 
7. 
8. 
9. 
10. 
11. 
12.  


3.2.3.2. TTechnical specificationsechnical specifications
 3







5
 38






 
 







6
1
2
3
4
5
7
8
9
11
10

EN - 9
4. BEFORE USING
THE APPLIANCE
4.1. Preparing your
dishwasher for first use
• Make sure the electricity and supply
water specifications match the values
indicated in the installation instructions
for the machine.
• Remove all packaging material inside
the machine.
• Set the water softener level.
• Fill the rinse aid compartment.
4.2 Salt usage (IF AVAILABLE)
For a good washing function, the
dishwasher needs soft, i.e. less calcareous
water. Otherwise, White lime residues
will remain on the dishes and the interior
equipment. This will negatively affect your
machine’s washing, drying and shining
performance. When water flows through
the softener system, the ions forming the
hardness are removed from the water
and the water reaches the softness
required to obtain the best washing result.
Depending on the level of hardness of the
inflowing water, these ions that harden
the water accumulate rapidly inside the
softener system. Therefore, the softener
system has to be refreshed so that it
operates with the same performance
also during the next wash. For this
purpose, dishwasher salt is used.
Machine can only be used by special
dishwasher salt to soften the water.
Do not use any small grained or
powdered type of salts which can
easily soluble. Using any other type
of salt can damage your machine.
4.3 Fill the salt (IF AVAILABLE)

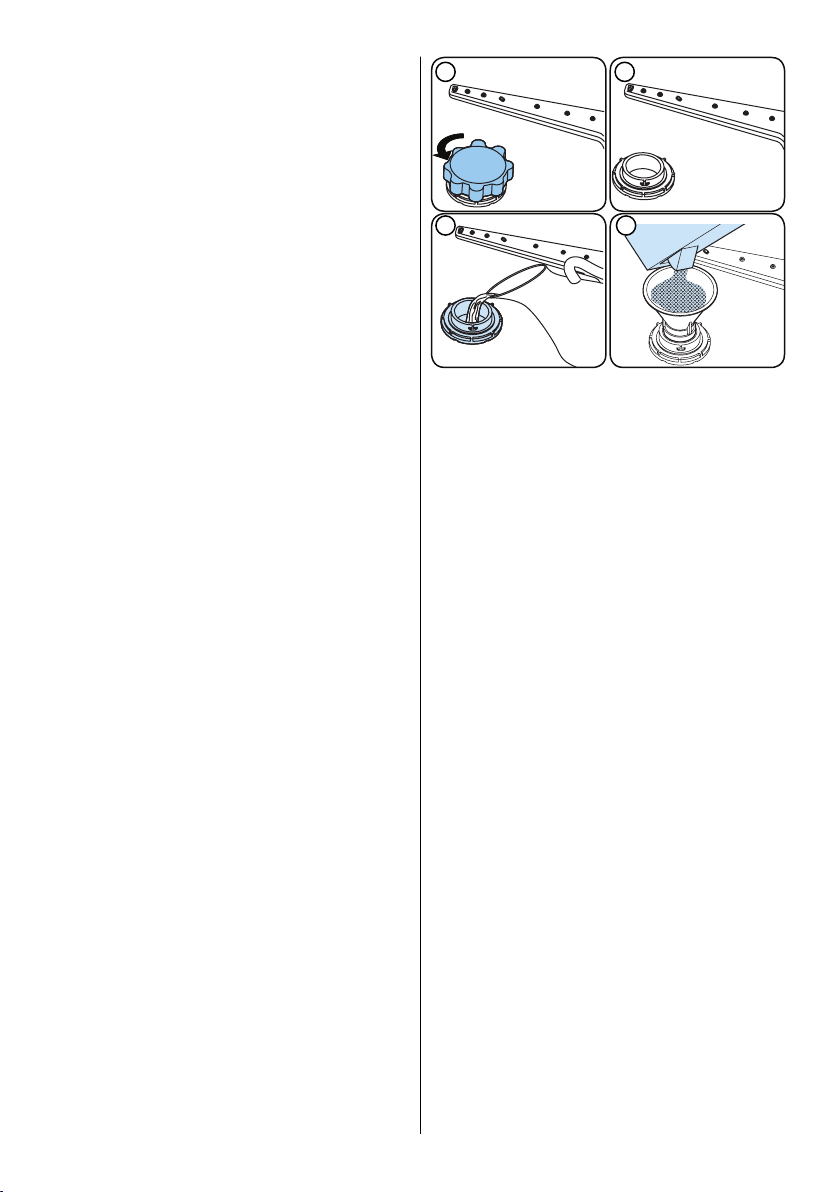

To add softener salt, open the salt
compartment cap by turning it counter
clockwise. (1) (2) At first use, fill the
compartment with 1 kg salt and water (3)
until it is almost overflowing. If available,
using a funnel (4) will make filling easier.
Replace the cap and close it. After every
20-30 Cycles add salt into your machine
until it fills up (approx. 1 kg).
3 4
1 2
SALT
Only add water to the salt compartment
on first use.
Use softener salt specifically produced for
use in dishwashers.
When you start your dishwasher, the salt
compartment is filled with water, therefore
put the softener salt in prior to starting your
machine.
If the softener salt has overflowed and you
do not start the machine immediately, run
a short washing program to protect your
machine against corrosion.

4.8. Detergent usage
Only use detergents specifically designed for domestic dishwashers. Keep your detergents
in cool, dry places out of reach of children.
Add the proper detergent for the selected program to ensure the best performance. The
amount of detergent needed depends on the cycle, load size, and soil level of dishes.
EN - 10
4.4. Test Strip
Run water
through the
tap (1min.)
Keep the
strip in the
water (1sec)
Shake the
strip.
Wait
(1min.)
Set the hardness level of
your machine.
1
2
3
4
5
6
NOTE: The level is set to 3 as default. If the water is well water or has a hardness level
above 90 dF, we recommend that you use filter and refinement devices.
4.5. Water Hardness Table
4.6. Water Softener System
The dishwasher is equipped with a water softener which reduces the hardness in the
mains water supply. To find out the hardness level of your tap water, contact your water
company or use a test strip (if available).
4.7. Setting
In order to change the salt level, follow the below steps:
• Turn the knob to the “off” position.
• Push the “Start/Pause” button and hold it down.
• Turn the knob clockwise one step.
• Hold down the “Start/Pause” button until the LEDs flash and “SL” disappears.
• The machine will display the last setting.
• Set the level by pushing the “+” and “-” buttons.
• Turn the knob to the “off” position to save the setting.
Level German dH French
dF
British
dE Indicator
1 0-5 0-9 0-6 L1 is shown on the display.
2 6-11 10-20 7-14 L2 is shown on the display.
3 12-17 21-30 15-21 L3 is shown on the display.
4 18-22 31-40 22-28 L4 is shown on the display.
5 23-31 41-55 29-39 L5 is shown on the display.
6 32-50 56-90 40-63 L6 is shown on the display.

EN - 11
Do not fill detergent into the detergent
compartment more than required; otherwise
you can see whitish streaks or bluish layers
on glass and dishes and may cause glass
corrosion. Continued use of too much
detergent may cause machine damage.
Using little detergent can result in poor
cleaning and you can see whitish streaksin
hard water.
See the detergent manufacturer’s
instructions for a further information.
4.9. Filling the detergent
Push the latch to open the dispenser and
pour in the detergent.
Close the lid and press it until it locks in
place. The dispenser should be refilled just
before the start of each programme. If the
dishes are heavily soiled, place additional
detergent in the pre-wash detergent
chamber.
DETERGENT
4.10. Using combined detergents
These products should be used according
to the manufacturer’s instructions.
Never put combined detergents into the
interior section or the cutlery basket.
Combined detergents contain not only
the detergent but also rinse-aid, salt
replacement substances and additional
components depending on the combination.
We recommend you do not use combined
detergents in short programmes.
Please use powder detergents in such
programmes.
If you encounter problems when using
combined detergents, please contact the
detergent manufacturer.
When you stop using combined detergents,
make sure that water hardness and rinse
aid settings are set to the correct level.
4.11. Rinse-aid usage
The rinse aid helps to dry the dishes without
streaks and stains. Rinse-aid is required for
stain-free utensils and clear glasses. The
rinse aid is automatically released during
the hot rinse phase. If rinse aid dosage
setting set too low, whitish stains remains
on dishes and dishes do not dry and
washed clean.
If rinse aid dosage setting set too height,
you can see bluish layers
on glass and dishes.
4.12. Filling the rinse-aid and setting
To fill the rinse aid compartment, open
the rinse-aid compartment cap. Fill the
compartment with rinse aid to the MAX level
and then close the cap. Be careful not to
overfill the rinse aid compartment and wipe
up any spills.
In order to change the rinse aid level,
follow the below steps before turning on
the machine:
• Turn the knob to the “off” position.
• Push the “Start/Pause” button and hold
it down.
• Turn the knob counter clockwise one
step.
•
•
Hold down the “Start/Pause” button until
the LEDs flash and “rA” disappears.
The machine will display the current
setting.
• Set the level by pushing the “+” and “-”
buttons.
• Turn the knob to the “off” position to
save the setting.

EN - 12
Level Brightener Dose Indicator
1 Rinse-aid not
dispensed
r1 is shown on the
display.
2 1 dose is
dispensed
r2 is shown on the
display.
3 2 doses are
dispensed
r3 is shown on the
display.
4 3 doses are
dispensed
r4 is shown on the
display.
5 4 doses are
dispensed
r5 is shown on the
display.

EN - 13
WARNING: To avoid any possible
injuries, place long-handle and sharp-
pointed knives with their sharp points facing
down or horizontally on the baskets.
5. LOADING YOUR
DISHWASHER
For best results, follow these loading
guidelines.
Loading the household dishwasher up to
the capacity indicated by the manufacturer
will contribute to energy and water savings.
Manual pre-rinsing of tableware items leads
to increased water and energy
consumption and is not recommended

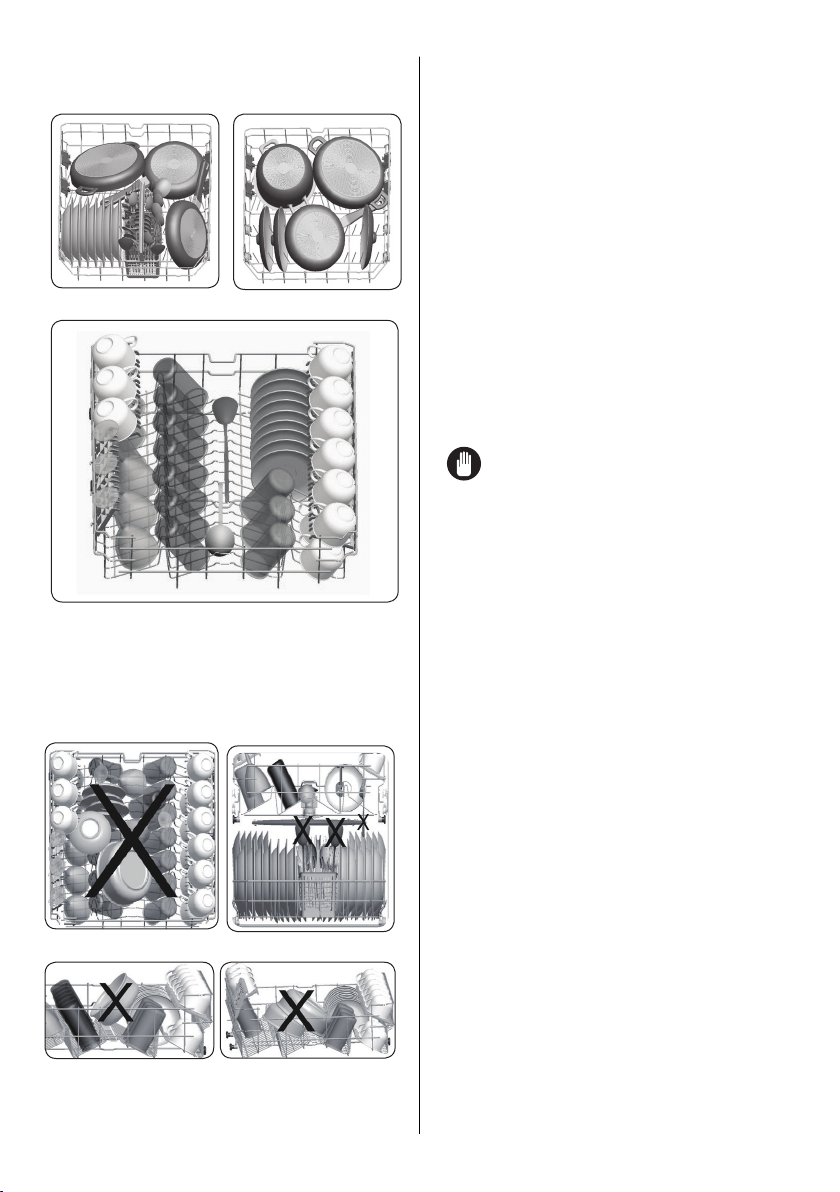

You can place cups, glasses, stemware,
small plates, bowls, etc. in upper basket.
Do not lean long glasses against one
another or they cannot remain steady and
may receive damage.
When placing long stem glasses and
goblets, lean them against the basket edge
or rack and not against other items.
Place all containers such as cups, glasses
and pots into the dishwasher with the
opening facing downwards otherwise water
can collect on items.
If there is cutlery basket in machine, you
are recommended to use the cutlery grid in
order to obtain the best result. Place all
large (pots, pans, lids, plates, bowls etc.)
and very dirty items in the lower rack.
Dishes and cutlery should not be placed
above each other.
WARNING: Take care not to obstruct
the rotation of spray arms.
WARNING: Make sure after loading
the dishes do not prevent opening the
detergent dispenser.
5.1. Recommendations
Remove any coarse residue on dishes
before placing the dishes in the machine.
Start the machine with full load.
Do not overload the drawers or place
dishes in the wrong basket.
SOFT TOUCH
Top basket
Height Adjustable Rack
These racks are designed to increase the
capacity of the top basket. You can pla-ce
your glasses and cups on the racks. You
can adjust the height of these racks. Thanks
to this feature, you can place different sizes
of glasses under these racks. Thanks to
height adjustment plastics mounted on the
basket, you can use your racks in 2 different
heights. In addition, you can place long
forks, knives and spoons on these racks
laterally, so that they do not block the
revolution of propeller. The soft touch
feature on the racks serves to place 󶐉󵓁󵘊󵸆

The wineglass is placed in the area shown
at the picture.

EN - 14

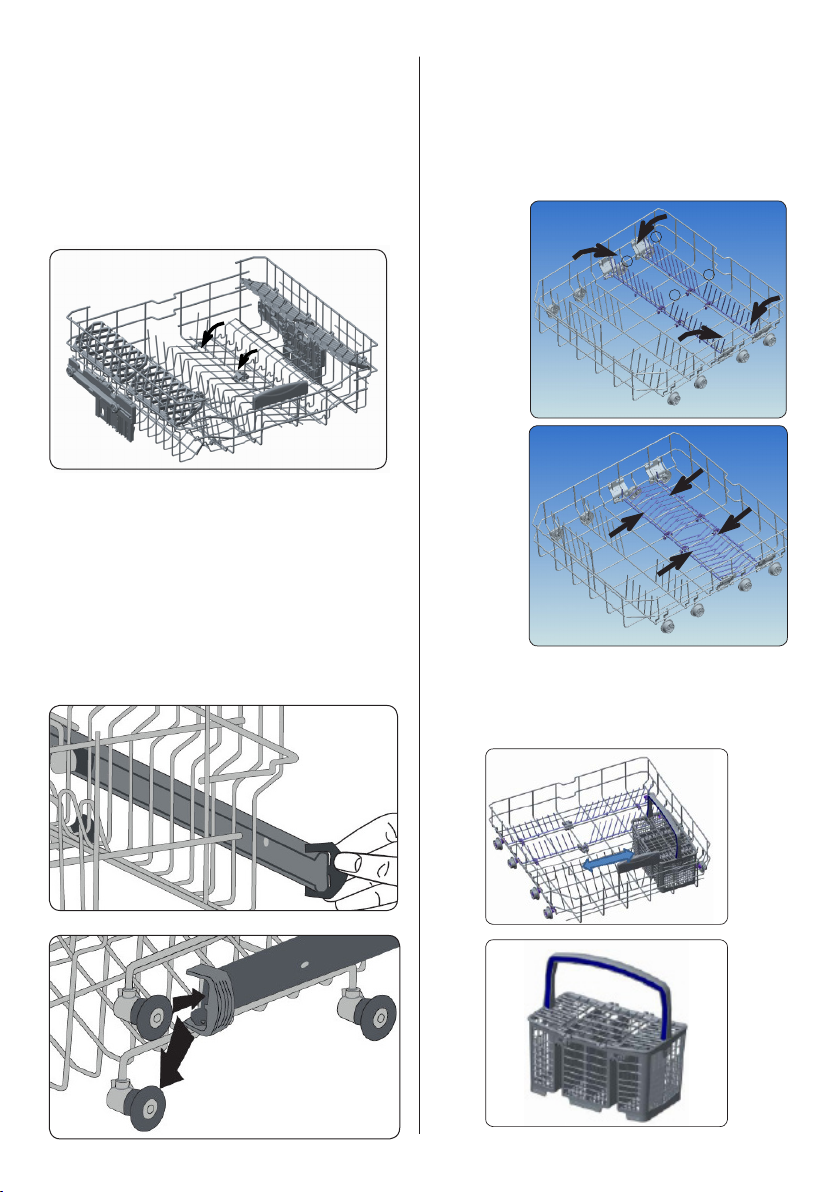

Foldable racks
Foldable racks on the upper basket are
designed in order to let you place big items
easier such as pots, pans, etc. If requested,
each part can be folded separately, or all of
them can be folded and larger spaces can
be obtained. You can use foldable racks by
raising them upwards,or by folding down.
Upper Basket
Height adjustment
Turn the Rail Stop Clips, at the ends of the
rails, to the sides to open them (as shown in
the image below), then pull out and remove
the basket. Change the position of the
wheels, then reinstall the basket to the rail,
making sure to close the Rail Stop Clips.
When the upper basket is in the higher
position, large items such as pans can be
placed on the lower basket.
Four Folding Racks
The folding racks are designed so that large
items, such as pots and pans, can be easily
placed in the dishwasher. Each section can
be folded separately. The racks can be
folded down or raised up, as shown in the
images below.
a
b
c
d
1
2
Slide Basket
The movable cutlery basket can slide
between the front and rear wires of the
bottom basket.

EN - 15
5.2. Alternative basket loads
Lower basket
Upper basket
Unsuitable items for dishwashing
• Cigarette ashes, candle leftovers,
polish, paint, chemical substances, iron-
alloy materials.
•
•
Forks, spoons and knives with wooden,
bone, ivory or nacrecoated handles;
glued items, items soiled with abrasive,
acidic or base chemicals.
Temperature-sensitive plastics, copper
or tincoated containers.
• Aluminium and silver objects.
• Some delicate glasses, ornamental
printed porcelains; some crystal items,
adhered cutlery, lead crystal glasses,
cutting boards, synthetic fibred items.
• Absorbent items such as sponges or
kitchen rugs.
IMPORTANT: In future, purchase
dishwasher-proof kitchenware.
Important Note for Test Laboratories
For detailed information required for tests
according to EN normatives and a softcopy
of the manual, please send the model name
and serial number to the following address:
[email protected]
Incorrect Loads
Incorrect loading can cause poor washing
and drying performance. Please follow the
manufacturer's recommendations for a good
performans result.

EN - 16
6. PROGRAMME TABLE
  
   











   




   

   

   
