Sharp PZ-MR2X User manual

PLASMA DISPLAY TV
Operation Manual
Please read this operation manual carefully before using the Plasma Display TV (Plasma Display and AVC system).
PLASMA DISPLAY
PZ-50HV2/PZ-43HV2
AVC SYSTEM
PZ-MR2M/PZ-MR2X

E-1
Dear customer
Thank you for your purchase of the SHARP product. To ensure safety and many years of trouble-free operation
of your product, please read the Safety Precautions carefully before using this product.
Contents
Dear customer …………………………………………… 1
Contents …………………………………………………… 1
Safety precautions ……………………………………… 2
Important User Guidance Information ………………… 5
Features …………………………………………………… 6
Supplied accessories …………………………………… 6
AVC System …………………………………………… 6
Plasma Display ………………………………………… 7
Preparation ………………………………………………… 8
Installing the Plasma Display ………………………… 8
Attaching the speakers ……………………………… 9
Securing the Plasma Display to the wall …………… 10
Securing the Plasma Display to a desk or floor …… 10

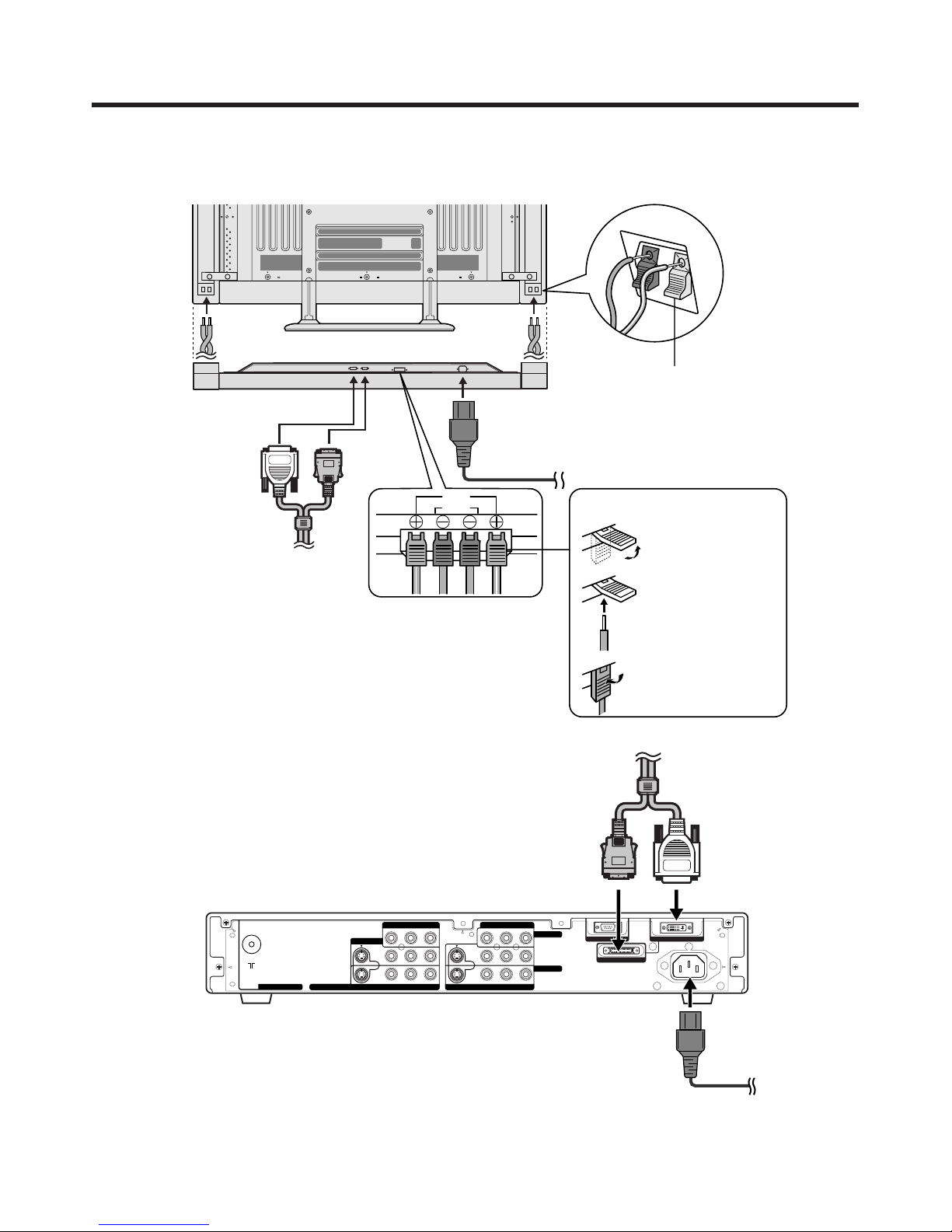

Connecting the system ……………………………… 11
How to route cables …………………………………… 12
Using the remote control unit ………………………… 13
Cautions regarding remote control unit ……… 13

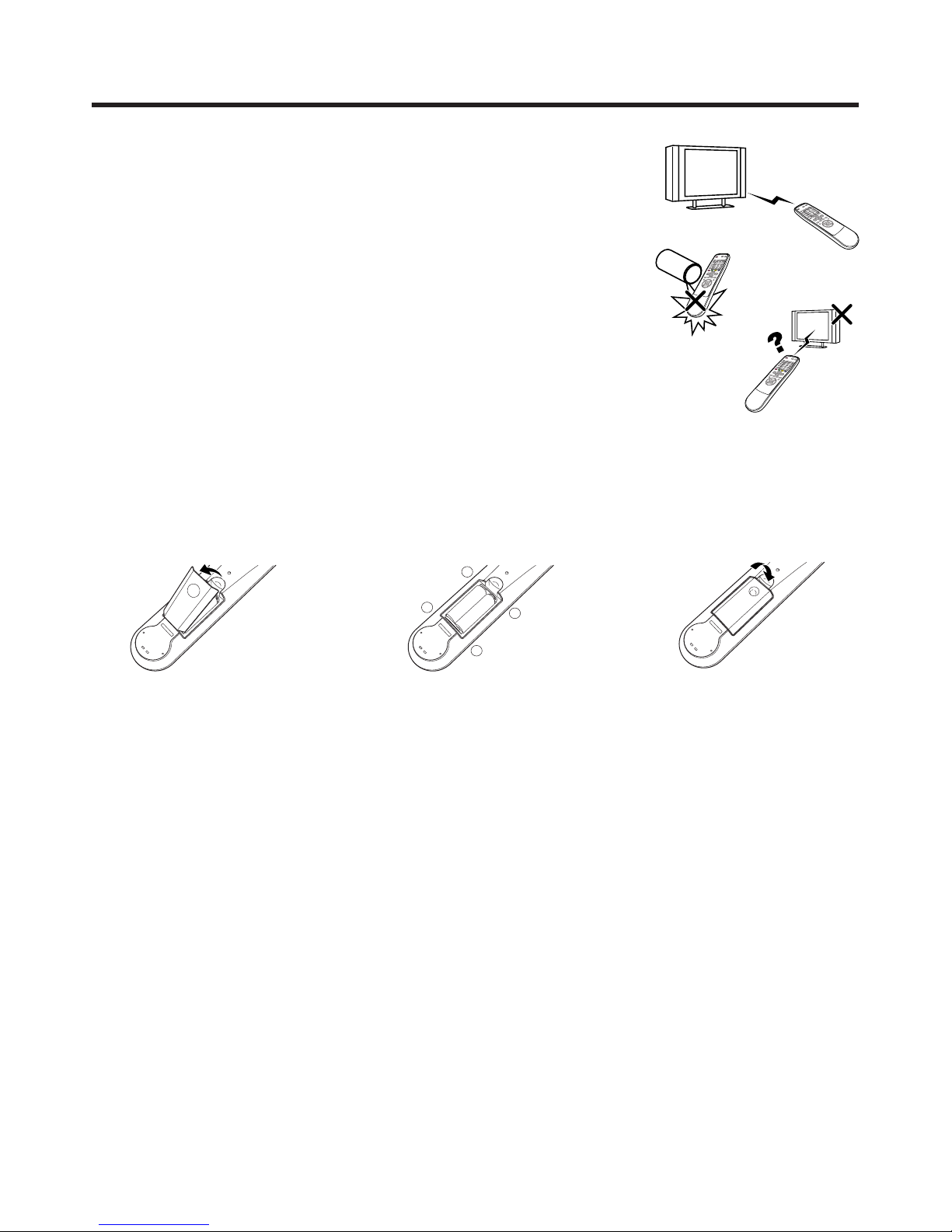

Inserting the batteries …………………………… 13
Cautions regarding batteries …………………… 13
Product descriptions …………………………………… 14
Plasma Display ………………………………………… 14
AVC System …………………………………………… 15
Remote control unit …………………………………… 16
Watching TV ……………………………………………… 17
Basic connection ……………………………………… 17
Connecting an antenna ………………………… 17
Connecting the power cord …………………… 17
Turning on the power ………………………………… 18
Turning off the power ………………………………… 18
Initial auto installation ………………………………… 19
Simple button operations for changing channels … 20
Using FLASHBACK (A) on the remote
control unit ………………………………………… 20
Simple button operation for changing
volume/sound …………………………………… 21
Basic adjustment settings ……………………………… 24
AV mode menu items ………………………………… 24
PC mode menu items ………………………………… 25
Moving the picture on the screen …………………… 26
Auto Installation ……………………………………… 27
Language setting ………………………………… 27
Programme auto search ………………………… 27
Auto labelling …………………………………… 28
Auto sorting ……………………………………… 28
Programme setup……………………………………… 29
Auto search ……………………………………… 29
Programme auto search ………………………… 29
Auto labelling …………………………………… 29
Auto sorting ……………………………………… 30
Manual setting for each channel ……………… 31
Additional channels entry ………………… 31
Search tuning………………………………… 32
Fine tuning …………………………………… 33
Colour system ……………………………… 33
Sound system ……………………………… 34
Labelling channels ………………………… 34
Skipping channels ………………………… 34
Setting the child lock ……………………… 35
Sort ………………………………………………… 36
Language setting ……………………………………… 37
Teletext Language Setting ……………………… 38
Picture adjustments …………………………………… 39
Colour temperature ……………………………… 40
Film mode ………………………………………… 40
Black ……………………………………………… 41
Monochrome ……………………………………… 41
I/P Setting ………………………………………… 42
Sound adjustment …………………………………… 43
Power control ………………………………………… 44
Power control for AV source …………………… 44
Power control for PC source …………………… 45
Using external equipment ……………………………… 46
Watching a DVD image ……………………………… 47
Connecting a DVD player ……………………… 47
Displaying a DVD image ………………………… 47
Watching a VCR image ……………………………… 48
Connecting a VCR ……………………………… 48
Displaying a VCR image ………………………… 48
Watching broadcasts via a HDTV tuner …………… 49
Connecting a HDTV tuner ……………………… 49
Displaying broadcasts via a HDTV tuner ……… 49
Enjoying a game player or viewing camcorder
images …………………………………………… 50
Connecting a game player or camcorder …… 50
Displaying an image of the game player
or camcorder ………………………………… 50
Viewing an image from a computer ………………… 51
Connecting a computer ………………………… 51
Displaying an image from a computer ………… 51
Useful adjustment settings ……………………………… 52
Image position (AV mode only) ……………………… 52
Auto Sync. adjustment (PC mode only) …………… 53
Fine Sync. adjustment (PC mode only) …………… 53
Input signal source …………………………………… 54
Colour system setting (AV mode only) ……………… 55
AV mode ……………………………………………… 55
WIDE mode (AV mode only) ………………………… 56
Wide screen signalling (WSS) (AV mode only) …… 57
Picture aspect ratio (AV mode only) ………………… 57
WIDE mode (PC mode only) ………………………… 58
Audio out ……………………………………………… 59
Sleep timer …………………………………………… 59
Password setting for Child lock (AV mode only) …… 60
Useful features …………………………………………… 61
Dual picture functions ………………………………… 61
Teletext function ……………………………………… 63
Time display …………………………………………… 65
Appendix ………………………………………………… 66
Troubleshooting ……………………………………… 66
Computer compatibility chart ………………………… 67
RS-232C port specifications ………………………… 68
Specifications ………………………………………… 70

E-2
WARNING: BEFORE PLUGGING IN THE UNIT FOR THE FIRST
TIME, READ THE FOLLOWING SECTION CAREFULLY.
THE VOLTAGE OF THE AVAILABLE POWER SUPPLY DIFFERS
ACCORDING TO COUNTRY OR REGION. BE SURE THAT THE
POWER SUPPLY VOLTAGE OF THE AREA WHERE THIS UNIT WILL
BE USED MEETS THE REQUIRED VOLTAGE (E.G. 230V OR 120V)
WRITTEN ON THE REAR PANEL.
WARNING: THIS PRODUCT IS FITTED WITH A THREE PIN PLUG
WHICH HAS AN EARTH/GROUND CONNECTION. THIS TYPE OF
PLUG WILL ONLY FIT IN TO A STANDARD THREE PIN SOCKET.
THIS IS A SAFETY FEATURE. IF YOU ARE UNABLE TO INSERT THE
PLUG INTO THE OUTLET, CONTACT YOUR ELECTRICIAN TO
REPLACE YOUR OBSOLETE OUTLET. DO NOT DEFEAT THE SAFETY
PURPOSE OF THE GROUNDING (EARTHING) TYPE PLUG.
The following symbols are found on labels
attached to the product. They alert the operators
and service personnel of this equipment to any
potentially dangerous conditions.
WARNING
This symbol refers to a hazard or unsafe
practice which can result in personal injury or
property damage.
CAUTION
This symbol refers to a hazard or unsafe
practice which can result in severe personal
injury or death.
Safety precautions
WARNING: DO NOT PLACE ANY NAKED FLAME SOURCES,
SUCH AS A LIGHTED CANDLE, ON TO THIS APPARATUS. THERE
IS A RISK OF FIRE IF THESE NAKED FLAME SOURCES FALL OVER.
VENTILATION: WHEN INSTALLING THIS UNIT, MAKE SURE
TO LEAVE SPACE AROUND THE UNIT FOR VENTILATION TO
IMPROVE HEAT RADIATION (AT LEAST 50 cm AT TOP, 10 cm AT
REAR, AND 10 cm AT EACH SIDE.)
WARNING: THE APPARATUS IS NOT WATERPROOF. TO
PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE AND DO NOT PUT ANY
CONTAINER WITH LIQUID INSIDE NEAR THIS APPARATUS.
WARNING: SLOTS AND OPENINGS IN THE CABINET ARE
PROVIDED FOR VENTILATION, TO ENSURE RELIABLE OPERATION
AND TO PREVENT OVERHEATING. TO PREVENT FIRE HAZARD,
THE OPENINGS MUST NEVER BE BLOCKED OR COVERED WITH
ITEMS SUCH AS NEWSPAPERS, TABLE-CLOTHS, CURTAINS, ETC.
ALSO DO NOT PLACE THE UNIT ON TO A THICK CARPET, BED,
SOFA OR FABRIC HAVING A THICK PILE.

E-3
Safety precautions
Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage
if improperly handled. This product has been engineered and manufactured with the highest priority on safety.
However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please
observe the following instructions when installing, operating and cleaning the product. To ensure your safety
and prolong the service life of your product, please read the following precautions carefully before using the
product.
1. Read instructions—All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place—These safety and operating instructions must be kept in a safe place for future
reference.
3. Observe warnings—All warnings on the product and in the instructions must be observed closely.
4. Follow instructions—All operating instructions must be followed.
5. Cleaning—Unplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean the
product. Do not use liquid cleaners or aerosol cleaners.
6. Attachments—Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can
result in accidents.
7. Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub,
swimming pool and in a wet basement.
8. Stand—Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable
base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only
a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting
the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended
by the manufacturer.
9. When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops,
excessive force and uneven floor surface can cause the product to fall from the cart.
10. Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not
cover or block these vents and openings since insufficient ventilation can cause overheating
and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other
similar surface, since they can block ventilation openings. This product is not designed for built-
in installation; do not place the product in an enclosed place such as a bookcase or rack,
unless proper ventilation is provided or the manufacturer’s instructions are followed.
11. Power source—This product must operate on a power source specified on the specification label. If you are not sure
of the type of power supply used in your home, consult your dealer or local power company.
12. Power cord protection—The power cords must be routed properly to prevent people from stepping on them or
objects from resting on them. Check the cords at the plugs and product.
13. The Plasma Display TV used in this product is made of glass. Therefore, it can break when the product is dropped or
applied with impact. Be careful not to be injured by broken glass pieces in case the Plasma Display TV breaks.
14. Overloading—Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.
15. Entering of objects and liquids—Never insert an object into the product through vents or openings. High voltage
flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same
reason, do not spill water or liquid on the product.
16. Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and
other dangerous conditions. Request a qualified service person to perform servicing.
17. Repair—If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified
service person to perform repairs.
a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.
Do not touch the controls other than those described in the operating instructions. Improper adjustment of
controls not described in the instructions can cause damage, which often requires extensive adjustment work
by a qualified technician.
e. When the product has been dropped or damaged.
f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that
the product needs servicing.
18. Replacement parts—In case the product needs replacement parts, make sure that the service person uses
replacement parts specified by the manufacturer, or those with the same characteristics and performance as the
original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
19. Safety checks—Upon completion of service or repair work, request the service technician to perform safety checks
to ensure that the product is in proper operating condition.
20. Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according
to the method recommended by the manufacturer.
21. Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and other heat- generating
products (including amplifiers).
22. Unplug the power cord from the AC outlet before installing the speakers.

E-4
Safety precautions
•Do not plug the power cord into an
outlet that is not firmly attached to
the wall, as this could cause
overheating and fire. Have an
authorized dealer or qualified
electrician replace the outlet.
CAUTION: Please read all of these instructions before you operate your Plasma Display TV
and save these instructions for later use.
•Plug the power cord in to the wall
outlet securely. Failure to plug in
completely could generate
excessive heat, or if dust has
gathered, cause hazardous electric
shock and fire. Touching plug pins
could also cause electric shock.
•Never touch the power cord plug
with wet hands, as this could cause
hazardous electric shock.
•Never pull the power cord too
strongly with your hands, as this
could damage the cord and cause
hazardous electric shock and fire.
•Never overload an outlet with too
many connections, as this could
cause hazardous electric shock
and fire.
•Heat sources—Keep the product
away from heat-generating sources
such as radiators, heaters, stoves
and amplifiers.
•When preparing to move the
product, detach all connected
cables. Failure to do so could
damage the power cord and cause
hazardous electric shock and fire.
•Avoid using the Plasma Display TV
in extremely humid or dusty
environments. Placing beside a
cooking appliance or humidifier
could cause hazardous electric
shock and fire.
•Stand—Do not place the product
on an unstable surface such as a
cart, stand, tripod or table, as this
could cause the product to fall over,
become damaged or injure
persons nearby. Take special care
when children are in the area. When
mounting the product on a wall, be
sure to follow the manufacture's
instructions. Use only the mounting
hardware recommended by the
manufacturer.
•Ventilation—The cabinet has
ventilation openings that should
never be blocked or covered.
Insufficient air circulation could
cause overheating and shorten
product life. Do not place on soft
surfaces (e.g. bed, sofa, rug), as
doing so could block ventilation
openings and cause internal parts
to overheat and catch fire.

E-5
Important User Guidance Information
In order to obtain maximum enjoyment from this SHARP PZ-50HV2/PZ-43HV2/PZ-MR2M/PZ-MR2X Plasma Display TV, please first read
this information carefully.
With the SHARP PZ-50HV2/PZ-43HV2/PZ-MR2M/PZ-MR2X, you can be assured of a high quality Plasma Display TV with long-life and high
reliability. To achieve images of exceptional quality, this SHARP Plasma Display TV incorporates state-of-the-art design and construction,
as well as very precise and highly advanced technology. On a total of nearly 3 million light cells, more than 99.999 percent of the cells
remain active.
Over the course of its lifetime, the luminosity of the SHARP PZ-50HV2/PZ-43HV2/PZ-MR2M/PZ-MR2X Plasma Display TV will diminish very
slowly, such as with all phosphor-based screens (for example, a traditional tube-type television). To enjoy beautiful and bright images on
your SHARP Plasma Display TV for a long time, please carefully read and follow the usage guidelines below:
Usage guidelines
All phosphor-based screens (including conventional tube-type televisions) can be affected by displaying static images for a prolonged
period. Plasma Display TVs are no exception to this rule. After-image and permanent effects on the screen can be avoided by taking some
basic precautions. By following the recommendations listed below, you can ensure longer and satisfactory results from your Plasma
Display TV.
•Whenever possible, avoid frequently displaying the same image or virtually still moving pictures (e.g. video game images which have
static portions). After playing a game, or displaying a PC image or any still image, it is best to view a normal moving picture in the
“Panorama”or “Full”screen setting for more than 3 times the length of the previous still moving image.
•Do not display Teletext for a prolonged period of time.
•Avoid viewing the On Screen Display for extended periods, from a HDTV tuner, DVD player, VCR and all other components.
•Do not leave the same picture freeze-framed or paused continuously over a long period of time, when using the still picture mode
from a TV, VCR, DVD player or any other component.
•Images which have both very bright areas and very dark areas side by side should not be displayed for a prolonged period of time.
•When displaying a game, the “GAME”mode setting within “AV MODE”is strongly recommended. However, please limit its use to less
than 2 hours at a time.
•After using the Plasma Display TV, make sure to switch the display to “STAND BY”mode or to turn off the power.
Installation guidelines
The SHARP PZ-50HV2/PZ-43HV2/PZ-MR2M/PZ-MR2X Plasma Display TV incorporates a very thin design. To ensure safety, please take
the proper measures to mount or install the Plasma Display, in order to prevent the unit from tipping over in the event of vibration or
accidental movement.
This product should be installed by using only parts and accessories designed by SHARP. Use of accessories other than the SHARP
stand or installation bracket may result in instability, and could cause injury. For custom installation, please consult the dealer where the
unit was purchased. To ensure correct installation, experienced and qualified experts must install the unit. SHARP will not be held responsible
for accident or damage caused by the use of parts and accessories manufactured by other companies.
To avoid malfunction and overheating, make sure that the vents on the main unit are not blocked when installing to ensure proper heat
emission:
•Distance the unit slightly from other equipment, walls, etc.
•Do not fit the unit inside narrow spaces where ventilation is poor.
•Do not cover with a cloth, etc.
•Clean the vents on the sides and rear of the unit to remove dust build-up, by using a vacuum cleaner set to its lowest suction setting.
Using the unit without proper ventilation may cause the internal temperature to rise, and could result in possible malfunction. When the
surrounding or internal temperature exceeds a certain degree, the display will automatically power off in order to cool the internal electronics
and prevent hazardous occurrences.
Any malfunction may occur due to: an inappropriate installation site, improper assembly, installation, mounting, or operation of this
product, modifications made to the product. However, SHARP cannot be held responsible for such accidents or malfunction.
A
•Typical effects and characteristics of a phosphor-based matrix display, e.g. permanent residual images upon the phosphor of the
panel, and the existence of a minute number of inactive light cells in the screen, are not covered by local warranties.
About the Plasma Display's protection function
The brightness of this display will deteriorate slightly when an image with little movement such as a photograph or computer image is
continuously displayed. This is caused by the Plasma Display protection function which detects images with slight movement and
automatically adjusts brightness to protect the display, and is not a malfunction.
This function begins operating when the display detects no or little screen movement for a period of about three minutes.
L
Plasma Display sticking and after-image lag
•Displaying the same images such as still images for a long time may cause after-image lagging. This may occur in the following two
cases.
1. After-image lagging due to remaining electrical load
When image patterns with very high peak luminance are displayed for more than 1 minute, after-image lagging may occur due to the
remaining electric load. The after-images remaining on the screen will disappear when moving images are displayed. The time for the
after-images to disappear depends on the luminance of the still images and the time they had been displayed.
2. After-image (lag image) due to burning
Avoid displaying the same image on the Plasma Display continuously over a long period of time. If the same image is displayed
continuously for several hours, or for shorter periods of time over several days, a permanent after-image may remain on the screen due
to burning of the fluorescent materials. Such images may become less noticeable if moving images are later displayed, but they will not
disappear completely.
•The Energy save function can be set to help prevent damage from screen burning. (See page 44 and 45.)

E-6
Features
•New WIDE XGA Plasma Panel
2,949,120 dots PZ-50HV2
2,359,296 dots PZ-43HV2
•Wide Viewing Angle
•SRS and FOCUS Sound System*1
•NICAM/IGR Stereo Sound
•Multi-System TV Tuner
•Built-in TELETEXT Function(TOP/FLOF/FASTEXT)
•Dual picture function. Still Image function.
•4-Language On Screen Display
•4 Video Input terminals and PC (XGA) Input
•2 Component Video Input terminals
•Child Lock System
•HDTV ready
AVC System
Power cord
Supplied accessories
*1SRS and the symbol are
trademarks of SRS Labs, Inc.
SRS technology is incorporated
under license from SRS Labs,
Inc.
*1FOCUS and the symbol are
trademarks of SRS Labs, Inc.
FOCUS technology is
incorporated under license from
SRS Labs, Inc.
(Only for Australia model) g2*
For Plasma Display, only use
Power cord that has attached
ferrite core.
Remote control unit
Two AA size batteries
(Alkaline battery)
(Only for south east Asia model) g2*
System cable
*AThe power cord for Plasma Display is supplied with AVC System.
Operation manual

E-7
Supplied Accessories
Cleaning cloth
Plasma Display
Four screws for set stand System cable clamp Five speaker cable clamps
Two screws for preventing the
system from falling over Stopper for set stand
Two speaker cables
Four speaker brackets
Four screws for speaker bracket Four screws for speaker bracket
Hexagon wrench
Speaker unit
Two speakers
Two spacers for speakers
AThe power cord for Plasma Display is supplied with AVC System.

E-8
Preparation
Installing the Plasma Display
Locating
•Avoid the direct sunlight. Keep enough ventilation.
•The length of the system cable used to connect the
Plasma Display and the AVC System is about 3 m.
•Because the Plasma Display is heavy, be sure to
move it by more than two persons.
L
•If you place anything on top of the AVC System it will not
receive enough ventilation and not operate properly.
A
•Keep enough space around the upper and back parts
when installing in order to ensure ventilation around the
backside.
L
Operating Environment
Operating environment temperature and humidity: 0°C–
e40°C; 20–80%RH (cooling vents not blocked)
Avoid installing in the following locations:
•Under direct exposure to sunlight,
•Under strong artificial light,
•In high humidity,
•Under poor ventilation.
Over
10 cm
Over
50 cm

E-9
Preparation
Attaching the Speakers
1Position the speaker brackets (upper and lower
parts) to the speaker, by firmly fastening the O
headed screws with a Oscrewdriver.
Speaker terminals are located on the lower part
of the speaker.
•The opening between the speaker parts and
Plasma Display can be filled with the spacer. Attach
the spacer to the speaker before positioning the
speaker brackets.
2Loosely fasten the Pheaded screw to the
upper part of the Plasma Display with the
hexagon wrench. Hook the speaker on the
screw.
3Loosely fasten the Pheaded screw to the lower
part of the Plasma Display with the hexagon
wrench.
4Adjust the position so there is no unnecessary
opening between the speaker and the Plasma
Display. Fasten firmly the screws which loosely
fastened in step 2 and 3 above.
Secure the other speaker by taking the same
steps.
L
•Do not apply force to the front grill net, nor put your fingers
into it.
•Using fittings other than the ones supplied, may cause
reduction in performance or malfunction of the speakers.
Use the supplied fittings to fix the speakers to the unit.
•Do not carry or move the display by holding the speakers.
Hold the bottom of the display when carrying.
A
•For details on the speaker cable connection and the cable
routing, see pages 11 and 12.
Speaker bracket (upper part)
Oheaded screw
Oheaded screw
Speaker terminal
Spacer
Speaker bracket
(lower part)
a
Attaching the right speaker
Grill net
Spacer
A
•Attach the spacer to the speaker along the grill
net.
Pheaded screw
Pheaded screw
Fasten the Pheaded
screws with the hexagon
wrench.

E-10
4
Securing the Plasma Display to the
wall
1Fasten the two supplied eyelet screws.
2Thread a suitable wire or rope through the eyelet
screws, and attach this to the wall at both sides.
Make sure that the Plasma Display is firmly
installed to the wall.
A
•The wire, rope and suitable fixings for these are available
commercially .
•The eyelet screws fit on different locations depending on
the Plasma Display screen size.
Preparation
2
1
1
Securing the Plasma Display to a desk
or floor
The unit can also be secured via the stand.
1Cover a desk with a suitable soft cloth, and place
the Plasma Display on its side.
2Attach the securing bracket as shown, using the
supplied screws.
3Stand the unit upright and place in position.
4Secure the unit to the desk or floor as shown in
the diagram, with suitable fixings (commercially
available).
2
1
Desk
(rear view)
Soft cloth
Securing bracket
Commercially
available
In the case of
PZ-50HV2
In the case of
PZ-43HV2
In the case of PZ-50HV2
In the case of PZ-43HV2

E-11
Red
Black
Black
Red
DISPLAY OUTPUT-2
RS-232C
AC INPUT
110V - 24OV
DISPLAY OUTPUT-1
YP
BPR
S-VIDEO VIDEO R-AUDIO-L
COMPONENT
INPUT 1
INPUT 2
YP
BPR
S-VIDEO
COMPONENT
VIDEO R-AUDIO-L
INPUT 3
MONITOR OUTPUT
ANT/CABLE 75ΩOUT
ANT
System cable
AVC System (rear view)
Power cord
Plasma Display (rear view)
Power cord
System cable
(bottom view)
(GRAY)
(WHITE)
(GRAY) (WHITE)
Connecting the system
1. Connecting the system cable, the power cord and the speaker cables to the Plasma Display
2. Connecting the system cable and the power cord to the AVC System
L
•TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE
POWER CORD CONNECTED.
Preparation
Speaker cables
(GRAYeGRAY with white stripe)
Speaker cable Speaker cable
As you apply pressure to this part,
insert the speaker cable. It is
important to match polarity when
connecting the speaker cables to the
terminals.
Insert the speaker cable
Lift up the snap clip.
Insert the wire into
the hole of the
connector.
Lower the snap clip
to grip the wire in
place.
A
•Two speaker cables of different lengths are supplied. As
shown in the diagram, connect the longer speaker cable
to the left speaker and the shorter to the right.

E-12
Preparation
As viewed from the rear of the display.
How to route cables
A system cable clamp and five speaker cable clamps are included with the system for cable management. Follow the
diagram below for correct cable management.
System cable
Wedge the power cord and the
system cable into the groove on the
stand.
Power cord
Speaker cable
Stick the speaker cable clamps
(2–4) to the surface as shown.
System cable clamp
Speaker cable clamp
Speaker cable clamp
System cable
System cable clamp

E-13
Preparation
+
+
__
Using the remote control unit
Use the remote control unit by pointing it towards the remote sensor window.
Objects between the remote control unit and sensor window may prevent proper
operation.
Cautions regarding remote control unit
•Do not expose the remote control unit to shock. In addition, do not expose the
remote control unit to liquids, and do not place in an area with high humidity.
•Do not install or place the remote control unit under direct sunlight. The heat
may cause deformation of the unit.
•The remote control unit may not work properly if the remote sensor window of
the Plasma Display is under direct sunlight or strong lighting. In such case,
change the angle of the lighting or Plasma Display set, or operate the remote
control unit closer to the remote sensor window.
Inserting the batteries
If the remote control unit fails to operate Plasma Display TV functions, replace
the batteries in the remote control unit.
1Open the battery cover. 2Insert batteries (two AA size
batteries, supplied with product).
•Place batteries with their terminals
corresponding to the (e) and (f)
indicators in the battery compartment.
3Close the battery cover.
Cautions regarding batteries
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
•Do not use manganese batteries. When you replace the batteries, use alkaline ones.
•Place the batteries with their terminals corresponding to the (e) and (f) indicators.
•Do not mix batteries of different types. Different types of batteries have different characteristics.
•Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause
chemical leakage in old batteries.
•Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you
find any chemical leakage, wipe thoroughly with a cloth.
•The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
•If you used the remote control unit for an extended period of time, remove the batteries from it.
L
•WHEN DISPOSING OF USED BATTERIES, PLEASE COMPLY WITH GOVERNMENTAL REGULATIONS OR
ENVIRONMENTAL PUBLIC INSTRUCTION RULES THAT APPLY IN YOUR COUNTRY/AREA.

E-14
Product descriptions
INPUT VOLPOWERMAIN POWER CHⴑⴐ
MAIN POWER button
STANDBY/ON indicator
POWER button
INPUT button
VOLUME l/kbuttons
CHANNEL s/ rbuttons
Remote control sensor
Plasma Display

E-15
DISPLAY OUTPUT-2
RS-232C
AC INPUT
110V - 240V
DISPLAY OUTPUT-1
YP
B P R
S-VIDEO VIDEO R-AUDIO-L
COMPONENT
INPUT 1
INPUT 2
YP
B P R
S-VIDEO
COMPONENT
VIDEO R-AUDIO-L
INPUT 3
MONITOR OUTPUT
ANT/CABLE 75ΩOUT
ANT
Front view
INPUT 2 terminal
(VIDEO)
INPUT 3 terminal
(S-VIDEO)
INPUT 2 terminals
(AUDIO)
MONITOR OUTPUT terminal (S-VIDEO)
DISPLAY OUTPUT-1
terminal
AC INPUT terminal
CLEAR button*
POWER button
RS-232C terminal
INPUT 4 terminal (S-VIDEO)
INPUT 4 terminal (VIDEO)
PC INPUT terminal
(AUDIO) INPUT 4 terminals (AUDIO)
INPUT 3 terminal
(VIDEO)
MONITOR OUTPUT terminal (VIDEO)
PC INPUT terminal (ANALOG RGB)
* If the AVC System is switched on but it does not appear to be operating correctly, it may need resetting. In this
case press CLEAR on the front of the unit as shown in the diagram. Press CLEAR lightly with the end of a
ballpoint pen or other pointed object.
This will reset the System as shown below.
•AV MODE resets to STANDARD
•TV channel resets to channel 1
•Dual screen resets to normal
•Audio setting initialises
•SRS resets to Off
•Image position is initialised
A
•Pressing CLEAR will not work if the System is in standby mode (indicator lights red).
•Pressing CLEAR will not delete channel preset or password. See Page 60 for initialising factory preset settings when you
know your password. See Page 71 for initialising factory preset values when you have forgotten your password.
Rear view
ANTENNA INPUT
terminal
Product descriptions
AVC System
STANDBY/ON indicator
DISPLAY OUTPUT-2 terminal
Door knob
(How to open the door)
INPUT 3 COMPONENT
VIDEO terminals (Y, PB, PR)INPUT 3 terminals
(AUDIO)
INPUT 1 terminal
(S-VIDEO)
INPUT 1 terminal
(VIDEO)
INPUT 1 COMPONENT
VIDEO terminals (Y, PB, PR)
INPUT 1 terminals
(AUDIO)
MONITOR OUTPUT terminals (AUDIO) INPUT 2 terminal (S-VIDEO)

E-16
Product descriptions
1B(STANDBY/ON)
To switch the power on and off.
2du (FREEZE/HOLD for TELETEXT)
TV/External input mode: Change the still image mode.
TELETEXT mode: Freeze a multi-page on screen while other
pages are automatically updated. Press d again to return to
the normal image.
3c(DUAL screen)
Set the dual picture mode. Press c again to return to normal view.
4fv (WIDE MODE/ T/B/F)*
TV/External input mode: Change the wide image mode.
TELETEXT mode: Set the area of magnification. (full/upper half/
lower half)
5 AV MODE*
Select a video setting. AV MODE (STANDARD, DYNAMIC, MOVIE,
GAME, USER) PC MODE (STANDARD, USER)
6 SOUND
Select the sound multiplex mode.
7h(SRS and FOCUS)
Select SRS and FOCUS Sound System.
8A(FLASHBACK)
Press to return to the previous channel in normal viewing mode.
Press to return to the previous page in TELETEXT mode.
9il/ik(VOLUME)*
Set the volume.
10 k(Reveal hidden for TELETEXT)
TELETEXT mode: Display hidden characters.
11 j(SUBPAGE for TELETEXT)
TELETEXT mode: Change the picture mode for sub-page selecting.
12 MENU
Display the Menu screen.
13 C(CHANNEL INFORMATION)
Display the channel information and time. (See page 65 for details
on the time display.)
14 b(INPUT SOURCE)
Select an input source. (TV, INPUT 1, INPUT 2, INPUT 3, INPUT 4,
PC)
15 SLEEP
Set the SLEEP TIMER.
16 e(MUTE)
Mute the sound.
17 0 –9
TV/External input mode: Set the channel.
TELETEXT mode: Set the page.
18 o(Digit for channel select)
Change the digits of the selected TV channel.
19 Colour (RED/GREEN/YELLOW/BLUE)
TELETEXT mode: Select a page.
20 CHa/CHb(w/x)
TV/External input mode: Select the channel.
TELETEXT mode: Set the page.
21 l(TOP Overview for TELETEXT)
TELETEXT mode: Display an index page for CEEFAX/FLOF
information. TOP OVER VIEW for TOP programme.
22 m(TELETEXT)
Select the TELETEXT mode. (all TV image, all TEXT image, TV/TEXT
image)
23 RETURN
MENU mode: Return to the previous menu screen.
24 ENTER
Execute a command.
Return to the initial image position after moving with a/b/c/d.
25 a/b/c/d(Cursor)
Select a desired item on the setting screen.
Move the picture on the screen.
1
2
3
4
5
6
7
8
9
10
11
12
14
15
13
16
17
18
19
20
21
22
23
24
25
Remote control unit
A
•When using the remote control unit, point it
at the Plasma Display.
*“TV”, “INPUT1”, “INPUT2”, “INPUT3”,
“INPUT4”and “PC”modes can each store
the WIDE mode setting separately.
The same for AV mode and volume.

E-17
Watching TV
ANT
OUT
DISPLAY OUTPUT-2
RS-232C
AC INPUT
110V - 24OV
DISPLAY OUTPUT-1
YP
B P R
S-VIDEO VIDEO R-AUDIO-L
COMPONENT
INPUT 1
INPUT 2
YP
B P R
S-VIDEO
COMPONENT
VIDEO R-AUDIO-L
INPUT 3
MONITOR OUTPUT
ANT/CABLE 75Ω
ANT
DISPLAY OUTPUT-2
RS-232C
AC INPUT
110V - 24OV
DISPLAY OUTPUT-1
YP
B P R
S-VIDEO VIDEO R-AUDIO-L
COMPONENT
INPUT 1
INPUT 2
YP
B P R
S-VIDEO
COMPONENT
VIDEO R-AUDIO-L
INPUT 3
MONITOR OUTPUT
ANT/CABLE 75ΩOUT
ANT
Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round
cable) (commercially available)
Simple operations for watching a TV programme
Basic connection
Connecting an antenna
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections
that are used for coaxial cable.
Antenna cables-commercially available
If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325
plug (IEC 169-2), plug it into the antenna terminal at the rear of the AVC System.
Connecting the power cord
Plug in the power cord after all components have been properly connected.
Plasma Display (bottom view)
AVC Sysytem (rear view)
A
• Always turn off the main power of Plasma Display and AVC Sysytem when connecting the power cords.
• Disconnect the power cords from the power outlet, Plasma Display and AVC Sysytem when the TV is not going to be
used long period of time.
Plug in to wall outlet
Plug in to wall outlet

E-18
INPUT VOL CH
POWER
MAIN POWER
Watching TV
Plasma Display
AVC System
Off
Flashing red
Red
Green
Plasma Display status indicators
Power off
AVC System does not turn on or its power cord is disconnected.
The Plasma Display TV is in standby mode.
The Plasma Display TV turns the power on.
AVC System status indicators
Power off
Only the AVC System is in standby mode or the Plasma Display TV is in standby mode.
The Plasma Display TV turns the power on.
STANDBY/ON indicator
Turning on the power
1Press MAIN POWER on the Plasma Display.
•The STANDBY/ON indicator on the Plasma Display
flashes red.
2Press POWER on the AVC System.
•The System turns the power on.
•The STANDBY/ON indicator on the Plasma Display
lights up green and the one on the AVC System lights
up green.
•If the STANDBY/ON indicators still light up red, press
BB
BB
Bon the remote control unit or POWER on the Plasma
Display to turn the System on.
First time turning on the AVC System
1Press POWER on the AVC System.
•The STANDBY/ON indicator on the AVC System lights
up red.
2Press MAIN POWER on the Plasma Display.
•The System turns the power on.
•The STANDBY/ON indicator on the Plasma Display
lights up green and the one on the AVC System lights
up green.
•If the STANDBY/ON indicators still light up red, press
B B
B B
B on the remote control unit or POWER on the Plasma
Display to turn the System on.
A
•In this manual, “System”means the Plasma Display and AVC
System.
Turning off the power
1Press BB
BB
Bon the remote control unit or POWER on
the Plasma Display.
•The System enters standby mode and the image on
the screen disappears.
•Both STANDBY/ON indicators change from green to
red.
2Press POWER on the AVC System.
•The STANDBY/ON indicator on the AVC System turns
off and the one on the Plasma Display flashes red.
3Press MAIN POWER on the Plasma Display.
•The STANDBY/ON indicator on the Plasma Display
turns off after approximately 5 seconds.
A
•If you are not going to use this System for a long time, be sure to
remove the power cords from the power outlet.
Off
Red
Green
STANDBY/ON indicator
POWER
MAIN POWER
POWER

E-19
Watching TV
Language menu 1. Setting a language
1Press a/bto select the desired language listed
on the screen.
2Press ENTER to enter the setting.
2. Automatic channel searching
Channel auto search makes the Plasma Display TV
look for all channels viewable in your country or area.
A
•If no channel is found, “No programme found. Is antenna
connected properly?”displays. And the auto installation
is finished.
•If you want to try auto installation again, see page 27.
3. Automatic channel labelling
After finding TV channels, the Plasma Display TV starts
naming each TV channel found.
A
•The TV can only name channels labelling information. If
no information is available, the TV displays “-----”.
•Cancel the setting by pressing RETURN and the TV
automatically returns to the status before programme auto
search.
4. Automatic channel sorting
When channel auto labelling finishes, the Plasma
Display TV starts sorting the labelled channels.
A
•Cancel the setting by pressing RETURN. The TV
automatically returns to the status before programme auto
search.
Initial auto installation
When the Plasma Display TV powers on for the first time after purchase, the initial auto installation is invoked.
You can automatically set language, country and channels in successive operations.
English
Español
Português
Auto Installation-Language
Searching TV channels
Auto Installation - Programme Setup “Auto”
01
02
55.25
85.25
03 102.25
04
05
06
07
08
09
10
11
142.25
148.25
Labelling TV channels
Auto Installation - Programme Setup “Auto”
01
02
SAT.1
PRO7
03 KABEL
136.25
130.25
04
05
06
07
08
09
10 142.25
11 148.25
12 155.25
Auto Installation - Programme Setup “Auto”
01
02
SAT.1
PRO7
03 KABEL
QVC
VOX
04
05
06
07
08
09
10 -----
11 -----
12 -----
Sorting TV channels
