Sharp PZ-50HV2U User manual

PZ-50HV2, PZ-50HV2E
PZ-50HV2U
SERVICE MANUAL
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored
to its original condition and only parts identical to those specified should be used.
CONTENTS
Page
PLASMA DISPLAY TV
(PANEL UNIT)
PZ-50HV2
PZ-50HV2E
PZ-50HV2U
MODELS
»IMPORTANT SERVICE SAFETY PRECAUTION ... 2
»SPECIFICATIONS .................................................. 4
»SAFETY INFORMATION ........................................ 5

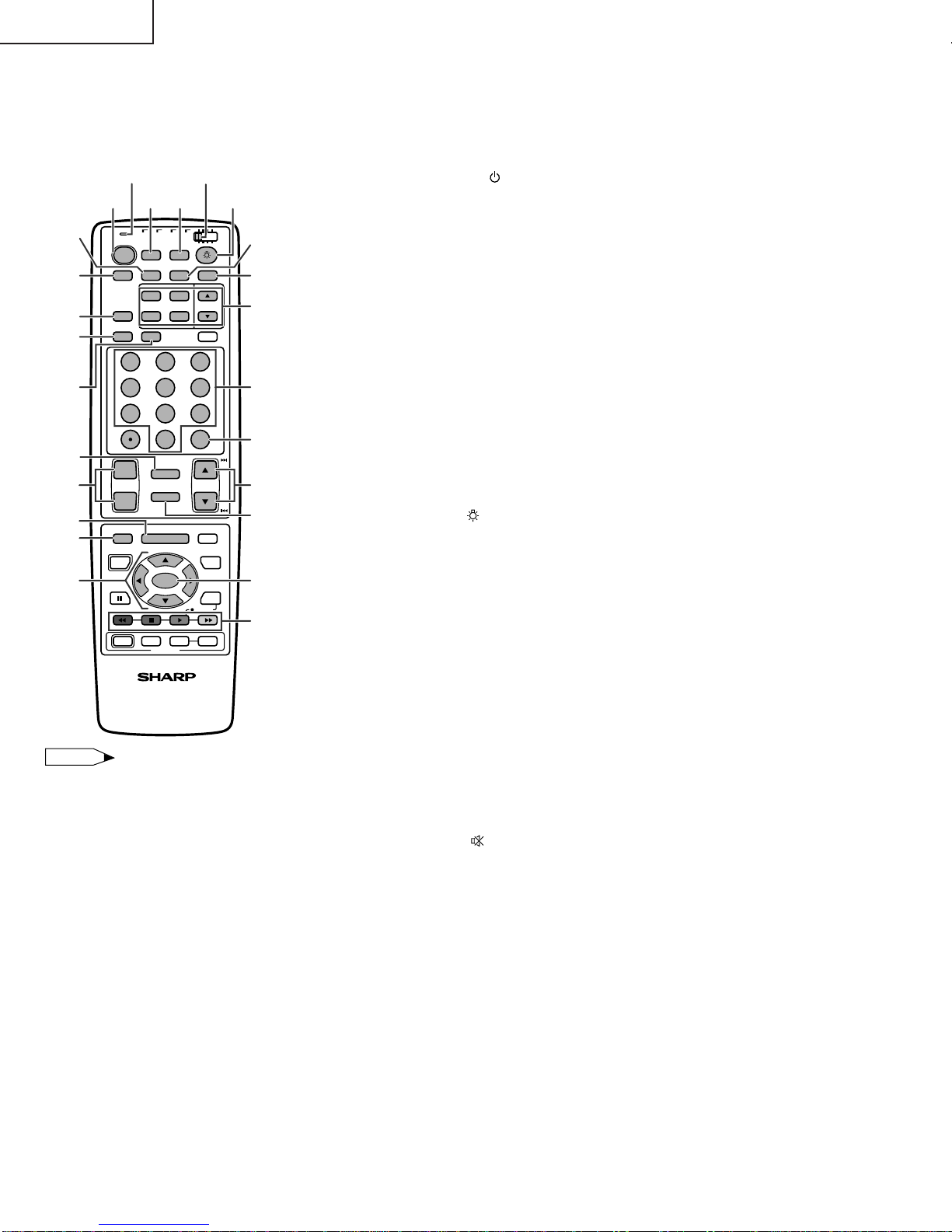

»OPERATION MANUAL ........................................... 8
»DIMENSIONS ....................................................... 11

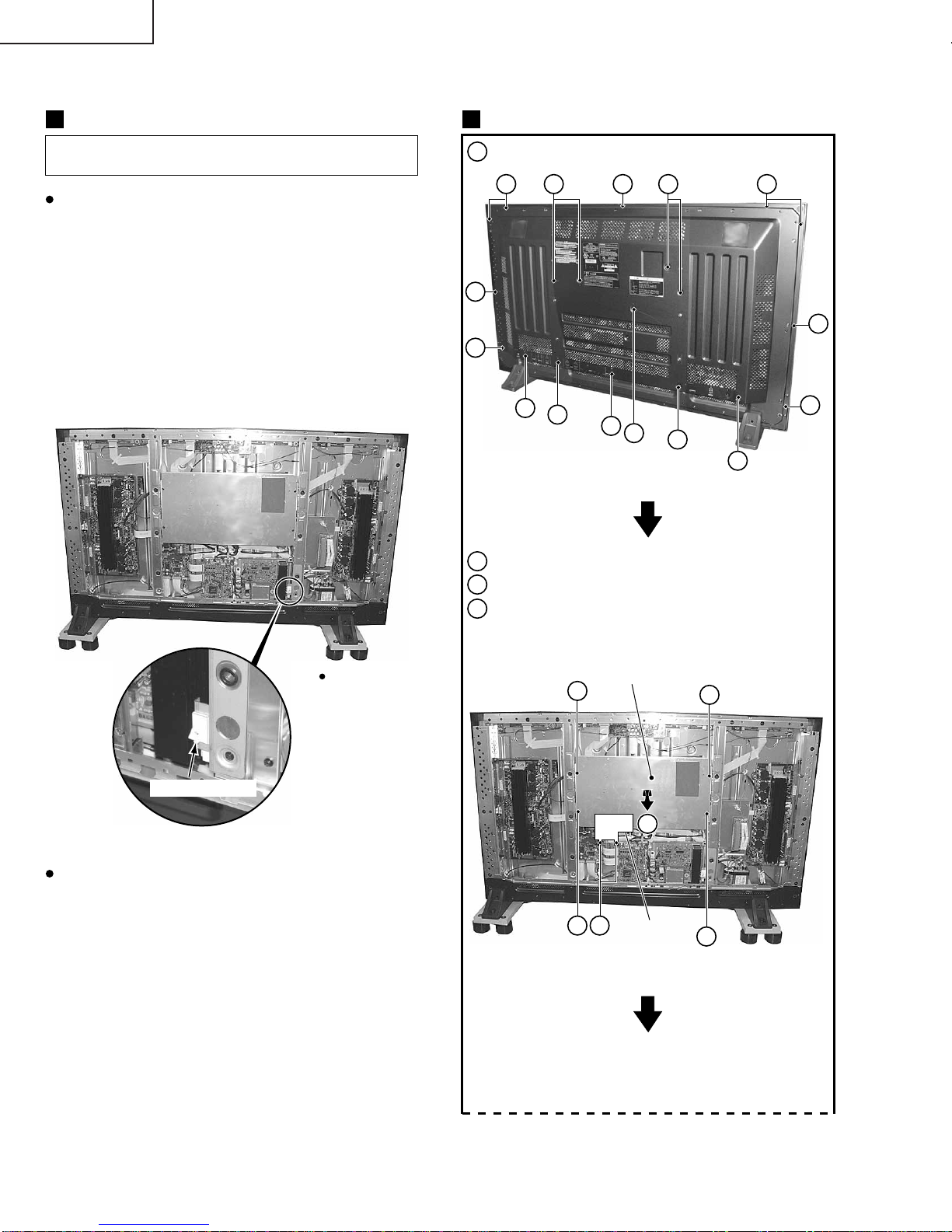

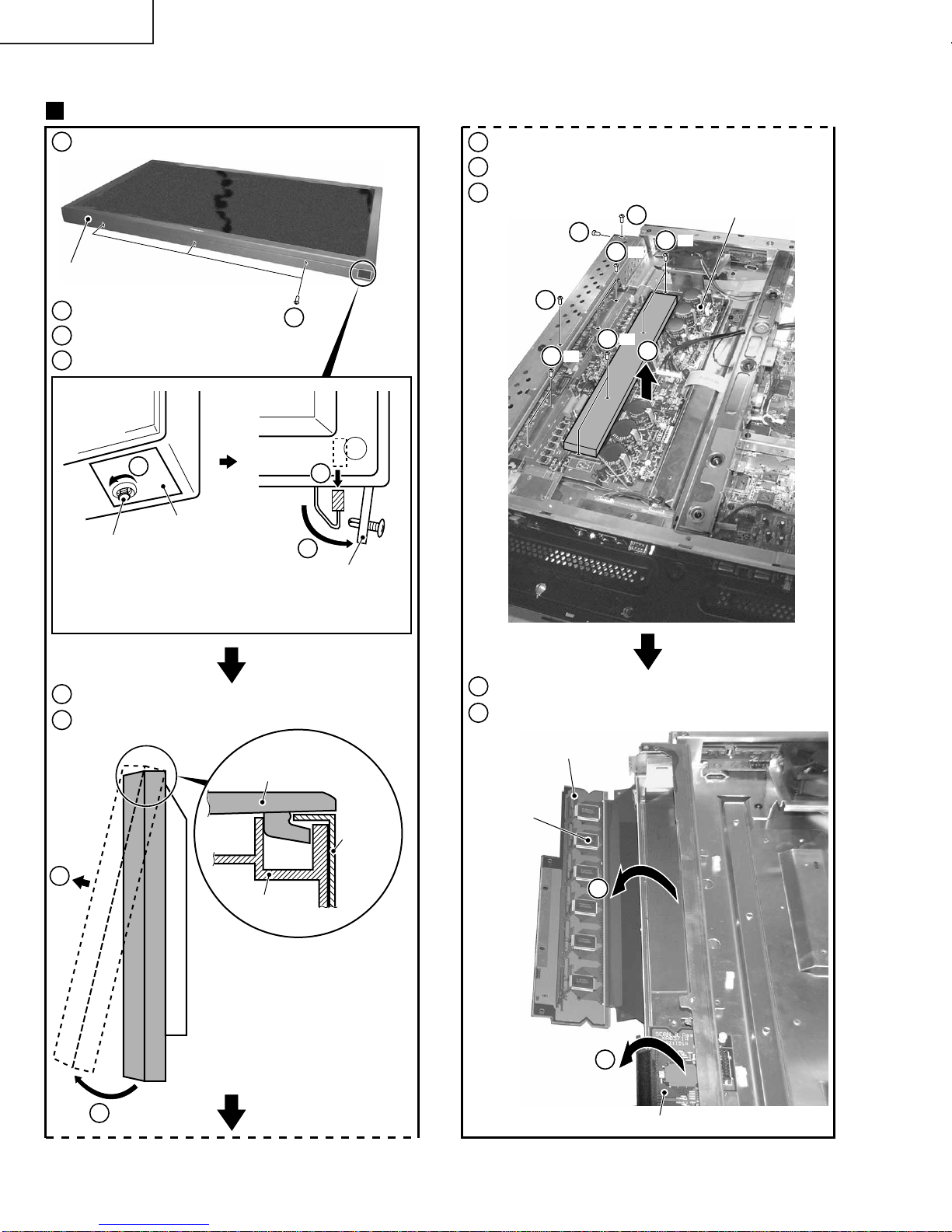

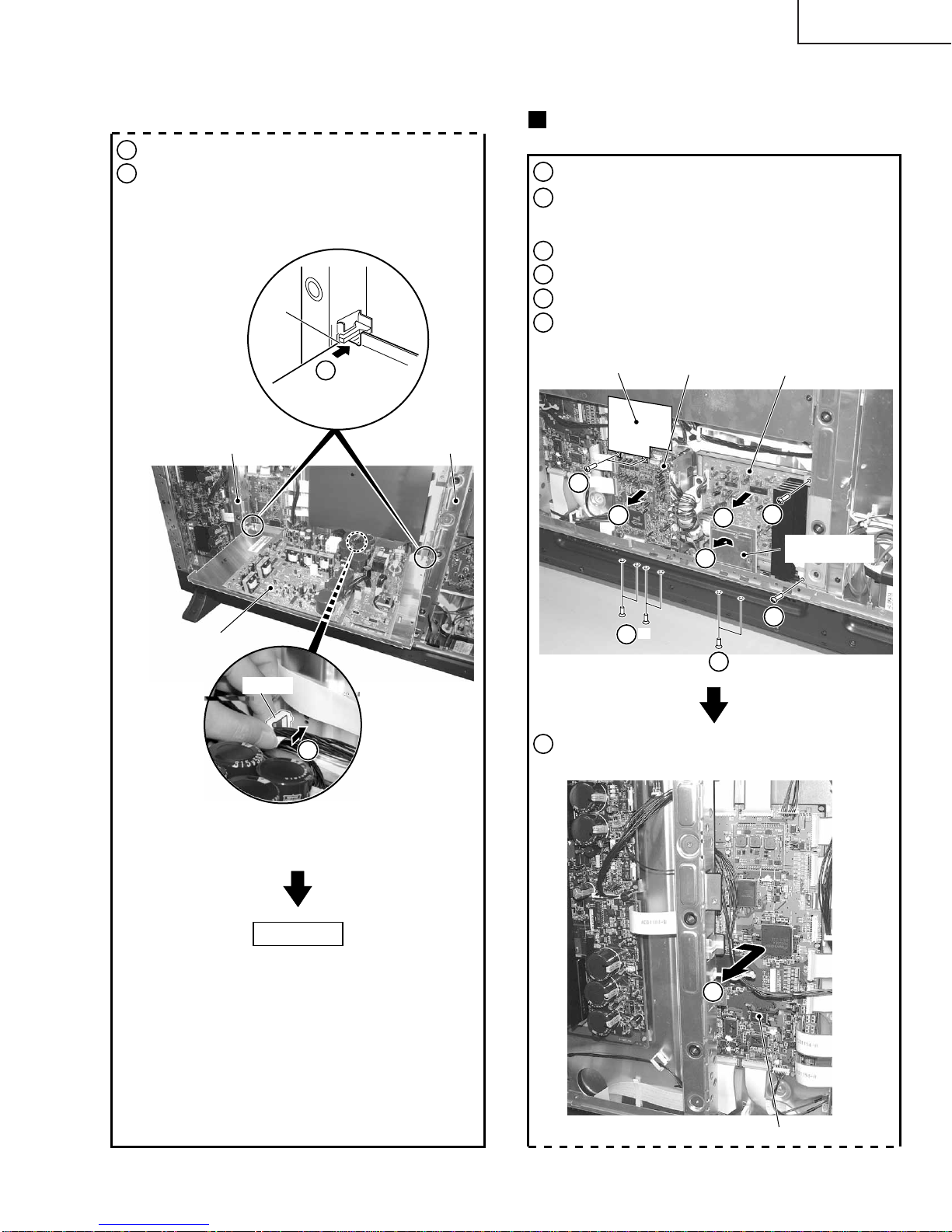

»REMOVING OF MAJOR PARTS .......................... 12
»ADJUSTMENT PROCEDURES ........................... 16
»TROUBLE DIAGNOSIS ........................................ 35
»CHASSIS LAYOUT ............................................... 42
»DESCRIPTION OF MAJOR IC FUNCTIONS ....... 43
»BLOCK DIAGRAM ................................................ 62
»OVERALL WIRING DIAGRAM ............................. 74
»WAVEFORMS....................................................... 78
»SCHEMATIC DIAGRAM ....................................... 82
»PRINTED WIRING BOARD ASSEMBLIES ........ 178
»PARTS LIST
ËELECTRICAL PARTS ..................................... 204
ËCABINET AND MECHANICAL PARTS .......... 231
ËPACKING PARTS ........................................... 253
»PACKING OF THE SET...................................... 254
»SPEAKER SYSTEMS......................................... 255
Page
SHARP CORPORATION This document has been published to be used for after
sales service only.
The contents are subject to change without notice.
SY2U9PZ50HV2E

2
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
SAFETY NOTICE
Many electrical and mechanical parts in television have
special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage and etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by “ å”
and shaded areas in the Replacement Parts List and
Schematic Diagrams.
For continued protection, replacement parts must be
identical to those used in the original circuit.
The use of a substitute replacement parts which do not
have the same safety characteristics as the factory
recommended replacement parts shown in this service
manual, may create shock, fire or other hazards.
CAUTION: FOR CONTINUED PROTECTION
AGAINSTA RISK OF FIRE REPLACE ONLY WITH
SAME TYPE FUSE. 9GJAEK1071(10A/400V): PZ-
50HV2E, 9GJAEK1069 (10A/125V): PZ-50HV2U
FUSE.
WARNING
1. For continued safety, no modification of any circuit
should be attempted.
2. Disconnect AC power before servicing.
BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)
Before returning the receiver to the user, perform
the following safety checks:
1. Inspect all lead dress to make certain that leads are
not pinched, and check that hardware is not lodged
between the chassis and other metal parts in the
receiver.
2. Inspect all protective devices such as non-metallic
control knobs, insulation materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacitor networks, mechanical
insulators and etc.

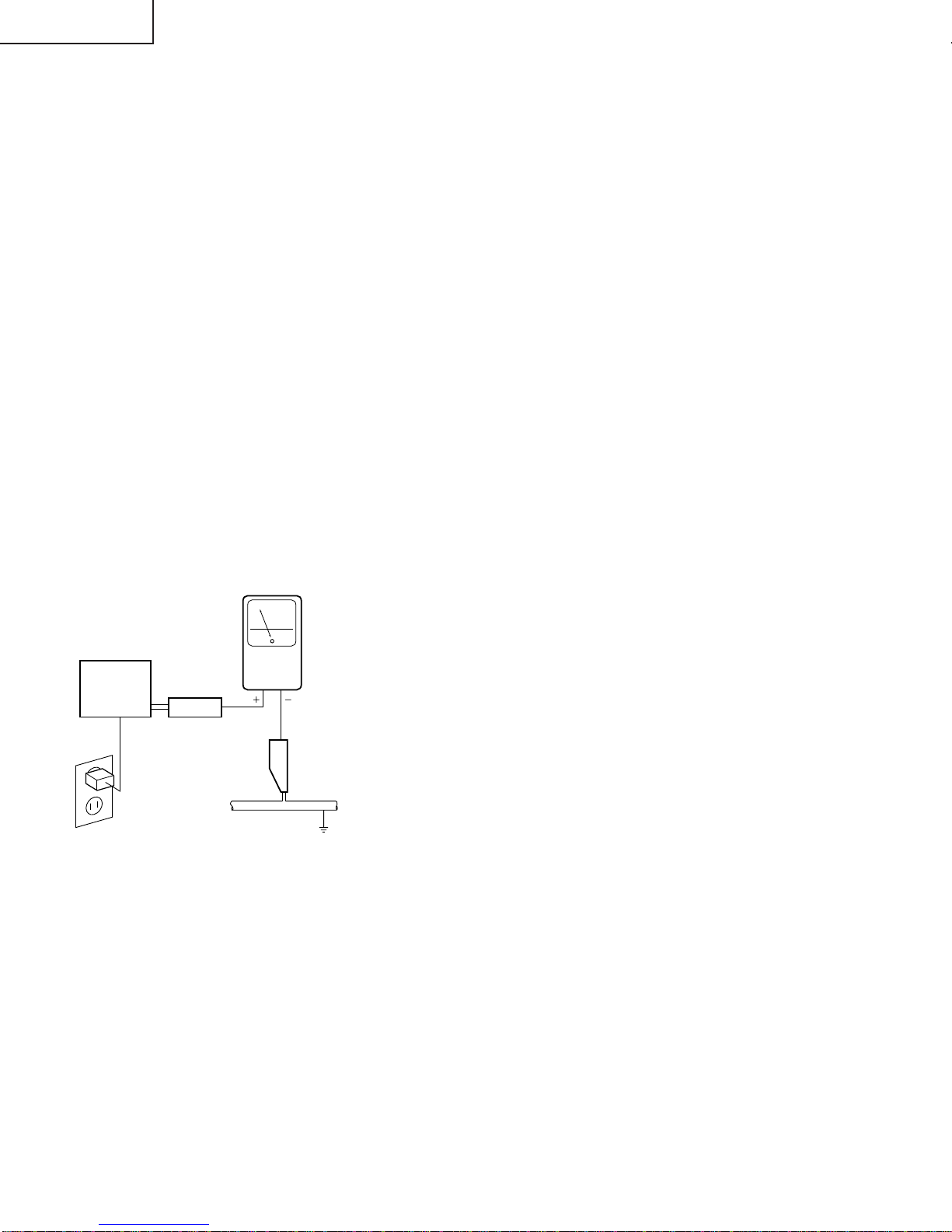

3. To be sure that no shock hazard exists, check for
leakage current in the following manner.
»Plug theAC cord directly into a 110~240 voltAC outlet,
and connect the DC power cable into the receiver's
DC jack. (Do not use an isolation transformer for this
test).
»Using two clip leads, connect a 1.5k ohm, 10 watt
resistor paralleled by a 0.15µF capacitor in series
with all exposed metal cabinet parts and a known
earth ground, such as electrical conduit or electrical
ground connected to an earth ground.
»Use anAC voltmeter having with 5000 ohm per volt,
or higher, sensitivity or measure theAC voltage drop
across the resisor.
»Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon and etc.) and measure the AC voltage
drop across the resistor.
All checks must be repeated with the AC cord plug
connection reversed. (If necessary, a nonpolarized
adaptor plug must be used only for the purpose of
completing these checks.)
Any reading of 35V peak (this corresponds to 0.7
milliamp. peak AC.) or more is excessive and
indicates a potential shock hazard which must be
corrected before returning the monitor to the owner.
TO EXPOSED
METAL PARTS CONNECT TO
KNOWN EARTH
GROUND
IMPORTANT SERVICE SAFETY PRECAUTION
ËService work should be perfomed only by qualified service technicians who are thor-
oughly familiar with all safety checks and the servicing guidelines which follow:
DVM
AC SCALE
1.5k ohms.
10W
0.15 µF
TEST PROBE

3
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
PRECAUTION :POURLAPROTECTION CONTINUE
CONTRELESRISQUESD'INCENDIE,REMPLACER
LE FUSIBLE PAR UN FUSIBLE DE MEME TYPE
9GJAEK1071(10A/400V): PZ-50HV2E, 9GJAEK1069
(10A/125V): PZ-50HV2U.
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
AVIS POUR LA SECURITE
De nombreuses pièces, électriques et mécaniques, dans
les téléviseurs présentent des caractéristiques spéciales
relatives àla sécurité, qui ne sont souvent pas évidentes
àvue. Le degréde protection ne peut pas être
nécessairement augmentée en utilisant des pièces de
remplacement étalonnées pour haute tension,
puissance, etc.
Les pièces de remplacement qui présentent ces
caractéristiques sont identifiées dans ce manuel; les
pièces électriques qui présentent ces particularités sont

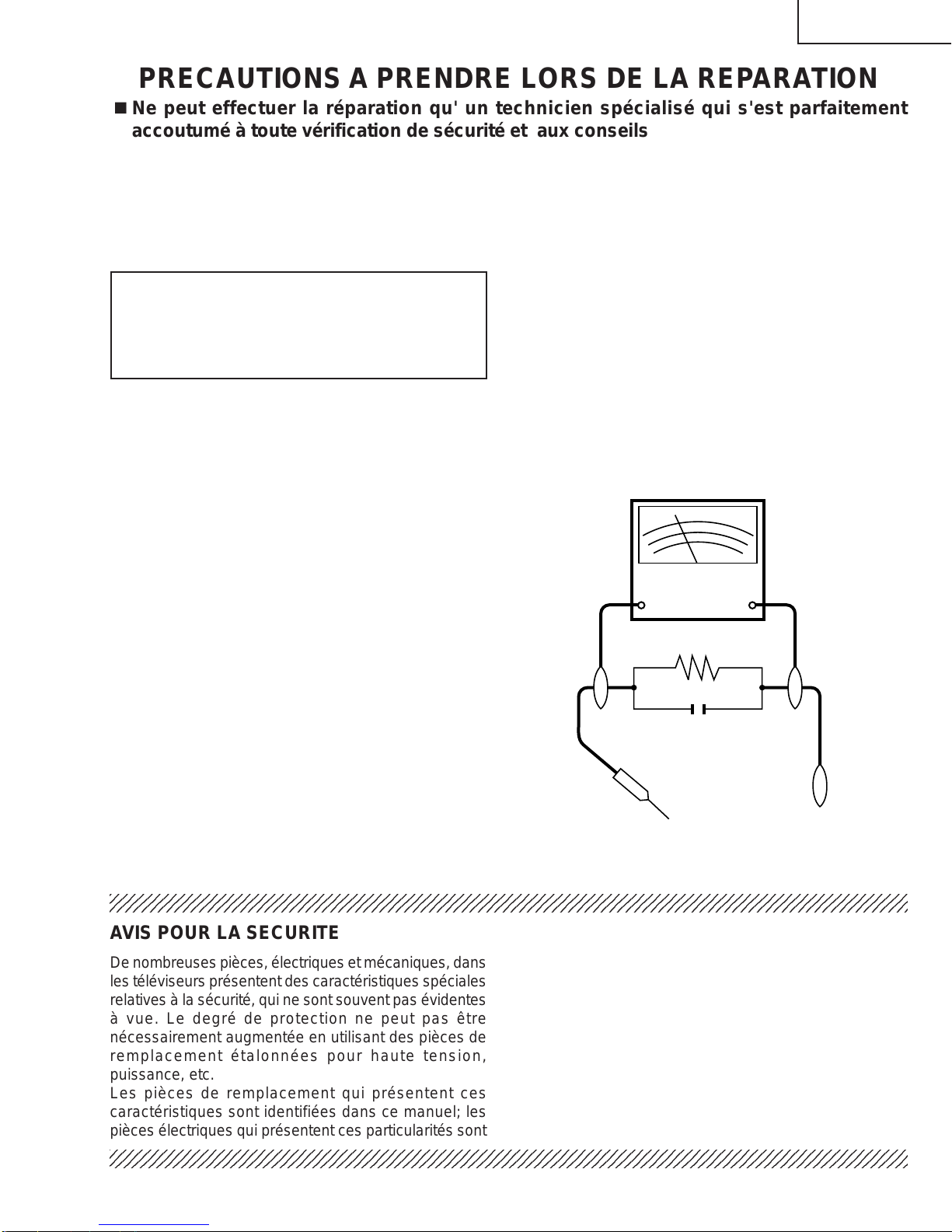

PRECAUTIONS A PRENDRE LORS DE LA REPARATION
ËNe peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement
accoutumé à toute vérification de sécurité et aux conseils suivants.
identifiées par la marque " å" et hachurées dans la
liste des pièces de remplacement et les diagrammes
schématiques.
Pour assurer la protection, ces pièces doivent être
identiques àcelles utilisées dans le circuit d'origine.
L'utilisation de pièces qui n'ont pas les mêmes
caractéristiques que les pièces recommandées par
l'usine, indiquées dans ce manuel, peut provoquer des
électrocutions, incendies, radiations X ou autres
accidents.
AVERTISSEMENT
1. N'entreprendre aucune modification de tout circuit.
C'est dangereux.
2. Débrancher le récepteur avant toute réparation.
VERIFICATIONS CONTRE L'INCEN-DIE ET
LE CHOC ELECTRIQUE
Avant de rendre le récepteur à l'utilisateur, effectuer
les vérifications suivantes.
1. Inspecter tous les faisceaux de câbles pour s'assurer
que les fils ne soient pas pincés ou qu'un outil ne soit
pas placéentre le châssis et les autres pièces
métalliques du récepteur.
2. Inspecter tous les dispositifs de protection comme les
boutons de commande non-métalliques, les isolants,
ledos du coffret,les couverclesoublindages de réglage
et de compartiment, les réseaux de résistance-
capacité, les isolateurs mécaniques, etc.
3. S'assurer qu'il n'y ait pas de danger d'électrocution en
vérifiant la fuite de courant, de la facon suivante:
•Brancher le cordon d'alimentation directem-ent àune
prise de courant de 110-240V. (Ne pas utiliser de
transformateur d'isolation pour cet essai).
•Al'aide de deux fils àpinces, brancher une résistance
de 1.5 kΩ10 watts en parallèle avec un condensateur
de 0,15µF en série avec toutes les pièces métalliques
exposées du coffret et une terre connue comme une
conduite électrique ou une prise de terre branchée à
la terre.
•Utiliser un voltmètre CA d'une sensibilitéd'au moins
5000Ω/V pour mesurer la chute de tension en travers
de la résistance.
•Toucher avec la sonde d'essai les pièces métalliques
exposées qui présentent une voie de retour au châssis
(antenne, coffret métallique, tête des vis, arbres de
commande et des boutons, écusson, etc.) et mesurer
la chute de tension CA en-travers de la résistance.
Toutes les vérifications doivent être refaites après avoir
inversélafichedu cordond'alimentation.(Sinécessaire,
une prise d'adpatation non polarisée peut être utilisée
dans le but de terminer ces vérifications.)
Tous les courants mesurés ne doivent pas dépasser
0,5 mA.
Dans le cas contraire, il y a une possibilitéde choc
électrique qui doit être supprimée avant de rendre le
récepteur au client.
VTVM
ECHELLE CA
1.5k ohm
10W
0.15 µF
SONDE D'ESSAI
AUX PIECES
METALLIQUES
EXPOSEES
BRANCHER A UNE
TERRE CONNUE

4
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
SPECIFICATIONS
Item
Number of Pixels
Audio Amplifier
Surround System
Power requirement
Dimensions
Weight
Accessories
50" Plasma Display TV (Panel Unit),
Model: PZ-50HV2E
2,949,120 dots
12 W + 12 W (10 % distortion)
—
AC 220-240V, 50/60 Hz, 356W
(0.8 W Standby)
1436 (W) ×826 (H) ×428 (D) mm
(with set stand and speakers)
52.0 kg (with set stand and speakers)
Power cord, Cleaning cloth, Two screws for
preventing the System from falling over, Set
stand securing bracket, Four screws for set stand
securing bracket, System cable clamp, Five
speaker cable clamps, Four speaker brackets,
Hexagon wrench, Two speaker cables, Two kinds
of screws for speaker brackets, Two speakers,
Two spacers for speakers
50" Plasma Display TV (Panel Unit),
Model: PZ-50HV2U
2,949,120 dots
12 W + 12 W (10 % distortion)
SRS/FOCUS/SRS + FOCUS
110-240V AC, 50/60 Hz, 371W
(0.8 W Standby)
1436(W) ×826 (H) ×428 (D) mm
(with set stand and speakers)
(56 9/16 (W) ×32 17/32 (H) ×16 7/8 (D) inch)
52 kg (114.6 lbs.)
(with set stand and speakers)
Power cord, Cleaning cloth, Two screws for
preventing the System from falling over, Stopper
for set stand, Four screws for set stand, System
cable clamp, Five speaker cable clamps, Four
speaker brackets, Hexagon wrench, Two speaker
cables, Two kinds of four screws for speaker
bracket, Two spacers for speakers, Two speakers

5
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
SAFETY INFORMATION
This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause
cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PWB indicate that replacement parts must
be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces
de remplacement doivent avoir la même désignation.
SAFETY PRECAUTIONS
NOTICE :Comply with all cautions and safety related notes
located on or inside the cabinet and on the chassis.
The following precautions should be observed :
1. When service is required, even though the PDP UNIT an
isolation transformer should be inserted between the power
line and the set in safety before any service is performed.
2.When replacing a chassis in the set, all the protective
devices must be put back in place, such as barriers,
nonmetallic knobs, adjustment and compartment
covershields, isolation resistor-capacitor, etc.
3. When service is required, observe the original lead dress.
Extra precaution should be taken to assure correct lead
dress in the high voltage circuitry area.
4. Always use the manufacture's replacement components.
Especially critical components as indicated on the circuit
diagram should not be replaced by other manufacture's.
Furthermore where a short circuit has occurred, replace
those components that indicate evidence of overheating.
5. Before returning a serviced set to the customer, the service
technician must thoroughly test the unit to be certain that it
is completely safe to operate without danger of electrical
shock, and be sure that no protective device built into the
set by the manufacture has become defective, or
inadvertently defeated during servicing. Therefore, the
following checks should be performed for the continued
protection of the customer and service technician.
6. Perform the following precautions against unwanted
radiation and rise in internal temperature.
• Always return the internal wiring to the original styling.
• Attach parts (Gascket, Ferrite Core, Ground, Rear Cover,
Shield Case etc.) surely after disassembly.
7. Perform the following precautions for the PDP panel.
• When the front case is removed, make sure nothing hits
the panel face, panel corner, and panel edge (so that the
glass does not break).
• Make sure that the panel vent does not break. (Check
that the cover is attached.)
• Handle the FPC connected to the panel carefully.
Twisting or pulling the FPC when connecting it to the
connector will cause it to peel off from the panel.
8. Pay attention to the following.
• Be sure to wire the fan. If the fan does not work, the
temperature will rise and cause the protection circuit to
operate.
• When the front case is removed, infrared ray is radiated
and may disturb reception of the remote control unit.
• Pay extreme caution when the front case and rear panel
are removed because this may cause a high risk of
disturbance to TVs and radios in the surrounding.

6
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
Leakage Current Cold Check
With the AC plug removed from an AC power source, place
a jumper across the two plug prongs. Turn the AC power
switch on. Using an insulation tester (DC 500V), connect one
lead to the jumpered AC plug and touch the other lead to each
exposed metal part (input/output terminals, screwheads,
metal overlays, control shafts, etc.), particularly any exposed
metal part having a return path to the chassis. Exposed metal
parts having a return path to the chassis should have a
minimum resistor reading of 0.3MΩand a maximum resistor
reading of 5MΩ. Any resistor value below or above this range
indicates an abnormality which requires corrective action.
Exposed metal parts not having a return path to the chassis
will indicate an open circuit.
Leakage Current Hot Check
Plug the AC line cord directly into an AC power source (do not
use an isolation transformer for this check).
Turn the AC power switch on.
Using a "Leakage Current Tester (Simpson Model 229
equivalent)", measure for current from all exposed metal
parts of the cabinet (input/output terminals, screwheads,
metal overlays, control shaft, etc.), particularly any exposed
metal part having a return path to the chassis, to a known
earthground(waterpipe,conduit,etc.). Anycurrent measured
must not exceed 0.5mA.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED BEFORE
RETURNING THE SET TO THE CUSTOMER.
PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in SHARP set have
special safety related characteristics. These are often not
evident from visual inspection nor the protection afforded by
them necessarily can be obtained by using replacement
components rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this Service Manual.
Electrical components having such features are identified by
marking with a åon the schematics and on the parts list in
this Service Manual.
The use of a substitute replacement component which dose
not have the same safety characteristics as the SHARP
recommended replacement one, shown in the parts list in this
Service Manual, may create shock, fire or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current SHARP Service
Manual. A subscription to, or additional copies of, SHARP
Service Manual may be obtained at a nominal charge from
SHARP.
Device
under
test
Leakage
current
tester
Reading should
not be above
0.5 mA
Also test with
plug reversed
(Using AC adapter
plug as required)
Test all
exposed metal
surfaces
Earth ground

7
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
CHARGED SECTION AND HIGH VOLTAGE GENERATING POINT
ËCharged Section
The places where the commercial AC power is used without
passing through the power supply transformer.
If the places are touched, there is a risk of electric shock. In
addition, the measuring equipment can be damaged if it is
connected to the GND of the charged section and the GND of
the non-charged section while connecting the set directly to
the commercial AC power supply. Therefore, be sure to
connect the set via an insulated transformer and supply the
current.
1. AC Power Cord
2. AC Inlet with Filter
3. Power Switch (S1)
4. Fuse (In the SW POWER SUPPLY Module)
5. STB Transformer and Converter Transformer
(In the SW POWER SUPPLY Module)
6. Other primary side of the SW POWER SUPPLY Module
ËHigh Voltage Generating Point
The places where voltage is 100V or more except for the
charged places described above. If the places are touched,
there is a risk of electric shock.
1. SW POWER SUPPLY Module .............................. (225V)
2. X DRIVE Assy ....................................... (–300V to 225V)
3. Y DRIVE Assy ....................................................... (355V)
4. SCAN (A) Assy ......................................................(355V)
5. SCAN (B) Assy ......................................................(355V)
6. X CONNECTOR (A) Assy ..................... (–300V to 225V)
7. X CONNECTOR (B) Assy ..................... (–300V to 225V)
AC Inlet with Filter
Power Cord
Power Switch
(S1)
Fig.1 Charged Section and High Voltage Generating Point (Rear View)
: Part is the High Voltage Generating Points
other than the Charged Section.
: Part is Charged Section.
X DRIVE
Assy
X CONNECTOR (B)
Assy
Y DRIVE
Assy
SCAN (A)
Assy
SCAN (B)
Assy
∗Remove the IF Earth Metal beforehand when inclines
the power supply unit as the right figure.
X CONNECTOR (A)
Assy
SW POWER SUPPLY
Module
Top Front

8
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
OPERATION MANUAL
INPUT CH
MAIN POWER button
ST ANDBY/ON indicator
STANDBY/ON button
INPUT button
VOLUME buttons
(/)
CHANNEL buttons
(CH
/ )
Remote control sensor
Plasma DisplayTV (Panel Unit)
PZ-50HV2E
PZ-50HV2U
INPUT VOLPOWER MAIN POWER CH
MAIN POWER button
STANDBY/ON indicator
POWER button
INPUT button
VOLUME / buttons
CHANNEL / buttons
Remote control sensor

9
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
1 (STANDBY/ON)
To switch the power on and off.
2 (FREEZE/HOLD forTELETEXT)
TV/External input mode: Change the still image mode.
TELETEXT mode: Freeze a multi-page on screen while other
pages are automatically updated. Press again to return to the
normal image.
3 (DUAL screen)
Set the dual picture mode. Press again to return to normal view.
4 (WIDE MODE/ T/B/F)*
TV/External input mode: Change the wide image mode.
TELETEXT mode: Set the area of magnification. (full/upper half/
lower half)
5 AV MODE*
Select a video setting. AV MODE (STANDARD, DYNAMIC, MOVIE,
GAME, USER) PC MODE (STANDARD, USER)
6 SOUND
Select the sound multiplex mode.
7 (SRS and FOCUS)
Select SRS and FOCUS Sound System.
8 (FLASHBACK)
Press to return to the previous channel in normal viewing mode.
Press to return to the previous page in TELETEXT mode.
9/(VOLUME)*
Set the volume.
10 (Reveal hidden forTELETEXT)
TELETEXT mode: Display hidden characters.
11 (SUBPAGE forTELETEXT)
TELETEXT mode: Change the picture mode for sub-page selecting.
12 MENU
Display the Menu screen.
13 (CHANNEL INFORMATION)
Display the channel information and time.
14 (INPUT SOURCE)
Select an input source. (TV, INPUT 1, INPUT 2, INPUT 3, INPUT 4,
PC)
15 SLEEP
Set the SLEEP TIMER.
16 (MUTE)
Mute the sound.
17 0 – 9
TV/External input mode: Set the channel.
TELETEXT mode: Set the page.
18 (Digit for channel select)
Change the digits of the selected TV channel.
19 Colour (RED/GREEN/YELLOW/BLUE)
TELETEXT mode: Select a page.
20 CH /CH (/ )
TV/External input mode: Select the channel.
TELETEXT mode: Set the page.
21 (TOP Overview for TELETEXT)
TELETEXT mode: Display an index page for CEEFAX/FLOF
information. TOP OVER VIEW for TOP programme.
22 (TELETEXT)
Select the TELETEXT mode. (all TV image, all TEXT image, TV/TEXT
image)
23 RETURN
MENU mode: Return to the previous menu screen.
24 ENTER
Execute a command.
Return to the initial image position after moving with ///.
25 /// (Cursor)
Select a desired item on the setting screen.
Move the picture on the screen.
1
2
3
4
5
6
7
8
9
10
11
12
14
15
13
16
17
18
19
20
21
22
23
24
25
Remote control unit
• When using the remote control unit, point it
at the Plasma Display TV (Panel Unit).
*“TV”, “INPUT1”, “INPUT2”, “INPUT3”,
“INPUT4” and “PC” modes can each store
the WIDE mode setting separately.
The same for AV mode and volume.
(PZ-50HV2E)
'
'
"
"\ |
'"\ |
NOTE

10
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
Remote control unit
•When using the remote control unit, point it at the Plasma
Display TV(Panel Unit).
•
Press DTV/SAT INFO and | at the same time to begin
recording.
TV
ANT-A/B INPUT
SURROUND
FRONT
TWIN
MODE
AV
POWER
MTS CC
PICTURE SELECT
SUB TWIN CH
+
–
FREEZE MODE
VOL CH
MUTE
MENU TV/SAT/DVD
FAVORITE CH
RECEIVER
DTV/DVD TOP
SOURCE DTV/SAT
DTV/SAT
VCR REC
ABCD
RETURN MENU
POWER
SET/
ENTER
MENU
GUIDE
INPUT VOL– VOL+
INFO
VIEW
SLEEP LEARN
EDIT/
ENT
FLASHBACK
DISPLAY
INPUT
TV VCRCBL
/SAT
/DTV
DVD
/LD
123
456
789
100
0
POWER
16
17
18
19
20
21
22
24
23
3
2
1
4
5
6
7
8
9
10
11
12 13 14
15
Set the mode switch to TV.
1TV:Switch the Plasma Display power on or off.
2 FRONT SURROUND: Set SRS and FOCUS Sound
System mode.
3 AV MODE:Select an audio or video setting.
(AV mode: STANDARD, DYNAMIC,
MOVIE, GAME, USER.
PC mode: STANDARD, USER.)
4 SCREEN MODE: Select the screen size.
5 DISPLAY:Display the channel information.
6 SLEEP: Set the SLEEP timer.
7 CH RETURN: Return to the previous channel.
8 VOL +/–: Set the volume.
9 MENU: Display the menu screen.
10 MENU RETURN: Return to the previous menu screen.
11 :Select a desired item on the setting screen.
12 ANT: Selectthe antenna. (A, B)
13 INPUT: Select an input source of the Plasma Display.
(TV, INPUT 1, INPUT 2, INPUT 3, INPUT 4, PC)
14 :When pressed all buttons on the remote control unit
will light. The lighting will turn off if no operations
are performed within about 5 seconds. This button
is used for performing operations in dark places.
15 MTS: Select the MTS/SAP.
16 CC: Display captions during closed-caption source.
17 Dual picture mode select buttons
TWIN PICTURE: Set the dual picture mode.Press
again to return to normal screen.
FREEZE: Set the still image. Press again to return to
normal screen.
SELECT: Select the active screen.
SUB INPUT: Select an input source of sub screen.
TWIN CH + /–:Select the channel of sub screen.
18 0 –9: Set the channel.
19 100, CH ENTER: Select the three digit mode. Execute
a command of the channel.(When you select CBL/SAT/
DTVmode, this button operatesas CH ENTER function.)
20 CH
' /
"
: Select the channel.
21 MUTING: Mute the sound.
22 SET/ENTER: Execute a command.
23 FAVORITE CH
A, B, C, D: Select any of four preset channels.
While watching you can toggle the set channels by
pressing A, B, C and D.
24 LED for transmission confirmation
Mode switch
' / " / \ / |
NOTE
(PZ-50HV2U)

11
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
DIMENSIONS
(Unit : mm)

12
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
REMOVING OF MAJOR PARTS
1
1
Remove the Rear Case (P).(Screws ×19)
2
Remove the IF Earth Metal.(Screws ×2)
3
Remove four screws.
4
Remove the SW Power Supply Module.
SW Power Supply ModuleAbout detect switch
SW Power Supply
Module
4
1 1
1
1
1
1
1
1111
3
33
3
1
×2
1
×2
×2
1
×2×2
This unit adopt the "Rear Case opened ! detection" system.
Please work in service as follows by all means.
Outline and caution
Perform video transmission from the AVC System to the
plasma display with digital signal in the PZ-50HV2 series.
Therefore adopt contents protection by HDCP for copyright
protection.
Moreover establish the detect switch which is never turned
on the power when "a rear case of plasma display was
opened carelessly".
Detect switch does not detect at the power supply OFF and
the remote control unit wait state. Please stick this detect
switch with tape before turning on the power in inside
diagnoses of the plasma display. And please remove it not
to forget the tape which stuck after the repair.
When detect switch has worked by any chance
When detect switch works, LED of red blinks in succession
by a 300msec period.
Press keys in order of "MENU" key, "ENTER" key and
"POWER" key with the remote control unit after sticking the
detect switch with tape or close the rear case beforehand.
This unit activates and it becomes the service factory mode
screen. Afterwards, turn off the power with the remote
control unit.
Perform the normal operation afterward.
Detect Switch (S2)
Rear View
IF Earth
Metal
2

13
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
1
Remove the Rear Case (P). (Screws ×19)
3
Remove the IF Earth Metal (Screws ×2)
3
4
5
×2
5
×2
4
Remove the MR INTERFACE Assy (Connector, Screws ×4)
5
Remove the SP TERMINAL Assy (Connector, Screws ×2)
6
Remove the AUDIO AMP Assy (Connector, Screws ×2)
7
Remove the DIGITAL VIDEO Assy
(Connector,Circuit Board Spacer ×6)
2
Remove the SW Power Supply Module.
(Connector, Screws ×4)
MR INTERFACE, AUDIO AMP SP TERMINAL
and DIGITAL VIDEO Assys
MR INTERFACE
Assy
SP TERMINAL
Assy
IF Earth
Metal AUDIO AMP Assy
DIGITAL VIDEO Assy
66
6
5
Insert it and reduce the Clamper.
Clamper
Sub Frame L
Slit
SW Power Supply
Module
Sub Frame R
6
Insert the SW Power Supply Module into the slit
of Sub Frame L and R.
5
6
SW Power Supply
Module
4
×4
7
Diagnosis

14
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
1
Remove the three screws.
2
2
Loosen a rivet.
3
3
Remove the Lead Cover (P).
Turn it not to press the rivet.
(Because when the rivet presses,
fit in once again.) It is easy to remove when pull out
the Lead Cover (P) with the rivet
before completely removing the rivet.
Rivet
4
Pull out a Flexible Cable.
5
5
Remove bottom by the fulcrum at the top of Front Case 50 (P).
6
6
Remove the Front Case 50 (P).
×3
10
10
7Remove the Rear Case (P). (Screws ×19)
8Remove the Y DRIVE Assy. (Connector, Screws ×8)
9Remove the Front Chassis V. (Screws ×5)
10 Reverse the SCAN (A) and SCAN (B) Assemblies.
11 When it is necessary, exchange the ROM.
Y DRIVE, SCAN (A), (B) Assy
1
Front Case 50 (P)
Front Case 50 (P)
Aluminum
Materials
It is the structure that a hook of
Front Case 50 (P) was put between
with Rear Case and aluminum materials.
Rear Case
Lead Cover (P)
Lead Cover (P)
SCAN (A) Assy
ROM
×6
SCAN (B) Assy
44
×2
8
×2
8
×2
8
Y DRIVE Assy
×2
8
8
9
9
9

15
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
1
Remove the Rear Case (P). (Screws ×19)
2
Remove the X DRIVE Assy. (Connector, Screws ×8)
X DRIVE Assy
×2
2
×2
2
×2
2
×2
2
X DRIVE Assy

16
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
ADJUSTMENT PROCEDURES
SERVICE FACTORY MODE
Remote Control Unit Operation in The Service Factory Mode
Operate the service factory mode with the remote control unit of accessory of the AVC System.
Please perform the adjustment by operating the following keys.
Service factory mode uses an OSD function of the AVC System.
Perform the adjustment and setting in the state that this unit and Media Receiver are connected by the system.
Plasma display cannot use a factory mode by being simple.
Remote
Control Key Function
CH ' key One line moves the selection cursor of the adjustment item up.
CH
" key One line moves the selection cursor of the adjustment item down.
VOL + key +1 raises a adjustment value
VOL – key –1 reduces a adjustment value
' key Perform page down (previous page)
" key Perform page up (next page)
\ key –10 reduces a adjustment value
| key +10 raises a adjustment value

17
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
1. How to Enter the Service Factory Mode
Perform the following operation by the remote control unit for less than 3 seconds.
•Press the "MENU" key
•Press the "ENTER" key
•Press the "0" key
Press the "Factory" key (Note 1)
Switch a page
with "
' " and " " " keys.
Press the "Factory" key (Note 1)
Press the " (POWER)" key (POWER OFF)
System standby state
Confirm that the plasma display and the AVC System turned on together and a
system cable is connected properly.
Image receiving state
Page 1/13
General information of the Plasma Display and AVC System
Service Factory Mode
Page 2/13 to 9/13
Adjustment and setting item of the AVC System
Page 11/13 to 13/13
Adjustment and setting item of the Plasma Display
Note 1: When use the adjustment exclusive use remote control unit with a [AA5F] code.
∗: Be careful so that there is the case that page constitution is different.

18
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
2. General Information of the Plasma Display and AVC System
Display example of the first page
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
CENTE
1/13
RVers
OSD Ve r s i on
CV I C Ve r s i on
TTXP Ve rs i on
ion
MON I TOR Ve r s i on
Mode l S l eect inMa
Mode l S l eectAV
Mode l S l eect
Cen ter cuAtime
MON I TOR
RESET
RESET OFF
RESET OFF
OFF
+
0
0
4
28
F6 91 10
TTX RPG
W20 0 /109 0 009:12/X200/109 0 079:12/V20
061 0/109 0 109:12/
MRODS2 0109A//010
MR M IAN 0021E
-05
-00
PANEL Ve r s i on
FLASH Ve rs i on
MON I TOR Mo de l
Mon i t o r Ac u t ime 47 H 42 M
H41M16
01
Pul se Acut ime 164
Sensore Temp
025H9//
NPIU S1GINoT
No. Item Explanation
1 Main software version information of the AVC System
2 OSD version information of the AVC System
3IP/resize IC control software version information of the AVC
System
4Text microcomputer software version information of the
AVC System
5
Module microcomputer software version information of the PDP
6 Panel microcomputer version information of the PDP
7 Panel flash ROM version information of the PDP
8 PDP model information 01: PIONEER 50 inches, 02: PIONEER 43 inches,
11: SHARP 50 inches, 12: SHARP 43 inches
9 AVC System model information
10 AVC System model information
11 PDP destination information 0: All SHARP destinations, Japanese and North America destinations of
PIONEER, 3: European and general destinations of PIONEER
12 Temperature information of panel temperature sensor on
the PDP This is internal temperature information. This is not establishment environment temperature.
13 AVC System accumulation operating time
14 AVC System accumulation operating time reset Turn the display to [ON] by pressing the "VOL +" key, then it becomes [0H]
when pressing the "ENTER" key.
15 PDP accumulation operating time
16 PDP accumulation operating time reset Turn the display to [ON] by pressing the "VOL +" key, then it becomes [0H]
when pressing the "ENTER" key.
17 PDP accumulation pulse number
Real accumulation pulse number becomes "indicated value *10,000,000 pulse".
Reference
18 PDP accumulation pulse number reset Turn the display to [ON] by pressing the "VOL +" key, then it becomes [0]
when pressing the "ENTER" key.
∗: Be careful so that there is the case that page constitution is different.

19
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
3. Adjustment and Setting Item of the Plasma Display
Display example of the eleventh page
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
MNTR
11/13 PUT1NoSIGNI
V50 02WB
MNTR V6 0 0 1WB
MNTR PC 0 1WB
MNTR R H 2 5 5IGH1
MNTR R H 2 5 5IGH2
MNTR G H 2 5 5IGH2
MNTR B H 2 5 4IGH2
MNTR G H 2 5 5IGH1
MNTR B H 2 5 4IGH1
MNTR R L 5 1 0OW1
MNTR G L 5 0 9OW1
MNTR B L 5 1 2OW1
MNTR R L 5 1 0OW2
MNTR G L 5 1 1OW2
MNTR B L 5 1 2OW2
No. Item Adjustable Range Shipping Setting Storage Place
1PDP_W/B table selection at VIDEO 50Hz 1 or 2
2
PDP
2PDP_W/B table selection at VIDEO 60Hz 1 or 2
1
PDP
3PDP_W/B table selection at PC 1 or 2
1
PDP
4RED_GAIN of PDP_W/B table 1 0 to 255
Factory adjustment value
PDP
5GREEN_GAIN of PDP_W/B table 1 0 to 255
Factory adjustment value
PDP
6BLUE_GAIN of PDP_W/B table 1 0 to 255
Factory adjustment value
PDP
7RED_OFS of PDP_W/B table 1 0 to 999
Factory adjustment value
PDP
8GREEN_OFS of PDP_W/B table 1 0 to 999
Factory adjustment value
PDP
9BLUE_OFS of PDP_W/B table 1 0 to 999
Factory adjustment value
PDP
10 RED_GAIN of PDP_W/B table 2 0 to 255
Factory adjustment value
PDP
11 GREEN_GAIN of PDP_W/B table 2 0 to 255
Factory adjustment value
PDP
12 BLUE_GAIN of PDP_W/B table 2 0 to 255
Factory adjustment value
PDP
13 RED_OFS of PDP_W/B table 2 0 to 999
Factory adjustment value
PDP
14 GREEN_OFS of PDP_W/B table 2 0 to 999
Factory adjustment value
PDP
15 BLUE_OFS of PDP_W/B table 2 0 to 999
Factory adjustment value
PDP
Caution in the PDP W/B (No.4 to 15) adjustment:
Adjustment value is reflected without relation in input signal during adjustment to the actual PDP.
For example, when operate a adjustment value of [MNTR HIGH1] during PAL input, switch to the adjustment value operation of W/B table 1
while displaying PAL in the actual PDP.
This is temporary.
After adjustment, it becomes the W/B table 2 operation in the PAL input after restarted in the normal mode. It becomes an operation of the W/B
table 1 adjustment value after adjustment in the NTSC input.
As for the above example, table selection (No. 1 and 2) becomes the shipping setting.
∗: Be careful so that there is the case that page constitution is different.

20
PZ-50HV2, PZ-50HV2E
PZ-50HV2U
Display example of the twelfth page
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
ABL V
21/13 PUT1NoSIGNI
IDE 11860 PCO
ABL V I DE 1 2 250O
VOF ADJ 1 3 1S
VSU ADJ 12 8S
XSU ADJ 08SB
XSU ADJ 08SG
YSU ADJ 08SB
YSU ADJ 08SG
No. Item Adjustable Range Shipping Setting Storage Place
1 Electric power setting at the PC, VIDEO 60Hz 0 to 255
Factory adjustment value
PDP
2 Electric power setting at VIDEO 50Hz 0 to 255
Factory adjustment value
PDP
3 VOFS voltage setting 0 to 255
Factory adjustment value
PDP
4 VSUS voltage setting 0 to 255
Factory adjustment value
PDP
5 SUS_B timing setting of X drive 0 to 15
Factory adjustment value
PDP
6 SUS_G timing setting of X drive 0 to 15
Factory adjustment value
PDP
7 SUS_B timing setting of Y drive 0 to 15
Factory adjustment value
PDP
8 SUS_G timing setting of Y drive 0 to 15
Factory adjustment value
PDP
Adjustment item of this page is related in damage of the set when mistakes adjustment. When adjustment is needed, be enough
careful to adjustment.
Caution in the electric power setting (No. 1 and 2) adjustment:
Adjustment value is reflected without relation in input signal during adjustment to the actual PDP.
For example, when operate a adjustment value of [ABL VIDEO 60 PC] during PAL input, switch to the adjustment value operation of [ABL
VIDEO 60 PC] while displaying PAL in the actual PDP. This is temporary.
After adjustment, it becomes the [ABL VIDEO 50] operation in the PAL input after restarted in the normal mode. It becomes an operation of the
[ABL VIDEO 60PC] adjustment value after adjustment in the NTSC input.
∗ : Be careful so that there is the case that page constitution is different.
