Shelbourne Reynolds HD800 User manual

HD800
OPERATORS MANUAL
ORIGINAL INSTRUCTIONS
MAN-10004
POWERBLADE
Issue 7 15/10/2020

Issue 2
12.04.18
DEALER PRE-DELIVERY / INSTALLATION CHECK AND WARRANTY REGISTRATION –POWERBLADE
DEALERS PRE-DELIVERY / INSTALLATION CHECK
IMPORTANT ⚠
All items listed below must be checked, and adjusted if necessary. The person conducting the inspection should tick each
item in the space provided, indicating whether or not adjustments were required. In the event of additional work being
needed, details should be given in the additional work / discrepancy box, located at the bottom of this sheet, or on a
separate sheet if required. When the inspection is complete, THIS FORM MUST BE COPIED & RETURNED TO:-
Shelbourne Reynolds within 30 days of delivery to customer, otherwise the invoice date to the dealer will be deemed to
be the start date for the warranty period.
SERIAL NUMBER: ......................................................... MACHINE NUMBER: ..........................................................
MODEL: .........................................................................
PLEASE TICK APPROPRIATE COLUMN FOR EACH ITEM UNDERTAKEN
Dealer Pre Customer Delivery / Installation / Commissioning
Checks OK
Adjusted
Check tractor size is suitable, along with any weighting requirements.
Fit appropriate axle fixing style or stabilizer system.
Check top link is adjusted so that the trimmer is vertical in relation to the ground.
Ensure the PTO shaft length is compatible with the tractor.
Ensure the hoses are not damaged, catching or pinching.
Check flail bolts and drive belts are tightened correctly.
Fit controls in an advantageous and secure position for the operator.
Check the head nose can be adjusted fully up or down and safety curtains are intact.
Check all functions work correctly (i.e, lift up/down, reach in/out, etc……).
Check emergency stop button is functioning correctly (electric machine only).
Check gearbox oil level.
Check hydraulic oil level.
Check hydraulic system for leaks.
Lubricate all grease points.
Check paintwork & finish.
Check in general that nuts and bolts are tight.
Ensure that all safety guards and safety signs are fitted and are legible.
Ensure that an operators manual is supplied with the machine.
Additional Comments:
...........................................................................................................................................................................................
..........................................................................................................................................................................................
Dealer Representative’s Name: ..............................................................................................
Date: .........................................
Customer Instruction
Actioned
Ensure the machine is correctly attached to the customer’s tractor.
Explain the correct setting & operation of the machine to the customer.
Ensure all safety precautions and safety signs are explained to the customer.
Ensure the maintenance schedule is explained to the customer.
Ensure the lubrication & grease points are indicated to the customer.
Ensure the warranty policy is explained to the customer.
Ensure that the operators manual is handed to the customer.
Additional Comments:
...........................................................................................................................................................................................
...........................................................................................................................................................................................
Dealer Representative’s Name: .............................................................................................
Date: .........................................
For specific details please refer to the operator’s manual. Page 1 of 2

Issue 2
12.04.18
DEALER PRE-DELIVERY / INSTALLATION CHECK AND WARRANTY REGISTRATION –POWERBLADE
Dealer Name: ............................................................................
Address: .........................................................................................................................................................................
.........................................................................................................................................................................
Post / Zip code: .........................................................................
Dealer Salesman Name: ............................................................
Customer Name: ......................................................................
Business Name (if different from above): ............................................................................................................................
Address: .........................................................................................................................................................................
.........................................................................................................................................................................
Post / Zip code: ........................................................................
Email Address: ........................................................................
Tel No. Home / Office: ............................................................... Cell / Mobile:...................................................................
SERIAL NUMBER: ....................................................................MACHINE NUMBER: ......................................................
MODEL: ..................................................................................
Dealer Signature: ...................................................................
Print Name: .......................................................................... Date:.................................................................................
Privacy Notice
Here at Shelbourne Reynolds Engineering Ltd we take your privacy seriously and will only use your personal information to administer your account and
provide the products and services you have requested from us.
We would occasionally like to contact you with details of other products you may be interested in, special offers we provide and details/invitations to
shows, working demonstrations and open days, however this would be no more than once or twice per year. If you consent to us contacting you for this
purpose please tick a box or boxes to say how you would like us to contact you.
Post Email Telephone/SMS
If you prefer not to be contacted, then please tick this box
For further information please refer to our Privacy Policy at www.shelbourne.com
Customers Signature: .............................................................
Print Name:........................................................................... Date:.............................................................
The customer’s signature certifies that the machine was delivered in a satisfactory condition and that adequate instruction was received as to
its correct operation, safety requirements, and maintenance as stated in the operator’s manual, and that the customer has read, understood,
and agrees to the Terms and Conditions of Sale and Warranty (including the disclaimers and limitations) contained in Section 1.5 of the
operator’s manual.
Additional work / discrepancies:
...........................................................................................................................................................................................
...........................................................................................................................................................................................
...........................................................................................................................................................................................
...........................................................................................................................................................................................
...........................................................................................................................................................................................
This page must be faxed or emailed to Shelbourne Reynolds Engineering Ltd.
Fax No: [phone] Email: [e-mail]
Page 2 of 2

MAN-00000
Dear Customer,
Parts manuals are not supplied with this machine but they can be ordered from your
Shelbourne Reynolds dealer or alternatively downloaded from the Shelbourne Reynolds
website ( www.shelbourne.com ) Manuals are located through the Parts and Service
section followed by Manuals and then to Powerblade Manuals. Here you will find
Operators and Parts manuals for various years’ models.The Machine and Parts Manual
Number for your machine is -
Tick
Machine No.
Manual No.
Machine Description
809902 01
MAN-10106
1.2Mt Head assy (LH/outboard drive) inc hyd roller
809902 02
MAN-10106
1.5Mt Head assy (LH/outboard drive) inc hyd roller
809902 04
MAN-10106
1.2Mt Head assy (RH/Inboard drive) inc hyd roller
809902 05
MAN-10106
1.5Mt Head assy (RH/Inboard drive) inc hyd roller
809912 01
MAN-10106
Trimmer assy, (HD800) Left hand build parts
809913 01
MAN-10106
1.2Mt Verge mowing Head assy (LH/outboard drive)
inc hyd 6” roller
809913 02
MAN-10106
1.2Mt Verge mowing Head assy (RH/outboard
drive) inc hyd 6” roller
809921 01
MAN-10109
HC 1600 Head assy
809922 01
MAN-10109
HC 1200 Head assy
Powerblade Serial Number
Powerblade Head Serial Number
ORDERING SPARE PARTS
To ensure that you order the correct part from your SRE dealer please use the following
procedure.
ALWAYS QUOTE THE MACHINE AND SERIAL NUMBERS WHEN ORDERING.
Refer to the Parts Manuals front page/s, listing the machine assemblies. Select the
correct machine assembly number which is printed in the top left corner of the page

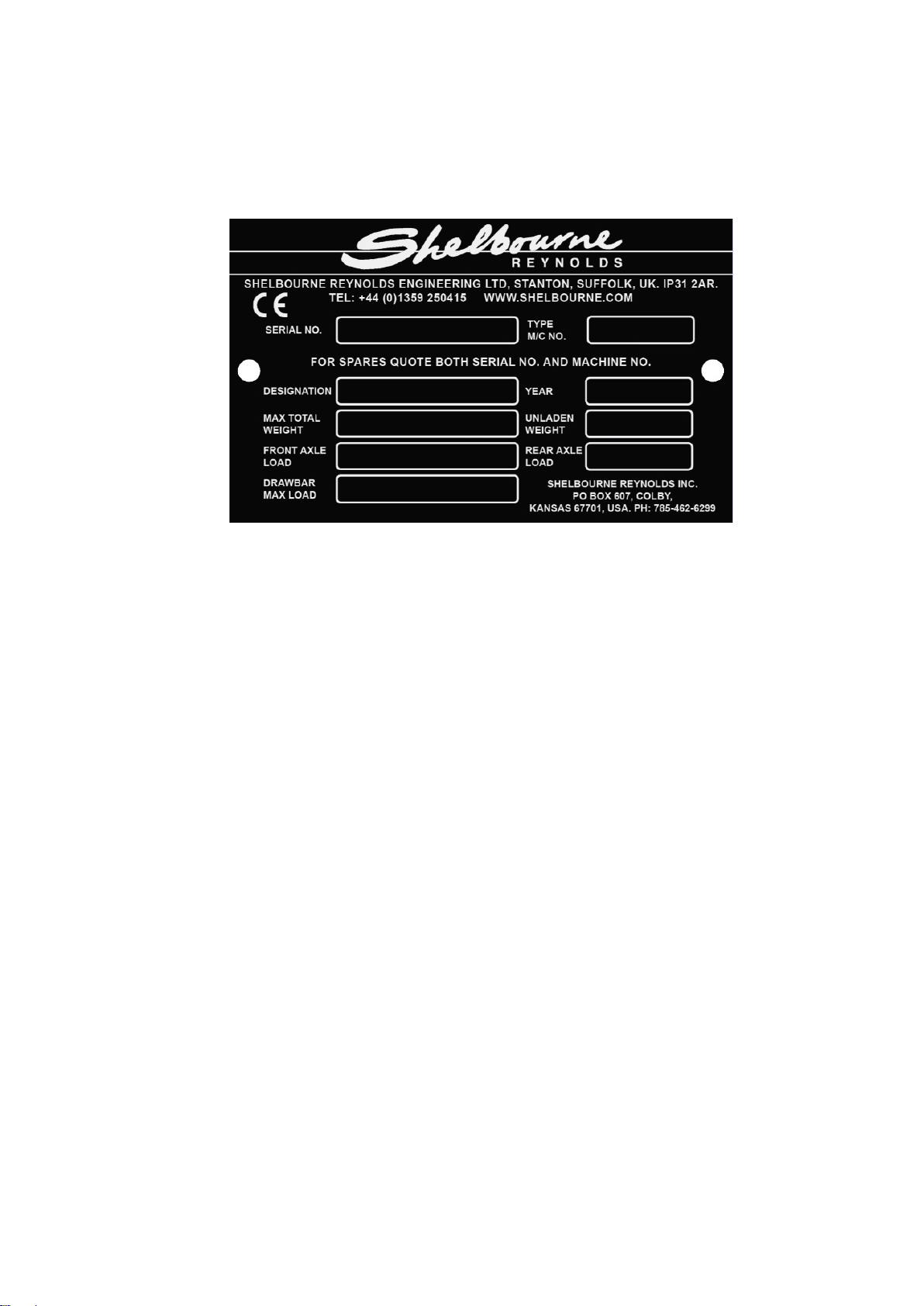

(starting with 8099_ _ 01), This machine number is listed above or can be taken off the
Powerblade identification plate.
Looking down the page, select the relevant sub assembly that your required part falls
within. Sub-assemblies start from 8090_ _ 01. Note the year or serial number of the
machine may determine a correct sub assembly if more than one is listed.
Continue through the manual and find the relevant sub assembly parts listing. Again the
number will be printed in the top left corner; the sub-assemblies are in numerical order.
Having found the correct parts list, you will find the corresponding drawing by either
looking at the facing page or progressing through the manual to the next drawing.
PB8

MAN-00000
The drawings indicate the components by item numbers, which you will find, are
repeated in the left-hand side of your parts listing, and therefore referring to the correct
part.
Note all parts will not be found from the sub-assemblies listed below the machine
number. Other parts could be from specific optional kits. These kits will be found in
numerical order further through the manual and start with KIT- _ _ _ _ _.
The list on the following pages highlights the optional build kits that also make up
your exact configuration of machine.
Sub-assemblies and optional build kits.
Non-current production highlighted
Part No.
Description
Hydraulics for head assembly
KIT-08259A
HYD
Hydraulics for 1.2mt left hand drive
head (HD860, 870 & 880T)
KIT-08259B
HYD
Hydraulics for 1.2mt right hand drive
head (HD860, 870 & 880T)
KIT-08260A
HYD
Hydraulics for 1.5mt left hand drive
head (HD860, 870 & 880T)
KIT-08260B
HYD
Hydraulics for 1.5mt right hand drive
head (HD860, 870 & 880T)
KIT-08249A
HYD
Hydraulics for 1.2mt left hand drive
head (HD865 & 875VFRT)
KIT-08249B
HYD
Hydraulics for 1.2mt right hand drive
head (HD865 & 875VFRT)
KIT-08250A
HYD
Hydraulics for 1.5mt left hand drive
head (HD865 & 875VFRT)
KIT-08250B
HYD
Hydraulics for 1.5mt right hand drive
head (HD865 & 875VFRT)
KIT-08297A
HYD
Hydraulics for 1.2mt left hand drive
head (HD860, 870 & 880T)
KIT-08297B
HYD
Hydraulics for 1.2mt right hand drive
head (HD860, 870 & 880T)
KIT-08300A
HYD
Hydraulics for 1.5mt left hand drive
head (HD860, 870 & 880T)
KIT-08300B
HYD
Hydraulics for 1.5mt right hand drive
head (HD860, 870 & 880T)
KIT-08296A
HYD
Hydraulics for 1.2mt left hand drive
head (HD865 & 875VFRT)
KIT-08296B
HYD
Hydraulics for 1.2mt right hand drive
head (HD865 & 875VFRT)
KIT-08299A
HYD
Hydraulics for 1.5mt left hand drive
head (HD865 & 875VFRT)
KIT-08299B
HYD
Hydraulics for 1.5mt right hand drive
head (HD865 & 875VFRT)
KIT-08355A
HYD
Hydraulics for 1.2mt left hand drive
head (HD860, 870 & 880T)
KIT-08355B
HYD
Hydraulics for 1.2mt right hand drive
head (HD860, 870 & 880T)
KIT-08356A
HYD
Hydraulics for 1.5mt left hand drive
head (HD860, 870 & 880T)
KIT-08356B
HYD
Hydraulics for 1.5mt right hand drive
head (HD860, 870 & 880T)
KIT-08355C
HYD
Hydraulics for 1.2mt left hand drive
head (HD865 & 875VFRT)
KIT-08355D
HYD
Hydraulics for 1.2mt right hand drive
head (HD865 & 875VFRT)
KIT-08356C
HYD
Hydraulics for 1.5mt left hand drive
head (HD865 & 875VFRT)
KIT-08356D
HYD
Hydraulics for 1.5mt right hand drive
head (HD865 & 875VFRT)
KIT-08395A
HYD
HC1600 left hand head motor
hydraulic kit for VFRT (HC Head)
KIT-08395B
HYD
HC1600 right hand drive head motor
hydraulic kit for VFRT (HC Head)
KIT-08395C
HYD
HC1600 left hand drive head motor
hydraulic kit for TELE (HC Head)
KIT-08395D
HYD
HC1600 right hand drive head motor
hydraulic kit for TELE (HC Head)
KIT-08393A
HYD
HC1200 left hand drive head motor
hydraulic kit for VFRT (HC Head)
KIT-08393B
HYD
HC1200 right hand drive head motor
hydraulic kit for VFRT (HC Head)
KIT-08393C
HYD
HC1200 left hand drive head motor
hydraulic kit for TELE (HC Head)
KIT-08393D
HYD
HC1200 right hand drive head motor
hydraulic kit for TELE (HC Head)
Drive kits
KIT-08321
540rpm Standard drive kit
KIT-08323
800rpm Higher power drive kit
KIT-08341
540rpm Higher power drive kit
Inner boom
KIT-08240
6.0mt Inner boom
KIT-08241
7.0mt Inner boom
KIT-08231
8.0mt Inner boom
Outer boom
KIT-08228
HD860T Telescopic outer boom kit
KIT-08229
HD870T Telescopic outer boom kit
KIT-08230
HD880T Telescopic outer boom kit
KIT-08242
HD865VFRT outer boom kit
KIT-08243
HD875VFRT outer boom kit
Hydraulics for head assembly
KIT-08245A
Hydraulics for adjustable roller for
6.0mt
KIT-08245B
Hydraulics for adjustable roller for
7.0mt
KIT-08245C
Hydraulics for adjustable roller for
8.0mt
KIT-08384A
HYD
1.6m VFRT hydraulic adjustable
roller kit (HC Head)
KIT-08384B
HYD
1.6m TELE hydraulic adjustable roller
kit (HC Head)
KIT-08384C
HYD
1.2m VFRT hydraulic adjustable
roller kit (HC Head)
KIT-08384D
HYD
1.2m TELE hydraulic adjustable
roller kit (HC Head)
Mounting options
KIT-08237
Stabiliser –3 point linkage
KIT-08239
Stabiliser –Axle Frame
General options
KIT-08244
HD800 Transfer kit - blue
KIT-08246
HD800 Blower kit
KIT-08265
HD800 Highways kit
KIT-08265A
HD800 Highways kit with debris
blower
KIT-08272
Twin accumulator kit
KIT-08277A
Hydraulic nose kit left hand drive for
HD head (HD860, 870 & 880T)
KIT-08277B
Hydraulic nose kit right hand drive for
HD head HD860, 870 & 880T)
KIT-08277C
Hydraulic nose kit left hand drive for
HD head (HD865 & 875VFRT)
KIT-08277D
Hydraulic nose kit right hand drive for
HD head HD (HD865 & 875VFRT)
KIT-08279
Narrow lane bracket (NLB) kit

MAN-
00000
General options
KIT-08279A
HYD
1.2mt NLB hydraulics kit (HD860,
870 & 880T)
KIT-08279B
HYD
1.5mt NLB hydraulics kit (HD860,
870 & 880T)
KIT-08279C
HYD
1.2mt NLB hydraulics kit (HD865 &
875VFRT)
KIT-08279D
HYD
1.5mt NLB hydraulics kit (HD865 &
875VFRT)
KIT-08279E
HYD
1.2mt NLB hydraulics kit (HD860,
870 & 880T)
KIT-08279F
HYD
1.5mt NLB hydraulics kit (HD860,
870 & 880T)
KIT-08279G
HYD
1.2mt NLB hydraulics kit (HD865 &
875VFRT)
KIT-08279H
HYD
1.5mt NLB hydraulics kit (HD865 &
875VFRT)
KIT-08383
HD800 Highways kit
KIT-08383A
HD800 Highways kit with debris
blower
KIT-08284
Drawbar stabiliser kit
KIT-08367
Roller linkage kit (HC Head)
KIT-08310
Standard skid kit (HC Head)
KIT-08309
Verge skid full kit (HC Head)
KIT-08347
1.6m hydraulics for adjustable nose
kit VFRT (HC Head)
KIT-08347A
1.6m hydraulics for adjustable nose
kit TELE (HC Head)
KIT-08392
1.2m hydraulics for adjustable nose
kit VFRT (HC Head)
KIT-08392A
1.2m hydraulics for adjustable nose
kit TELE (HC Head)
KIT-08409
Hook mounting kit (HC Head)
KIT-08314
HC1600 transfers kit (HC Head)
KIT-08335
HC1200 transfers kit )HC Head)
KIT-08311
Head standard power kit (HC Head)
KIT-08312
Head high powered kit (HC Head)

MAN-
00000

MAN-00000
EC Declaration of conformity for machinery
(Machinery Directive 2006/42/EC, Annex II, sub. A)
Manufacturer: Shelbourne Reynolds Engineering Ltd.
Address: Shepherds Grove Industrial estate,
Stanton,
Bury St Edmunds,
Suffolk.
England.
IP31 2AR
Name and address of the person (established in the European Community/EEA)
authorised to compile the technical file (to the authorities on request):
Name: Mr. Neil Smith
Address: As stated above.
Herewith we declare that : DESIGNATION: HEDGE / VERGE TRIMMER
MODEL: HD8
TYPE: 809912 01
MACHINE No.:
SERIAL No.: PB8
is in conformity with the relevant provisions of the Machinery Directive (2006/42/EC)
is in conformity with the relevant provisions of the EMC Directive (2004/108/EC)
Neil Smith
Director
Place: Stanton, England. Date:

MAN-00000

1
CONTENTS
Section 1 INTRODUCTION
1.1 FOREWORD
1.2 IMPROVEMENTS AND CHANGES
1.3 SERVICE PARTS
1.4 MACHINE IDENTIFICATION
1.5 POWERBLADE WARRANTY POLICY
Section 2 SAFETY PROCEDURES
2.1 ACCIDENT PREVENTION
2.2 SAFETY SIGNS
2.3 ACCIDENT PREVENTION BEFORE STARTING
2.4 ACCIDENT PREVENTION WHEN COUPLING AND UNCOUPLING TO
THE TRACTOR
2.5 ACCIDENT PREVENTION WHEN USING THE PTO SHAFT
2.6 ACCIDENT PREVENTION WHEN USING THE HYDRAULIC SYSTEM
2.7 ACCIDENT PREVENTION WHEN OPERATING
2.8 ACCIDENT PREVENTION WHEN REMOVING A FOREIGN
OBJECT/BLOCKAGE
2.9 ACCIDENT PREVENTION WHEN LEAVING THE MACHINE
2.10 ACCIDENT PREVENTION WHEN SERVICING/ADJUSTING THE
MACHINE
2.11 ACCIDENT PREVENTION WHEN TAKING ON PUBLIC ROADS
2.12 ACCIDENT PREVENTION WHEN CLEANING AND STORING THE
MACHINE
2.13 NOISE EMISSIONS
2.14 PROPER USE
2.15 NO LIABILITY FOR CONSEQUENTIAL DAMAGE
Section 3 SPECIFICATION AND DESCRIPTION
3.1 DESCRIPTION
3.2 INTENDED USE
3.3 TECHNICAL SPECIFICATIONS
3.4 TECHNICAL SPECIFICATIONS OPTIONS
Section 4 HANDLING AND TRANSPORTATION
4.1 UNLOADING/LOADING
4.2 TRANSPORTATION
Section 5 PREPARATION FOR USE
5.1 CHOICE OF TRACTOR
5.2 PREPARATION OF THE POWERBLADE BEFORE ATTACHMENT
5.3 PREPARATION OF THE TRACTOR BEFORE ATTACHMENT
5.4 FITMENT OF 3 POINT LINKAGE STABILISER TO THE POWERBLADE
5.5 FITMENT OF DRAWBAR KIT TO THE POWERBLADE

2
5.6 FITMENT OF AXLE FRAME STABILISER TO THE POWERBLADE
5.7 ATTACHMENT –3 POINT LINKAGE STABILISER, TRACTOR TO
POWERBLADE
5.8 ATTACHMENT –DRAWBAR KIT, TRACTOR TO POWERBLADE
5.9 ATTACHMENT –AXLE FRAME STABILISER, TRACTOR TO
POWERBLADE
5.10 ADJUSTING AND CONNECTING THE PTO DRIVE SHAFT
5.11 CONNECTING THE CONTROLS
5.12 FINAL ATTACHMENT AND RUN UP
5.13 REMOVAL –TRIMMER WITH DRAWBAR KIT
5.14 REMOVAL –TRIMMER WITH 3 POINT LINKAGE ASSEMBLY
5.15 REMOVAL –TRIMMER WITH AXLE MOUNTING FRAME
5.16 REATTACHING THE MACHINE
Section 6 CONTROLS
6.1 HD800 ELECTRIC PROPORTIONAL CONTROLS
6.2 HD800 ELECTRIC PROPORTIONAL CONTROLS –OPTIONS
6.3 HD800 CONTROL BOX SETTINGS
Section 7 OPERATION
7.1 MOVING FROM TRANSPORT TO WORK POSITION
7.2 STARTING THE ROTOR
7.3 STOPPING THE ROTOR
7.4 TRANSPORTING WITH THE TRACTOR
7.5 WORKING ON THE HIGHWAY
7.6 FLAIL HEAD ADJUSTMENTS
7.7 HYDRAULIC ADJUSTABLE ROLLER
7.8 WIRE CUTTER
7.9 VERGE CUTTING
7.10 HEDGE SHAPE AND CUTTING SEQUENCE
7.11 CUTTING THICKNESS
7.12 REMOVING FOREIGN OBJECTS OR BLOCKAGE FROM THE
MACHINE
7.13 REACH AND WORKING ON SLOPES
7.14 BREAKBACK
7.15 TELESCOPIC ARM
7.16 VARIABLE FORWARD REACH TELESCOPIC (VFRT)
7.17 DEBRIS BLOWER KIT
7.18 OVERHEAD LINES
Section 8 MAINTENANCE AND STORAGE
8.1 LUBRICATION
8.2 PTO SHAFT
8.3 GEARBOX
8.4 CARE OF HYDRAULICS
8.5 HYDRAULIC OIL
8.6 FILTRATION
8.7 HYDRAULIC HOSES

3
8.8 ACCUMULATOR SAFE REMOVAL
8.9 CARE OF THE ROTOR
8.10 FLAIL HEAD
8.11 BUSHES AND PINS
8.12 RECOMMENDED TORQUE FOR FASTENERS
8.13 STORAGE

4

5
SECTION 1: INTRODUCTION
1.1 FOREWORD
This manual will assist the operator in using the Shelbourne Reynolds Powerblade
trimmer range of Heavy Duty (HD) trimmers to realise their full potential whilst
indicating safe procedures. This manual should be used in conjunction with the manual
of the tractor or prime mover.
1.2 IMPROVEMENTS AND CHANGES
Shelbourne Reynolds are continually improving their products to meet the farmers
needs and therefore reserve the right to make improvements and changes when
practical to do so, without incurring any obligation to make changes and additions to
equipment which has been sold previously.
1.3 SERVICE PARTS
Use guaranteed and genuine Shelbourne Reynolds service parts on Shelbourne
Reynolds machinery to ensure maximum life and best performance. These are
available through your Shelbourne Reynolds dealer.

6
1.4 MACHINE IDENTIFICATION
The serial and machine numbers are printed on a plate, attached to the main frame,
near to the tractor’s left lower link arm end.
1.5 POWERBLADE WARRANTY POLICY
1.5.1 MACHINE REGISTRATION
To qualify for the full benefit of the warranty set out in clause 1.5.2 of this warranty
policy (the “Warranty”), it is the buyer’s responsibility to ensure that the selling dealer
has completed the warranty registration details and that they are submitted to
Shelbourne Reynolds Engineering Ltd. within 30 days from the date of delivery. Using
the machine implies the knowledge and acceptance of these warranty terms.
1.5.2 NEW MACHINE WARRANTY
All new machines supplied by Shelbourne Reynolds Engineering Ltd.
(“Shelbourne”), are warranted to the original purchaser, under normal use and
service, to be free from defects in material and workmanship for a period of 12 months
from the date of delivery to the original purchaser (the Warranty Period), subject to the
terms set out in this warranty policy.
No other warranty is given by Shelbourne regarding the machine, and no person has
any authority to give any such warranty for or on behalf of Shelbourne, other than
where given in writing signed by a director of Shelbourne.
1.5.3 WARRANTY CLAIMS
All claims must be submitted by a Shelbourne authorised dealer providing that the
original purchaser has;

7
1) given notice in writing with full information regarding the failure, to Shelbourne
(or the Shelbourne authorised dealer) during the Warranty Period, and within 15
days of the failure;
2) given Shelbourne (or the Shelbourne authorised dealer) a reasonable
opportunity of examining the machine or the damaged or defective parts;
3) if requested by Shelbourne, returned the damaged or defective parts (via the
original Shelbourne authorised dealer) within 30 days of notification of a defect;
then Shelbourne shall, at its opinion, repair or replace the defective parts, or refund the
price of the defective parts.
1.5.4 REPAIR COSTS
The original purchaser or Shelbourne authorised dealer shall not repair, or arrange for
a repair, of the machine without the prior written authority of Shelbourne. Such
authority may only be given by Shelbourne service personnel. Shelbourne will not be
liable for the cost of any repairs carried out without its prior written consent to
the work being done.
If Shelbourne authorises a repair of the machine, all claims for repair costs must be
submitted to Shelbourne by a Shelbourne authorised dealer within 15 days of the date
of repair on a Shelbourne Warranty Claim Form.
Repairs should be completed by a Shelbourne authorised dealer (or another repairer
with the prior written consent of Shelbourne).
The submission of a claim is not a guarantee of payment. Shelbourne will only
reimburse the reasonable costs and expenses incurred in connection with any repair.
The decision reached by Shelbourne is final.
1.5.5 EXCLUSIONS
Shelbourne will not be liable for the machine’s failure to comply with the Warranty in
any of the following circumstances:
1) damage due to improper use or abusive operation
2) damage or depreciation caused by normal wear and tear;
3) the machine has been subjected to alteration, modification or fitment of non-
genuine Shelbourne parts without the prior consent of Shelbourne;
4) accidental damage, including (but not limited to) damage caused by contact with
overhead power lines, damage caused by foreign objects (e.g. stones, metals
and any materials other than vegetation);
5) the machine has been neglected and not maintained and serviced fully in
accordance with the details and maintenance schedule set out in the Operators

8
Manual, and only using Shelbourne genuine parts. Proof of service work may
be requested prior to approval of any claim under the Warranty;
6) failure due to use of incorrect oil or lubricants, contamination of the oil, or oil
which has served its useful life or failure to carry out proper maintenance as
recommended in the Shelbourne Operators Manual;
7) where the original purchaser has continued to use the machine after they
became (or should reasonably have become) aware of the defect with the
machine.
Continued use of the machine after a defect is discovered could cause further
failures for which Shelbourne cannot be held liable and may also have safety
implications.
8) the Shelbourne serial number plate on the machine has been removed or
altered;
9) failure by the customer to release the machine for repair will not be accepted as
a reason for delay in repair or submitting warranty claims.
The Warranty shall not apply in respect of any:
1) wearing items which includes flails, skids, bearings or any other items which are
soil engaging or normal wearing or consumable items;
2) hoses that have suffered external damage, unless the damage is a direct result
of poor routing during assembly. Complete hoses must be returned for warranty
within this period. Any which have been cut or repaired will be rejected;
3) repeat or additional repairs resulting from incorrect diagnostics, unless advised
by Shelbourne.
4) poor-quality previous repair work.
1.5.6 LIMITATIONS OF LIABILITY
Shelbourne and the Shelbourne authorised dealer shall not be liable to the original
purchaser under any circumstance for injuries, death, property damage or damages of
any kind whatsoever directly, consequential or contingent to any person or property
caused by the use of the machine.
Shelbourne shall not be liable for any consequential loss such as the following costs or
types of loss (whether direct or indirect):
1) Loss of profit;
2) Loss of or damage to goodwill;
3) Loss of sales or business;
4) Loss of agreements or contracts or business opportunity;
5) The cost of lost consumables (such as oil);

9
6) Any loss or costs arising from the inability to use the machine due to any defect
with the machine, and during the time taken to repair or replace the machine;
7) The cost of hire or purchase of any replacement machine;
8) Recovery of broken-down machine;
9) Damage to or loss of crops or vegetation;
10)Damage to carrying tractor;
11)Damage caused by exceeding the tractor OEM (original equipment
manufacturers) specification for implement mounting and hitch capability;
12)Any other indirect or consequential loss;
In view of the Warranty given by Shelbourne, the terms implied by sections 13 to 15 of
the Sale of Goods Act 1979, and all other implied warranties or conditions regarding
the quality or suitability of the machine, are, to the fullest extent permitted by law,
excluded from this warranty policy and any contract or agreement between Shelbourne
and either the original purchaser or the Shelbourne authorised dealer.
Nothing in this warranty policy limits any liability which cannot legally be limited,
including liability for:
1) death or personal injury caused by negligence;
2) fraud or fraudulent misrepresentation;
3) breach of the terms implied by section 12 of the Sale of Goods Act 1979 (title
and quiet possession); and
4) breach of section 2 of the Consumer Protection Act 1987.
1.5.7 EXTENDED WARRANTY
Shelbourne will provide an extended Warranty for an additional 12 months on a parts
only basis, solely for the components detailed below, subject to all the other terms and
conditions of this warranty policy. This is a conditional extended warranty offered solely
at the discretion of Shelbourne.
700 Series
800 Series
Gearbox


Hydraulic Valves


Hydraulic Pump


Hydraulic Motor


Hydraulic Cylinders


Electronic Controls


1.5.8 WARRANTY ON SPARE PARTS
Shelbourne warrants that any spare part or component supplied by Shelbourne in
accordance with this limited warranty are free from defects in material or workmanship
from the date of sale to the original purchaser for 6 months, subject to the conditions
and limitations in clauses 1.5.4 to 1.5.7 of this warranty policy. Shelbourne will at its
option, either repair or replace the defective part free of charge providing that any
warranty claim is supported with a copy of the invoice to the end user for the failed part.

10
Original Purchaser shall be responsible for labour and all freight charges to and from
the place where the warranty work is performed.
Shelbourne Reynolds Engineering Ltd. cannot be held responsible for any
failures or safety implications arising from the use of non-genuine parts. Use of
non-genuine parts may seriously affect the machine’s performance and safety.
1.5.9 TRANSFER OF WARRANTY
Shelbourne may at its sole discretion allow this warranty to be transferred to a
subsequent owner of the machinery for the balance of the Warranty Period, subject to
all the warranty conditions being met and only with Shelbourne giving prior written
consent.
1.5.10 EXPORT CUSTOMERS
If you are based outside of the UK, warranty terms and conditions outlined above may
differ depending on your market. Please contact Shelbourne Reynolds Engineering Ltd.
for further information.
