ShenZhen YiXing WP-808 User manual

User Manual

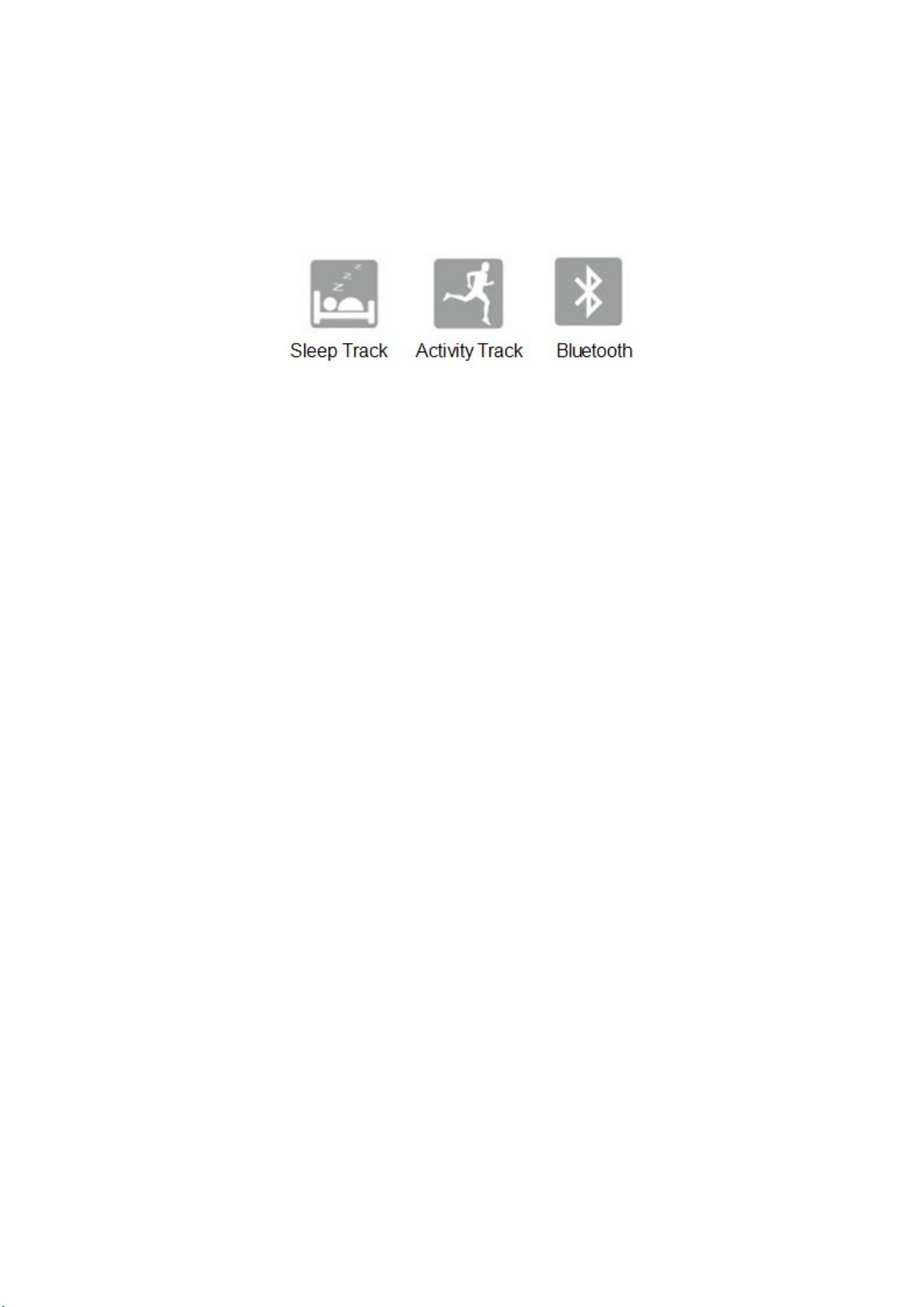

Wristband Activity & Sleep Tracker
Contents
1、Safety Instructions....................................................................................................................1
2、Caring Instructions...................................................................................................................2
3. Specifications..............................................................................................................................2
4. Accessories.................................................................................................................................2
6. First-time Use..........................................................................................................................3
6、Wristband Function..................................................................................................................4
8、App Instruction..........................................................................................................................9
Quality Guarantee........................................................................................................................13
Warranty card................................................................................................................................14
1、Safety Instructions
1. This manual introduces a right way to use the wristband, please keep this manual.
2. Never allow children to play with the wristband, the small components may be a
choking hazard!
3. Do not dispose of the wristband in a fire. The battery could explode
4. Do not attempt to disassemble the wristband, it does not contain serviceable
components.
5. Do not use or keep it in dusty or wet environment.
6. Do not tamper with your wristband.
7. Do not place your wristband in a Dishwasher, Washing Machine or Dryer.
8. Do not expose your wristband to extremely high or low temperatures.
9. Do not expose your wristband in an environment with Strong magnetic
interference or electrostatic interference
10. Do not use abrasive cleaners to clean your wristband.
11. Do follow doctor’s advice if you don’t take exercise oftento avoid being hurt.

2、Caring Instructions
1. The material of the wristband is TPU, it is a Medical grade low allergy rubber.And
the band it Is adjustable, fit for anybody.
2. Please always keep the wristband clean to prevent the skin allergy, because it is
on your wrist every day.
3. Please use a soft cloth to clean the wristband for perspiration or impurity, it may
prolonging the life of wristband.
4. Please adjust the wristband to keep enough place for air flowing.
5. Please avoid from excessive impact due to fall and intense exercise.
3. Specifications
Name: WristbandActivity & Sleep Tracker
Mode:WP-808
Size: 240mmX11mmX18mm
Weight: 17.5g
Material: TPU
Charging: USB
Battery Capacity: 65mAh
Stand-by time: 10 days
Use time:
Data Transmission: Bluetooth 4.0 & USB
Indicators: Four LED indicators.
Environmental Temperature&Humidity for operation:0℃~+40℃，20-85%RH
Environmental Temperature&Humidity for storage and transport: 0℃~+40℃，10-95%RH
4. Accessories
1, Inner core (1pc)
2, USB charging Cable (1pc)
3, Wrist band (1pc)
4, User manual (1pc)

6. First-time Use
Please check the wristband and accessories before you begin to use it. If any
absence, contact the supplier at once. The wristband adopt smart 3D sensor technology,
accurately sense the body movement and calculate the calories, body fat, aerobic
exercise, sleep etc., and sync the data to mobileApp or PC software.
1. Charging and wearing
1.1 The wristband must be charged before you begin to use the device.
1.Removethe core from the wristband it came in.
2.Insertthe core into the charging cable correctly with four LED indicators facing up.
3.Plugthe charging cable into a USB port on your computer.
4. Four LED indicators will light up and flash in green for 3 times, it is charging
successfully.
5.When four LED indicator lights up in green during the charging, it shows charging is
completed.
6. Insert the inner core to the wristband, then you can begin to use it.
Charging
co
n
tacts

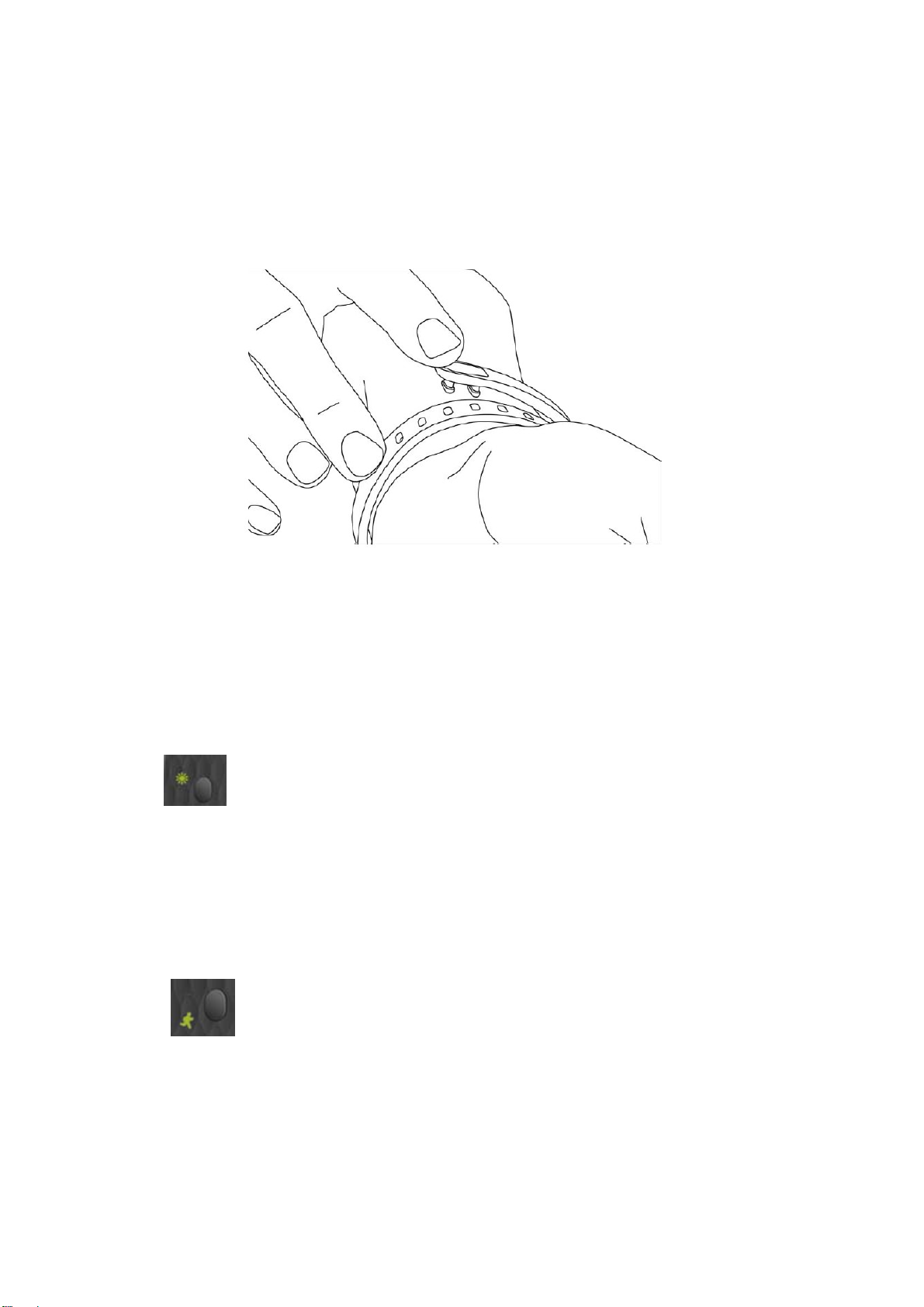

1.2 Adjust the band to wearing the wristband.
1. Put on the wristband so the window of lights are closest to the outside of your
wrist and facing you.
2. Align both ends of the wristband so they are directly overlapping each other
with the clasp over the two holes that best fit your wrist.

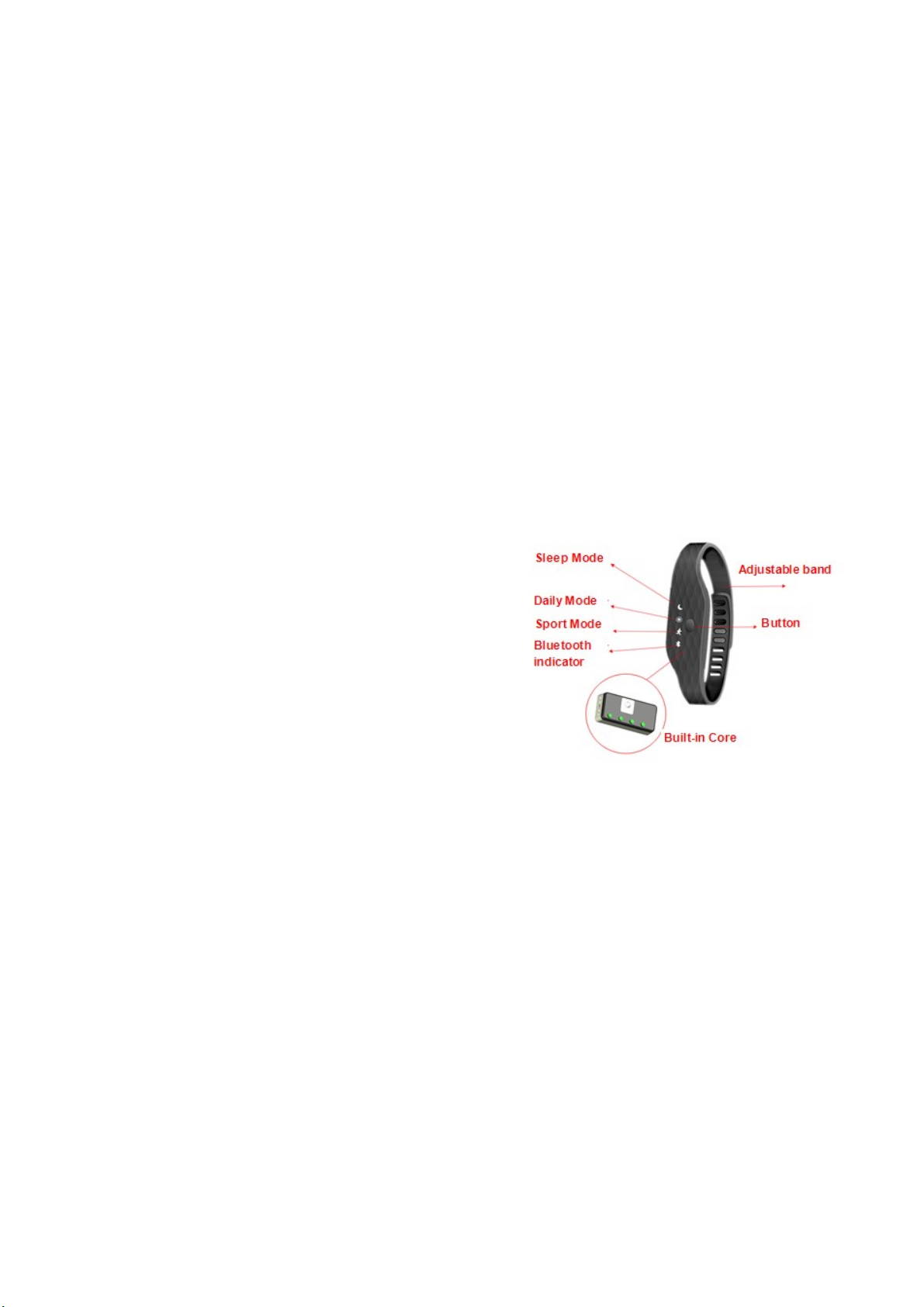

6、Wristband Function
1.Daily mode
1.1 Press the button and shifts to above sun icon, led indicator light is green, then it is
Daily Mode. Track your steps taken:0-999999 steps.
2. Sport Mode
2.1. Press the button and shifts to above sport icon,led indicator light is green,thenit is
Sport Mode. Many sports items can be available on theApp.

3. Sleep Mode
3. 1.Press the button and shifts to aboved moon icon, led indicator light is green, then is
Sleep Mode.
4. Motor Vibration Reminding
4.1When steps is up to goal setting,led indicator light for daily mode or sport mode will
flash three times and meantime, motor vibrates.
4.2when alarm clock time is up, led indicator lights flash 3 times and motor vibrates for 1.5
second. Motor will vibrate every 2 minutes and vibrate for 3 times.
5. Bluetooth 4.0
5.1 Long press the button for more than 3 seconds,led indicator light for Bluetooth turns
green and motor vibrates ,then Bluetooth is On or OFF.
7.Low battery Reminding
7.1 If the wristband is less than 5% power, fourled indicator lightsflash red; if less than 2%
of power:fourred indicator lights are lighting up.

8. USB Charging
8.1 Put the inner core into the USB charging base, connect to PC USB Port,then four led
lights flash green for 3 times after the existing status of led light flashes one time.It shows
it is charging normally.
7 APP Installation & Bluetooth
1.1Log in Apple Store, use the bluetooth 4.0 devices(i.e.iPhone4S,iPhone5,iPad3 and
iPad Mini) which is with Ios 5 above and search My Fit, download for free and install.
1.2 After successful installation,open thesoftware and enter the first dashboard. Current
interface displays time and date, accomplish% for goal, steps, distance, calories and
‘Since the last upload time’. ‘Since the last upload time’ is attained by subtracting
between current network time and the last upload time.Click the battery icon and it will
issue command for reading the power quantity.When the bluetoooth icon is in blue
color,read the total steps every second.Greybluetooth icon represents not
connecting.Click and enter the bluetooth connecting interface.

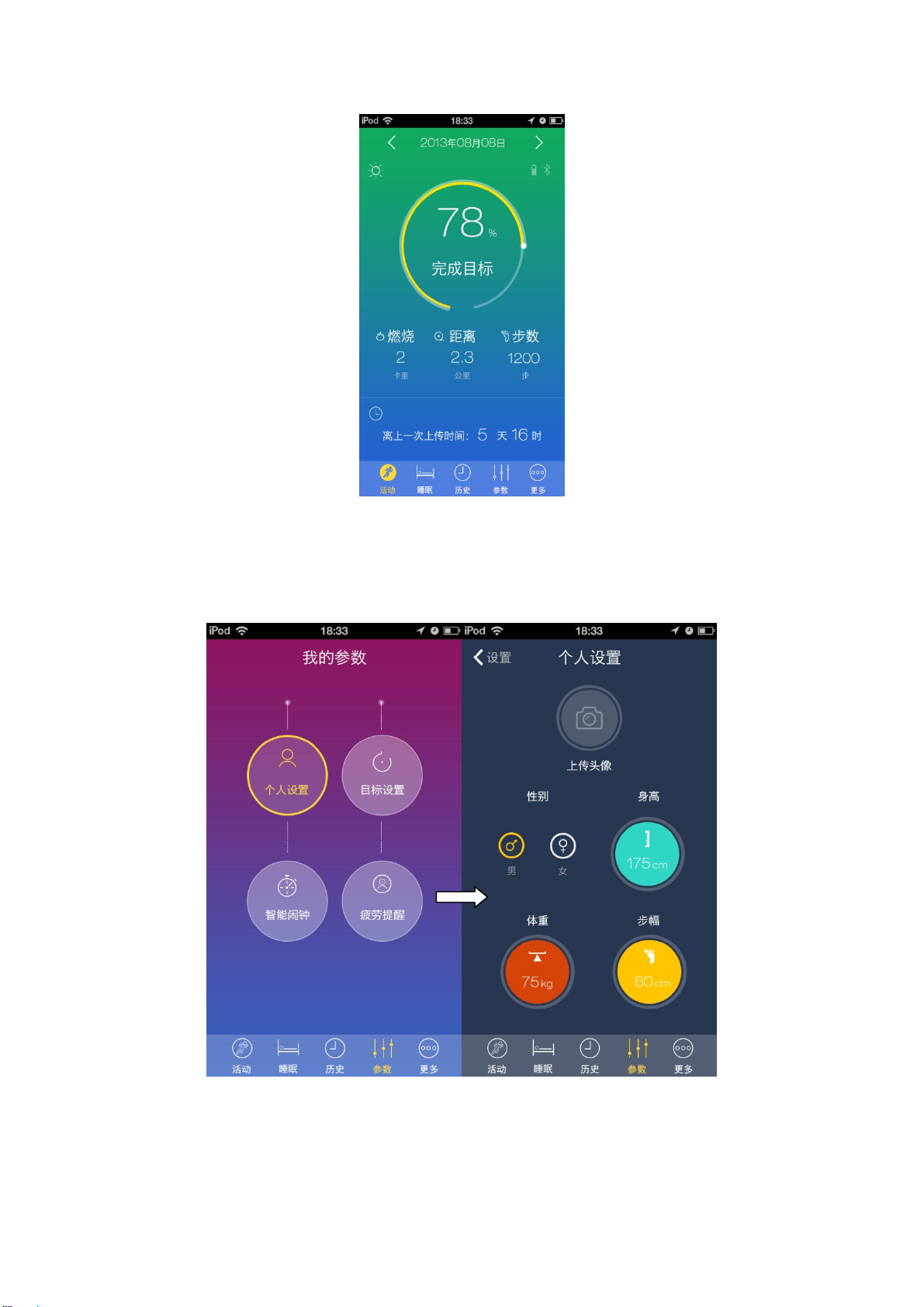

1.3 For first time use,perfect user experience can be attained if ‘Personal Setting’ is filled
in.Enterthe’Personal Setting’ icon on the ‘My Parameter’ interface and set the user’s
personal information.Image can be uploaded and Gender,Height,Weight and Stride can
be setted.
1.4 After setting parameters, open the Bluetooth.Long Press the button on the wristband
for 3s above until led light for bluetooth mode turns green and meanwhile motor
vibrates.Loosen the button, blueetooth 4.0 for wristband is on.Thenclick’More’ dashboard

on the APP, select ‘Bluetooth connection’
1.5 After the bluetooth searching the wristband,Password Entering pops up on the
Bluetooth Connection interface.Enter the default password: 0000 for the first time and
click the ‘confirmation’ button.

8、App Instruction

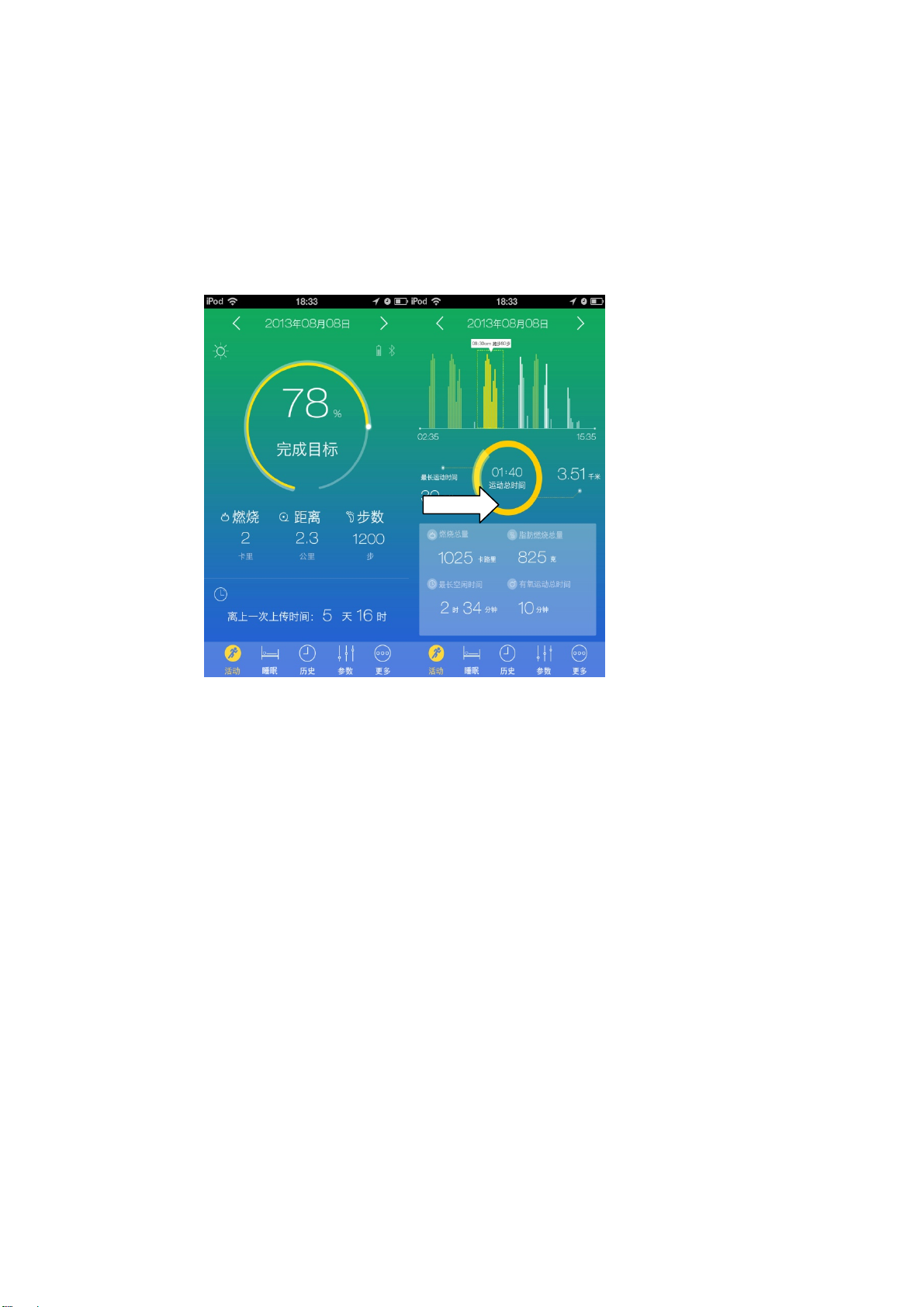

（1）Daily activity and Sport mode: More data, such as the calorie burned, distance and
step can be checked by sliding the screen up and down within the “Activity” interface; And
click the columnar data to add sport programs. The date above can be switch by clicking
the arrows, and when goes to the current date it will show as “Today”.
Two interfaces were switched by sliding the screen.

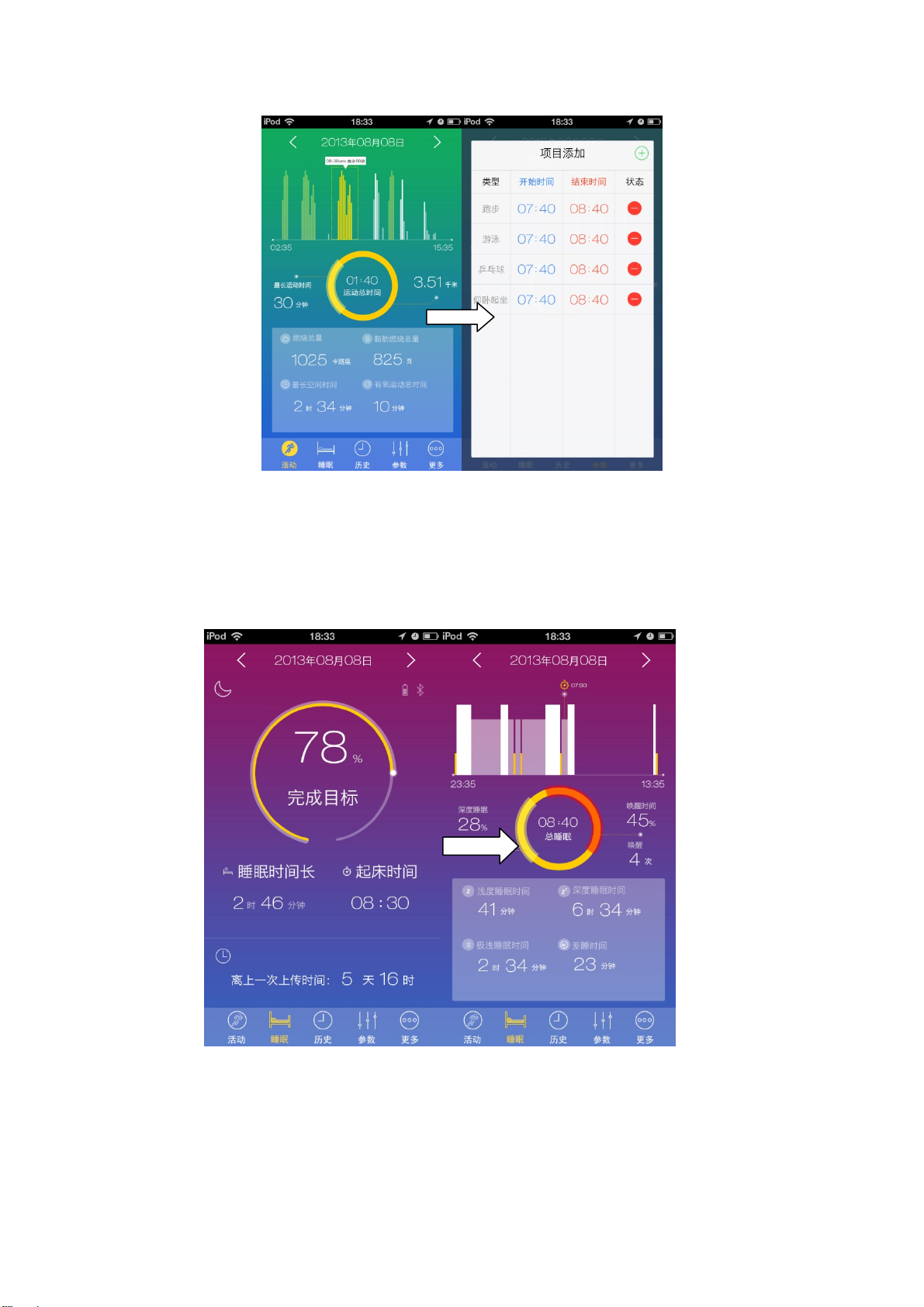

（2）Add sport program：Click the columnar data, we can see the window of “Program
adding”, click “+” to add new sport program, then input the starting and ending time;
Click “-” to delete the current program.

（3）Sleep record：When goes to the “Sleep” interface, the whole time of sleep, the time
of getting up and the time from last upload can be shown by sliding the screen up and
down, also the time of sleep with light movement, deep sleep, sleep with many movement
and bad sleep. Deep sleep: 0 movement in ten minutes; Sleep with light movement: 1-4
movements in ten minutes; Sleep with many movements: 5-12 movements in ten minutes;
Bad sleep: more than 12 movements in ten minutes.
（4）History record：Within the “History” interface, the data about day, week and month
display by columnar. Slides the screen to get more data.

（5）Target setting：Users click the relative number to edit the “Sleep time”, “Get up
time” and the “Sport target”. When the target finishes, the device will vibrate.

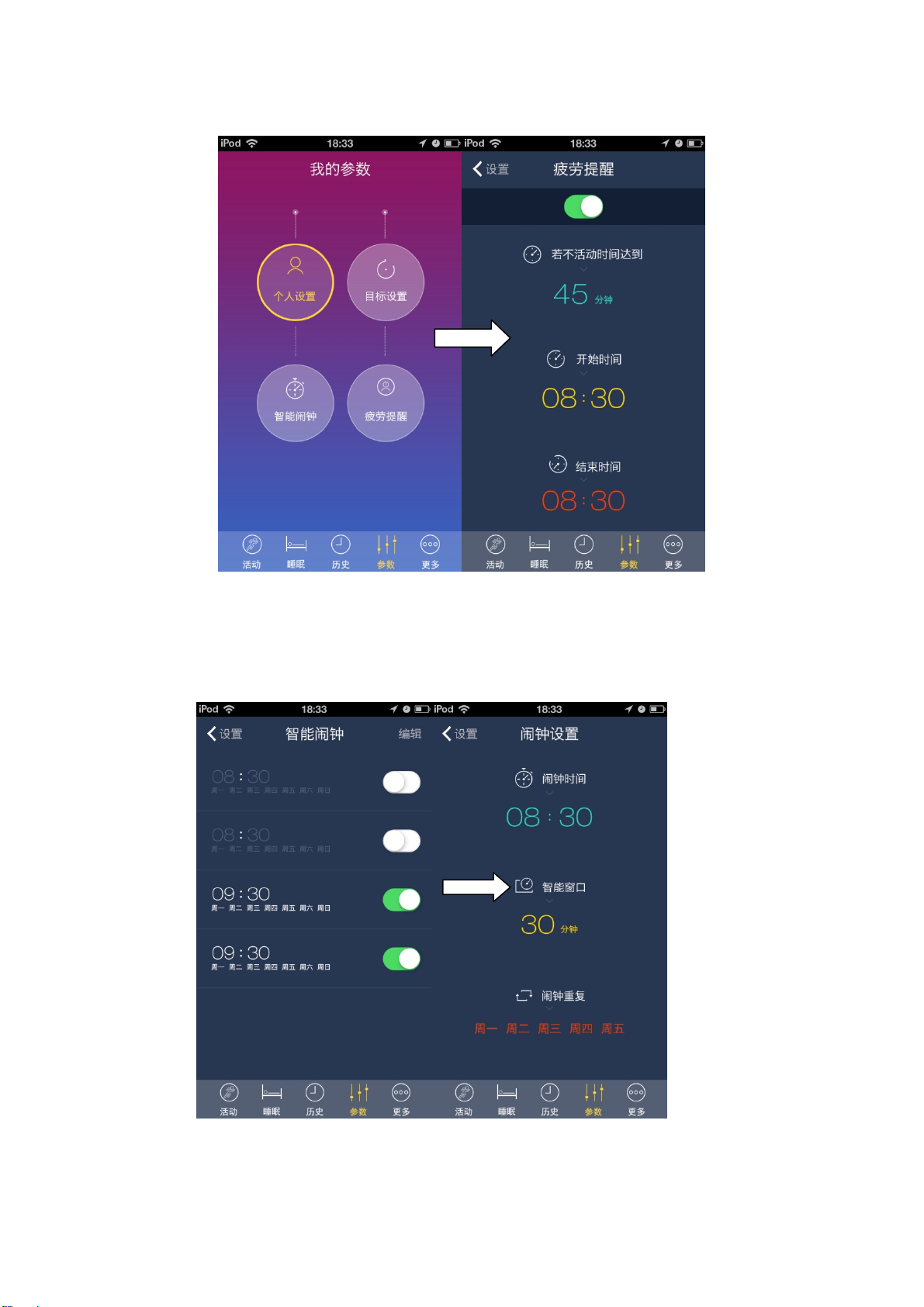

（6）Fatigue remind：For reminding users to do activities, we can edit the “Fatigue
remind ” on the “Parameter” interface, then set up a value, the device vibrates to remind
the time of starting and ending.

（7）Alarm setting：Click the “Smart Alarm” under the parameter interface, and when we
click “Edit”, four alarms can be set, choose one of them, then goes to the alarm setting
status.
（8）Change the Bluetooth name and code：Choose the key of “Change the Bluetooth
name” under the “More” interface, input the new Bluetooth name and save. The same

step, choose “Change the code”, then input your original code and new code, then save.
（9）Time setting of Bluetooth and Automatic connection：Close the automatic
connection within the “More ” interface, it saves the power of device. About the time
setting, if the “Auto shut down” was closed, we can close Bluetooth manually; if it was
open, the Bluetooth can be shut down auto, and the shut down time can be set from 1-120
minutes.
Quality Guarantee
1. Respective user, thanks for choosing our product, please read the Guarantee
carefully to protect your right.
The Guarantee is suitable for main land of China(Expect the HK, Macao and
Taiwan)

2. Service Range：
Service Valid：（From the date of invoice issued）
Whole Device：One year
Fittings：Three months
During the guarantee, it’s free to fix if any question cause the quality, without
overhaul.
It has to show the guarantee certification and pay for the repair cost if the product was
out of guarantee.
The guarantee can not be altered.
The warranty card attached with the guarantee is the certification of repair, please
keep carefully, it’s un-retroactive.
Guarantee Invalid：
（1） No Invoice and Warranty card.
（2） The warranty card is altered, and the information is not match with product.
（3） Fault cause the force majeure such as accidents,disasters and wars
（4） Fittings broken cause the improper use of user.
（5） Refit, repair or dismantled by the unauthorized agent.
Warranty card
Product info
Item：
Mode：
SerialNumb
er
Supplier：
Date：
User info
Name：
Tel：
Address：
Fixing
record

FCC Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)this device may not cause harmful interference, and
(2)this device must accept any interference received, including interference
that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the
part responsible for compliance could void the user’s authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Exposure Statement:
This equipment complies with fcc radiation exposure limits set forth for an
uncontrolled environment. This equipment can be operated in any place
without restriction.
