Show CSB-20T User manual

CSB-20T(EN54-24)
CSB-20TW(EN54-24)
CSB-40T(EN54-24)
CSB-40TW(EN54-24)
INDOORS MINI SPEAKER
INSTRUCTION MANUAL
TABLE OF CONTENTS

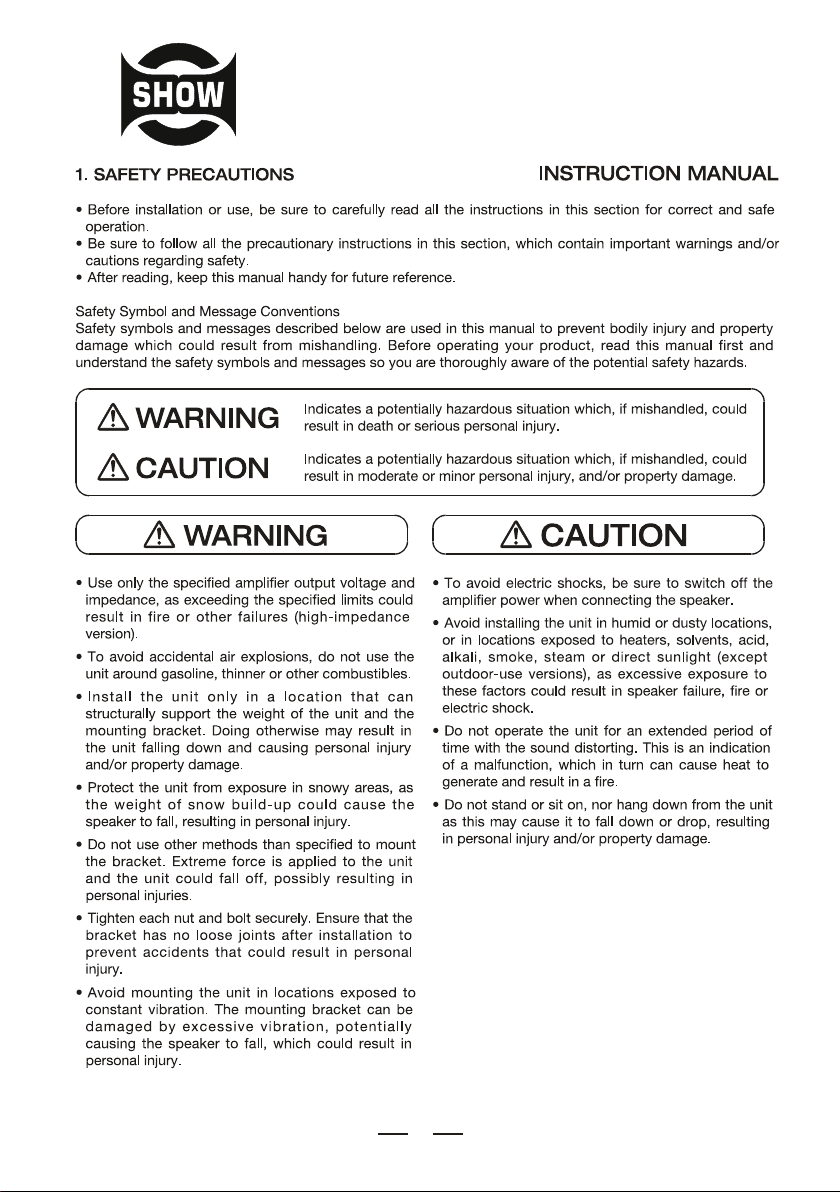

1. SAFETY PRECAUTIONS
2. GENERAL DESCRIPTION
3. FEATURES
4. IMPEDANCE CHANGE
5. WIRING AND USING TERMINAL COVER
6. INSTALLATION
7. CONNECTION DESCRIPTION
8. DIMENSIONAL DIAGRAM
9. FREQUENCY RESPONSE
10. SPECIFICATIONS
1
2
2
2
3
3
5
6
7
8

1

2. GENERAL DESCRIPTION
Speakers are compact two-way speaker systems designed for high efficiency, wide range, and high power input
handling capability. These speaker systems can be installed in a manner ideal for the location and intended
application. The speaker is certified to the European Standard EN 54 24:2008.
3. FEATURES
• Wide directivity high-frequency horn.
• Supplied bracket permits mounting to a wall.
• Impedance change available by a rotary switch located in rear side.
• Certified to EN 54-24:2008.

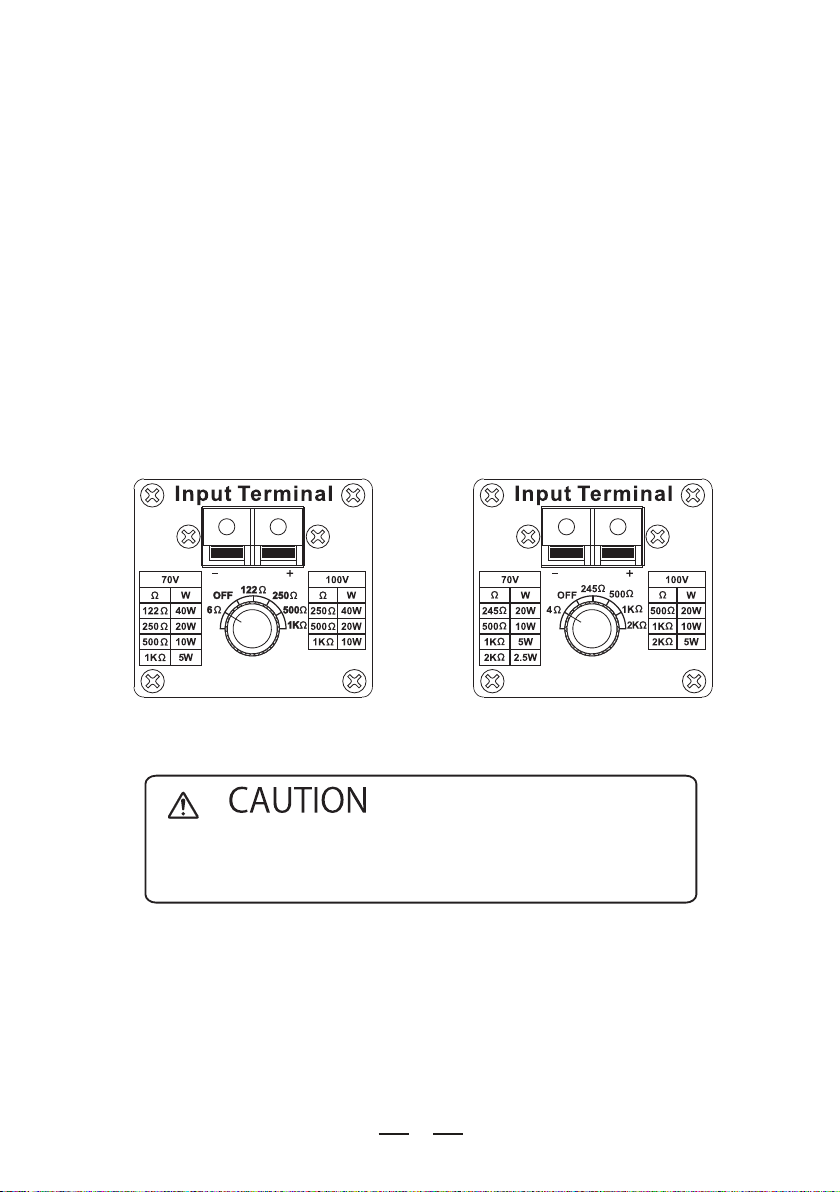

4. IMPEDANCE CHANGE
To change the impedance, Please rotate the rotary switch on the speaker's rear to select the desired input power.
CSB-40T / 40TW
The switch is factory-preset to 250Ω.
CSB-20T / 20TW
The switch is factory-preset to 500Ω.
Never set this switch to the "250Ω" (CSB-20 series), "500Ω" (CSB-40 series)
position when operating the speaker on 100 V line.
Failure to follow this instruction could result in damage to the speaker or amplifier.
2

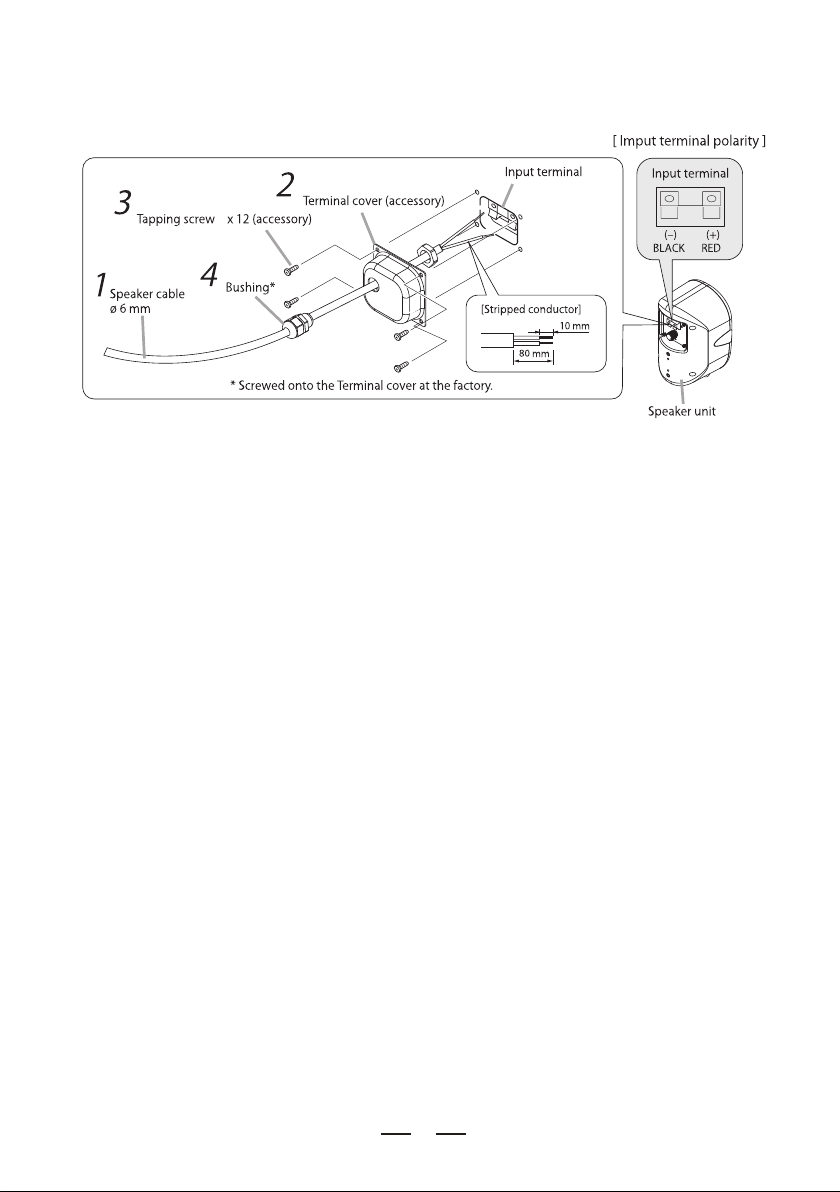

5. WIRING AND USING TERMINAL COVER
Notes
• For the speaker cable, use a cable with a diameter of 6mm, which will fit the cable bushing.
• To ensure waterproof capabilities, firmly mount the terminal cover to the speaker and tighten the bushing on the
cover.
Step 1: Feed the speaker cable through the bushing and terminal cover, then connect the cable to the input
terminal.
Step 2: Attach the terminal cover to the speaker.
Attach the cover while pulling the cable so that it is not entangled inside the terminal cover.
Step 3: Hold the terminal cover tightly to the speaker using the supplied screws.
Step 4: Tighten the bushing.
Note: After tightening the bushing by hand, use a tool to further tighten it another 90º (1/4-turn) or so. Note that
parts can be damaged by over-tightening.

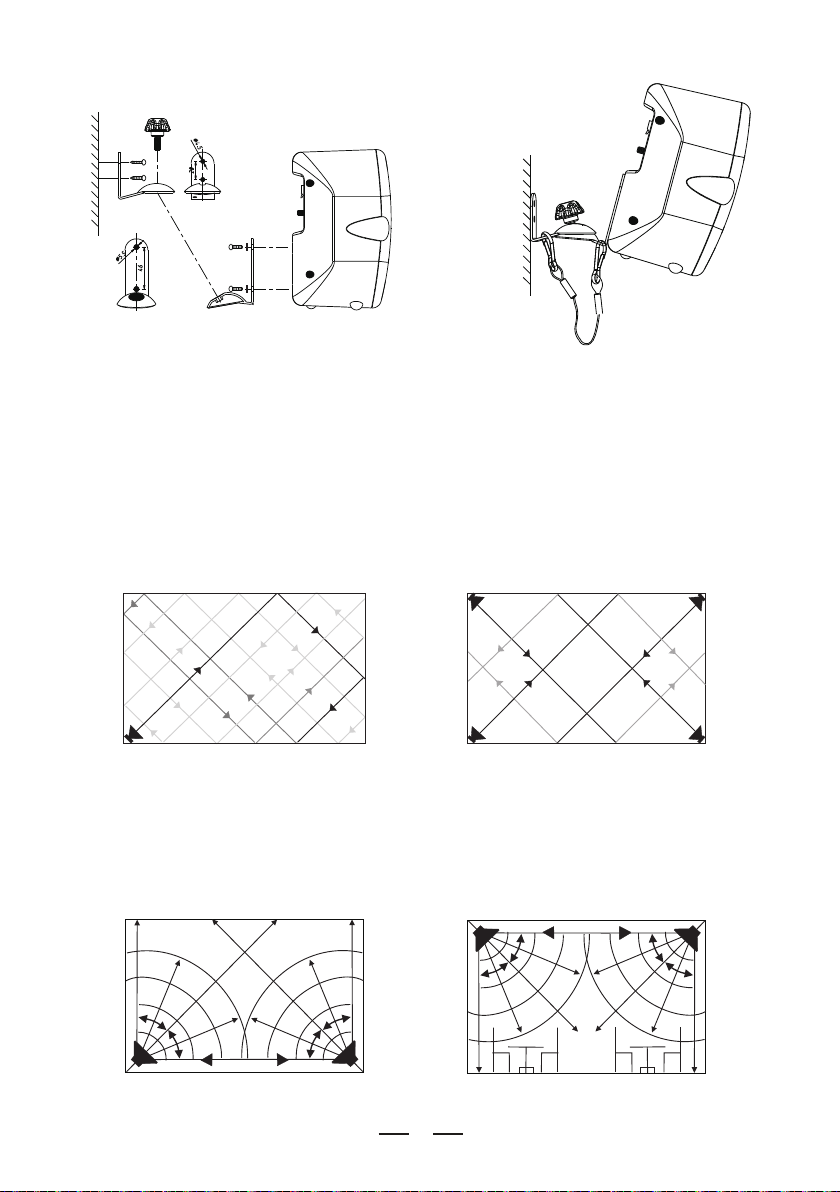

6. INSTALLATION
Note: Commercial audio installation system must conform to local building laws. When install speaker on wall or
ceiling, please consult a building constructer with a license or a professional engineer. The corporation won't be
responsible for the improper installation or damage because of not conforming to installation description.
Installation procedure of CS-3 bracket is very simple and convenient, the appearance is pleasing to the eye.
Step 1: Fasten the CS-3 bracket(1) on the wall with screws. The wall material must support the weight of the
cabinet.
Step 2: Place the body of cabinet in CS - 3 bracket(2) and lock the screws tightly.
Step 3: Use screw (3) lock CS-3 bracket(1) and CS-3 bracket(2). Mand use steel rope (4) to connect two brackets.
3
3

INDOOR INSTALLATION DESCRIPTION:
CSB series speakers are designed specially for fixing and using in different circumstances. The property of
speakers may be different due to different circumstances. There is an acoustic surface (wall, floor and ceiling) in a
closed room, so the acoustic indoor will turn complex. When acoustic wave hits the surface, a part of acoustic
energy is reflected, and others are absorbed. Reflection and absorption are depending on the frequencies of
acoustic wave and angle of hitting surface. When operate the cabinet, both man and furniture can absorb the
acoustic energy. Please note the position of man and furniture when installing. Reverberation is the results of the
reflected acoustic wave continue bouncing between the surfaces. Every reflection will loss the energy. When the
acoustic hit the reflection surface, the room will be filled with random reflected acoustic wave. The music and
address will be complex. It is recommended that install more speakers and make the volume of speakers lower to
reduce the reverberation in high reverberating room. (Please see figure 5B)
Speaker coverage range - Direct the center axile of the speaker to the flat surface of receiving area.
The speakers of 90˚x90󱔉series can spread the speaker tone to all the directions at the axile of 45󱔉.
If you use the speakers in large room, you can divide the room to some zones. Then decide the installing location
of the speakers . (Please see figure 6)
ONE LOUD SPEAKER
(figure5A)
MULTIPLE QUIET SPEAKERS
(figure5B)
45｢X
45｢X
45｢X
45｢X
45｢X
45｢X
45｢X
45｢X
VERTICAL
HORIZONTAL (figure6)
(1)
(3)
(2) (4)
4

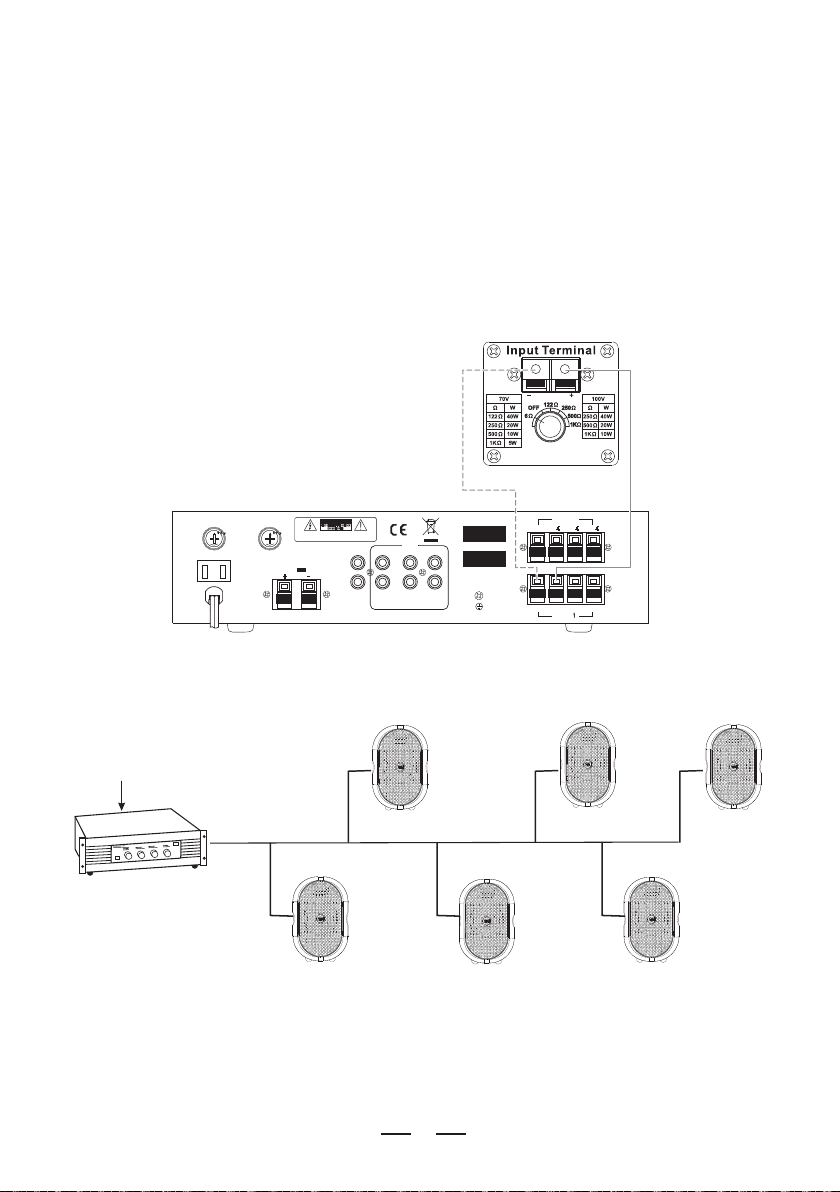

7. CONNECTION DESCRIPTION
LEVEL DISTRIBUTION SYSTEM CONNECTION DESCRIPTION:
CSB-20T and CSB-40T have built-in transformer of 70/100V, can connect many speakers to one channel, and only
need one amplifier. The amplifier output terminal "com/-'' stands for negative polar, terminal "70V /100V/+ " stands
for positive. The red speaker terminal stands for positive, black stands for negative. Please connect amplifier to
speaker right, incorrect connection may cause damage to amplifier and speaker. Finally set your desired output
power, see picture 3A to adjust the band switch to meet your need, in this case, the total power of all the speakers
can't exceed the nominal power of amplifier. One 320W amplifier channel can drive 8 speakers of 40W, i.e. 40 x
8=320≦320W). For safety, the total power of all the speakers should be less than 3/4 nominal power of amplifier
(One 320W amplifier channel can drive 6 speakers of 40W, i.e. 40 x 6=240W≦320W).
+
COM 4｣ [ 8｣[ 16 ｣[
COM 70V C OM 100V
AC IN 110V~60Hz
POWER CONSUMPTION:80W
DC FUSE
T6.3A/250V
L
AC FUSE
T1A/250V
AC OUTLET
110V/60Hz 10A
MOD EL
SER IA L
R
REC OUT CD TAPE TUNER
AUX
OUTPUT
OUTPUT
DC 12 V 5A
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : SHOCK HAZARD - DO NOT OPEN
RISK OF FIRE-REPLACE FUSE AS MARKED.
CAUTION
F
U
S
E
F
U
S
E
INPUT
AMPLIFIER
TYPICAL 320 WATT
70V OUTPUT
6 x 40 WATT=240 WATT TOTAL LOAD ON AMPLIFIER
40 WATT TAP
40WATT TAP
40WATT TAP
40WATT TAP
40WATT TAP
40WATT TAP
(figure3B)
(figure3A)
5

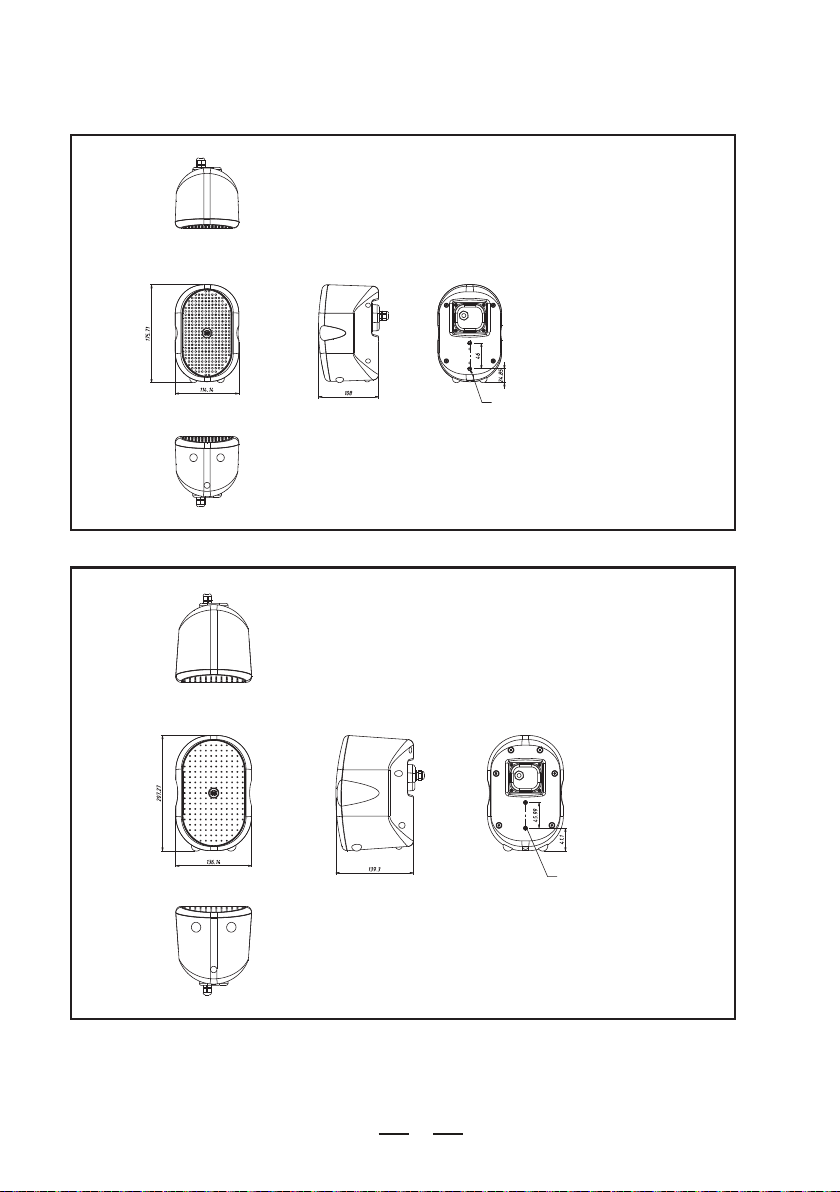

8. DIMENSIONAL DIAGRAM
CSB-20T / 20TW
Unit: mm
Unit: mm
M5 x 0.8PH
2-M5 mounting screw hole
M5 x 0.8PH
2-M5 mounting screw hole
CSB-40T / 40TW
6

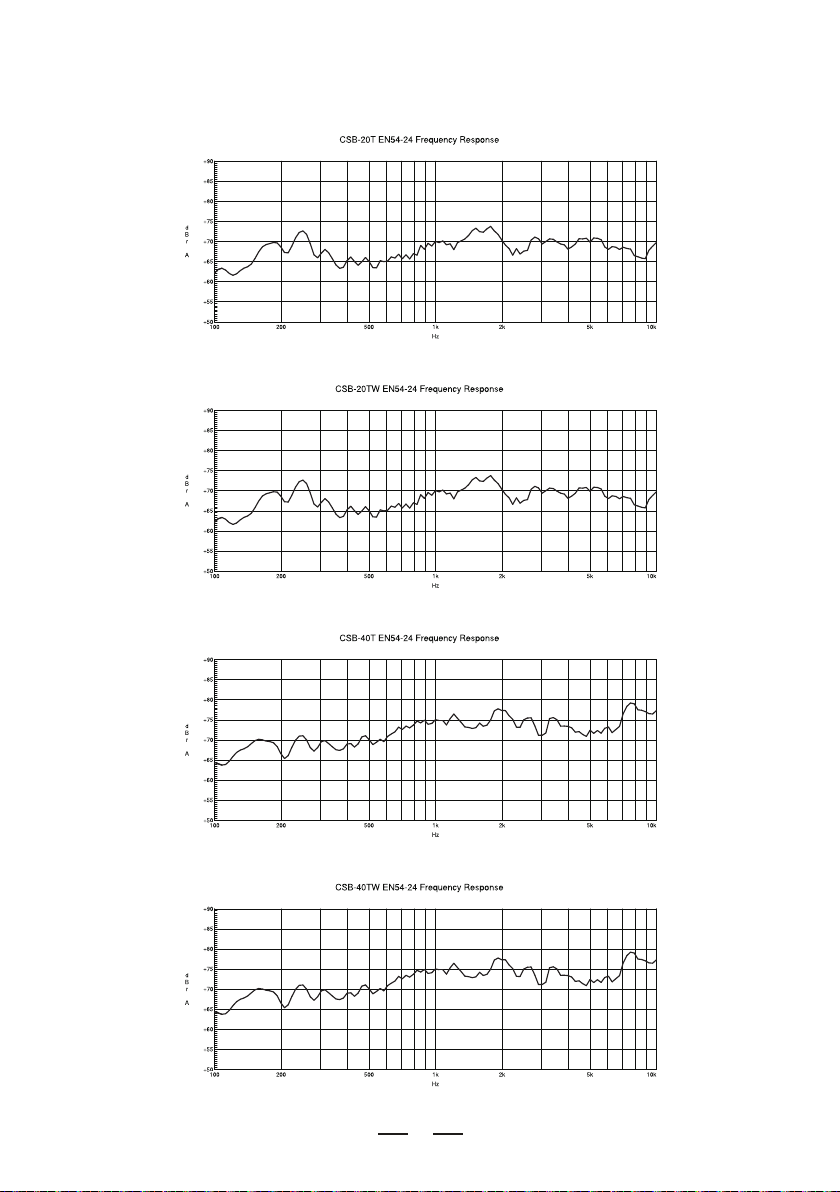

9. FREQUENCY RESPONSE
Frequency Response (1W,4m)
Frequency Response (1W,4m)
Frequency Response (1W,4m)
Frequency Response (1W,4m)
7

10. SPECIFICATIONS
8
Model No. CSB-20T CSB-20TW
Standard
Environmental Type
Bullt-In speaker 3"full range paper speaker 3"full range paper speaker
20W 20W
82dB(1W, 1m)(500Hz- 5 kHz, pink noise)
Frequency Response 132Hz- 20kHz132Hz- 20kHz
Weight 1.4Kg 1.4Kg
Dimensions(mm)115(W)x 107(D)x 175(H)115(W)x 107(D)x 175(H)
Speaker Component 3"(77 x 77mm)paper cone speaker 3"(77 x 77mm)paper cone speaker
Operating Temperature -10°C to +50°C -10°C to +50°C
Appllcable Cable Solid wire:φ0.8mm (18AWG)UL2464 Solid wire:φ0.8mm (18AWG)UL2464
Cable Connection
Finish
Enclosure:ABS+PC, Black
Mesh speaker grill:Surface-treated
steel plate, black paint
Speaker Wall bracket:Surface-treated
steel plate, black paint
Joint bracket, screws and Stainless
steel cable
Enclosure:ABS+PC, White
Mesh speaker grill:Surface-treated steel
plate, white paint
Speaker Wall bracket:Surface-treated steel
plate, white paint
Joint bracket, screws and Stainless steel
cable
TYPE A (Indoor applications)
Rated Noise Power and
Voltage (100V line and 70V line)
Certified to the European Standard EN 54-24:2008
Loudspeaker for voice alarm systems for fire detection and fire alarm system.
Certification Cation NO.1438-CPR-xxxx
Rated Impedance
Sensitivity 70dB(1W, 4m)(100Hz- 10 kHzpink noise)according to EN54-24
82dB (1W,1m)(100Hz- 10 kHz, pink noise)converted based on EN54-24
83dB(20W, 4m)(100Hz- 10 kHzpink noise)according to EN54-24
95dB (20W,1m)(100Hz- 10 kHz, pink noise)converted based on EN54-24
Push-in terminals (steatile terminal x 2)speaker cable with a diameter of 6mm White(+)/ Black(-)
Maximum Sound Pressure
Level
Coverage Angle(-6dB)
100V line:
500Ω(20W),
1kΩ(10W),
2kΩ(5W)
100V line:
500Ω(20W),
1kΩ(10W),
2kΩ(5W)
70V line:
245Ω(20W),
500Ω(10W),
1kΩ(5W),
2kΩ(2.5W)
BYPASS-4Ω BYPASS-4Ω
70V line:
245Ω(20W),
500Ω(10W),
1kΩ(5W),
2kΩ(2.5W)
Horizintal:
360° (500Hz),
220° (1 kHz),
127° (2 kHz),
96° (4 kHz)
Horizintal:
360° (500Hz),
220° (1 kHz),
127° (2 kHz),
96° (4 kHz)
Vertical:
360° (500Hz),
214° (1 kHz),
149° (2 kHz),
126° (4 kHz)
Vertical:
360° (500Hz),
214° (1 kHz),
149° (2 kHz),
126° (4 kHz)

9
BYPASS-8ΩBYPASS-8Ω
Model No. CSB-40T CSB-40TW
Standard
Environmental Type
Bullt-In speaker 4"full range paper speaker 4"full range paper speaker
40W 40W
86dB(1W, 1m)(500Hz- 5 kHz, pink noise)
Frequency Response 100Hz- 20kHz100Hz- 20kHz
Weight 2.5Kg 2.5Kg
Dimensions(mm)136(W)x 140(D)x 206(H)136(W)x 140(D)x 206(H)
Speaker Component 4"(106 x 106mm)paper cone speaker 4"(106 x 106mm)paper cone speaker
Operating Temperature -10°C to +50°C -10°C to +50°C
Appllcable Cable Solid wire:φ0.8mm (18AWG)UL2464 Solid wire:φ0.8mm (18AWG)UL2464
Cable Connection
Finish
Enclosure:ABS+PC, Black
Mesh speaker grill:Surface-treated steel
plate, black paint
Speaker Wall bracket:Surface-treated steel
plate, black paint
Joint bracket, screws and Stainless steel
cable
Enclosure:ABS+PC, White
Mesh speaker grill:Surface-treated steel
plate, white paint
Speaker Wall bracket:Surface-treated steel
plate, white paint
Joint bracket, screws and Stainless steel
cable
Rated Noise Power and
Voltage
Certified to the European Standard EN 54-24:2008
Loudspeaker for voice alarm systems for fire detection and fire alarm system.
Certification Cation NO.1438-CPR-xxxx
TYPE A (Indoor applications)
(100V line and 70V line)
Rated Impedance
Sensitivity 74dB(1W, 4m)(100Hz- 10 kHzpink noise)according to EN54-24
86dB (1W,1m)(100Hz- 10 kHz, pink noise)converted based on EN54-24
Push-in terminals (steatile terminal x 2)speaker cable with a diameter of 6mm White(+)/ Black(-)
Maximum Sound Pressure
Level
90dB(40W, 4m)(100Hz- 10 kHzpink noise)according to EN54-24
102dB (40W,1m)(100Hz- 10 kHz, pink noise)converted based on EN54-24
Coverage Angle(-6dB)
100V line:
250Ω(40W),
500Ω(20W),
1kΩ(10W)
100V line:
250Ω(40W),
500Ω(20W),
1kΩ(10W)
70V line:
122Ω(40W),
250Ω(20W),
500Ω(10W),
1kΩ(5W)
70V line:
122Ω(40W),
250Ω(20W),
500Ω(10W),
1kΩ(5W)
Horizintal:
360° (500Hz),
220° (1 kHz),
120° (2 kHz),
87° (4 kHz)
Horizintal:
360° (500Hz),
220° (1 kHz),
120° (2 kHz),
87° (4 kHz)
Vertical:
360° (500Hz),
214° (1 kHz),
116° (2 kHz),
99° (4 kHz)
Vertical:
360° (500Hz),
214° (1 kHz),
116° (2 kHz),
99° (4 kHz)

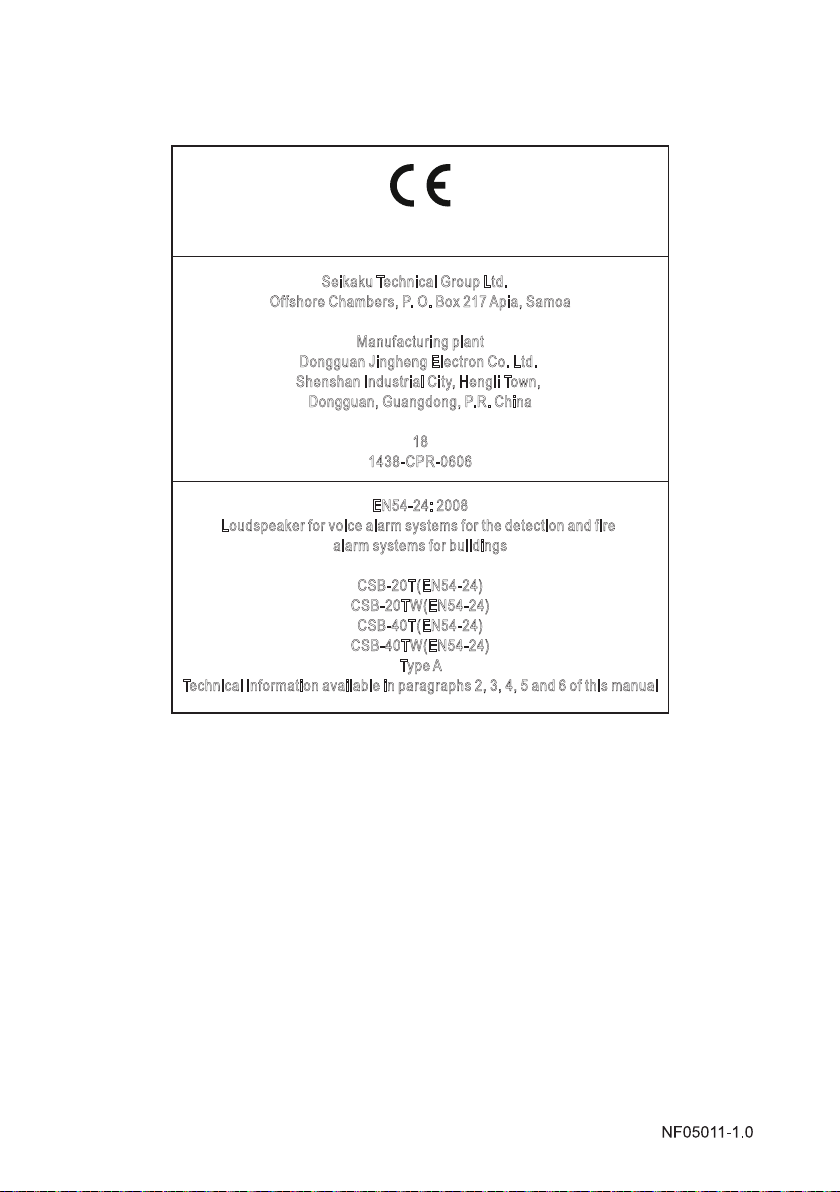

1438
Seikaku Technical Group Ltd.
Offshore Chambers, P. O. Box 217 Apia, Samoa
Manufacturing plant
Dongguan Jingheng Electron Co. Ltd.
Shenshan Industrial City, Hengli Town,
Dongguan, Guangdong, P.R. China
18
1438-CPR-0606
EN54-24: 2008
Loudspeaker for voice alarm systems for the detection and fire
alarm systems for buildings
CSB-20T(EN54-24)
CSB-20TW(EN54-24)
CSB-40T(EN54-24)
CSB-40TW(EN54-24)
Type A
Technical information available in paragraphs 2, 3, 4, 5 and 6 of this manual
