Show CS-304 User manual

User's Manual
CS-308 CS-312CS-304
COLUMN ARRAY SPEAKERS

INDEX
SAFETY RELATED SYMBOLS
INTRODUCTION
1
2
3
4
6
6
8
9

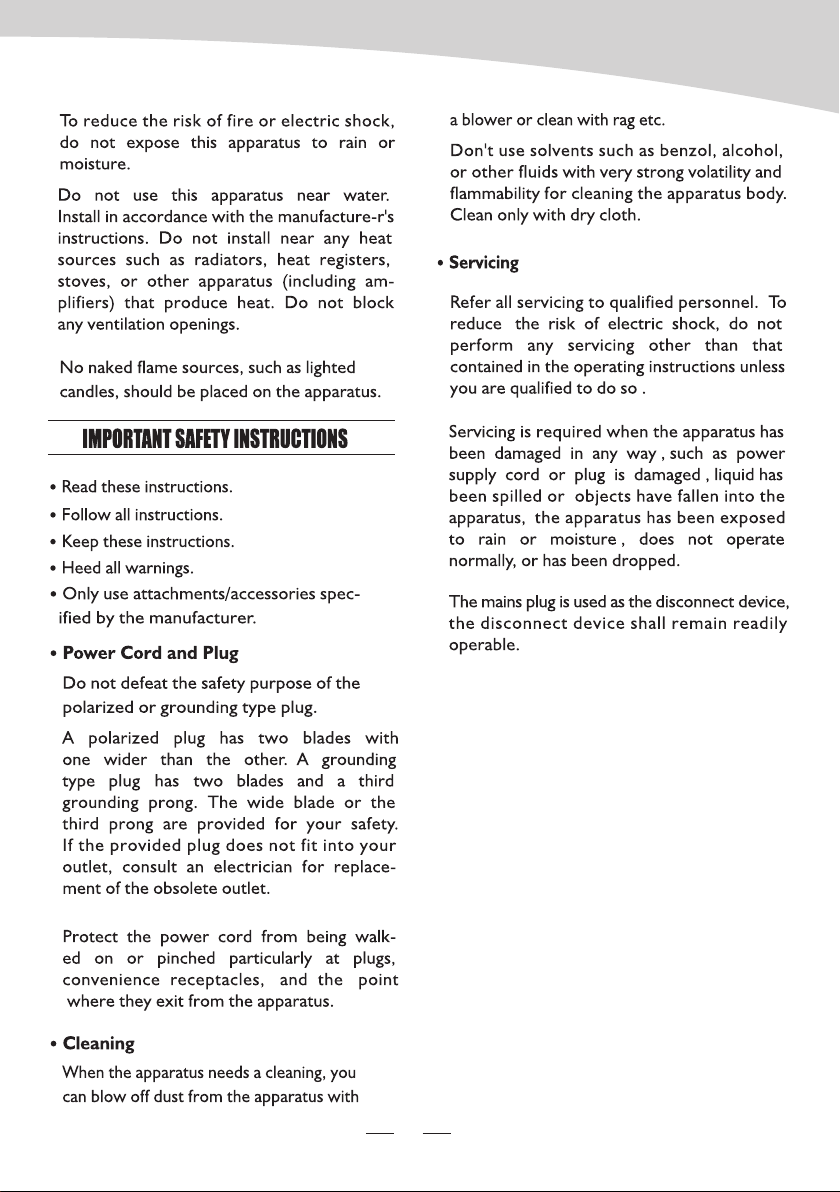

WARNING
INSTALLATION
01
02
04
03
05
06
08
07

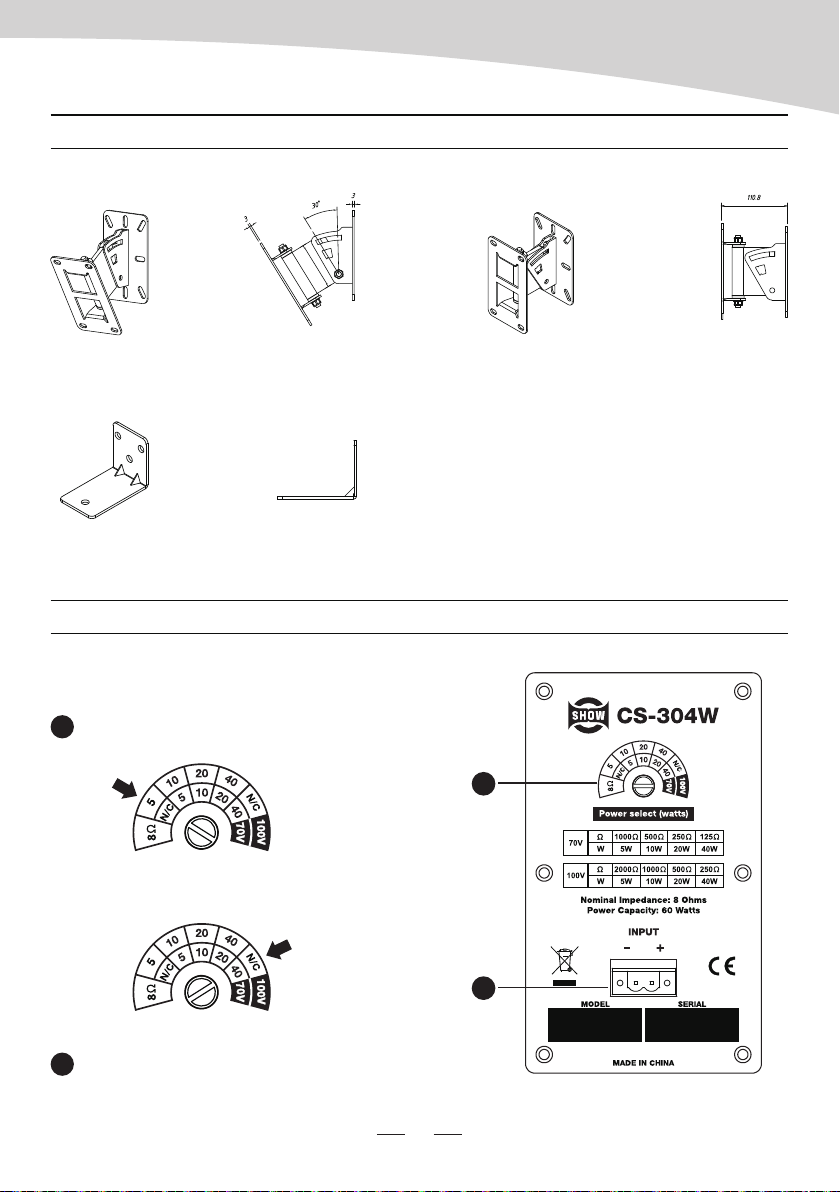

BACK PANEL DESCRIPTION
ACCESSORY
SYSTEM CONNECTION PLATE
TECHNICAL SPECIFICATIONS

1

2

INTRODUCTION
3
Please read the instructions in details before you use, and follow the contents to do the most proper
installation. After you have made the proper installation, please keep this instruction well for your
references at any time.
If you would like to do any changes for the installation regarding this product, please must make sure if
the specifications are correct or not. Otherwise, the incorrect installation will probably result in the
permanent damage to this product, therefore, please use it with cautions.
Cautions:
1. Absolutely not to do the installation that exceeds the specifications of this products because it will
result in affecting the life and the capacity with regard to this product.
2. Keep away from the place that wets in rain directly if installing at outside.
3. Do not clean the appearance of the column speaker with an organic solvent or alcoholic detergent.
4. Do not repair or disassemble the product yourself if there is any damage or unusual situation, please
should contact the person in charge of service immediately.

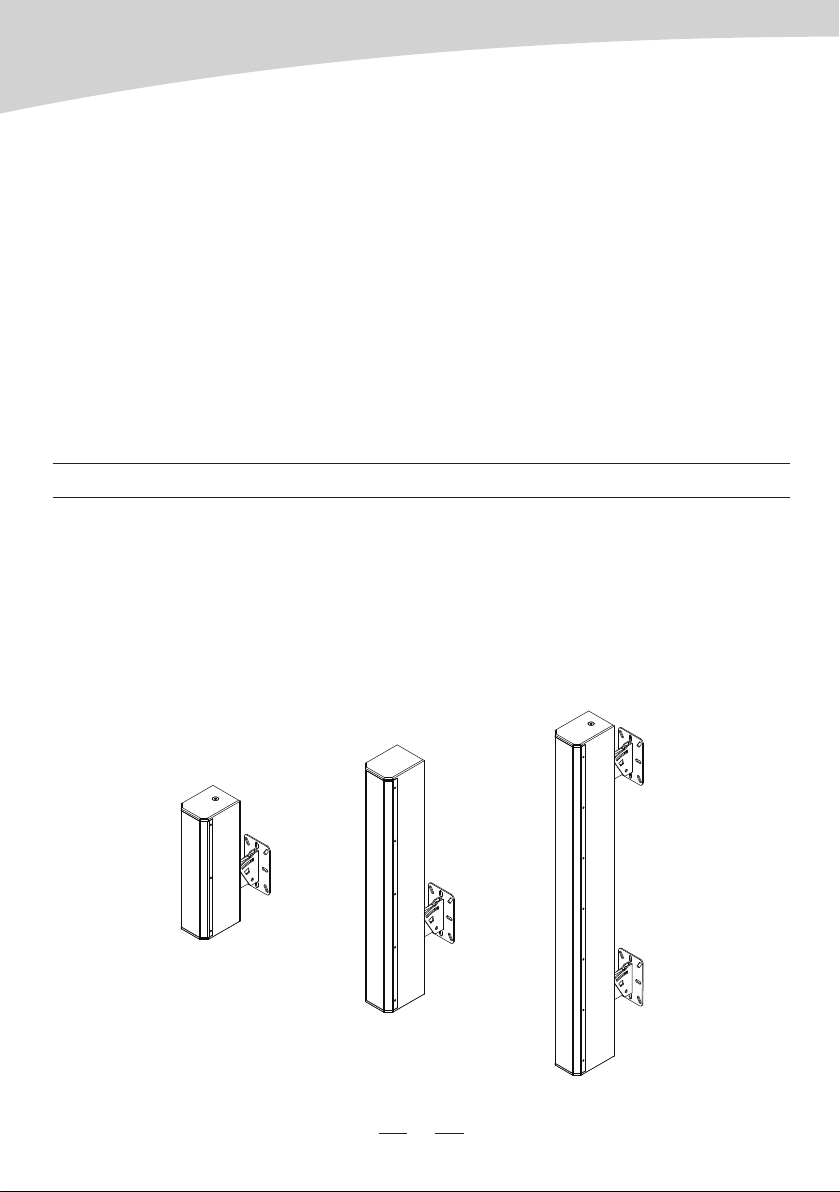

CS-308 is a professional column array speaker developed by SHOW. With 1.0mm mesh and 0.8mm
grille, it can effectively protect unit from external damage and prevent dust into the speaker. Cabinet is
made by plywood with light weight and solid structure. Cabinet surface is sprayed fine sand paint to
make delicate. touch. 8 pieces 3 " full-range horn unit with linear paper cone , cloth surrounding can
achieve high sensitivity. The system apply power transformers to switch power, effectively protect the
units. To prevent high power input signal damage units, they can be used in parallel to avoid causing
damage to the PA amplifier with low impedance. Locked bracket screws to fixed plate inside cabinet.
The fixing plate with 3 mm thick iron can effective decompose the bracket pull force.
CS-308
CS-312
CS-304

INSTALLATION
4

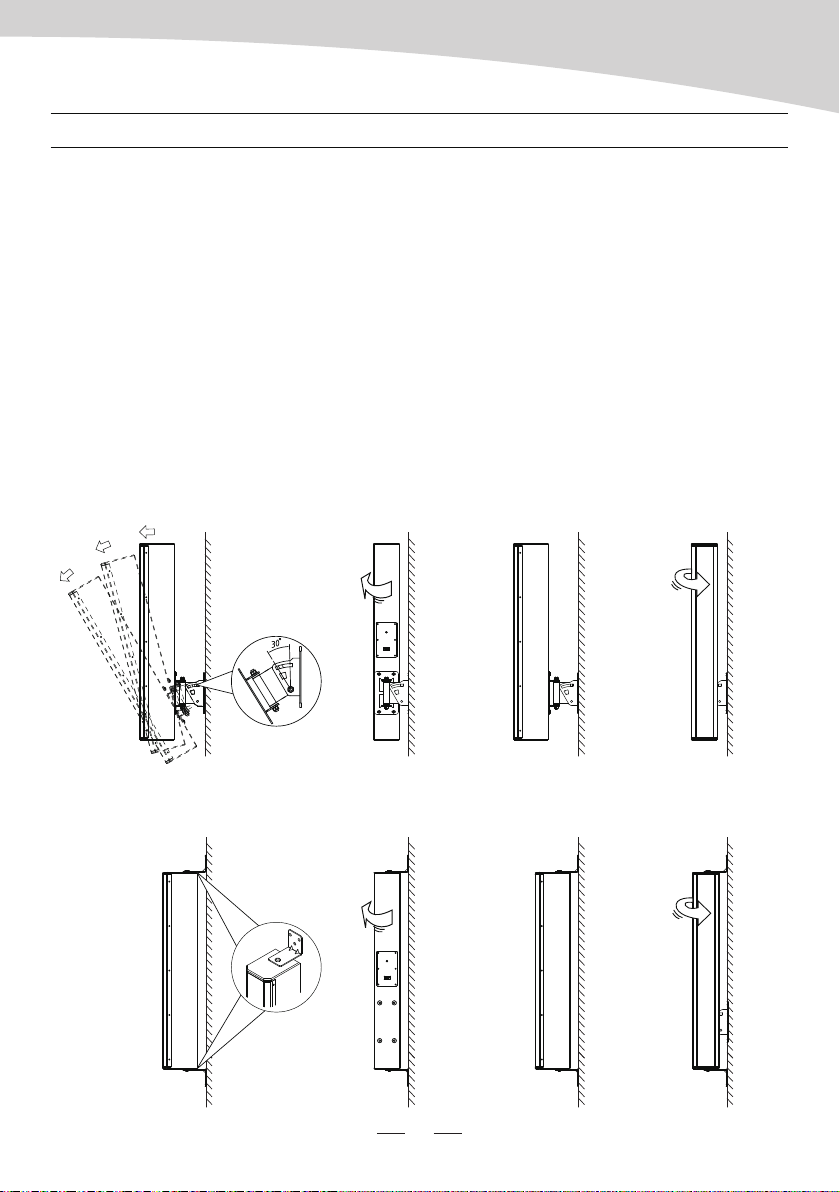

CS-304 / CS-308
1) Make sure the expansion screws of mounting brackets can filmy support the product weight
before installation to avoid causing the injuries of the facilities and a worker if there is a falling.
2) Make sure the bracket is installed in vertical position and install expansion screw in the identified
location.
3) Lock the bracket (in attached) to the wall enough tightly and ensure it’s vertical between bracket and
wall.
4) Remove the 6*M8 screws on back of column and fix it to the racket via the screws( in attached).
Please make the column straight and firmly locked.
5) Adjust the column to appropriate angle with bracket adjustable angle vertical 0 °~ 30 °, horizon
-90 ° ~ 90 °.
6)Please first confirm the system you connected output of 100V, 70V. And adjust band switch to the
correct position, also the input signal must be connected correctly.
• 180 ° x 30 ° bracket (angle vertical 0 °~ 30 °, horizon -90 ° ~ 90 °)
• L bracket(angle horizon -90 ° ~ 90 °)

5

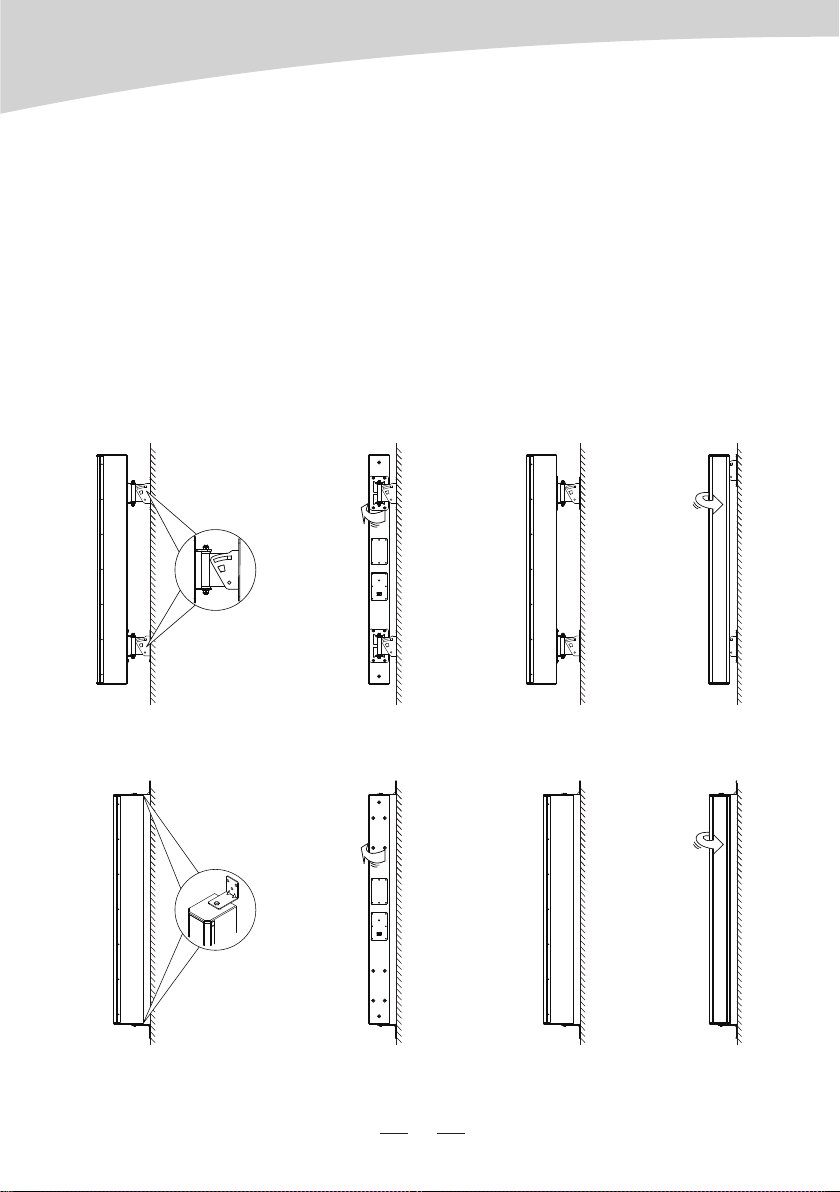

CS-312
1) Make sure the expansion screws of mounting brackets can filmy support the product weight
before installation to avoid causing the injuries of the facilities and a worker if there is a falling.
2) Make sure the bracket is installed in vertical position and install expansion screw in the identified
location.
3) Lock the bracket (in attached) to the wall enough tightly and ensure it’s vertical between bracket and
wall.
4) Remove the 12*M8 screws on back of column and fix it to the racket via the screws( in attached).
Please make the column straight and firmly locked.
5) Adjust the column to appropriate angle with bracket adjustable angle horizon -90 ° ~ 90 °.
6)Please first confirm the system you connected output of 100V, 70V. And adjust band switch to the
correct position, also the input signal must be connected correctly.
• 180 ° x 30 ° bracket (angle horizon -90 ° ~ 90 °)
• L bracket (angle horizon -90 ° ~ 90 °)

• 180 ° x 30 ° bracket
• L bracket
6
BACK PANEL DESCRIPTION
ACCESSORY
CS-304B/CS-304W
1
2
2INPUT
1POWER SELECTIONS
1) Do not use the tap for 70V input
2) Do not use the tap for 100V input

7
CS-308B/CS-308W
1
2
CS-312B/CS-312W
1
2
2INPUT
1POWER SELECTIONS
1) Do not use the tap for 70V input
2) Do not use the tap for 100V input
2INPUT
1POWER SELECTIONS
1) Do not use the tap for 70V input
2) Do not use the tap for 100V input

8

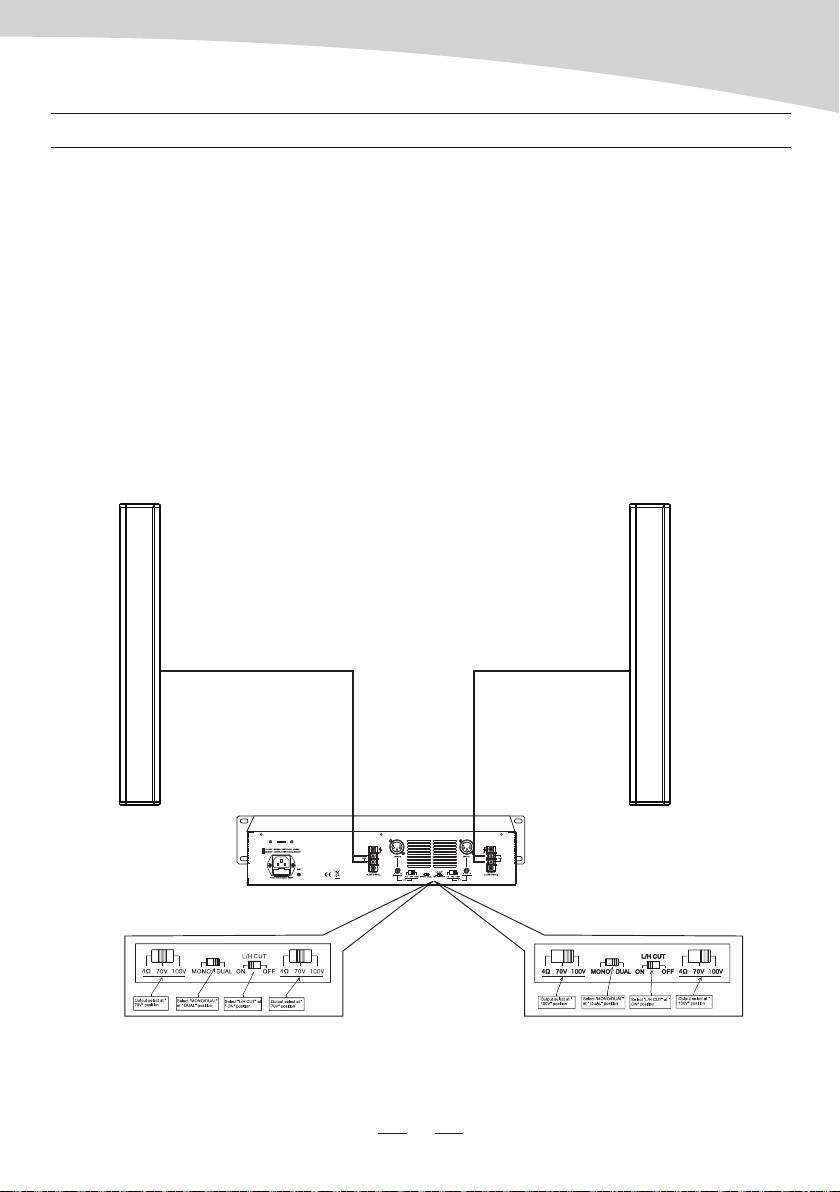

CH1/CH2 loaded with 100V, dual channelinput:
1. Select "MONO/DUAL" at " DUAL" position, dual channel input;
2. CH1/CH2 output select at " 100V" position, both loaded with rated 100V speaker;
3. Select "L/H CUT" at " ON" position, to preventlow frequency protection and improve the
transmission efficiency. Applicable to Public Address System;
CH1/CH2 loaded with 70V, dual channel input:
1. Select "MONO/DUAL" at " DUAL" position, dual channel input;
2. CH1/CH2 output select at " 70V" position, both loaded with rated 70V speaker;
3. Select "L/H CUT" at " ON" position, to prevent low frequency protection and improve the
transmission efficiency. Applicable to Public Address System.
Stereo Power Amplifier
Speaker Cable-L
CS-308 / CS-304 / CS-312 CS-308 / CS-304 / CS-312
Speaker Cable-R
SYSTEM CONNECTION PLATE
70V 100V

9
TECHNICAL SPECIFICATIONS
Model Passive CS-304B / CS-304W
System Type Column Array Speaker
Input Voltage 70V/100V
Transformer selectable Power 5W /10W /20W / 40W
Power capacity (8Ω)60W RMS, 120W Program
70V 1000Ω/ 500Ω/ 250Ω/ 125Ω
100V 2000Ω/ 1000Ω/ 500Ω/ 250Ω
Sensitivity (1w/1M) 93dB
Max SPL(1M) 114dB (calculated by 8ohms )
Frequency Response(-6dB) 180Hz-18KHz
Speaker 4×3" full range speaker,20mm Voice Coil
Angle of coverage(HxV) 90°x 20° @ 4 kHz
Connect Phoenix
Enclosure Construction Plywood cabiner,resistant paint,0.8mm metal grille
Suspension/Mounting 6×M8 Points For Mounting
Dimensions(H×W×D) 378mm(14.8")×98mm(3.9")×130mm(5.1")
Net weight 4.4KG/9.7Lbs
System Impedance
CS-308B / CS-308W
Column Array Speaker
70V/100V
7.5W /15W /30W / 60W
120W RMS, 240W Program
70V 667Ω/ 333Ω/ 167Ω/ 83Ω
100V 1333Ω/ 667Ω/ 333Ω/ 167Ω
95dB
119dB (calculated by 8ohms )
180Hz-18KHz
8×3" full range speaker,20mm Voice Coil
90°x 30° @ 4 kHz
Phoenix
Plywood cabiner,resistant paint,0.8mm metal grille
6×M8 Points For Mounting
730mm(28.8")×98mm(3.9")×130mm(5.1")
7.5KG/16.5Lbs
Model Passive
System Type
Input Voltage
Transformer selectable Power
Power capacity (8Ω)
Sensitivity (1w/1M)
Max SPL(1M)
Frequency Response(-6dB)
Speaker
Angle of coverage(HxV)
Connect
Enclosure Construction
Suspension/Mounting
Dimensions(H×W×D)
Net weight
System Impedance

10
CS-312B / CS-312W
Column Array Speaker
70V/100V
15W /30W /60W / 120W
180W RMS, 360W Program
70V 333Ω/ 167Ω/ 83Ω/ 41Ω
100V 667Ω/ 333Ω/ 167Ω/ 83Ω
99dB
125dB (calculated by 8ohms )
180Hz-18KHz
12×3" full range speaker,20mm Voice Coil
90°x60° @ 4 kHz
Phoenix
Plywood cabiner,resistant paint,0.8mm metal grille
12×M8 Points For Mounting
1082mm(42.6")×98mm(3.9")×142mm(5.6")
12.2KG/26.8Lbs
Model Passive
System Type
Input Voltage
Transformer selectable Power
Power capacity (8Ω)
Sensitivity (1w/1M)
Max SPL(1M)
Frequency Response(-6dB)
Speaker
Angle of coverage(HxV)
Connect
Enclosure Construction
Suspension/Mounting
Dimensions(H×W×D)
Net weight
System Impedance

NF04900-1.1
