1 Zu diesem Dokument
Bitte lesen Sie diese Montageanleitung sorgfältig, bevor
Sie mit dem PGT-11-S arbeiten.
1.1 Funktion dieses Dokuments
Diese Montageanleitung leitet das technische Personal
des Maschinenherstellers bzw. Maschinenbetreibers zur
Montage sowie zur Inbetriebnahme des PGT-11-S an.
1.2 Verwendete Symbole
aSicherheitshinweise
▸Ein Sicherheitshinweis weist Sie auf konkrete oder
potenzielle Gefahren hin. Dies soll Sie vor Unfällen oder
Schäden bewahren.
▸Lesen und befolgen Sie Sicherheitshinweise sorgfältig.
1.3 Zugehörige Dokumente
▸Special Information PGT-11-S (sVip®),
Artikelnummer 8017195
1.4 Wartung und Reparatur
Das PGT-11-S ist wartungsfrei. Bei Defekt ist eine Repara-
tur vorgesehen.
2 Produktbeschreibung
Mit dem PGT-11-S haben Sie ein universelles Visualisie-
rungs- und Programmiertool für Motor-Feedback-Systeme
erworben. Das PGT-11-S eignet sich für viele Bereiche
wie z. B. in der Forschung und Entwicklung und für die
Diagnose vor Ort durch den Servicetechniker. Das Tool
lässt sich über Ethernet (LAN) oder kabellos per WLAN mit
PC, Laptop oder Tablet-Computer verbinden. Geeignet für
SICK Inkremental-Encoder, HIPERFACE DSL®und HIPER-
FACE®Motor-Feedback-Systeme.
3 Lieferumfang
▸Netzteil 100–240 V AC/12 V DC
▸Primäradapter Europa, UK, USA/ Japan, Australien
▸Ethernet Kabel 3 m Länge
Die Zubehörleitungen für den Anschluss der Motor-Feed-
back-Systeme müssen separat bestellt werden.
Die entsprechenden Anschlussleitungen für ihr Motor-
Feedback-System nden Sie unter 5 Zubehörleitungen.
aSicherheitshinweis
▸Das beigestellte Netzteil muss verwendet werden, um
einen einwandfreien Betrieb zu gewährleisten.
▸Verwenden Sie grundsätzlich nur das zum Motor-Feed-
back-System passende Adapterkabel (siehe 5 Zubehör).
4 Inbetriebnahme/Konguration
aSicherheitshinweis
▸Die I²C-Schnittstelle (betrifft Inkremental & Kommu-
tierung) des Programming Tools ist ausschließlich zur
Parametrierung und Programmierung von Geräten
vorgesehen. Die Parametrierschnittstelle darf im nor-
malen Betrieb von Encodern nicht dauerhaft verbunden
bleiben. Bei Nutzung der I²C-Schnittstelle (betrifft
Inkremental & Kommutierung) kann es zu externen
Beeinflussungen kommen. Hierzu sind bei Bedarf
geeignete Schutzmaßnahmen zu treffen.
▸Dies ist ein Produkt der Klasse A. In Haushaltsumge-
bung kann dieses Gerät Funkstörungen verursachen,
weshalb der Anwender ggf. geeignete Maßnahmen
ergreifen muss.
4.1 Konguration
▸Das PGT-11-S ist für verschiedene Anwendungen vorge-
sehen, die über SOPAS konfiguriert werden können.

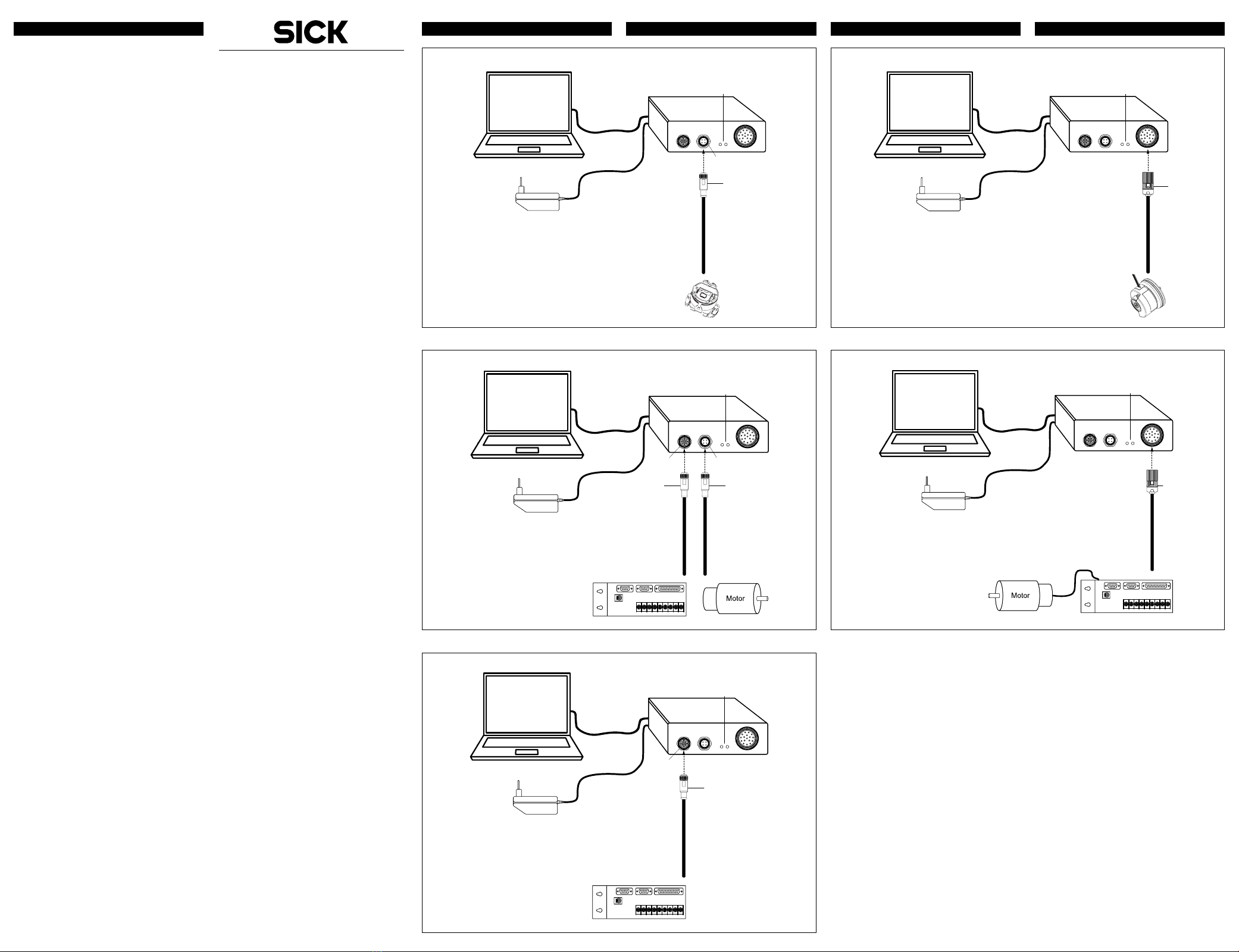

▸Die Abbildungen 1 bis 5 stellen die drei möglichen
Konfigurationen dar.
Master Mode (Abb. 1 und 4)
Um den Master Mode zu kongurieren, wird das PGT-11-S
an ein einzelnes Motor-Feedback-System über den M12
Hiperface DSL-Out oder einen M23-Stecker angeschlossen.
▸Verbinden Sie das PGT-11-S mit der Stromversorgung.
▸Verbinden Sie das PGT-11-S entweder per LAN oder
WLAN mit einem Laptop.
▸Starten Sie SOPAS (siehe 4.2 SOPAS) und stellen Sie
das PGT-11-S als verwendetes Gerät ein.
▸Konfigurieren Sie das PGT-11-S für den Master Mode.
Analyser Mode (Abb. 2 und 5)
aSicherheitshinweis
▸Bevor der Regler eingeschaltet werden darf, muss das
PGT-11-S zuerst in den Analyser Mode gebracht werden.
Um den Analyser Mode zu kongurieren, wird das PGT-
11-S über einen der Ausgänge an einen Motor und über
einen Eingang an die Steuerung angeschlossen.
Abb. 1: Master Mode
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
M12
DSL out
LEDs
Abb. 2: Analyser Mode
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
M12M12
DSL out
LEDs
DSL in
Abb. 3: Slave Mode
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
M12
LEDs
DSL in
▸Verbinden Sie das PGT-11-S mit der Stromversorgung.
▸Verbinden Sie das PGT-11-S entweder per LAN oder
WLAN mit einem Laptop.
▸Starten Sie SOPAS (siehe 4.2 SOPAS) und stellen Sie
das PGT-11-S als verwendetes Gerät ein.
▸Konfigurieren Sie das PGT-11-S für den Analyser Mode.
Slave Mode (Abb. 3)
Um den Slave Mode zu kongurieren, wird das PGT-11-S
über einen Eingang an die Steuerung angeschlossen.
▸Verbinden Sie das PGT-11-S mit der Stromversorgung.
▸Verbinden Sie das PGT-11-S entweder per LAN oder
WLAN mit einem Laptop.
▸Starten Sie SOPAS (siehe 4.2 SOPAS) und stellen Sie
das PGT-11-S als verwendetes Gerät ein.
▸Konfigurieren Sie das PGT-11-S für den Slave Mode.
4.2 SOPAS
SOPAS ist eine Parametriersoftware für verschiedene
SICK-Produkte wie zum Beispiel das PGT-11-S.
SOPAS wird benötigt, um die Funktionen des PGT-11-S
in einer Oberäche zu visualisieren und auch um eine
Verbindung mit dem PGT-11-S herzustellen. SOPAS ist zu
nden auf www.sick.com -> "Software und Downloads" ->
"SOPAS".
Für die Inbetriebnahme benötigt SOPAS eine Gerätedatei
(.sdd), die über SOPAS direkt aus dem Internet herunter-
geladen werden kann.
Abb. 4: Master Mode
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
M23
LEDs
Abb. 5: Analyser Mode
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
M23
LEDs
HIPERFACE DSL HIPERFACE/ Inkremental
HIPERFACE DSL HIPERFACE
HIPERFACE DSL
