SICO GRADUATE TABLE Use and care manual

ITEM DESCRIPTION
1 TOP FRAME WELD
2 DRIVE RIVET
3 RETAINER CAP - LEG
4 WLD, PIVOT STO BAR
5 MECHANICAL STRUT
6 TENSION BAR
7 X-BAR
8 LOCK ARM
9 NUT PUSH WASHER
10 FLANGE WASHER
11 BOLD M12X1.75X30MM
12 NOT STOP M12X1.75MM
13 SHOULDER WASHER
14 PANEL FASTENER
15 CAP SCREW M10X1.5X30MM
16 CAP SCREW M10X1.5X35MM
17 NUT STOP M10X1.5MM
18 CAP SCREW M10X1.5X60MM
19 CAP SCREW, .38-24x1.25
20 WASHER, 3/8” SAE
21 NUT STOP, .38-24 NF
22 GLIDE
23 CAP VINYL 1.00X.38
25 TABLE WARNER
26 LUBRICATION LABEL
33 RIVET, BLAND
34 SPACER
90 TABLE TOP W/ARMOR-EDGE®
93 CASTER, 4IN W/THREAD GUARD
94 CENTER LEG, WELDMENT
95 OUTER LEG, WELDMENT
97 STOOL
98 SCREW, FLANGE HEAD
99 LOCK NUT,FLANGE
100 SPACER
101 ACCENT GUARD
102 SCREW
Maintenance: Oil pivot points every six months. Wash tops with soap and water.
When Ordering:
All Parts - Indicate table serial No. (on frame, near center of table), height and length.
Tops: Indicate Laminate & Armor-Edge® color, size Legs: Indicate table height.
For parts or pricing contact your local dealer or SICO Customer Service.
To Open:
Lift center lock arm and hold against table top.
Raise table with continuous upward motion.
2. Lift on side of table top while pressing in at
center. As table starts to open push top down
to safety stop position.
1. To gain space for passing
through doorway or for storage,
raise stop bar (inside the frame).
3. Lift center lock arm to release it, then press
table top down at.
2. Push from end of table, not from side.
To Fold: To Roll:
DETAIL G
DETAIL F
G
F
19 20 21
26 333
35
1
90
17
18
18 17
23
4
94 95
6
22
93
14 13
11 10 12
16
17
15 17
7
89
25
34
25

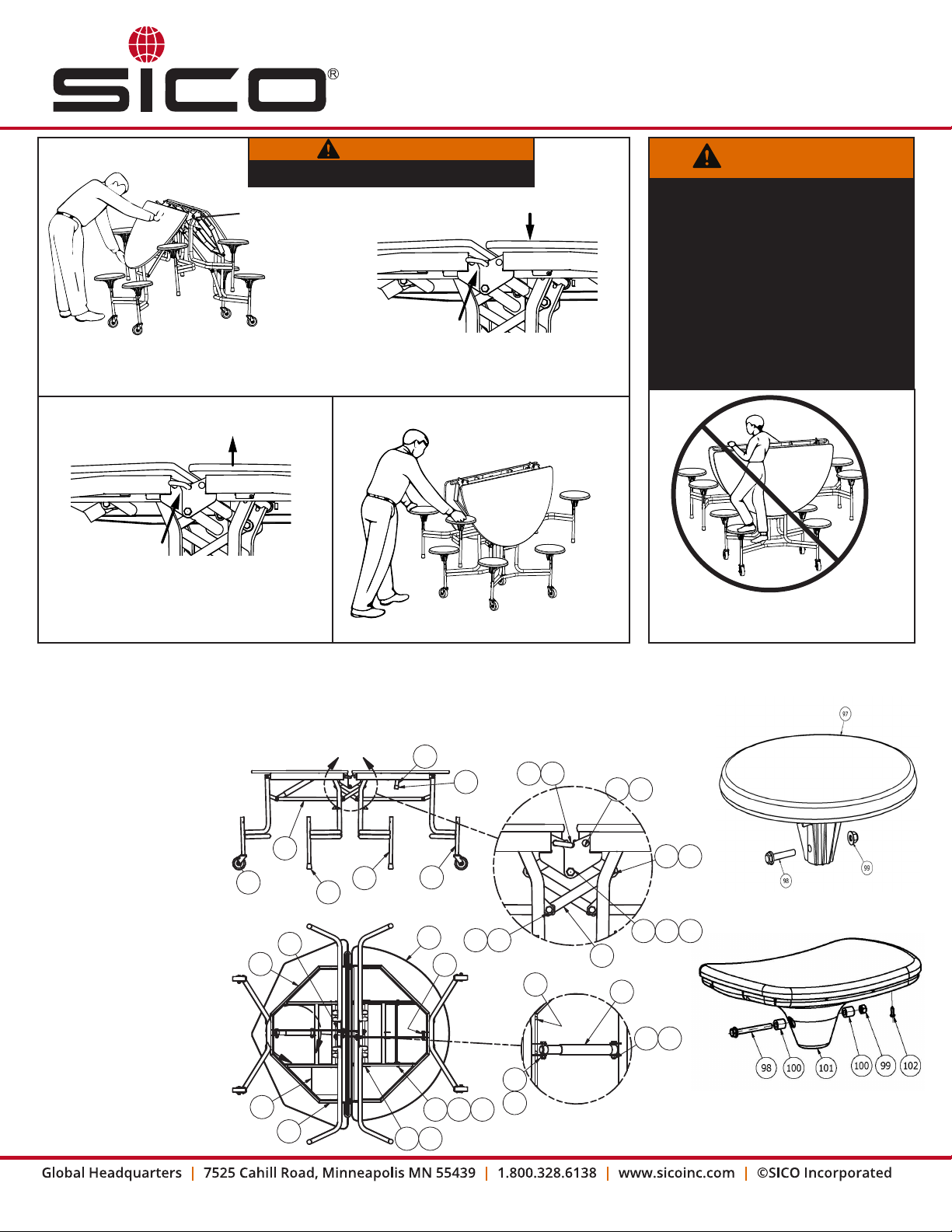

Operating Instructions and Parts List
GRADUATE TABLE
284895 Rev. C
NEVER let children sit
or climb on folded table
WARNING
Failure to follow warnings may result
in serious injury or death.
Never let children move table.
Never store where unattended chil-
dren are present.
To avoid table tipping over, push
from end of table. DO NOT push
from side.
Avoid debris on oor.
1. Lift stop bar (#8 below) out of latch on leg.
WARNING
Keep ngers away from top edge!

GRADUATE TABLE
Page 2
TC-65 Stool Installation
1. Align the holes in the stool hub
with the holes in the stool leg.
2. Slide the stool over the top of
the stool leg.
3. Slide the bolt through the
holes of the stool and stool leg.
Tighyten nut and bold with two
13mm wrenches.
CAUTION: The bold and nut must
be installed to prevent excess wear
on stool.
Please contact Customer Care at 1-800-424-0769 for any questions or additional information.
