Siemens GU D Series User manual

en Instruction for Use
GU..D..
Built-under appliance

en Table of Contents
Safety and warning information ............ 3
Information concerning disposal .......... 5
Scope of delivery .................................... 5
Observe ambient temperature
and ventilation ......................................... 6
Connecting the appliance ..................... 6
Installation location ................................. 7
Getting to know your appliance ........... 7
Switching the appliance on ................... 8
Setting the temperature ......................... 8
Alarm function ......................................... 8
Usable capacity ....................................... 9
Freezer compartment ............................. 9
Max. freezing capacity ........................... 9
Freezing and storing food ..................... 9
Freezing fresh food ............................. 10
Super freezing ...................................... 11
Thawing frozen food ............................ 11
Interior fittings ....................................... 11
Switching the appliance off ................ 12
Defrosting .............................................. 12
Cleaning the appliance ....................... 13
Tips for saving energy ........................ 13
Operating noises ................................. 14
Eliminating minor faults yourself ....... 14
Customer service ................................. 15

en
3
enTable of Contents enIn structionforUse
Safety and warning
information
Before you switch ON the
appliance
Please read the operating and
installation instructions carefully! They
contain important information on how to
install, use and maintain the appliance.
The manufacturer is not liable if you fail
to comply with the instructions and
warnings. Retain all documents for
subsequent use or for the next owner.
Technical safety
This appliance contains a small quantity
of environmentally-friendly but flammable
R600a refrigerant. Ensure that the tubing
of the refrigerant circuit is not damaged
during transportation and installation.
Leaking refrigerant may cause eye
injuries or ignite.
If damage has occurred
■Keep naked flames and/or ignition
sources away from the appliance,
■thoroughly ventilate the room for
several minutes,
■switch off the appliance and pull out
the mains plug,
■inform customer service.
The more refrigerant an appliance
contains, the larger the room must be in
which the appliance is situated. Leaking
refrigerant can form a flammable gas-air
mixture in rooms which are too small.
The room must be at least 1 m³ per 8 g
of refrigerant. The amount of refrigerant
in your appliance is indicated on the
rating plate inside the appliance.
If the power cord of this appliance is
damaged, it must be replaced by the
manufacturer, customer service or a
similarly qualified person. Improper
installations and repairs may put the user
at considerable risk.
Repairs may be performed by the
manufacturer, customer service or a
similarly qualified person only.
Only original parts supplied by the
manufacturer may be used. The
manufacturer guarantees that only these
parts satisfy the safety requirements.
A extension cable may be purchased
from customer service only.
Important information when
using the appliance
■Never use electrical appliances inside
the appliance (e.g. heater, electric ice
maker, etc.). Risk of explosion!
■Never use a steam cleaner to defrost
or clean the appliance! The steam
may penetrate electrical parts
and cause a short-circuit. Risk of
electric shock!
■Do not use pointed or sharp-edged
implements to remove frost or layers
of ice. You could damage
the refrigerant tubing. Leaking
refrigerant may ignite or cause eye
injuries.
■Do not store products which contain
flammable propellants (e.g. spray
cans) or explosive substances
in the appliance. Risk of explosion!
■Do not stand or support
yourself on the base, drawers
or doors, etc.

en
4
■Before defrosting and cleaning
the appliance, pull out the mains plug
or switch off the fuse.
Do not pull out the mains plug
by tugging the cable.
■Bottles which contain a high
percentage of alcohol must be sealed
and stored in an upright position.
■Keep plastic parts and the door seal
free of oil and grease. Otherwise,
parts and door seal will become
porous.
■Never cover or block the ventilation
openings for the appliance.
■People (childern incl.) who have
limited physical, sensory or mental
abilities or inadequate knowledge
must not use this appliance unless
they are supervised or given
meticulous instructions.
■Do not store bottled or canned drinks
(especially carbonated drinks)
in the freezer compartment. Bottles
and cans may explode!
■Never put frozen food straight
from the freezer compartment
into your mouth.
Risk of low-temperature burns!
■Avoid prolonged touching of frozen
food, ice or the evaporator pipes, etc.
Risk of low-temperature burns!
Children in the household
■Keep children away from packaging
and its parts.
Danger of suffocation from folding
cartons and plastic film!
■Do not allow children to play with the
appliance!
■If the appliance features a lock:
keep the key out of the reach of
children!
General regulations
The appliance is suitable
■for freezing food,
■for making ice.
This appliance is intended for use in
the home and the home environment.
The appliance is suppressed according
to EU Directive 2004/108/EC.
The refrigeration circuit has been
checked for leaks.
This product complies with the relevant
safety regulations for electrical
appliances (EN 60335-2-24).

en
5
Information concerning
disposal
*Disposal of packaging
The packaging protects your appliance
from damage during transit. All utilised
materials are environmentally safe and
recyclable. Please help us by disposing
of the packaging in an environmentally
friendly manner.
Please ask your dealer or inquire at your
local authority about current means of
disposal.
*Disposal of your old
appliance
Old appliances are not worthless
rubbish! Valuable raw materials can be
reclaimed by recycling old appliances.
ã=Warning
Redundant appliances
1. Pull out the mains plug.
2. Cut off the power cord and discard
with the mains plug.
3. Do not take out the trays
and receptacles: children are
therefore prevented from climbing in!
4. Do not allow children to play with
the appliance once it has spent its
useful life. Danger of suffocation!
Refrigerators contain refrigerant
and gases in the insulation. Refrigerant
and gases must be disposed
of professionally. Ensure that tubing
of the refrigerant circuit is not damaged
prior to proper disposal.
Scope of delivery
After unpacking all parts, check for any
damage in transit.
If you have any complaints, please
contact the dealer from whom you
purchased the appliance or our
customer service.
The delivery consists of the following
parts:
■Built-under appliance
■Interior fittings (depending on model)
■Bag containing installation materials
■Operating instructions
■Installation manual
■Customer service booklet
■Warranty enclosure
■Information on the energy
consumption and noises
This appliance is identified
according to the European
guideline 2002/96/EC on waste
electrical and electronic
equipment – WEEE. The directive
specifies the framework for an
EU-wide valid return and re-use
of old appliances.


en
6
Observe ambient
temperature
and ventilation
Ambient temperature
The appliance is designed for a specific
climate class. Depending on the climate
class, the appliance can be operated at
the following temperatures.
The climate class can be found on
the rating plate. Fig. 9
Note
The appliance is fully functional within
the room temperature limits
of the indicated climatic class. If
an appliance of climatic class SN
is operated at colder room temperatures,
the appliance will not be damaged up to
a temperature of +5 °C.
Ventilation
The refrigeration unit is ventilated only
via the ventilation grille in the base.
Never cover the ventilation grille or place
anything in front of it. Otherwise
the refrigeration unit must work harder,
increasing the power consumption.
Connecting
the appliance
After installing the appliance, wait at least
1 hour until the appliance is switched on.
During transportation the oil in
the compressor may have flowed into
the refrigeration system.
Before switching on the appliance for
the first time, clean the interior of
the appliance (see chapter “Cleaning
the appliance”).
Electrical connection
The socket must be near the appliance
and also freely accessible following
installation of the appliance.
The appliance complies with the
protection class I. Connect the appliance
to 220–240 V/50 Hz alternating current
via a correctly installed socket with
protective conductor. The socket must
be fused with a 10 to 16 A fuse.
For appliances operated in non-
European countries, check whether the
stated voltage and current type match
the values of your mains supply. This
information can be found on the rating
plate. Fig. 9
Climate class Permitted ambient
temperature
SN +10 °C to 32 °C
N+16 °C to 32 °C
ST +16 °C to 38 °C
T+16 °C to 43 °C

en
7
Installation location
Install the appliance in a dry, well
ventilated room. The installation location
should neither be exposed to direct
sunlight nor near a heat source, e. g.
a cooker, radiator, etc. If installation next
to a heat source is unavoidable, use
a suitable insulating plate or observe
the following minimum distances to a
heat source:
■3 cm to electric or gas cookers.
■30 cm to an oil or coal-fired cooker.
Getting to know your
appliance

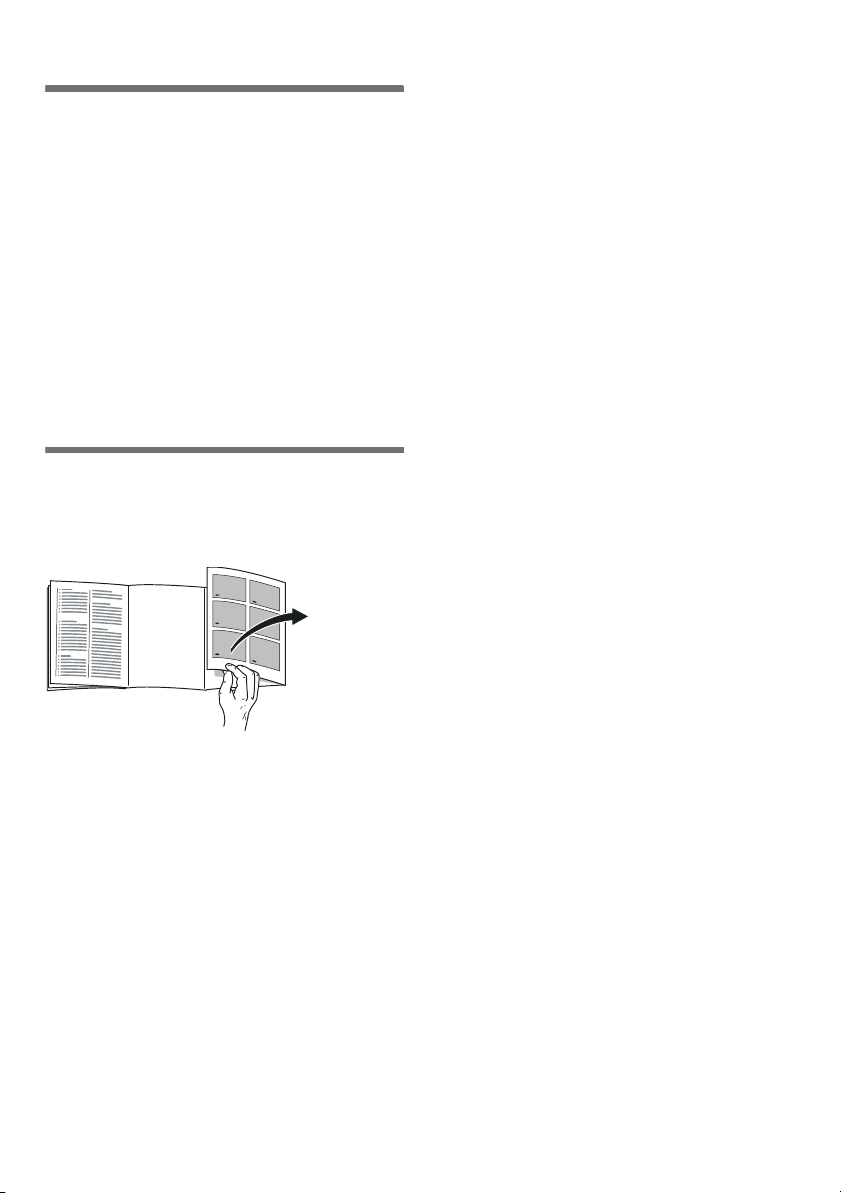

Please fold out the illustrated last page.
These operating instructions refer
to several models.
The features of the models may vary.
The diagrams may differ.
Fig. 1
Controls
Fig. 2
* Not all models.
1-5 Controls
6 Freezer shelf
7 Freezer drawer
8 Ventilation opening
1Temperature controller
Is used to set the freezer
compartment temperature.
2On/Off button
Serves to switch the whole
appliance on and off.
3“super” button
Switches super freezing on and
off.
Illuminates when super freezing is
on.
4Alarm display
Lights up if the freezer
compartment becomes too warm.
It goes out when the freezer
compartment has reached the set
temperature.
5* Alarm button
Used to switch off the warning
signal, see chapter “Alarm
function”.

en
8
Switching
the appliance on
Fig. 2
Press the On/Off button 2, the button is
lit. The temperature alarm is switched off
by pressing the alarm button 5*. The
alarm display 4 lights up until
the appliance has reached the set
temperatures.
We recommend the medium setting.
Operating tips
■The sides of the housing are
sometimes heated slightly. This
prevents condensation in the area of
the door seal.
■If the freezer compartment door
cannot be immediately re-opened after
it has been closed, wait until the
resulting low pressure has equalised.
■The refrigeration system may cause
several areas of the freezer shelves to
frost quickly. This does not affect
function or power consumption. The
appliance does not require defrosting
until the entire surface of the freezer
shelf is covered with more than 5 mm
of frost or ice.
Setting
the temperature
Fig. 2
Set the temperature controller 1 to
anumberwithacoin.Thehigher
the number, the lower the temperature.
Alarm function
* Not all models.
The warning signal switches on if the
freezer compartment is too warm.
Switching off the warning signal
Press the alarm button to switch off the
warning signal. Fig. 2/5*
Note
Do not refreeze thawing or thawed food.
Only ready meals (boiled or fried) may
be refrozen.
No longer store the frozen produce for
the max. storage period.
Alarm display
The display lights up if the freezer
compartment becomes too warm. Frozen
food is at risk of thawing.
The alarm may switch on without any risk
to the frozen food:
■when the appliance is switched on,
■when large quantities of fresh food are
placed in the appliance,
■when changing the temperature
controller to a higher number.

en
9
Usable capacity
Information on the usable capacity can
be found inside your appliance on
the rating plate. Fig. 9
Fully utilising the freezer
volume
The maximum amount of food can be
placed in the freezer by removing all
fittings. The food can be stacked directly
on the shelves and in the bottom
of the freezer compartment.
Removing the fittings
Pull out the frozen food container all
the way, lift at the front and remove.
Fig. 3
Freezer compartment
Use the freezer compartment
■To store deep-frozen food.
■To make ice cubes.
■To freeze food.
Note
Ensure that the freezer compartment
door has been closed properly. If
the door is open, the frozen food will
thaw. The freezer compartment will
become covered in thick ice. Also: waste
of energy due to high power
consumption!
Max. freezing capacity
Information about the max. freezing
capacity within 24 hours can be found
on the rating plate. Fig. 9
Freezing and storing
food
Purchasing frozen food
■Packaging must not be damaged.
■Use by the “use by” date.
■Temperature in the supermarket
freezer must be -18 °C or lower.
■If possible, transport deep-frozen food
in an insulated bag and place quickly
in the freezer compartment.
Note when loading products
■Freeze large quantities of food
preferably in the very top
compartment where food freezes
particularly quickly and therefore also
gently.
■Place the food over the whole area
of the compartments or the frozen
food containers.
Note
Food which is already frozen must not
come into contact with the food which
is to be frozen. If required, move
the frozen food to the frozen food
containers.
Storing frozen food
Insert frozen food container all the way to
ensure unrestricted air circulation.

en
10
Freezing fresh food
Freeze fresh and undamaged food only.
To retain the best possible nutritional
value, flavour and colour, vegetables
should be blanched before freezing.
Aubergines, peppers, zucchini and
asparagus do not require blanching.
Literature on freezing and blanching
can be found in bookshops.
Note
Keep food which is to be frozen away
from food which is already frozen.
■The following foods are suitable for
freezing:
Cakes and pastries, fish and seafood,
meat, game, poultry, vegetables, fruit,
herbs, eggs without shells, dairy
products such as cheese, butter and
quark, ready meals and leftovers such
as soups, stews, cooked meat and
fish, potato dishes, soufflés and
desserts.
■The following foods are not suitable
for freezing:
Types of vegetables, which are usually
consumed raw, such as lettuce or
radishes, eggs in shells, grapes,
whole apples, pears and peaches,
hard-boiled eggs, yoghurt, soured
milk, sour cream, crème fraîche and
mayonnaise.
Packing frozen food
To prevent food from losing its flavour
or drying out, place in airtight containers.
1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents
and date of freezing.
Suitable packaging:
Plastic film, tubular film
made of polyethylene, aluminium foil,
freezer containers.
These products are available
from specialist outlets.
Unsuitable packaging:
Wrapping paper, greaseproof paper,
cellophane, bin liners and used
shopping bags.
Items suitable for sealing packaged
food:
Rubber bands, plastic clips, string, cold-
resistant adhesive tape, etc.
Bags and tubular film
made of polyethylene can be sealed
with a film heat sealer.
Shelf life of frozen food
Storage duration depends on the type
of food.
At a temperature of -18 °C:
■Fish, sausage, ready meals and cakes
and pastries:
up to 6 months
■Cheese, poultry and meat:
up to 8 months
■Vegetables and fruit:
up to 12 months

en
11
Super freezing
Food should be frozen solid as quickly
as possible in order to retain vitamins,
nutritional value, appearance and flavour.
Several hours before placing fresh food
in the freezer compartment, switch on
super freezing to prevent an unwanted
temperature rise.
As a rule, 4-6 hours is adequate.
This appliance runs constantly
and the freezer compartment drops to
a very low temperature.
If the max. freezing capacity is to be
used, super freezing must be switched
on for 24 hours before the fresh produce
is placed in the freezer compartment.
Smaller quantities of food (up to 2 kg)
can be frozen without “super freezing”.
Switching on and off
Fig. 2
Press “super” button 3. The button is lit
when super freezing is switched on.
The refrigerating machine now operates
constantly, and a low temperature is
obtained in the appliance.
The food is frozen after approx. 24
hours.
As soon as the food is frozen, switch off
the super freezing.
Thawing frozen food
Depending on the type and application,
select one of the following options:
■at room temperature
■in the refrigerator
■in an electric oven, with/without fan
assisted hot-air
■in the microwave
ã=Caution
Do not refreeze thawing or thawed food.
Only ready meals (boiled or fried) may
be refrozen.
No longer store the frozen produce for
the max. storage period.
Interior fittings
(not all models)
Freezer calendar
Fig. 4
To prevent the quality of the frozen food
from deteriorating, do not exceed the
storage duration. The figures next
to the symbols indicate the permitted
storage period of the produce in months.
In the case of commercially available
frozen food observe the date
of manufacture or use-by date.

en
12
Ice cube tray
Fig. 5
1. Fill the ice cube tray ¾ full of drinking
water and place in the freezer
compartment.
2. If the ice tray is stuck to the freezer
compartment, loosen with a blunt
implement only (spoon-handle).
3. To loosen the ice cubes, twist the ice
tray slightly or hold briefly under
flowing water.
Ice pack
Fig. 6
If a power failure or malfunction occurs,
the ice packs can be used to slow down
the thawing process. The longest
storage time is obtained by placing
the ice pack on the food in the top
compartment.
Switching
the appliance off
Fig. 2
Press the On/Off button 2.
Refrigeration unit switches off.
Disconnecting the appliance
If you do not use the appliance
for a prolonged period:
1. Switch off the appliance.
2. Pull out mains plug or switch off fuse.
3. Clean the appliance.
4. Leave the appliance door open.
Defrosting
Note
Approx. 4 hours before defrosting
the appliance, switch on super freezing
so that the food drops to a very low
temperature and can therefore be stored
at room temperature for a longer period.
Proceed as follows:
1. Place the frozen food containers with
the food in a cool location. Place
the ice pack (if enclosed) on the food.
2. Switch the appliance off.
3. Pull out the mains plug or remove
the fuse.
4. To accelerate the defrosting process,
place two pans of hot water on a trivet
in the appliance. Close the appliance
door to prevent heat from escaping.
Fig. 7
5. Wipe up condensation with a cloth
or sponge.
6. Wipe dry the freezer compartment.
7. Switch the appliance on again.
8. Put the frozen food back in the freezer
compartment.

en
13
Cleaning the appliance
ã=Caution
■Do not use abrasive, chloride or acidic
cleaning agents or solvents.
■Do not use scouring or abrasive
sponges. The metallic surfaces could
corrode.
■Never clean the shelves or containers
in the dishwasher. The parts may
become deformed!
Proceed as follows:
1. Before cleaning: Switch off
the appliance.
2. Pull out the mains plug or switch off
the fuse!
3. Take out the food and store in a cool
location. Place ice pack (if available)
on the food.
4. Wait until the layer of frost has thawed.
5. Clean the appliance with a soft cloth,
lukewarm water and a little pH neutral
washing-up liquid. The rinsing water
must not run into the light or through
the drainage hole into the evaporation
area.
6. Wipe the door seal with clear water
only and then wipe dry thoroughly.
7. After cleaning reconnect and switch
the appliance back on.
8. Put the food back into the appliance.
Ventilation opening
Fig. 8
The ventilation grille in the base can be
removed for cleaning. To do this,
depress the clips in the ventilation
openings and simultaneously remove
the ventilation grille forwards.
Tips for saving energy
■Install the appliance in a dry, well
ventilated room! The appliance should
not be installed in direct sunlight
or near a heat source (e.g. radiator,
cooker).
If required, use an insulating plate.
■Do not block the ventilation openings
in the appliance.
■The ice packs slow down the thawing
process of the frozen food in the event
of a power failure or malfunction.
Place the ice packs directly on
the food in the top compartment.
■Open the appliance as briefly as
possible!
The briefer the appliance door is
opened, the lower the ice formation on
the freezer shelves.
■Thaw frozen food in the refrigerator
compartment and use the low
temperature of the frozen food to cool
refrigerated food.
■Regularly defrost the freezer
compartment to remove the layer
of frost.
A layer of hoarfrost will impair
refrigeration of the frozen food
and increase power consumption.
■Occasionally clean the rear
of the appliance to prevent an
increased power consumption.
■The arrangement of the fittings does
not affect the energy rating of the
appliance.

en
14
Operating noises
Quite normal noises
Droning
Motors are running (e.g. refrigerating
units, fan).
Bubbling, humming or gurgling noises
Refrigerant is flowing through the tubing.
Clicking
Motor, switches or solenoid valves are
switching on/off.
Preventing noises
The appliance is not level
Please align the appliance with a spirit
level. Use the height-adjustable feet
or place packing underneath them.
The appliance is not free-standing
Please move the appliance away
from adjacent units or appliances.
Containers or storage areas wobble
or stick
Please check the removable parts
and re-insert them correctly if required.
Eliminating minor faults yourself
Before you call customer service:
Please check whether you can eliminate the fault yourself based on the following
information.
Customer service will charge you for advice – even if the appliance is still under
guarantee!
Fault Possible cause Remedial action
Displays
do not illuminate.
Power failure; the fuse
has been switched off;
the mains plug
has not been inserted
properly.
Connect mains plug. Check whether
the power is on, check the fuses.
The freezer
compartment has
a thick layer of frost.
Defrost the freezer compartment
(see chapter Defrosting). Always
ensure that the freezer compartment
door is closed properly.
The frozen food is
frozen solid.
Loosen frozen food with a blunt
object. Do not use a knife or pointed
object.

en
15
Customer service
Your local customer service
canbefoundinthetelephonedirectory
or in the customer-service index. Please
provide customer service
with the appliance product number
(E-Nr.) and production number (FD).
These specifications
can be found on the rating plate. Fig. 9
To prevent unnecessary call-outs, please
assist customer service by quoting
the product and production numbers.
This will save you additional costs.
Repair order and advice
on faults
Contact information for all countries can
be found on the enclosed customer
service list.
Fault Possible cause Remedial action
The temperature in
the freezer
compartment is too
warm.
Appliance opened
frequently.
Do not open the appliance
unnecessarily.
The ventilation
openings have been
covered.
Remove obstacles.
Large quantities of
fresh food are being
frozen.
Do not exceed max. freezing
capacity.
Warning signal
sounds, “alarm”
button lights up.
Fig. 2/5*
The freezer
compartment is too
warm!
Frozen food is at risk!
To switch off the warning signal,
press the “alarm” button 5*.
Appliance is open. Close the appliance.
Ventilation openings
have been covered.
Ensure that there is adequate
ventilation.
Too much food was
placed in the freezer
compartment at once.
Do not exceed max. freezing
capacity.
When the fault has been eliminated,
the “alarm” button 5* goes out
shortly afterwards.
GB 0844 892 8999 Calls from a BT
landline will be
charged at up
to 3 pence per
minute. A call
set-up fee of up
to 6 pence may
apply.
IE 01450 2655
US 866 447 4363 toll-free

1
2
1
3
5
7
S
!
1234
Typ B
S
1
3
5
7
12345
Typ A

34
56
78

9
   

Siemens-Elektrogeräte GmbH
Carl-Wery-Str. 34, 81739 München
Germany
9000403005
9000403005 en (9212)
