Congratulations on choosing to buy a Signify product.
All products brought to you by Signify are manufactured to the highest standards of
performance and safety, and, as part of our philosophy of customer service and satisfaction,
are backed by our comprehensive 1 Year Warranty and customer technical support line.
This comprehensive instruction manual will provide you with a detailed guide on how to
operate your product and will also assist you in troubleshooting any problems that you may
encounter.
If you have any queries regarding the use of this product, please feel free to phone our
technical support line for some friendly advice. If you are experiencing difculties or believe
that the product may have a technical fault, we will assist you in rectifying the issue. We
can generally solve most problems simply and quickly over the phone, so please always
phone us rst!
We are sure that you will enjoy using this product and you can expect to gain years of
service from this product when it is used and maintained in the correct manner.
WELCOME

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022 3
CONTENTS
Welcome 2
Warranty Details 4
General Information and Safety Instructions 5
Product Overview 7
Getting Started 8
Before First Use 8
Setting up the Tripod 8
Mounting the Spotting Scope to the Tripod 9
Attaching the Smartphone Holder to the Spotting Scope 10
Instructions 12
Using the Pan Lever 12
Using the Eye Cup and Sunshade 12
Using the Zoom and Focus Controls 13
Adjusting the Position of the Eyepiece 13
Using the Spotting Scope 14
Frequently Asked Questions 15
Repair and Refurbished Goods or Parts Notice 16
Other Useful Information 17
Cleaning and Maintenance 17
Storage 17
Responsible Disposal 18
Specication Table 18

AFTER SALES SUPPORT
1300 77 7 137
4
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022
The product is guaranteed to be free from defects in workmanship and parts for a period
of 12 months from the date of purchase. Defects that occur within this warranty period,
under normal use and care, will be repaired, replaced or refunded at our discretion. The
benets conferred by this warranty are in addition to all rights and remedies in respect of
the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
Spotting Scope
Warranty Details

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022 5
RETAIN FOR FUTURE USE
Read this manual thoroughly before rst use, even if you are familiar with this type of
product. Please keep this instruction manual in a safe place along with your purchase
receipt, warranty card and carton for future reference. If applicable, pass these instructions
and packaging on to the next owner of the product. Always follow basic safety precautions
and accident prevention measure when using this product.
1. Read all the instructions before using the Spotting Scope.
2. The Spotting Scope is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the product
by a person responsible for their safety. Children should be supervised to ensure they
do not play with the Spotting Scope.
3. Do not use the Spotting Scope for anything other than its intended use.
4. Do not immerse the Spotting Scope in water or any other liquids.
5. Do not use the Spotting Scope if it has been dropped or damaged in any way. Contact
our After Sales Support Line on 1300 137 777 for further advice.
6. This product is not a toy. Keep the Spotting Scope out of reach of children.
7. The manufacturer and retailer are not responsible for any eventual damages caused by
improper or faulty use.
8. Do not place the Spotting Scope near a hot burner (gas or electric), other heat emitting
sources or open ames.
9. Never touch the Spotting Scope with wet or damp hands.
10. Do not place the Spotting Scope such that there is a risk of it falling into a body of
water.
11. Ensure that children not push objects into the housing, the eyepiece or objective lens of
the Spotting Scope.
12. Never attempt to clean the Spotting Scope by immersing it in water and do not use a
steam cleaner to clean it. Otherwise, you could damage the Spotting Scope.
13. When the Spotting Scope is not in use or being cleaned, it is recommended to place it
in the carry case (supplied) and store in a clean, dry location.
14. Never look directly at the sun with the naked eye or with your Spotting Scope.
Permanent and irreversible eye damage may result. Eye damage is often painless, so
there is no warning to the observer that damage has occurred until it is too late. Never
point the Spotting Scope at or near the sun.
15. Do not look through the Spotting Scope when you are panning (moving the Spotting
Scope with the pan lever).
GENERAL INFORMATION AND SAFETY INSTRUCTIONS

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022
6
16. Never use the Spotting Scope to project an image of the sun onto any surface. Internal
heat build-up can damage your Spotting Scope and/or any accessories attached to it.
Furthermore, the image projected by the nder is hot enough to burn skin and clothing.
17. Never leave the Spotting Scope unsupervised, either when children are present or
adults who may not be familiar with the correct operating procedures of your Spotting
Scope.
Warning!
Risk of blindness! Never use this device to look directly at the sun or in the
direct proximity of the sun. Doing so may result in a risk of blindness.
GENERAL INFORMATION AND SAFETY INSTRUCTIONS (CONT.)

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022 7
1. Tripod Leg Lock Levers
2. Tripod
3. Centre Pole
4. Pan Lever Lock
5. Mounting Plate with Gradient Level
6. Mounting Head
7. Objective Lens Cover
8. Sunshade
9. Optical Tube
10. Eyepiece Adjustment Belt
11. Focus Wheel
12. Eyepiece (inner objective lens display)
13. Protective Cap
14. Zoom Ring
15. Tripod Mount (on the mounting head)
16. Pan Lever
17. Tripod Vertical Extension Lock (centre pole)
18. Smartphone Holder
19. Tripod Bracket
Included (not pictured): Instruction Manual, Getting Started Guide, Warranty Certicate,
Carry Case, Lens Cleaning Cloth
7
13
14
16
19
17
15
8 9 10 11 12
1
3
4
5
6
2
PRODUCT OVERVIEW
18

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022
8
GETTING STARTED
Before First Use
Prior to using your Spotting Scope, please read all safety and operating instructions
thoroughly. Please ensure you follow the steps below before using this product.
1. Unpack the product but keep all packaging materials until you have made sure your
new Spotting Scope is undamaged and in good working order.
2. Plastic wrapping can be a suffocation hazard for babies and children so ensure all
packaging materials are kept out of their reach.
3. We recommend you keep the original packaging for storing your Spotting Scope when
not in use.
Setting up the Tripod
The Spotting Scope comes with a tripod which is easy to set up.
Follow the Instructions below for how to set up the tripod.

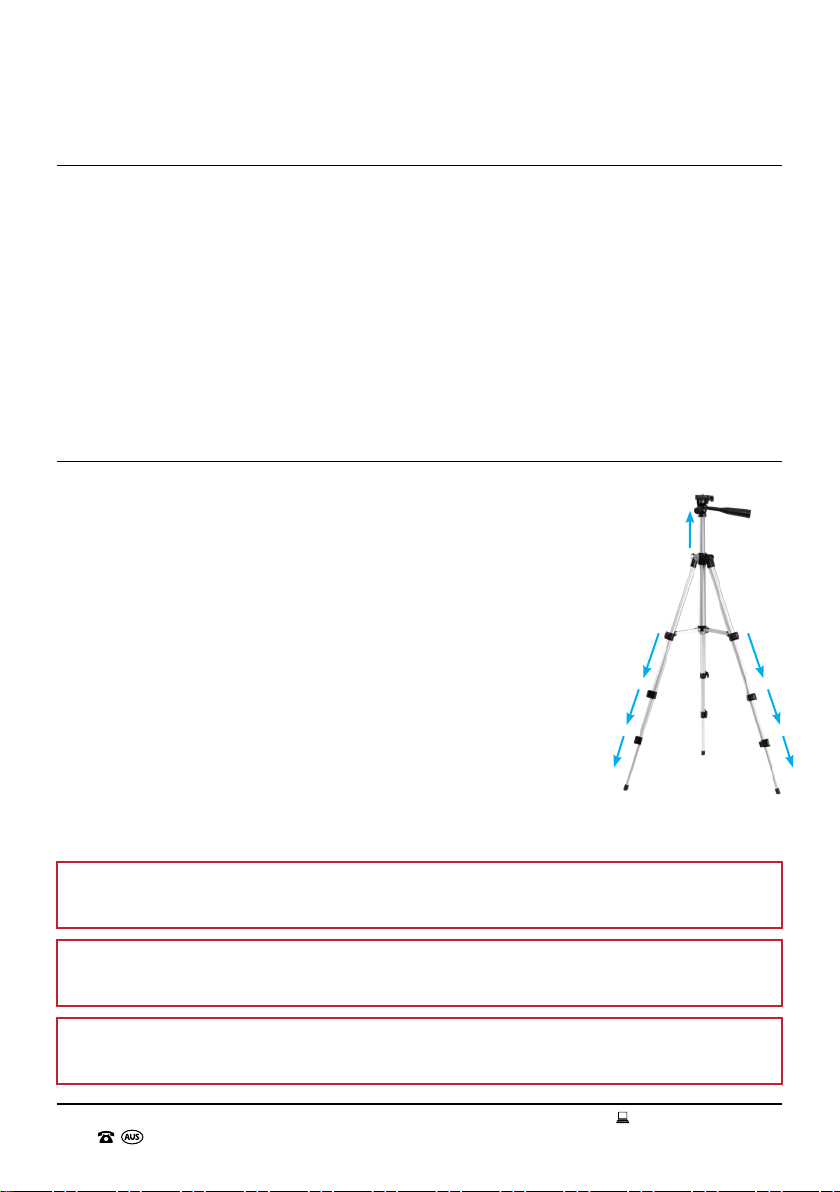

The tripod has 4 height adjustments; 3 leg height extensions and
the centre pole (vertical) extension.
1. To extend the legs, unclip the leg lock lever and pull the leg
extension out. Press the leg lock lever back into place to secure
the leg into position. Repeat for each leg until the tripod is at
the desired height.
2. To extend the centre pole, turn the vertical extension lock
(screw) anticlockwise until it loosens. Pull the centre pole up
to the desired height, then tighten the vertical extension lock
(screw) clockwise to secure the centre pole into position.
3. Spread the tripod legs (slide the tripod bracket down to the
base of the centre pole) and place the tripod onto a dry, stable
surface (Fig. 1).
NOTE: Always extend the upper leg extension sections rst. Only extend the lower leg
extensions when necessary.
NOTE: Once all the legs are fully extended, if you require more height, you can extend
the centre pole. Refer to the instructions above for how to extend the centre pole.
NOTE: Take care when moving! The tripod bracket does not clip into place and will move
up and down the centre pole when the tripod is lifted or moved.
Fig. 1

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022 9
GETTING STARTED (CONT.)
NOTE: If you are on rocky or uneven terrain, adjust the tripod leg extensions to the
appropriate height to maintain a level position. Use the gradient leveller to check if the
tripod is level.
NOTE: You do not need to extend each leg section fully, once the leg is at the desired
length, press the leg lock lever back into place to secure the leg into position.
CAUTION: The gradient leveller is made of glass and is easily damaged. Take care when
handling the tripod. Do not drop the tripod. Do not place the tripod where it can fall, be
trodden on or damaged in any way.
Mounting the Spotting Scope to the Tripod
The high magnication of your Spotting Scope makes it
very difcult to see clearly through it when just holding
the Spotting Scope in your hand. For this reason, it is
recommended to mount the Spotting Scope onto the
tripod (supplied), whenever you are using it. Follow the
steps below for how to mount the Spotting Scope to
the tripod.
1. Remove your Spotting Scope from the carry case
(included).

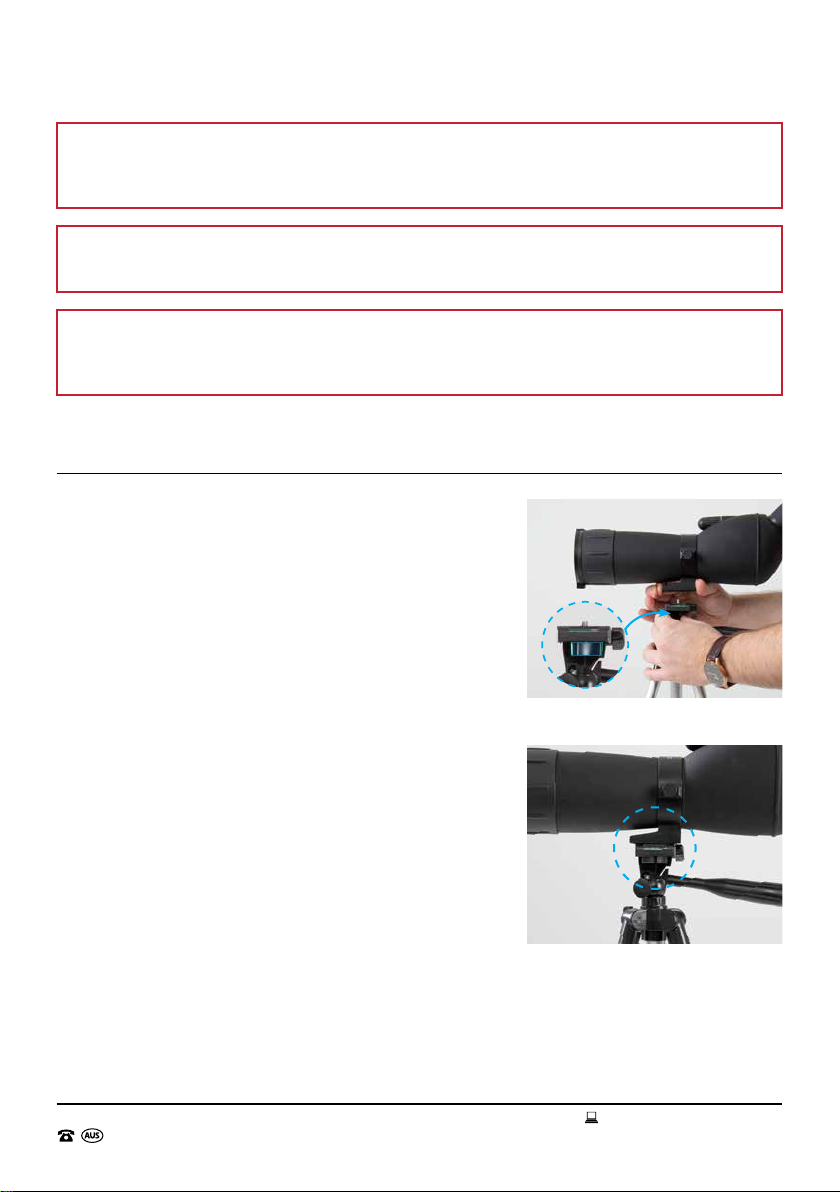

2. Align the screw on the mounting plate with the
tripod mount located on the Spotting Scope
mounting head (Fig. 2). Holding the knob located
under the mounting plate with one hand, with the
other hand turn the Spotting Scope clockwise until
it is securely attached to the tripod.
3. The Spotting Scope should be positioned on the
tripod so that the gradient leveller is on the left
hand side (when the objective lens is facing away
from you and the eyepiece is closest to you) of the
Spotting Scope (Fig. 3).
Fig. 2
Fig. 3

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022
10
GETTING STARTED (CONT.)
Attaching the Smartphone Holder to the Spotting Scope
You can attach your smartphone to your Spotting Scope
using the smartphone holder (included). This is useful if
you wish to take a photo or record a video of your subject.
Follow the steps below for how to attach the smartphone
holder to the Spotting Scope.
1. Pull the adjustable (sprung) arm out and place your
phone in the smartphone holder so that it sits snugly
and securely. Tighten the screw on the right hand
side, by turning it in a clockwise direction, to secure
your smartphone in the holder (Fig. 4 and Fig. 5).
2. Loosen the screw on the ring of the smartphone
holder. First remove the protective cap from the
eyepiece. Then fold the eyecup (rubber edge) of the
eyepiece down (Fig. 6). Then place the ring over the
eyepiece on the Spotting Scope so that the ridge
on the ring is aligned with the top of the eyepiece.
Tighten the screw on the ring until the smartphone
holder is securely attached to the eyepiece (Fig. 7).
NOTE: Your Spotting Scope comes with a protective
cap that protects the eyepiece from dust and dirt
when not in use and during storage. Always remove
this protective cap before use simply by pulling it off
the top of the eyepiece.
CAUTION: Do not attempt to remove the rubber edge
from around the eyepiece! This will damage the rubber
edge and affect the use of the Spotting Scope.
3. To adjust the smartphone position, loosen the screw
located on the back of the smartphone holder.
Adjust your smart phone (slide up and down or
rotate sideways) until the phone lens is positioned
in a way where it displays the subject in question, on
your smartphone screen (Fig. 8). Tighten the screw
to secure your smartphone into position.
Fig. 4
Fig. 5
Fig. 7
Fig. 8
Fig. 6

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022 11
4. To remove the smartphone holder, simply loosen the screw on the ring of the
smartphone holder and remove from the Spotting Scope.
5. After use, return the eyecup (rubber edge) to the fully extended position to ensure the
rubber edge of the eyecup retains its shape and exibility. Then replace the protective
cap.
NOTE: It is recommended to place your phone in the smartphone holder before
attaching the smartphone holder to the Spotting Scope.
NOTE: It is recommended to remove your smartphone from its protective casing before
placing in the smartphone holder. This will help reduce the weight of your smartphone
and any obstruction of the view.
WARNING: If your smartphone is too heavy, it may cause the Spotting Scope to fall over.
Always hold the Spotting Scope when the smartphone holder (with phone) is attached
to ensure the Spotting Scope does not fall over.
WARNING: The eyepiece should always be in the upright position when attaching and
using the smartphone holder.
GETTING STARTED (CONT.)

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022
12
Using the Eye Cup and Sunshade
1. If you wear glasses, fold down the rubber edge
of the eyecup to make it easier to view the entire
image (Fig. 10). After use, return the eyecup to the
fully extended position to ensure the rubber of the
eyecup retains its shape and exibility.
2. If the sun is at an angle (to the side) instead of
behind you, there may be some glare affecting
the image quality. To reduce the glare, extend the
sunshade simply by pulling it forward (Fig. 11). Once
you are nished using the sunshade, push it back to
its original position.
NOTE: The sun should ideally be located behind you.
If the sun is at an angle, it is recommended to extend
sunshade to reduce any glare.
WARNING: The sun should never be directly in front
of you. Looking directly into the sun is dangerous and
may cause blindness.
INSTRUCTIONS
Using the Pan Lever
1. To unlock the pan lever, turn the knob located
on the left hand side of the tripod anticlockwise
to loosen. You should now be able to pan the
Spotting Scope (moving to the left or right) a full
360° using the pan lever (Fig. 9).
2. Once the Spotting Scope is facing in the desired
direction, turn the knob clockwise to tighten and
secure (lock) the Spotting Scope into position.
NOTE: Do not remove the screw of the pan lever
lock. Only loosen the screw enough so that the pan
lever can be manoeuvred.
NOTE: Never pan the Spotting Scope with the scope itself. Always use the pan lever to
manoeuvre the Spotting Scope.
Fig. 10
Fig. 9
Fig. 11

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022 13
INSTRUCTIONS (CONT.)
Using the Zoom and Focus Controls
1. The zoom ring is located on the eyepiece (Fig. 12).
To increase the magnication, turn the zoom ring
anticlockwise (the highest magnication is 60x).
To decrease the magnication, turn the zoom ring
clockwise (the lowest magnication is 20x).
2. The focus wheel is located on the Spotting Scope
optical tube (Fig. 13). Turn the focus wheel clockwise
or anticlockwise until the image is sharp and clear.
NOTE: It is recommended to start at the lowest
magnication and locate your subject. Once you
have focused on your subject, slowly increase the
magnication. You may need to adjust the focus as
you zoom in or out, by using the focus wheel.
Adjusting the Position
of the Eyepiece
1. Loosen the screw located on the eyepiece
adjustment belt on the Spotting Scope. Rotate the
Spotting Scope left or right until the Eyepiece is in
the desired position (Fig. 14 and 15).
2. Tighten the screw on the eyepiece adjustment belt to
secure the Spotting Scope into position.
3. If the (open) objective lens cover is interfering with
the view, simply rotate the sunshade located on the
end of the optical tube to adjust the position of the
(open) objective lens cover.
NOTE: The sunshade located on the end of the optical
tube can be rotated to adjust the position of the open
objective lens cover.
WARNING: The eyepiece should always be in the upright
position when attaching and using the smartphone
holder. Never attempt to attach your smartphone to the
eyepiece when it is angled downwards as this may cause
damage to your smartphone and the Spotting Scope.
Fig. 12
Fig. 13
Fig. 14
Fig. 15

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022
14
Using the Spotting Scope
The Spotting Scope is a type of telescope that is primarily intended for terrestrial (land)
observation. The Spotting Scope can also be used for casual astronomical observing.
1. Set your Spotting Scope up on the tripod (included). Refer to the instructions on pages
8-9.
2. Remove the small rubber protective cap from the eyepiece and place inside the carry
case. Unclip the large objective lens cover.
3. Use the pan lever to position the Spotting Scope in the desired direction. Refer to the
instructions on page 12 for how to use the pan lever.
4. Start at the lowest magnication (20x) and focus on your subject for sharpness and a
wide eld of view using the focus wheel. Turn the focus wheel until the image is sharp
and clear.
5. Once you have located your subject at low magnication, increase the power of the
magnication by turning the zoom ring anticlockwise. If required, adjust the focus
using the focus wheel, until you have a sharp, clear image.
6. If you wish to take an image or video, refer to the instructions on pages 10-11 for how to
attach your smartphone to the Spotting Scope.
NOTE: When you rst begin using the Spotting Scope, it may take some time getting use
to the angled eyepiece and using the focus and zoom controls. It may take a few times
of using the Spotting Scope until you master the technique. The more you practice the
easier it will become and will eventually become second nature.
NOTE: To locate your subject using the Spotting Scope, start with the lowest
magnication rst for the widest eld of view.
NOTE: Don’t forget, while increasing your power range (zoom), you may also need to
adjust the focus wheel, so the subject will remain in focus.
NOTE: The angled eyepiece is more exposed to the elements such as rain and snow
while using the Spotting Scope outdoors.
INSTRUCTIONS (CONT.)

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022 15
FREQUENTLY ASKED QUESTIONS
Problem Solution
I cannot see
through the
Spotting Scope?
• Check the rubber protective cap has been removed from
the eyepiece and that the objective lens cover is unclipped
(open).
• The eyepiece or objective lens may be dirty. Refer to the
cleaning instructions on page 17 for how to clean the
eyepiece and objective lens.
• If you still cannot see through the Spotting Scope, please
contact the After Sales Support line for further advice.
The Spotting Scope
does not t in the
carry case?
• Check that all the accessories have been detached from
the Spotting Scope. If any of the accessories (tripod or
smartphone holder) are still attached to the Spotting
Scope, it will not t into the carry bag.
Can I use the
Spotting Scope in
the rain?
• Yes, your Spotting Scope is water resistant. It is suitable
to be used in outdoor environments in which exposure
to water, such as rain, mist, splashing etc., may occur. It
is only intended to be resistant to accidental exposure to
water and it is not designed for intentional submersion
or extended use in wet environments. Always wipe any
residual water off using a dry, soft cloth, after use.
NOTE: Water on the objective lens will cause images to be
distorted. Wipe the water off the objective lens using the
lens cleaning cloth (supplied) or a soft tissue, for a clearer
image.
The image of the
subject is blurry?
• It is normal for the image of a subject to be less clear at
500m than it is at 100m. For example, the image of more
distant subjects will be degraded by several factors which
include dust, haze, and heat distortion (mirage). These will
all affect the clarity of the image and, reduce your ability
to discern small details at long distances.
• The eyepiece or objective lens may be dirty. Refer to the
cleaning instructions on page 17 for how to clean the
eyepiece and objective lens.

AFTER SALES SUPPORT
1300 77 7 137
16
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022
Spotting Scope
Repair and Refurbished
Goods or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to be
returned to the Supplier for repair.
Please be aware that if your product is capable of retaining user-generated data (such as les
stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs
stored on a portable media player, games saved on a games console or les stored on a USB
memory stick) during the process of repair, some or all of your stored data may be lost.
We recommend you save this data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them with
refurbished goods of the same type or use refurbished parts in the repair process.
Please be assured though, refurbished parts or replacements are only used where
they meet ALDI’s stringent quality specifications.
If at any time you feel your repair is being handled unsatisfactorily, you may escalate your
complaint. Please telephone us on 1300 777 137 or write to us at:
UNCLE BILL’S AUSTRALIA PTY LTD
48B Egerton Street
Silverwater NSW 1811 Australia
1300 777 137
Opening Hours - 9:00am - 4:30pm (Mon-Fri), 9:00am - 3:00pm (Sat)
ser[email protected]
www.signifyelectronics.com.au

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022 17
OTHER USEFUL INFORMATION
Cleaning and Maintenance
Your Spotting Scope is a precision optical instrument. Follow these guidelines to keep your
Spotting Scope in the best condition.
• When you are not using the Spotting Scope, it is recommended to pack the Spotting
Scope away for safe storage.
• The Spotting Scope is likely only to require regular “dusting” to keep it clean. Use a soft
cloth or standard duster, to remove the dust from the Spotting Scope. Clean the dust
from the Spotting Scope regularly.
• If the Spotting Scope becomes soiled with anything other than dust on its exterior,
clean the exterior of the Spotting Scope by wiping over the surface with a slightly damp
cloth and then polish with a soft dry cloth.
• Do not use any cleaning agents on the viewing screen or the lenses. Be careful that
you do not apply too much pressure when cleaning the lenses or viewing screen of the
Spotting Scope. There is a risk that you may damage the sensitive parts.
• Do not use detergents or abrasive cleaners, and do not allow moisture, water or other
liquid to enter the Spotting Scope.
Storage
• Always disassemble the Spotting Scope (remove the smartphone holder from the
scope, then detach the scope from the tripod) if it is not being used for a long period of
time.
• Ensure that the Spotting Scope is stored in a cool and dry ventilated location out of
direct sunlight and inside the carry bag (included).
• We recommend storing the Spotting Scope (inside the carry bag) together with all the
accessories inside its original carton.
• Store the Spotting Scope in a clean and dry place, out of children’s reach.
• Do not place heavy objects on top of the Spotting Scope during storage.

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022
18
OTHER USEFUL INFORMATION (CONT.)
Responsible Disposal
We encourage you to dispose of your packaging carefully and thoughtfully. Please sort the
packaging before you dispose of it. Observe any local regulations regarding the disposal of
consumer goods and dispose of it appropriately for recycling. Contact your local authorities
for advice on recycling facilities in your area.
Please keep the original packaging carton and materials in a safe place. It will help to
prevent any damage if the product needs to be transported in the future. In the event it is
to be disposed of, please recycle all packaging material where possible.
If you require an alternative format of this instruction manual such as website, DVD or by
email please contact [e-mail] to obtain a copy.
Specication Table
MODEL: EA2206
COLOUR: Black
MAGNIFICATION: 20x - 60x
OBJECTIVE LENS COATING: Fully Coated
PRISM TYPE: BK7
PRISM SYSTEM: Porro
OBJECTIVE LENS DIAMETER: 60mm
20x FIELD OF VIEW (at 914m): 28m
60x FIELD OF VIEW (at 914m): 18m
20x SHORTEST FOCUS: 9m
60x SHORTEST FOCUS: 11m
EYE RELIEF: 13.5 - 17mm
DIMENSIONS: 35.5 x 15 x 9cm
NET WEIGHT: 754g (excluding accessories)
TRIPOD HEIGHT (MAX): 1.1m
VERSION NO: 1.10
ISSUE DATE: 2nd November, 2021
NOTE: All specications are stated for the Spotting Scope using the standard accessories.
These specications are approximate and may change without notice.

AFTER SALES SUPPORT
1300 77 7 137
[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022 19
NOTES

[e-mail]
MODEL: EA2206 PRODUCT CODE: 708117 04/2022
AFTER SALES SUPPORT
1300 77 7 137
