FireWire 2-Port CardBus
Quick Installation Guide
04-0214G
Introducing the FireWire 2-Port CardBus
The FireWire 2-Port CardBus is designed to add FireWire
(1394a) interface to notebook computers for easy
connectiontoDVcamcorders,harddiskdrives,scanners,
printers, and other 1394 devices. For your convenience,
a FireWire (1394a) 6-pin/4-pin DV cable is included for
connecting DV camcorders and other 1394 devices using
4-pin connector. Ulead VideoStudio video editing
software is also included for producing greeting cards,
video e-mails, or home videos complete with attractive
titles, effects, and background music.
FeaturesandBenefits
• Compliant with IEEE 1394-1995, P1394a-2000 and
OHCI 1.1 standards
• Supports serial bus data transfer rates of 100, 200
and 400Mbps
• Hot-swapping allows you to connect/detach
devices without first turning your system off
• Supports both asynchronous and isochronous data
transfer modes
• Works with a variety of 1394 devices including
digital cameras, DV camcorders (Sharp, Sony,
Panasonic,JVC,Cannonandotherbrands),portable
harddisks,CD-RW/DVD-ROMs,printersand other
audio/video devices

2
SystemRequirements
• Pentium III or equivalent notebook PC with an
available CardBus Type II slot
• Windows®98SE/ME/2000/XP (32-/64-bit)/
Server 2003 (32-/64-bit)/Vista (32-/64-bit)
RecommendedsystemforDigitalVideocapturing/editing:
• Pentium 4 or above notebook computer
• 512 MB RAM and 5 GB of available hard disk space
PackageContents
•FireWire 2-Port CardBus
•FireWire (1394a) 6-pin/4-pin DV cable
•Ulead VideoStudio DV editing software
•Quick installation guide

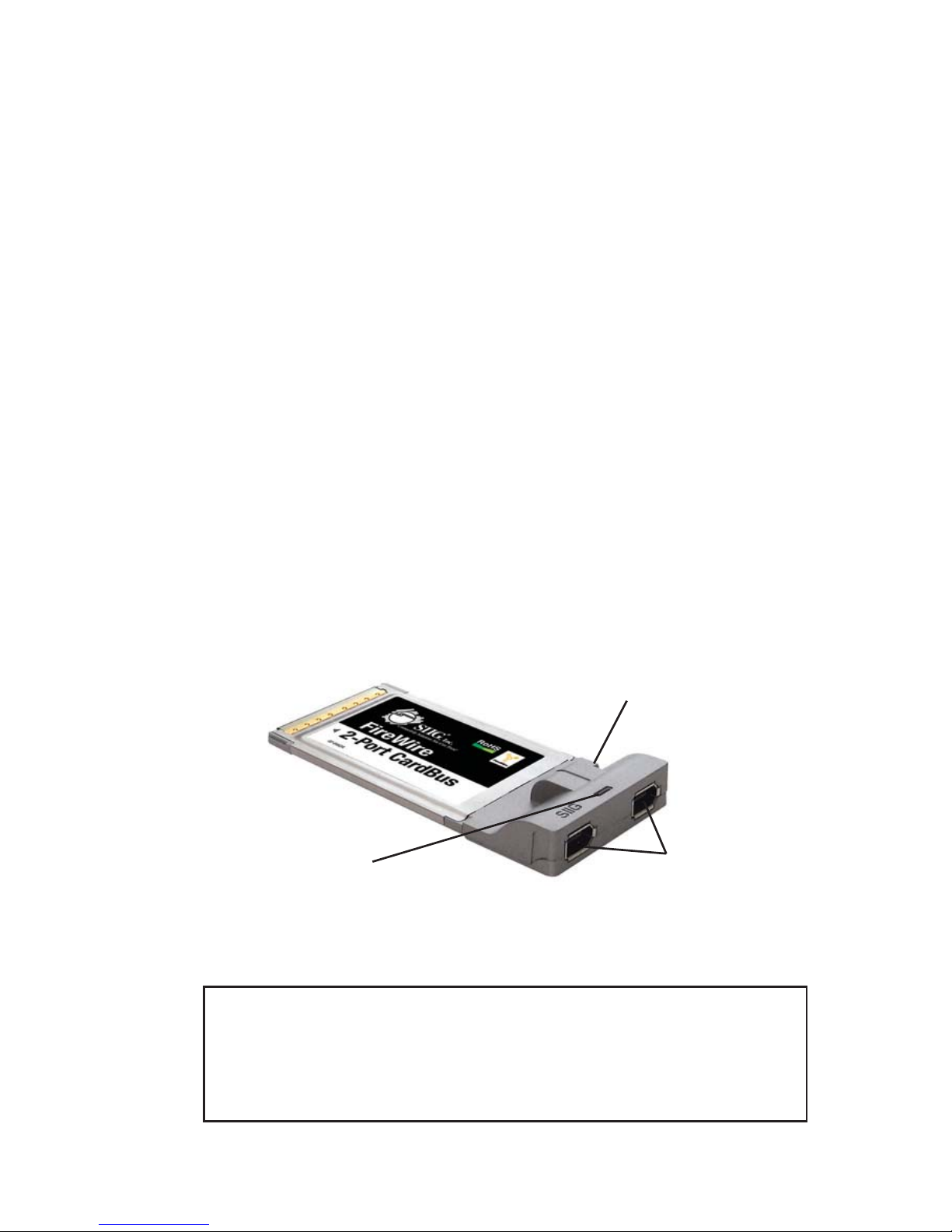

Layout
Figure 1. Layout
*Note: The power adapter (not included) can be
purchased on SIIG's online store. If your FireWire
device does not come with it's own power supply,
you will need to purchase this power adapter.
1394a Ports
(6-pin)
Power Adapter Jack*
Power LED

3
Hardware Installation
General instructions for installing the card are provided
below. Since the design of notebook computers may
vary, refer to your system’s reference manual for further
information, if needed.
1. Power off your notebook computer and any other
connected peripheral devices.
2. Insert the PC Card into the CardBus Type II slot of
your notebook computer with its 68-pin connector
facing the slot. Make sure it is inserted all the way in
for a solid connection.
3. Power on your notebook computer.
Driver Installation
This section will guide you through the installation of
your FireWire 2-Port CardBus.
Windows98SE
1. At the Add New Hardware Wizard, click Next.
2. Choose Search for the best driver for your device,
and click Next.
3. Uncheck all the boxes, click Next, Next, Next.
Note: If you are prompted to insert your Windows
Installation CD-ROM, insert it and click OK.
4. Click Finish, then restart Windows to complete the
driver installation.

4
WindowsME
1. At the Add New Hardware Wizard, choose
Automatic search for a better driver
(Recommended), then click Next.
2. Click Finish then restart Windows to complete the
installation.
Windows2000/XP/Server2003/Vista
Windows 2000, XP, Server 2003 and Vista will
automatically detect and install the correct driver for
your FireWire 2-Port CardBus. Restart Windows if
prompted.
ToVerifyDriverInstallation
1. Check Device Manager to verify successful driver
installation.
Windows 98SE/ME: From the main desktop, right
click My Computer, then click Properties. Click
Device Manager tab.
Windows 2000/XP/Server 2003: Right click My
Computer, then click Manage. Click Device
Manager.
Windows Vista™: RightclickComputer,clickManage,
click Continue, then click Device Manager.
2. Double click 1394 Bus Controller or IEEE 1394 Bus
host controllers option.
- AnIEEE1394 Host Controllershould bedisplayed.

5
UleadVideoStudioSoftwareInstallation
The FireWire 2-Port CardBus includes Ulead VideoStudio
DVeditingsoftware for producing home videoscomplete
with attractive titles, transitions and sounds.
1. InserttheUleadVideoStudioDVsoftware CD. Auto-
run should start automatically. If not, click Start,
Run, type in X:\Autorun.exe or X:\setup.exe, then
click OK. (Replace X: with the drive letter of your
CD-ROM)
2. Choose Install Ulead VideoStudio and follow the
on-screen instructions to complete.
Note: For instructions on how to use Ulead
VideoStudio, please refer to VStudio.pdf file
located in the Document\Manual directory on the
Ulead VideoStudio DV editing software CD.
Connecting a DV Camcorder
Before setting up the digital video camcorder, verify the
FireWire 2-Port CardBus'driver has been successfully
installed in your system, then follow the procedures
below.
1. Boot up your system.
2. Connect the 4-pin connector of the provided
FireWire (1394a) DV cable to your camcorder.
3. Connect the 6-pin connector to the FireWire (1394a)
port.
4. Power on the camcorder. The camcorder should
now appear in Device Manager.

6
ToVerifySuccessfulDVCamcorderSetup
1. Check Device Manager to verify successful
installation.
Windows 98SE/ME: From the main desktop, right
click My Computer, then click Properties. Click
Device Manager tab.
Windows 2000/XP/Server 2003: Right click My
Computer, then click Manage. Click Device
Manager.
Windows Vista™: RightclickComputer,clickManage,
click Continue, then click Device Manager.
2. Double click Imaging Device(s).
- AMicrosoft DV Camera and VCR or DV
Camcorder should be displayed.
ConnectingOther1394Devices
Many FireWire devices have built-in driver support with
Windows 98SE/ME/2000/XP/Server 2003/Vista.
Please refer to the device’s user manual for installation
information. Depending on the device you purchased, a
different 1394 cable may be used. Refer to your 1394
device's manual for more details.

7
Technical Support and Warranty
QUESTIONS? SIIG’sOnline Support hasanswers! Simplyvisitour
web site at www.siig.com and click Support. Our online support
database is updated daily with new drivers and solutions. Answers
toyourquestionscouldbejustafewclicksaway. Youcanalsosubmit
questions online and a technical support analysts will promptly
respond.
SIIGoffersalifetimemanufacturer warrantywiththis product. Please
see our web site for more warranty details. If you encounter any
problems with this product, please follow the procedures below.
A) If it is within the store's return policy period, please return the
product to the store where you purchased from.
B) Ifyourpurchasehaspassedthestore'sreturnpolicyperiod,please
follow these steps to have the product repaired or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then RMA to submit a
request to SIIG RMA. If the product is determined to be
defective, an RMA number will be issued. SIIG RMA department
can also be reached at [phone].
Step 2: After obtaining an RMA number, ship the product.
•Properly pack the product for shipping. All software, cable(s)
and any other accessories that came with the original package
must be included.
•Clearly write your RMA number on the top of the returned
package. SIIG will refuse to accept any shipping package, and
will not be responsible for a product returned without an
RMA number posted on the outside of the shipping carton.
•You are responsible for the cost of shipping. Ship the product
to the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA #:
•SIIG will ship the repaired or replaced product via Ground
in the U.S. and International Economy outside of the U.S. at
no cost to the customer.

FireWire2-PortCardBusisatrademarkofSIIG,Inc. SIIGandtheSIIGlogoareregisteredtrademarks
ofSIIG,Inc. Microsoft,WindowsandWindowsVistaareregisteredtrademarksofMicrosoftCorporation.
Pentium is a registered trademark of Intel Corporation. Other names used in this publication are for
identificationonly and may betrademarksof their respective companies.
October, 2007 Copyright © 2007 by SIIG, Inc. All rights reserved.
About SIIG, Inc.
Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer
of I/O connectivity products, including PCI & ISA serial and parallel
ports, USB, Serial ATA & UltraATA controllers, FireWire (1394a/b),
networking, sound cards, and other accessories. SIIG is the premier
one-stop source of upgrades.
SIIGproducts offer comprehensiveusermanuals, manyuser-friendly
features, and are backed by an extensive manufacturer warranty.
High-quality control standards are evident by the overall ease of
installation and compatibility of our products, as well as one of the
lowest defective return rates in the industry. SIIG products can be
found in computer retail stores, mail order catalogs, through major
distributors, system integrators, and VARs in the Americas and the
UK, and through e-commerce sites.
