OWNER’S MANUAL
2
OWNER’S MANUAL
SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accor-
dance with the manufacturer’s instructions.
8. Do not install near the heat sources such as radiators,
heat registers, stoves, or other apparatus (including
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety, if
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs convenience receptacles,
and the point where they exit from the apparatus.
the manufacturer.
THELIGHTNINGFLASHWITHARROWHEADSYMBOLWITHINANEQUILATERALTRIANGLEIS
INTENDEDTOALERTTHEUSERTOTHEPRESENCEOFUNINSULATEDDANGEROUSVOLTAGE
WITHINTHEPRODUCT’SENCLOSURETHATMAYBEOFSUFFICIENTMAGNITUDETOCONSTITUTE
ARISKOFELECTRICSHOCKTOPERSONS.
APPARATUSSHALLNOTBEEXPOSEDTODRIPPINGORSPLASHINGANDTHATNOOBJECTS
FILLEDWITHLIQUIDS,SUCHASVASES,SHALLBEPLACEDONTHEAPPARATUS.
THEEXCLAMATIONPOINTWITHINANEQUILATERALTRIANGLEISINTENDEDTOALERT
THEUSERTOTHEPRESENCEOFIMPORTANTOPERATINGANDMAINTENANCE(SERVICING)
INSTRUCTIONSINTHELITERATUREACCOMPANYINGTHEPRODUCT.
12. Use only with the cart, stand, tripod,
manufacturer, or sold with the
apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid injury
13. Unplug this apparatus during lightning storms or
when unused for a long periods of time.
-
vicing is required when the apparatus has been dam-
aged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been ex-
posed to rain or moisture, does not operate normally,
or has been dropped.
not expose this apparatus to rain or moisture.
CAUTION: Apparatus shall not be exposed to dripping or
shall be placed on the apparatus.
CAUTION: Apparatus shall not be exposed to dripping or
shall be placed on the apparatus.
Figure 1
3
SD
TABLE OF CONTENTS
SAFETY INSTRUCTIONS ...................................2
FEATURES ................................................4
ASSEMBLING YOUR KIT ...................................5
CONNECTIONS
Connecting the Pads...................................8
Connecting the Power Supply .........................9
Connecting External Audio Devices ....................9
Connecting USB MIDI ..................................9
Connecting Headphones ..............................9
SD200 DRUM MODULE OPERATION
Top Panel .............................................10
LED Display ...........................................10
Rear Panel .............................................11
Back Panel .............................................11
GETTING STARTED
Switching the Power On ..............................12
Basic Operations and Navigation .....................12
Listening to the Demo Song ..........................12
Selecting a Kit.........................................13
Selecting a Song ......................................13
Playing a Song ........................................13
Muting the Drum Part ................................13
ADVANCED OPERATIONS
Editing a Kit ...........................................14
Recording a Song .....................................14
....................................15
Utility Mode ...........................................15
Trigger Settings .......................................15
.................................16
MIDI Settings..........................................16
Factory Reset .........................................16
DRUM KIT PRESETS
Preset Drum Kit List ...................................17
Song Style List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Drum Sound List ......................................17
MIDI IMPLEMENTATION CHART..........................19
SPECIFICATIONS ........................................ 20
WARRANTY ............................................. 20
4
OWNER’S MANUAL
FEATURES
SD200 SOUND MODULE GENERAL FEATURES
POLYPHONY
• Voices - 32
SOUND
• Drum Voices - 93
• Drum Kits - 10 Preset / 1 User
• Songs - 10 Preset / 1 User
EFFECTS
• Reverb - Hall1, Hall2, Room1, Room2, Room3, Stage1, Stage2,
Plate, Delay, Echo.
• Chorus - Chorus1, Chorus2, Chorus3, Chorus4, ChorusFB, Short
Delay, Short Delay FB, Flanger2, Flanger3, Celeste1, Celeste2,
Celeste3.
TRIGGER INPUTS
• 1 x Kick, Single Zone
• 1 x Snare, Single Zone
• 3 x Toms, Single Zone
• 1 x Hi-Hat, Single Zone
• 1 x Ride, Single Zone
• 1 x Crash, Single Zone
HARDWARE
• Drum Rack and Mounts
• Kick pedal / Trigger Module
• Hi-Hat pedal
• 8” Single Zone Mesh Snare Pad
• 8” Single Zone Hi-Hat Cymbal Pad
• 10” Single Zone Crash Cymbal Pad
• 10” Single Zone Ride Cymbal Pad
EXTERNAL CONNECTIONS
• 2 - ¼” Master Outputs
• USB Connection for MIDI via computer
SEQUENCER
• Preset Songs - 10
• User Songs - 1
• Tempo - 20-240 BPM
• Click/Metronome - Click Voice,
• Time Signature, Tempo, Interval, Volume
POWER
• Power: 9v, 600ma
DIMENSIONS
WEIGHT
• 37 lbs / 16.78 kg
5
SD
ASSEMBLING YOUR KIT

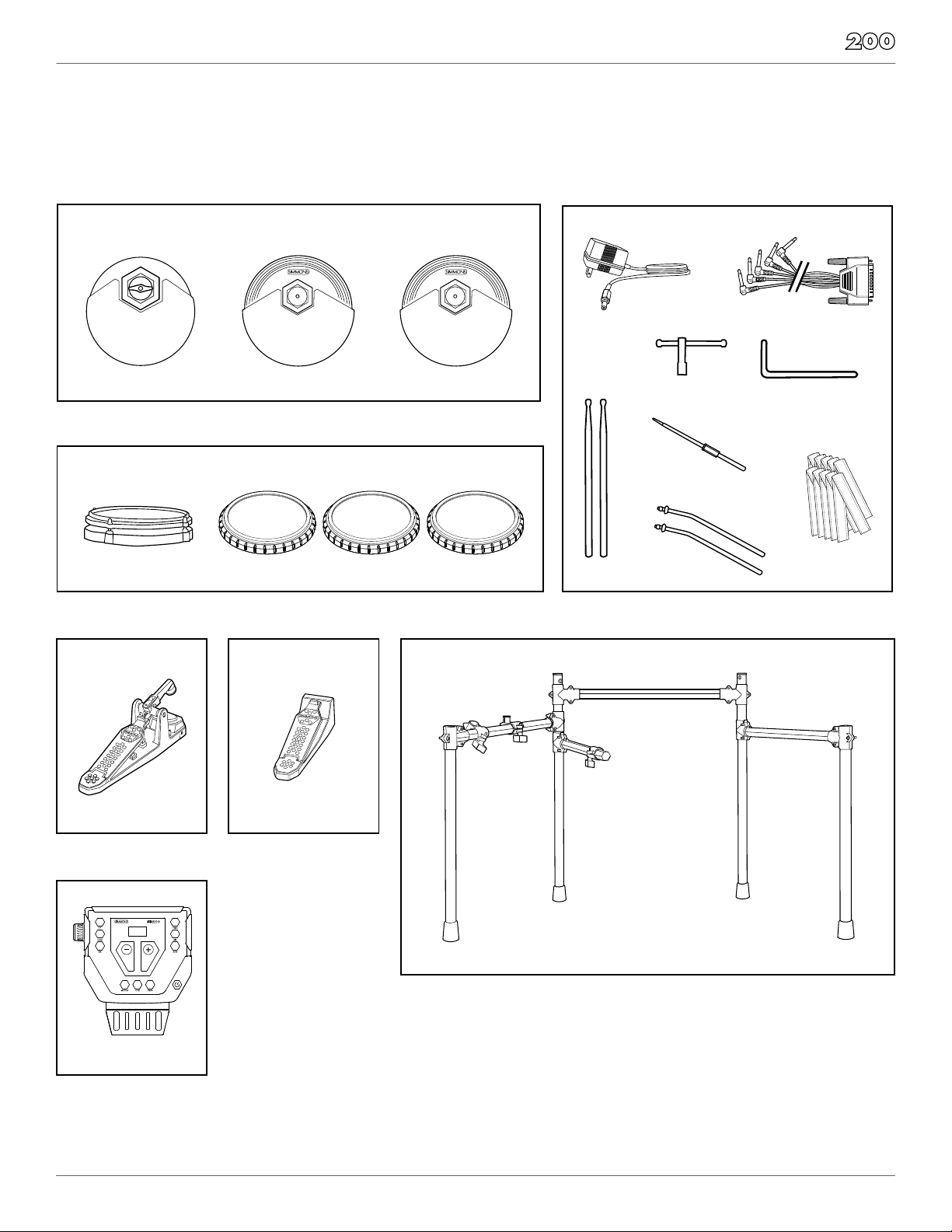

INSIDE THIS PACKAGE
Before assembly, please make sure that all the items listed below are present.
Cymbals
Drum Rack
Accessories
Kick Pad
Kick Drum Pedal
and Trigger
Drum Module
S200M
Hi-Hat Pedal
Foot Controller
SD300HHC
Multi-pin Cable Harness
1 Pair
Drumsticks
AC Adaptor
4 L–Rods for Pads
10–Velcro
Cable Strips
Drum Key
Single Zone
8” Hi-Hat Pad
S200CYM8S
Drum Pads
Single Zone
8” Snare Mesh Drum
Single Zone 8” Tom Pads
S500PAD8SS200SN8
Single Zone
10” Crash Cymbal Pad
SD600CYM10S
Single Zone
10” Ride Cymbal Pad
SD600CYM10S
SD200RK
SD300KICK
6
OWNER’S MANUAL
ASSEMBLING YOUR KIT

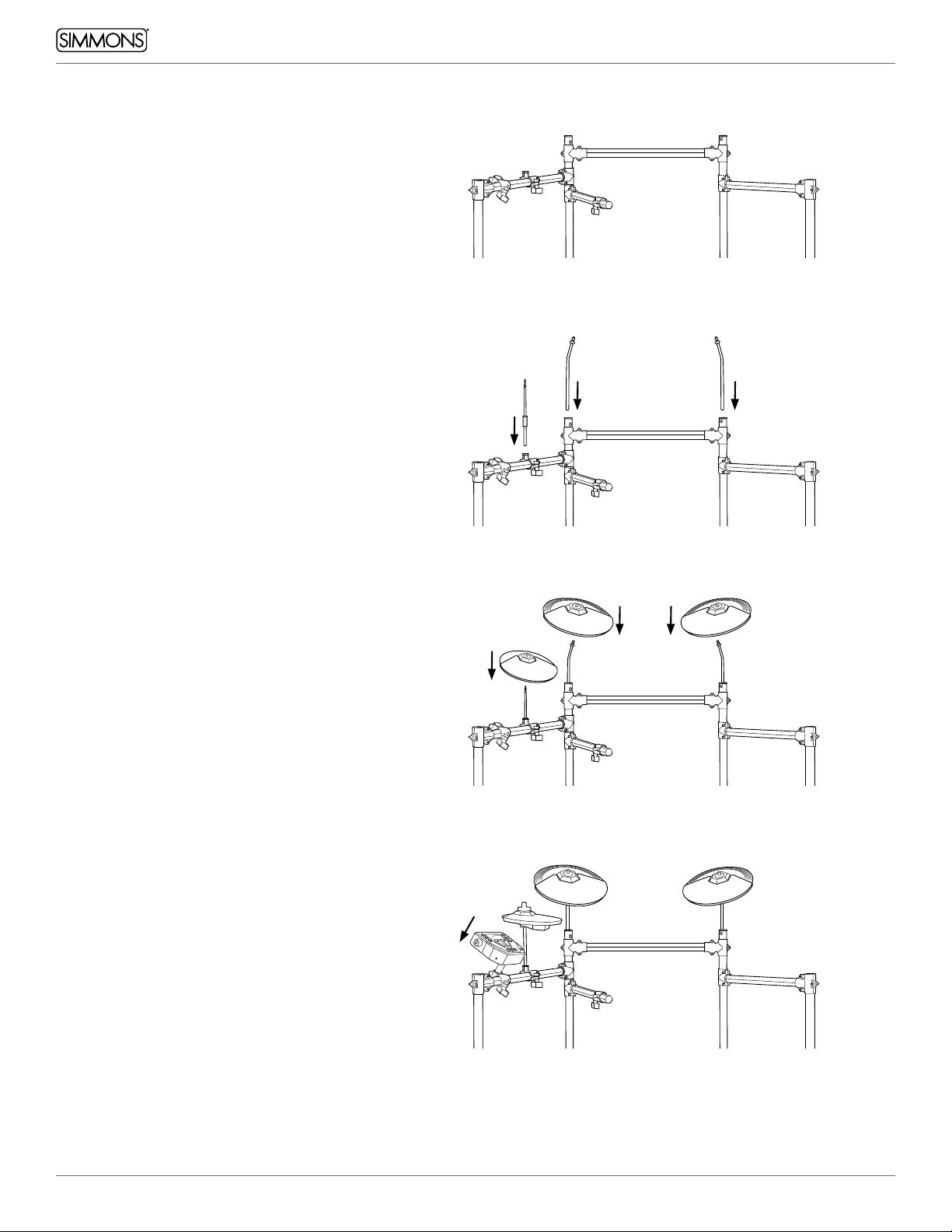

STEP 1 - DRUM RACK
The Drum rack will be fully assembled in the box.
Remove the drum rack from the box and tighten
the connecting clamps until the kit is stable.
STEP 2 - ATTACH CYMBAL ARMS
Insert each cymbal arm into the rack clamp.
arm’s cymbal clamp. Slide the hi-hat arm
through the plastic sleeve to adjust the height.
STEP 3 - ATTACH CYMBAL PADS
Place the cymbal pads on the tilter assemblies
and felt to the hi-hat arm.
STEP 4 - ATTACH DRUM MODULE
Loosen the wing screw on the module mount
located on the crossbar. Place the drum
module into the drum clamp. Tighten the
wing screw to secure the module.
7
SD
ASSEMBLING YOUR KIT

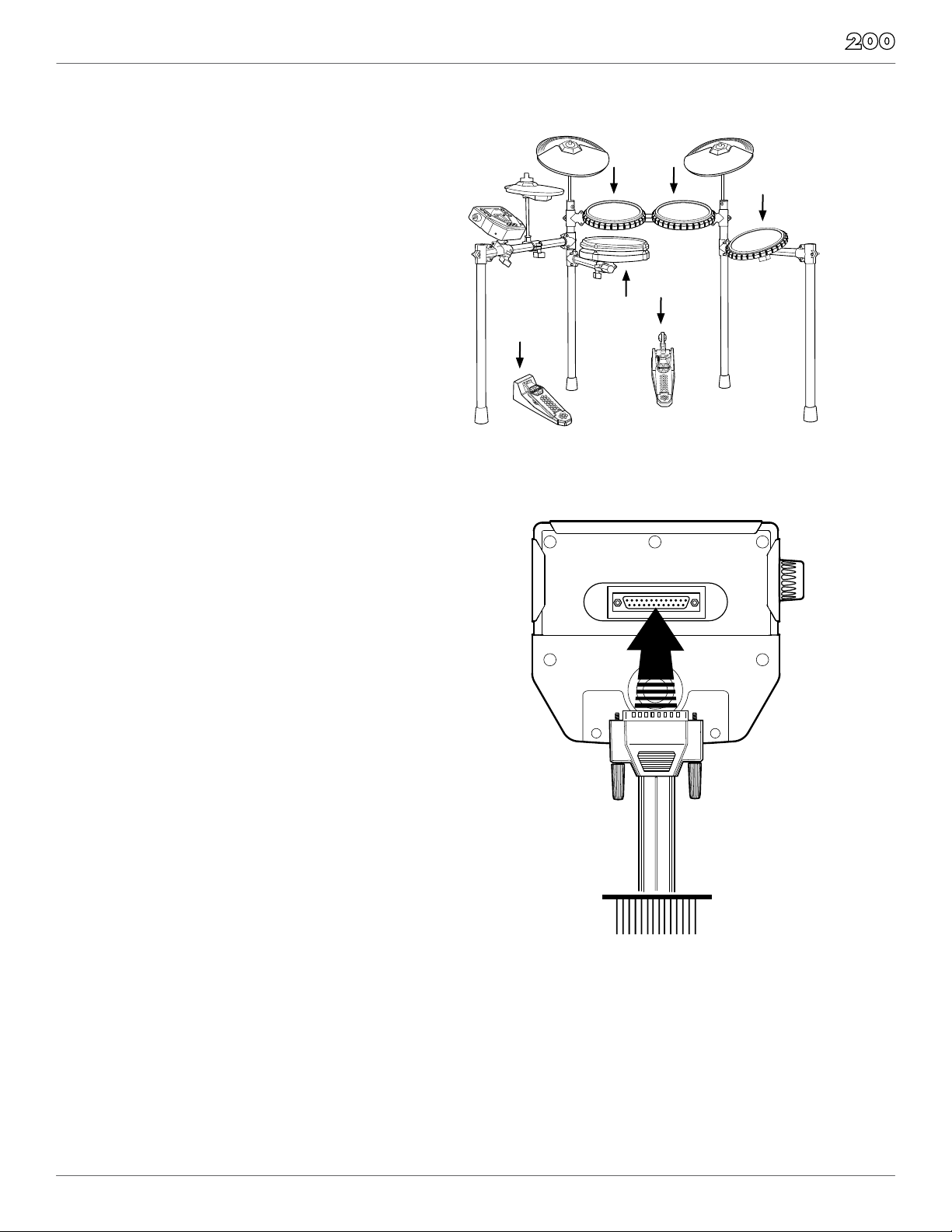

STEP 5 - POSITION PEDALS & ATTACH DRUM PADS
as illustrated below. Place the bass pedal on the
Loosen the wing screws on the drum mount
clamps then place the tom pads into the mounts
and tighten the wing screws.
Place the snare drum in the mount on the lower
into the clamp and tighten the wing screw.
STEP 6 - CONNECT MODULE TO THE PADS
Using the provided cables, connect the ¼” jacks
to the corresponding drum pads, cymbal pads
The pin connection will attach to the multi-pin
connector of the sound module. Use cable strips
to retain cables to the rack.
NOTE: The voice of the hi-hat pad is controlled
by the hi-hat pedal. Similar to a real drum kit,
the hi-hat pad functions as an ‘open hi-hat’
when the pedal is released. When the pedal is
pressed down, it functions as a ‘closed hi-hat’.
8
OWNER’S MANUAL
CONNECTIONS

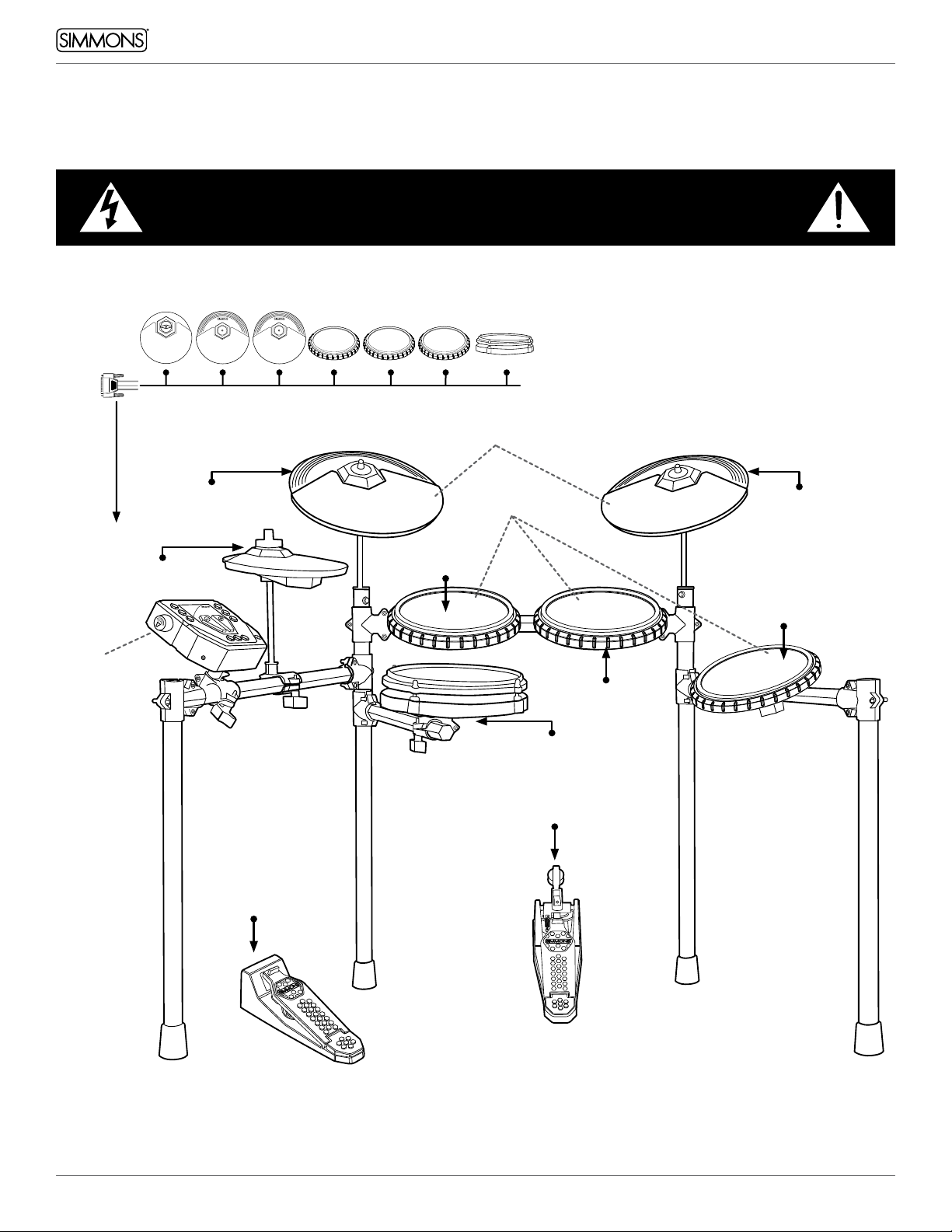

CONNECTING THE PADS
CAUTION!
To prevent electric shock and damage to the device, make sure the power is switched
OFF on the sound module and all related devices before making any connection.
*See Appendix for Pad, Triggers, Name and MIDI chart.
Cymbal Pads
To Ride
Drum Pads
To Snare
To Crash
To Hi-Hat
Sound Module
To Tom 1
To Tom 2
To Hi-Hat
Control
To Kick
To Tom 3
From Sound Module to 7 Pads
9
SD
CONNECTIONS
CONNECTING THE POWER SUPPLY
Connect the AC power adapter to a wall socket
as shown in this illustration.
CONNECTING EXTERNAL AUDIO DEVICES
The audio output from an external source can
be connected to the AUX INPUT jack on the rear
panel and mixed with the sound of the drum
module. This is ideal if you want to play along
with songs or follow an audio drum tutorial on
your smartphone or tablet. The volume of the
external signal is controlled on that device. AUX INPUT
AUDIO
DEVICE
—OUTPUT —
R L/MONO
CONNECTING USB MIDI
Your drum module is USB class-compliant. This
means you can plug it into a USB class compliant
host (such as most modern macOS, Windows,
immediately. There are no drivers to install;
simply plug n’ play.
If you connect the drum module to a computer,
you can trigger software programs or record your
performance into a MIDI sequencing application.
Check the operation and setup instructions for
the software you intend to use for more details.
USB cable not included.
AUX INPUT
AUDIO
DEVICE
—OUTPUT —
R L/MONO
CONNECTING HEADPHONES
Your headphones can be connected to the
SD200 module. The headphone jack is located
on the front left side of module. Use the MASTER
VOLUME knob to adjust the headphone volume.
AUX INPUT
AUDIO
DEVICE
—OUTPUT —
R L/MONO
10
OWNER’S MANUAL
SD200 DRUM MODULE OPERATION
TOP PANEL
1Volume Knob
2Kit Button
Switches the module to Kit Mode
3Song Button
Switches the module to Song Mode
4Util Button
Access Utility Functions
5Voice Button
Press to assign a new drum sound to the pad
6Mix Button
Press to change the volume of the selected pad
7Mute Button
Mutes the drum track in the currently-playing song
8+/- Buttons
Adjusts the current parameter on the screen
9Rec/Play Button
Plays the currently selected song, or records a
user song
10 Click Button
Activates the metronome click
11 Tempo Button
Press to change the tempo of the metronome
or song using the +/- buttons
12 Power Button
Press and release to power ON or OFF
13 Headphone Output
3
4
1
2
7
12
6
5
13
119
10
8
Kit mode
Edit mode
Song mode
LED DISPLAY
The LED indicates the SONG, EDIT or KIT status.
When SONG is selected, the song number appears
in the display. When VOICE or MIX is selected, the
pad name such as Snare, Crash, and Tom, etc. will
appear. Press the KIT button and the drum kit
number will be displayed on the LED.
11
SD
SD200 DRUM MODULE OPERATION

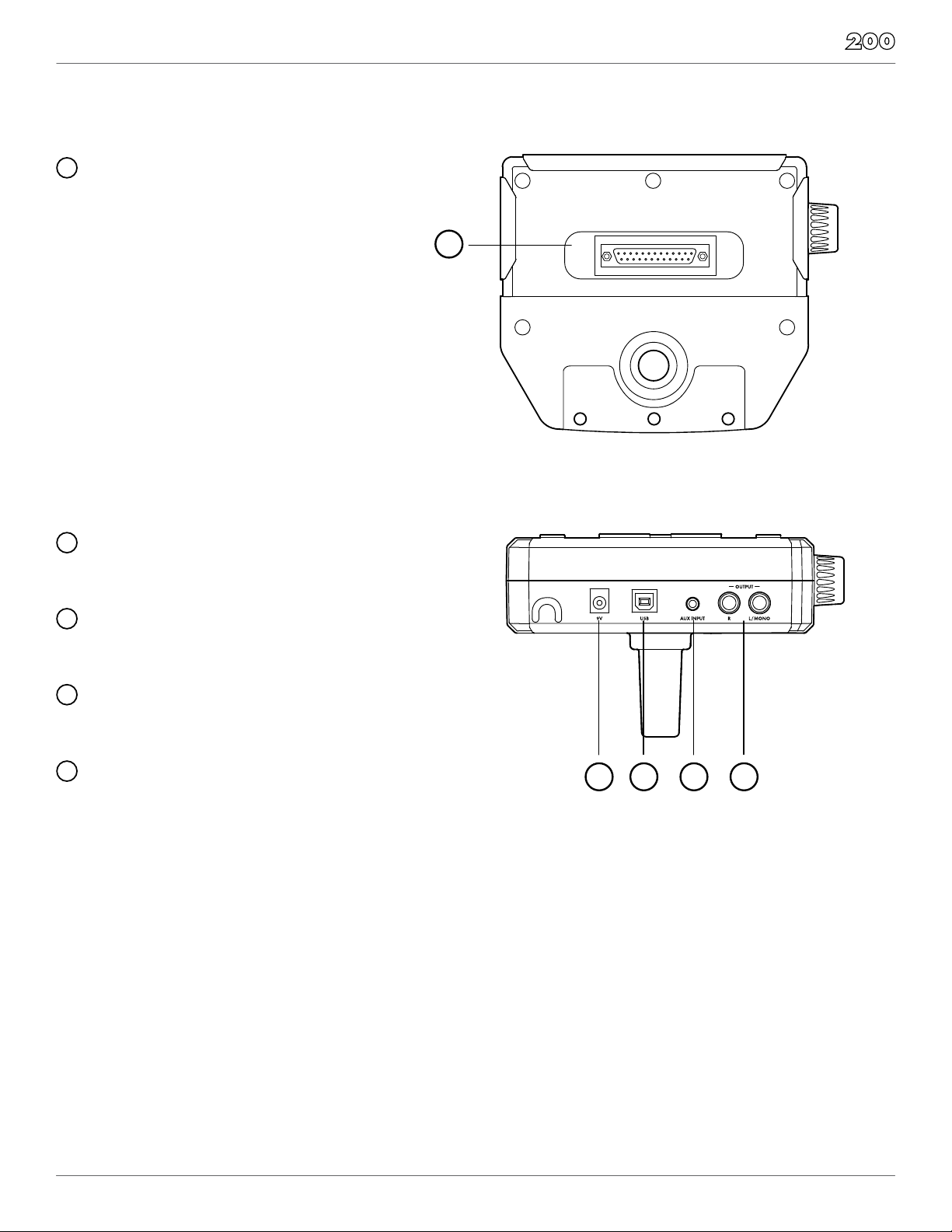

REAR PANEL
1Trigger Input Jacks
The included multipin cable connects
the pads and the pedals to the module.
BACK PANEL
1AC Adapter Input
Connection for the included 9V DC power
adapter.
2USB Port
Used for connecting the SD200 module to a
computer.
3AUX Input
devices to module.
4Output
¼” stereo audio outputs to connect to external
audio sources.
2 3 41
1
12
OWNER’S MANUAL
GETTING STARTED

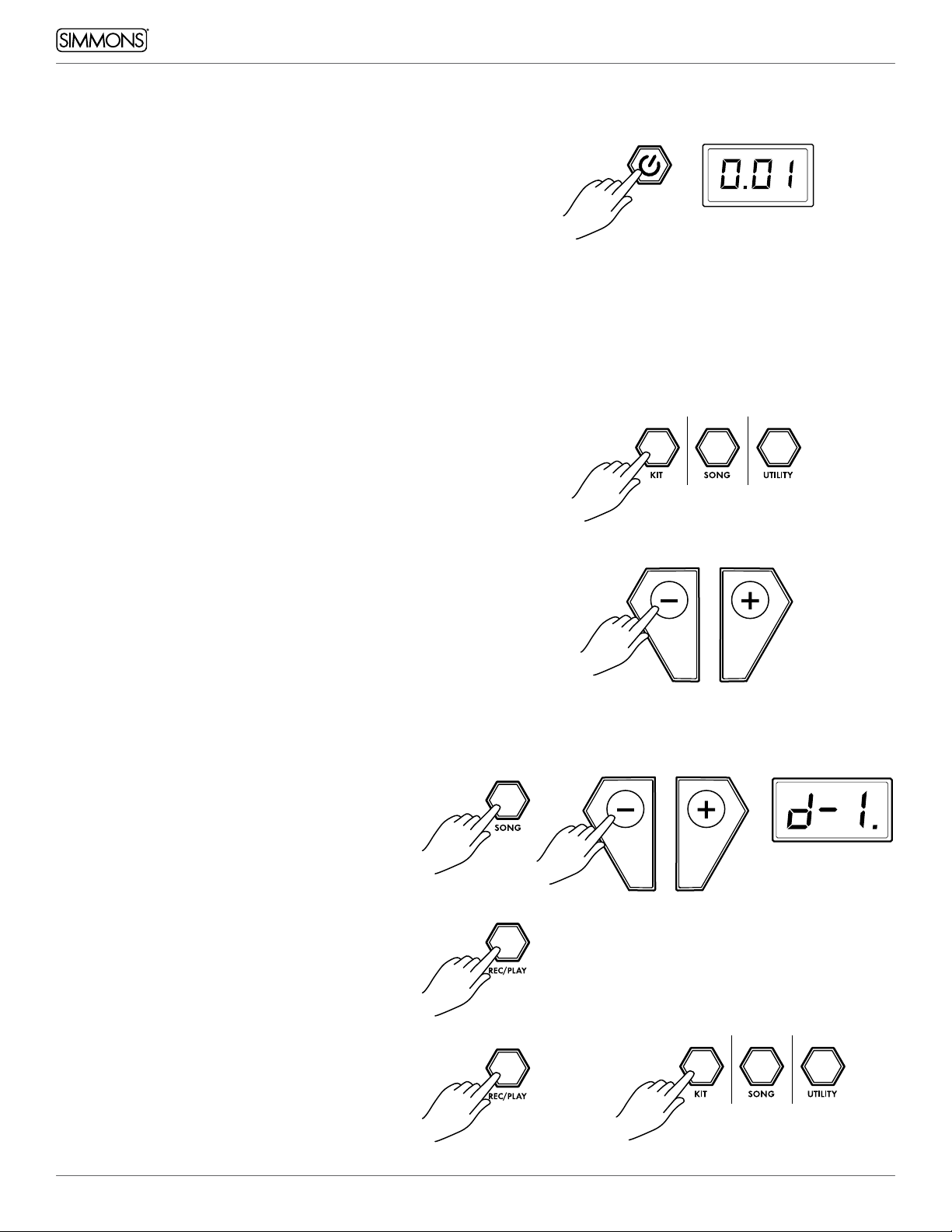

SWITCHING THE POWER ON
1. Connect the AC Adapter to the drum module.
2. Press the power switch on the front panel to turn on
the module.
NOTE: There is an automatic power off function that
turns off the module when the kit is not being used for
a certain period of time. The default setting is Always
ON. You can change this setting by holding down the
[KIT] button for two seconds. This will disable the auto
power off function. Press and hold the [KIT] button
again to switch it back on.
BASIC OPERATION AND NAVIGATION
There are 3 main modes for the module KIT, SONG and
UTILITY. To enter these modes press the corresponding
buttons on the top left panel of the module.
1. Select the parameter to be adjusted.
2. Adjust the value using [ - ] / [+] buttons.
LISTENING TO THE DEMO SONG
The demo song helps to show you the capabilities
and sounds of the SD200KIT module. There is one
demo in the module. The demo song is a medley
that has several patterns combined to show the
different genres of music that the module can play.
1. Press the [SONG] button to enter Song Mode.
Use the [ - ] / [ + ] buttons to select song d-1.
2. Press the [REC/PLAY] button to start or stop
the demo.
3. After stopping the demo, press any of the Mode
Mode.
13
SD
GETTING STARTED

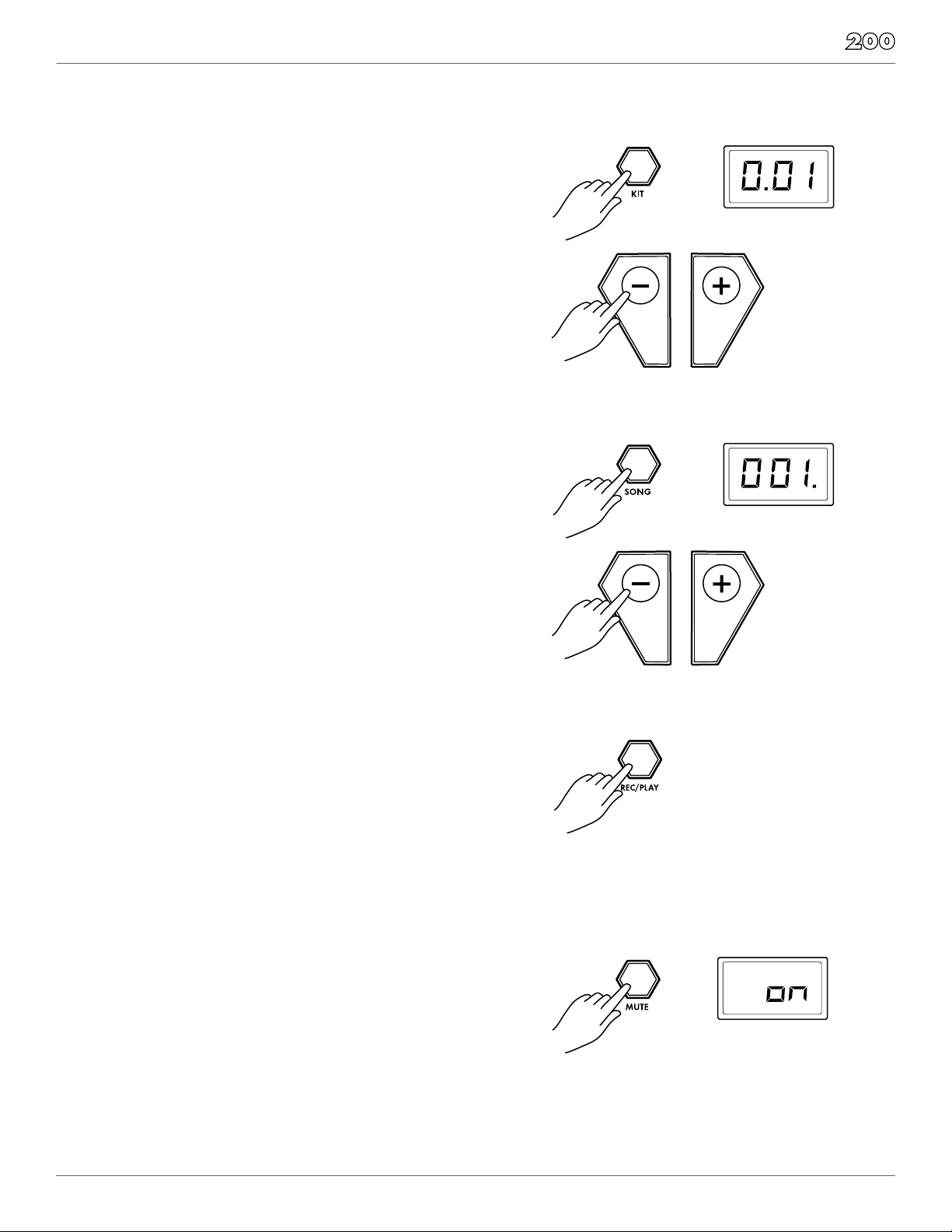

SELECTING A KIT
Entering KIT Mode
1. Press the [KIT] button. The LCD displays the current Kit
pictured to the right.
2. Press the [–] / [+] buttons to select a preset or user kit.
SELECTING A SONG
1. Press the [SONG] button. The LCD displays the current Song
Number and the decimal is in the last place as shown on
the right.
2. Press the [–] / [+] buttons to select the song you want to play.
MUTING THE DRUM PART
1. While a Song is playing press the [MUTE] button. This
will mute the drum sound. The screen will show the
mute status “On” or “Off”
2. To unmute the Drums press the [MUTE] button again.
PLAYING A SONG
1. Press [REC/PLAY] to play a song.
2. Press the [REC/PLAY] button again to stop playback of
the song.
NOTE: You can temporarily change the tempo of a song
while playback is in progress by using the [TEMPO/TAP]
and [–] / [+] buttons. The song returns to its default tempo
when a different song is selected.
14
OWNER’S MANUAL
ADVANCED OPERATIONS

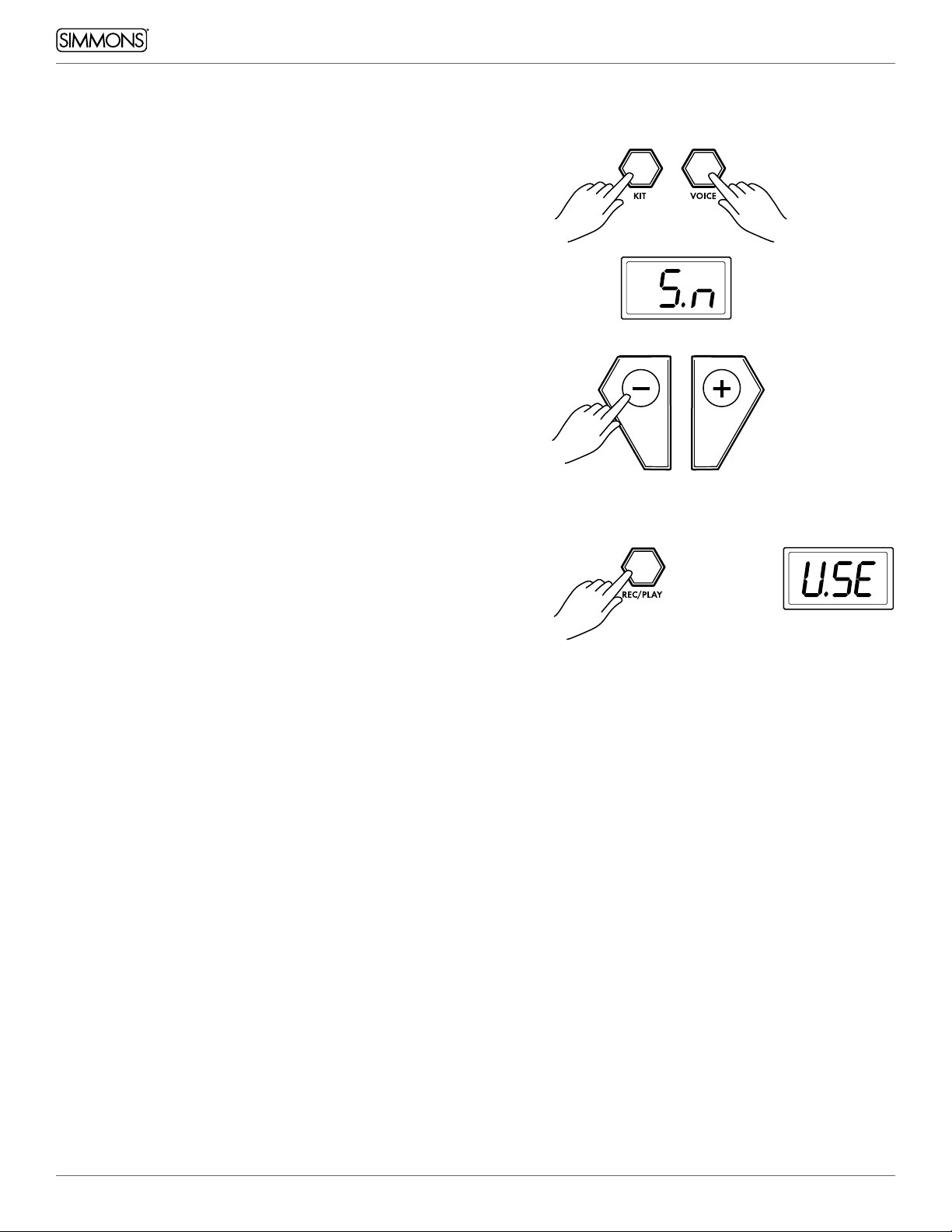

EDITING A KIT
factory presets. However to save them you will have to store
them to the User memory location. See the steps below on
how to change the parameters for each pad input.
1. Press the [KIT] button.
2. Press the [VOICE] button to see the current voice - the
default is the Snare pad.
3. Strike a drum pad to view the Voice currently assigned.
4. Press the [ - ] / [+] buttons to change the assigned voice.
A list of drum sounds is at the end of this manual.
5. Press the [MIX] button to change the volume of the
selected pad.
6. Press the [REC/PLAY] button to save the assignment to the
User Kit.
RECORDING A SONG
Press and hold the [REC/PLAY] button for 2 seconds.
Recording will start after you hear one bar of metronome hits.
Press [REC/PLAY] button again to stop recording. After you
have stopped recording, press the [REC/PLAY] button to play
back your recording. Press the [REC/PLAY] button again to
stop playback.
15
SD
ADVANCED OPERATIONS

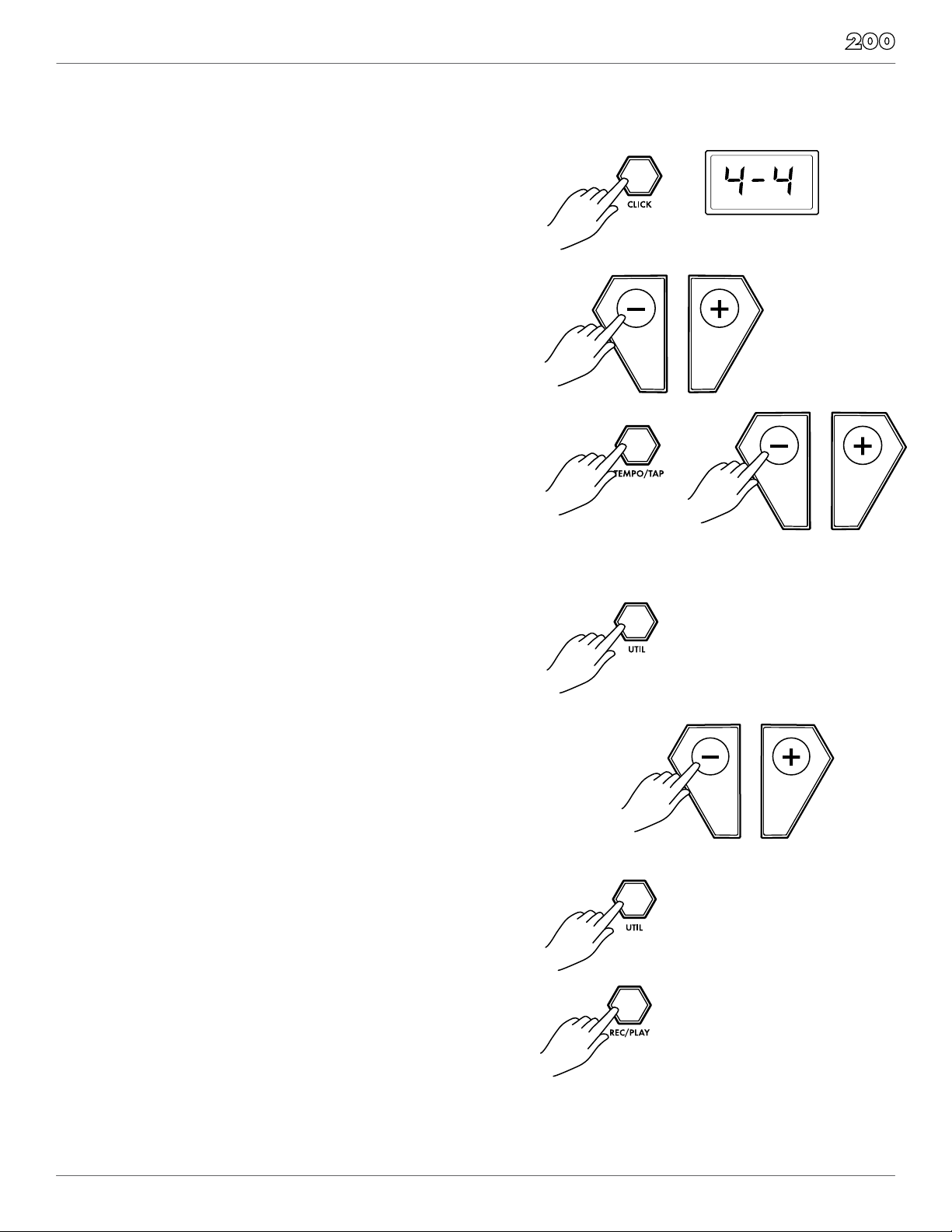

CLICK (METRONOME)
The Click is the metronome. The click can be played during a
song in song mode or on its own.
Press [CLICK] button to start and stop the metronome.
1. To change the time signature, press and hold the [CLICK]
button for 2 seconds
2. Press the [ - ] / [ + ] buttons to select the time signature that
3. To adjust the tempo of the click press the [TEMPO] button
and use the [ - ] / [ + ] buttons to adjust.
4. You can also adjust the tempo by using the “TAP” function.
Press and hold the [TEMPO/TAP] button. The LED screen
consecutively to set the desired “TAP” tempo.
UTILITY MODE
The Utility mode is for the main functions of the module such
as trigger setup for the pads, effects, MIDI setup and saving
global settings
TRIGGER SETTINGS
You can set the parameters of each drum and cymbal pad in
the Trigger menu. While editing the settings, you can select
each trigger by hitting the corresponding trigger pad.
1. Press the [UTIL] button.
2. Strike the drum pad you want to edit to view the setting
currently assigned
3. Press the UTIL button until you see the parameter you wish
to change:
• thr: Threshold
• CUr:Curve
• r-C: Retrigger
• tAL: Crosstalk
4. Press the [ - ] / [ + ] buttons to change the parameter setting.
5. After completing your settings Press the [REC/PLAY] button
to save them.
If you want to return to factory settings, perform a
Factory Reset on your drum module. See page 16
16
OWNER’S MANUAL
ADVANCED OPERATIONS
PARAMETER DEFINITIONS
Retrigger Cancel prevents retriggering from occurring. Although
setting this to a high value prevents retriggering, it then becomes
easy for sounds to be omitted when the drums is played fast (like
ensuring that there is no retriggering.
Threshold
This setting allows a trigger signal to be received only when the
prevent a pad from sounding in response to peripheral vibrations
from another pad.
This setting allows you to control the relation between the
possible. If you feel like you need to hit the pads too hard to
When two pads are mounted on the same stand, the vibration
produced by hitting one pad may trigger the sound from another
pad unintentionally, this is called crosstalk. You can avoid this
problem by adjusting Crosstalk on the pad that is sounding
inadvertently. If the value is set too high, then when two pads are
played simultaneously, the one that is struck less forcefully will
not sound. Setting the value too low may result in crosstalk.
MIDI Settings
Pad MIDI Note assignments
The MIDI output notes from the SD200KIT are preset in the
module. The list to the right has the MIDI notes that are sent from
the module when the drum pads and pedals are played.
For more details on MIDI functionality, please see the MIDI
Implementation Chart in the Appendix section of the manual.
FACTORY RESET
There may be occasions where you want the module to return to
the factory settings. This function will return the module back to
factory setup.
1. Power off the module
2. Press and hold the [ - ] / [+ ] buttons while simultaneously
pressing and holding the power button. The module display
will read “rSt” during startup.
MIDI Note Pad
36 Kick
38 Snare – Center
48 Tom 1
45 Tom 2
43 Tom 3
46 Hi Hat – Open
42 Hi Hat – Closed
44 Hi Hat – Pedal
49 Crash
51 Ride
17
SD
DRUM KIT PRESETS
Preset Drum Kit List
Kit # Kit Name
Kit 1 Modern Maple
Kit 2 Acrylic
Kit 3 Grunge
Kit 4 Classic Rock
Kit 5 Hip Hop
Kit 6 SDSV
Kit 7 Latin
Kit 8 Urban
Kit 9 Gated Drums
Kit 10 Nails
Kit 11 Tekno / User Kit
Style # Style Name
d–1 Demo Song
01 Bonz Beat
02 Blues Beat
03 Black Magic
04 Alt Rock
05 Funky Strut
06 Hip Hop
07 Funky D
08 Tech Step
09 Metalhead
10 Jazz Walk
Drum Sound List
Section Number Sound Name
Kick 101 22x18 Maple
Kick 102 22x18 Maple Rutes
Kick 103 26x14 Acrylic
Kick 104 24x16 Kick Tunnel
Kick 105 SDSV Kick
Kick 106 Techno Kick
Kick 107 22x14 Gated Kick
Kick 108 Hip Hop Kick
Snare 201 13x7 Maple
Snare 202 14x5 LAL
Snare 203 14x5 LAL Muted
Snare 204 14x5 Maple
Snare 205 14x6.5 LBB
Snare 206 14x5 Gated
Snare 207 SDSV Snare
Snare 208 Techno Snare
Snare 209 Hip Hop Snare
Snare 210 13x7 MapleClick
Tom 301 10" Maple
Tom 302 10" Maple Urban
Tom 303 10" Maple Low
Tom 304 10" Gated
Tom 305 12" Acrylic
Tom 306 12" Maple
Tom 307 12" Maple Low
Tom 308 12" 90s Rock
Tom 309 14" 90s Rock Hi
Tom 310 14" Acrylic
Tom 311 14" 90s Rock Low
Tom 312 14" Maple
Tom 313 14" Maple Low
Tom 314 14" Maple Urban
Tom 315 16" Acrylic
Song Style List
18
OWNER’S MANUAL
DRUM KIT PRESETS
Drum Sound List
Section Number Sound Name
Hi Hat 512 HH Open Techno
Hi Hat 513 HH Closed HipHop
Hi Hat 514 HH Foot HipHop
Hi Hat 515 HH Open HipHop
Percussion & Electronic 601 Cajon BD
Percussion & Electronic 602 Conga Open
Percussion & Electronic 603 Maracas Shake
Percussion & Electronic 604 Cowbell
Percussion & Electronic 605 Shaker
Percussion & Electronic 606 Timbale Hi
Percussion & Electronic 607 Timbale Low
Percussion & Electronic 608 Tumba
Percussion & Electronic 609 Clave
Percussion & Electronic 610 Steel Swarm
Percussion & Electronic 611 Terror Strike
Percussion & Electronic 612 Nasty Kick
Percussion & Electronic 613 Eat Brain
Percussion & Electronic 614 Pic Animal
Percussion & Electronic 615 Gravel Bubbles
Percussion & Electronic 616 Distort Ringer
Percussion & Electronic 617 Bass Rattle Mid
Percussion & Electronic 618 Bass Rattle Low
Percussion & Electronic 619 Bass Rattle Hi
Percussion & Electronic 620 SDSV Cymbal
Percussion & Electronic 621 Techno Cymbal
Percussion & Electronic 622 SDS7 HH Foot
Percussion & Electronic 623 Drumsticks
Drum Sound List
Section Number Sound Name
Tom 316 12" Gated
Tom 317 18" 90s Rock Hi
Tom 318 18" 90s Rock Low
Tom 319 16" Gated
Tom 320 SDSV Tom Low
Tom 321 SDSV Tom Mid
Tom 322 SDSV Tom Hi
Tom 323 Techno Tom Low
Tom 324 Techno Tom Mid
Tom 325 Techno Tom Hi
Tom 326 14" Maple Urban
Tom 327 Hip Hop Tom Hi
Tom 328 Hip Hop Tom Mid
Tom 329 Hip Hop Tom Low
Cymbal 401 16" Crash P
Cymbal 402 18" Crash Z
Cymbal 403 24" Ride P
Cymbal 404 20" Ride Z
Cymbal 405 SDSV Cymbal
Cymbal 406 Techno Cymbal
Cymbal 407 08 Crash
Cymbal 408 78 Cymbal
Hi Hat 501 HH Closed P
Hi Hat 502 HH Foot P
Hi Hat 503 HH Open P
Hi Hat 504 HH Closed Z
Hi Hat 505 HH Foot Z
Hi Hat 506 HH Open Z
Hi Hat 507 HH Foot SDSV
Hi Hat 508 HH Open SDSV
Hi Hat 509 HH Closed SDSV
Hi Hat 510 E HH Closed
Hi Hat 511 HH Closed Techno
19
SD
MIDI IMPLEMENTATION CHART
O: YES X: NO
Function Transmitted Recognized Remarks
Basic Default
Channel Changed
10 CH Only
X
1-16 CH
1-16 CH
Memorized
Mode Default
Messages
Altered
Mode 3
X
**************
Mode 3
X
X
Note
Number: True voice
0~127
**************
0~127
0~127
Velocity Note ON
Note OFF
Aftertouch X X
Pitch Bender X O
Control Change 0, 32
1
5
6
7
10
11
64
65
66
67
80, 81
91, 93
100, 101
121
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
O
O
O
O
O
O
O
O
O
O
O
O
O
O
Bank Select
Modulation
Portamento Time
Data Entry
Volume
Pan
Expression
Sustain
Portamento
Sostenuto
Soft Pedal
DSP TYPE
DSP DEPTH
RPN LSB, MSB
Reset all Controllers
Program Change:
True member
O 0-10 O 0-127
0-127
System Exclusive X X
System Common Song Position
Song Select
Tune
X
X
X
X
X
X
System Real Time Clock
Commands
X
X
X
X
Aux Messages Local ON/OFF
All Notes OFF
Active Sense
Reset
X
X
X
X
X
O
X
O
All Notes OFF is sent as
Mode 1: OMNI ON, POLY
Mode 2: OMNI ON, MONO
Mode 3: OMNI OFF, POLY
Mode 4: OMNI OFF, MONO
*1: Registered parameter number: #0: Pitch sensitivity,
#1: Fine tuning, #2: Coarse tuning
20
OWNER’S MANUAL
WARRANTY
Subject to the limitations set forth below, Simmons® hereby
represents and warrants that the components of this product shall
be free from defects in workmanship and materials, including
original owner from the date of purchase.
Retailer and manufacturer shall not be liable for damages
based upon inconvenience, loss of use of product, loss of time,
interrupted operation or commercial loss or any other incidental
downtime, goodwill, damage to or replacement of equipment
and property, and any costs of recovering, reprogramming, or
reproducing any program or data stored in equipment that is used
rights. You may have other legal rights which vary from state to
state. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
Simmons
P.O. Box 5111 Thousand Oaks, CA 91359-5111
All trademarks and registered trademarks mentioned herein are
recognized as the property of their respective holders.
FCC STATEMENT
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
2. Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a different circuit.
CALL
TOLL FREE
888-621-4008
OR VISIT OUR WEBSITE AT: simmonsdrums.net
MISSING
damaged
parts?
assembly
questions?
Pads 7 drum pads with touch response and two pedals for bass drum and hi-hat
Sounds 93 drum voices
Drum Kits 10 Preset kits, 1 User kit
Songs 10 Preset songs, 1 User song
Overall Controls Tempo, Main Volume
Metronome Click
Connections
Dimensions
Weight 37 lbs
Power Supply 9V adapter
Accessories Drum sticks, drum key, velcro cable straps, user manual
SPECIFICATIONS
1904-19274187
Table of contents
Other Simmons Musical Instrument manuals
