Simplicity SNAPPER SV25550HC Operation and maintenance manual

Safety Instructions & Operator’s Manual for
PUSH YARD VACUUM
SERIES 0
RESIDENTIAL MODELS
Model Mfg. No.
SV25550HC
SV25650B
7085638
7085687
COMMERCIAL MODELS
Model Mfg. No.
SV25500HV
SV25550HV
7085644
7085642
Before operating your new machine, read this manual carefully and pay particular attention to the “IMPORTANT
SAFETY INSTRUCTIONS” on Pages 2 & 3. Remember that all power equipment can be dangerous if used
improperly. Also keep in mind that SAFETY requires careful use in accordance with the operating instructions
and common sense!
NOTE: Specifications are correct at time of printing and are subject to change without notice.
Actual sustained equipment horsepower will likely be lower due to operating limitations and environmental factors.
COPYRIGHT © 2004
SNAPPER – A DIVISION OF SIMPLICITY MFG., INC.
ALL RIGHTS RESERVED
MANUAL No. 7050477 (I.R. 9/17/04)
169609
5
3092650 6/17/2011
SV25675B
Rev. -
Not for
Reproduction

IMPORTANT SAFETY INSTRUCTIONS
WARNING: This powerful machine is capable of amputating hands and feet and can throw objects that can
cause injury and damage! Failure to comply with the following SAFETY instructions could result in serious
injury or death to the operator or other persons. The owner of the machine must understand these instructions
and must allow only persons who understand these instructions to operate machine. Each person operating
the machine must be of sound mind and body and must not be under the influence of any substance, which
might impair vision, dexterity or judgment. If you have any questions pertaining to your machine, contact your
local authorized dealer.
PROTECTION FOR CHILDREN
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are often
attracted to the machine and the work activity.
Never assume that children will remain where you
last saw them.
1. KEEP children out of the work area and under
the watchful care of a responsible adult.
2. DO NOT allow children in the work area when
machine is operated and turn machine OFF if
anyone enters the area.
3. DO NOT allow pre-teenage children to operate
machine.
4. ALLOW only responsible adults & teenagers
with mature judgment under close adult
supervision to operate machine.
5. USE EXTRA CARE when approaching blind
corners, shrubs, trees, or other objects that
may obscure vision.
SLOPE OPERATION
1. Slopes are a major factor related to slip and fall
accidents, which can result in severe injury. All
slopes require extra caution. If you feel uneasy
on a slope, DO NOT operate the machine on it.
2. Use extra care, as the debris bag fills, the
weight will affect the stability and handling of
the machine.
3. DO NOT park machine on slopes.
PREPARATION
1. Read, understand, and follow instructions and
warnings in this manual and on the machine,
engine and attachments. Know the controls and
the proper use of the machine before starting.
2. Only mature, responsible persons shall operate
the machine and only after proper instruction.
3. Data indicates that operators age 60 and above,
are involved in a large percentage of machine-
related injuries. These operators should
evaluate their ability to operate the machine
safely enough to protect themselves and others
from serious injury.
PREPARATION
(Continued From Previous Column)
4. Handle fuel with extra care. Fuels are flammable
and vapors are explosive. Use only an approved
fuel container. DO NOT remove fuel cap or add
fuel with engine running. Add fuel outdoors
only with engine stopped and cool. Clean
spilled fuel and oil from machine. DO NOT
smoke.
5. Check the work area and remove all objects
such as toys, wire, rocks, limbs and other
objects that could cause injury and damage to
the machine. Also note the location of holes,
stumps, and other possible hazards.
6. Keep people and pets out of the work area.
Immediately, Stop engine if anyone enters the
area.
7. Check shields, deflectors, switches, engine
controls and other safety devices frequently for
proper operation and location.
8. Make sure all safety decals are clearly legible.
Replace if damaged.
9. Protect yourself when operating machine and
wear safety glasses, hearing protection,
breathing protection, long pants and
substantial footwear. DO NOT operate
barefooted or with sandals.
10. Know how to STOP engine quickly in
preparation for emergencies.
11. Use extra care when loading or unloading the
machine into a trailer or truck.
12. Check debris bag and components frequently
for signs of wear or deterioration and replace as
needed to prevent injury from thrown objects
going through weak or torn spots.
SAFE HANDLING OF GASOLINE
To avoid personal injury or property damage, use
extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive
1. Extinguish all cigarettes, cigars, pipes and
other sources of ignition.
2. Use only an approved fuel container.
2
Not for
Reproduction

IMPORTANT SAFETY INSTRUCTIONS
SAFE HANDLING OF GASOLINE
(Continued From Previous Page)
3. DO NOT remove fuel cap or add fuel with the engine
running. Allow the engine to cool before refueling.
4. DO NOT refuel the machine indoors.
5. DO NOT store the machine or fuel container inside
where there is an open flame, spark or pilot light
such as on a water heater or other appliances.
6. DO NOT fill fuel containers inside a vehicle or on a
truck or trailer bed with a plastic liner. Always place
the containers on the ground away from the vehicle
before filling.
7. Remove gas-powered equipment from the vehicle or
trailer and refuel it on the ground. If this is not
possible, then refuel equipment using a portable
container, rather than a gasoline dispenser nozzle.
8. DO NOT start gas powered equipment in enclosed
vehicles or trailers.
9. Keep the nozzle in contact with the rim of the fuel
tank or container opening at all times until fueling is
complete. DO NOT use a nozzle lock-open device
10. If fuel is spilled on clothing, change clothing
immediately.
11. DO NOT overfill a fuel tank. Replace fuel cap and
tighten securely.
OPERATION
1. DO NOT put hands or feet near rotating parts. Keep
clear of intake and discharge areas while engine is
running.
2. STOP engine when crossing gravel drives.
3. Operate machine only in daylight or good artificial
light.
4. DO NOT operate machine while under the influence
of alcohol or drugs.
5. If machine vibrates abnormally, STOP the engine,
disconnect and secure spark plug wire. Inspect the
machine for any damage and repair the damage
before resuming operation.
6. DO NOT operate machine near drop offs, ditches or
embankments. Operator could lose footing or
balance.
7. STAY ALERT for holes and other hidden hazards.
Keep away from ditches, washouts, culverts, fences
and protruding objects.
8. DO NOT operate machine on wet grass. Always be
sure of your footing. Keep a firm hold on the handle
and walk, never run. Slipping could cause injury.
9. DO NOT leave the machine unattended with the
engine running.
10. Before cleaning, repairing or inspecting make
certain engine has completely STOPPED.
Disconnect and secure spark plug wire away from
plug to prevent accidental starting.
11. DO NOT start or operate machine with debris bag
zipper open.
OPERATION
(Continued From Previous Column)
12. Engine must be completely STOPPED before
removing debris bag.
13. DO NOT operate machine without the entire debris
bag and guards in place.
14. Slow down before turning.
15. Watch out for traffic when near or crossing
roadways.
16. DO NOT operate engine in enclosed areas. Engine
exhaust gases contain carbon monoxide, a deadly
poison.
17. If vacuum inlet or discharge becomes plugged,
STOP engine. Disconnect sparkplug wire and
secure away from sparkplug. Use a stick to clear the
plug when possible. If hands must be used to
remove plug, always wear heavy gloves as the
debris may be sharp.
MAINTENANCE AND STORAGE
1. DO NOT store machine or fuel container inside
where fumes may reach an open flame, spark or
pilot light such as in a water heater, furnace, clothes
dryer or other gas appliance. Allow engine to cool
before storing machine in an enclosure. Store fuel
container out of reach of children in a well
ventilated, unoccupied building.
2. Keep machine and engine free of grass, leaves or
excess grease to reduce fire hazard and engine
overheating.
3. When draining fuel tank, drain fuel into an approved
container outdoors and away from open flame.
4. Keep all bolts, nuts and screws properly tight.
Check that all cotter pins are in proper position.
5. Always provide adequate ventilation when running
engine. Engine exhaust gases contain carbon
monoxide, a deadly poison.
6. Service engine and make adjustments only when
engine is stopped. Removed spark plug wire from
spark plug and secure wire away from spark plug to
prevent accidental starting.
7. DO NOT change engine governor speed settings or
overspeed engine.
8. Check debris bag assembly frequently for wear or
deterioration to avoid thrown objects and exposure
to moving parts. Replace with new bag if loose
seams or tears are evident. Replace bag adapter if
worn, broken or cracked.
9. DO NOT test for spark by grounding spark plug next
to spark plug hole; spark plug could ignite gas
exiting engine.
10. Have machine serviced by an authorized dealer at
least once a year and have the dealer install any new
safety devices.
11. Use only genuine replacement parts purchased
from your authorized dealer to assure that original
standards are maintained.
3
Not for
Reproduction

4
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ........................................................................2-3
TABLE OF CONTENTS ..................................................................................................... 4
SETUP INSTRUCTIONS .................................................................................................... 5
SECTION 1 – FAMILIARIZATION ..................................................................................6-7
Nomenclature................................................................................................................. 6
Safety and Instruction Labels....................................................................................... 7
SECTION 2 - OPERATING INSTRUCTIONS .................................................................8-9
Pre-start Checklist ......................................................................................................... 8
Starting Engine .............................................................................................................. 9
Stopping Engine ............................................................................................................ 9
Operation ........................................................................................................................ 9
Vacuum Hose (Optional) ............................................................................................... 9
SECTION 3 – MAINTENANCE INSTRUCTIONS ............................................................ 10
Service – After First 5 Hours ...................................................................................... 10
Change Engine Oil.................................................................................................... 10
Service Engine Air Cleaner...................................................................................... 10
Inspect Machine........................................................................................................ 10
Service – Every 25 Operating Hours.......................................................................... 10
Storage – Out of Season ............................................................................................. 10
SECTION 4- ADJUSTMENTS AND REPAIR .................................................................. 11
Engine Adjustments & Repair .................................................................................... 11
Impeller Replacement.................................................................................................. 11
Impeller Housing Liner Replacement ........................................................................ 11
TROUBLESHOOTING ..................................................................................................... 12
MAINTENANCE SCHEDULE........................................................................................... 13
PRODUCT REGISTRATION FORM ................................................................................ 14
WARNING
GAS ENGINES MAY REQUIRE A SPARK ARRESTER
If the engine on this machine is not equipped with a
spark arrester and is to be used on any forest, brush, or
grass-covered unimproved land, a spark arrester must
be added to the muffler before using the engine on such
land. The spark arrester must be maintained in effective
working order by the operator. In the state of California,
the above is required by law (Section 4442 of the
California Public Resources Code). Other states may
have similar laws. Federal laws apply on federal lands.
See your authorized engine service center for muffler
spark arrester options.
IMPORTANT: The figures and illustrations in this manual are provided for reference only and
may differ from your specific model. Contact your authorized dealer if you have questions.
Not for
Reproduction

5
SETUP INSTRUCTIONS
The majority of the assembly has been completed at the factory. After removing the machine from the shipping container
you will be required to unfold the handles, attach the debris bag, and insert the accessory plug into the vacuum nozzle.
Initial adjustments and operational tests were performed prior to shipping the machine. Due to the effects of shipping,
handling and storage, the machine must be carefully inspected for loose, damaged parts and any necessary final
adjustments completed at the time of setup. It is very important that you register your purchase to insure warranty
coverage. Please fill out your product registration form and mail it to the address listed on the form.
1. Carefully remove the contents from the shipping
container. You can avoid having to lift the machine
by cutting the rear out of the box. The machine can
then be rolled out.
2. Unfold the handles being careful not to kink the
control cables and place in the operating position.
Tighten the hardware securely.
3. Attach the bag adapter to the discharge opening.
Open the discharge door and slide the adapter down
over the two flanges at the opening. Make sure the
adapter is secured in place on both sides. Close
door. See Figures 1 and 2.
4. Attach two rear straps located near the top of the
debris bag to the handles. See Figure 3.
5. Install accessory plug. Line up the two lugs on the
plug with the two notches in the vacuum nozzle.
Insert nozzle and rotate 90 degrees to lock in place.
See Figure 4.
6. Fill engine crankcase with oil to proper level. Refer
to engine owner’s manual for specifications.
7. Move machine to open area where fumes can safely
dissipate and away from all sources of ignition. Fill
fuel tank. Refer to engine owner’s manual for
specifications. Do not over fill.
8. Setup is complete. Please proceed to the Pre-Start
Check List. Follow and complete each step carefully.
FIGURE 1
FIGURE 2
FIGURE 3
FIGURE 4
DISCHARGE
DOOR
BAG
ADAPTER
MOUNTING
FLANGE
ATTACH STRAPS
TO HANDLES
INSERT ACCESSORY
PLUG INTO NOZZLE
Not for
Reproduction

6
Section 1 – FAMILIARIZATION
FIGURE 1.1
1.1 INTRODUCTION
This manual has been prepared for the operator’s of the
Yard Vacuum. Its purpose, aside from recommending
standard operating procedures and routine service
requirements, is to promote SAFETY through the use of
accepted operating practices. Read, Understand and
Follow the IMPORTANT SAFETY INSTRUCTIONS on
Pages 2 & 3 of this manual and All SAFETY messages
on the machine and its attachments before operating.
2.2.2 NOMENCLATURE
The nomenclature picture above, Figure 1.1, shows the
essential parts of the Yard Vacuum. It is recommended
that all operators of this equipment become thoroughly
familiar with the controls, components, and operation of
this machine before operating. Specific details involving
the engine are found in the separate engine owner’s
manual. Study these manuals before operating and
keep both handy for future reference.
ENGINE SPEED
CONTROL
DEBRIS BAG
HEIGHT
CONTROL
ENGINE
PRIMER
DISCHARGE
DOOR
VENT, WITH
ZIPPERS
ACCESSORY PLUG
VACUUM
NOZZLE
ENGINE SPEED CONTROL
BRIGGS
(PRIMER)
HONDA
(CHOKE)
STOP
SLOW
FAST
CHOKE
Not for
Reproduction

7
Section 1 – FAMILIARIZATION
1.3 SAFETY AND INSTRUCTION LABELS
The safety and instruction labels included with your
Yard Vacuum are very important. Read, understand
and follow all instructions and warnings. Keep these
labels clean and legible at all times. Replace any labels
that are lost or can no longer be read.
IMPORTANT SAFETY OPERATING INSTRUCTIONS
DANGER, THROWN OBJECTS
KEEP BYSTANDERS AWAY FROM MACHINE
WARNING – HEARING, EYE AND BREATHING PROTECTION REQUIRED
Not for
Reproduction

8
Section 2 – OPERATING INSTRUCTIONS
2.1 PRE-START CHECK LIST
Read, understand and follow instructions and
warnings in this manual and on the machine, engine
and attachments before operating. Know the controls
and the proper use of the machine before starting.
Make the following checks and perform the service
required before each start-up.
2.1.1. Check guards, deflectors and covers to make
sure all are in place and securely tightened.
2.1.2. Carefully inspect machine for loose, missing,
damaged or worn components. Repair or replace as
necessary before operating the machine.
2.1.3. Carefully inspect the debris bag and bag
adapter for wear and deterioration. IMPORTANT –
open top of bag to inspect interior of bag and the
discharge deflector end of the bag adapter. Replace
bag and bag adapter if they display signs of
deterioration. The debris bag must be attached to the
bag adapter, the bag adapter mounted onto the
machine, and the zippered top fully closed before
starting engine. The top rear corners of the bag are
attached to the handles by using the cloth straps
located near the top of the bag. See Figures 2.2 and
2.3.
2.1.4. Check engine oil and add oil as needed to
bring level up to the FULL mark. Refer to engine
owner’s manual for oil specifications. See Figure 2.1.
FIGURE 2.1
2.1.5. Check engine speed control to insure it
works freely.
2.1.6. Clean exterior surfaces of machine and
engine of any accumulation of dirt, grass, oil, etc.
Keep engine air intake screen and cooling fins clear
at all times.
2.1.7. Add fuel to tank after pushing the machine
outside where fumes can dissipate. Make sure fuel
filler cap is tight after refueling. Refer to engine
owner’s manual for fuel specifications.
2.1.8. Adjust height of vacuum inlet. Lift up on
handles. Squeeze height control lever against handle.
Raise or lower handles until desired inlet height has
been obtained. Release control lever. See Figure 2.4.
FIGURE 2.2
FIGURE 2.3
FIGURE 2.4
SAFE LEVEL
AREA
BAG ADAPTER
MOUNTED.
BAG
ATTACHED TO
HANDLES. TOP
ZIPPER FULLY
DEBRIS BAG
AND BAG
ADAPTER
MOUNTED TO
DISCHARGE
OPENING
HEIGHT
CONTROL
LEVER
Not for
Reproduction

9
Section 2 – OPERATING INSTRUCTIONS
WARNING
Entire debris bag and bag adapter must be properly
installed before starting engine. The debris bag and
bag adapter are subject to deterioration during
normal use. Inspect frequently and replace if signs
of deterioration are observed.
2.2 STARTING, STOPPING & OPERATION
2.2.1. STARTING ENGINE
Before starting engine complete all items in the Pre-Start
Check List. The discharge opening is equipped with a
safety interlock. The entire debris bag and bag adapter
must be properly installed for the engine to start.
1. Move machine to flat open area.
2. Turn fuel valve to “ON” (Honda engine – refer to
engine owner’s manual).
3. Move engine speed control all the way forward. On
Briggs models this places the control in the “FAST”
(Rabbit) position. On Honda models this places the
control in the “CHOKE” position. NOTE: the
“CHOKE” may not be required to restart a hot engine.
4. Briggs models, depress primer 3 times to start a cold
engine. NOTE: the primer may not be required to
restart a hot engine.
5. Pull out on recoil rope until resistance is felt. Pull
sharply until engine starts. Guide rope back into
engine.
6. Honda models, move engine speed control rearward
to the “FAST” (Rabbit) position.
2.2.3 STOPPING ENGINE
1. Move engine speed control rearward to the “STOP”
position.
2. Allow all rotation to come to a complete stop before
removing or emptying the debris bag.
3. When possible it is good practice to bring the engine
speed control to the “SLOW” (Turtle) position to allow
the engine to cool down before stopping engine.
4. Honda models, turn fuel valve to “OFF” position.
WARNING
DO NOT operate machine without the entire debris
bag and bag adapter installed and the zipper fully
closed. Always wear eye, ear and breathing
protection when operating machine.
2.2.4 OPERATION
This Yard Vacuum has been designed to pick up
dry organic debris such as leaves, grass clippings,
shavings and sawdust as well as debris mixed with
cans, bottles and small amounts of sand.
Vacuuming hard non-organic debris will affect the
life of your machine. Sand is abrasive and will
produce wear of items including the blower
housing, impeller and bag adapter.
1. Adjust height of vacuum inlet. For maximum
debris pickup, inlet should be as close to debris
as possible without blocking airflow and engine
speed set to “FAST”.
2. Inspect debris bag. It must be properly attached
to machine, in good condition, clean and dry
with the top zipper fully closed. Make sure that
the accessory plug is installed into front hole in
vacuum nozzle.
3. Start engine. Not all debris pickup will require
that the engine speed be set to “FAST”. You can
experiment with vacuum inlet height and engine
speed to best suit your conditions.
4. Operating in dry dusty conditions may require
that the engine be set to the “SLOW” position.
The debris bag can quickly become plugged
with fine dust, reducing vacuum action. A
zippered vent flap has been provided on the
side of the bag. It can be opened to improve
airflow. DO NOT open top zipper when engine is
running.
5. For peak performance, keep debris bag clean
and do not overfill. The bag must be completely
dry before use.
WARNING
DO NOT remove bag adapter from machine or open
debris bag with engine running. STOP engine and
allow all rotation to stop.
6. If the vacuum inlet or discharge becomes
plugged, STOP ENGINE. Engine must come to
a complete stop before removing debris bag or
attempting to remove plug from inlet area. To
avoid accidental starting, always remove the
sparkplug wire from the sparkplug and secure
away from sparkplug. When possible use a stick
to remove the plug. If that does not work, and
hands must be used, wear heavy gloves. The
debris could contain sharp items.
WARNING
DO NOT vacuum any debris that is burning, wet,
flammable, explosive, or poisonous.
DO NOT store with debris in the bag. Decaying
organic debris generates heat that could damage the
bag or result in a fire.
2.3 VACUUM HOSE KIT (Optional Accessory)
A vacuum hose kit is available that plugs into the
front of the Yard Vacuum. The hose allows easy
access for hard to reach places. Contact your
authorized dealer for information.
Not for
Reproduction

10
Section 3 – MAINTENANCE
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool before
working on machine.
3.1 INTRODUCTION
To retain the quality of the Yard Vacuum, use genuine
replacement parts obtained only through your
authorized dealer. Contact a local authorized dealer
for parts and service assistance. For the correct part
or information for a particular Yard Vacuum, always
mention the model/part number and serial number.
We recommend returning the Yard Vacuum to an
authorized dealer annually for inspection and addition
of any new devices, which might upgrade the safety of
the machine. For the nearest authorized dealer in your
area, check the yellow pages under the heading
LAWN MOWERS. For engine parts and service, look
for the engine manufacturer’s dealers under the
heading, ENGINES - gasoline.
3.2 SERVICE - AFTER FIRST 5 HOURS
Routine maintenance is important to the performance
and life of your Yard Vacuum. Service performed
properly and at the recommended interval is essential.
Refer to Section “MAINTENANCE SCHEDULE” in this
manual and in the Engine Owner’s Manual. Carefully
complete all of the recommended service procedures.
3.2.1. CHANGE ENGINE OIL
The design of the machine restricts access to the oil
drain plug on some model engines. The quickest
and cleanest method to drain the oil is to tip the
machine on its side, remove the dip stick, and allow
the oil to drain into a pan. Refer to the Engine
Owners Manual for recommended oil change
interval and oil specifications.
3.2.2. SERVICE ENGINE AIR CLEANER
The engine is equipped with a dual element air
cleaner. Both the foam pre-cleaner and cartridge
require service. Refer to Engine Owner’s Manual
for recommended service procedures.
3.2.3 INSPECT MACHINE
Carefully inspect entire machine for loose,
missing, damaged or worn parts. Run the machine
and check for unusual noise or vibration. After
stopping engine, open top of debris bag and
inspect the interior of the bag and the discharge
deflector end of the bag adapter. Repair or replace
debris bag, bag adapter, and machine as
necessary before operating. Contact your
authorized dealer for assistance.
3.3 SERVICE – EVERY 25 HOURS
Refer to Section “MAINTENANCE SCHEDULE” in this
manual and in the Engine Owner’s Manual. Carefully
complete all of the recommended service procedures.
3.4 STORAGE – OUT OF SEASON
DO NOT store machine or fuel container inside where
fumes may reach an open flame, spark or pilot light
such as in a water heater, furnace, clothes dryer or
other gas appliance. Allow engine to cool before storing
machine in an enclosure. Store fuel container out of
reach of children in a well ventilated, unoccupied
building. Refer to Sections “Safe Handling of Fuel” and
“Maintenance and Storage”, pages 2-3.
1. Thoroughly clean entire machine, engine and
debris bag.
2. Perform maintenance and lubrication as
required. Refer to Section “Maintenance
Schedule”.
3. With engine cool, drain fuel from fuel tank
outdoors into an approved container away
from all sources of ignition.
4. Run engine to remove all fuel from the
carburetor.
5. Refer to Engine Owner’s Manual for additional
engine storage procedures.
Not for
Reproduction

11
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Remove spark plug wire from spark plug
and secure away from plug. Engine and components
are HOT. Avoid serious burns, allow all parts to cool
before working on machine.
4.1 ENGINE ADJUSTMENTS & REPAIR
Refer to the engine owner’s manual for those
adjustments and repairs that can be performed by the
owner.
4.2 IMPELLER REPLACEMENT
The impeller is a wear item. The actual wear rate is
dependant on the types of debris the machine has
been used to pickup. If the machine develops
unusual noise and/or vibration STOP the engine
immediately. After allowing the engine to cool,
proceed with the following steps.
1. In an open area where fumes can safely
dissipate, drain fuel into an approved container.
2. Drain engine oil.
3. Remove sparkplug wire from sparkplug and
secure away from sparkplug.
4. With engine still attached, remove engine
mounting plate from top of impeller housing.
5. Remove bolt from end of engine crankshaft and
remove impeller. NOTE: a puller may be
required to remove the impeller from the
crankshaft.
6. Inspect the impeller blades, hub keyway, key
and crankshaft for wear or damage. Contact
your authorized dealer if you have any questions
about the impeller or associated parts.
7. Install new impeller onto crankshaft. It is
recommended that you use a new key and new
crankshaft bolt and washer. Torque bolt to 40 ft-
lb.
8. Reinstall engine plate to top of blower housing.
Tighten hardware securely.
9. With sparkplug wire disconnected, pull recoil
rope slowly, checking to make sure engine and
impeller rotates freely.
10. Connect sparkplug wire.
11. Fill engine crankcase to proper level with oil as
specified in the engine owner’s manual
12. Add fuel to tank.
4.3 IMPELLER HOUSING LINER REPLACEMENT
(Commercial Models Only)
The impeller housing liner is a wear item and can
be replaced. To inspect the impeller housing and
liner you must first carefully follow the WARNING
instructions listed on this page. Open up the
discharge door and visually inspect the housing
and liner (if equipped) for damage and wear. The
liner will fit commercial models only and is available
through your local authorized dealer.
Not for
Reproduction

12
TROUBLESHOOTING
PROBLEM PROBABLE CAUSE CORRECTIVE ACTION
Engine Will Not 1. Fuel tank empty. 1. Fill fuel tank with fresh fuel to proper level.
Start Using 2. Engine needs choking or priming. 2. Move control to “CHOKE”, press primer.
Recoil Starter 3. Spark plug wire disconnected. 3. Place spark plug wire onto spark plug.
4. Fuel valve (Honda) turned “OFF”. 4. Turn fuel valve to “ON.
5. Engine speed control in “STOP” position. 5. Move control to “FAST” or “CHOKE”.
6. Engine air cleaner dirty/plugged. 6. Service/replace. See Engine Manual.
7. Faulty sparkplug. 7. Replace sparkplug. See Engine Manual.
Engine Stalls After 1. Choke control in the “CHOKE” position. 1. Move control to “FAST” position.
Running 2. Fuel valve (Honda) turned “OFF”. 2. Turn fuel valve to “ON.
3. Fuel tank empty. 3. Fill fuel tank with fresh fuel to proper level.
4. Engine air pre-cleaner and or air cleaner dirty. 4. Clean free of all debris.
5. Spark plug defective or gap set improperly. 5. Service or replace spark plug.
6. Fuel filter restricted (if equipped). 6. Replace fuel filter.
7. Water, debris or stale fuel in fuel system. 7. Drain and clean fuel system.
Engine Loses 1. Excessive load on engine. 1. Lessen load.
Power 2. Engine air pre-cleaner or air cleaner dirty. 2. Clean or replace filters.
3. Spark plug faulty. 3. Service or replace spark plug.
4. Water, debris or stale fuel in fuel system. 4. Drain and clean fuel system. Replace filter.
5. Debris build up on engine cooling screen. 5. Clean all debris from engine cooling
screen.
Engine Backfires
When Turned To
“STOP”
1. Throttle control set too “FAST”. 1. Set throttle control to “SLOW” and allow
engine to idle. Then “STOP” engine..
Excessive Vibration
or Noise
1. Damaged, out of balance or bent impeller
blades.
1. Contact authorized dealer.
2. Loose impeller or engine components. 2. Tighten impeller bolt, service engine.
3. Loose or missing hardware. 3. Inspect machine, tighten hardware.
Poor Vacuum 1. Debris bag dirty or full. 1. Clean and empty bag.
Performance 2. Accessory plug missing from nozzle. 2. Install accessory plug.
3. Vacuum inlet set too high or too low. 3. Adjust height.
4. Engine speed control set too low. 4. Increase engine speed.
5. Vacuum inlet or discharge plugged with debris. 5. Remove debris.
Not for
Reproduction

13
MAINTENANCE SCHEDULE
SUBJECT SERVICE
TO BE PERFORMED
REFERENCE
PAGES
EACH
USE
5
HOURS
25
HOURS
50
HOURS
100
HOURS
EACH
SEASON
Engine Check Oil Level Page 8 X
Engine Initial Oil Change Page 10 X
Engine Periodic Oil Change Page 10 X*
Air Pre-Cleaner Service Sponge Pre-
Cleaner Element
Engine Manual X**
Air Cleaner Replace Element Engine Manual X**
Spark Plug Replace Plugs Engine Manual X
Fuel Filter (if
equipped)
Replace Filter Engine Manual X
Engine Cooling
System
Clean Shrouds & Fins Engine Manual X**
Debris Bag/Adapter Clean and inspect Page 8 & 10 X X
Inspect Machine
Hardware/Vibration
Check for loose
hardware/vibration
Page 10 X
*Change oil every 25 hours when operating under heavy load or high temperatures.
**Clean more often under dusty conditions or when air debris is present
WARNING
Grass Catcher bags used on SNAPPER products are made of woven fabric, and are subject to deterioration
and wear during normal usage. Check condition of bag before each use. Immediately replace worn or
damaged catcher bags with only bags recommended by SNAPPER.
Not for
Reproduction

TP 400-5085-C-VA-G
Manual No. 3004100 PUSH YARD VACUUM
SERIES 0
4
3092649
14
Not for
Reproduction

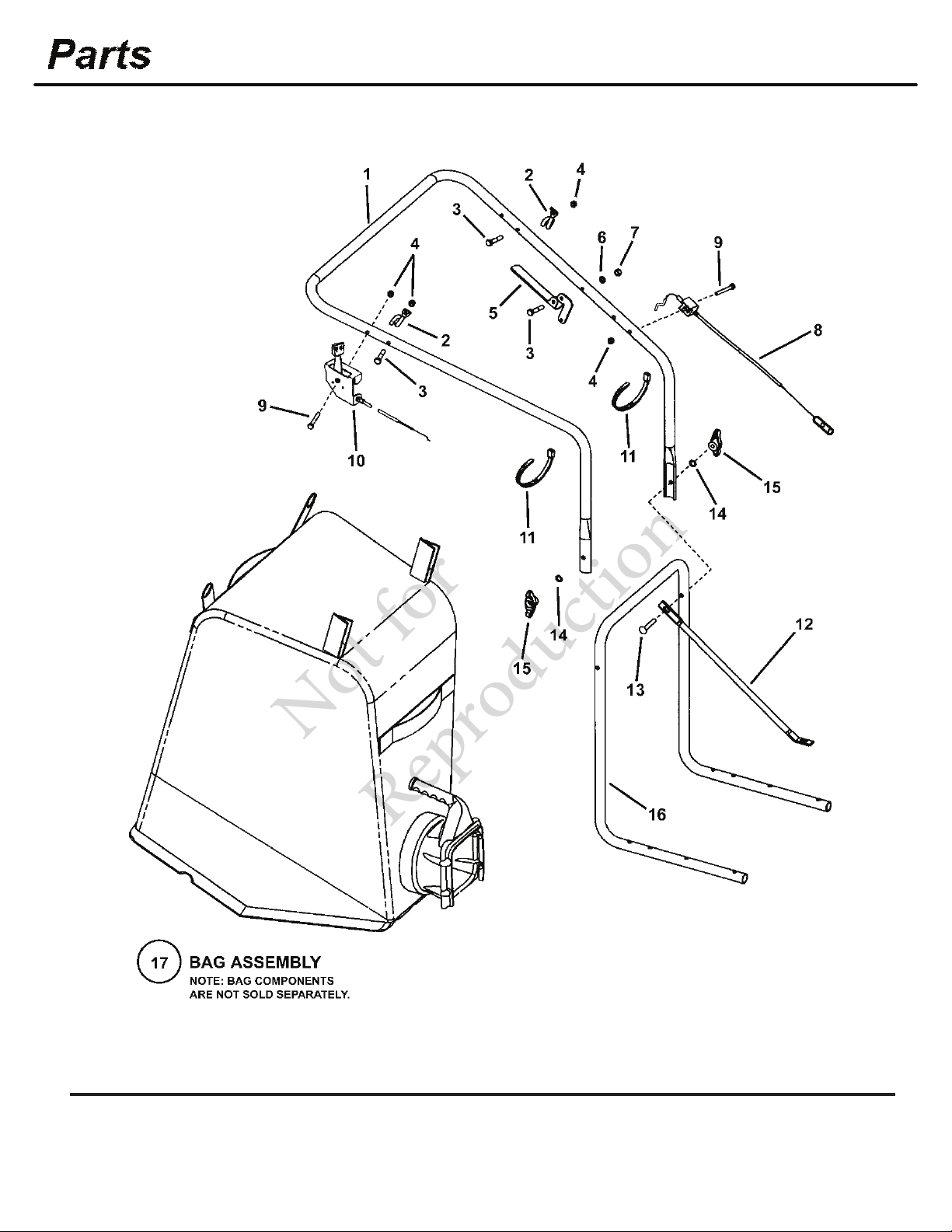

HANDLES, CONTROLS, BAG
Footnotes:
TP 400-5085-C-VA-G
Manual No. 3004100PUSH YARD VACUUM
SERIES 0 5
Part No Descri
p
tionItem Qty Note
1 7075801 1 HANDLE, Upper Was ASSY 7058669 Included Foam Grip, Part
No. 26216
2 7022779 2 GUIDE, Pull Rope
3 7079577 3 SCREW, 1/4-20 x 1-1/2" Hex Head Cap, GR5
4 7076978 5 NUT, 1/4-20 Hex Nyloc
5 7075800 1 HANDLE, Height Adjust
6 7091315 1 WASHER, 5/16" Split Lock
7 7091511 1 NUT, 5/16-18 Hex, GR5 or B
8 7075804 1 CABLE, Height Adjust
9 7090505 1 SCREW, 1/4-20 x 2" Hex Head Cap, GR5
10 7075838 1 CABLE, Throttle, B&S
11 7012080 3 CABLE TIE, 7"
12 7075891 2 BRACE, Handle
13 7091930 2 BOLT, 5/16-18 x 2" Square Neck Carriage, GR5
14 7090391 2 WASHER, 5/16" Internal Tooth Lock
15 7035744 2 KNOB, 5/16-18 Wing (Black)
16 7075803 1 HANDLE, Lower
17 7058942 1 * ASSEMBLY, Vacuum Bag Includes 7075805, 7075837 & 7075918
Note* Bag components are not sold seperately
3092649
3092638 Rod, Height Adjustment
15
Not for
Reproduction

ENGINE, IMPELLER, HOUSING, WHEELS
TP 400-5085-C-VA-G
Manual No. 3004100 PUSH YARD VACUUM
SERIES 0
6
3092649
16
Not for
Reproduction

ENGINE, IMPELLER, HOUSING, WHEELS
Footnotes:
TP 400-5085-C-VA-G
Manual No. 3004100PUSH YARD VACUUM
SERIES 0 7
Part No Descri
p
tionItem Qty Note
1 123K02-0140 1 * ENGINE, 6.5HP B&S Quantum Modular XRM,
Recoil Start
was 123K02-0126-E1
2 7034902 1 PLATE, Engine Base Vacuum Universal replaces 7075793
3 7044853 1 WELDMENT, Upper Housing
4 7075807 1 ASSEMBLY, Hinge Door
5 7091604 2 BOLT, 1/4-20 x 1/2" Short Neck Carriage, GR5
6 7091584 2 NUT, 1/4-20 Hex Flange Lock
7 7091601 8 NUT, 5/16-18 Hex Flange Lock, GR5
8 7091318 8 SCREW, 5/16-18 x 3/4" Hex Head Cap, GR5
9 7091315 12 WASHER, 5/16" Split Lock
10 7090188 12 WASHER, 5/16" Flat
11 7026257 4 WASHER, 1/2" Wave
12 7058668 4 WHEEL ASSEMBLY, 14.00 x 2"
13 7090122 4 WASHER, 3/8" SAE Flat
14 7091299 4 NUT, 3/8-16 Nyloc
15 7090324 3 SCREW, 3/8-16 x 1" Hex Washer Self-Tap
16 7023153 1 CLAMP, Casing
17 7023154 1 SCREW, #10-32 x 5/8" Hex Head Self-Tap
18 7025062 1 SPRING, Compression
19 7091193 1 HAIRPIN, 29/32" Cotter
20 7075802 1 PLATE, Reinforcing
21 7044886 1 WELDMENT, Cable Anchor
22 7058271 4 BOLT, 5/16-18 x 3-1/2" Short Neck Carriage,
GR5
23 7044885 1 WELDMENT, Axle Ass'y, Drag Link
24 7075836 1 HOUSING, Lower
25 7075806 1 PLUG, Hose Port
26 7026247 1 WIRE HARNESS, Interlock
27 7045218 1 WELDMENT, Impeller
28 7012315 1 KEY, 1/4" Square x 1-7/16" long
29 7091962 1 WASHER, .468 I.D. x 1-5/8" O.D. x 1/4" thick
30 7012063 1 WASHER, Cone
31 7090167 1 SCREW, 3/8-24 x 2" Hex Head Cap, GR5
32 7032416 1 BRACKET, Interlock
33 7032417 1 SPRING, Interlock
34 7090539 2 SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
35 7012048 1 INSULATOR
36 7090379 1 SCREW, # 8-18 x 3/4 Sheet Metal
37 7091298 4 NUT, 5/16-18 Hex Nyloc
38 7091540 4 SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR5
Note: * Purchase engine & engine parts other than those listed, from engine service outlets.
126L02-0156-F1
(A1072)
6.75 Series B&S VS
3062649
17
Not for
Reproduction

DECALS
TP 400-5085-C-VA-G
Manual No. 3004100 PUSH YARD VACUUM
SERIES 0
10
3092649
18
Not for
Reproduction

DECALS
Footnotes:
TP 400-5085-C-VA-G
Manual No. 3004100PUSH YARD VACUUM
SERIES 0 11
Part No Descri
p
tionItem Qty Note
1 7075861 1 DECAL, GIANT VAC Logo
2A 7013010 1 DECAL, Danger, Cut Finger
2B 7022841 1 DECAL, WARNING Euro models only
3 7075892 1 DECAL, Thrown Objects
4 7075893 1 DECAL, Personal Protection
5 7075894 1 DECAL, Warning, Vacuum
6 7029776 1 DECAL, Euro Community (CE) Euro models only
7 7074329 1 DECAL, SOUND 110 Euro models only
8 7073462 1 DECAL, Caution Symbols Euro models only
9 7011279 1 DECAL, 2005 YEAR OF MFG. (No longer
available)
10 7029784 1 DECAL, DK/Chute INT'L Warning Euro models only
1 MANUAL, OPS, Leaf VAC 7050477 Not shown
1 MANUAL, OPS, Euro Leaf Vacuum 7050467 Not shown, Euro models only
1 MANUAL, Eng. B&S QUANT XM 98 EPA/CARB 46287 Not shown
1 MANUAL, Eng. B&S QUANT EURO 98
EPA/CARB
46289 Not shown, Euro models only
1 INSTRUCTION, Decal Placement - Vacuum 7078131 Not shown
1 INSTRUCTION Sheet, Vac Bag Sub Assy. 7075965 Not shown
1 INSTRUCTIONS, Vac Assy. 7075966 Not shown
1 DECLARATION of Conformity, ESV25650B,
MY05
7050471 Not shown, Euro models only
1 WARRANTY, Limited Sheet 1676941 Not shown
3092649
19
Not for
Reproduction

14
PRODUCT REGISTRATION FORM
IMPORTANT: KEEP THIS INFORMATION FOR YOUR PERSONAL RECORDS
(Complete the following information on your new purchase)
Model _____________________________________________________________________
Manufacturer Number ______________________________________________________
Serial Number _____________________________________________________________
Date of Purchase ___________________________________________________________
Retailer____________________________________________________________________
Retailer’s Phone Number____________________________________________________
A product registration card has been included with your new purchase. It is very
important that you register your purchase with the manufacturer to ensure
warranty coverage. If you have questions regarding the registration of your new
machine, please contact your local dealer.
20
Not for
Reproduction
