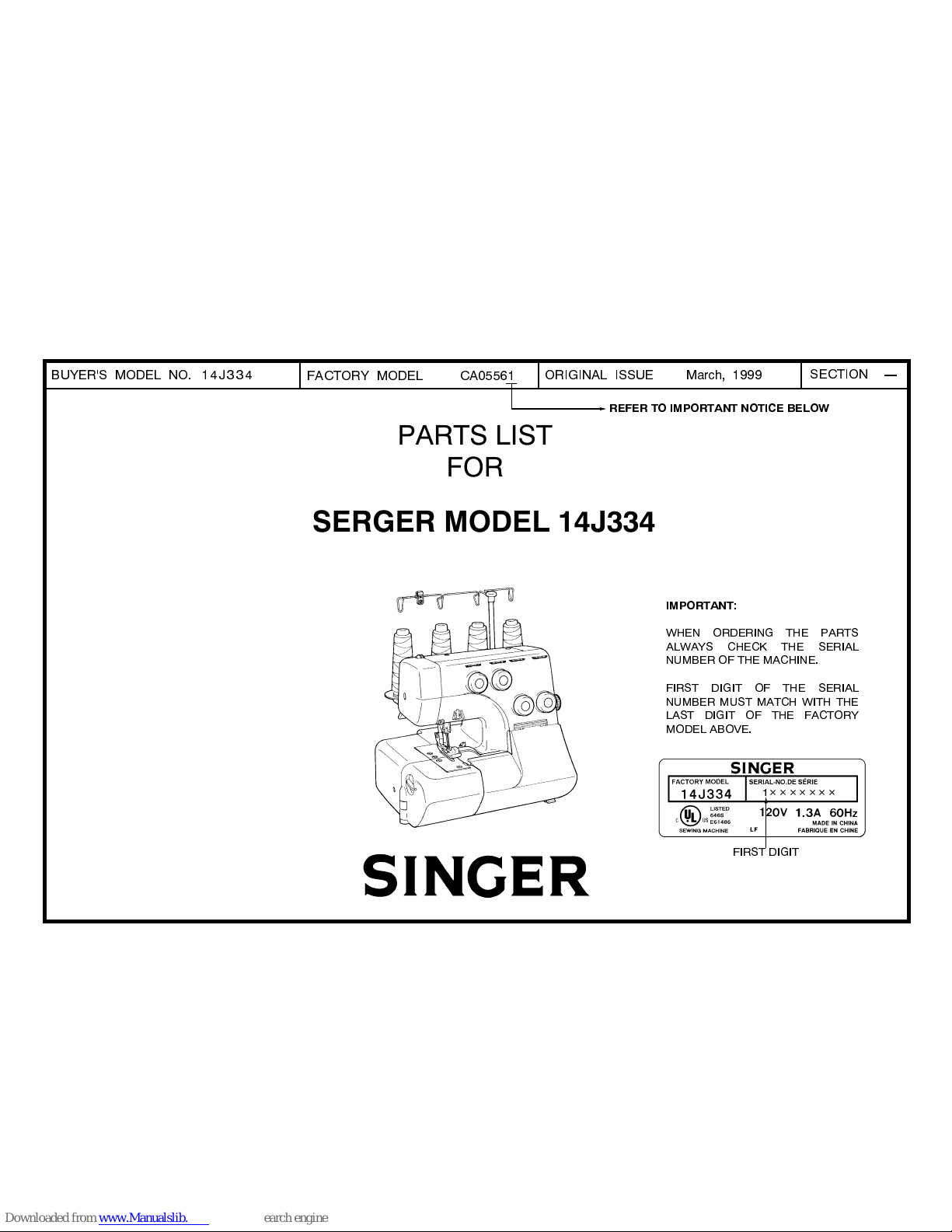

Singer Serger 14J334 User manual

BUYER'S MODEL NO. 14J334 FACTORY MODEL CA05561 ORIGINAL ISSUE March, 1999
PARTS LIST
FOR
SECTION
IMPORTANT:
WHEN ORDERING THE PARTS
ALWAYS CHECK THE SERIAL
NUMBER OF THE MACHINE.
FIRST DIGIT OF THE SERIAL
NUMBER MUST MATCH WITH THE
LAST DIGIT OF THE FACTORY
MODEL ABOVE.
REFER TO IMPORTANT NOTICE BELOW
SERGER MODEL 14J334
1 ~~~~~~~
FIRST DIGIT

SERIAL NO.
14J334
CA05561
March, 1999
SERGER MODEL 14J334
57746
72806
79021
72780
72667
44066 67447
43389
67447
72788
77042
66474
67447
72788
72271
72641
66474
72622
73472
72638
72271
72641
72636
72637
77042
72636
72858
67447
72629
72679
72635
72634
72631
72623
66474
66725
72376
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS

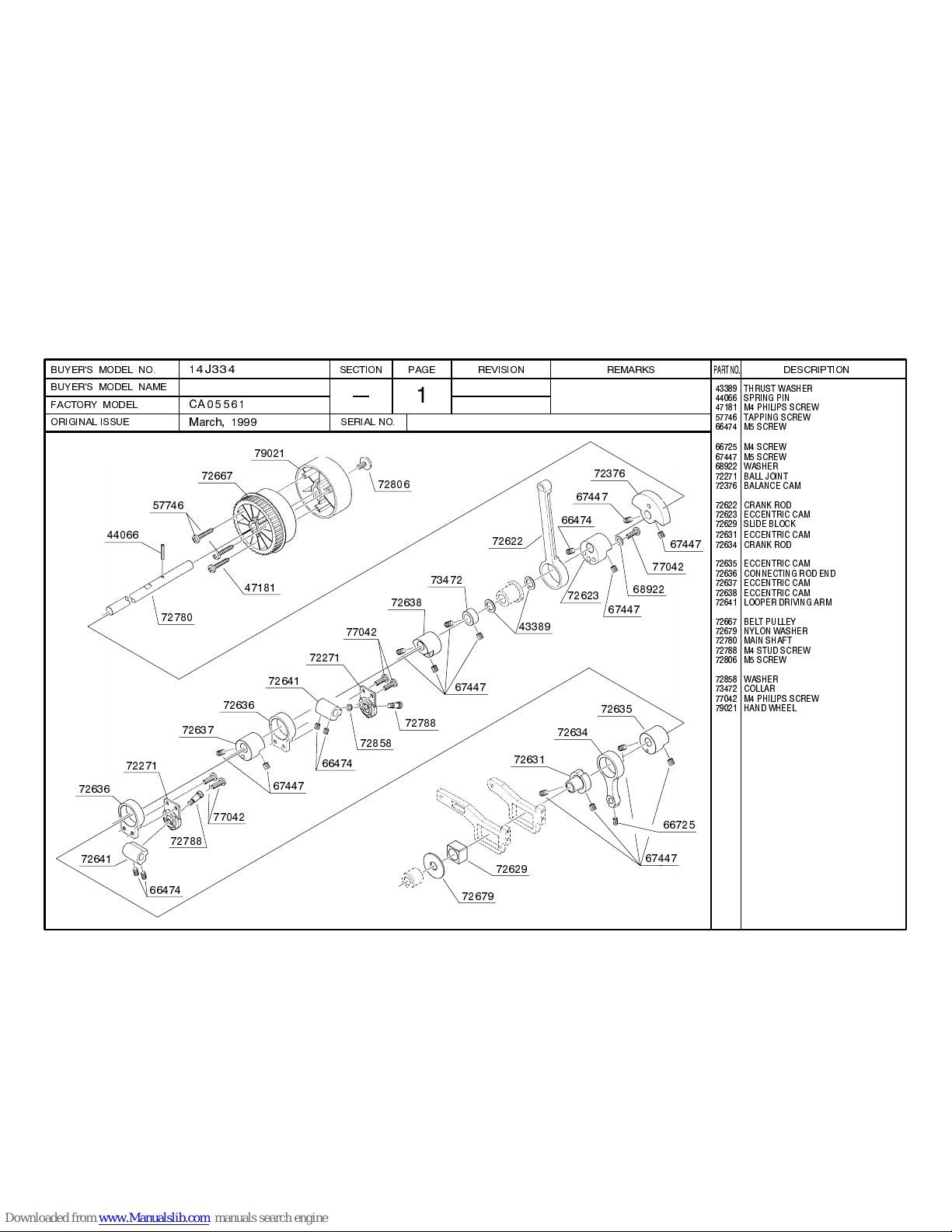

1
47181
67447
67447
77042
68922
43389 THRUST WASHER
44066 SPRING PIN
47181 M4 PHILIPS SCREW
57746 TAPPING SCREW
66474 M5 SCREW
66725 M4 SCREW
67447 M5 SCREW
68922 WASHER
72271 BALL JOINT
72376 BALANCE CAM
72622 CRANK ROD
72623 ECCENTRIC CAM
72629 SLIDE BLOCK
72631 ECCENTRIC CAM
72634 CRANK ROD
72635 ECCENTRIC CAM
72636 CONNECTING ROD END
72637 ECCENTRIC CAM
72638 ECCENTRIC CAM
72641 LOOPER DRIVING ARM
72667 BELT PULLEY
72679 NYLON WASHER
72780 MAIN SHAFT
72788 M4 STUD SCREW
72806 M5 SCREW
72858 WASHER
73472 COLLAR
77042 M4 PHILIPS SCREW
79021 HAND WHEEL

SERIAL NO.
14J334
CA05561
March, 1999
SERGER MODEL 14J334
72626
72341
72798
72271
77042
72792
72781
72825
72603
66725
72813
77039
66620
66725
72802
72803
32316
8400
64179
72632
77039
72633
66725 72624
72625
77016
77015
72734
72341
72379
67447
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS

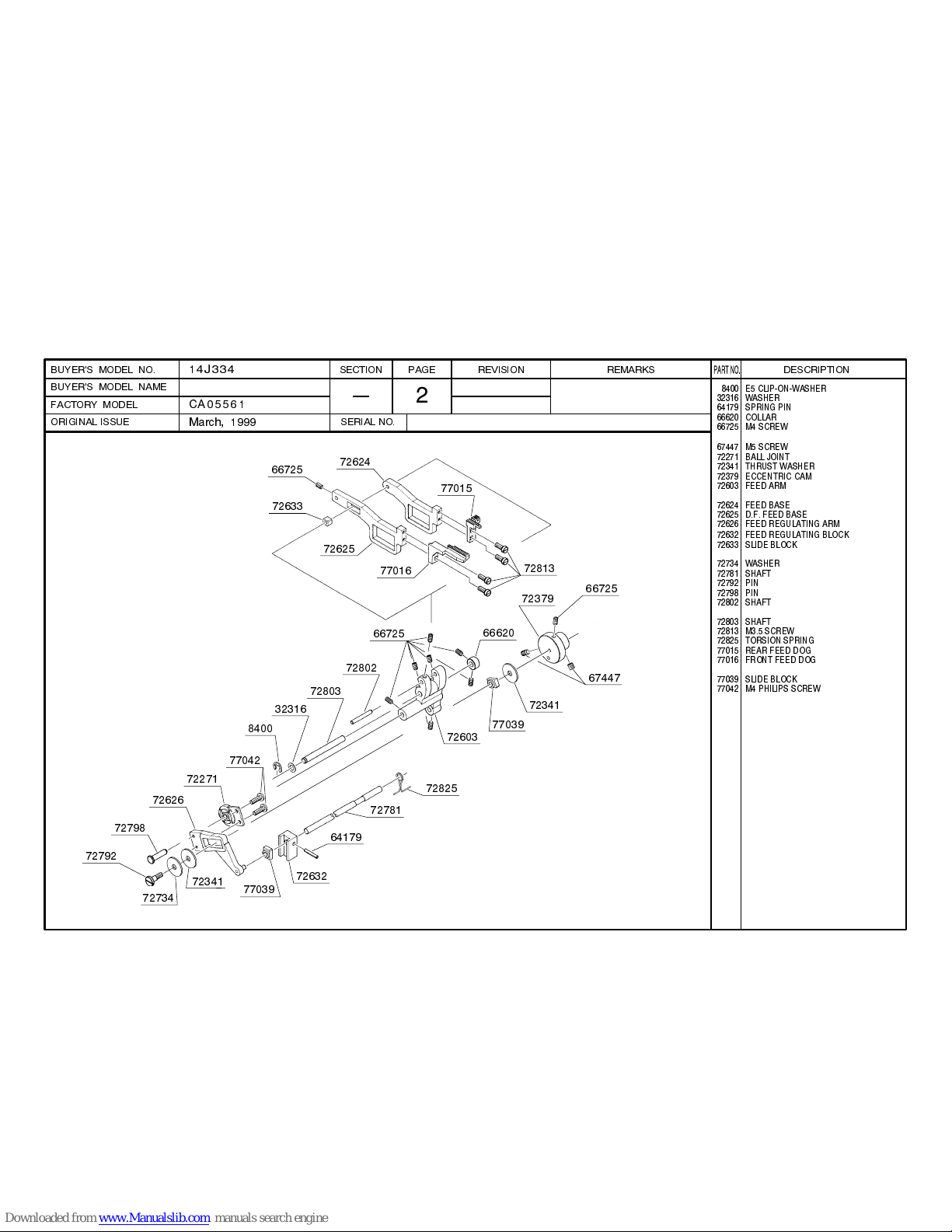

2
8400 E5 CLIP-ON-WASHER
32316 WASHER
64179 SPRING PIN
66620 COLLAR
66725 M4 SCREW
67447 M5 SCREW
72271 BALL JOINT
72341 THRUST WASHER
72379 ECCENTRIC CAM
72603 FEED ARM
72624 FEED BASE
72625 D.F. FEED BASE
72626 FEED REGULATING ARM
72632 FEED REGULATING BLOCK
72633 SLIDE BLOCK
72734 WASHER
72781 SHAFT
72792 PIN
72798 PIN
72802 SHAFT
72803 SHAFT
72813 M3.5 SCREW
72825 TORSION SPRING
77015 REAR FEED DOG
77016 FRONT FEED DOG
77039 SLIDE BLOCK
77042 M4 PHILIPS SCREW

SERIAL NO.
14J334
CA05561
March, 1999

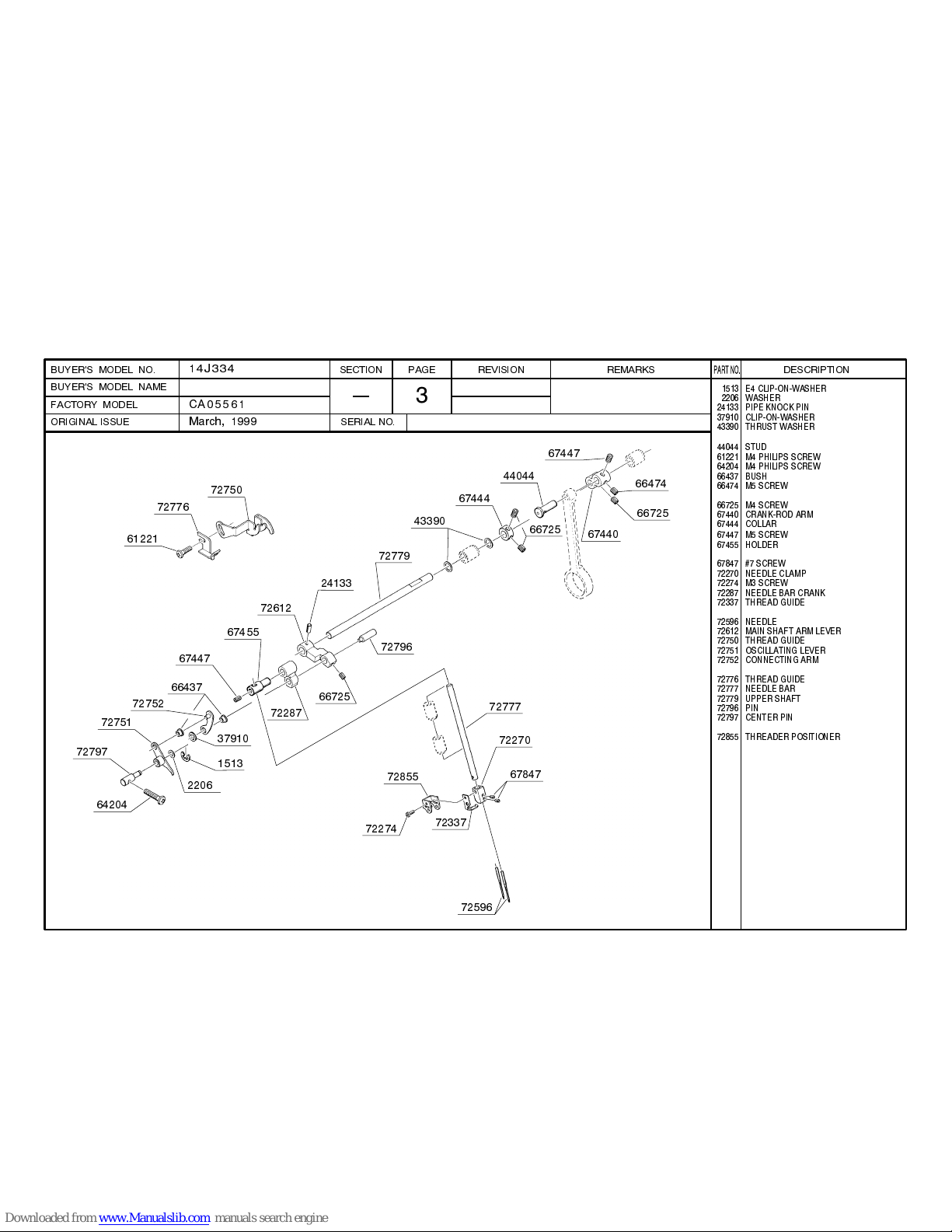

SERGER MODEL 14J334
67447
66474
66725
44044
67444
43390
72612
72796
66725 67440
72779
72777
72270
67847
72337
72274
72855
66725
64204
72797
72751
66437
37910
1513
2206
67447
67455
72287
24133
72596
72750
72776
61221
72752
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS
3
1513 E4 CLIP-ON-WASHER
2206 WASHER
24133 PIPE KNOCK PIN
37910 CLIP-ON-WASHER
43390 THRUST WASHER
44044 STUD
61221 M4 PHILIPS SCREW
64204 M4 PHILIPS SCREW
66437 BUSH
66474 M5 SCREW
66725 M4 SCREW
67440 CRANK-ROD ARM
67444 COLLAR
67447 M5 SCREW
67455 HOLDER
67847 #7 SCREW
72270 NEEDLE CLAMP
72274 M3 SCREW
72287 NEEDLE BAR CRANK
72337 THREAD GUIDE
72596 NEEDLE
72612 MAIN SHAFT ARM LEVER
72750 THREAD GUIDE
72751 OSCILLATING LEVER
72752 CONNECTING ARM
72776 THREAD GUIDE
72777 NEEDLE BAR
72779 UPPER SHAFT
72796 PIN
72797 CENTER PIN
72855 THREADER POSITIONER

SERIAL NO.
14J334
CA05561
March, 1999

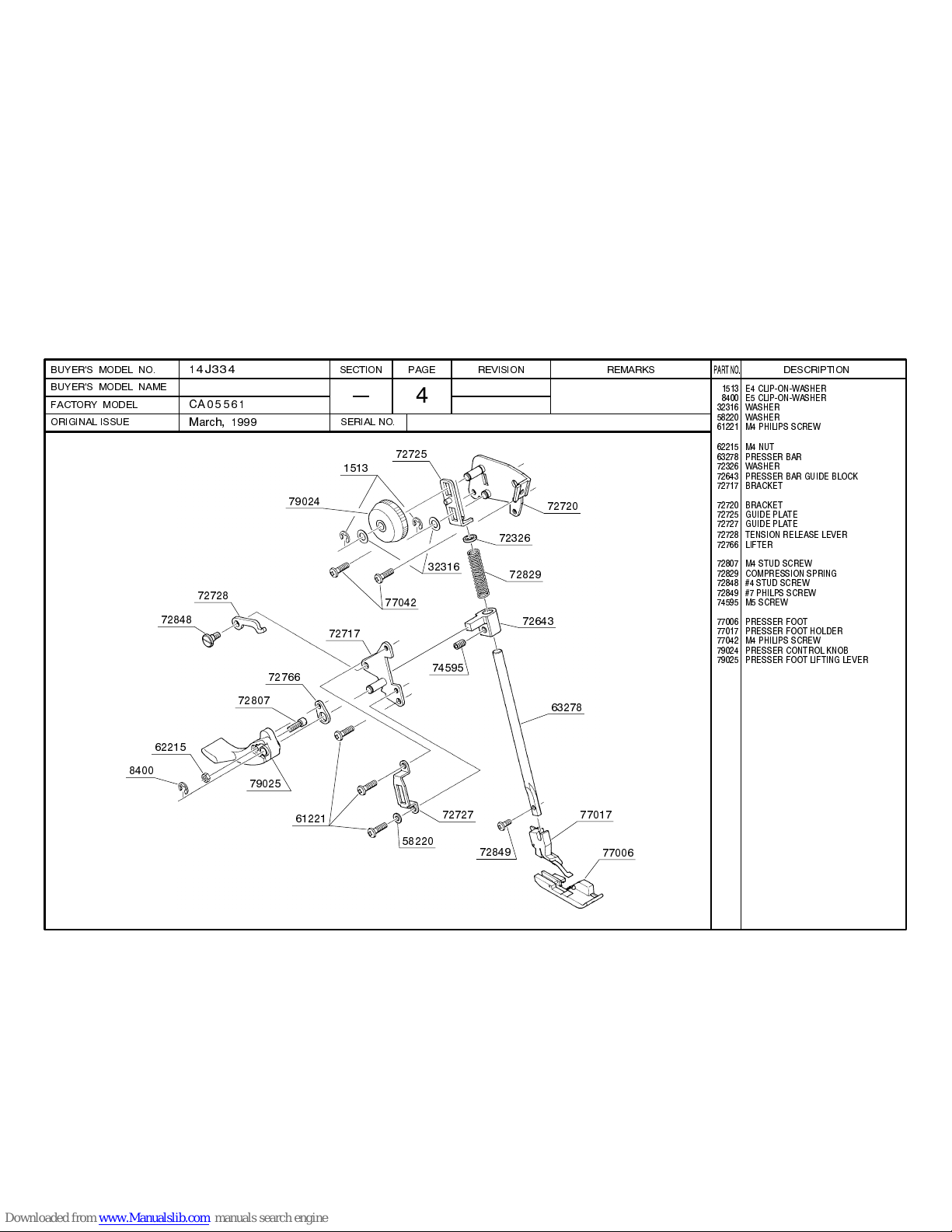

SERGER MODEL 14J334
61221
77006
77017
63278
72643
72829
72326
72720
58220
72727
72849
8400
62215
79025
72807
72766
72717
74595
72728
72848
1513 72725
32316
77042
79024
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS
4
1513 E4 CLIP-ON-WASHER
8400 E5 CLIP-ON-WASHER
32316 WASHER
58220 WASHER
61221 M4 PHILIPS SCREW
62215 M4 NUT
63278 PRESSER BAR
72326 WASHER
72643 PRESSER BAR GUIDE BLOCK
72717 BRACKET
72720 BRACKET
72725 GUIDE PLATE
72727 GUIDE PLATE
72728 TENSION RELEASE LEVER
72766 LIFTER
72807 M4 STUD SCREW
72829 COMPRESSION SPRING
72848 #4 STUD SCREW
72849 #7 PHILPS SCREW
74595 M5 SCREW
77006 PRESSER FOOT
77017 PRESSER FOOT HOLDER
77042 M4 PHILIPS SCREW
79024 PRESSER CONTROL KNOB
79025 PRESSER FOOT LIFTING LEVER

SERIAL NO.
14J334
CA05561
March, 1999
SERGER MODEL 14J334
1513
72882
72737
77042
66725
72714
1513 79056
72785
72730
1513
72885
61222
66725
72729
66620
67617
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS

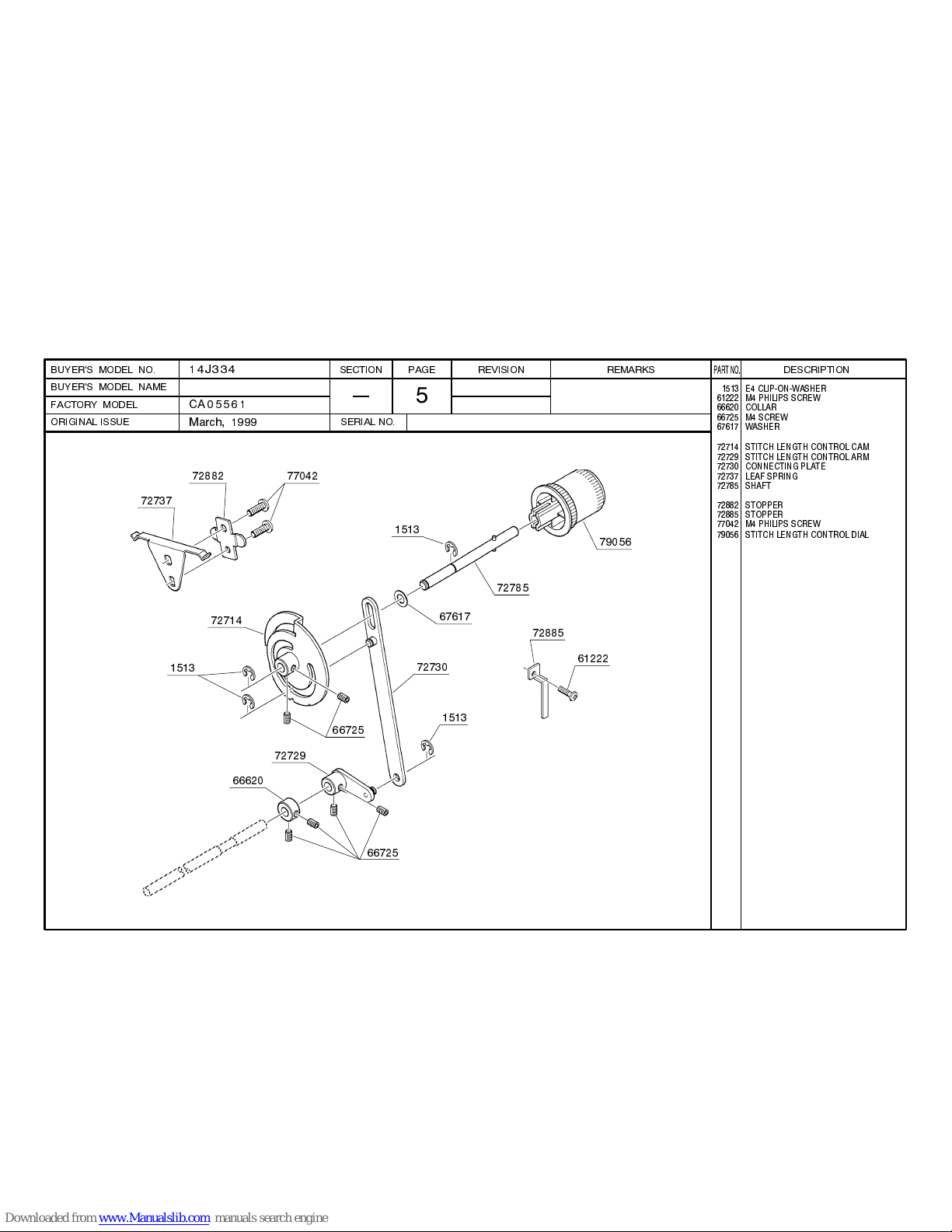

5
1513 E4 CLIP-ON-WASHER
61222 M4 PHILIPS SCREW
66620 COLLAR
66725 M4 SCREW
67617 WASHER
72714 STITCH LENGTH CONTROL CAM
72729 STITCH LENGTH CONTROL ARM
72730 CONNECTING PLATE
72737 LEAF SPRING
72785 SHAFT
72882 STOPPER
72885 STOPPER
77042 M4 PHILIPS SCREW
79056 STITCH LENGTH CONTROL DIAL

SERIAL NO.
14J334
CA05561
March, 1999
SERGER MODEL 14J334
1513
79031
72786
66725
72731
72686
72733
72837
66620
72735
72683
1520
72801
72736
66437
72644
66352
62215
72628
72799
2206
66725
1513
72805
72835
72836
66725
46293
66725
72800
72633
72804
72627
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS

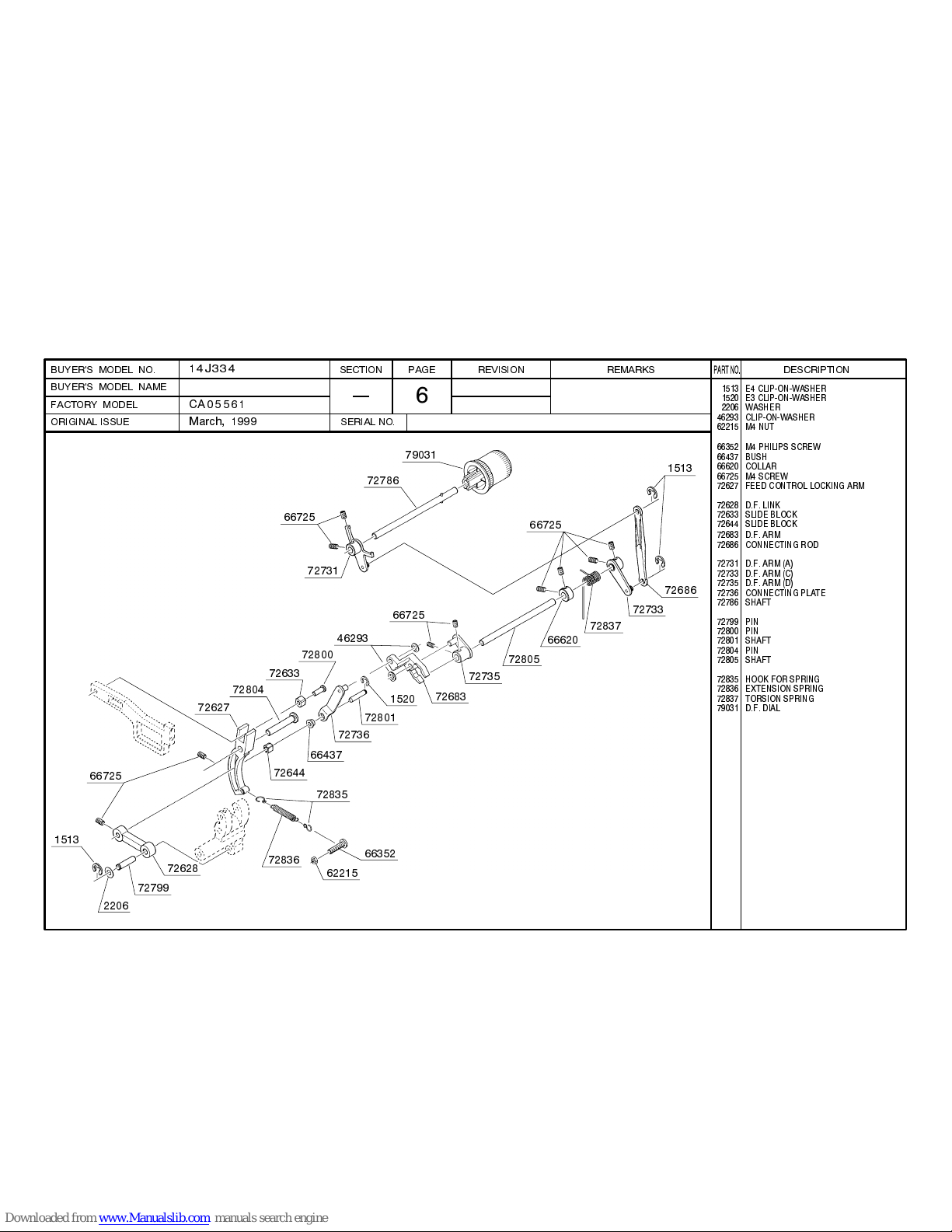

6
1513 E4 CLIP-ON-WASHER
1520 E3 CLIP-ON-WASHER
2206 WASHER
46293 CLIP-ON-WASHER
62215 M4 NUT
66352 M4 PHILIPS SCREW
66437 BUSH
66620 COLLAR
66725 M4 SCREW
72627 FEED CONTROL LOCKING ARM
72628 D.F. LINK
72633 SLIDE BLOCK
72644 SLIDE BLOCK
72683 D.F. ARM
72686 CONNECTING ROD
72731 D.F. ARM
(
A
)
72733 D.F. ARM
(
C
)
72735 D.F. ARM
(
D
)
72736 CONNECTING PLATE
72786 SHAFT
72799 PIN
72800 PIN
72801 SHAFT
72804 PIN
72805 SHAFT
72835 HOOK FOR SPRING
72836 EXTENSION SPRING
72837 TORSION SPRING
79031 D.F. DIAL

SERIAL NO.
14J334
CA05561
March, 1999
SERGER MODEL 14J334
63501
72815
66725
10963
72207
63173
72817
8400
66725
72759
79029
72883
72819
61224
72745
72704
77042
79026
72744
72392
67445
66725
77005
4844
72183
72191
72791
77073
4844
72183
72171
66725
72646
77044
72296
72258
66725
72261
1615
72838
72160
72645
67447
72165
72180
72187
66725 64653
72168
77042
77053
54251
72169
33223
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS

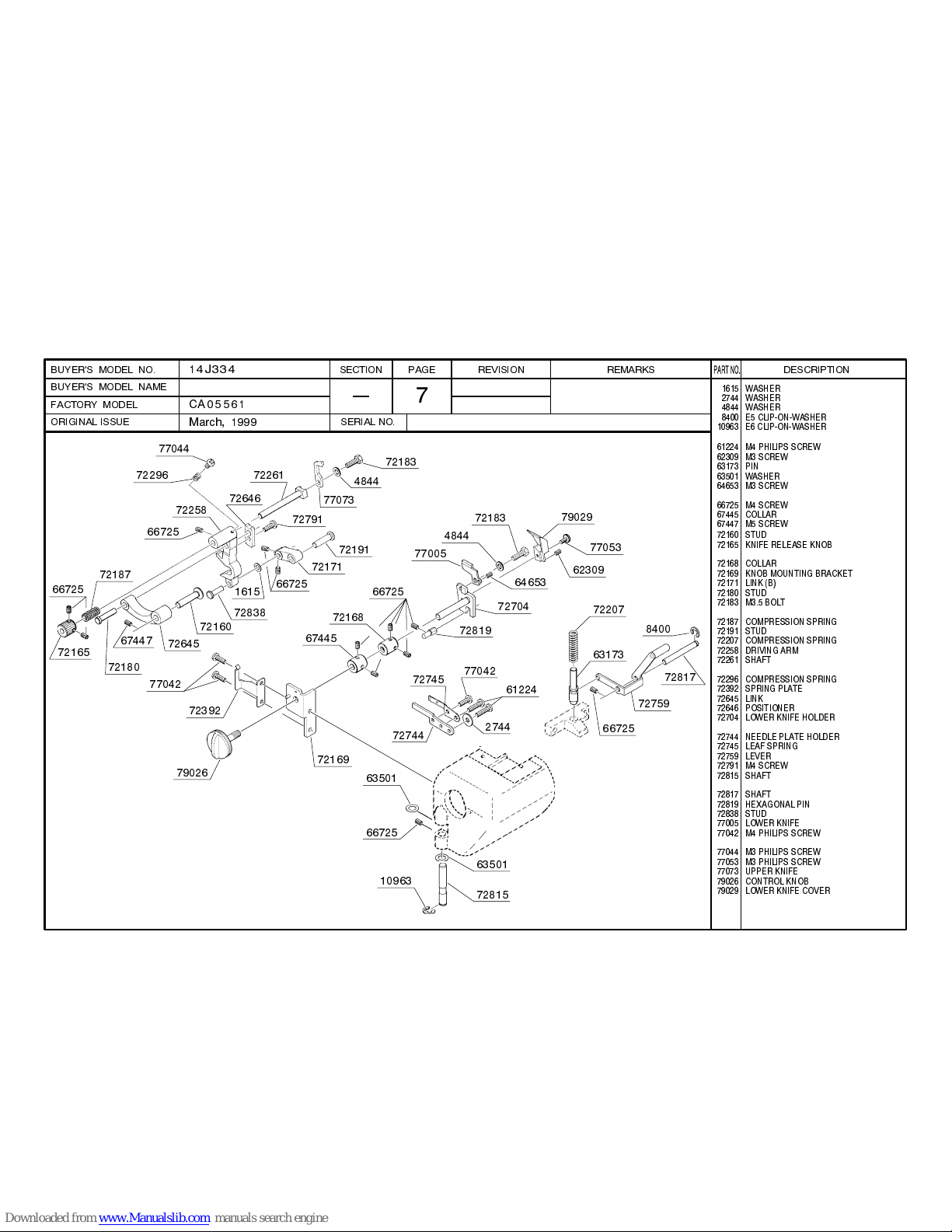

7
63501
2744
62309
1615 WASHER
2744 WASHER
4844 WASHER
8400 E5 CLIP-ON-WASHER
10963 E6 CLIP-ON-WASHER
61224 M4 PHILIPS SCREW
62309 M3 SCREW
63173 PIN
63501 WASHER
64653 M3 SCREW
66725 M4 SCREW
67445 COLLAR
67447 M5 SCREW
72160 STUD
72165 KNIFE RELEASE KNOB
72168 COLLAR
72169 KNOB MOUNTING BRACKET
72171 LINK
(
B
)
72180 STUD
72183 M3.5 BOLT
72187 COMPRESSION SPRING
72191 STUD
72207 COMPRESSION SPRING
72258 DRIVING ARM
72261 SHAFT
72296 COMPRESSION SPRING
72392 SPRING PLATE
72645 LINK
72646 POSITIONER
72704 LOWER KNIFE HOLDER
72744 NEEDLE PLATE HOLDER
72745 LEAF SPRING
72759 LEVER
72791 M4 SCREW
72815 SHAFT
72817 SHAFT
72819 HEXAGONAL PIN
72838 STUD
77005 LOWER KNIFE
77042 M4 PHILIPS SCREW
77044 M3 PHILIPS SCREW
77053 M3 PHILIPS SCREW
77073 UPPER KNIFE
79026 CONTROL KNOB
79029 LOWER KNIFE COVER

SERIAL NO.
14J334
CA05561
March, 1999

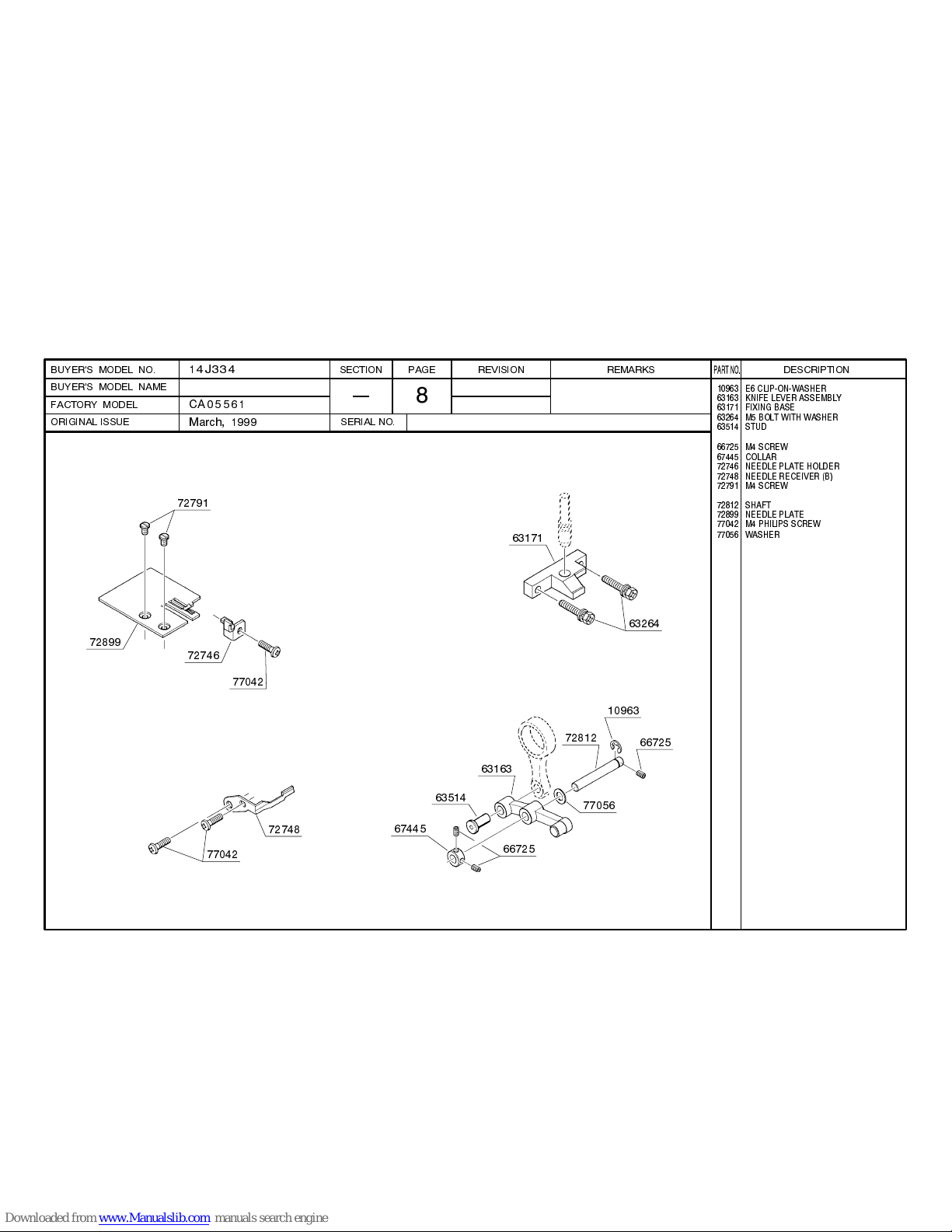

SERGER MODEL 14J334
72738
72791
72784
77042
72746
72899
77042
72748
66725
72826 63264
72811
8400
32316
72763
72648
68380
72712
72762
33223
32949
63163
63514
67445
10963
66725
77056
72812
66725
63171
72711
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS
8
10963 E6 CLIP-ON-WASHER
63163 KNIFE LEVER ASSEMBLY
63171 FIXING BASE
63264 M5 BOLT WITH WASHER
63514 STUD
66725 M4 SCREW
67445 COLLAR
72746 NEEDLE PLATE HOLDER
72748 NEEDLE RECEIVER
(
B
)
72791 M4 SCREW
72812 SHAFT
72899 NEEDLE PLATE
77042 M4 PHILIPS SCREW
77056 WASHER

SERIAL NO.
14J334
CA05561
March, 1999
SERGER MODEL 14J334
66725
10963
61588
67444
72795
62309
63805
72135
65818
73973
72639
73900
67251
72747
77014
67444
61588
10963
66725
72794
72768
66725
73973
35942
72818
72135 73900
63805
61222
72775
72793
72821
64359
72642
72827
72705
53740
43393
66725
72787
77013
72767
61222
66725
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS

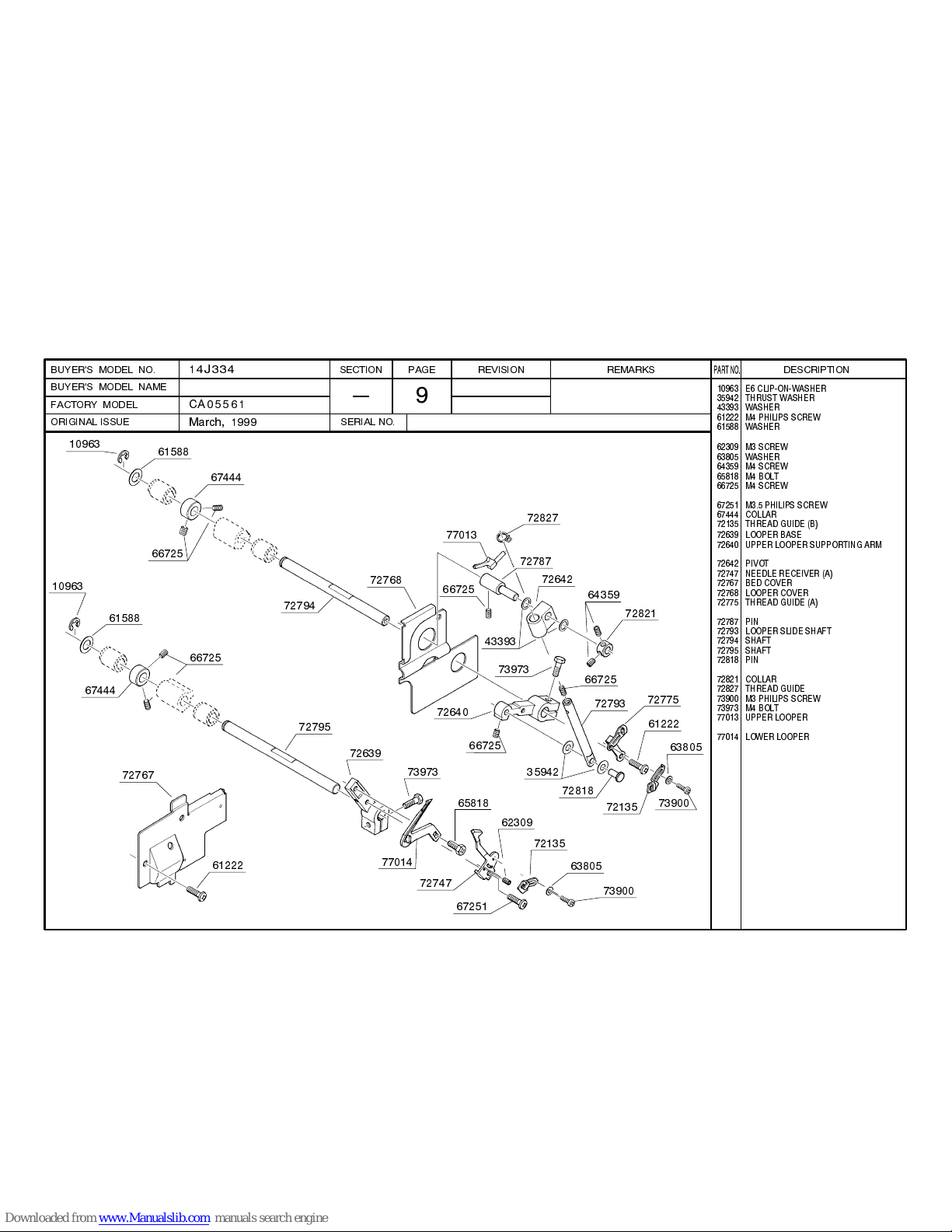

9
72640
10963 E6 CLIP-ON-WASHER
35942 THRUST WASHER
43393 WASHER
61222 M4 PHILIPS SCREW
61588 WASHER
62309 M3 SCREW
63805 WASHER
64359 M4 SCREW
65818 M4 BOLT
66725 M4 SCREW
67251 M3.5 PHILIPS SCREW
67444 COLLAR
72135 THREAD GUIDE
(
B
)
72639 LOOPER BASE
72640 UPPER LOOPER SUPPORTING ARM
72642 PIVOT
72747 NEEDLE RECEIVER
(
A
)
72767 BED COVER
72768 LOOPER COVER
72775 THREAD GUIDE (A)
72787 PIN
72793 LOOPER SLIDE SHAFT
72794 SHAFT
72795 SHAFT
72818 PIN
72821 COLLAR
72827 THREAD GUIDE
73900 M3 PHILIPS SCREW
73973 M4 BOLT
77013 UPPER LOOPER
77014 LOWER LOOPER

SERIAL NO.
14J334
CA05561
March, 1999
SERGER MODEL 14J334
59181
72649
72765
61221
44498
61224
68891
66311
67701
72773
77042
72940
77042
40110
72760
77057
41892
40111
72950
72740
66941
77042
72385
72938
72936 42849
62307
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS

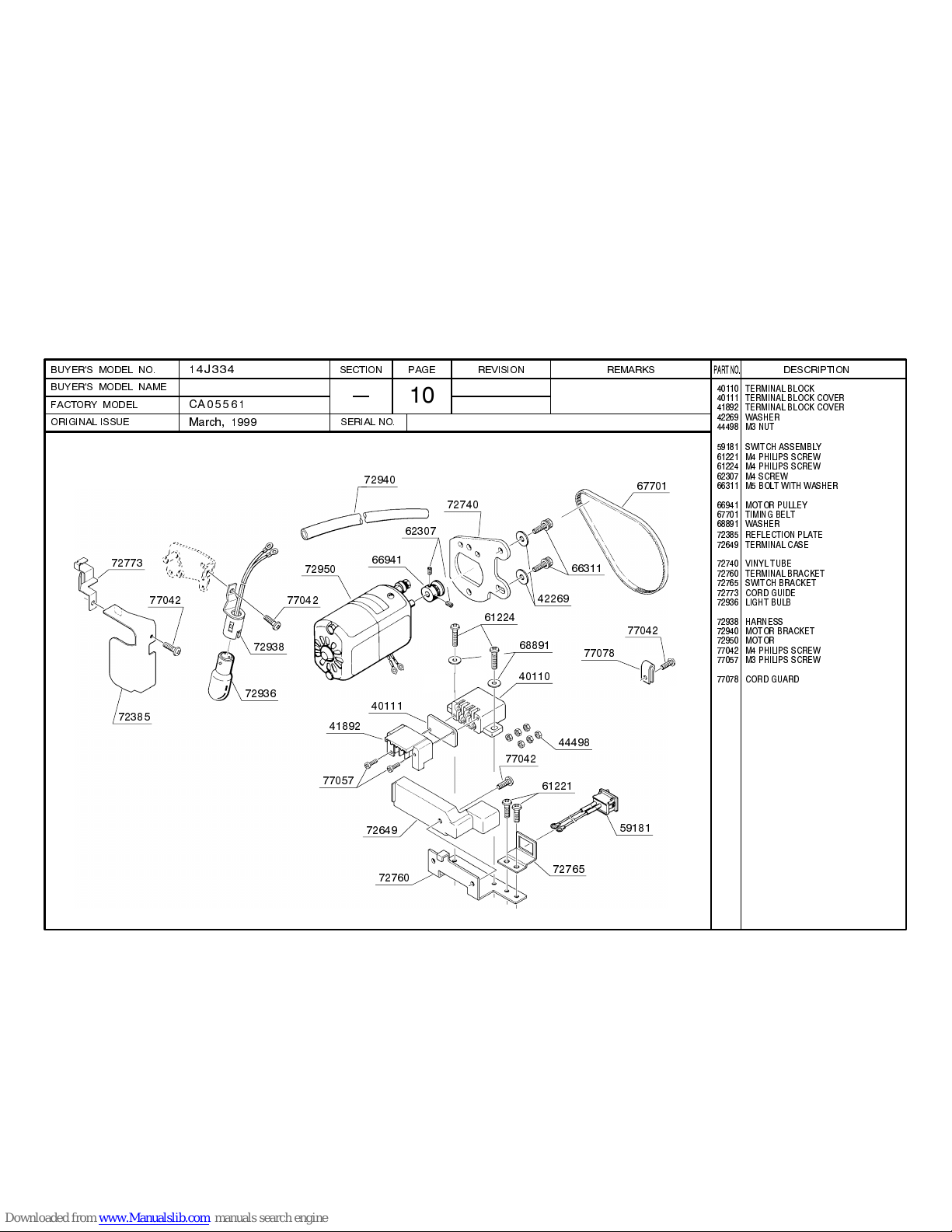

10
77042
77078
42269
40110 TERMINAL BLOCK
40111 TERMINAL BLOCK COVER
41892 TERMINAL BLOCK COVER
42269 WASHER
44498 M3 NUT
59181 SWITCH ASSEMBLY
61221 M4 PHILIPS SCREW
61224 M4 PHILIPS SCREW
62307 M4 SCREW
66311 M5 BOLT WITH WASHER
66941 MOTOR PULLEY
67701 TIMING BELT
68891 WASHER
72385 REFLECTION PLATE
72649 TERMINAL CASE
72740 VINYL TUBE
72760 TERMINAL BRACKET
72765 SWITCH BRACKET
72773 CORD GUIDE
72936 LIGHT BULB
72938 HARNESS
72940 MOTOR BRACKET
72950 MOTOR
77042 M4 PHILIPS SCREW
77057 M3 PHILIPS SCREW
77078 CORD GUARD

14J334
CA05561
March, 1999

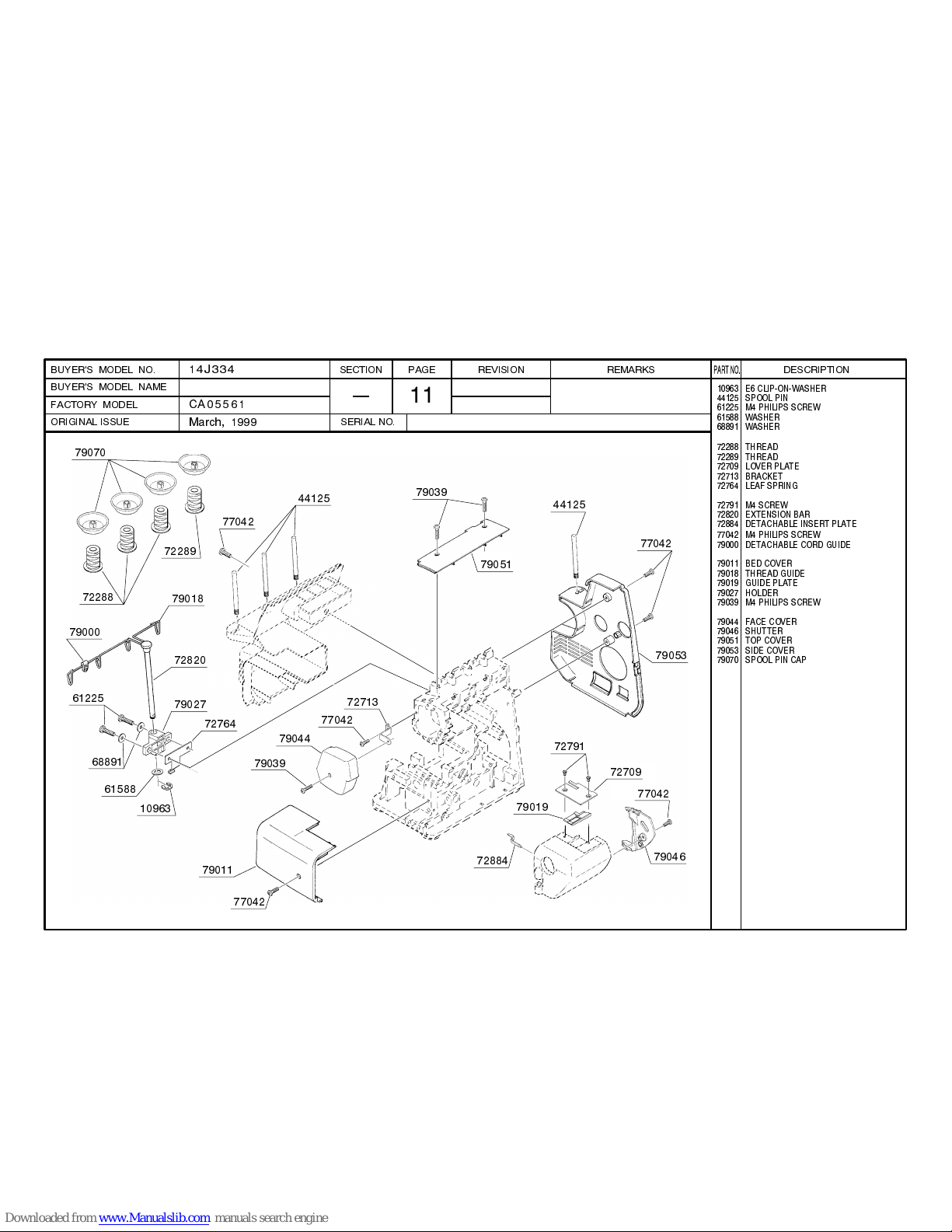

SERGER MODEL 14J334
44125
79070
72288
61225
72820
79018
72289
68891
61588
10963
72764
72713
77042
79044
79039
79011
77042
72884
79019
72791
79046
77042
44125
79053
79039
79051
77042
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION
SERIAL NO.
PAGE REVISION REMARKS
11
72709
77042
79000
79027
10963 E6 CLIP-ON-WASHER
44125 SPOOL PIN
61225 M4 PHILIPS SCREW
61588 WASHER
68891 WASHER
72288 THREAD
72289 THREAD
72709 LOVER PLATE
72713 BRACKET
72764 LEAF SPRING
72791 M4 SCREW
72820 EXTENSION BAR
72884 DETACHABLE INSERT PLATE
77042 M4 PHILIPS SCREW
79000 DETACHABLE CORD GUIDE
79011 BED COVER
79018 THREAD GUIDE
79019 GUIDE PLATE
79027 HOLDER
79039 M4 PHILIPS SCREW
79044 FACE COVER
79046 SHUTTER
79051 TOP COVER
79053 SIDE COVER
79070 SPOOL PIN CAP

August,2000
SERIAL NO.
14J334
CA 05561
March,1999

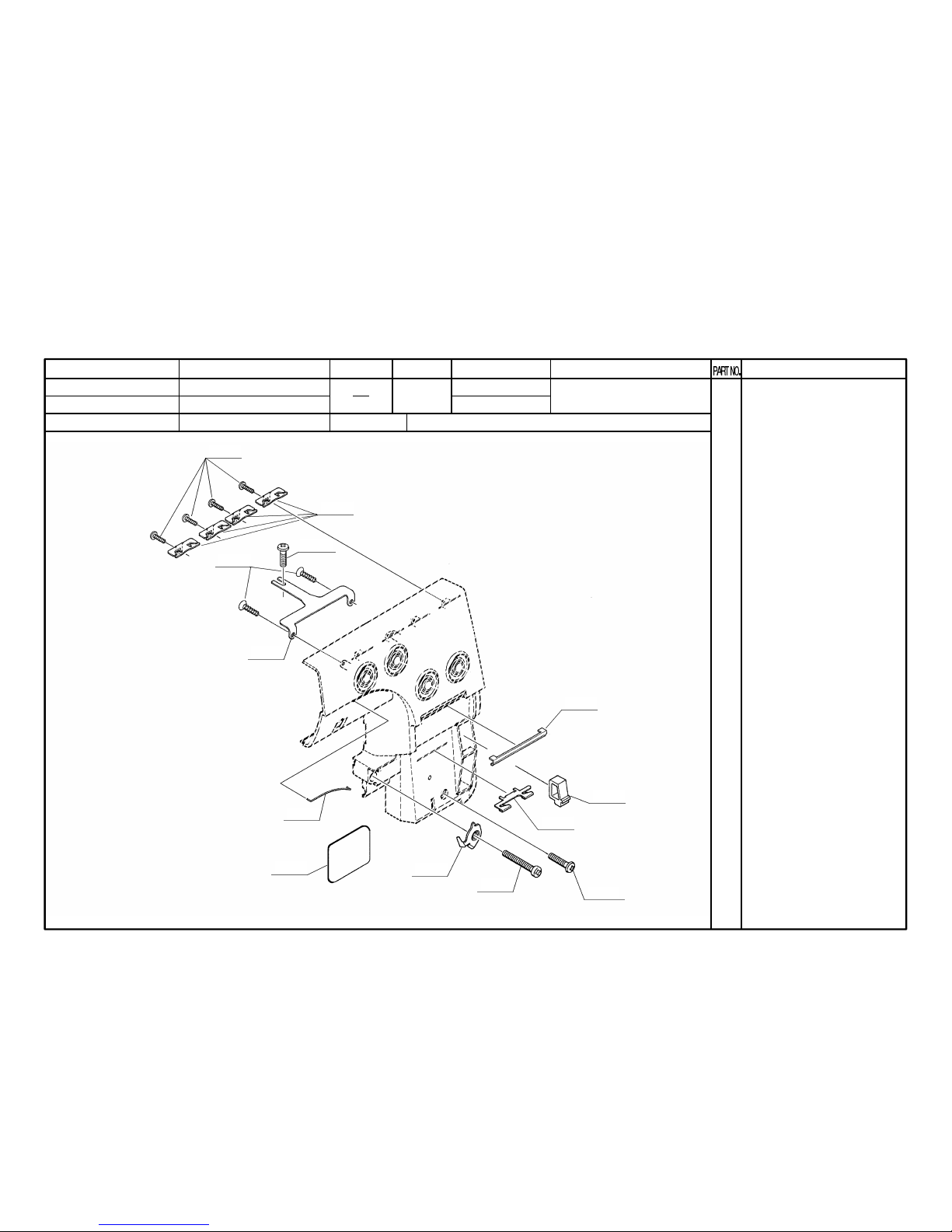

SERGER MODEL 14J334
72395
72840
72757
72842
58024
64618
77042
72871
72879
65736
61225
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS
12-1
72891
72875
58024 TAPPING SCREW
61225 M4 PHILIPS SCREW
64618 TAPPING SCREW
65736 M4 PHILLIPS SCREW
72395 THREAD GUIDE
72757 THREAD GUIDE (A)
72840 SPONGE
72842 THREADING SHEET
72871 MOUNTING BRACKET
72875 THREAD GUIDE PLATE
72879 THREAD GUIDE
72891 THREAD GUIDE
77042 M4 PHILIPS SCREW

August,2000
SERIAL NO.
14J334
CA 05561
March,1999

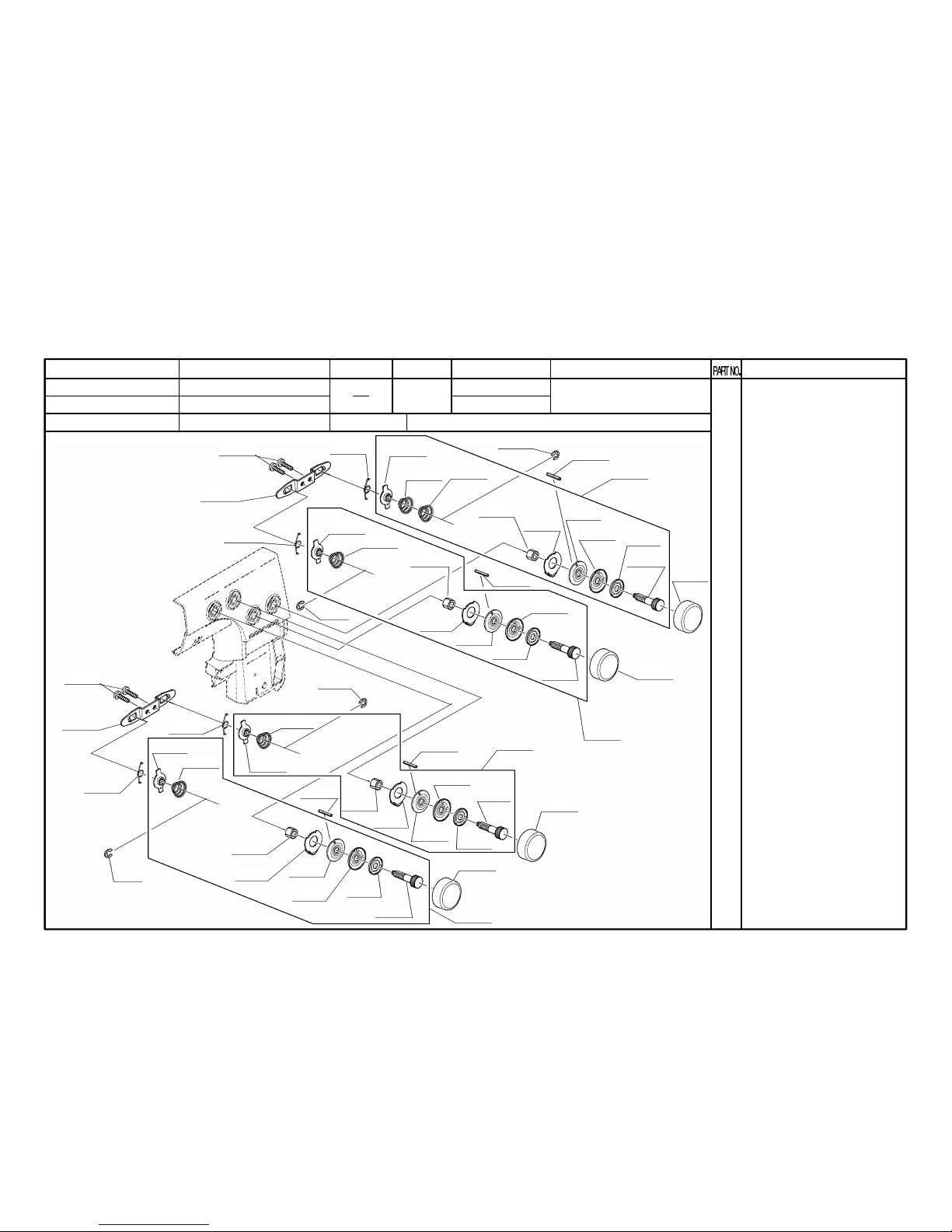

SERGER MODEL 14J334
72344
79002
72726
72892
72761
72350
72351
72348
72349
8400
39160
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS
12-2
72369
72344
72726
55599
72761
72749
72350
72351
72348
8400
72347
72344
79002
72726
55599
72761
72749
72351
72350
8400
72347
72344
72726
55599
72892
72761
72749
72351
72830
8400
72347
72831
72350
50977
50978
50979
50980
39160
72369
55599
72749
72347
79002
72892
72892
79002
8400 E5 CLIP-ON-WASHER
39160 TAPPING SCREW
50977 D.T. DIAL ASSEMBLY
50978 D.T. DIAL ASSEMBLY
50979 D.T. DIAL ASSEMBLY
50980 D.T. DIAL ASSEMBLY
55599 SPRING PIN
72344 SHAFT
72347 PRESSER DISC RECEIVER
72348 COMPRESSION SPRING
72349 COMPRESSION SPRING
72350 TOOTHED WASHER
72351 TORSION SPRING
72369 D.T. GUIDE PLATE
72726 DIAL TENSION DISC (B)
72749 DIAL TENSION DISC (A)
72761 PRESSER DISC
72830 COMPRESSION SPRING
72831 COMPRESSION SPRING
72892 BUSHING
79002 D.T. DIAL

SERIAL NO.
14J334
CA05561
March, 1999

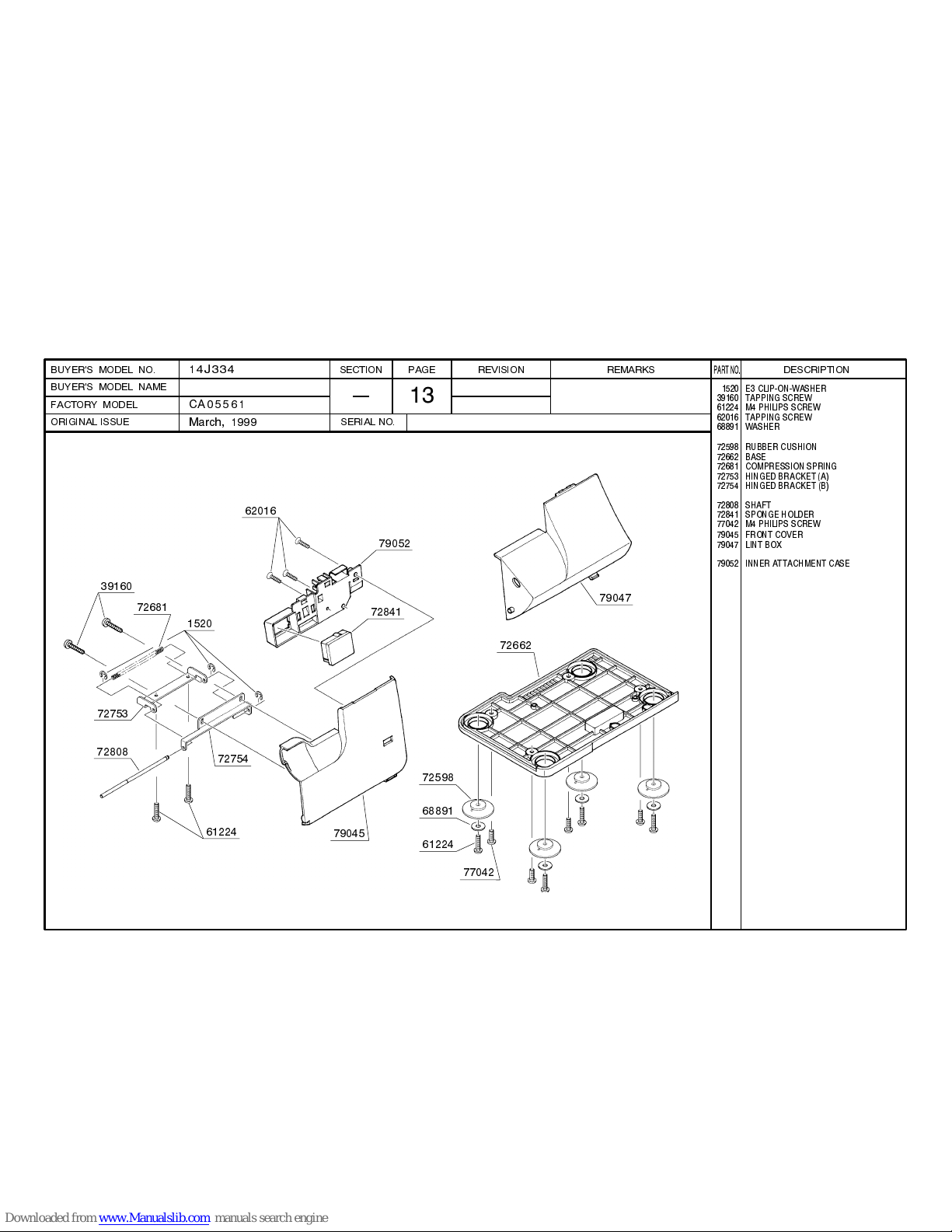

SERGER MODEL 14J334
61224
72598
68891
61224
72662
79047
62016
72841
79052
39160
79045
72808
72753
72754
1520
72681 74755
77042
74752
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS
13
1520 E3 CLIP-ON-WASHER
39160 TAPPING SCREW
61224 M4 PHILIPS SCREW
62016 TAPPING SCREW
68891 WASHER
72598 RUBBER CUSHION
72662 BASE
72681 COMPRESSION SPRING
72753 HINGED BRACKET
(
A
)
72754 HINGED BRACKET (B)
72808 SHAFT
72841 SPONGE HOLDER
77042 M4 PHILIPS SCREW
79045 FRONT COVER
79047 LINT BOX
79052 INNER ATTACHMENT CASE

SERIAL NO.
14J334
CA05561
March, 1999

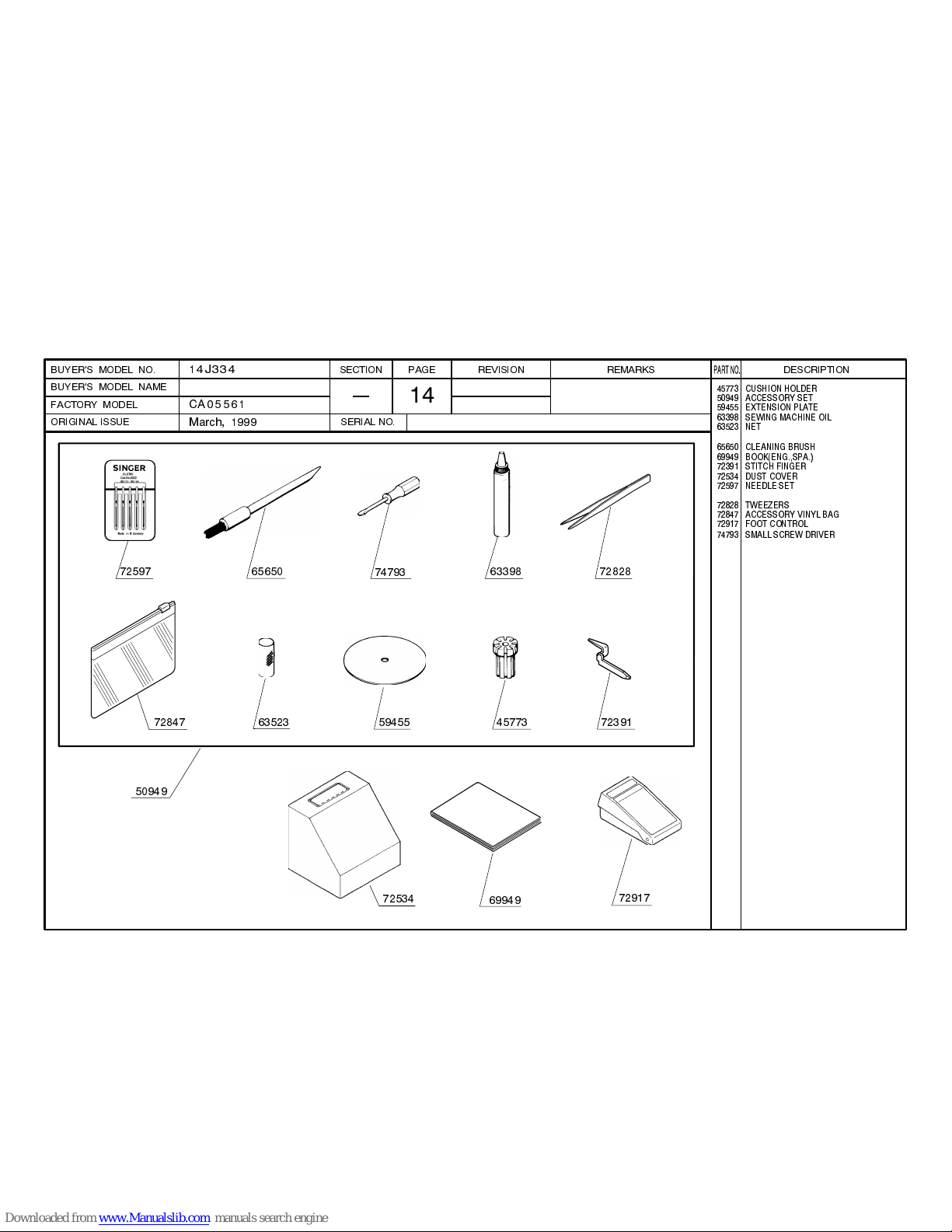

SERGER MODEL 14J334
72597 65650 63398
4577363523 59455
72917
50949
72828
72665
72706
69949
BUYER'S MODEL NO.
BUYER'S MODEL NAME
FACTORY MODEL
ORIGINAL ISSUE
DESCRIPTIONSECTION PAGE REVISION REMARKS
14
72534
74793
72391
72847
45773 CUSHION HOLDER
50949 ACCESSORY SET
59455 EXTENSION PLATE
63398 SEWING MACHINE OIL
63523 NET
65650 CLEANING BRUSH
69949 BOOK
(
ENG.,SPA.
)
72391 STITCH FINGER
72534 DUST COVER
72597 NEEDLE SET
72828 TWEEZERS
72847 ACCESSORY VINYL BAG
72917 FOOT CONTROL
74793 SMALL SCREW DRIVER
