Sirocco Eco3 Guide

1
Model
Model options
Apex, Adjusta, Aleda, Black-Watch, Cristal, Contemporary, Fairfield,
Liberty, Caledonian, Lux, Ignite, Maine, Mystique, Pinnacle, Sirius
Westerly, Verto
Installation and User Instructions
Please ensure you read both the Fire and
the Fascia instructions before starting the
installation.
All instructions must be handed to
user for safekeeping
This is not a DIY product and must be
installed by a Gas Safe registered
installer
Edition J 09/15
Country(s) of destination - GB/IE
Eco3
MkIII

2
INSTALLATION INSTRUCTIONS
These Notes Must Be Read Before Installation
This appliance is an Inset Live Fuel Effect appliance that
provides radiant or combined radiant and convected heat; it
cannot and should not be used as the main heating source
within a property.
The appliance is designed to fit most types of fireplaces with a
natural draught flue as listed in the Installation Requirements.
The appliance must be installed by a competent person in
accordance with the Gas Safety (Installation and Use)
Regulations 1998.
A Gas Safety Registered installer must be used for this purpose.
Read all these instructions before any installation takes place
and in conjunction with the appliance on site.
This appliance must be installed in accordance with the rules in
force and only used in a sufficiently ventilated space.
This appliance is factory set and tested for operation on the gas
type, and at the pressure stated on the appliance data plate.

3
OPENING THE APPLIANCE
Stand the carton the right way up, open the box from the top.
Read all the instructions before continuing to unpack or install this appliance.
Remove the bags containing ceramic components such as coals or gravel etc. Remove
the cardboard packing pieces, and any other bags or boxes containing fittings or
other parts.
When all loose parts have been removed, the appliance may be lifted from the outer
carton.
Check that the components supplied correlate with the component checklist below.
If for some reason any of the listed components are missing or damaged do NOT
commence with this installation, in doing so will invalidate your warranty.
Please dispose of all the packaging materials at your local recycling centre.
CONTENT CHECK LIST
Quantity
Description
1
Burner Tray
1
Fire Fret/Front (where applicable)
1
Rear Matrix/ Fuel Bed support
1
Front Matrix/ Fuel Bed support
1
Coals/Pebbles Bag (14)
1
Fixing Screws and Rawlplugs.
1
Set of manufacturer’s instructions and warranty card.

4
INSTRUCTIONS CONTENT
Section
Contents
Page No
1
Important Notes
5
2
Installation requirements
6
3
Appliance Information
7
4
Ventilation
8
5
Site Requirements
8/9
5.1
Pre-Fabricated Flue box
9
6
Debris Space
10
7
Installation of appliance
10-11
7.1
Preparing the Opening
11-12
7.2
Fitting the Burner Tray
12
8
Fuel Bed
13-21
9
Commissioning the Appliance
21
10
Operating the Appliance Manual Control
21
10.1
Operating the Appliance Remote Control
21
10.2
Spark Failure
21
11
Setting Pressure
22
12
Spillage Monitoring System
22-23
13
Testing for Spillage
23
14
Briefing the Customer
24
15
Servicing
25
16
Cleaning the Coals
6
17
Troubleshooting Guide
26-27
18
User Instructions
28-30
19
Warranty Details
31
20
List of Spares
31-35
Contact details
36
Section 1: IMPORTANT NOTES

5
This fire is decorative Fuel Effect Gas Fire providing radiant warmth. It is designed to
operate on Natural Gas or LPG.
It is the LAW that all gas appliances and fittings are installed by a competent person
such as a Gas Safe Registered fitter and in accordance with the Gas Safety
(Installation and Use) Regulations 1998, the relevant British Standards for
Installation, Codes of Practice and in accordance with the manufacturers’ Instructions.
The installation shall also be carried out in accordance with the following regulations:
The Building Regulations issued by the Department of the Environment, the Building
Standards (Scotland)
(Consolidation) Regulations issued by the Scottish Development Department.
BS 1251
BS 4543 part2
BS 5440 parts 1&2
BS 5871 part 3
BS 6461 parts 1&2
BS 6891
BS 8303
Failure to comply with these regulations could lead to prosecution and deem the
warranty Invalid.
This appliance must be installed in accordance with the rules in force and used only in
a sufficiently ventilated space.
Consult all instructions before installation and use of this appliance.
The appliance must be registered once commissioned with the regulatory governing
body.
This appliance is free from any asbestos material. Refractories and coal bed are
constructed from ceramic fibre.
Note - For Republic of Ireland, reference should be made to the relevant
standards governing installation, particularly in regard to flue sizing and
ventilation. See IS813, ICP3, IS327 and any other rules in force.
Section 2: INSTALLATION REQUIREMENT

6
This appliance MUST NOT be installed into a bathroom or shower room, or where steam may
be present.
An extractor fan must not be fitted in the same room or space as the appliance as this can
affect the safety of the appliance.
The fire has been designed to fit into a fireplace or builders opening conforming to BS 1251
(and meeting certain dimensional requirements), or a suitable flue box complying with the
constructional requirements of BS 715.
A natural draught flue system is required, and if previously used for solid fuel or oil burning,
the flue and chimney must be swept prior to appliance installation.
The flue must be checked before installation by using a smoke pellet or similar to ensure
proper draw and that leakage is not evident at any joints. Repair and re-test as necessary
before the appliance is installed.
Any flue box used must be installed onto a suitable non-combustible insulating surface at
least 12mm thick, covering the entire base area of the box.
The flue must have an effective height of at least three metres, as measured from the hearth
to the top of the flue.
Any flue damper plates or restrictors must be removed and no other restriction fitted to the
flue. Where removal is not practical, the restriction must be fixed in the fully open position.
The flue must be connected to only one fireplace, and the flue must not vent more than one
appliance.
There must be no opening in the flue apart from the one that the appliance is installed into,
and the one venting the gases into the air. A suitable terminal may be fitted, such as class
GC1, as regulations allow.
Some of our appliances have been tested for use in a pre-cast block flue complying with BS
1289.
In accordance with BS1289 part 1, pre-cast flues built with directly plastered faces (front or
rear) are not correctly installed as to ensure proper operation with any type of gas fire.
Depending on the flue construction, on occasions the temperature reached can cause
cracking of the surface plaster through no fault of the appliance.
An air gap or some form of insulation material should be installed to prevent normal flue
temperatures from damaging wall surfaces.
This appliance is suitable for use with a surrounding area or back panel of 150C minimum
rating.
Section 3: APPLIANCE INFORMATION

7
Eco3
16" Tray
16" Tray
Gas Group
G20 Natural Gas CAT I2H
Propane (G31)
Inlet Pressure
20 mbar
36 mbar
Max Input (gross)
6.9
5.9
Min Input (gross)
2.4
2.5
Setting Pressure
20 mbar
36 mbar
Gas Inlet connection
8mm Compression
8mm Compression
Overall Height
N/A
N/A
Overall Width
382
382
Overall Depth
196
196
Recess back width
265
265
Tray Height
210
210
Recess Depth
171
171
Air Vent
N/A
N/A
Injector
STEREOMATIC 480
STEROMATIC 190
Valve
CPMM 18700/357
CPMM 18700/357
Manual
Pilot Assembly &
Thermocouple
Thermocouple
T100/1332 250
Thermocouple T100/1332
250

8
SECTION 4: VENTILATION
This Appliance does not normally require purpose provided ventilation.
However, if a second appliance operating within the same room or space must be taken into
consideration when assessing ventilation.
When commissioning the appliance spillage is detected, then amongst other problems there
may be insufficient natural ventilation for correct operation of the flue.
If spillage is detected with windows closed, but the appliance does not spill with the windows
open, this demonstrates a lack of natural ventilation.
If spillage is still detected with the windows open, the flue is at fault.
Installation of an air brick is the best solution to lack of ventilation.
Any ventilation fitted must comply with BS 5871 part 2 and BS 5440 part 2.
Air Vents fitted under or within the immediate vicinity of the appliance must not be used as
adverse effects to the operation of the Flame Safety Device (FSD) may occur.
Spillage detected during commissioning is almost always a result of poor flue performance
that cannot be corrected by any amount of ventilation.
For Republic of Ireland ventilation may be required, see IS 813, ICP3, IS
327, and any other rules in force.
Section 5: SITE REQUIREMENTS
The fireplace opening should be inspected and repairs made where necessary.
A chair brick or ceramic fireback may be required providing that they conform to BS1251:1987
This appliance requires a natural draught flue system which may be one of the following;
225mm x 225mm (9in x 9in) brick or stone
125mm (5in) minimum diameter lined brick or stone.
125mm (5in) minimum diameter twin wall flue conforming to BS715.
Any existing draught device situated under the fireplace must be sealed off.
The opening area must be non-combustible
.
The appliance requires a hearth with non-combustible surface of at least 300mm in depth and
12mm thick.
The top surface must be at least 50mm above the surrounding flooring level, or be
surrounded by a raised edge or fender 50mm high.

9
To enable the product of combustion to be cleared properly up the flue, the outlet at the back
of the appliance must have a 50mm minimum clearance between it and the back wall of the
opening or any other obstruction.
The area immediately above the outlet must form a smooth path into the flue.
Any type of fire surround used with this appliance must be adequately sealed to the wall and
floor; a combustible shelf may be fixed to the wall above the fire, providing that it complies
with the dimensions given below.
From Hearth to Underneath of Shelf with a depth of 150mm is 766mm add 12.5mm in height
for every 25mm increase to the projection of the shelf depth.
As with all heating appliances, any decorations, soft furnishings, and wall coverings (i.e. flock,
blown vinyl and embossed paper) positioned too close to the appliance may discolour or
scorch.
SECTION 5.1: PREFABRICATED FLUE BOXES
This appliance can be fitted into a number of flue boxes provided that the minimum
dimensions required for the appliance complied with.
The frame of the fire, any back panel or other infill panels, and the flue box must be sealed
together so that there is no possibility of leakage between them.
The correct clearances to combustible materials (i.e. false chimney breast etc) must be
adhered to.
The manufacturers’ instructions for fitting the prefabricated box must be complied with at all
times.
To fit the fire using the cable fixing kit supplied, some minor adaption may be necessary for
certain flue boxes.
Please ensure the firebox does not obscure the flue box outlet.
The firebox, base of the flue box, and hearth below may be drilled to allow plugs and screws
to secure installation.
It is important that the sealing requirements of the appliance are met at all times and that
the flue box is sealed to any back or infill panel.
Note: The DEPTH dimension is inclusive of any back or infill panel.

10
Section 6: DEBRIS SPACE
In accordance with BS 5871 part 2, minimum debris collection volumes are required
behind the installed appliance.
CLAY/CEMENT LINES OR BLOCK FLUE WHICH IS NEW, UNUSED, OR PREVIOUSLY
ONLY USED WITH A GAS FIRE.
Appliance recessed depth + 20mm
UNLINED FLUE OR CHIMNEY WHICH HAS BEEN PREVIOUSLY USED FOR A SOLID
FUEL OR OIL BURNING APPLIANCE
Appliance recessed depth + 60mm
Section 7: INSTALLATION OF APPLIANCE
Always ensure that the gas supply is isolated before commencing installation of the appliance.
The fireplace opening and environment must be in compliance with specifications laid down in
the appropriate sections of these instructions.
Remove the appliance from its carton as described previously and stand on a dust sheet.
Place the coals, ceramics and fixings safely to one side.
Remove the burner from the assembly by removing the two screws at the base of the burner
tray and undoing the connecting nut to the isolation tap.
The tray is now free and may be lifted away from the base plate, lift free of the retaining clips
on each side of the burner tray.
Diagram 3
NUT
ISOLATION
TAP
SCREWS

11
If this is the Remote controlled version of the this fire then care is needed when removing
the burner not to damage the wiring system of the fire, you will need to remove the control
box, Heat Shield and battery holder placed at the back of the fire.
SECTION 7.1: PREPARING THE OPENING
Before installing the fire, check the flue for correct operation using a smoke pellet, all of the
smoke should be drawn up the flue and exit correctly from the terminal.
If problems are found DO NOT fit the fire until corrective measures have been completed.
Protect the decorative hearth whilst aligning the tray within the opening.Part of the packaging
or a dust sheet can be used.
Before running the gas supply into the opening, offer up the base plate to the fireplace to
check the fit is correct.
Drill 6mm holes through the base plate as shown in the image and fit the Rawlplugs and
screw down base plate.
Diagram 4
Diagram 5
Fixing
Positions

12
You can now decide where to route your gas pipe, route holes are provided in the rear and
side of the base plate for use where concealed pipe work is required.
SECTION 7.2 FITTING THE BURNER TRAY
Temporarily fit the burner tray and ensure a suitable gas route can be achieved.
If the fire is the manual control system, you can now place the burner tray into the base plate
making sure that the side lugs locate properly on to the side of the plate.
Fit the two securing screws through the front plate ensuring that the plate is in front of the
front edge of the base plate.
Connect the gas supply and tighten the gas connections.
Note: Please ensure that the electrode spark igniters’ gap on the manual version
has not been misaligned during the handling of the burner in this installation the
gap should be 5mm from the burner.
Ensure the Rear Bracket is
Away from the Burner and
not impinging upon the
flames across the picture.

13
If the fire is the remote control version then carefully place the control box in position and re-
connect the burner tray.
Connect the gas supply and tighten the gas connections.
SECTION 8: FUEL BED LAYOUT
Place the ceramic rear matrix onto the burner ensuring that the rear matrix is sitting behind
the two fixed brackets, the back of the matrix rests against the rear of the base plate.
Place front matrix coal support into brackets fitted
Note: Please ensure that the support
brackets are level and that there is a
minimum 5mm gap between the burner
and the bottom of the rear matrix, this
must not be touching the burner as this
will cause the fire to burn incorrectly and
cause damage to the fire and to
malfunction.

14

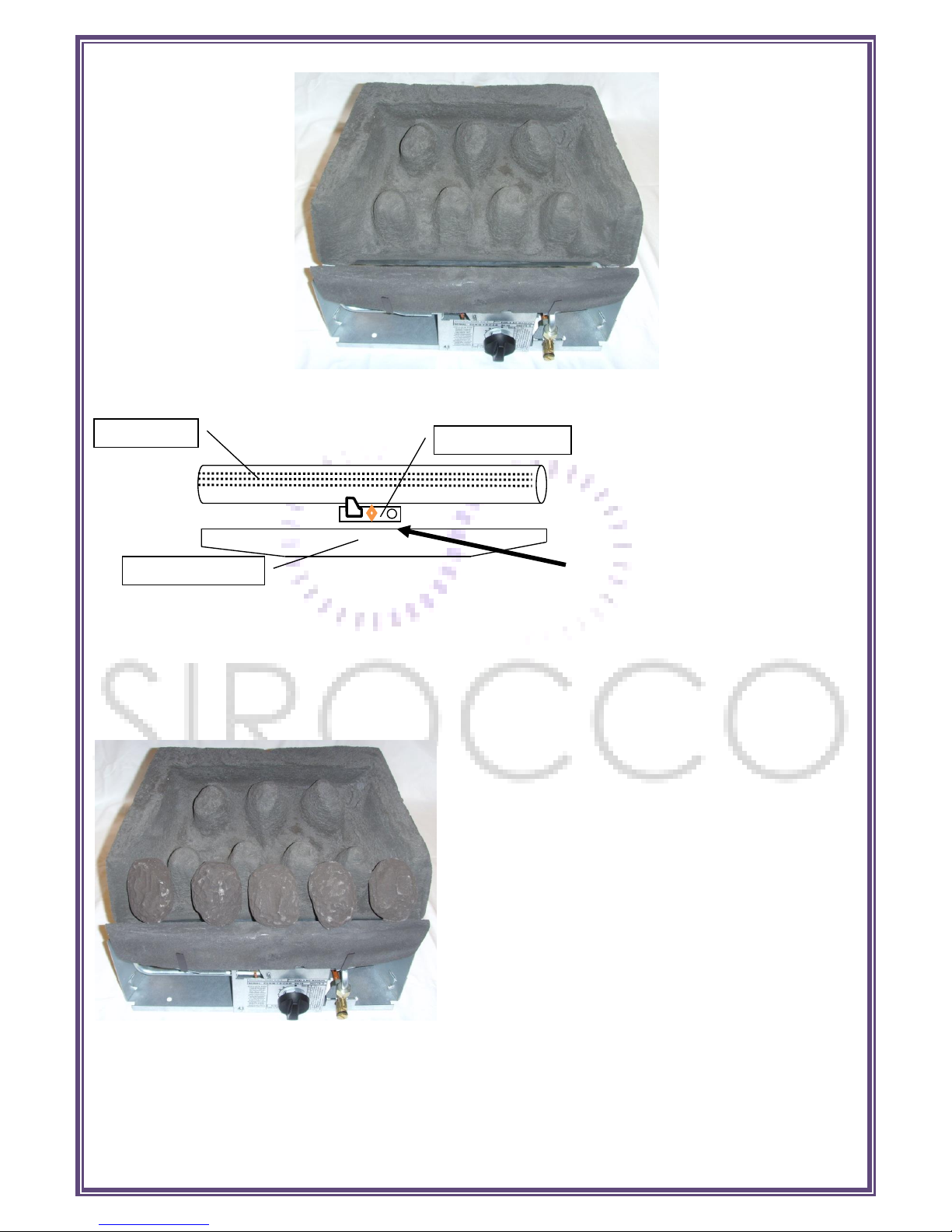

Place the front row of 5 coals/pebbles between the front coal support and the rear matrix as
shown.
Now Place the second row as shown below, coals may be rotated slightly within their positions
to give a good visual effect.
Note: Please ensure that there is a gap
between the back of the front matrix
and the pilot assembly where
applicable, this is to ensure correct
operating of the pilot and O.D.S system,
this must not be touching the assembly
as this will cause the fire to operate
incorrectly and cause damage to the
fire and to malfunction.
BURNER
FRONT MATRIX
PILOT ASSEMBLY

15
Now Place the third row as shown below, again coals may be rotated slightly within their
positions to give a good visual effect.
Note: The coals must not be crammed together, or inserted into the holes in the matrix,
a well laid out, generously spaced coal layout will give the best results.
Place the fire front/ fret into position in front of the fire and slide the ashpan door into place.
The fire front/fret shown in these instructions may differ from the one supplied with the
appliance, we strongly recommend you use a fire front/fret supplied by Sirocco fires as these

16
products will have been tested with the appliance, although other fire front/frets will be
compatible.

17
Traditional Random coal bed option:
First identify the parts please see below:
RANDOM COAL FRONT MATRIX
7 X COAL A
3 X COAL B
2 X COAL C
2 X COAL D
2 X COAL E

18
Place the Random Coal Front matrix in place, insuring that it does not touch the pilot
assembly behind.
Place 5 ACoals between the front matrix and the rear matrix as shown do not block the area
between the coal supports.
Place the three large coals B as shown again ensuring that the area between the coal
supports is clear.

19
Place the two coals Cin the spaces left between Coals B.
Now place the coals D in the top corners as shown below.

20
Place the final two A coals between coals D
