Skimo 320B21 Operating instructions

Société Nouvelle De Climatisation
274, chemin des Agriés – 31860 LABARTHE SUR LEZE
Tél. : [phone] - Fax : [phone]
INSTALLATION,
USER AND MAINTENANCE MANUAL
Product code : 320B21 – SKIMO B PLUS 1KW AIR CONDITIONING 24 VOLTS
Read this manual carefully until you understand it before unpacking,
installing or using the Skimo unit.
Keep this manual for further reference.

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 2/21
The 2 years warranty only applies under normal operation of the SKIMO A/C unit
* Limited warranty
The warranty doesn’t cover damages resulting from an incorrect operation of the SKIMO A/C unit, particularly for the
following cases:
p Operating in an environment with high salinity
p Operating in an environment with high acidity
p Cleaning with a pressure washer and/or with detergents
p Consumable parts (filters) or considered as wear parts are also excluded from warranty
TABLE OF CONTENTS
Section Title Page
1 INTRODUCTION 3
2 SAFETY INSTRUCTIONS AND WARNINGS 3
3 TECHNICAL CHARACTERISTICS OF THE SKIMO A/C UNIT 4
4 SKIMO A/C UNIT DESCRIPTION 5
5 BEFORE FITTING THE SKIMO A/C UNIT 6
6 FURNITURE REQUIRED TO INSTALL SKIMO 7
7 PREPARATION OF THE SKIMO A/C UNIT 7
8 CABIN ROOF PREPARATION 7
9 FITTING THE SKIMO A/C UNIT ON THE ROOF 8
10 ELECTRICAL CONNECTION 9
11 FITTING THE CABIN PANEL 10
12 ELECTRICAL DRAWING 11
13 SKIMO A/C UNIT USE 12
14 REPAIRS 12
15 MAINTENANCE 14
16 EXPLODED VIEWS AND SPARE PARTS LIST 17
17 APPENDIX: 20
REVISIONS 20
CE CONFORMITY STATMENT 20
CUT-OUT TEMPLATE
If you have any question regarding the installation and use of the Skimo A/C unit, please contact our quality service :
[phone]

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 3/21
1. INT ODUCTION
The unit described in this manual, called unit, Skimo unit, A/C unit, Skimo A/C unit or Skimo, is designed to be installed
on the roof of agricultural, construction works, road works, or industrial vehicles, machines or vans The Skimo unit air-
conditions the cabin of the machine or vehicle The Skimo A/C unit is a monobloc unit pre-charged with R134a refrigerant
gas and containing all the parts of the A/C circuit It only needs to be connected electrically to the machine or vehicle
(See electrical requirements)
2. SAFETY INST UCTIONS AND WA NINGS
You must read and understand this manual before proceeding to the installation, set-up, use and maintenance of
the Skimo A/C unit
List of pictograms used in this manual or on the Skimo unit:
Pictogram Meaning Pictogram Meaning
Conform to CE standard
General danger
Read and understand the manual
Physical danger
Important information
The Skimo A/C unit must be installed by a person qualified and adequately equipped All alteration of the unit or
incorrect installation are strictly forbidden and can be dangerous SNDC SAS cannot be held responsible in the case of
physical or material damages due to an alteration, installation or use that is different to that described in this manual
The Skimo A/C unit weights approximately 30 kg Take necessary precautions when handling, installing and using
the unit to avoid any risk of injury, fall or damage Do not handle or install the Skimo unit on your own
Do not store, install or use the Skimo A/C unit close by flammable liquids, gas or solids, or close by a heat source
or in a place presenting risks of explosion or fire
If the Skimo A/C unit is damaged, it must not be used or turned on It must be repaired or replaced first
If repairs or maintenance operations are required on the Skimo A/C unit, use a qualified company using qualified
personnel to perform the operations Any repair or maintenance operation that is not done properly can create risks of
danger Do not try to repair the Skimo unit by your own means if you are not qualified For the charge or maintenance of
the A/C refrigerant circuit, use a qualified company that is equipped with appropriate tools and security equipment and
that uses original spare parts
This monobloc Skimo unit must not be used for vehicles or machines that work with inclinations steeper than 25°
for the pitch angle and 45° for the roll angle Do not use on vehicles or machines that go faster than 110km/h Do dot
alter cabins that are certified « FOPS-ROPS »
In case of fire, do not open the unit cover Extinguish the fire with an appropriate fire extinguisher for electrical
and A/C units
Contact the vehicle or machine supplier to enquire of the necessary changes regarding the papers (height of
vehicle, weight…) Perform any necessary changes
Always turn the Skimo unit and the vehicle or machine off before an operation of maintenance on the Skimo
Disconnect all the electrical connections of the Skimo unit to the machine before fixing, or repairing the Skimo unit
or before any operation that could involve getting in contact with the electrical circuit
Do not introduce foreign objects inside the Skimo A/C unit

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 4/21
The Skimo A/C unit contains moving parts that represent a danger Do not disable the security features Switch the
Skimo unit and the machine or vehicle off before opening the unit or taking the cabin panel off
The A/C refrigerant circuit is under pressure Do not open the A/C refrigerant circuit This would create a loss of
refrigerant gas that is colourless and odourless It could create serous burns The personal performing the repair or
maintenance of the A/C refrigerant circuit must be qualified to manipulate such systems and must use appropriate tools,
equipment and protection equipment Wear protection goggles and gloves when you maintain the Skimo unit Rejecting
refrigerant gas in the atmosphere is strictly forbidden
The Skimo A/C unit must be maintained and cleaned up regularly from dust, vegetal or other wastes or
combustibles to avoid risks of fire
Use only original spare parts
3. TECHNICAL CHA ACTE ISTICS OF THE SKIMO A/C UNIT
The technical specifications or characteristics of the Skimo A/C unit, as they are described in this manual, are subject to
change without notice
SKIMO is a self contained air conditioning with: air conditioning components (condenser, evaporator, drying filter,
compressor …), electrical components (electrical motor, fan, blower, harness, fuses), and a ceiling panel with controls
and air outlets
The Skimo A/C unit is pre-charged with R134a refrigerant gas
•External dimensions (+ or - 2cm): length 72 cm, width 48 cm, height 25 cm
•Cabin ceiling panel dimensions (+ or - 2cm): length 29 cm width 39 cm thickness 6 cm
•Weight: 35 kg (+ or – 3 kg)
•Evaporator cooling capacity: 3500 W with +31°C air intake and 50% air humidity
•Maximal consumption: 960W (that is 80 Amps electrical current for a 24V to 55°C outside temperature)
•Refrigerant HFC R134a quantity (+ or - 10g): 700g
•Oil: PAG 150 46 (SNDC Ref 430A08)
With its CE label, Skimo meets the main health and safety requirements of the 2006/42/CE directive See CE statement in
appendix
The Skimo A/C unit can be mounted on ant vibration studs In this case, there must be a sufficient number ant
vibration studs, they must be distributed evenly to offer proper and even support to the unit All the instructions
contained in this manual must be followed, including the instructions about cantilevered positioning The water tightness
between the roof and the unit must be kept

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 5/21

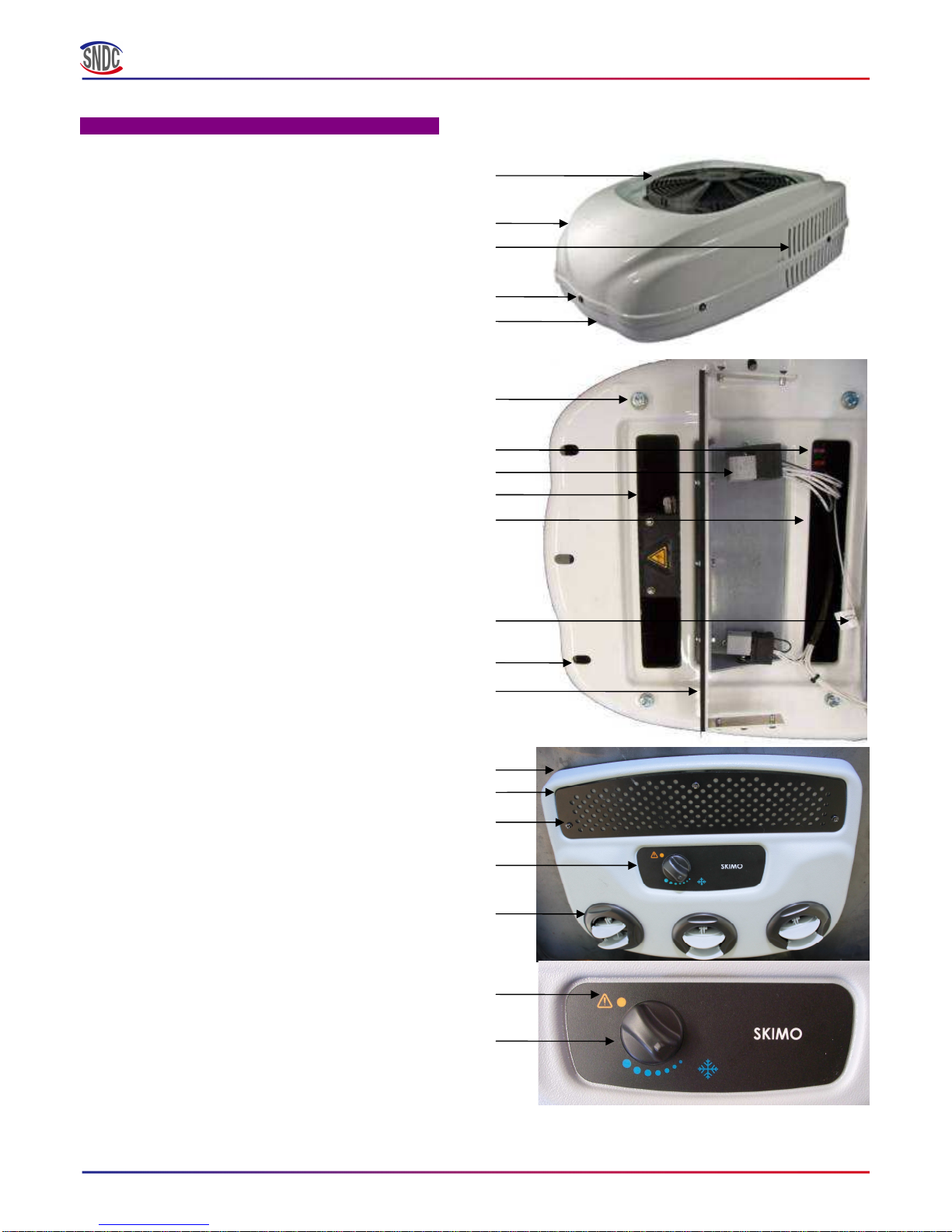

4. SKIMO A/C UNIT DESC IPTION
N° D ESC IPTION
1 Condenser ventilator
2 Skimo unit cover
3 Outside air intake grids
4 Unit cover fastening screws
5 Skimo unit casing
6 M8 unit fastening screws
7 Fuses
8 Relays
9 Blower
10 Cabin air intake
11 Wire to connect to alternator D+ signal
12 Water drain holes
13 Cabin panel adjustable bracket
14 Cabin panel
15 Air filter access grid
16 Grid fastening screws
17 Control panel
18 Adjustable air louvers
19 Default signal light
20 A/C and ventilation speed selector switch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 6/21
5. BEFO E FITTING THE SKIMO A/C UNIT
Prior to fitting and using the Skimo A/C unit, check the following points:
Cabin volume: Ideally the volume of the cabin is approximately 2m
3
but if it is over 3m
3
the performances of the Skimo
A/C unit will decrease
Cabin insulation: The cabin walls must be properly insulated, especially from important heat sources (engine, exhaust
pipe, hydraulic system …) SNDC SAS cannot be held responsible in the case of poor performances of the Skimo A/C unit
caused by poor cabin insulation
Ceiling thickness: The ceiling thickness must be between 3mm and 60mm If it is over 60mm, an additional plate can be
fitted to fasten the cabin panel In this case, the four M8 screws used to fasten the Skimo A/C unit on the roof must be
replaced by M8 screws adapted regarding their length and mechanical characteristics
Electrical power:
The machine or vehicle engine must be equipped with an alternator able to supply the electrical power
required from the vehicle or machine AND from the Skimo A/C unit. The Skimo A/C unit maximal
consumption is 960W (80 Amps to 90 Amps for a 24V unit). If the vehicle or the machine is equipped with
an alternator that is not powerful enough, it must be replaced by a suitable alternator.
oof and ceiling:
Do not alter or make a hole in the cabin of vehicles that are certified « FOPS- OPS »
The roof must be stiff and strong enough for the Skimo A/C unit to be installed on. If it is not the case, the
roof must be reinforced.
The Skimo A/C unit must not be installed if it would affect the stability of the vehicle or machine it is
installed on, or if it would create excessive strains on its structure.
Make sure using the drawing showing the dimensions of the unit and the cut-out area that there is enough
space to fit the unit on the roof and the cabin panel inside the cabin.
The surface on which the Skimo A/C unit is installed must be flat and horizontal (+/- 5°).
The cabin panel must be installed inside the cabin, and the user must be able to access the controls from
his driving position while using the vehicle or machine.

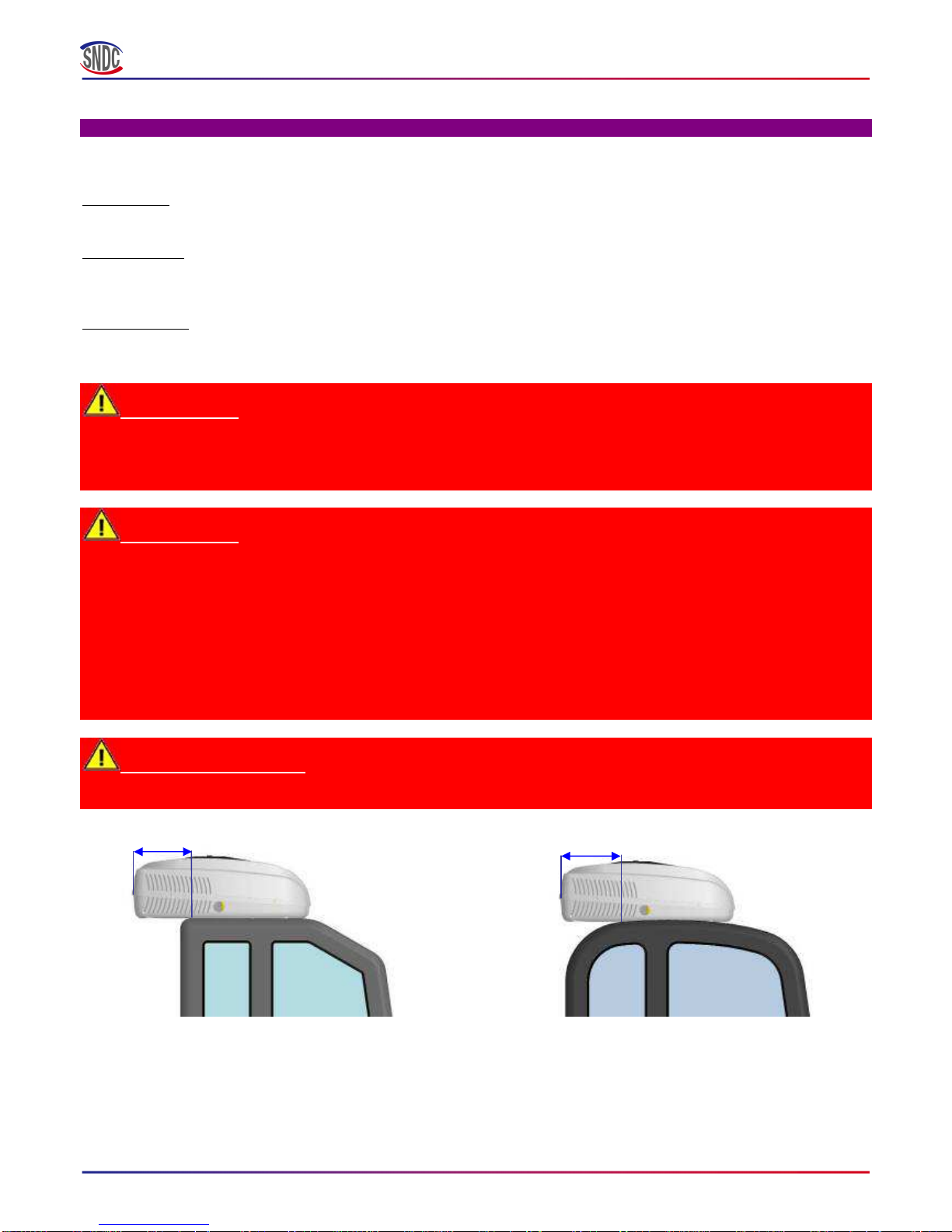

Cantilevered installation:
The Skimo A/C unit can be mounted in a cantilevered position. In this case, the maximum cantilever
distance is 25cm (See pictures below).
Max 25cm
Max 25cm

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 7/21

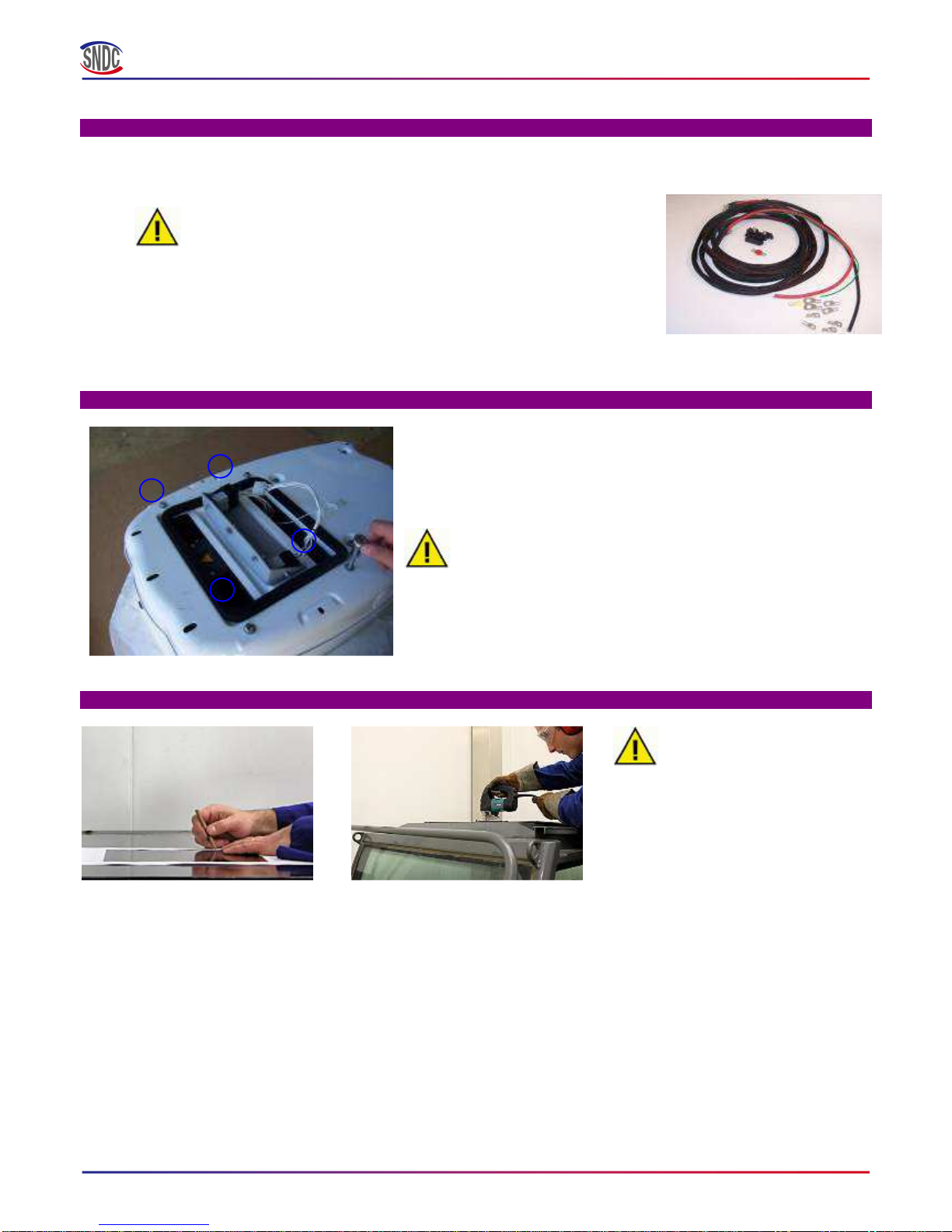

6. FU NITU E EQUI ED TO INSTALL SKIMO
•Two 16 mm
2
(12V) or 10mm² (24V) diameter cables to connect SKIMO to the vehicle’s battery : a black one for
the ground and a red one for the positive, fitted with M6 crimp terminals on the SKIMO’s end and crimp terminals
on the battery’s end (according to the battery’s connection type, generally M10)
Caution: Maximum cable length: 5 m
•One 1 mm
2
diameter cable to connect SKIMO to the D+ signal (“engine
running”) of the alternator, with a 1 way FASTON connector (male housing,
female contact) and a connector on the other end to connect to the D+ signal
coming from the alternator
•A fuse holder and a 100Amps (24VOLTS) fuse
The above mentioned components are available as a connection optional set, reference 274C03.
•A silicone tube to seal the Skimo A/C unit on the vehicle’s roof
7. P EPA ATION OF THE SKIMO A/C UNIT
Remove the 4 unit fastening screws circled in blue
Caution! Do not unscrew the 4 screws at the back of the unit
8. CABIN OOF P EPA ATION
Caution: Wear appropriate
protection according to the method and
tools used to cut-out and drill the roof
(Protective gloves, glasses, ear plugs…)
1 Place the template on the roof (See
cut-out drawing below and template in
appendix)
2 Cut out and drill the roof following
the template

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 8/21
Dimensions in millimetres (mm)
-The cut-out is 227mm long by 262 mm wide with 4 Ø10 mm holes for the fastening screws
-The required foot-print inside the cabin to install the cabin panel is represented by the dimensions 293 x 387 mm
9. FITTING THE SKIMO A/C UNIT ON THE OOF
The Skimo A/C unit is heavy (approximately 35 kg). Take necessary precautions to avoid hurting
yourself or damaging the unit. Never install the Skimo A/C unit on your own.
1 Apply silicone on the 15x15mm
foam seal and around the 4 fastening
points (in red) Add some between the
fastening points (in yellow) to
complete the waterproofness
2 Place the Skimo A/C unit on the
roof Fasten it from the inside of the
cabin with the 4 M8 screws and their
washers removed in section 7 3-
preparation of the Skimo A/C unit
3 Remove Skimo A/C unit cover:
remove its 6 fastening screws and
unplug the ventilator connector
Cantilever limit

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 9/21

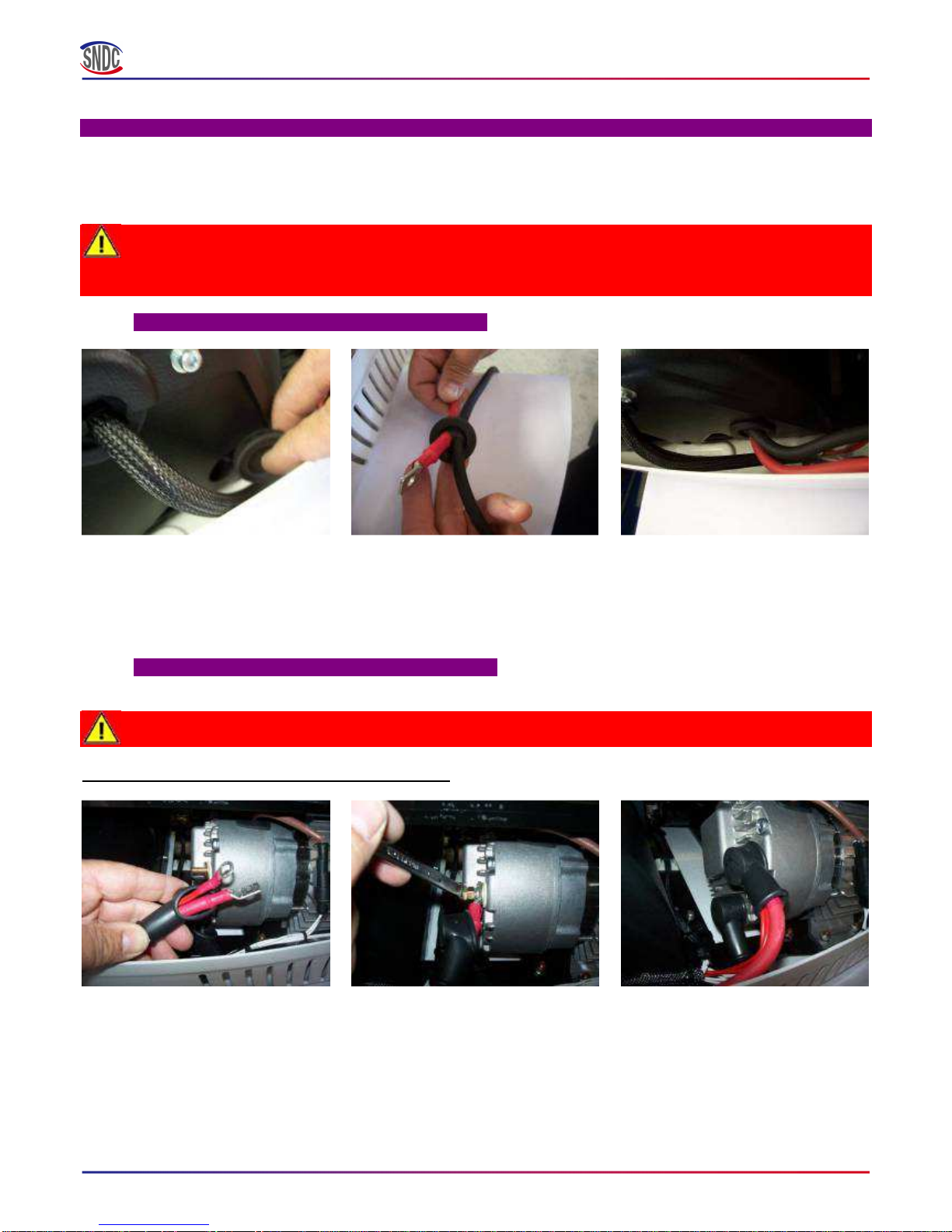

10. ELECT ICAL CONNECTION
There are two possible ways to lay out the electrical cables:
-Inside the cabin (recommended), through one of the cabin frame post for example
-Outside the cabin
In both cases the installer must make sure that the cables are insulated and protected from any risk
of deterioration or tear-up (from branches for example) and that they do not present any risk for people or
appliances.
10 a Case of the cables being laid out inside the cabin:
1 Remove the grommet at the bottom
of the black evaporator casing
2 Create two holes in the grommet
and insert both cables through it
3 Insert the cables in the hole from
which you removed the grommet, ease
them out inside the cabin through the
unit air intake cut out, and set the
grommet back in place Make sure the
grommet is waterproof
10 b Case of the cables being laid out outside the cabin:
Make a hole on the white outer Skimo casing (the lower part), lay the cable out through this hole with a grommet
Do not lay the cables out near the motor and compressor belt located at the back of the unit.
Once the cables laid out, connect them as follows:
1 Take the 2 nuts of the motor (+)
terminal off Insert the red cable
through the rubber cover
2 Screw the nuts back on onto the red
cable and red wires crimp terminals
and the washer
3 Put the rubber cover back into
place Repeat 1 and 2 on the motor (-)
terminal with the ground black cable
and wires
4 Connect the cables to the battery or to the alternator The fuse housing with its fuse 100Amps for 24VOLTS must be
fitted on the red positive cable less than 15cm away from the crimp terminal connected to the (+) terminal of the battery
or of the alternator

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 10/21
Caution: The positive (+) cable MUST be protected by a 100Amps (24 V) fuse located as close as
possible to the power source.
Make sure that the section of the cables between the battery and the alternator is big enough for the
current required by the Skimo A/C unit (80 Amps to 90 Amps for the 24VOLTS unit) and by the other
electrical equipments of the vehicle.
5 Connect the 1-way FASTON located inside the cabin to the D+ signal from the alternator (signal indicating that the
engine is running) with a 1mm² section cable
6 Plug the ventilator connector back and fasten the Skimo A/C unit cover back on with its 6 screws and plastic washers
11. FITTING THE CABIN PANEL
1 Adjust and screw the cabin panel
bracket back on Make sure of the air-
tightness across this bracket
2 Plug the control panel connector
back on, put the cabin panel back into
place and fasten it with its 4 screws
3 The Skimo A/C unit is ready to be
used !

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 11/21
12. ELECT ICAL D AWING
Révision D

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 12/21
13 SKIMO A/C UNIT USE
The Skimo A/C unit is designed to run when the vehicle’s engine is running. If the unit is turned on
while the vehicle’s engine is off, the alternator will not feed the unit and there is a risk of battery
discharge.
The ability of the Skimo A/C unit to maintain the required temperature inside the cabin depends on the amount of
heat that penetrates inside the cabin Some preventive measures are necessary to lower the amount of heat that enters
the cabin and to improve the performances of the Skimo A/C unit:
- Park the machine or the vehicle in the shade
- Drive for a few minutes with the windows opened to lower the temperature inside the cabin before turning the
A/C unit on
- Keep the doors and windows closed while using the A/C unit
- Avoid using devices that produce heat
Operating modes:
- Once the Skimo A/C unit is installed and the vehicle’s engine is running, turn the control panel ventilation speed selector
switch to first speed to turn the unit on The first ventilation speed and the air conditioning are turned on
- Adjust the ventilation speed to 1, 2 or 3 according to your requirement with the ventilation speed selector switch
- To switch the unit off, turn the ventilation speed selector switch to 0
Switch the Skimo A/C unit off if the vehicle’s or machine’s engine runs on low speed for an extended amount of
time (for over 15 minutes) If not, there is a potential risk of battery discharge due to the fact that the alternator might
not supply enough power when the engine runs at low speed The Skimo A/C unit would turn to security mode If that
happens, refer to section 14
It is normal for the internal thermostat to regulate the A/C unit if the blowing temperature is too low, in which case
the blowers still run but the air conditioning is turned off for a while
SNDC SAS cannot be held responsible for condensation appearing on the cabin’s surfaces The air contains moisture
that tends to condensates on cold surfaces Appropriate cabin insulation can prevent or lover the risks of condensation
14 EPAI S
If the A/C circuit hasn’t got the correct amount of gas, the performances of the A/C system will lower If it seems
that your Skimo A/C unit doesn’t work properly, you should take it to an A/C specialist
Never try to repair faults by your own means. epair and recharge of an A/C circuit must be carried
out by a specialist that is qualified, certified, equipped with necessary tools and that will use original spare
parts.
If one of the security systems is activated, the air conditioning system is turned off (no more cold
production) and the default light is switched on on the control panel
To reset the Skimo A/C unit after a security cut off, turn it off and on again A security cut off should
not be a recurring feature In the case of repeated cut offs, contact your qualified specialist

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 13/21
Error codes:
Error code Failure epair required
1 blink Overheating of the electrical motor The
temperature of the motor went over 113°C
The unit can be reset by switching it off and
on again only once the motor’s temperature
is lower than 109°C
Check that the air way cooling the electrical motor
is not clogged up
To be done by an A/C specialist:
Check that the A/C circuit hasn’t got too
much gas 134a.
2 blink The battery is flat The tension of the battery
went lower than 18V (for a 24V unit)
Check that the battery gets charged up properly
and that the alternator is powerful enough Check
that the vehicle’s engine doesn’t run at low speed
for extended periods of time (over 15 minutes)
3 blink Over consumption of the electrical motor Check the power consumption of the Skimo A/C
unit
To be done by an A/C specialist:
Check that the A/C circuit hasn’t got too
much gas 134a.
6 blink Low voltage The tension of the battery went
lower than 20V (for a 24V unit)
Check that the battery gets charged up properly
and that the alternator is powerful enough Check
that the vehicle’s engine doesn’t run at low speed
for extended periods of time (over 15 minutes)
Light on
continuously
A/C system gas low pressure The pressure
switch is activated for a pressure lower than
2 bars in the high pressure part of the circuit
in case of the quantity of gas being too low
(caused by a leak for example)
To be done by an A/C specialist:
Check the airtightness of the A/C circuit
and recharge with 134a gas.
Light AND
electrical motor
on and off
A/C system gas high pressure The pressure
switch is activated for a pressure higher than
14 bars in the high pressure part of the
circuit
Check that the condenser is not clogged up
To be done by an A/C specialist:
Check that the A/C circuit hasn’t got too
much gas 134a.
Light not on but
unit not working
The Skimo A/C is not working properly but
the default light is not switched on This can
be due to an electrical problem
Check that the default LED light works properly
Check the fuses, the relays, the electrical harness,
the connectors and the electrical connection
between the Skimo unit and the vehicle or the
machine
There are two other security systems on the Skimo A/C unit:
Compressor security: The compressor is equipped with a security pressure valve to protect the system in case of a
pressure switch failure
Machine security: The Skimo A/C unit is equipped with a sensor that disables the Skimo A/C unit if the cover is opened
Use only original spare parts.

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 14/21
15 MAINTENANCE
The Skimo A/C unit must be maintained and cleaned up regularly from dust, vegetal or other wastes
or combustibles to avoid risks of fire.
The frequencies listed below are for reference only. The maintenance must be done more frequently if the
working environment can lead to clogging up, premature wear or deterioration of some parts.
The SKIMO A/C unit contains parts that are moving that can present a danger. Never disable the
security features. Always turn the unit and the vehicle off before opening the cover or taking the cabin
panel off.
Switch the unit off before any maintenance.
Every 50 hours:
Clean the dust filter
Check the condenser, the ventilator, the main casing Clean if necessary
In winter:
Turn the Skimo A/C unit on once a week even for a short time (1 minute) to guarantee the lubrication of the seals inside
the A/C circuit
Every 200 hours:
Check the motor-compressor belt tension:
Tension too high: Risk of premature wear of the compressor bearings
Tension too low: Risk of premature belt wear
Replace the air filter (SNDC Ref 700A70)
Check that the water drain holes in the main casing and in the evaporator casing are not clogged up
Every two years: (To be done by an A/C specialist)
Clean the condenser and the evaporator coils Clean the water drain holes in the main casing and in the evaporator
casing
Recover the A/C circuit gas and replace the receiver dryer (SNDC Ref 225A13)
Replace the evaporator foam (SNDC Ref 281G46)
Check the A/C circuit air tightness
Recharge the circuit and check the thermostat and the pressure switch
Check the oil level
Check the cover fastening screws and clip nuts
Every five years or 2000 hours: (To be done by an A/C specialist)
Check and tighten all the screws and nuts
Replace the motor-compressor belt
Replace the cover fastening clip nuts

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 15/21

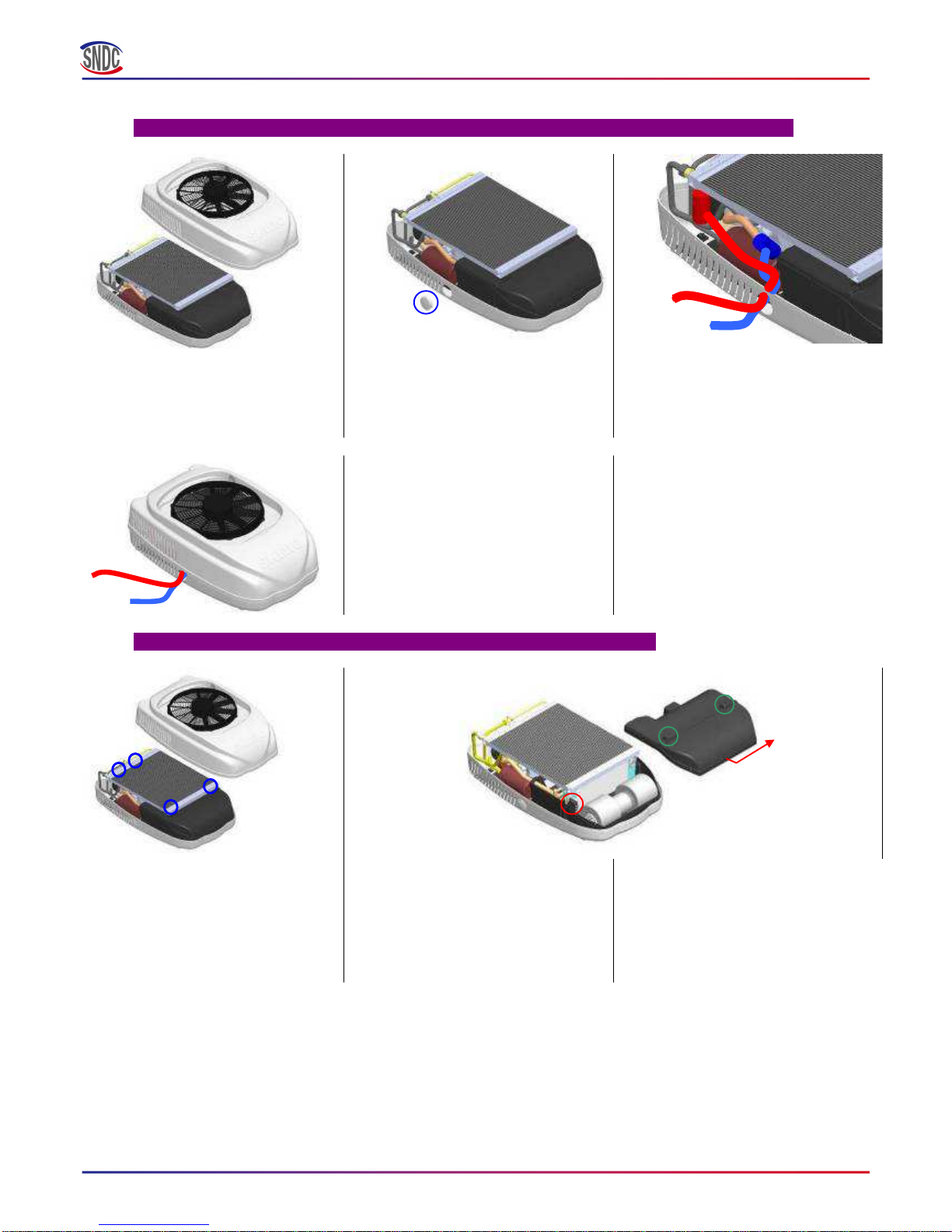

15 a To plug the service centre hoses (to check pressures, recover the gas, charge the A/C system…):
1 Remove the 6 fastening screws of
the unit cover, lift the cover and
unplug the ventilator connector
2 Remove the maintenance access
plug circled in blue
3 Unscrew the A/C service centre
hoses couplers, pull the hoses through
the maintenance access hole, and
screw the couplers back on Connect
the couplers on the pressure ports
4 Plug the ventilator connector back
on and put the cover back into place
The unit can be turned on to check the
pressures
5 Once the pressure check completed,
remove the service centre hoses, put
the maintenance access plug back into
place, plug the ventilator connector
back on and screw the cover back on
15 b To access the evaporator casing without recovering the gas of the A/C unit:
1 Remove the 6 fastening screws of
the unit cover, lift the cover and
unplug the ventilator connector
Remove the 4 condenser fastening
screws (circled in blue)
2 Remove the 6 fastening screws of
the evaporator casing cover Lift
slightly the front of the condenser,
bring the cover forward to free the
condenser supports (circled in green),
and slide the cover to the side
3 You can access to the thermostat
(circled in red), to the blower and to
the evaporator
4 Once the repair is completed,
assemble and screw all the parts back
on

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 16/21
15 c To replace the receiver dryer and the evaporator foam:
1 Remove the cover and recover the
A/C unit gas (see section 15 a)
2 Remove the 4 condenser fastening
screws, disconnect the 2 A/C pipes
connected to the condenser, and
remove the condenser
3 Remove the 6 fastening screws of
the evaporator casing cover and
remove the cover
4 Take the receiver dryer fastening
screw off (circled in blue), and
disconnect the receiver drier connector
on the expansion valve side (circled in
red) Remove the compressor flange
and the compressor-condenser pipe,
and remove the receiver dryer
5 Remove the receiver dryer-
condenser pipe and the pressure
switch from the used receiver dryer
and fit them to the new receiver dryer
6 Lift the evaporator and change the
evaporator foam Put the evaporator
back into place
7 Assemble all the parts back in
reverse order (steps 4 to 2) Charge
the A/C system and test it (section
15 a)

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 17/21
16 EXPLODED VIEW AND SPA E PA TS LIST

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 18/21
Item 24 VOLTS Description Qty
1 260A24 Ventilator 1
2 560C11 Unit cover 1
3 296A34 Condenser 1
4 560C15 Frame 1
5 560C10 Unit casing 1
6a 267A02 Mini relay 2
6b 267A06 Relay 1
7 281G31 Cabin panel bracket insulation foam 1
8 560C22 Cabin panel bracket (adjustable) 1
9 540C46 Seal foam 1
10 370D57 Maintenance hole plug 1
11 560C09 Compressor-condenser A/C pipe 1
12 560C26 Compressor bracket 1
13 225A13 Receiver dryer filter 1
14 560C16 Electric motor bracket 1
15 264A59 Pressure switch 1
16 242C38 Compressor flange 1
17 560C08 Receiver dryer-condenser A/C pipe 1
18 200H05 Compressor 1
19 219B87 Motor-compressor belt 1
20a 560C53 Motor pulley 1
20b 620A82 Headless pulley screw 1
21 560C17 Condenser bracket 1
22a 540F78 Electric motor with feather key 1
22b 510C67 Feather key alone 8x27mm 1
23 273A25 Grommet DG21 2
30 Evaporator assembly
31 560C13 Evaporator casing cover 1
32a 281G46 Evaporator foam 1
32b 540A59 Hooks for evaporator foam 8
33 261A26 Blower 1
34 265A37 Thermostat 1
35 273A25 Grommet DG21 2
36 281G22 Left insulation foam 1
37 560C12 Evaporator casing 1
38 281G19 Blowing insulation foam 1
39 281G21 Right insulating foam 1
40 281G20 Air intake insulating foam 1
41 273D10 Grommet DG M40 2
42 281D75 MF08 type seal 0 36m
43 268A01-22 Fuse 3A,15A,7 5A -
44 250A16 Expansion valve 1
45 560C20 Fuse bracket 1
46 294C74 Evaporator 1
47 281G23 Evaporator casing cover insulating foam 1
50 540F81 Cabin panel assembly
51 560C14 Cabin panel 1
52 370D43 Control panel adhesive display 1
53 273D23 Fault signal LED 1
54 273D24 LED support 1
55 370D44 Control panel 1
56 370C44 Adjustable air louver 3
57a 560C19 Air filter access grid 1
57b 690A86 Air filter access grid black plastic screws 3
58 700A70 Air filter 1
59 370B32 Air louver support 3
- 274B54/274C02
Main electrical harness 1
- 274B55 Control panel electrical harness 1
- 690A81 Cover fastening clip nuts 12
- 690A85 Plastic Washer 6

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 19/21
Can be changed by the end
-
user
Maintenance by a qualified technician
Maintenance by an A/C qualified technician
eplacement frequency
Item
24
VOLTS
Description
Qty
(for reference)
1
260A24
X
Ventilator
1
2
560C11
X
Unit cover
1
3
296A34
X
X
Condenser
1
4
560C15
N/A
N/A
N/A
Frame
1
5
560C10
N/A
N/A
N/A
Unit casing
1
6a
267A02
X
Mini relay
2
6b
267A06
X
Relay
1
7
281G31
X
Cabin panel bracket insulation foam
1
8
560C22
X
Cabin panel bracket (adjustable)
1
9
540C46
X
Seal foam
1
10
370D57
X
Maintenance hole plug
1
11
560C09
X
X
Compres
sor
-
condenser A/C pipe
1
12
560C26
X
X
Compressor bracket
1
13
225A13
X
X
Receiver dryer filter
1
2 years
14
510C70
X
X
Electric motor bracket
1
15
264A59
X
X
Pressure switch
1
16
242C38
X
X
Compres
sor flange
1
17
560C08
X
X
Receiver dryer
-
condenser A/C pipe
1
18
200H05
X
X
Compressor
1
19
219B
87
X
Motor
-
compressor belt
1
5 years/2000h
20
560C
53
X
Motor pulley
1
21
560C17
X
Condenser bra
cket
1
22a
540F7
8
X
X
Electric motor with feather key
1
22b
510C67
X
Feather key alone
8X27mm
1
23
273A25
X
Grommet DG21
2
30
N/A
N/A
N/A
Evaporator assembly
31
560C13
X
Evaporator casing cover
1
32
a
281G46
X
X
Evaporator foam
1
2 years
32b
540A59
X
X
Hooks for evaporator foam
8
33
261A26
X
Blower
1
34
265A37
X
X
Thermostat
1
35
273A25
X
Grommet DG21
2
36
281G22
X
Left insulatio
n foam
1
37
560C12
N/A
N/A
N/A
Evaporator casing
1
38
281G19
X
Blowing insulation foam
1
39
281G21
X
Right insulating foam
1
40
281G20
X
Air intake insulating foam
1
41
273D10
X
X
Grommet DG
M40
2
42
281D75
X
MF08 type seal
0 36m
43
268A01
-
22
X
Fuse 3A,
15A, 7 5A
-
44
250A16
X
X
Expansion valve
1
45
560C20
X
Fuse bracket
1
46
294C74
X
X
Evaporator
1
47
2
81G23
X
Evaporator casing cover insulating foam
1
50
540F81
X
Cabin panel assembly
51
560C14
N/A
N/A
N/A
Cabin panel
1
52
370D43
X
Control panel adhesive display
1
53
273D23
X
Fault signal LED
1
54
273D24
X
LED support
1
55
370D44
X
Control panel
1
56
370C44
X
Adjustable air louver
3
57a
560C19
X
Air filter access grid
1
57b
690A86
X
Air filter access grid black plastic screws
3
58
700A70
X
Air filter
1
200hours
59
370B32
X
Air louver support
3
-
274B54/274C02
X
Main electrical harness
1
-
274B55
X
Control panel electrical harness
1
-
690A81
X
Cover fastening clip nuts
12
5 years
-
690A85
X
Plastic Washer
6

SKIMO B PLUS 1KW 24V – AIR CONDITIONING UNIT
CODE PRODUIT : 320B21
INSTALLATION, USER AND MAINTENANCE MANUAL
Page 20/21
17 APPENDIX
evisions:
Version Date Objet
1 24/10/2014 Création -
Conformity statment:
