SKY DEVICES SKY Watch User manual

Please read the manual before use.
The information in this document won't be modified or
extended if without any notice.
The watch should be charged 2 hours at least before use.
1. Product specs
Model: Sky Watch
2G GSM/GPRS 850/900/1800/1900 with micro SIM
CPU MTK2502C ARM7 260MHz
Memory: RAM 16MB+ ROM 8MB, support micro SD up to 32GB
Capacitive touch IPS screen 1.54” 240*240 pixel
Bluetooth®3.0/4.0
Camera 0.3MP
Function: mobile phone, SMS, anti-lost, alarm, music player,
camera, video player, pedometer, sleep monitor, sedentary reminder,
Information notification (G-mail, Facebook, and so on)
Battery Lithium-ion 3.7V 300mAh
2. Product details:

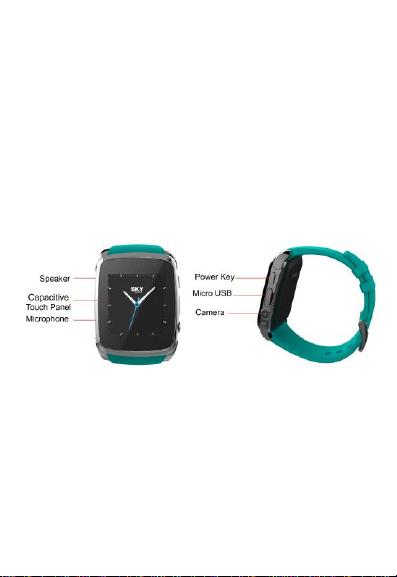

2.1 Product details
Power button: Power On/Off；Awake/turn off screen；Back to main
menu
Touch screen: each function (main menu) will be shown and
displayed on capacitive touch screen.

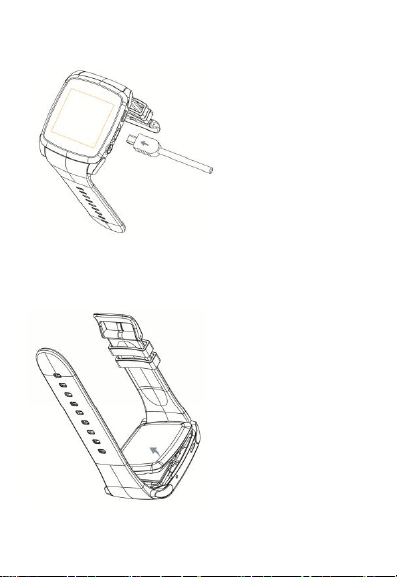

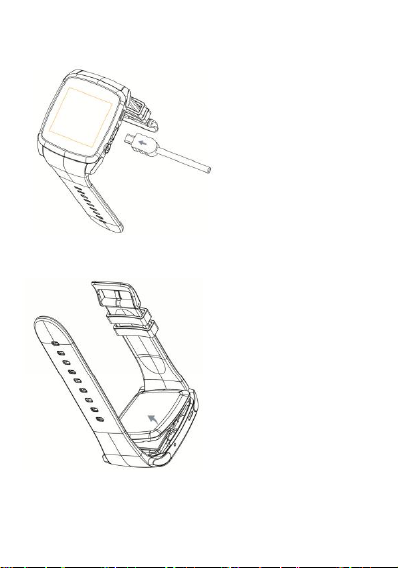

USB port: Charging/Data；

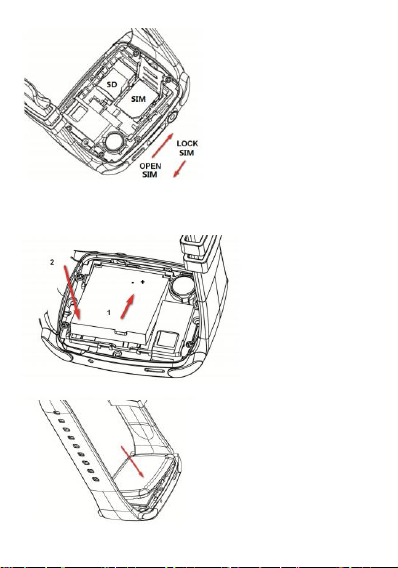

SD and SIM: Install micro SD card and micro SIM card

Install battery

2.2 Products quick guide
You can enter into next page by sliding screen up, and return to last
page by sliding screen down; enter into the sub-menu after clicking on the
selected menu, and return to upper menu after sliding from left to right. It
is important to drag the screen enough, to differentiate from a click
function.

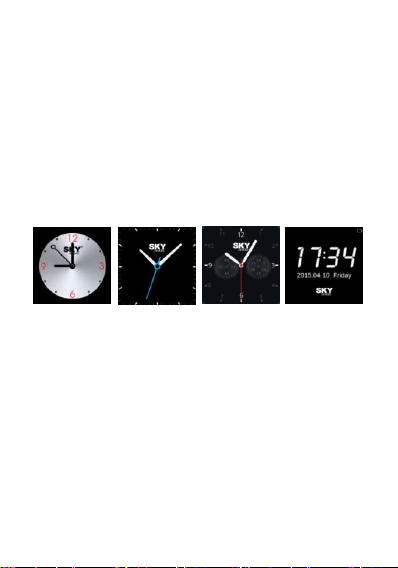

2.3 Clock Display
Setting method：
Method 1: Power on, when the phone in clock mode, long press middle
screen and set different clock interfaces.
Method 2: Power on, Main menu: Settings--Clock—Clock type, choose the
clock mode you prefer.

3. Product quick use
3.1 Download and install the App

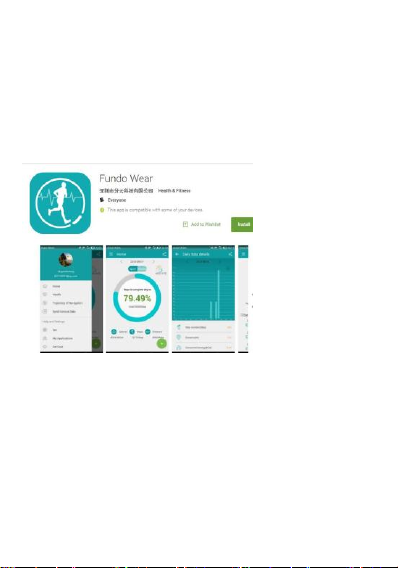

You have to download and install the "Fundo Wear" App fromAPP Store or
Google Play Store; Open the App and register account.
3.2 Connection and Synchronize data
3.2.1 Bluetooth®wireless connection
Connect your phone and SKY Watch via Bluetooth®, there are two steps to
connect SKY Watch with phone:

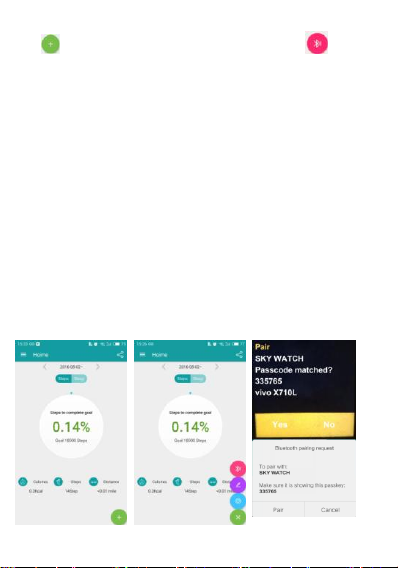

Step 1. you can go mobile phone open the Fundo Wear APP, select the green

icon from the App Home page, select the Bluetooth® icon , click “Start
Search”to connect SKY Watch to the App, click pair to connect (Remark: you can
go watch Setting-About to check the Device address to find the right model to
connect, just for Android).
Step 2. you also can go SKY Watch BT connection-search new device to find
your mobile phone BT to connect.
Remark: For Android phone, you only need to do step 1, iphone you have to do
both steps above)
When connecting with SKY Watch you can see Bluetooth®name and pairing
code in both watch and smartphone as below (just for Android )

After above steps, the connection is finished, you can find the Bluetooth®
wireless connection icon on watch top left corner will show green+blue color like
this if not, pls follow above step again.
After connected, on app home page, you can click icon to edit the SKY
Watch Bluetooth® name, click icon to find your watch.
Notice: When you click pair to connect, mobile phone will show “Phone book
request”, pls click yes to ensure call functions works well.
3.2.2 Pedometer
Go SKY Watch and open the Pedometer Click "Start" and you can start
walking.

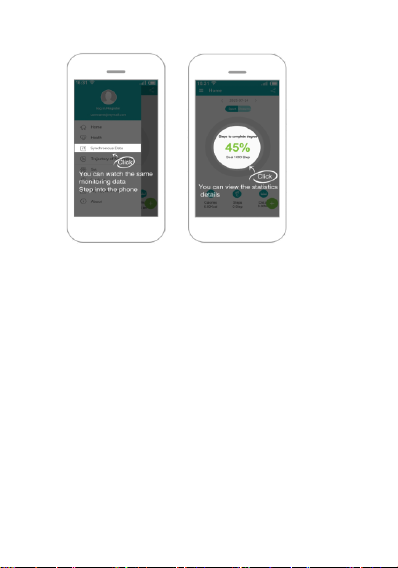

3.2.3 Sync data
When you finish walking, click "Stop" on SKY Watch, and go app press "Sync
Data" then you can check the Step, Calorie, Distance data on app.

3.3 Enable Notifications
It will allow SKY Watch to send you notifications from apps which you
installed on your iPhone or Android device.
For example: if you want your E-mail notifications send to SKY Watch,
enable notifications on Fundo Wear App. When an E-mail is received, it will notify
you on watch.
(See screenshot below, only for Android, IOS no need setting)

Notice：
Please don’t shut the Bluetooth®wireless connection notify service when you
are clearing software by background or close background application software. It
will affect the sync function between watch and phone.
3.4 Incoming call
After connected SKY Watch with phone, when the call coming, the watch will ring
or vibrate depend on watch setting, but you can choose answer by phone as

follow steps:

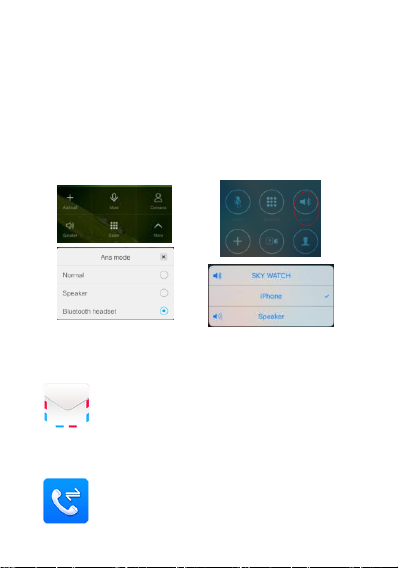

Choose answer mode on the phone, there are three modes for you: SKY WATCH
(Bluetooth ® headset ), Mobile phone earpiece(Normal), Mobile phone speaker.
Remark: The three modes name will be different in different phones.
Android: IOS:
3.5 Basic function
3.5.1Message
Sync phone or watch message.
3.5.2 Call logs

You can check your phone call records after you connected. All records
including miss call, dialed calls and received call; you can check the date, time
and phone number of the miss call after you choose it, and call this number.
3.5.3 BT connection
Paired devices from smart watch
3.5.4 Remote notifier
When there is SMS, messages like WhatsApp/Skype and others on the
connected phone, the SKY Watch will alert you to read them, not support to reply
messages on watch.
3.5.5 Remote camera
Control the SKY Watch to take photos by phone camera, iPhone need switch
the phone camera in advance.
3.5.6 Find my device
Watch seek phone.

3.5.7Setting
3.5.8 Pedometer
A tool that help you get an accurate count of your physical activity by
measuring calories burning based on collected data such as number of steps,
distance, speed, time, etc to control exercise.
If you want return to main menu but keep pedometer during the exercise,
please press the power button.
3.5.9 Sleep monitor
Show your sleep quality base on your sleep times.
3.5.10 Sedentary remind
You can set a time to remind you to exercise.

3.5.11Alarm
3.5.12 Calendar
3.5.13 Calculator
3.5.14 File manager
3.5.15 Music player
You can play music from your smartphone after connect with Bluetooth®.
3.5.16Camera
3.5.17Video recorder

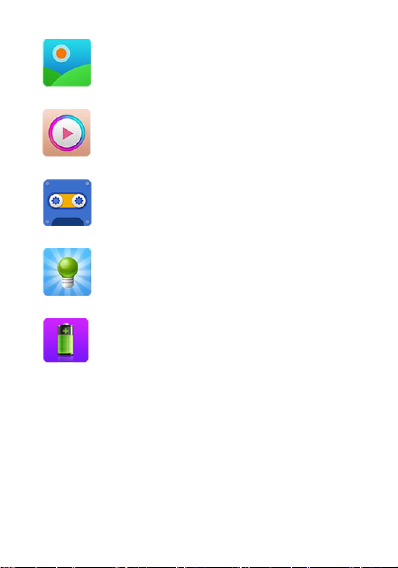

3.5.18Image viewer
3.5.19Video player
3.5.20Sound recorder
3.5.21Motion
3.5.22Power saving
4. Notice
4.1 Full charge before use, the charge time need 1-2 hours.
4.2 Use the cable and charger accessories.
4.3 Bluetooth®will disconnect when your device gets too far from the
watch, after switch on Find my device; the smart search function can’t be use
before reconnect with Bluetooth®.
4.4 Please reconnect with Bluetooth®if it’s disconnected occasionally

（please connect by manually if the Bluetooth®disconnect over 5 minutes）.
Please agree to sync the phonebook ,otherwise there is no called phonebook.
4.5 When playing the music, some of music’s name can shown and some
can’t, it is normal, because Android phone are different.
5. Common trouble shooting
Please refer below key function for any problems with SKY Watch, if the
problem is still unsolved, please contact SKY Squadron.
5.1 Unable to switch on
The time of press the power button too short, please keep it more than 3
seconds. If battery is low, charge the SKY Watch.
5.2 Automatic shutdown
Low power, please charge the SKY Watch.
5.3 Using time too short.
Battery is not full, please make sure it is full charged(2 hours at least).
During the use of SIM card, the power will be run off soon if the signal too
poor.
5.4 Unable to charge.
The battery life will be reduce after few years, please check if the battery are
workable.
Change a new charger if it is not working.
Check if the USB slot is connected well, if not, please try again.

5.5 No caller’s name when incoming call
Forgot to choose upload the phonebook when connected with Bluetooth®,
or unselected keep upload the phonebook.
Forgot to sync the phonebook when reconnected, please pair the device and
connect Bluetooth® again.
5.6 Bad phone call voice.
Watch and phone are too far from each other, please more closer ; Bad
signal of Bluetooth® .
Bad signal of your own phone call place, move to a better location for your
phone call.

Por favor, lea el manual de usuario antes de utilizar
el reloj.
La información de este documento no será
ampliada ni modificada.
El reloj deberá cargarse mínimo 2 horas antes
de usarlo.
1. Especificaciones del producto
Modelo: Reloj SKY
2G GSM/GPRS 850/900/1800/1900 con micro
SIM
CPU MTK2502C ARM7 260MHz
Memoria: 16 MB RAM + 8 MB ROM, admite
micro SD de hasta 32 GB
Pantalla táctil IPS capacitiva de 1,54" 240x240
píxeles
Bluetooth® 3.0/4.0
Cámara de 0.3MP
Funciones: teléfono móvil, SMS, anti-pérdida,

alarma, reproductor de música, cámara,
reproductor de vídeo, podómetro, monitor del
sueño, alarma de sedentarismo, notificaciones
(Gmail, Facebook, etc.)
Batería de Ion-Litio a 3,7V de 300 mAh
2. Detalles del producto
2.1 Detalles del producto
Pantalla táctil: Todas las funciones se
realizan a través de la pantalla táctil IPS.
Botón ncendido: Encender/Apagar,
activar/desactivar la pantalla, volver al menú
principal.

Puerto USB Cargar/Datos；
SD y SIM: Instalar tarjetas micro SD y micro SIM
