SLE AEDI WASH GLOBUS 16 MC User manual

BUILDING PROJECTOR
AEDI WASH GLOBUS 16 MC
User Manual
Please read the instructions carefully before use
Version 1.0

1
CONTENTS
1. SAFETY INSTRUCTION......................................................................................2
3. TECHNICAL SPECIFICATIONS........................................................................4
4. ACCESSORIES.......................................................................................................5
5. HOW TO SET THE FIXTURE.............................................................................5
5.1 CONTROL PANEL.........................................................................................5
5.2 MAIN FUNCTIONS........................................................................................6
6. HOW TO CONTROLTHE UNIT.......................................................................10
6.1 DMX controller..............................................................................................10
6.3 DMX 512 configuration.................................................................................12
8. TROUBLESHOOTING........................................................................................14
9.FIXTURE CLEANINGAND MAINTANCE......................................................15

2

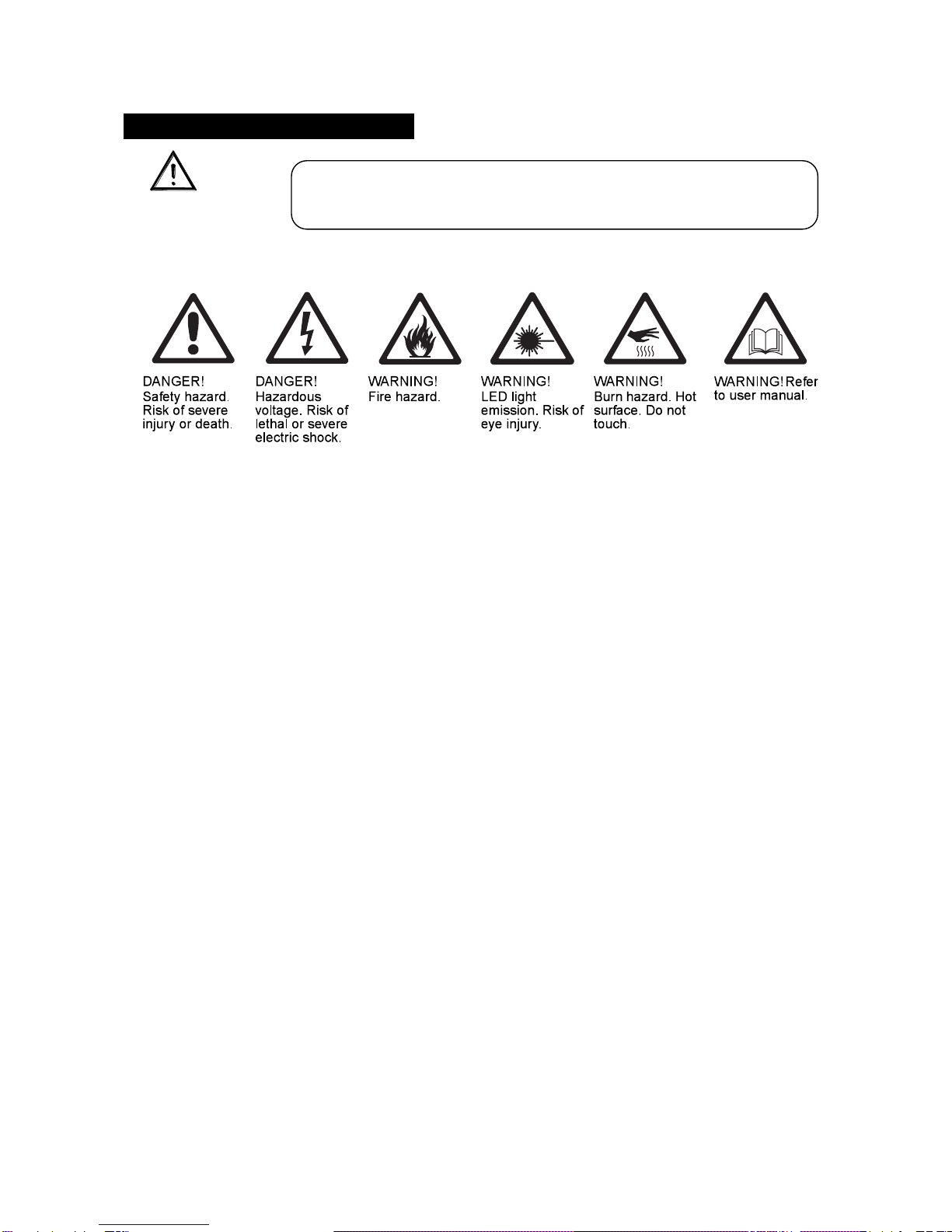

1. SAFETY INSTRUCTION
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction booklet.
Caution:
All fixtures are intact from the manufacturer, please operate follow up the user manual, artificial
fault are not under guarantee repair.
Unpack and check carefully that there is no transportation damage before using the unit per first
time.
Please install and operate by qualified technician.
Use safety chain when fixes the unit.
The unit must be installed in a location with adequate ventilation, at least 50 cm from adjacent
surfaces.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It is important to ground the yellow/green conductor to earth in order to avoid electric shock.
Maximum ambient temperature Ta: 40°C. DO NOT operate it where the temperature is higher
than this.
DO NOT connect the device to any dimmer pack.
Make sure there are no flammable materials close to the unit while operating, as it is fire
hazard.
Look over power wires carefully, replace immediately if there is any damage.
Unit surface temperature may reach up to 60°C. DO NOT touch the housing bare-hand during
its operation.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut
off the mains power immediately.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.

3
DO NOT operate in dirty and dusty environment, also cleaning fixtures regularly.
DO NOT allow children to operate the fixture.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together around other cables.
Replace fuse only with the same type.
In the event of serious operating problem, stop using the unit immediately.
The housing and the lenses must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside. Never try to repair the unit
by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical center for any service.
Disconnect the mains power if the fixture is not used for a long time.
DO use original packing materials to transport it again.
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
DO NOT look directly at the LED light beam while the fixture is on.
The manufacturer does not take responsibility if the device is operated under conditions other than
described in this manual. The product may suffer damage and the guarantee becomes void.
2.ABOUT THE PRODUCT
The stylishly modern and unassuming exterior of AEDI
WASH GLOBUS houses state-of-the-art RGBW LED
technology and made using the highest quality materials and
construction methods. Bringing the flexibility to outdoor
application, this powerful lighting fixture is ideally suited to
use in landscape and building illumination, and IP66 ensures
safe operation in even the most demanding areas. With
integral built-in AC/DC power supply of 230V AC.
If you use a 230V 50Hz power supply, DO NOT connect in series more than 20 units; use
another main supply for the next 20 fixtures.
If you use a 120V 60Hz power supply, DO NOT connect in series more than 10 units; use
another main supply for the next 10 fixtures.

4
3. TECHNICAL SPECIFICATIONS
Features:
-IP66 rated LED Spotlight with a saturated color mixing effect via lens specially designed to
provide outstanding light output.
-Proper thermal management with active cooling system and heavy duty design to ensure
reliable performance under harsh environment.
-Featuring 4pcs×10W CREE LEDs for excellent color mixing.
-With Photocell (light sensor) feature, units can light up automatically when the environment is
getting dark.
-A nice design to put diffusion filter for changing beam angles.
-LED touch-panel display for easy set-up navigation;
-It comes with great built-in shows (fade) without DMX control.
-Perfect for illumination of building façade, hotels, landscapes, theme park and more.
Mounting：
Manual Tilt Adjustable Bracket
Optical systems:
10° / 16° / 30°
Light Source:
4×10 W Multichip RGBW CREE LEDs
LED color variants:
red / green / blue / neutral white (4000°K)
Lumen Output:
> 1253 lm
Input Voltage：
100-240VAC 50/60Hz Daisy Chain System
Wiring:
Dimmable Electronic Control Gear USITT DMX 512 A
Power Consumption：
Max.45 W / Average consumption in color mixing mode 30 W
Power cable connection:
IP rated connectors
Service lifetime:
50,000 hrs / L70 /@ 25°C
Operating ambient tem:
-20°C/+40°C
Materials:
Housing: die-cast aluminum.
Cover: clear hardened glass.
IP Rating:
IP66
Dimension：
343×208×162mm
Weight：
3.8 kg
Finishing:
White aluminum. (RAL 9006)
Accessories:
DMX controllers: AEDITEMPAATTACA & AEDITEMPA LIBA

5
4. ACCESSORIES
- Power Extension Cable 1, 2, 5, 10 m.
- DMX Extension Cable 1, 2, 5, 10 m.
5. HOW TO SET THE FIXTURE

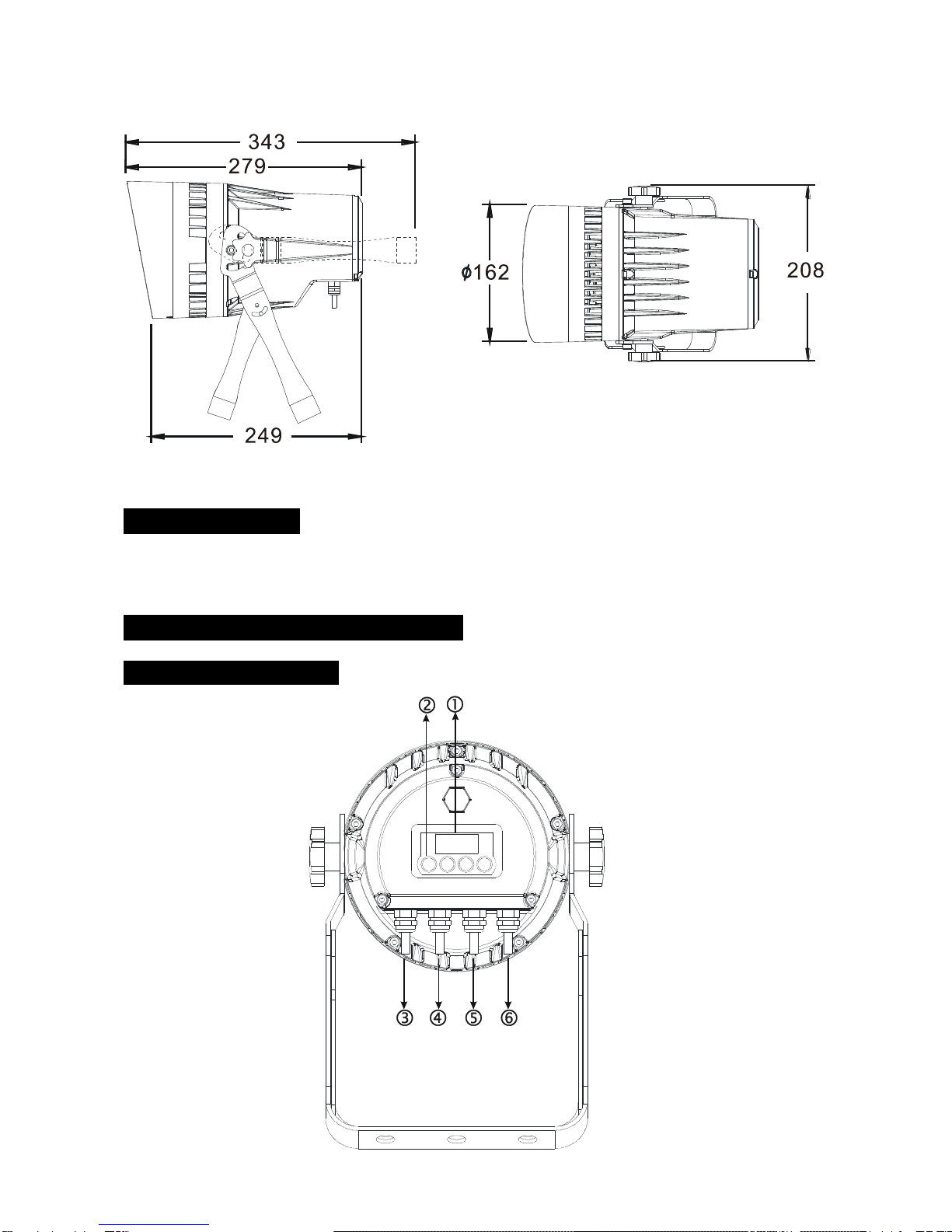

5.1 CONTROL PANEL

6
1. DISPLAY:
To show the various menus and the selected functions
2. BUTTON:
2. MENU
To select the programming functions
3. DOWN
To go backward the selected functions
4. UP
To go forward in the selected functions
5. ENTER
To confirm the selected functions
3. DMX IN:
Water proof 3-pin XLR connectors for DMX 512 operation
4. POWER IN:
Water proof connectors for power input
5. POWER OUT:
Water proof connectors for power output
6. DMX OUT:
Water proof connectors for DMX 512 operation with 3-pin XLR plug
5.2 MAIN FUNCTIONS

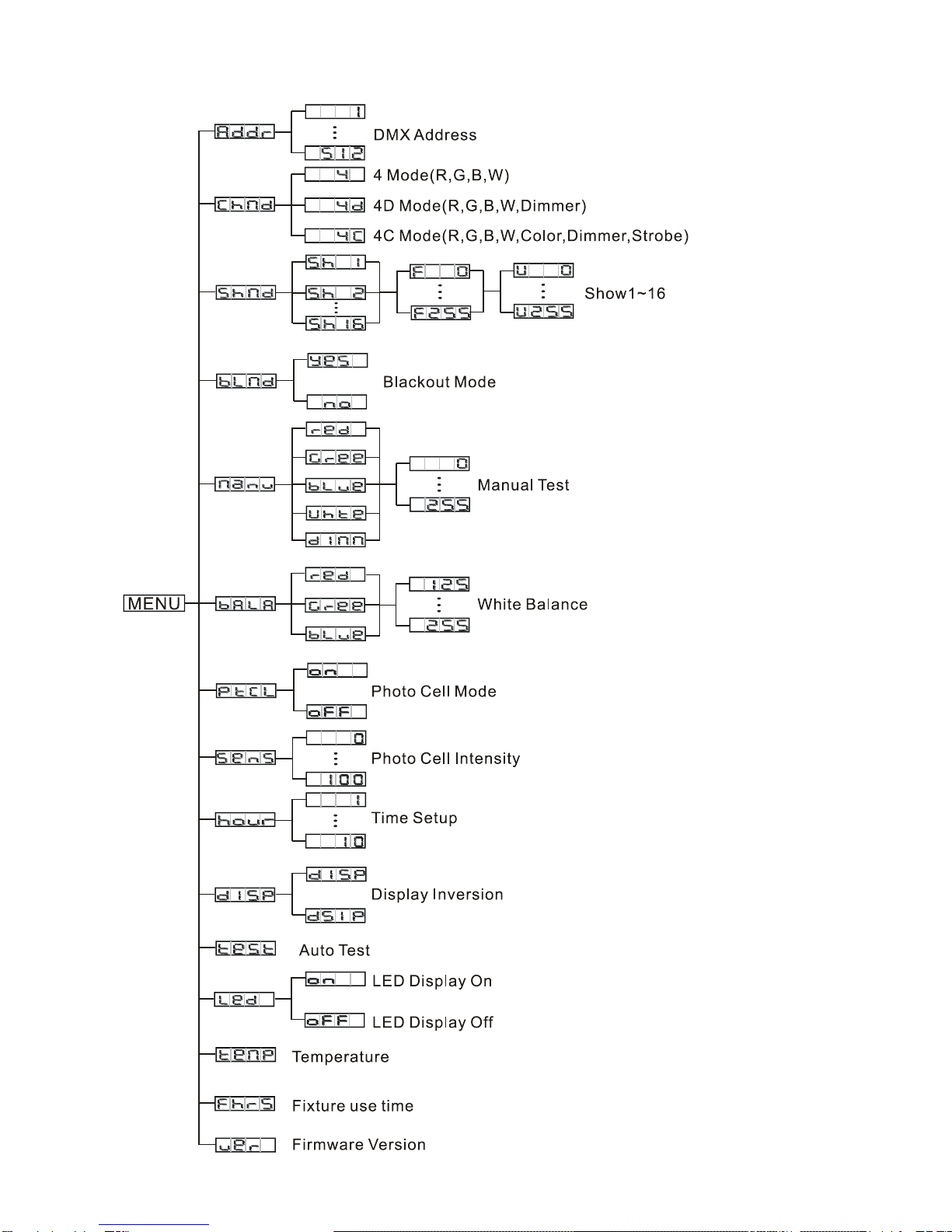

To select any functions, press the MENU button until the required one is shown on the display.
Select the function by the ENTER button and the display will blink. Use the DOWN and UP
button to change the mode. Once the required mode has been selected, press the ENTER button to
setup or it will automatically return to the main functions without any change after idling one
minute. Back to the functions without any change press the MENU button. The main functions are
shown below:

7

8

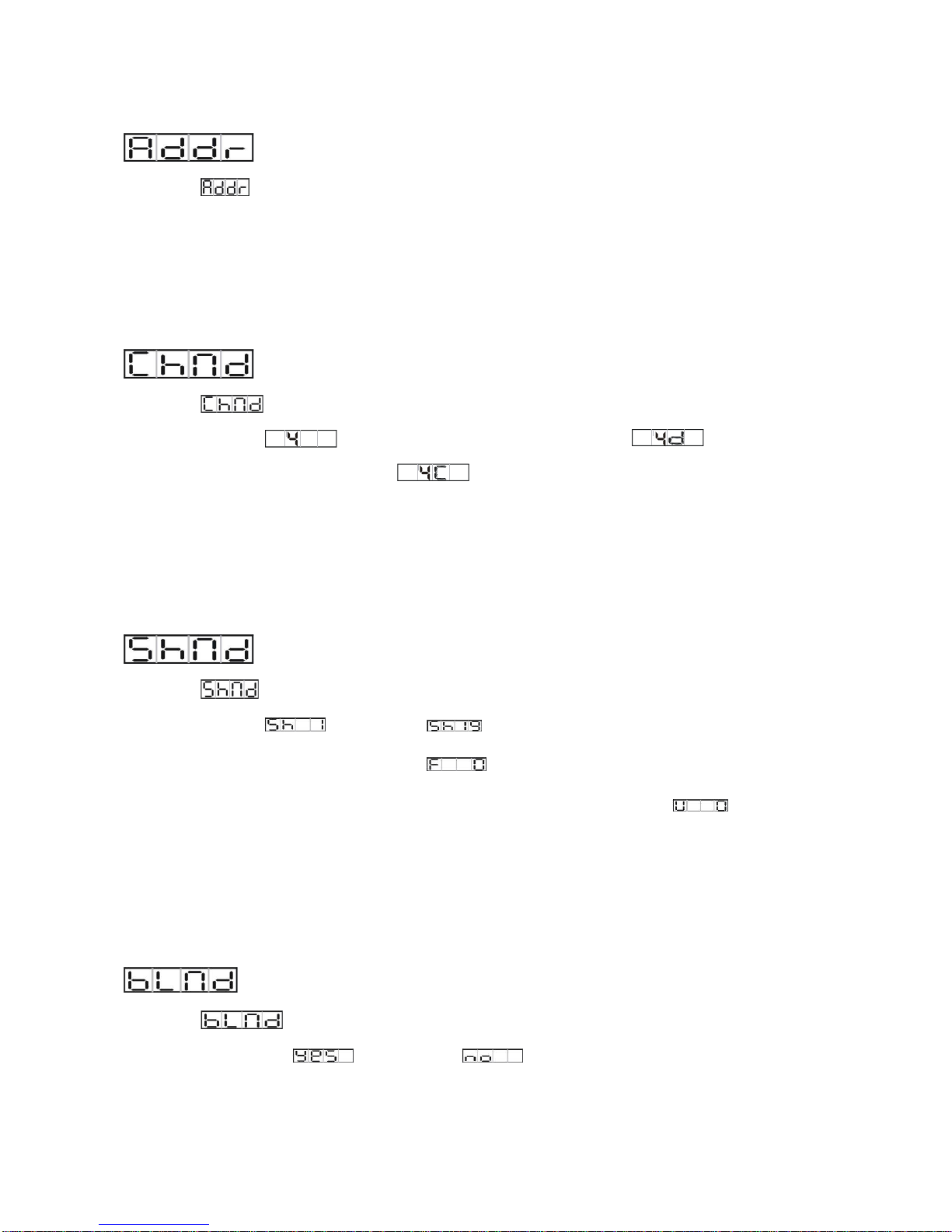

DMX 512 Address Setting
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to adjust the DMX512 address between 1 and 512. Once the address has been selected, press
the ENTER button to save or automatically exit menu mode without any change after one minute.
Back to the previous functions without any change press the MENU button.
Channel mode
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (4 Channels: Red, Green, Blue, White), (5 Channels:
Red, Green, Blue, White, Dimmer) or (7 Channels: Red, Green, Blue, White, Color,
Dimmer, Strobe) Mode. Once selected the required mode, press the ENTER button to store or
automatically exit menu mode without any change after one minute. To go back to the functions
without any change press the MENU button.
Show mode
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the (show 1)…. (show 19). Once select, press the ENTER
button to setup. press the ENTER button，will blinking on the display, use DOWN and
UP button adjust the fade time (0~255), press the ENTER button to store and will
blinking on the display, use the DOWN and UP button adjust the white time (0~255), press the
ENTER button to store or automatically return to the main functions without any change after one
minute. To go back to the previous functions without any change press the MENU button.
Blackout mode
Select the , press the ENTER button and the display will blink. Use the DOWN and
UP button to select the (blackout) or (normal). Once selected, press the
ENTER button to setup or automatically exit menu mode without any change after one minute. To

9
go back to the functions without any change press the MENU button.

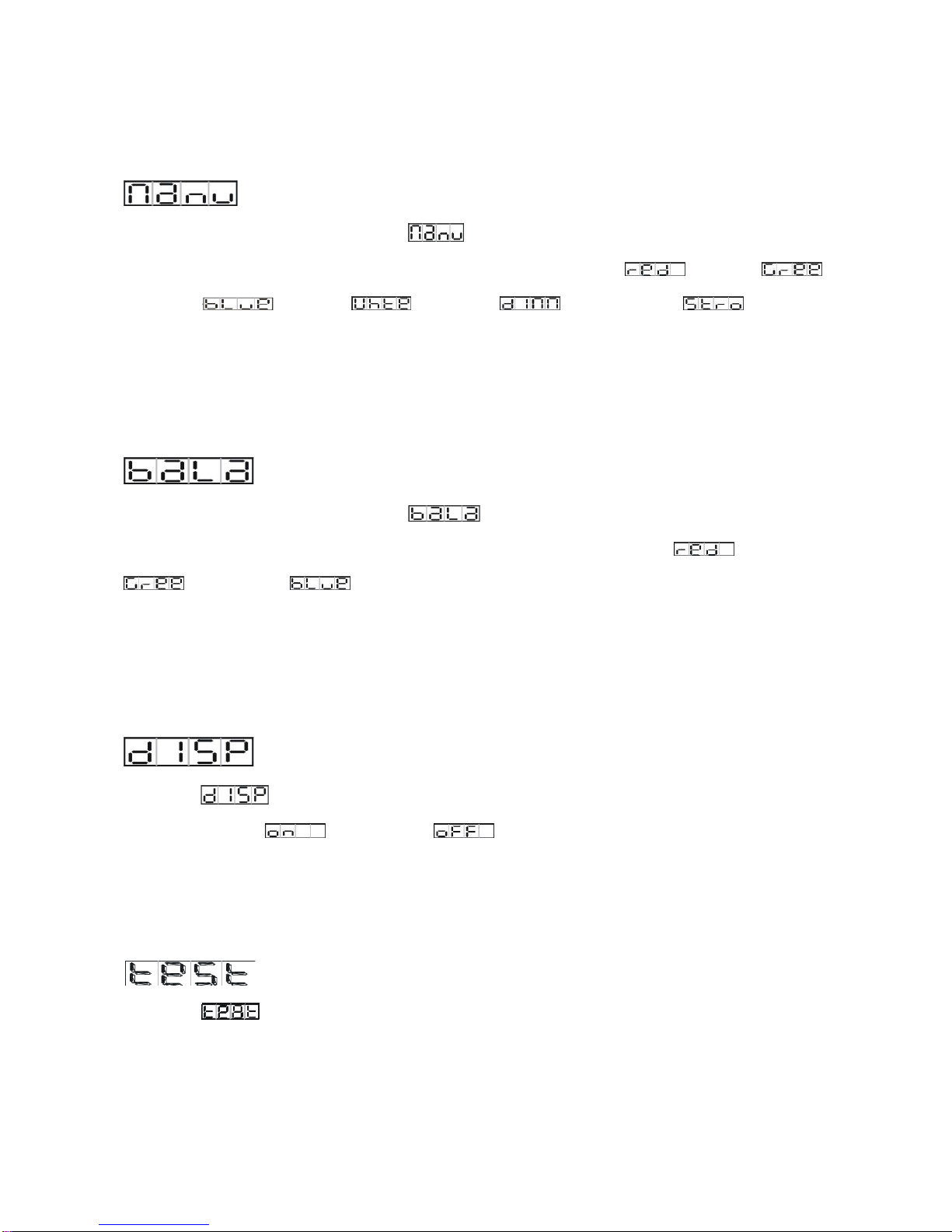

Manual Mode
Press the MENU button up to when the is shown on the display. Press the ENTER button
and the display will blink. Use the DOWN and UP button to select the （Red）,
（Green), （Blue）, （White）, （Dimmer）or （Strobe）.
Once selected, press the ENTER button to setup, then use the DOWN and UP button to adjust the
value (0~255) or automatically exit menu mode without any change after one minute. To go back to
the functions without any change press the MENU button.
White Balance
Press the MENU button up to when the is showing on the display. Pressing the ENTER
button and the display will blink. Use the DOWN and UP button to select the （Red），
（Green）， or （Blue）mode. Once the mode has been selected, press the ENTER
button to setup or automatically return to the main functions without any change after one minute.
To go back to the previous functions without any change press the MENU button.
Display Inversion
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select the （normal）or （inverse）， Once the mode has been selected,
press the ENTER button to setup or automatically return to the main functions without any change
after one minute. To go back to the previous functions without any change press the MENU button.
Auto Test
Select the , press the ENTER button and the unit will run the built-in program for self-test.
To go back to the functions press the MENU button again.

10
LED Display
Select the , press the ENTER button and the display will blink. Use the DOWN and UP
button to select （LED display on）or （LED display off 20 seconds after exit
menu）. Once select, press ENTER button to setup or exit menu mode without any change after one
minute. Back to the functions without any change press MENU button again.
Temperature
Select the , press the ENTER button and the display will show the current running
temperature of the fixture. To go back to the functions press the MENU button again.
Fixture Hours
Select the , press the ENTER button and the display will show the running time of the
fixture. To go back to the functions press the MENU button.
Firmware version
Select the , press the ENTER button and the display will show the version of software of
the fixture. To go back to the functions press the MENU button again.
6. HOW TO CONTROL THE UNIT
You can operate the unit by DMX controller:
No need to turn the unit off when you change the DMX address, as new DMX address setting will
be affected at once. Every time you turn the unit on, it will show on the display.After
that the unit will be ready to receive DMX signal or run the built in programs.
6.1 DMX Controller
Use universal DMX controller to control the units, you have to set DMX address from 1 to 512
channel so that the units can receive DMX signal.
Press the MENU button up to when the is showing on the display. Pressing ENTER button

11
and the display will blink. Use DOWN and UP button to change the DMX512 address. Once the
address has been selected, press and keep ENTER button pressed up to when the display stops
blinking or storing automatically 8 seconds later. To go back to the functions without any change
press the MENU button again
Please refer to the following diagram to address your DMX512 channel for the first 4 units：

12
6.3 DMX 512 Configuration

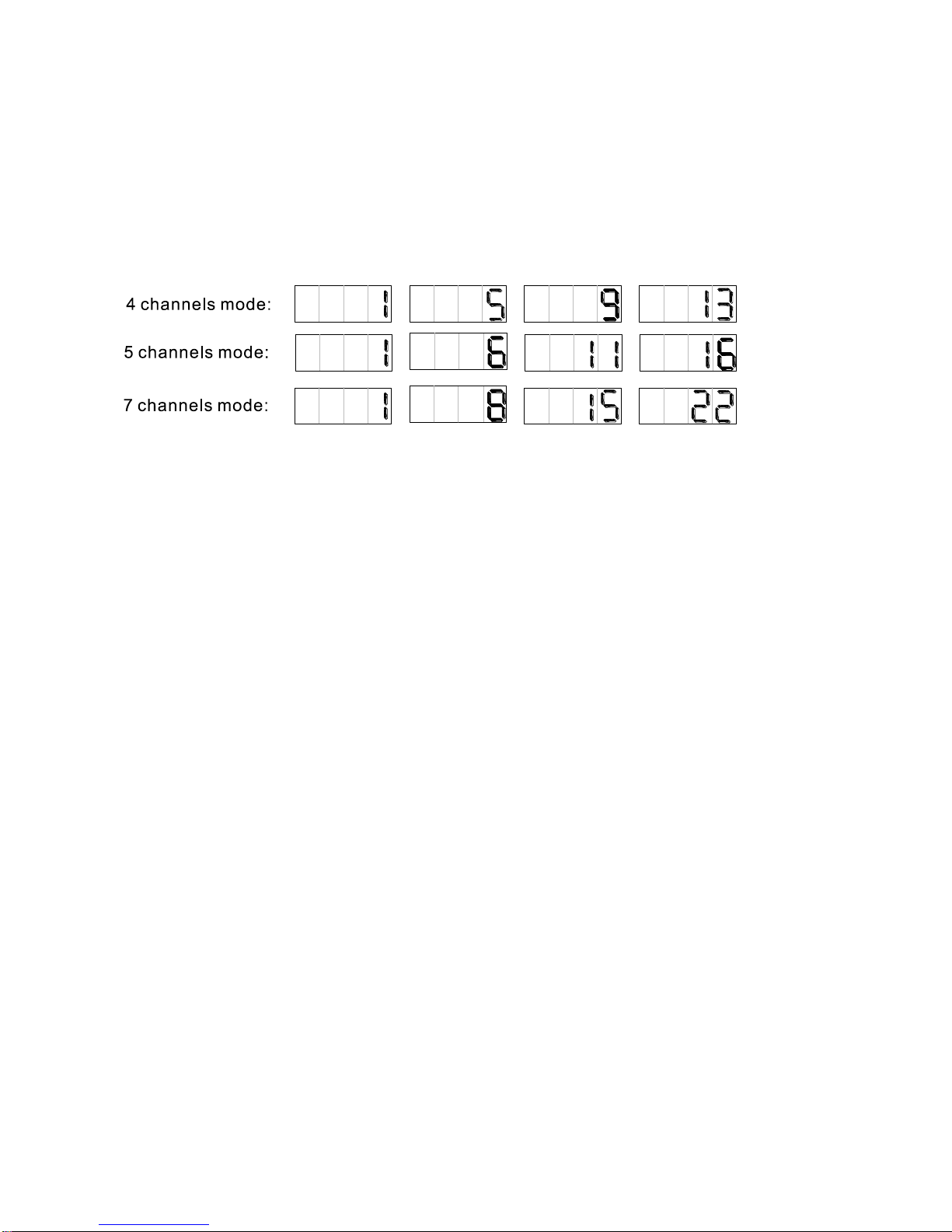

4/5/7 Channels Mode:

13

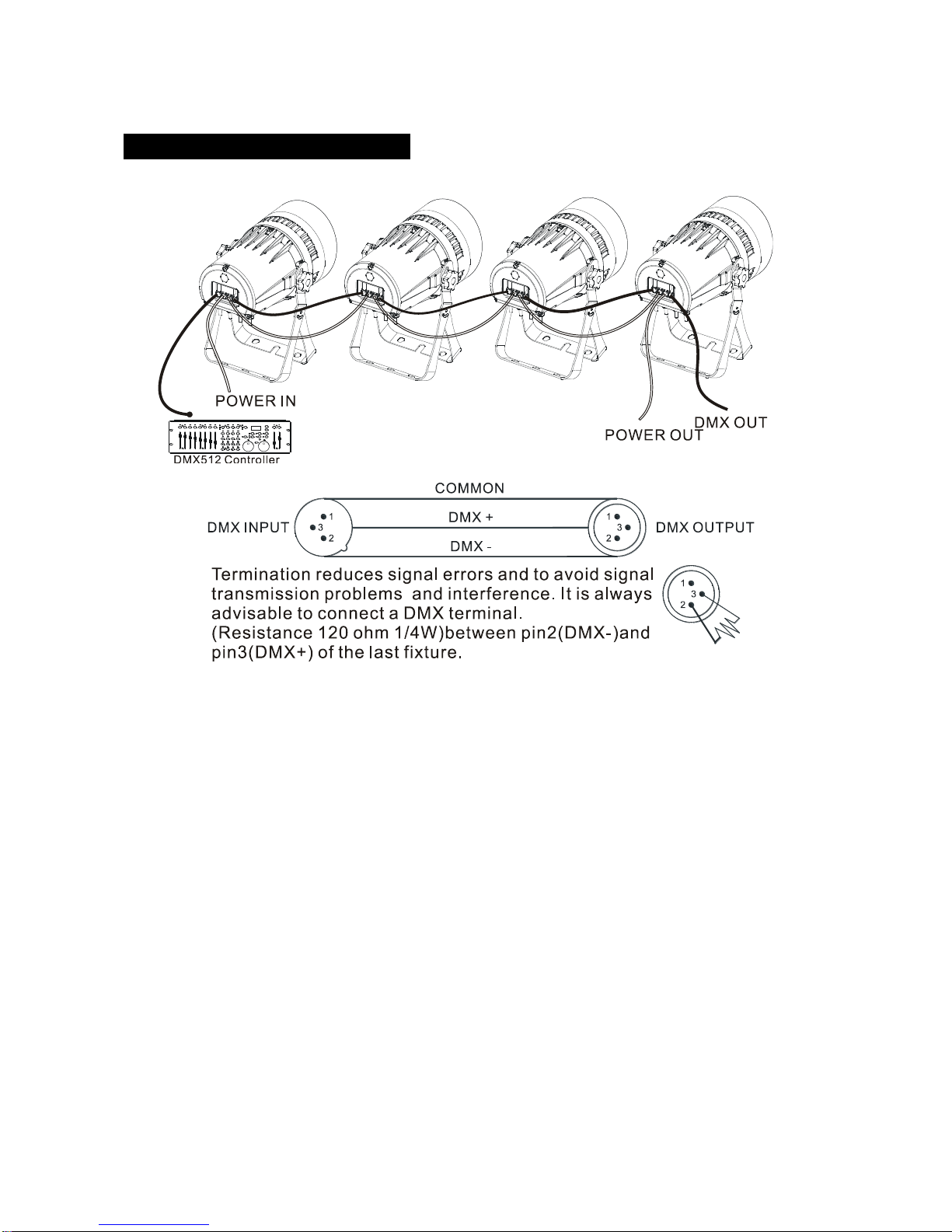

7. DMX512 CONNECTIONS
1. If you use a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.
2. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the
input of the next unit. The cable cannot branched or split to a `Y` cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when
one of the units’ powers is disconnected.
4. Each lighting unit needs to have an address set to receive the data sent by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin 4/Pin 5: Not

14
used.
8. TROUBLESHOOTING
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
Problem
Possible Cause
Action
The unit does not work, no light.
Incorrect power cable
connection.
Check the connection of power.
Incorrect mains voltage.
Measure the mains voltage
on the main connector.
The unit does not respond
properly to the DMX control.
Incorrect DMX cable
connection.
Check DMX connectors and
cables to see if link properly.
Repair or replace damaged wires.
Incorrect address assignment to
the units.
Check the addresses of the units
and the protocol settings.
Unfinished data connection.
Insert a terminal plug in the
output jack of the last unit of the
connection.
It has been set up an operating
mode different from the DMX
mode used.
Check the operating mode set up.
Try to use another DMX
controller.

15
9.FIXTURE CLEANING AND MAINTANCE
The cleaning must be carried out periodically to optimize light output. Cleaning frequency depends
on the environment in which the fixture operates: moist, smoky or particularly dirty surrounding
can cause greater accumulation of dirt on the fixture.
Clean with lint-free cloth using normal glass cleaning liquid.
Always dry the parts carefully.
Clean the surface at least every 30 days.
Version 1.0
Specifications are subject to change without notice.

16
Declaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;
EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008.
&
Harmonized Standard
EN 60598-1:2008 + All:2009; EN 60598-2-17:1989 + A2:1991;
EN 62471:2008; EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements

17
WWW.SLEPROJECTS.COM
©2014. All specifications subject to change without notice
