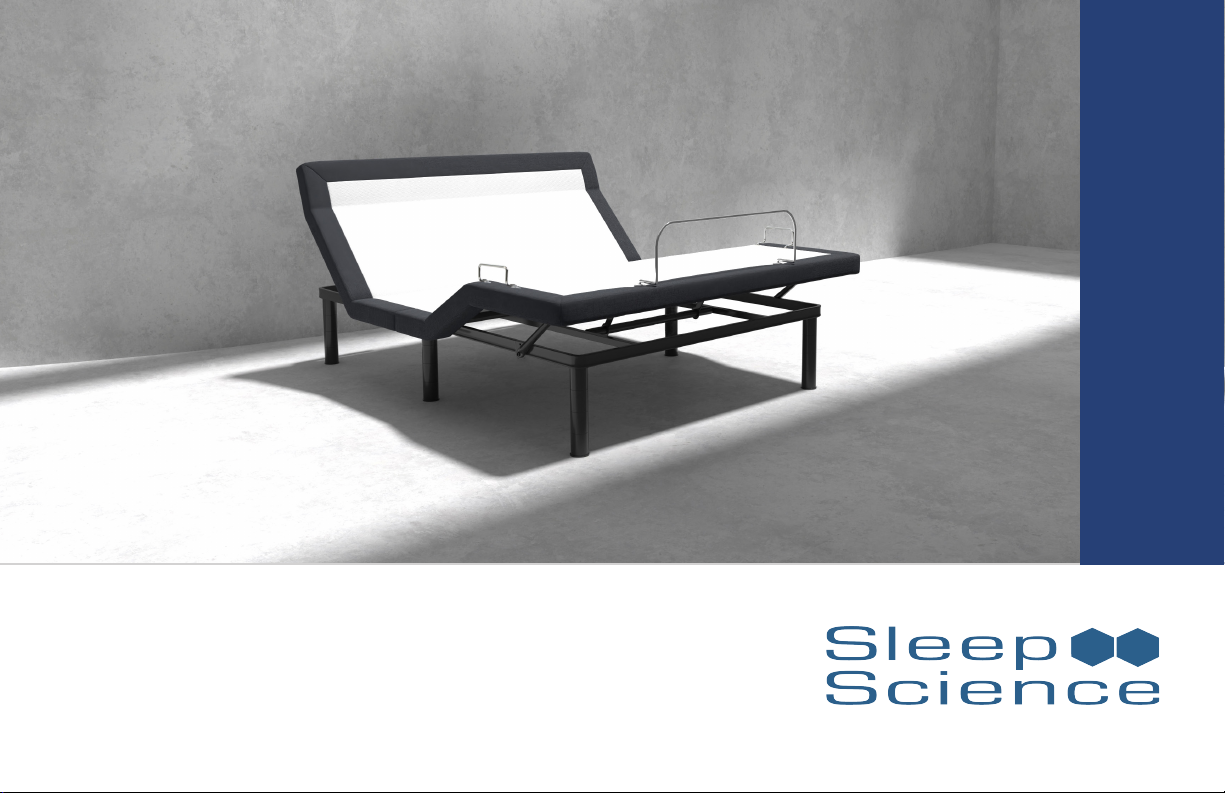

  9. Sleep Science SBKDCT2 User manual

Sleep Science SBKDCT2 User manual

SBKDCT2
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
THIS MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
SERIAL NUMBER:
ADJUSTABLE BASE USER MANUAL
CUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAYCUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAY
PAGE 2PAGE 3
TABLE OF CONTENTS
TABLE OF CONTENTS
.........................................................................................3-4
..........................................................................................................5
..........................................................................................................6-8
..............................................................................................9
...................................................................................10
...................................................................................11
...............................................................................................................12
.........................................................................................13-14
..................................................................................................15
..............................................................................................................................16
SAFETY INFORMATION
INTRODUCTION
SETUP GUIDE
CONNECTING STRAPS
SYNCHRONIZATION CABLE
VELCRO SECURING STRAPS
WARRANTY
TROUBLESHOOTING
REFERENCE GUIDE
FAQ
PLEASE READ ALL SAFETY INFORMATION AND INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLY AND USE. VIOLATING ANY SAFETY
INFORMATION WILL VOID THE WARRANTY AND MAY RESULT IN
INJURY OR DAMAGE.
SAFETY INFORMATION
Only use the adjustable base for its intended use as described in this manual. Follow
the guidelines below:
* Avoid fingers in pinch-points.
* Two adults are strongly recommended for moving and assembly.
* Plug the adjustable base into a suitable wall outlet or surge protector (not included).
* If the plug does not fit your outlet, contact a qualified electrician to install a suitable
outlet. Unauthorized modification or failure to use a proper power source or surge
protector will void the electrical portion of your warranty.
* Keep power cords away from heated surfaces.
* To safely disconnect, ensure the adjustable base is in a flat position with all motors off,
and unplug from power source.
* Unplug the adjustable base from the electrical outlet before cleaning or servicing.
* Stop using the adjustable base and contact Customer Service if the adjustable base is
not working properly, has been exposed to water, or the power cord is damaged.
* Do not place the adjustable base or any of its components near or in water.
* Do not drop or insert objects into any opening. Never operate the adjustable base
when there is an obstruction between the moving parts of the adjustable base
and the metal frame.
* Replacing parts on the adjustable base is allowed to be done by the consumer,
however, tampering with internal components will void the warranty.
* Do not use accessories/attachments that are not recommended by the manufacturer.
* Exceeding this weight limit of 750 pounds could damage the adjustable base and/or
cause injury and will void the warranty.
* Do not operate the adjustable base when a person or animal is underneath
the adjustable base.
* Mattresses may move or shift on adjustable bases – use caution.
* If the adjustable legs are utilized, all legs must be resting evenly on the floor and
installed at all 6 pre-drilled insertion points. The legs must never exceed 4 segments;
anything taller is considered unsafe and may cause damage, injury and void the
warranty.
TIPPING WARNING
Placing weight at the edge of the adjustable base may tip the adjustable base.
IN-HOME USE
The adjustable base is designed solely for in-home use. This adjustable base was not
designed as a hospital bed and is not designed to meet hospital standards. Do not use
this adjustable base with tent-type oxygen therapy equipment or near explosive gases.
OPERATION AND SUPERVISION
Close supervision is required when the adjustable base is used by or near children,
animals, convalescent or disabled persons. Immediately dispose of all packing materials
as they may pose a risk to small children and pets. To avoid injury, do not allow children
or small pets to play on or under the adjustable base.
PACEMAKERS
As with any product that produces a vibrating motion, it is possible that some
pacemakers may interpret this motion as a false sense of movement and/or exercise.
This may or may not affect your pacemaker. If you have any concerns, please consult
your physician.
SAFETY INFORMATION
SAFETY INFORMATION
SAFETY
CUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAYCUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAY
PAGE 4PAGE 5
WEIGHT LIMITS
The weight limit of the adjustable base is 750 pounds evenly distributed across the
surface. The weight limit includes the weight of the mattress and users. Exceeding this
weight limit could damage the adjustable base and/or cause injury and will void the
warranty. This product is not designed to support or lift the total maximum weight limit
by the head or the foot section only. Consumers should not enter or exit the adjustable
base with any portion of the adjustable base in the raised position; always return the
adjustable base to a flat position prior to use. If the weight limit is exceeded on the
head or foot mechanism, the master control box will stop all functions. Exceeding the
recommended weight limit restrictions could damage the adjustable base and void the
warranty.
OPERATING NOISES
The massage function emits a noticeable tone during operation. As the massage intensity
level is increased, the tone will intensify. The noise will be less audible on a carpeted floor
and more noticeable on a hard floor surface.
During typical operation, the wheels, which allow the adjustable base to articulate, will
make contact with the steel platform supports of the adjustable base, creating a contact
noise. When entering, exiting, or shifting weight on the adjustable base, this contact
noise may be audible as the wheels make contact with the steel platform supports of
the adjustable base. This is normal. Depending on the incline of the adjustable base, the
noise levels can also potentially increase.
SAFETY INFORMATION
SAFETY INFORMATION
ZERO CLEARANCE BEDFRAME REQUIREMENTS
If the legs on the adjustable base are not used, it is the consumer’s responsibility to:
* Ensure the surface or bedframe paired with the adjustable base can withstand
and support the combined weight of the mattress, users and adjustable base in a
zero clearance setup.
* Ensure the adjustable base will not slide, shift or fall off the surface or bedframe.
* Ensure the adjustable base is level and supported on all 4 corners.
* Ensure the power cord and wires are not pinched or strained.
* The consumer may need to contact the manufacturer of any furniture paired with
the adjustable base to verify if the zero clearance option is safe.
FCC COMPLIANCE
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
To comply with the FCC RF exposure compliance requirements, no change to the
antenna or the device is permitted. Any change to the antenna or the device could
result in the device exceeding the RF exposure requirements and void user’s authority
to operate the device.
Radio Frequency: 2.4 GHz
SAFETY
FEATURES
* Wireless Remote
* Head up/down
* Foot up/down
* Pillow Tilt up/down
* Flat Position Preset
* Zero Gravity Preset
* Anti-snore Preset
* TV Lounge Preset
* Memory Button
* Dual or isolated massage massage at the head and/or foot with three
intensities and a timer for 10, 20, or 30 minute intervals.
* Bluetooth
* Mattress Retainer Bar
* Side Retainer Bars
* Emergency Battery Strip
TWIN XL/CKS SIZES ONLY
* Connecting Straps: prevents two adjustable bases from drifting apart if used without a
bedframe.
* Synchronization Cable: to synchronize two adjustable bases in movement and
features.
* Velcro Securing Straps: for zero clearance applications to secure the adjustable base
to a bedframe slat system.
INTRODUCTION
INTRODUCTION

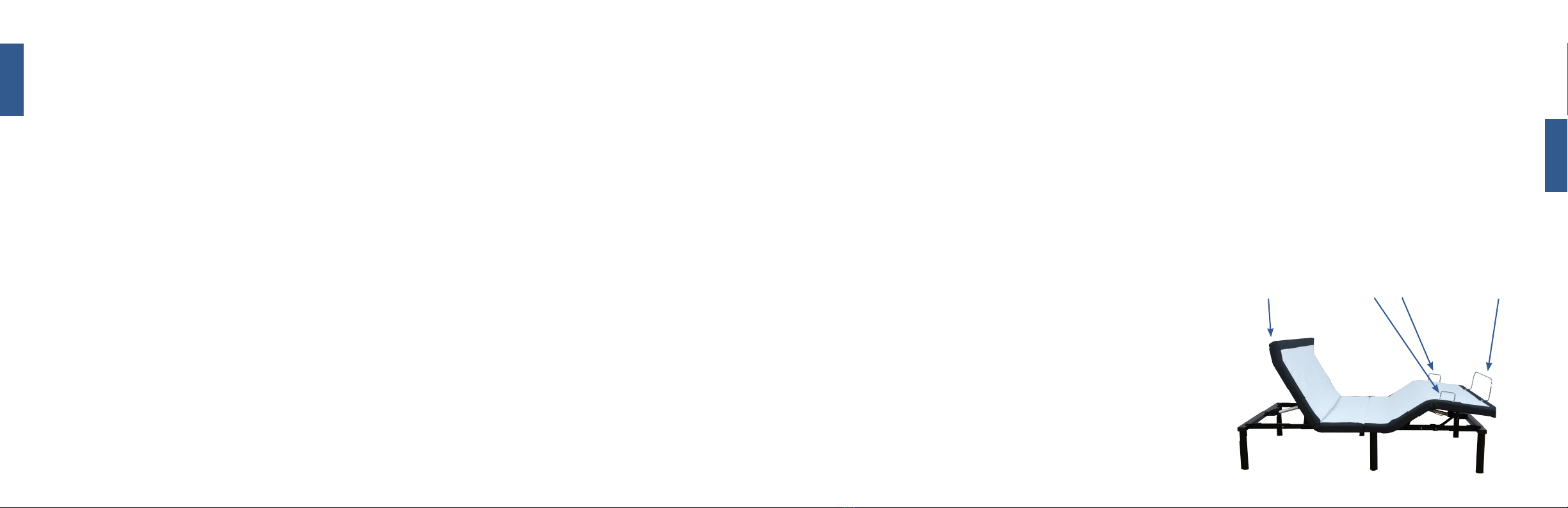

Mattress Retainer BarSide Retainer BarsPillow Tilt
CAPABILITIES
* Zero Clearance: designed to sit on top of a flat surface or compatible bed
frame, without the use of legs.
* Weight limit: 750 lbs. including the mattress and users.
* Adjustable bases can be used:
* Within a bedframe with or without slats
* On top of a platform bedframe
* As a standalone bed
INTRODUCTION
CUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAYCUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAY
PAGE 6PAGE 7
SETUP GUIDE
OPEN AND UNPACK
Lay the box flat, open the box and unpack the list of components.
No tools are required for assembly.
COMPONENTS
(1) Remote
(3) AAA Batteries
(6) Adjustable Legs
(1) Power Cord
(1) AC/DC Power Adapter
(1) Power Cord
(1) Emergency Battery Strip
(3) Mattress & Side Retainer Bars
TWIN XL/CKS SIZES ONLY
(1) Synchronization Cord
(1) Connecting Straps
(4) Velcro Securing Straps
Synchronization Cable
Mattress & Side
Retainer Bars
Connecting StrapVelcro Securing
Straps
SETUP GUIDE
1POWER CORD ASSEMBLY
Locate the control box built into the underside of the adjustable base. Connect
the control box power cord, the AC/DC Power Adapter, and the Power Cord.
Store the Emergency Battery Strip in a safe location in case of a power outage;
two 9-Volt batteries are required for operation and are not included.
2ZERO CLEARANCE
Designed to sit on top of a flat surface or compatible
bedframe, without the use of legs. Legs are not required.
SEE ZERO CLEARANCE SAFETY INFORMATION PAGE.
LEGS
Select the desired leg height. Screw the legs into all 6 designated leg holes.
SEE THE CONNECTING STRAPS PAGE
SETUP GUIDE
3
or
PLACEMENT
Return the adjustable base to an upright and secure location, then plug in
the power cord to an outlet.
MATTRESS HEIGHT REQUIREMENTS: 8” MINIMUM AND 14” MAXIMUM.
INSTALL THE MATTRESS RETAINER BAR AND SIDE BARS.
ADD 3 AAA BATTERIES (INCLUDED) TO THE REMOTE.
The remote control is pre-programmed to work with the adjustable base. If you
have more than one adjustable base, each remote control and adjustable base
set will work separately.
5
4
6
SETUP GUIDE
ZERO CLEARANCE 1 SEGMENT 2 SEGMENT 3 SEGMENTS 4 SEGMENTS
3” Overall Height 6” Overall Height 9” Overall Height 12” Overall Height 15” Overall Height
ADJUSTABLE BASE HEIGHT OPTIONS
SETUP
SETUP

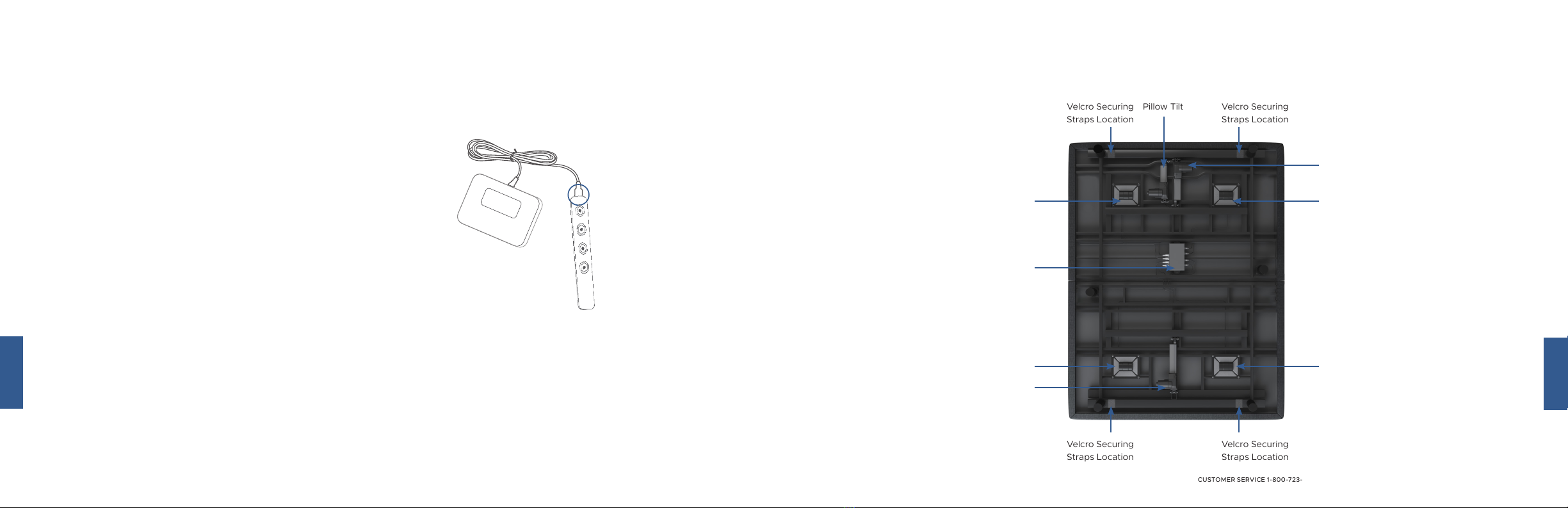

Master Control Box
Built into the underside of the
adjustable base
AC/DC Power Adapter
Power Cord
Input voltage 100-240V
CUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAYCUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAY

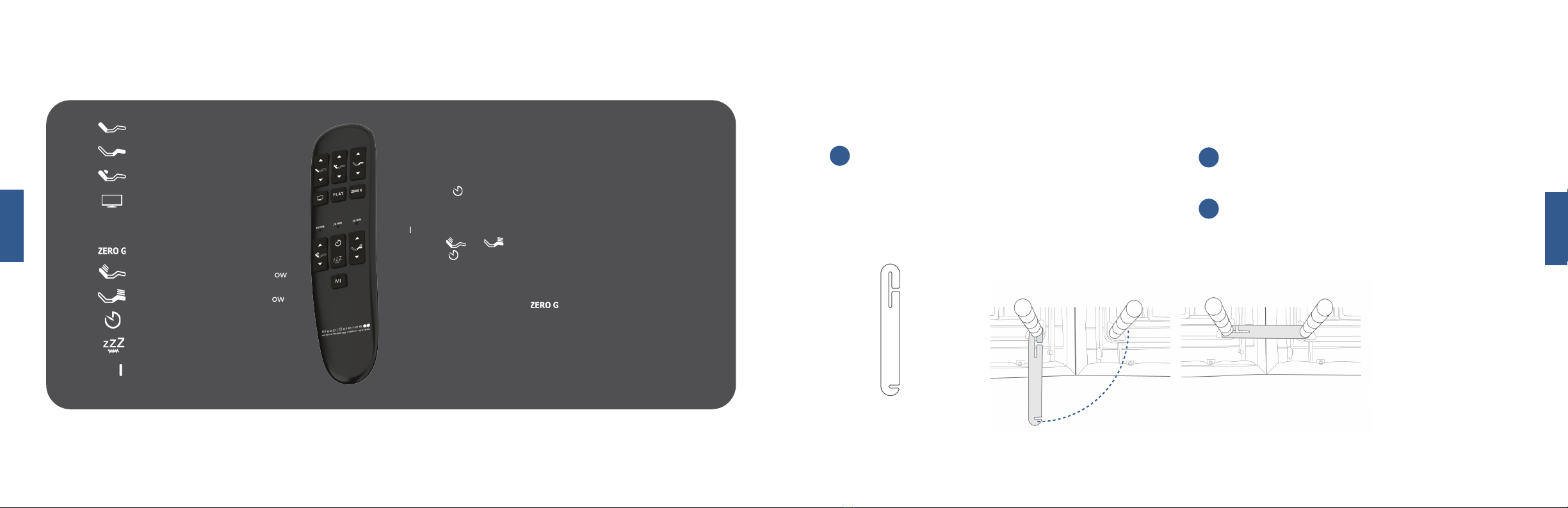

PAGE 8PAGE 9REMOTE
REMOTE
Head: Up/Down
Foot: Up/Down
Pillow Tilt: Up/Down
TV Lounge Preset
Flat Preset
Zero Gravity Preset
Head Massage: High / Med. / Low
Foot Massage: High / Med. / Low
Timer: 10 / 20 / 30 Minutes
Anti-snore Preset
Memory Button I
MEMORY BUTTON
To program a memory button: move the adjustable base into a desired
position, then hold the memory button down for 5 seconds.
DUAL MASSAGE
Press the : 1x for 10 minutes, 2x 20 for 20 minutes, and 3x for 30
minutes.
INDEPENENT MASSAGE + TIMER
1: Press or to the desired setting.
2: Press : 1x for 10 minutes, 2x 20 for 20 minutes, and 3x for 30
minutes.
RESET REMOTE PRESET POSITIONS
Simultaneously hold down and buttons for 7 seconds.
The remote will blink upon the reset.
BLUETOOTH REMOTE
Download the “Q-Plus Adjustable Remote” from the App
Store or Google Play Store. Follow the instructions for setup.
F L AT
F L AT
M
The remote control is pre-programmed to work with the adjustable base. If you have more than one adjustable base, each remote control and adjustable base set will work separately.
SETUP
With the adjustable bases in their desired location, slightly loosen both legs to
allow the strap to fit on the leg bolt, between the leg and frame.
(A)
(B)
CONNECTING STRAPS
Slide side (A) of the Connecting Strap onto the leg bolt. Swing the strap and
connect side (B) to the leg bolt. Secure the strap by shifting to the left.
Re-tighten legs. Do not over-tighten. Use the remaining strap and repeat on
other end of the adjustable base.
12
3
CONNECTING STRAPS
OPTIONAL FOR SPLIT KING OR SPLIT CAL KING ADJUSTABLE BASE SETS
The Connecting Straps will join two adjustable bases together to prevent drifting apart if they are not used within a bedframe.
SETUP
CUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAYCUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAY
PAGE 10 PAGE 11
SETUP
SETUP
Secure the adjustable base to the slat system by placing two Velcro Securing Straps at the head and two at the foot.
1
The Velcro Securing Straps are for zero clearance applications to secure the adjustable base to a bedframe slat system.
VELCRO SECURING STRAPS
OPTIONAL FOR SPLIT KING OR SPLIT CAL KING ADJUSTABLE BASE SETS
VELCRO SECURING STRAPSSYNCHRONIZATION CABLE
SYNCHRONIZATION CABLE
OPTIONAL FOR SPLIT KING OR SPLIT CAL KING ADJUSTABLE BASE SETS
2
3
4
1Unplug the adjustable bases from the power outlets.
Connect the Synchronization Cable to an open port on the control box or
splitter cable on each adjustable base. Only one synchronization cable is
required.
If the adjustable base is equipped with bluetooth: disconnect 1 of the 2 units to
prevent malfunctions and phantom movements. This bluetooth device will have
a blue blinking lights.
Plug the adjustable bases back into the power outlet.
Check to ensure all cords are securely attached.
Both remotes will now operate both adjustable bases simultaneously.
The synchronization cable will link two adjustable bases in movement and features.
Open Port Open Port
Synchronization Cable
5
CUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAYCUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAY
PAGE 12 PAGE 13
TROUBLESHOOTING
WARRANTY
FULL 1-YEAR WARRANTY
The Adjustable Base is warranted against defects in materials or workmanship for a
period of one year from the date of purchase to the original purchaser. During the first
year, manufacturer will repair or replace any defective part at no cost to the original
purchaser. This includes all authorized labor and shipping costs incurred with the repair
or replacement of any parts found to be defective.
2-YEAR LIFT MOTOR WARRANTY
The Adjustable Base has a two-year, full replacement warranty on the lift motors.
This includes labor and shipping, should the motor(s) fail during the first two years
of this warranty from the original purchase date.
5-YEAR WARRANTY
Year 2 through year 5, from the original purchase date, manufacturer will repair or
replace any defective part at no cost to the original purchaser. The part must be
returned within fourteen (14) days of receipt of the replacement part(s) or purchaser
may be subject to charges for said part(s) to include, but not limited to, freight charges.
Liability of manufacturer is limited to the replacement of the defective part or parts
ONLY, with purchaser responsible for all service, installation and transportation costs of
said part(s).
10-YEAR LIMITED WARRANTY
Year 6 through year 10 from the original purchase date, manufacturer will replace, per
the terms and conditions set forth in this paragraph, any Adjustable Base part found
to be defective. Any replacement part will be prorated at the discretion of South Bay
International. This warranty applies only to replacement part(s). Purchaser may be
subject to charges for said part(s) to include, but not limited to, freight charges. Liability
of manufacturer shall be limited to the replacement of the defective part(s) only, with
purchaser responsible for all service, installation and freight costs of said part(s).
10-YEAR LIMITED WARRANTY
ADDITIONAL TERMS AND CONDITIONS
Warranty does not include reimbursement for inconvenience, removal, installation,
setup, loss of use, shipping, or any other costs or expenses not expressly covered in this
warranty.
THIS WARRANTY DOES NOT APPLY:
* To damage resulting from misuse or abuse caused by the purchaser.
* To damage caused by the repairs or parts replacement by an authorized person.
* If the Adjustable Base has been mishandled subject to physical abuse or an
improper power supply, or otherwise operated in a manner inconsistent with
procedures outlined in the owner manual and warranty.
* To damage to mattresses, bedding, cables, electrical cords, or accessories
supplied by dealers.
* To modification of the Adjustable Base without prior written consent by
manufacturer.
* To costs for unauthorized service calls for the purpose of educating the
consumer about the Adjustable Base or locating properly functioning power outlets.
* If the weight limits are exceeded.
* If used in any environment or commercial setting for which it was not intended.
Some states do not allow the exclusion of incidental or consequential damages;
therefore the above limitation or exclusion may not apply. This warranty gives
the purchaser specific legal rights. The purchaser may have other rights, which may
vary from state to state. This warranty is valid in the 48 contiguous states.
WORKING WEIGHT LIMITS
Although your Adjustable Base has been rigorously tested within the recommended
limits in this publication, to maintain the highest quality standards, exceeding the weight
limits may void your warranty. The weight limit is 750 lbs. evenly distributed across the
Adjustable Base including the combined weight of mattress and users.
WARRANTY
TROUBLESHOOTING
TROUBLESHOOTING
IF ONE OR MORE FUNCTIONS ON THE ADJUSTABLE BASE HAVE
STOPPED OPERATING
* Check under the adjustable base to verify that the wired connections are secure and
that there are no cords or bedding obstructing the movement of the adjustable base.
* Check if the power cord is assembled properly and all the connections are secure.
* Check if the green LED is on the AC/DC power adapter is illuminated.
IF THE LIGHTS ON YOUR REMOTE CONTROL NO LONGER ILLUMINATE
AND WILL NOT OPERATE YOUR ADJUSTABLE BASE
* Make sure the batteries are installed correctly.
* Install three new AAA batteries in the remote control.
IF THE REMOTE CONTROL BUTTONS ILLUMINATE BUT ADJUSTABLE
BASE WILL NOT OPERATE
* Unplug the adjustable base for 5 minutes to reset the electronic components.
* Plug the adjustable base into a different electrical outlet, or test the current
outlet with another working appliance (a grounded, electrical surge protector is
recommended).
* If the steps above do not fix the issue, you can reset your remote frequency by
following the REMOTE FREQUENCY RE-PAIRING in the troubleshooting section.
IF YOUR PRESET POSITION IS NOT WORKING PROPERLY
* Reset your remote preset positions by holding down the zero gravity and flat position
button for 7 seconds; your remote will blink upon successful factory reset.
IF THE HEAD OR FOOT MECHANISMS WILL ELEVATE BUT WILL NOT
RETURN TO THE FLAT POSITION
* Check the undercarriage for obstructions. Remove any obstructions away from the
head and foot mechanisms and return the adjustable base to its flat position.
REMOTE FREQUENCY RE-PAIRING
The remote is pre-programmed to the adjustable base, however if the remote is
unresponsive, follow these steps:
* Check the batteries; replace if needed.
* If the remote illuminates: Unplug the power cord from the outlet.
* Wait 5 seconds plug it back into the outlet.
* Wthin 10 seconds of plugging the power cord into the outlet: Press and hold the PAIR
button on the back of the remote.
* The PAIR button will illuminate blue and start flashing. Release the PAIR button.
* Once the remote stops flashing the remote is paired to the adjustable base.
If the PAIR button continues to flash for more than a 3 seconds please contact Customer
Service for further troubleshooting.
CUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAYCUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAY
PAGE 14 PAGE 15
TROUBLESHOOTING
POWER OUTAGE – EMERGENCY BATTERY STRIP
In case of an electrical outage, the Emergency Battery Strip allows you to operate the
adjustable base without power to your home. Only use the Emergency Battery Strip to
lift or lower the adjustable base into your desired sleeping position.
* Disconnect the adjustable base(s) from the power outlet.
* Locate the Emergency Battery Strip and install two 9-volt batteries.
* Attach the Emergency Battery Strip to the power cord.
* After the electricty is restored, the Emergency Battery Strip must be removed
before plugging the adjustable base back into the power outlet.
WARNING: Using the Emergency Battery Strip while the adjustable base is plugged
into a power outlet may cause the electrical components to short out and damage the
Master Control Box.
TROUBLESHOOTING
REFERENCE GUIDE
REFERENCE GUIDE
Massage Motor
Foot Actuator
Massage Motor
Master Control Box
Massage Motor
Head Actuator
Massage Motor
Pillow TiltVelcro Securing
Straps Location
Velcro Securing
Straps Location
Velcro Securing
Straps Location
Velcro Securing
Straps Location
TROUBLESHOOTING
TROUBLESHOOTING
Emergency Battery Strip
Master Control Box
Mounted under the adjustable base
CUSTOMER SERVICE 1-800-723-0316 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAY
PAGE 16
FAQ
FAQ
WILL THE ADJUSTABLE BASE FIT INSIDE MY CURRENT BED FRAME?
Yes, we designed the adjustable base width and length to be 1/2” shorter than standard
bed sizes to ensure the adjustable base fits within most bed frames.
ADJUSTABLE BASE DIMENSIONS
Twin XL: 37.5”W x 79.5”L x 15”H
Full: 53.5”W x 73.5”L x 15”H
Queen: 59.5”W x 79.5”L x 15”H
Split King: (x2) 37.5”W x 79.5”L x 15”H
Cal King Split: (x2) 35.5”W x 83.5”L x 15”H
WHERE CAN I PURCHASE ACCESSORIES?
Call Customer Service for additional parts or accessories such as headboard/footboard
brackets, split top adapter, additional remotes, specialty bedding, etc; sold separately.
WHAT SHEET SIZE DO I PURCHASE FOR A SPLIT KING OR CAL KING
SPLIT MATTRESS?
Eastern Split King (EKS): Eastern King Split Sheet Set OR (2) Twin XL Sheets.
Cal King Split (CKS): Cal King Split Sheet Set.
SEE DIAGRAM TO THE RIGHT
EASTERN KING SPLIT (EKS) CALIFORNIA KING SPLIT (CKS)
California King
Split
Twin XL or
Twin Long
California King
Split
Twin XL or
Twin Long VS.
Overall sleeping surface area is the same in the EKS and CKS.
The EKS is wider by 4” and the CKS is longer by 4”.
72”
76” 36”
84”
80”
38” 38”
36”
FAQ
NEED TO TALK TO OUR COMFORT EXPERTS?
CALL 1-800-723-0316
CUSTOMER SERVICE HOURS: MONDAY THRU FRIDAY FROM 8:00AM TO 5:00PM PST
NOTES:
INTENTIONALLY LEFT BLANK

Popular Indoor Furnishing manuals by other brands

all33 BackStrong C1 Assembly instructions

all33

all33 BackStrong C1 Assembly instructions

Sauder Lateral File Pacific View 427360 manual

Sauder

Sauder Lateral File Pacific View 427360 manual

Allen + Roth 1650VA-48-285 manual

Allen + Roth

Allen + Roth 1650VA-48-285 manual

Serta SHELBY Assembly instructions

Serta

Serta SHELBY Assembly instructions

Touchboards 481A13 installation manual

Touchboards

Touchboards 481A13 installation manual

Regalo 1350 owner's manual

Regalo

Regalo 1350 owner's manual

HF 6850-75201T-80 Assembly instruction

HF

HF 6850-75201T-80 Assembly instruction

SEI MS089100TX-Berry Blue Assembly instructions

SEI

SEI MS089100TX-Berry Blue Assembly instructions

Showcases Direct DL400 Assembly instructions

Showcases Direct

Showcases Direct DL400 Assembly instructions

BDI ZONA Assembly instructions

BDI

BDI ZONA Assembly instructions

Argos 875/5429 Assembly instructions

Argos

Argos 875/5429 Assembly instructions

Mooreco 66661 Assembly instructions

Mooreco

Mooreco 66661 Assembly instructions

Habitat My Mia 822865 manual

Habitat

Habitat My Mia 822865 manual

Focal Locus Assembly

Focal

Focal Locus Assembly

Songmics VASAGLE OPS02 quick start guide

Songmics

Songmics VASAGLE OPS02 quick start guide

Forte TDHK233 Assembling Instruction

Forte

Forte TDHK233 Assembling Instruction

AMIX EX005 Assembly instruction

AMIX

AMIX EX005 Assembly instruction

Manhattan Comfort 10GMC1 Assembly guide

Manhattan Comfort

Manhattan Comfort 10GMC1 Assembly guide

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
